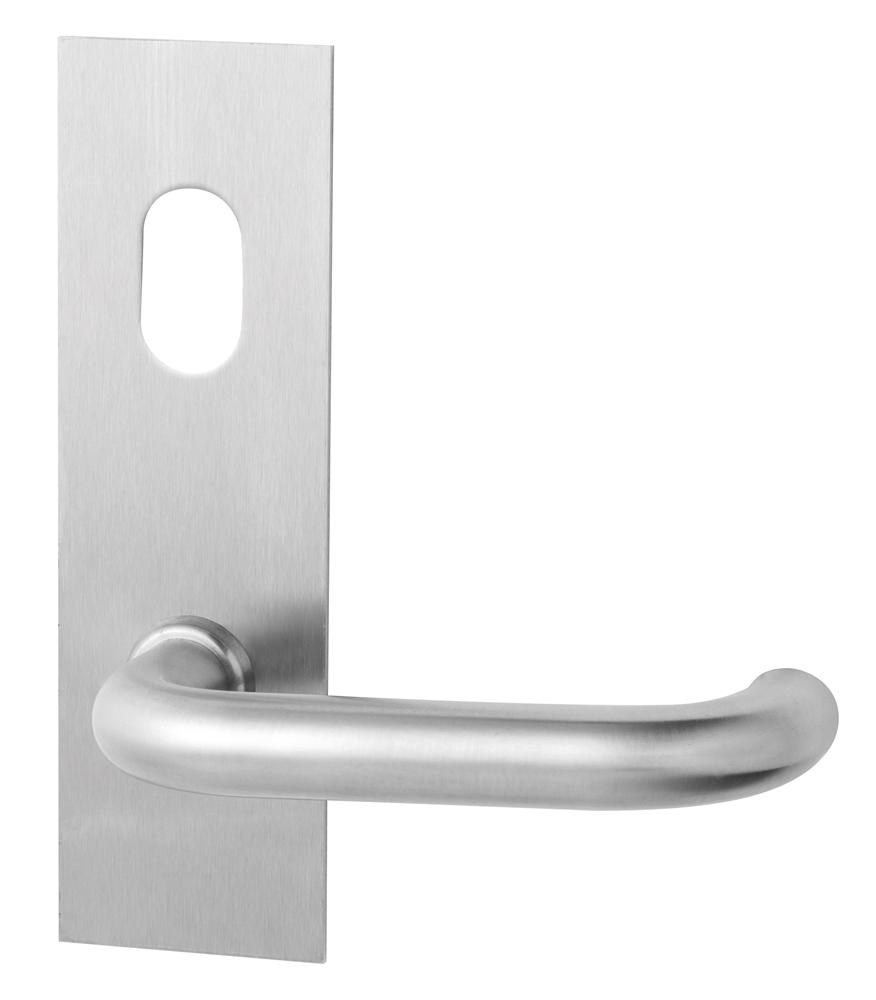

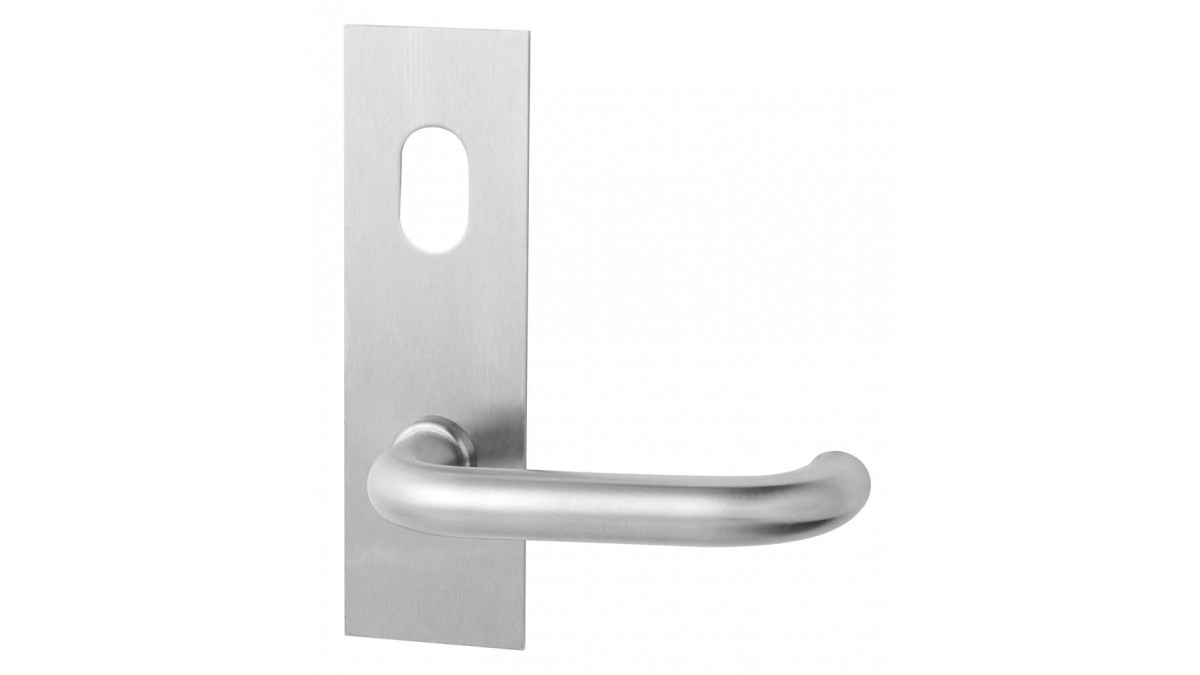

Lockwood Lever & Push/Pull Furniture: Artefact Range 224 Series Rectangular Plate
Description

The 224 Series Door Furniture is 162mm long x 50mm wide with square ends. Concealed fixed plates have studs with internal threads located top and bottom, visible fixed plates have corresponding countersunk holes and are fixed back to back through the door.

Key Features
  • Designed for use with Lockwood 3570 Series Mortice Latches
  • Standard finish: Stainless Steel (SS)
  • Door thickness: 35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208
  • Dimensions: 162x50x2mm
Scope of Use
  • Designed for use with Lockwood 3570 Series Mortice Latches
  • Door thickness: 35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208
Documents
Additional Information

ASSA ABLOY specialise in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
