Triton Avant 15
Description

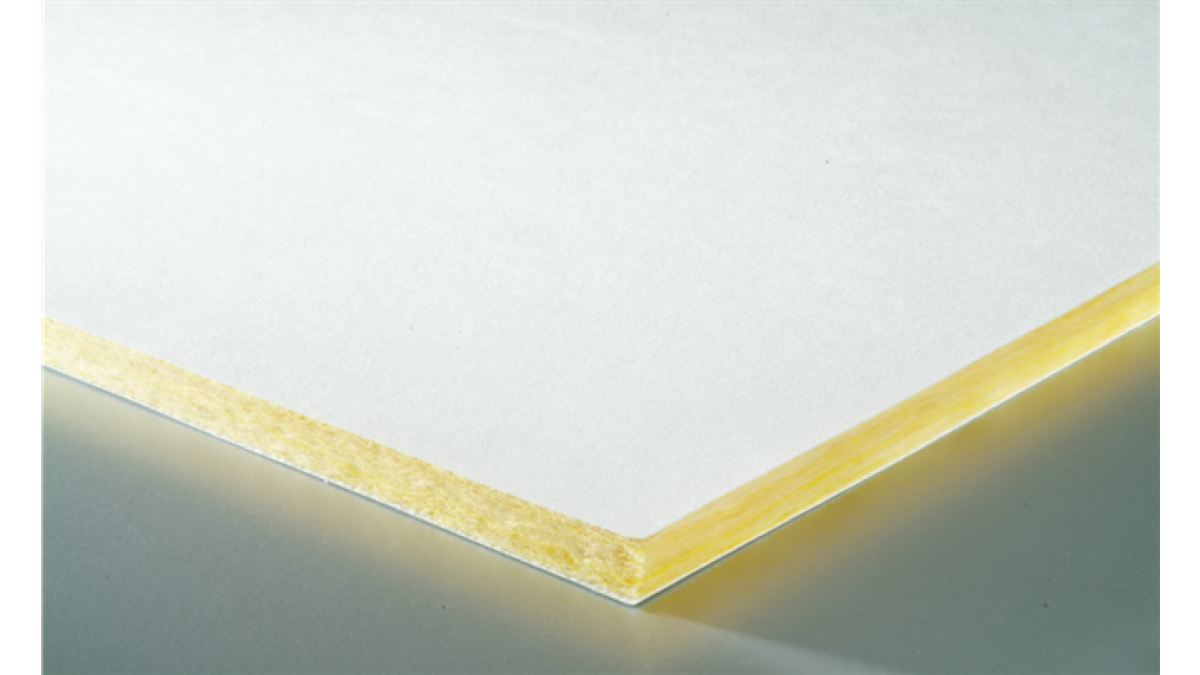

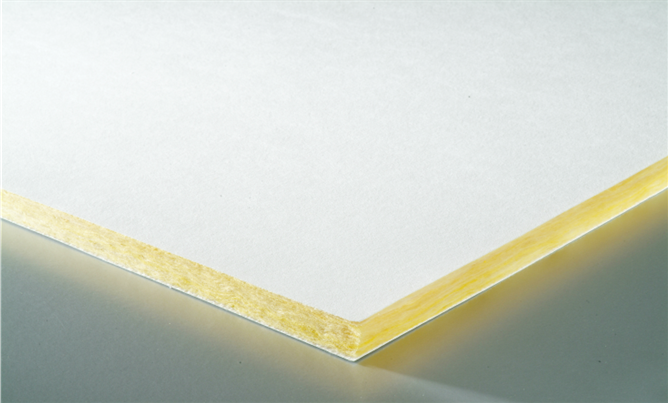

Triton Avant 15™ is a New Zealand made acoustic ceiling panel with single ply glass tissue facing for maximum economy. Panels are available in standard white and black. Panels fit to Rondo Donn® DX® exposed grid system.

Key Features
  • Economical NRC 0.85 acoustic ceiling panel, ideal for price sensitive projects which prioritise price over performance.
  • Made in NZ, short lead times including replacement parts.
  • Fire group 1-S.
  • Economical white or black glass tissue facing.
  • Packaging take back and reuse scheme available
  • Product stewardship renew and reuse program
  • Durable and dimensionally stable in high humidity.
  • Light weight for seismic areas, easy to work and trim.
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
Scope of Use

Triton Avant 15 is ideal for retail shops, clubs, bars, restaurants, general office and schools where an economical black or white acoustic ceiling is desired.

Suitable for fire exit way and all other sprinklered & non sprinklered buildings.

Limitations on Use
  • For interior use only, and not in direct contact with water.
  • Installation shall not commence until the building is watertight and dry
  • Light fittings shall be independently supported
  • Back loading — No overlay loads, M&E services and point loads shall be independently supported
  • Max 99% R/H at 45°C
  • Use hold down clips in areas for seismic or wind uplift
  • Not for air return plenums
Statement of Building Code Compliance

NZ Building Act

  • This product is not subject to a warning or ban under Section 26.

NZ Building Code Compliance:

  • B2 Durability – Clause B2.3.1 (c) (i): Asona ceiling tiles with only normal maintenance will have a minimum durability of at least 5 years when  installed in accordance with; manufacturer’s installation requirements and AS/NZS 2785:2020.
  • C3 Fire – Clause C/AS2 4.12.1: Asona Triton Avant 15 has a Fire Material Group Number 1-S by NZBC Building Product Specification Parts 8.5.4 or 8.5.5, tested in accordance with ISO 9705 or ISO 5660.
In-Service History

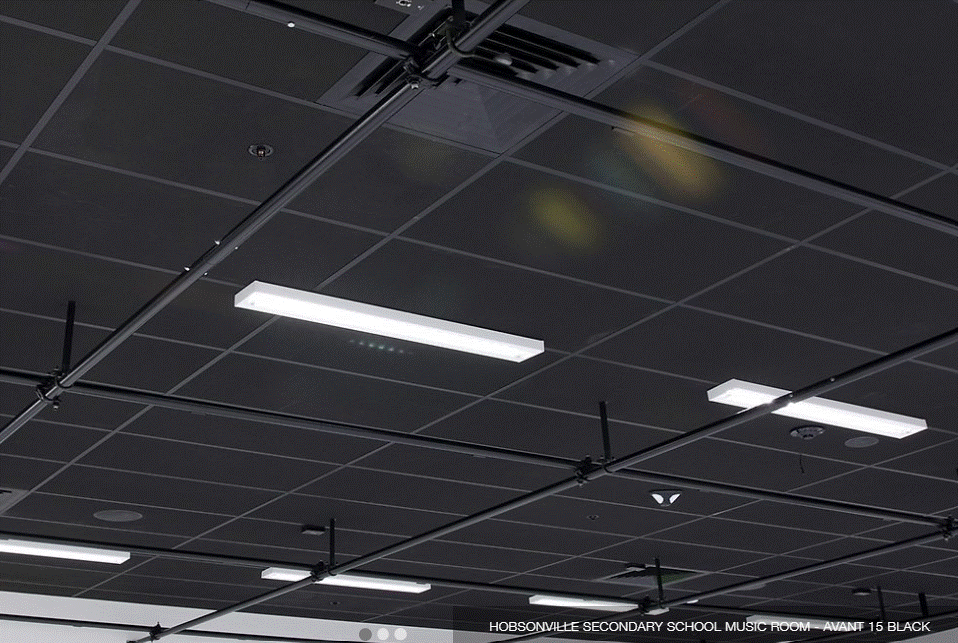

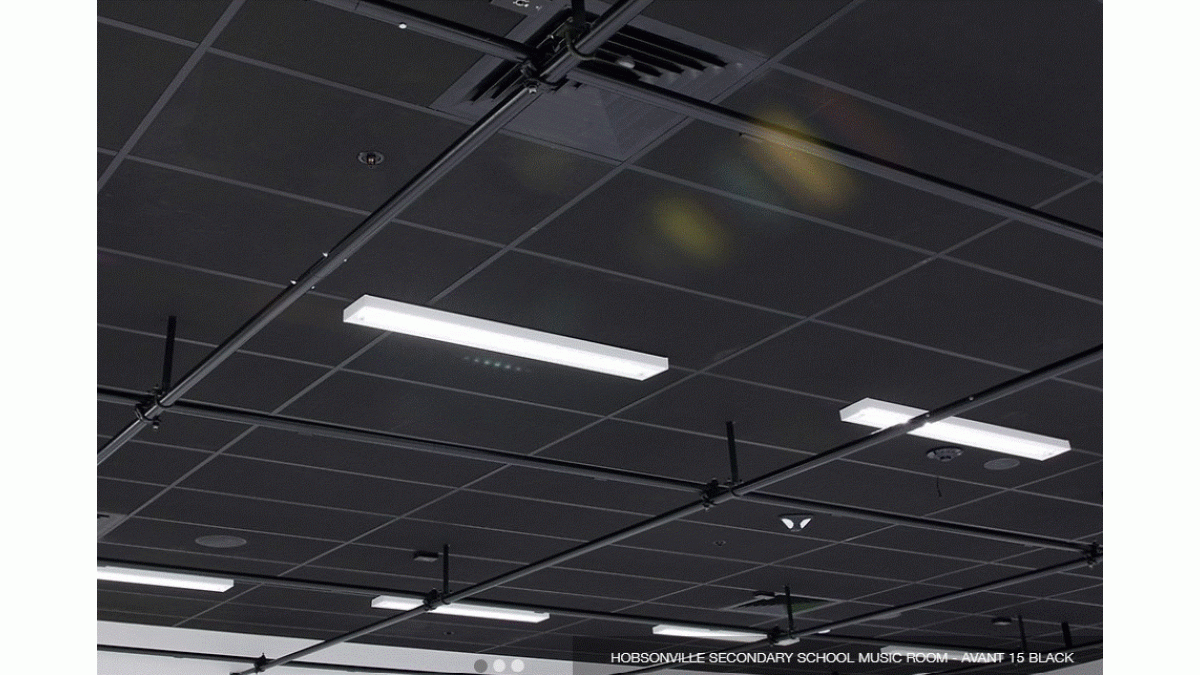

Multiple projects where budgets are tight, but a good level of NRC is required.

Other Performance Attributes
  • Light Reflectance —83% per BS8493:2008, White
  • Very high sound absorption rating to control reverberation, NRC 0.85
  • Board formed from 80% recycled local glass
  • Low VOC < 0.05
  • Product stewardship renew and reuse program available
  • Packaging take back and reuse scheme available
Test Results
Test Results
Documents
Triton Avant 15

26.08

Asona Ltd are a manufacturer, distributor and installer of acoustic and decorative ceiling and wall panels.
