Triton 100 by Asona

Triton 100

Asona

All products

Product Enquiries

Description

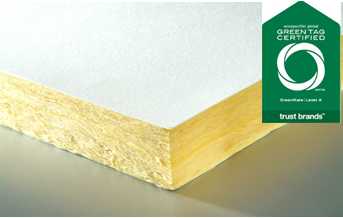

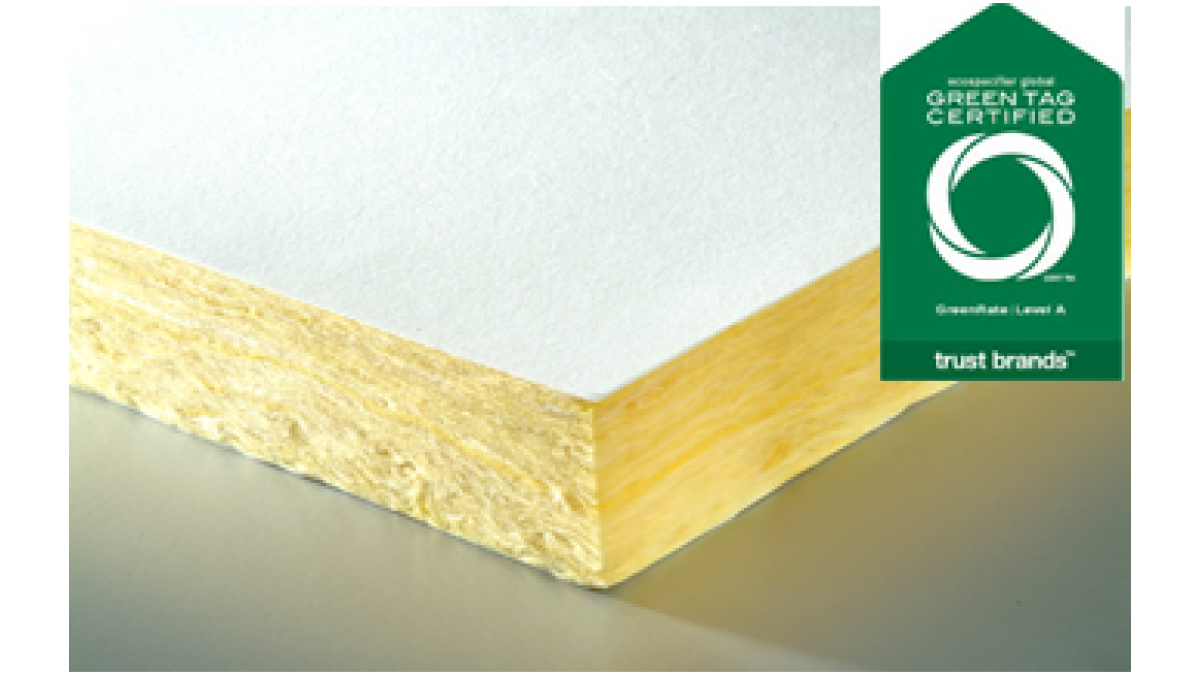

Triton 100™ is a made in New Zealand 100mm thick high sound absorbing and thermal insulating ceiling panel.

Triton panels are available in a wide range of sizes and decorative colours, wood prints, perforated acoustic patterns and Hygiene laminates for design freedom.

Triton 100™ is designed to provide R3.0 thermal insulation and exceptional low, mid and high frequency sound absorption.

Key Features

100mm thick for effective broad band sound absorption especially at low frequency, NRC 1.05, ISO class A, αW 1.0
R3.0 thermal insulation, ideal for building upgrades
Fire group 1-S
Ministry of Education DQLS V3.1 2024 compliant solution
Broad range of plain Sonatex acoustic laminate finishes for design flexibility
Made in NZ for short lead times including replacement parts
Product stewardship renew and reuse program available
Packaging take back and reuse scheme available
GreenTag Certified Level A, low VOC, core contains 80% recycled post consumer waste glass
Durable and dimensionally stable in high humidity
Light weight for seismic, easy to work and trim
Large panels 2400 x 1200mm, direct fix with frame.
Optional Sonatex Hygiene laminate facing.

Ranges

Thermal Triton Sonaris Hygienic Decorative

NZ Made

NZ-Owned Business

Pre-Consumer Recycled Content

Scope of Use

Triton 100™ is ideal for thermal and acoustic upgrade of class rooms, halls and applications that require control of low frequency reverberation such as music rooms, recording studios, audiology testing rooms.

Suitable for fire exit way and all other sprinklered & non sprinklered buildings
R3.0 thermal insulation, ideal for building upgrades
Ministry of Education DQLS V3.1 2024 compliant solution
Large panels 2400 x 1200mm, direct fix with frame
Durable and dimensionally stable in high humidity
Light weight for seismic, easy to work and trim

Limitations on Use

For interior use only, and not in direct contact with water.
Not for use with negative air return plenums.
Maximum humidity/temperature 99% R/H at 45°C.
Back loading max. 1.5kg/m², point loads to be independently supported.
For 1200 x 1200mm panels use DXW wide faced grid.
For 1200 x 2400mm panels use direct fix with cover battens

Statement of Building Code Compliance

NZ Building Act:

This product is not subject to a warning or ban under Section 26.

NZ Building Code Compliance:

B2 Durability – Clause B2.3.1 (c) (i): Asona ceiling tiles with only normal maintenance will have a minimum durability of at least 5 years when installed in accordance with; manufacturer’s installation requirements and AS/NZS 2785:2020.
C3 Fire – Clause C/AS2 4.12.1: Asona Triton 100 has a Fire Material Group Number 1-S by NZBC Building Product Specification Parts 8.5.4 or 8.5.5, tested in accordance with ISO 9705 or ISO 5660. (NCC BCA C1.10 clause 4, spec A2.4 clause 4. Group 1)

In-Service History

Multiple projects nationally, including schools.

Other Performance Attributes

Light Reflectance — 85% per BS8493:2008, White
Very high sound absorption rating to control reverberation, NRC 1.00, ISO 11654 class A, αW 1.0.
Green Tag Certified level A, low VOC, core contains 80% recycled post consumer waste glass
Board formed from 80% recycled local glass
Low VOC < 0.05
Product stewardship renew and reuse program available
Packaging take back and reuse scheme available
Optional Sonatex Hygiene laminate facing
