• Pyramid 3D is designed to fit into standard Rondo DONN® suspended ceiling grid.
• Ideal for music rooms, performance halls, theatres where speech intelligibility and music tone quality is desirable.

• For interior use only, and not in direct contact with water.
• Installation shall not commence until the building is water tight and dry.
• Lay panels into standard Rondo Donn DX1H two way exposed grid system with minimum of 200 mm plenum to allow for placement of panels.
• Use hold down clips in seismic areas
• Max 95% R/H at 30°C
• No back loading

NZ Building Act:

• This product is not subject to a warning or ban under Section 26.

NZ Building Code Compliance:

• B2 Durability – Clause B2.3.1 (c) (i): Asona Pyramid 3D ceiling tiles with only normal maintenance will have a minimum durability of at least 5 years when installed in accordance with; manufacturer’s installation requirements and AS/NZS 2785:2020.
• C3 Fire – Clause C/AS2 4.12.1: Asona Pyramid 3D has a Fire Material Group Number 1-S by NZBC Building Product Specification Parts 8.5.4 or 8.5.5, tested in accordance with ISO 9705 or ISO 5660 based on fibre glass reinforced gypsum fire reaction Group rating.

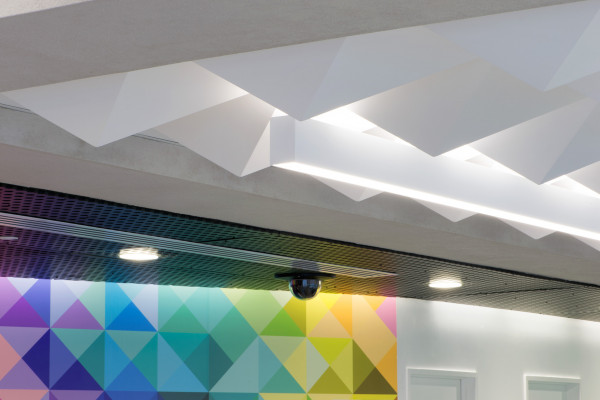

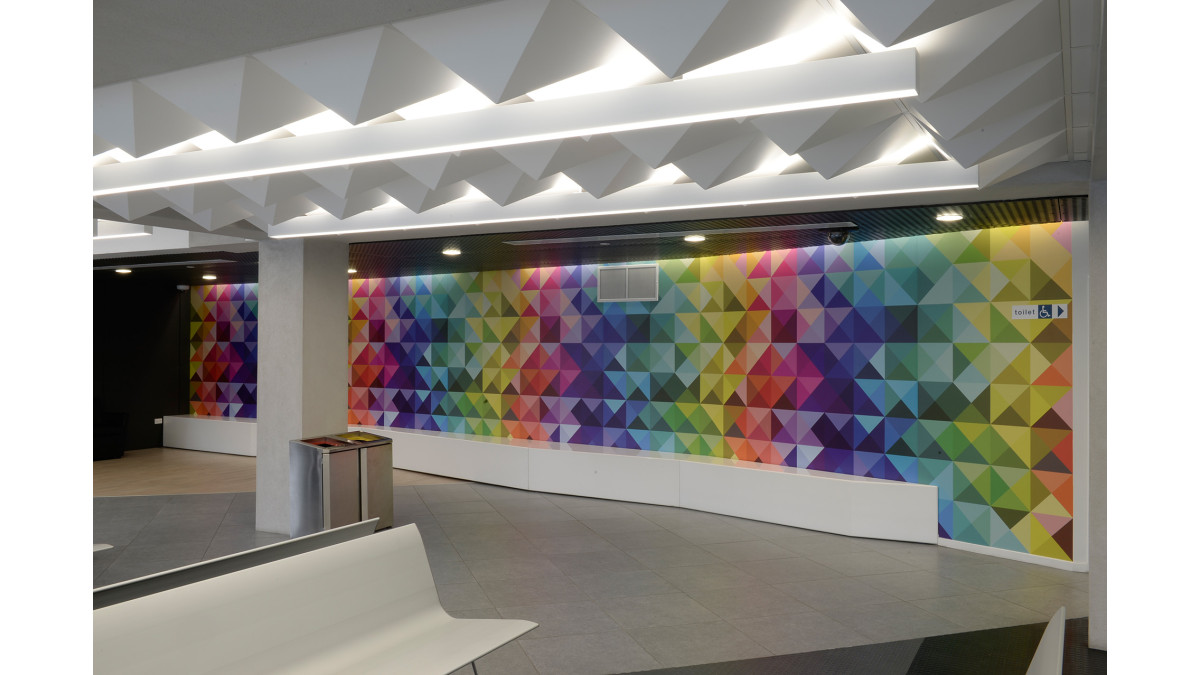

• Riccarton Bus Lounge

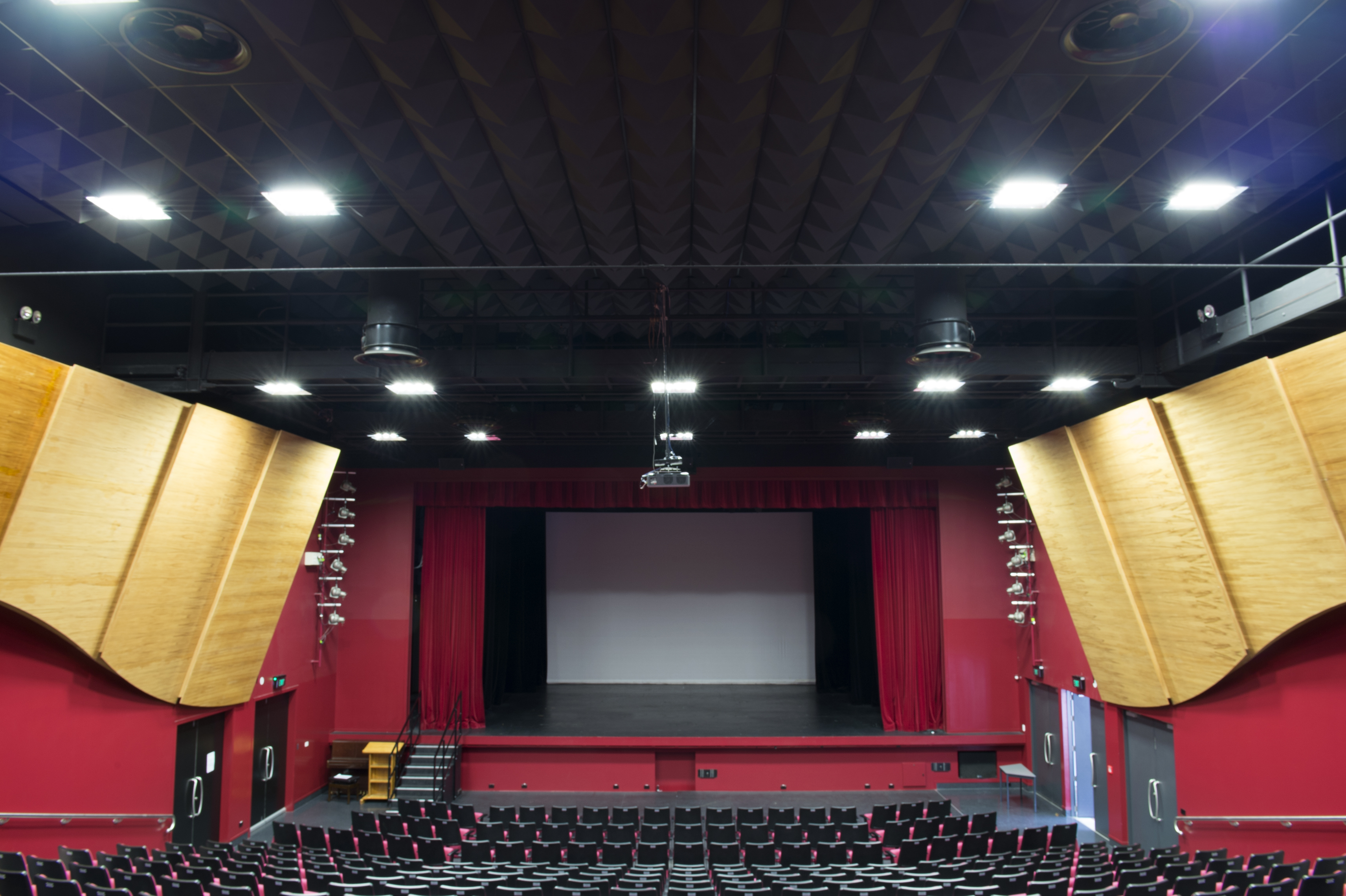

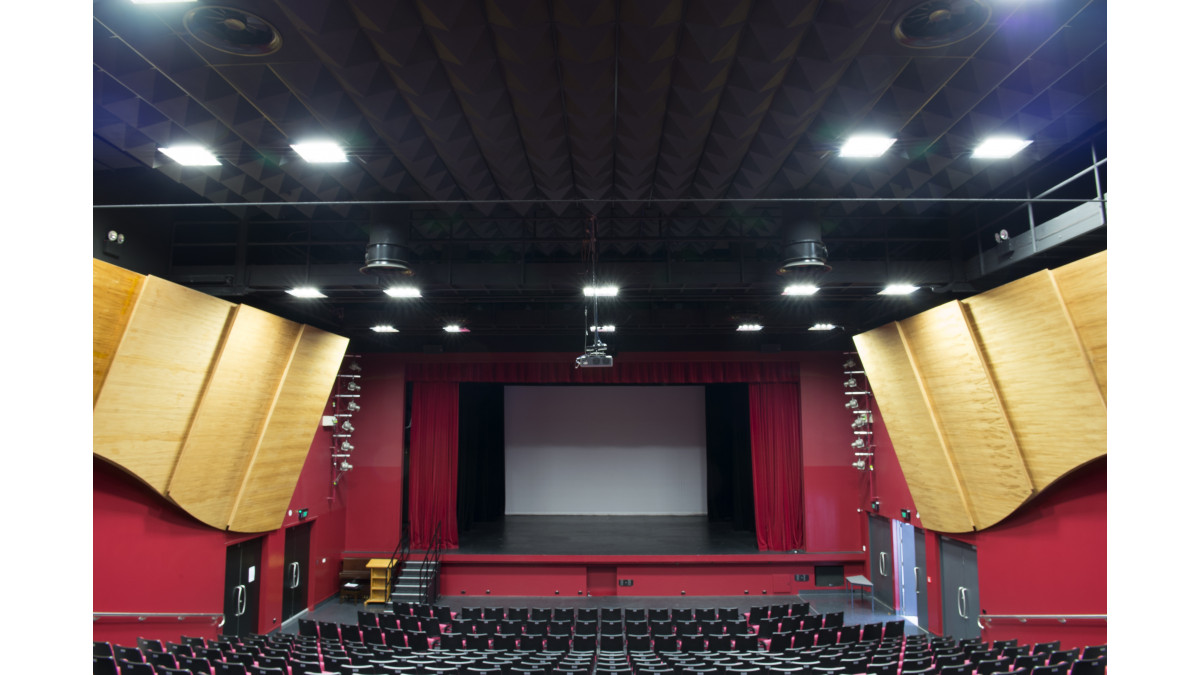

• Pinehurst School

• Light Reflectance: ASTM C1477 LR-1, >75%
• Fire Group 1-S
