OWA Sinfonia C Acoustic Ceiling Panels
Description

OWA Sinfonia C is a 15mm thick fleece covered mineral fibre acoustic ceiling panel designed to provide NRC 0.70 and CAC 35.

Sinfonia C offers a cost effective ceiling solution for general offices with a high quality, plain white fleece surface.

15mm thick wet felt hard mineral fibre ceiling panel with a smooth plain white fleece facing.

Key Features
  • Balanced acoustic performance for general and open plan office spaces
  • High sound absorption, NRC 0.70
  • CAC 35 for attenuation of room to room noise
  • Global GreenTag certified, Level A
  • Durable mineral fibre ceiling panel
  • Fine plain finish & high light reflectance
  • Fire Group 1-S
  • Easy to trim and install
  • Made in Germany for quality assured performance
NZ-Owned Business
NZ-Owned Business
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
Scope of Use

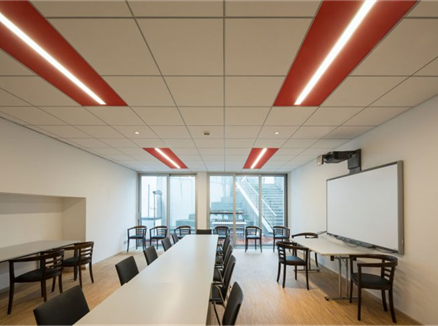

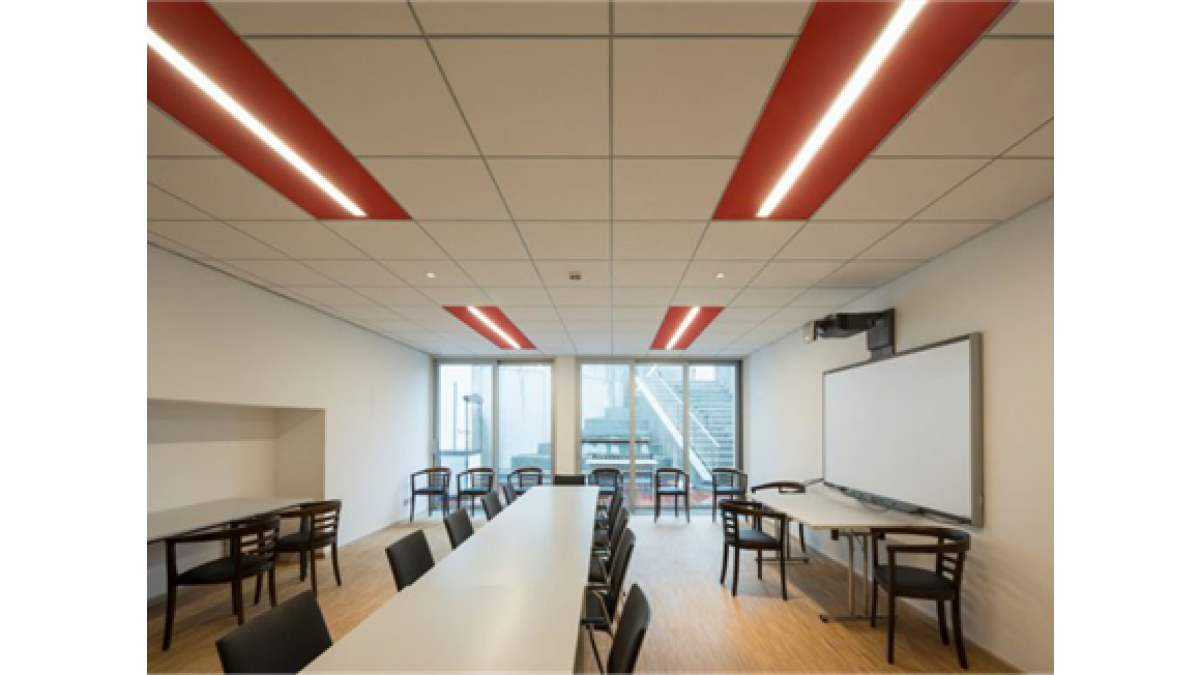

OWA Sinfonia C has an attractive subtle appearance that can look good in open and closed plan offices, meeting rooms, corridors as well as auditoria and foyers.

  • Suitable for fire exit way and all other sprinklered & non sprinklered buildings.
Limitations on Use
  • For interior use only, and not in direct contact with water.
  • Maximum humidity/temperature 99% R/H at 30°C.
  • Back loading max. 0.5kg/m², point loads to be independently supported.
  • Indent only, lead times and MoQ apply.
Statement of Building Code Compliance

NZ Building Act:

  • This product is not subject to a warning or ban under Section 26.

NZ Building Code Compliance:

  • B2 Durability – Clause B2.3.1 (c) (i): OWA ceiling tiles with only normal maintenance will have a minimum durability of at least 5 years when installed in accordance with; manufacturer’s installation requirements and AS/NZS 2785:2020.
  • C3 Fire – Clause C/AS2 4.12.1: OWA Sinfonia C has a Fire Material Group Number 1-S by NZBC Building Product Specification Parts 8.5.4 or 8.5.5, tested in accordance with ISO 9705 or ISO 5660.
Other Performance Attributes
  • Light Reflectance > 84% per ISO 7724-2/3, White
  • Product stewardship renew and reuse program available
  • Packaging can be recycled
  • Renew and Reuse scheme available
  • Global GreenTag certified, Level A
  • Fire Group 1-S
  • High sound absorption, NRC 0.70
Green Tag Certified
Green Tag Certified
Test Results
Test Results
Documents
OWA Sinfonia C

26.08

Environmental Information - GreenTag Level A: OWA

250430

Asona Ltd are a manufacturer, distributor and installer of acoustic and decorative ceiling and wall panels.
