ARDEX Torch-Applied Tanking System
Description

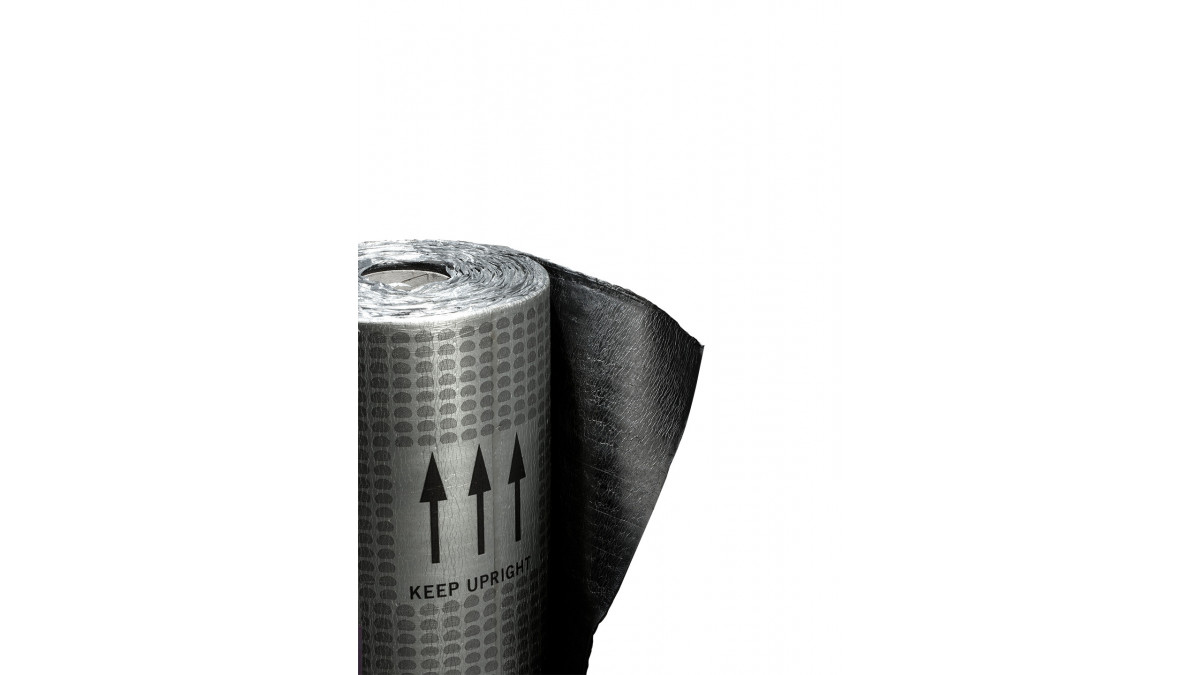

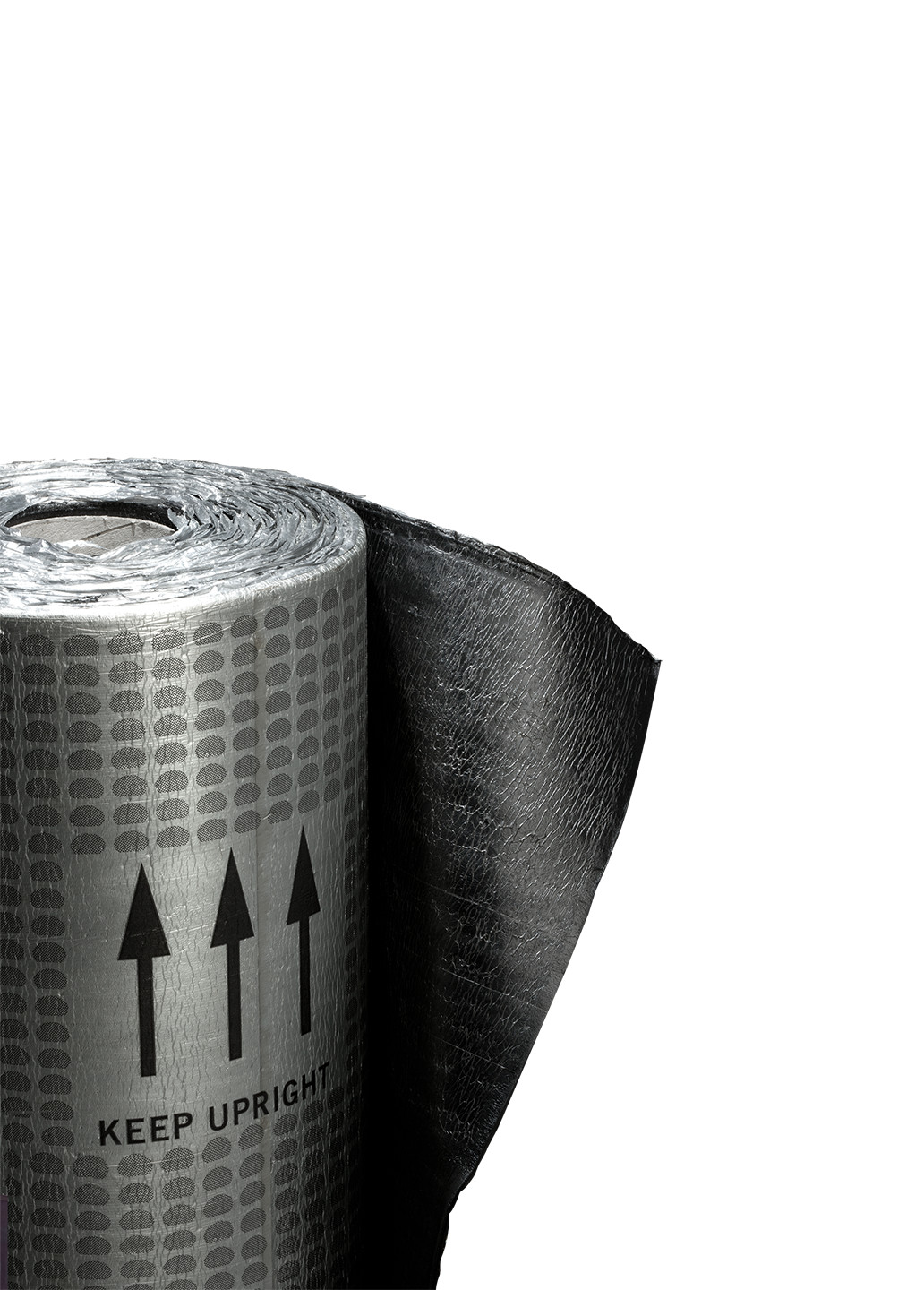

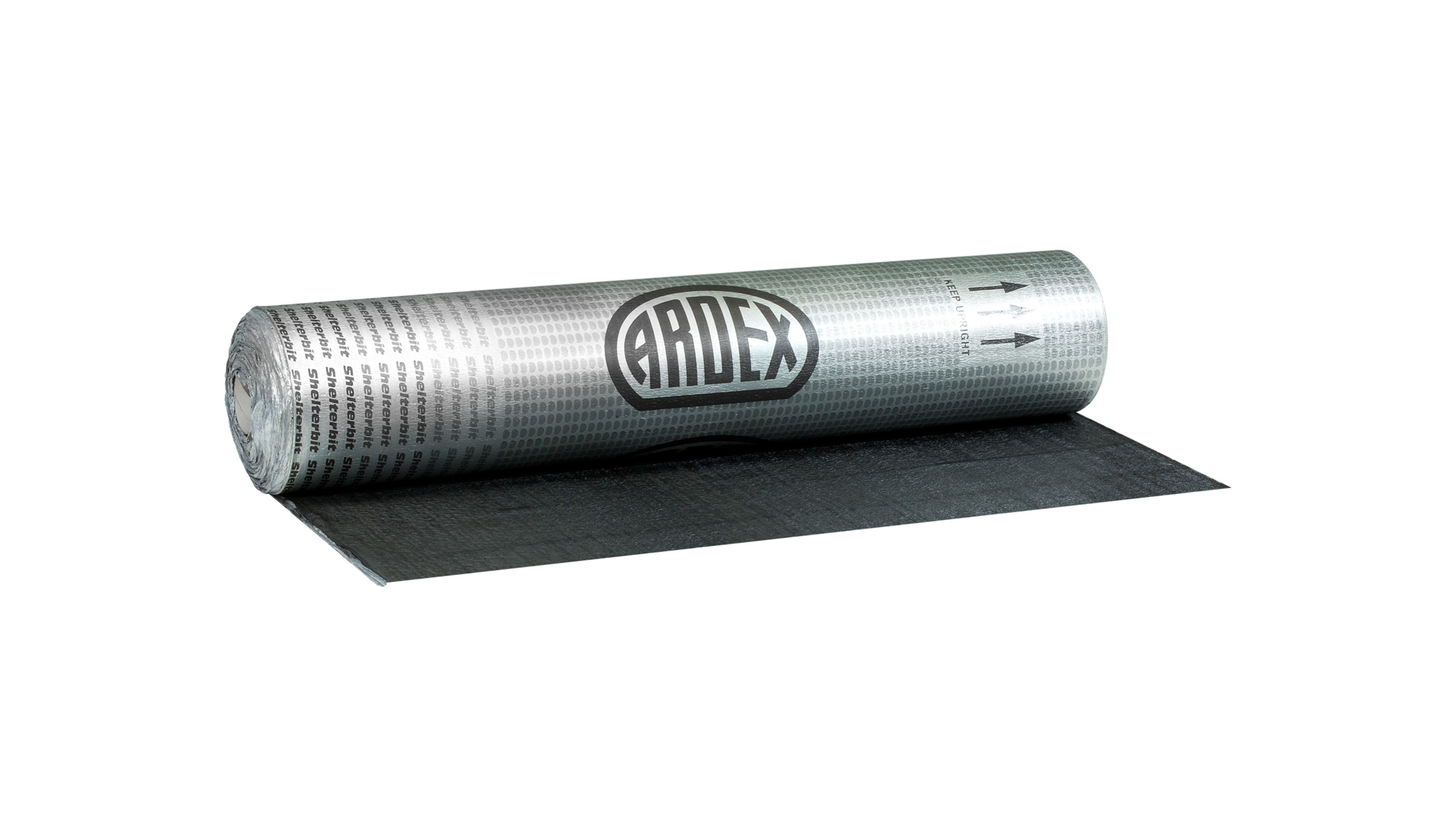

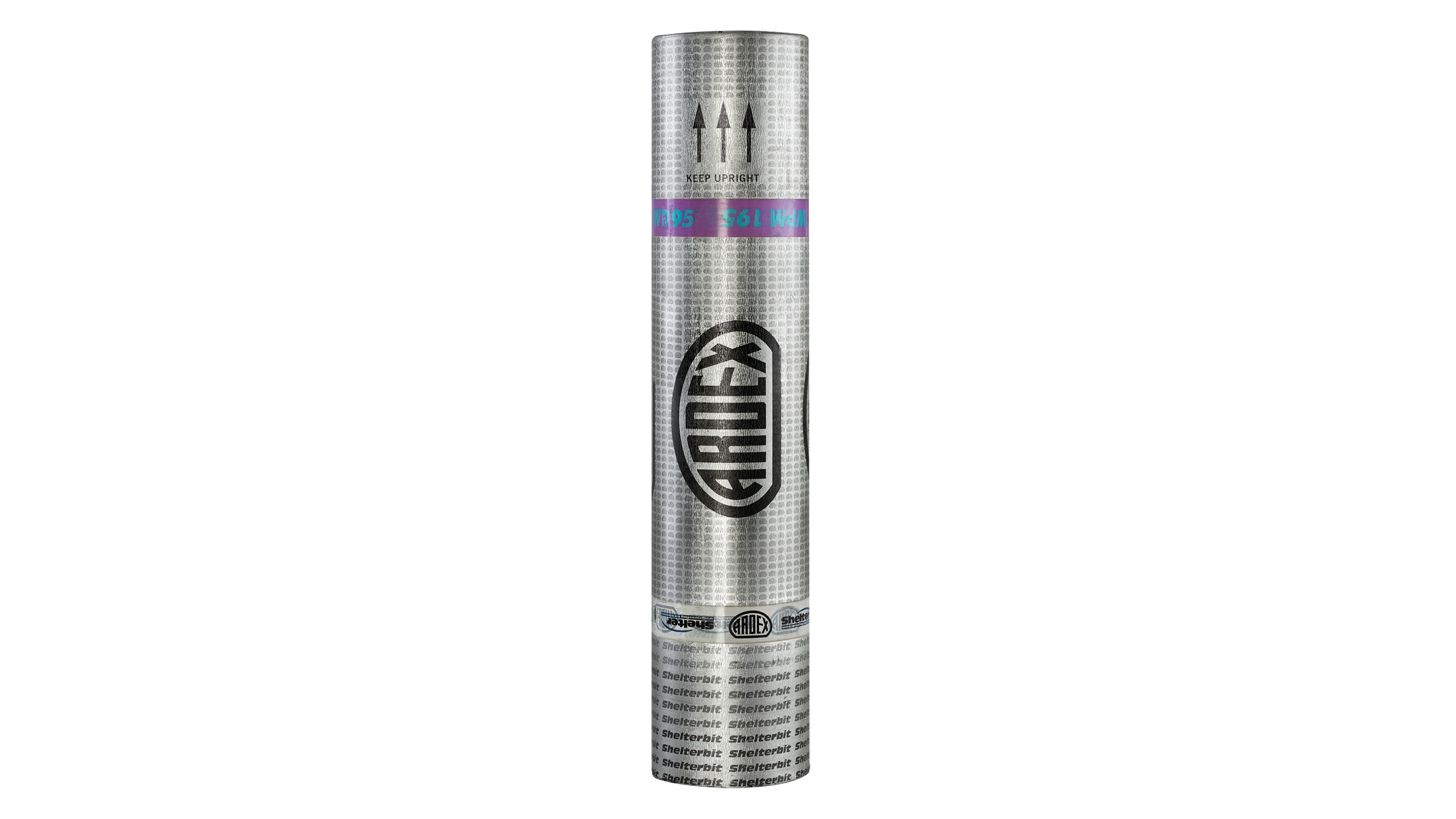

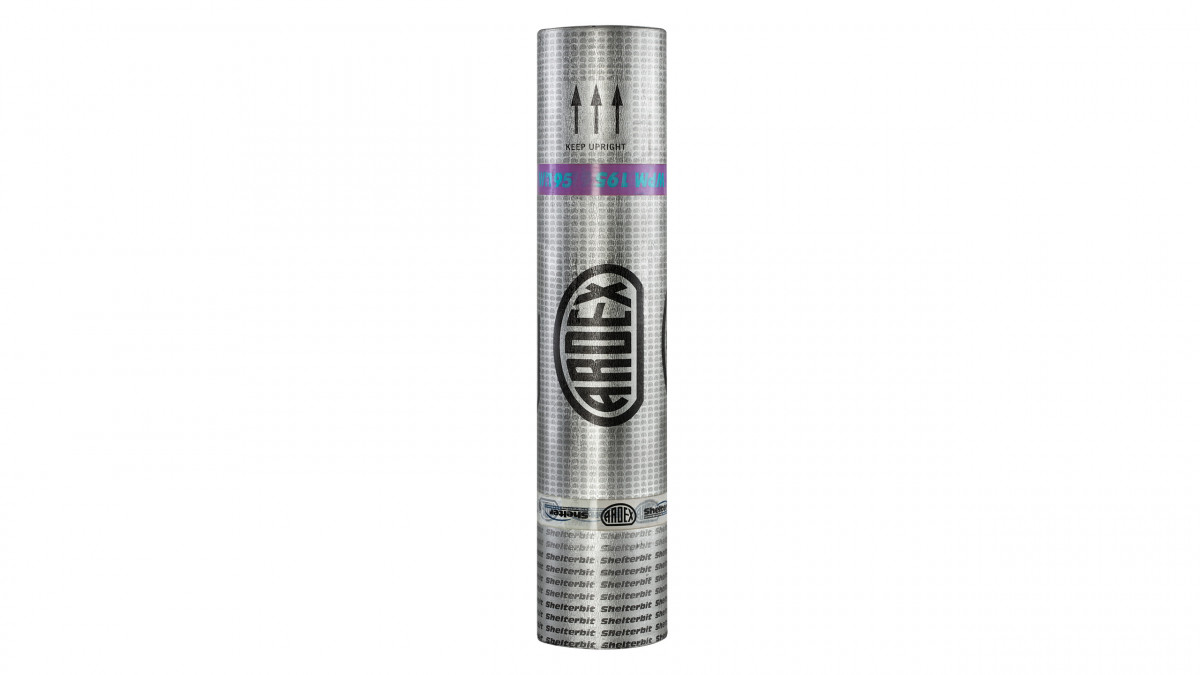

ARDEX WPM 195 is a high-performance Styrene-Butadiene-Styrene (SBS) bituminous compound modified with adhesive elasto-plastomeric polymers. Its excellent quality is highlighted by two indicators: cold flexibility and high adhesiveness. The exceptional elongation properties of SBS, combined with the strength and dimensional stability of the reinforcing, provides an excellent waterproofing membrane in below ground applications.

ARDEX WPM 195 is coated with a sanded polymeric film PE/PP, while the bottom surface is embossed and protected by a heat-sensitive polythene film. ARDEX WPM 195 is suitable for application in all climatic zones; with excellent cold flexibility (- 20° C), enables an easy application and allows the membrane to be ideally suited to be applied in areas with harsh climates.

ARDEX WPM 195 also has the European CE certification for use as a tanking membrane as well as a local CodeMark Certification (No. CM70013)

System Products:

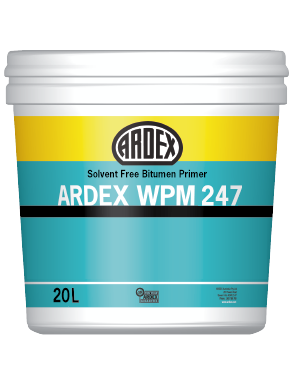

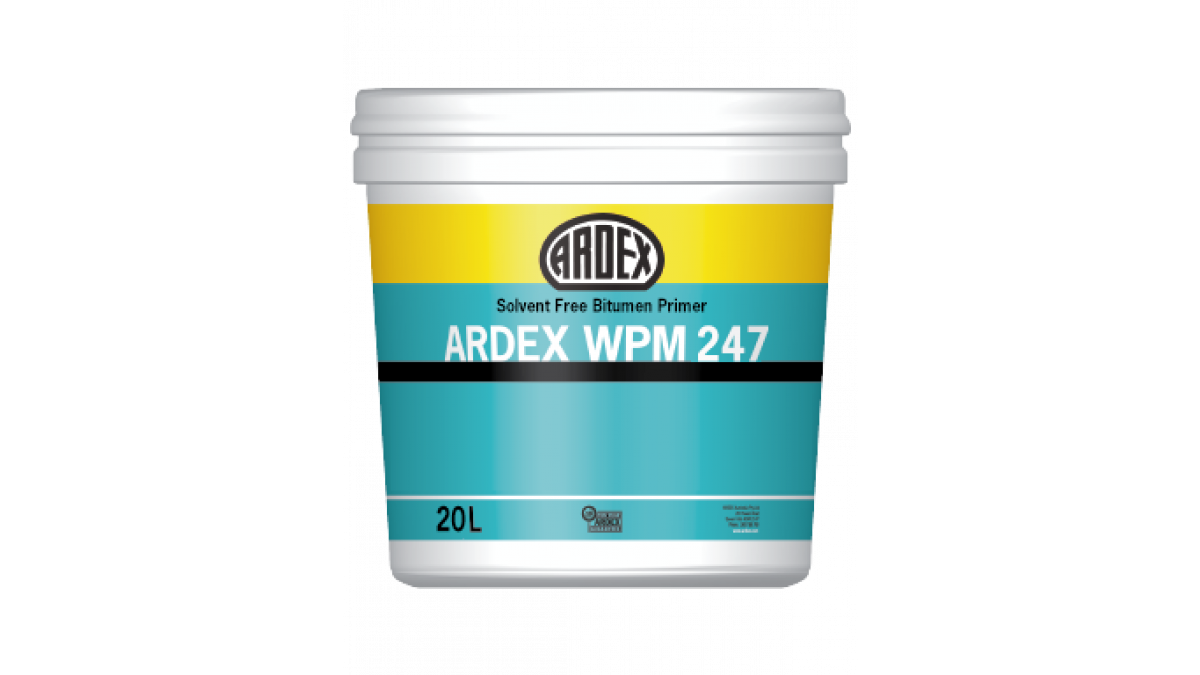

  • Water-based Primer ARDEX WPM 247
  • Torch On Membrane ARDEX WPM 195

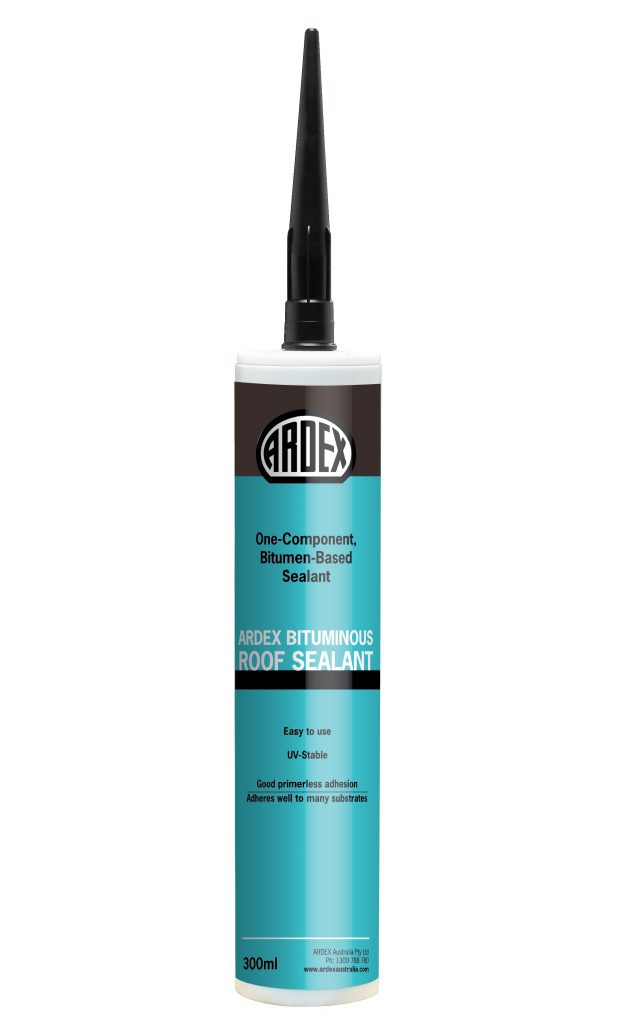

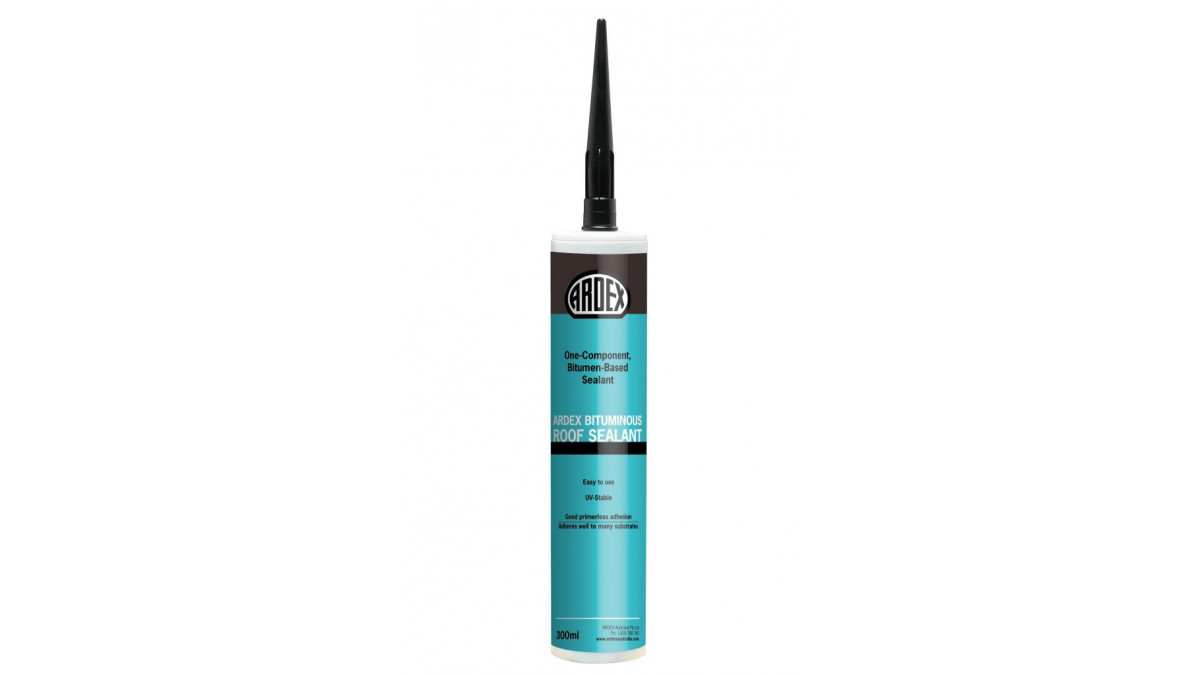

  • ARDEX Bituminous Sealant

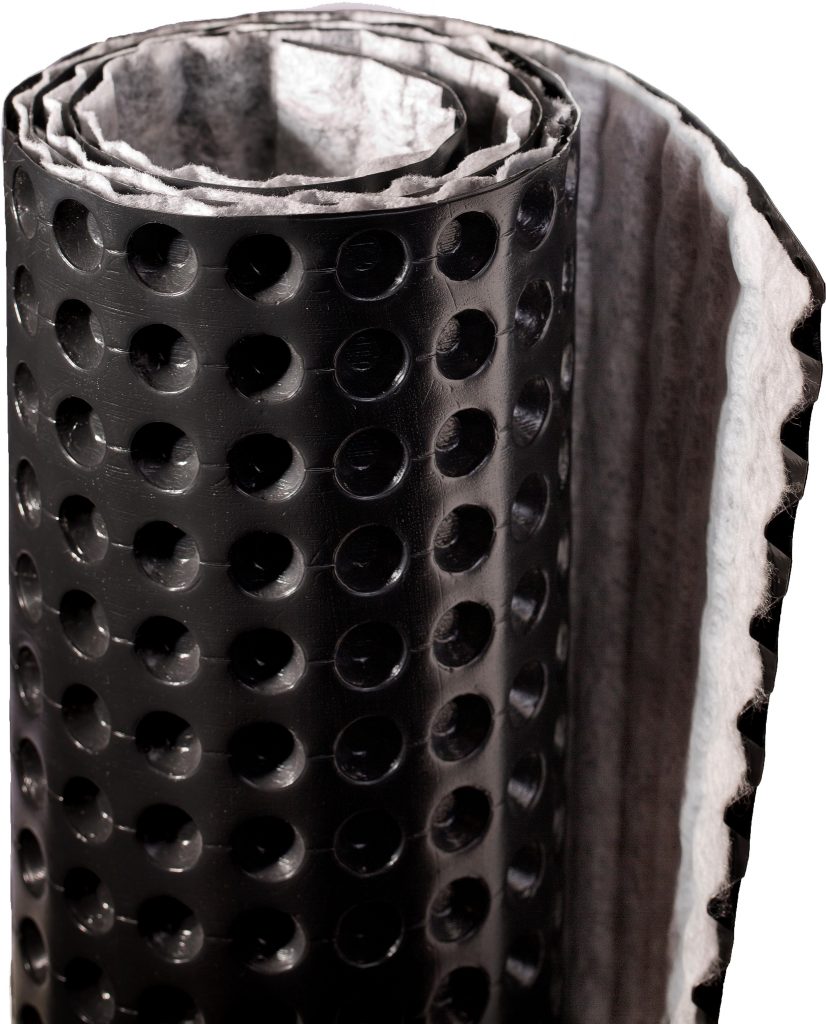

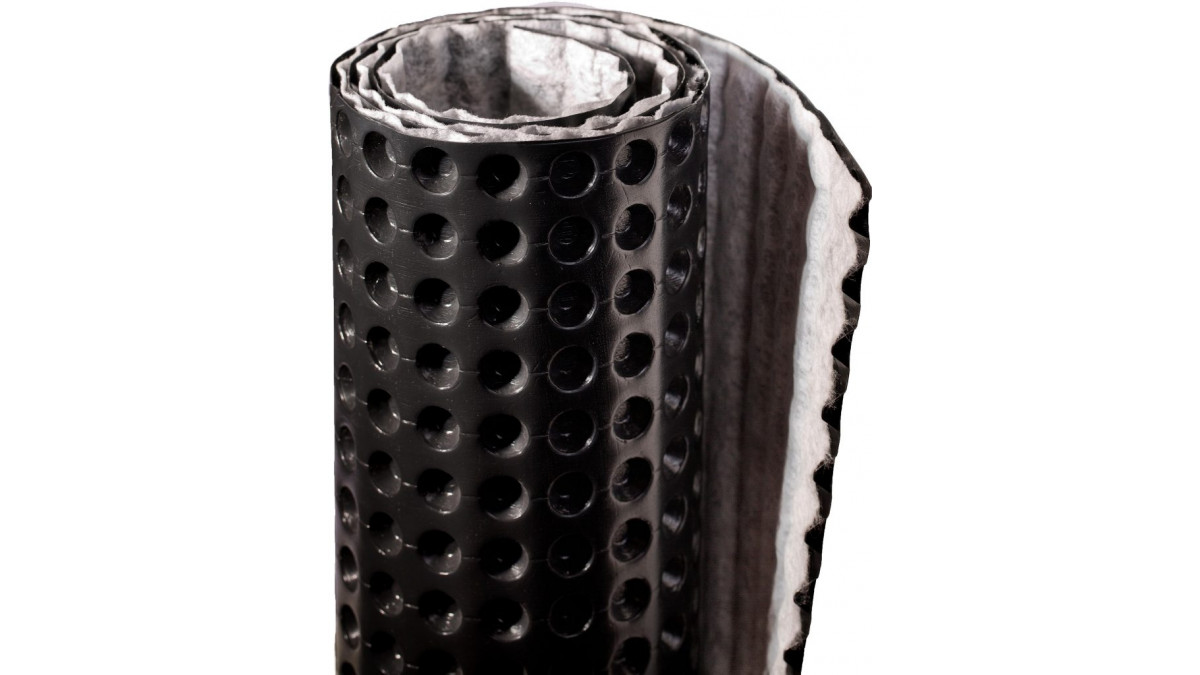

  • ARDEX DRS 10 GC
Key Features
  • Excellent resistance to atmosphere agents
  • High flexibility during application at sub-zero temperature with no physical strains
  • High malleability
  • Accommodates structural movements
  • Resistant to chemical attacks
  • Withstand thermal shocks
  • Proven performance in colder regions
  • Good elongation and flexibility
Scope of Use

The ARDEX Torch-Applied Tanking System is used as single or multi-layered membranes in horizontal or vertical applications for waterproofing for below ground tanking. They are primarily applied to the outside of a sub-structure of a building, such as a foundation or basement to resist hydrostatic water pressure and prevent water ingress.

Other forms of tanking where these products can be used include:

  • underfloor slabs
  • behind masonry walls
  • the lining of substrates of in situ or precast concrete
  • retaining walls
  • lift shafts
  • tunnels
  • living roofs
Limitations on Use
  • The membranes must be designed and installed in accordance with the ARDEX technical literature 'ARDEX Bituminous Membranes' March 2012.
  • The membranes must be installed by ARDEX New Zealand Limited approved applicators
  • ARDEX WPM 195 must be protected from UV
  • ARDEX New Zealand Ltd will notify AsureQuality Ltd in accordance with Regulation 15 of the Building (Product Certification) Regulations 2008
Statement of Building Code Compliance
  • Clause B1 STRUCTURE: Performance B1.3.1.
  • Clause B2 DURABILITY: Performance B2.3.1 (a) not less than 50 years.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. ARDEX WPM 195 meets this requirement and will not present a health hazard to people
Other Performance Attributes
  • Complies with BS EN 13969:2004 — Flexible sheets for waterproofing. Bitumen damp proof sheets including bitumen basement tanking sheets
  • European CE certification — GB06/69203 for Below Ground Tanking
  • CodeMark Certification (No. CM70013)
B1 Structure compliant
Structure
B2 Durability compliant
Durability
F2 Hazardous Building Materials compliant
Hazardous Building Materials
CodeMark
CodeMark
Independent Assessment
Independent Assessment
Test Results
Test Results
Documents
Data Sheet: ARDEX MWP 247
Material Safety Data Sheet
Product Info: ARDEX DRS 10 GC
Product Info: ARDEX WPM 247
CodeMark Certificate
Warranty
Substrate Specification
Product Info: ARDEX Bituminous Sealant
Product Info: ARDEX WPM 195
Additional Information
ARDEX Company Profile

ARDEX New Zealand supply and manufacture a range of quality construction materials, including products for levelling floors; external and internal waterproofing; and fixing natural stone and tiles.

Product Enquiries

News from ARDEX

ARDEX Butynol & Butyseal Certified for Use at Pitches of 1:100
NZ Made Waterproofing Membrane Products Used In Heritage Renovation

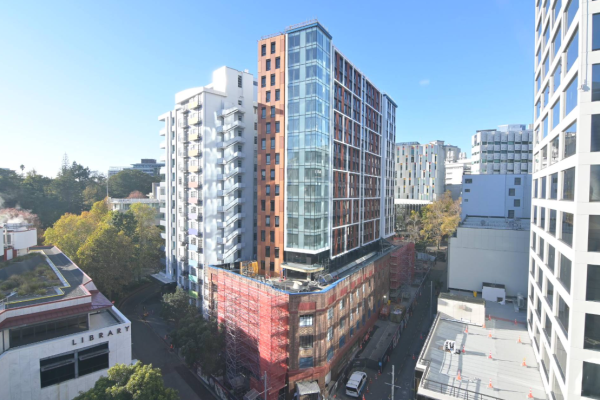

SystemARDEX Specified for a High-End Apartment Project
