Residential Hinged & French Doors
APL Specifier Guide available Order now
Description

The Residential doors are rated to 2.1m high in 'very high' wind zones. For larger sizes consider using the Metro Series or APL Architectural Series.

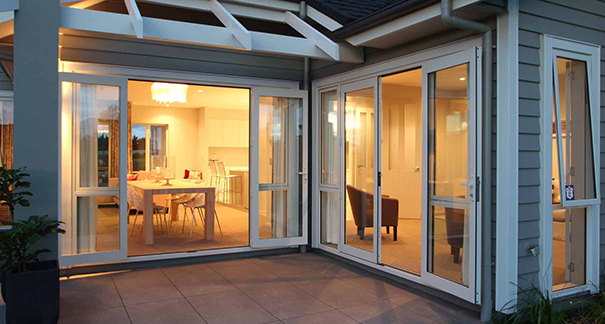

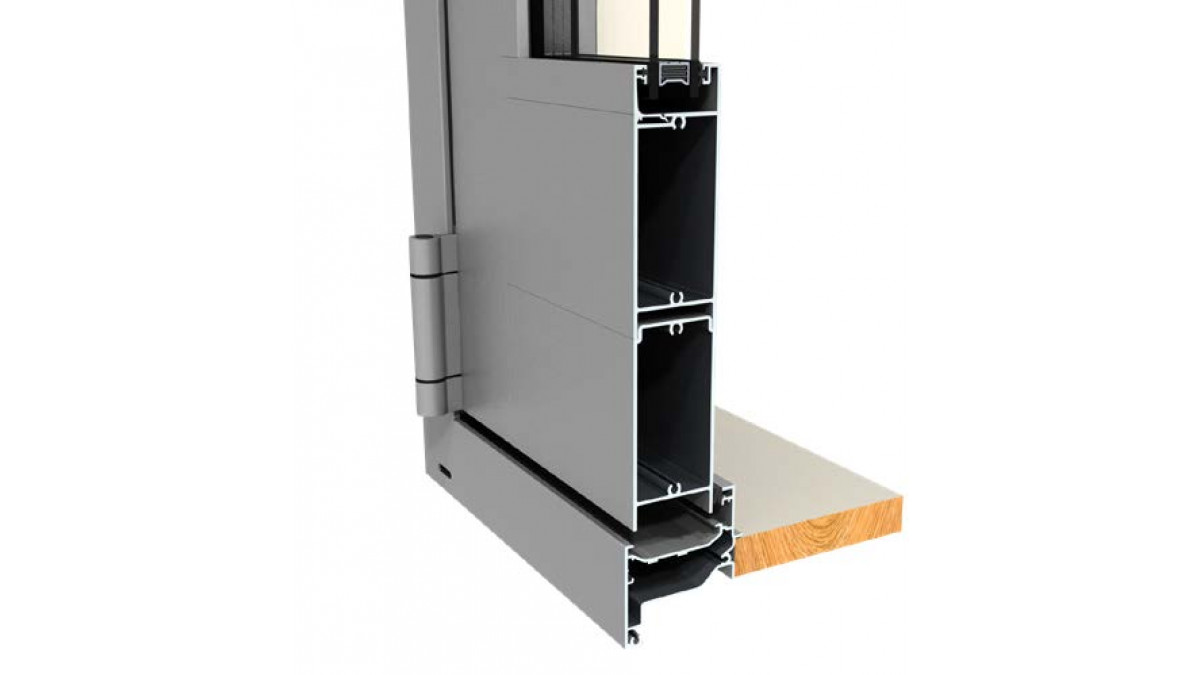

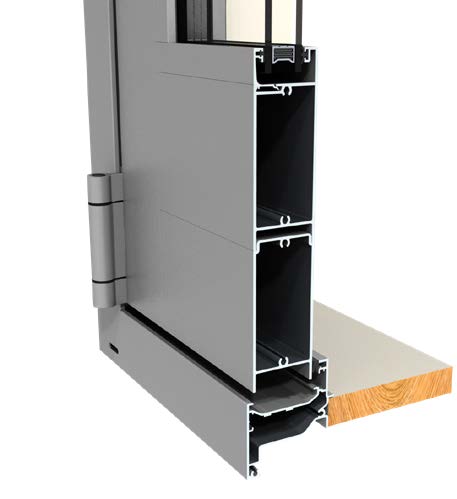

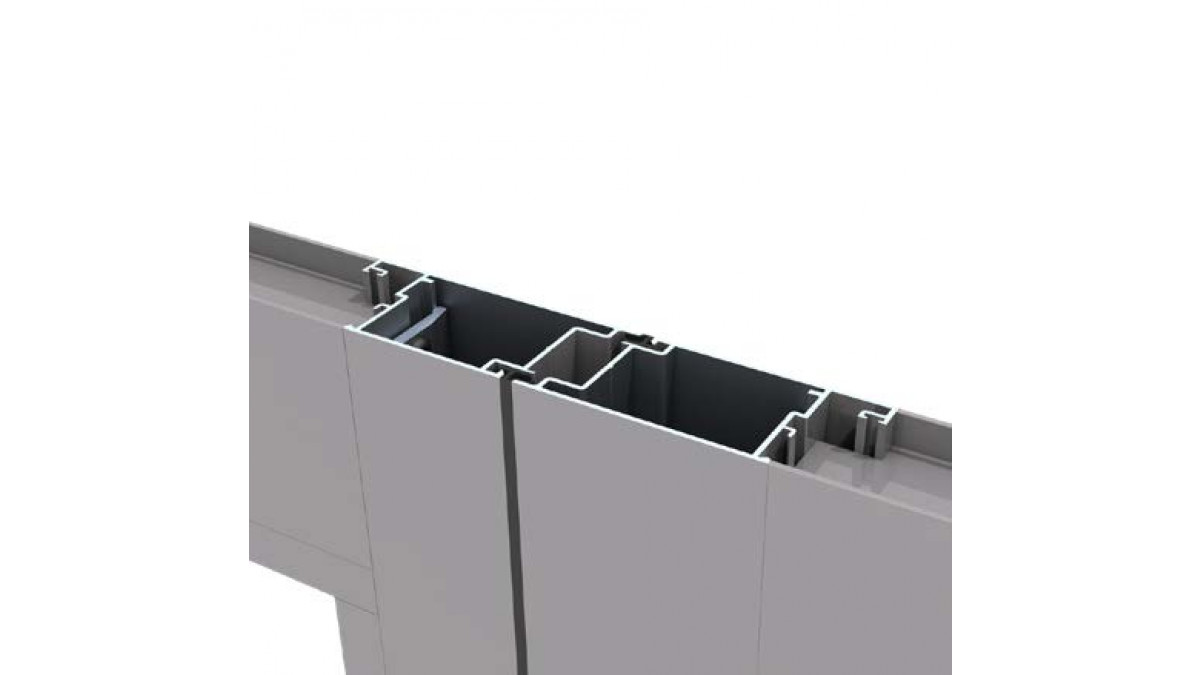

For French doors, rebated meeting stiles give a flush appearance and provide superior weathering. Parliament hinges allow doors to open a full 180° in a brick veneer application. A bottom rail extender is available to create a deep look in the classic French door style.

Key Features
  • A flat-face frame, rails and stiles for a clean, contemporary look
  • Recommended maximum 2100mm high doors in Extra High wind zones

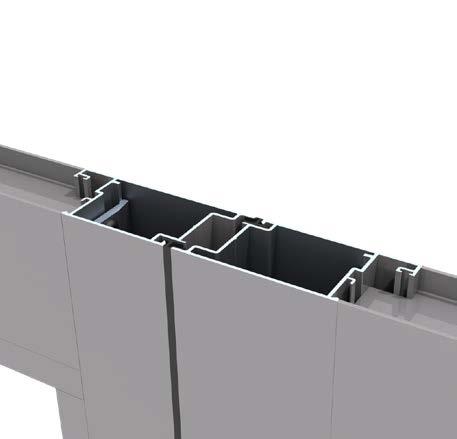

  • Flush meeting stiles for French doors
  • Open-out and open-in frames available
  • Frame facing adaptors available

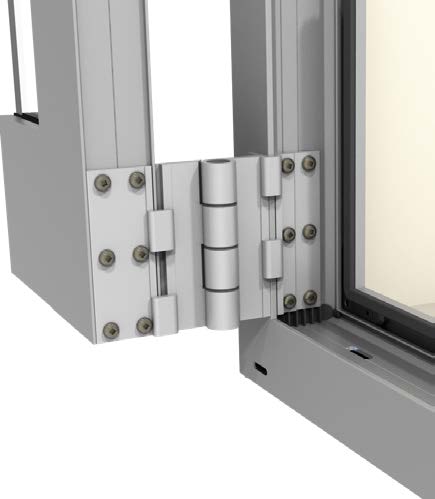

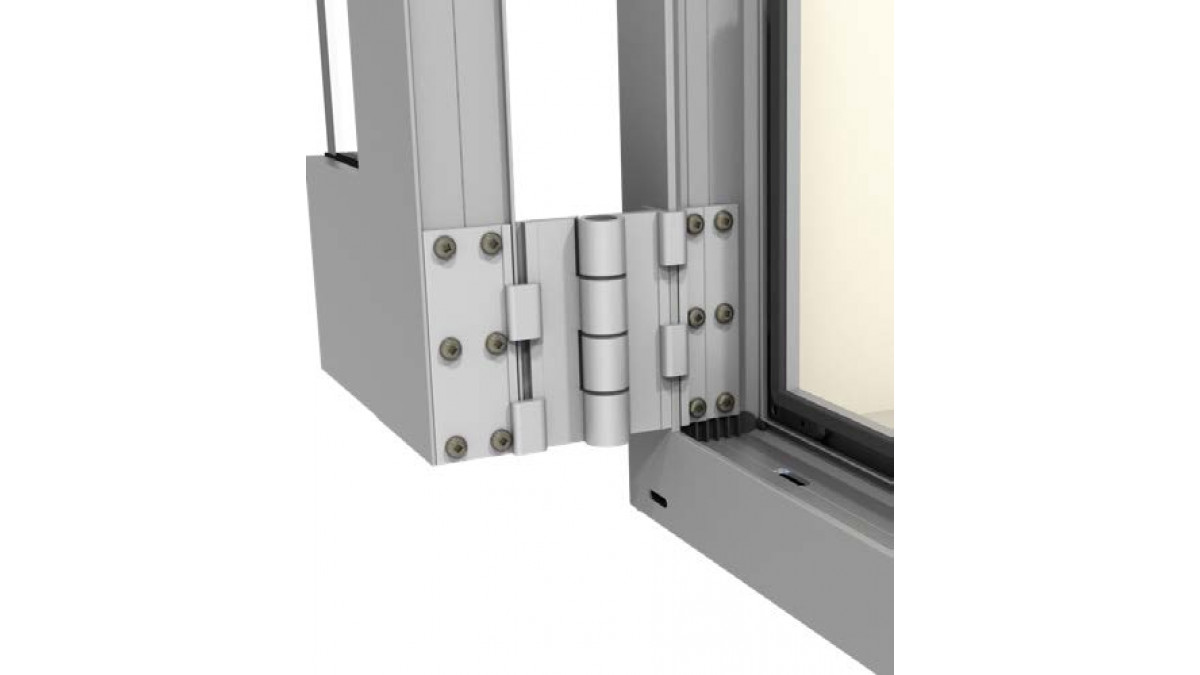

  • Parliament hinges allow doors to open outwards a full 180° in brick veneer situations
  • French door flush bolts are concealed from view in the leading edge of the 'lazy' door panel
  • Overlights and sidelights are possible
Scope of Use
  • Suitable for most residential environments in larger sizes
  • Need to be used in defined maximum sizes according to the wind exposure
  • Single panels ideal as utility doors
  • Overlights and sidelights are possible
Limitations on Use
  • Open-in frame available but open-out applications will generally be preferred for utility and French doors
  • Recommended maximum 2700mm high doors in Extra High wind zones
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2004
  • Design upgrades regularly released
  • Widely used by homeowners, builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Data Sheet
Span Tables
Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

Full Specification
Specification Clause
Specifier Guide
WGANZ Guide to E2/AS1
Altherm Design Brochure

2020

APL and Sustainability

2019

Manufacturer Contact List
CAD/PDF Details
Full Set of Drawings

AHD

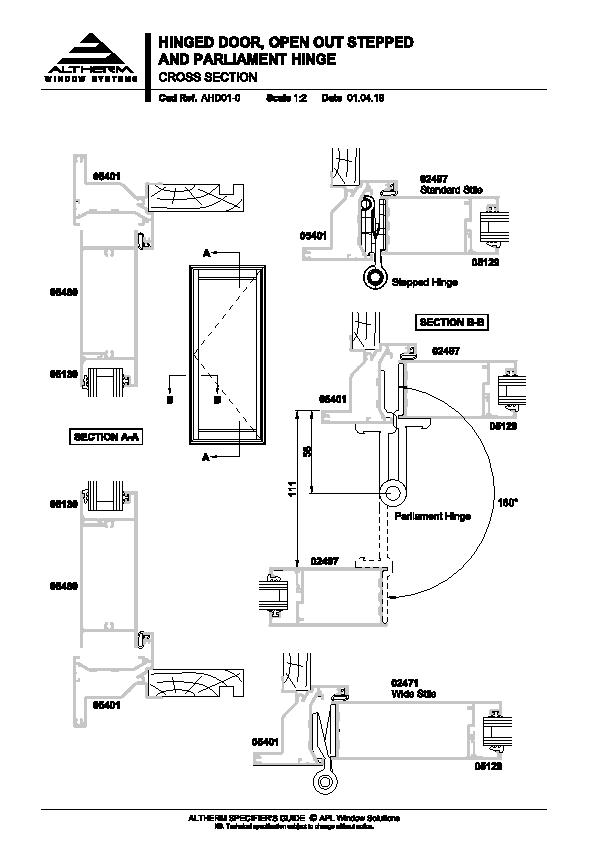

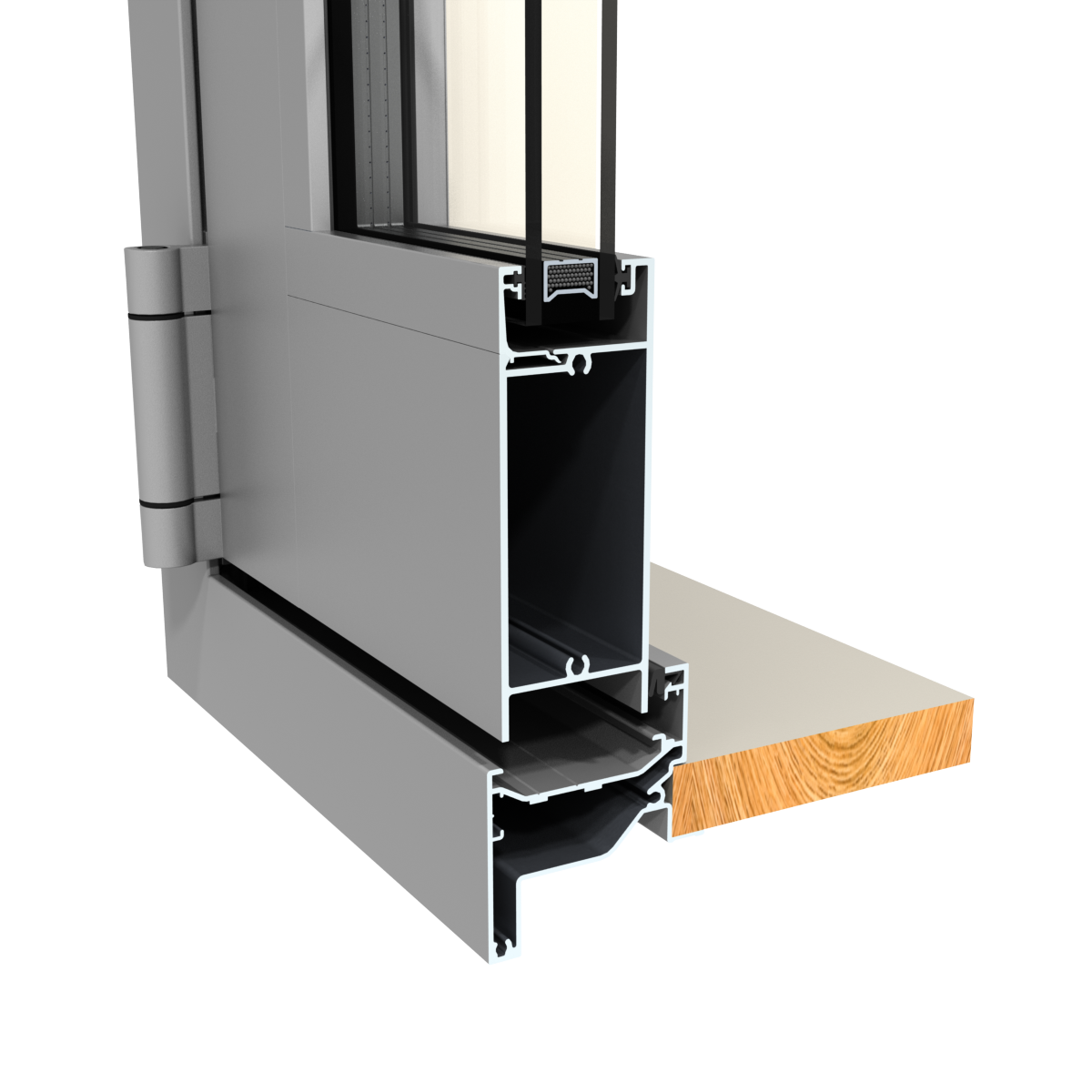

Altherm Residential Hinged Door - Open Out Stepped and Parliament Hinge

AHD01-0

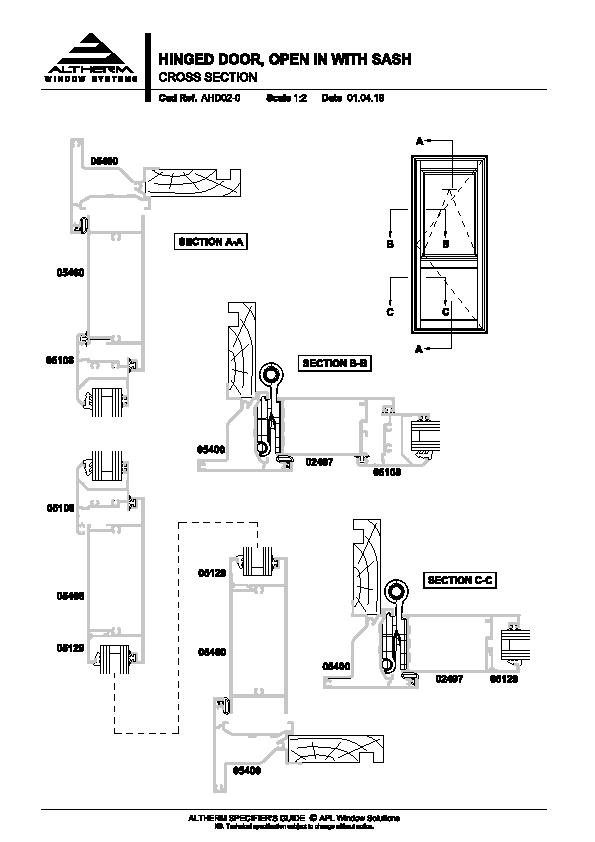

Altherm Residential Hinged Door - Open In with Sash

AHD02-0

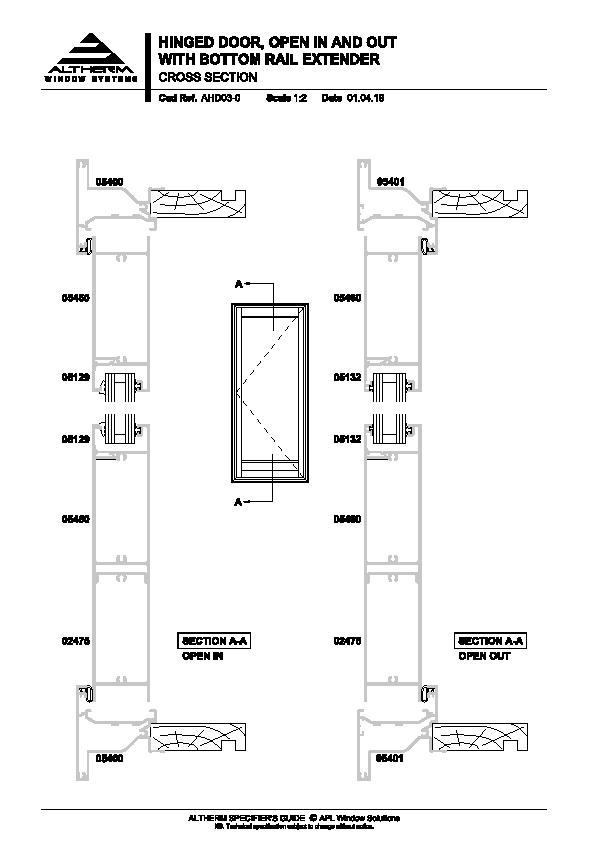

Altherm Residential Hinged Door - Open In and Out with Bottom Rail Extender

AHD03-0

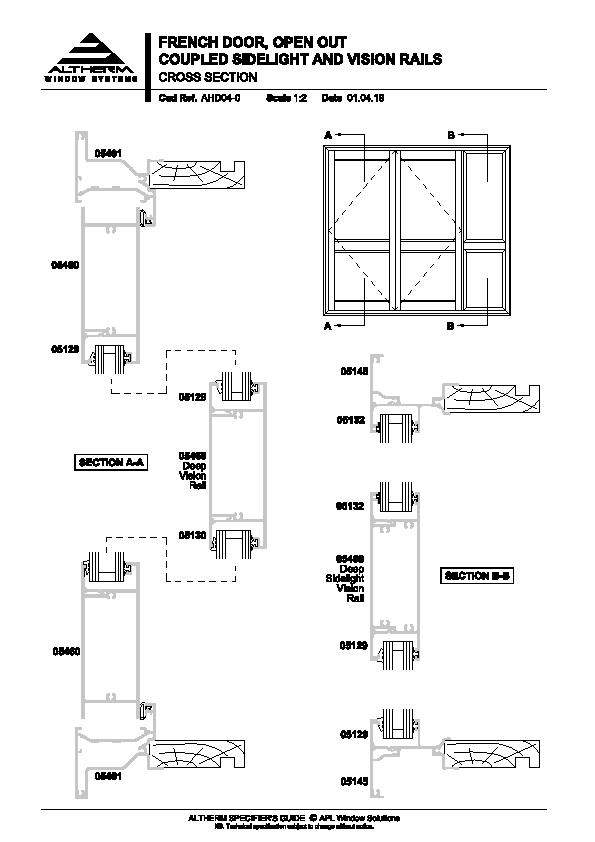

Altherm Residential French Door - Open Out Coupled Sidelight and Vision Rails

AHD04-0

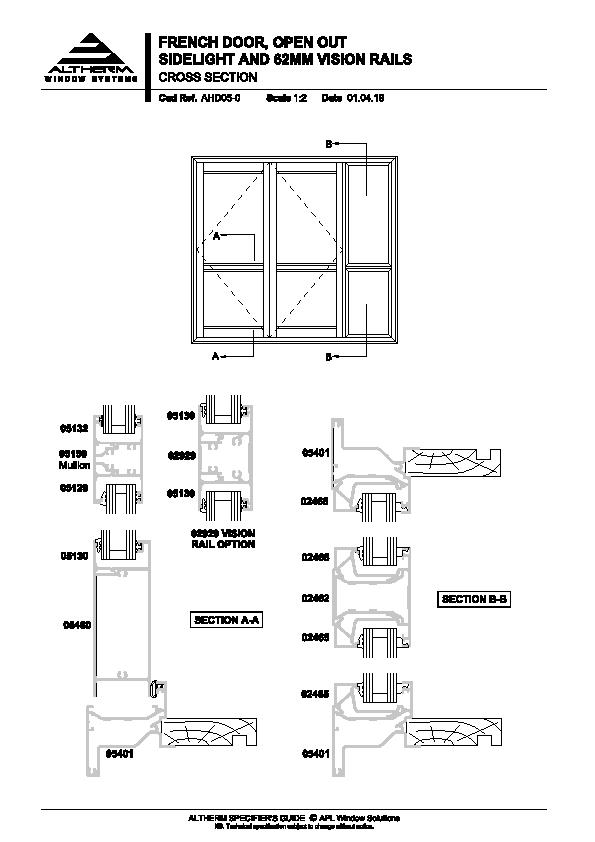

Altherm Residential Hinge Door - Open Out Sidelight and 62mm Vision Rails

AHD05-0

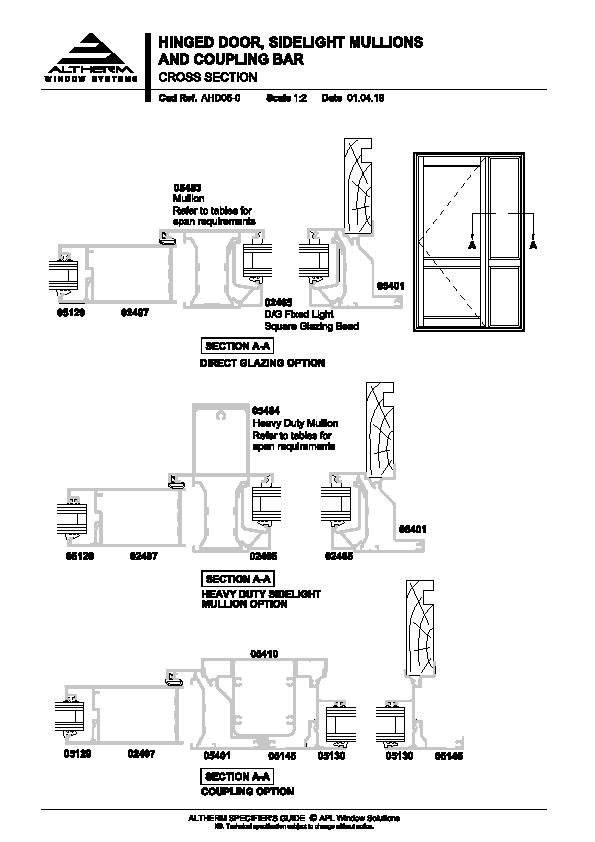

Altherm Residential Hinge Door - Sidelight Mullions and Coupling Bar

AHD06-0

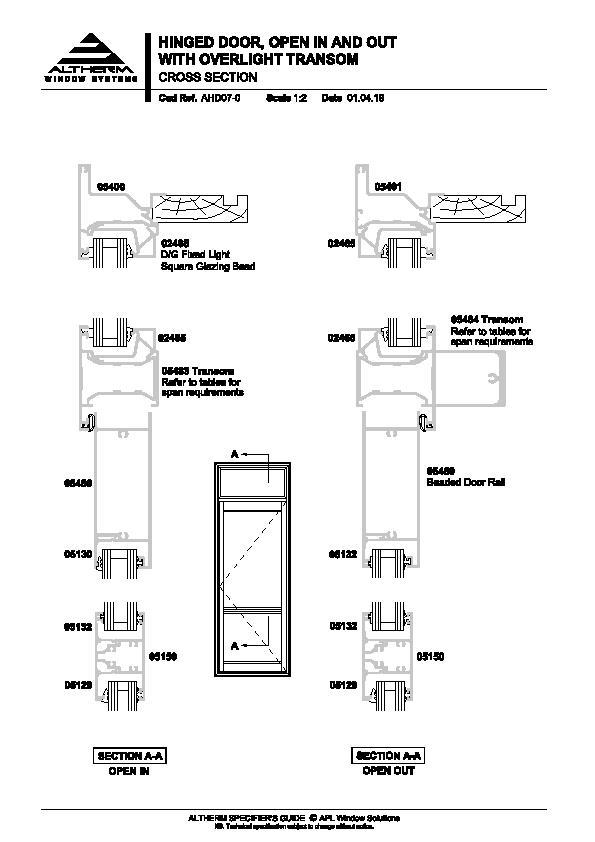

Altherm Residential Hinged Door - Open In and Out with Overlight Transom

AHD07-0

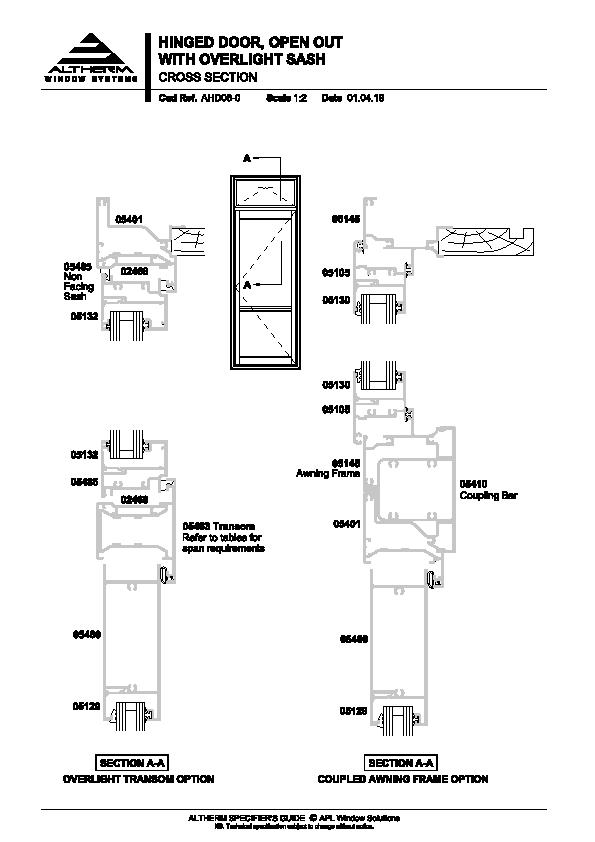

Altherm Residential Hinged Door, Open Out with Overlight Sash

AHD08-0

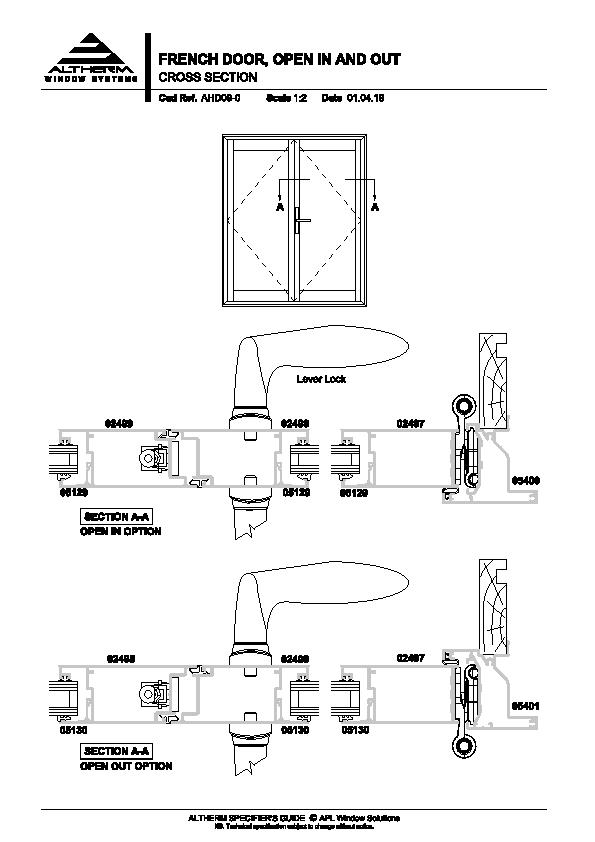

Altherm Residential Hinged Door - Open In and Open Out

AHD09-0

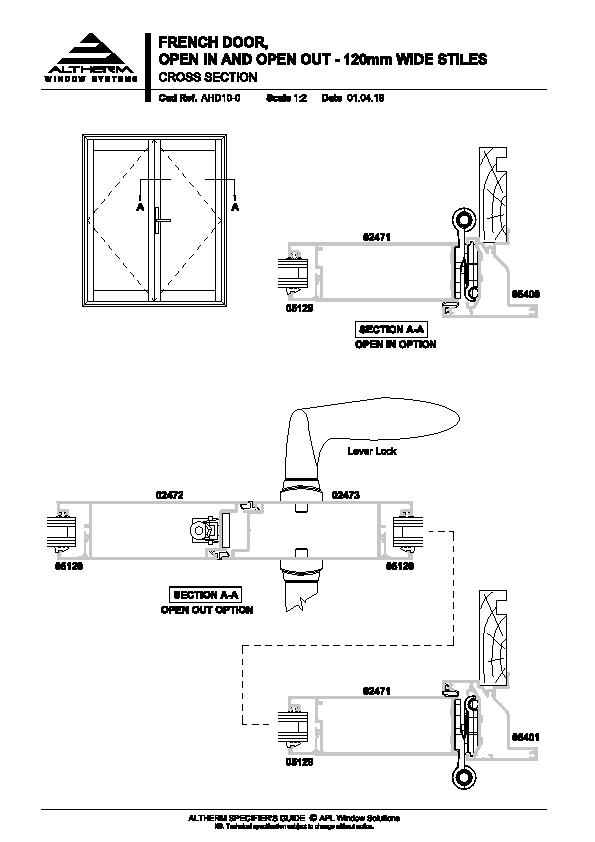

Altherm Residential French Door, Open In & Open Out - 120mm Wide Stiles

AHD10-0

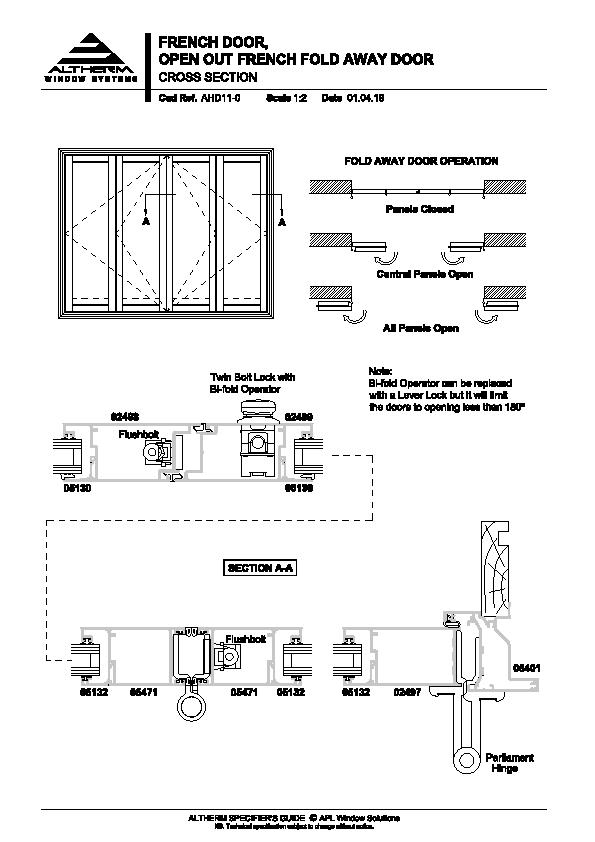

Altherm Residential French Door - Open Out Fold Away

AHD11-0

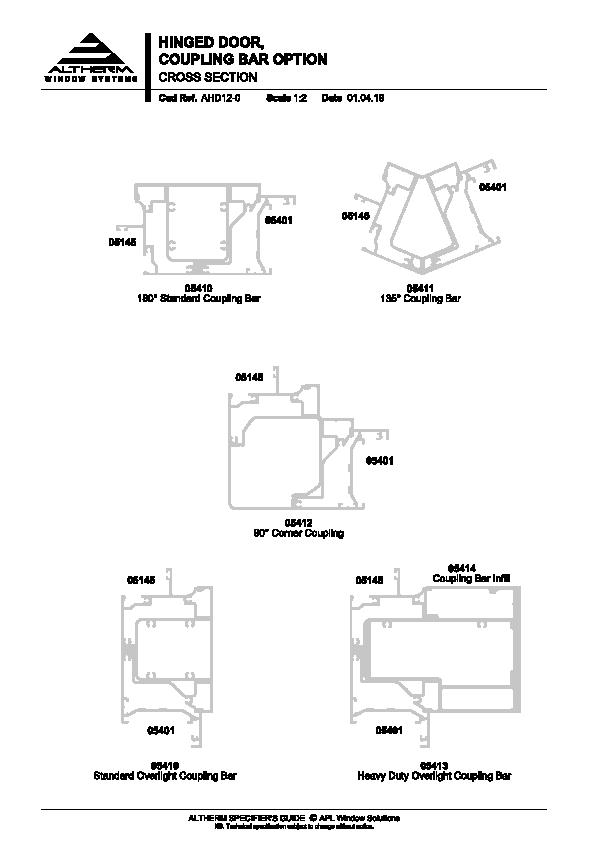

Altherm Residential Hinged Door Coupling Bar

AHD12-0

Installation Details

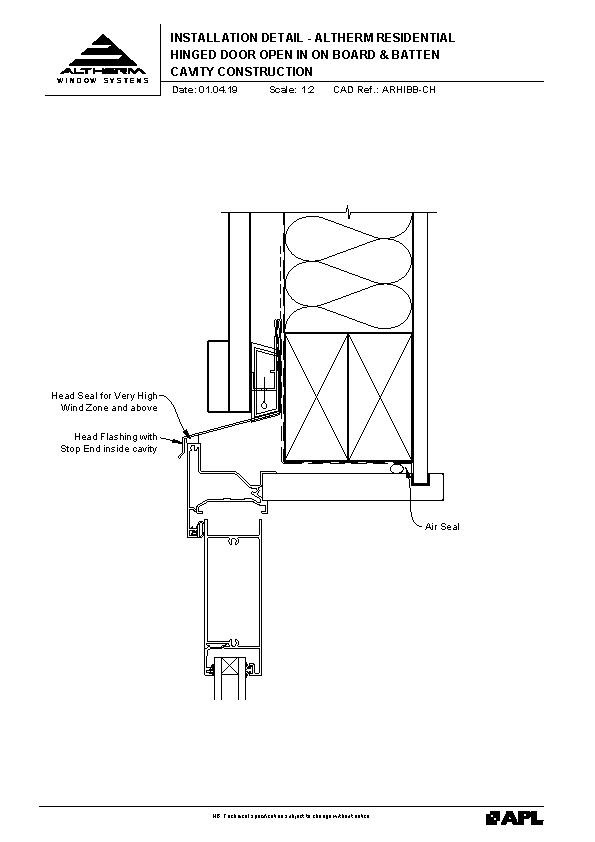

Altherm Residential Hinged Door Open In on Board & Batten

ARHIBB

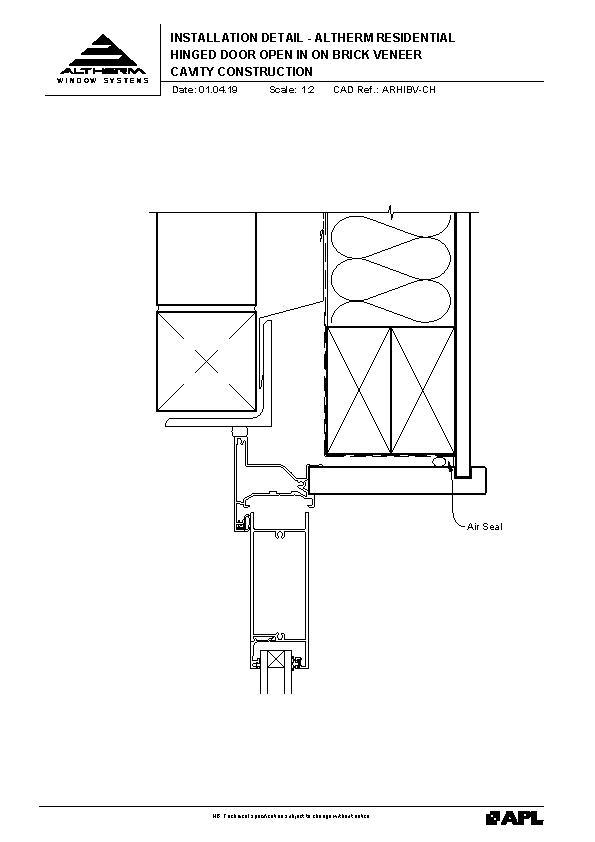

Altherm Residential Hinged Door Open In on Brick Veneer

ARHIBV

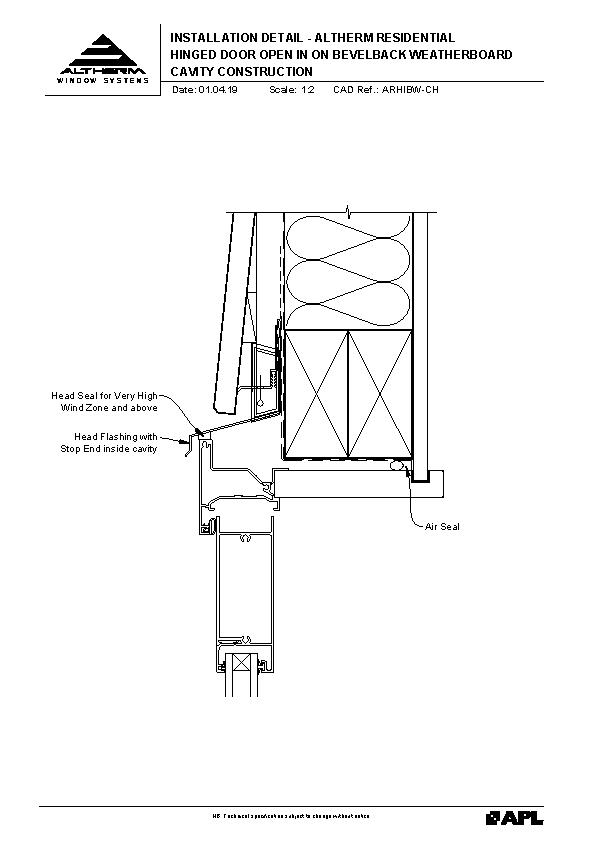

Altherm Residential Hinged Door Open In on Bevelback Weatherboard

ARHIBW

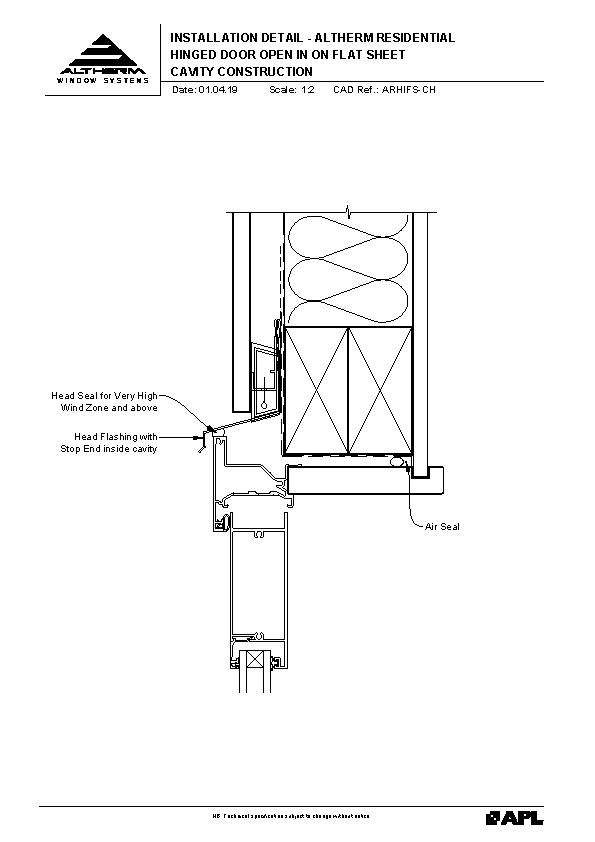

Altherm Residential Hinged Door Open In on Flat Sheet

ARHIFS

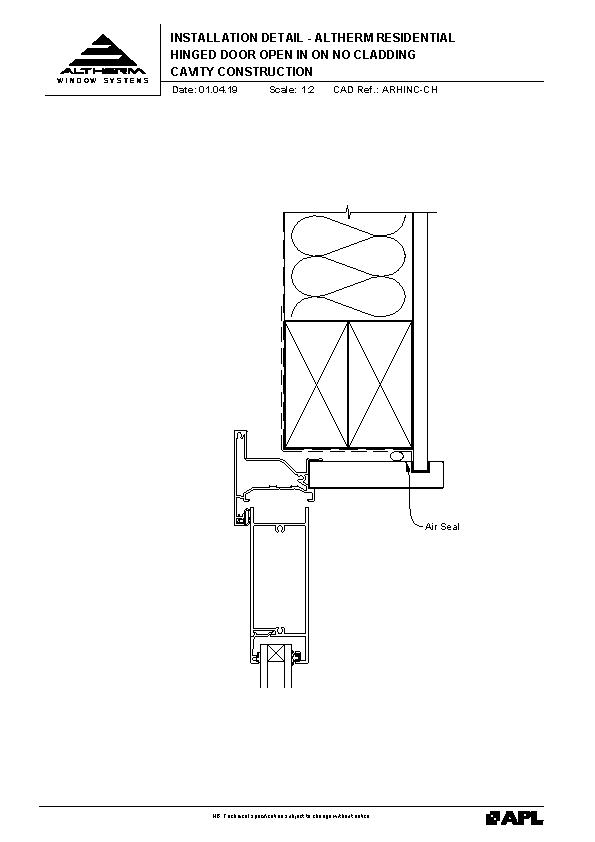

Altherm Residential Hinged Door Open In on No Cladding

ARHINC

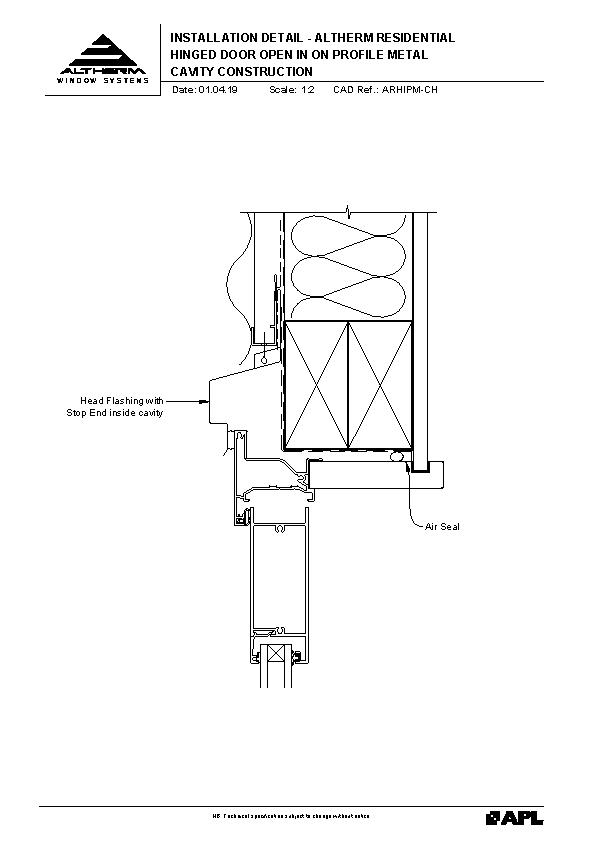

Altherm Residential Hinged Door Open In on Profile Metal

ARHIPM

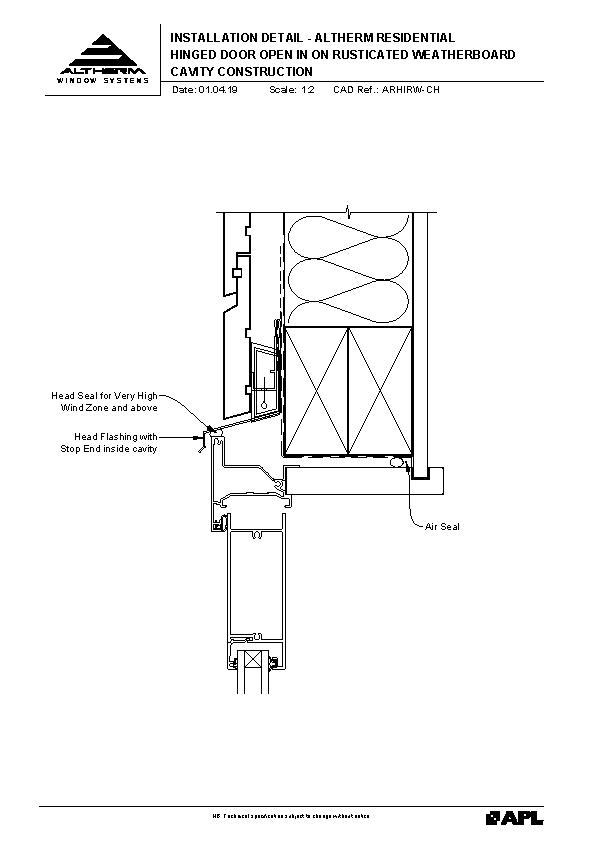

Altherm Residential Hinged Door Open In on Rusticated Weatherboard

ARHIRW

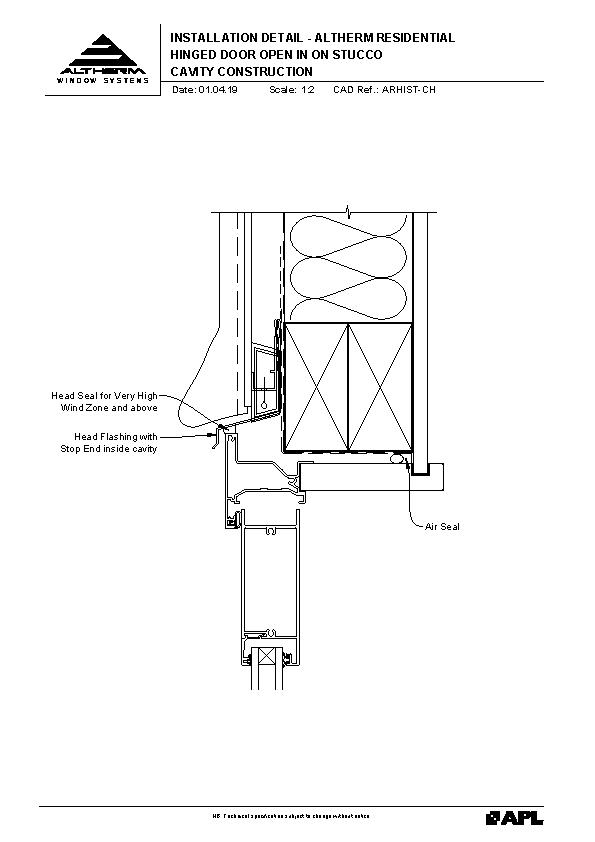

Altherm Residential Hinged Door Open In on Stucco

ARHIST

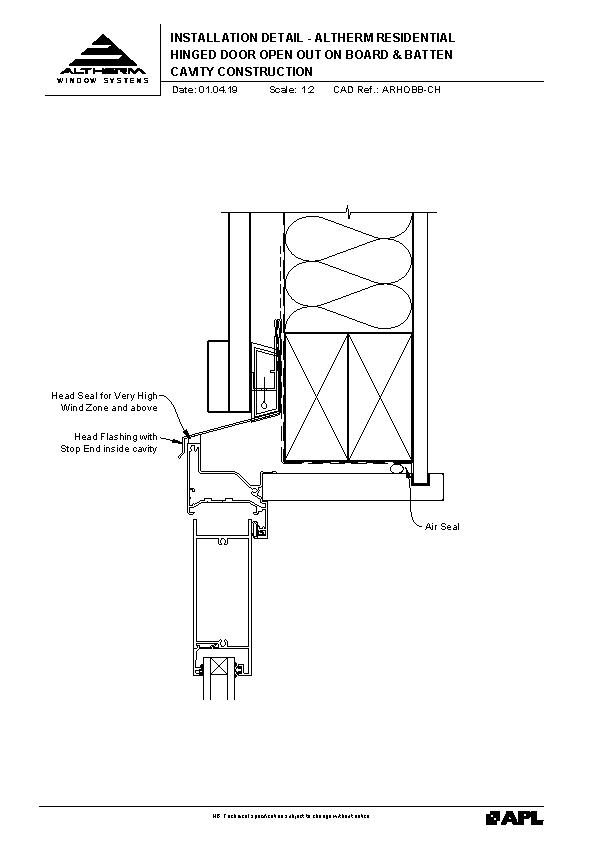

Altherm Residential Hinged Door Open Out on Board & Batten

ARHOBB

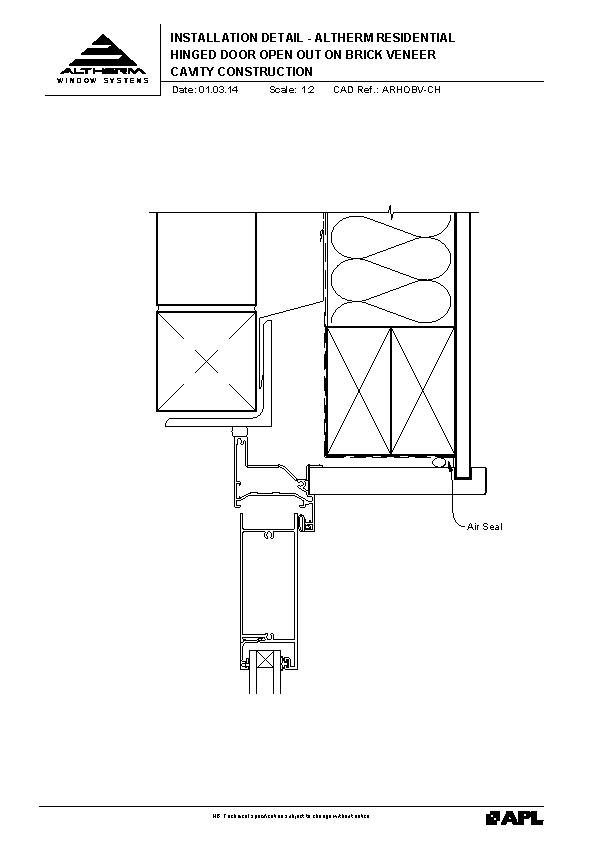

Altherm Residential Hinged Door Open Out on Brick Veneer

ARHOBV

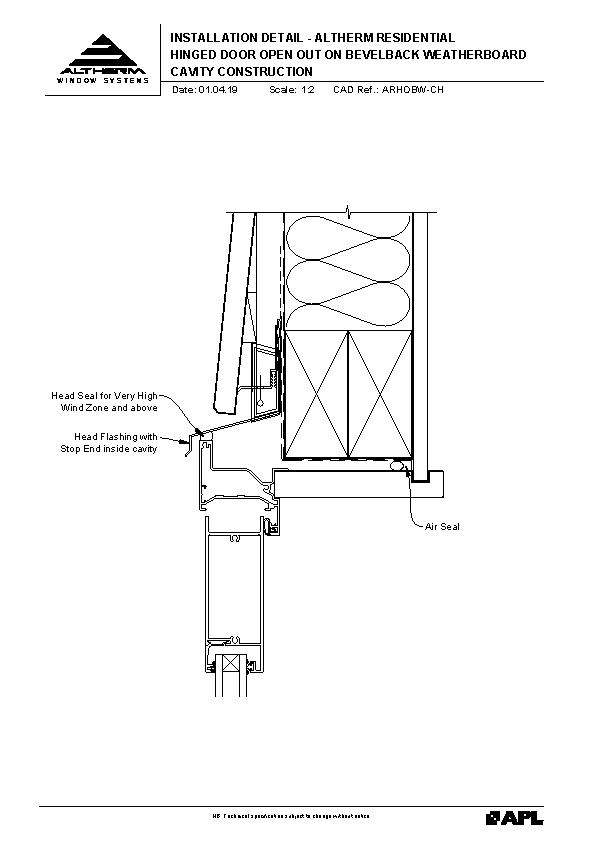

Altherm Residential Hinged Door Open Out on Bevelback Weatherboard

ARHOBW

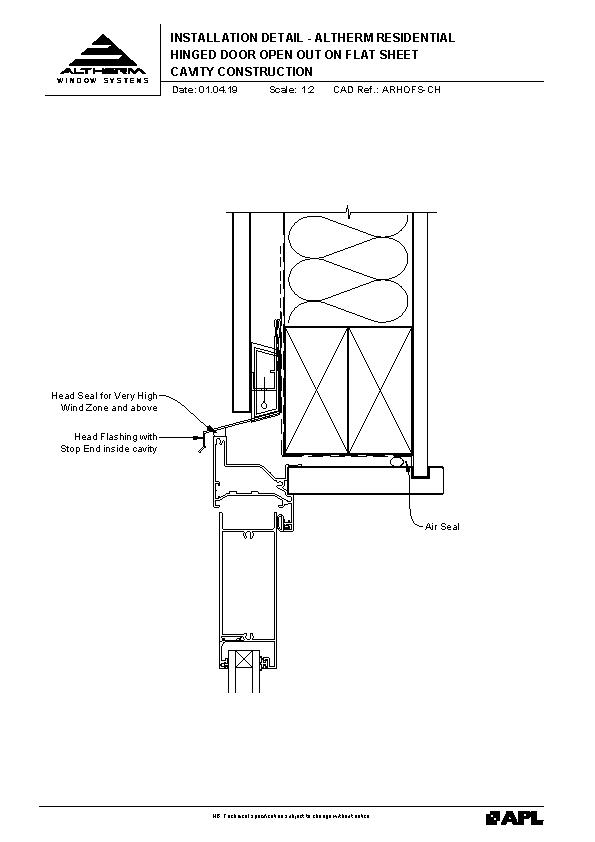

Altherm Residential Hinged Door Open Out on Flat Sheet

ARHOFS

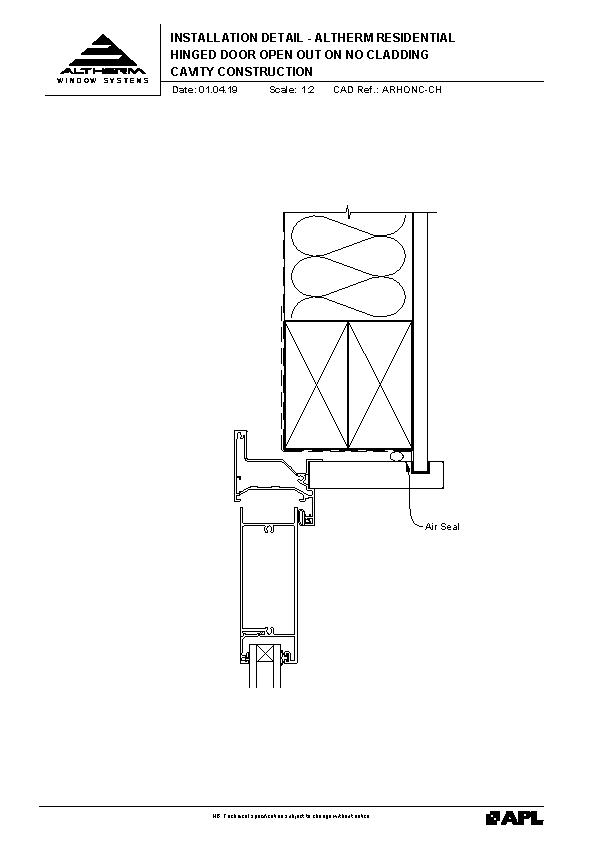

Altherm Residential Hinged Door Open Out on No Cladding

ARHONC

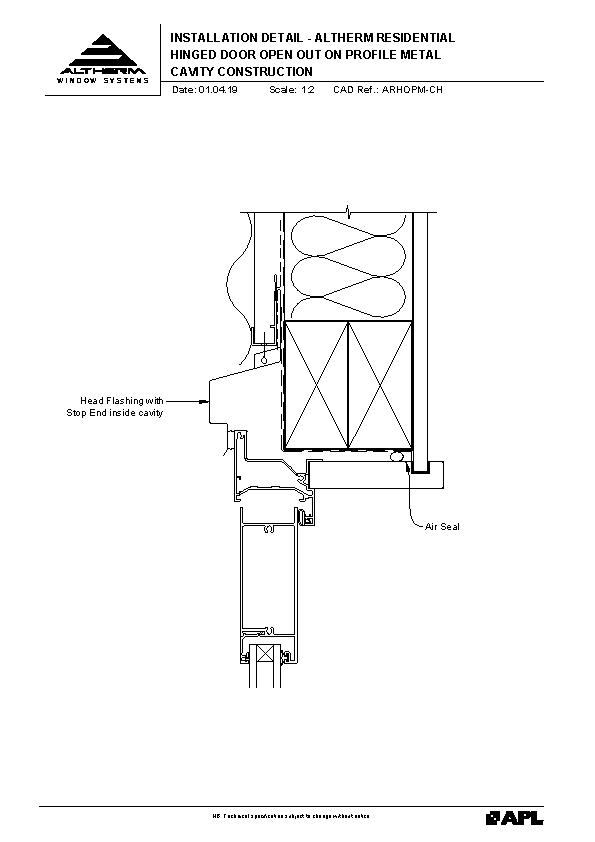

Altherm Residential Hinged Door Open Out on Profile Metal

ARHOPM

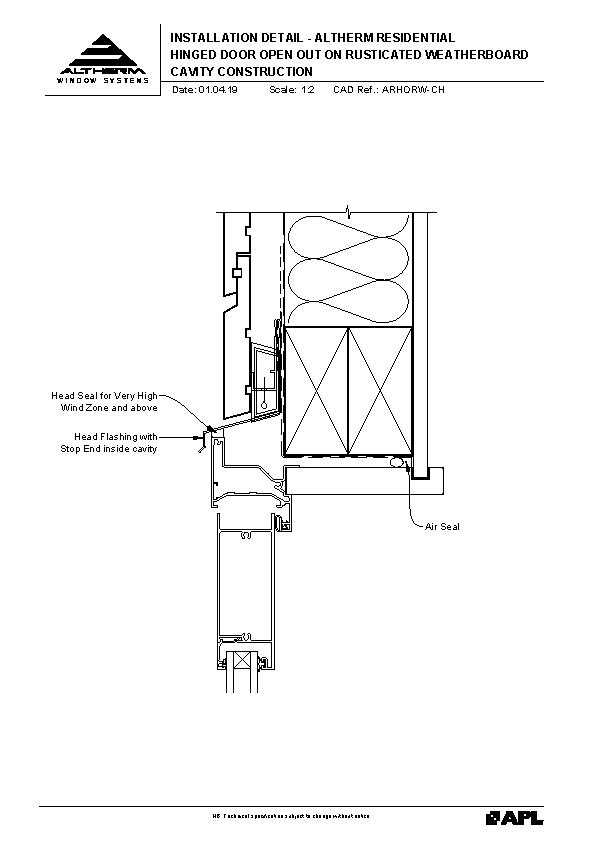

Altherm Residential Hinged Door Open Out on Rusticated Weatherboard

ARHORW

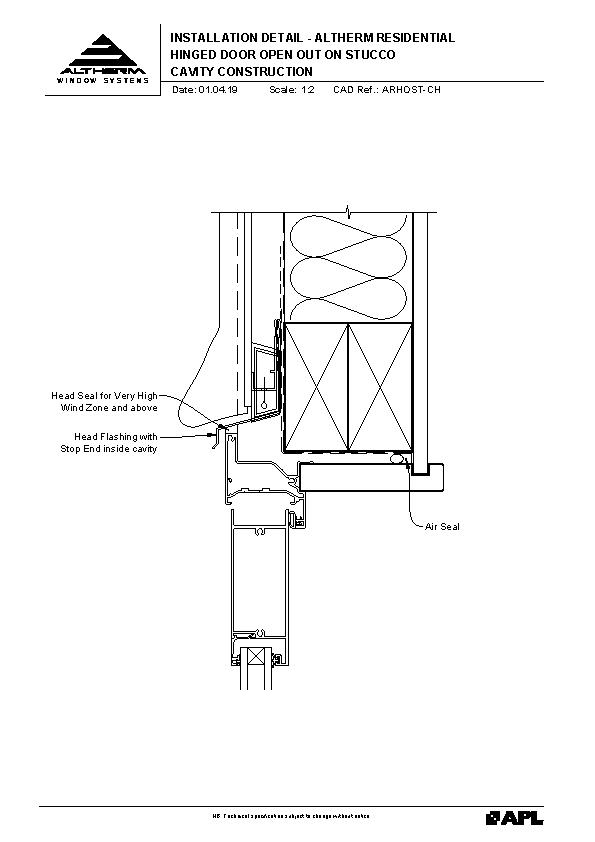

Altherm Residential Hinged Door Open Out on Stucco

ARHOST

BIM

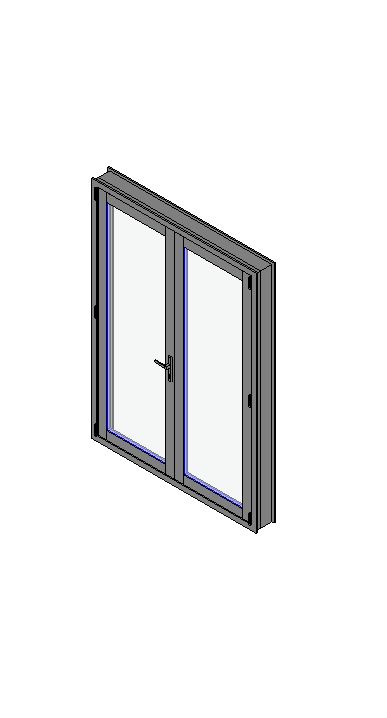

Altherm French Door Open Out

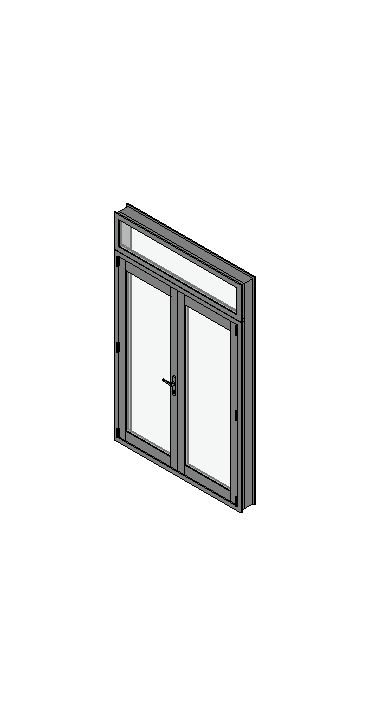

Altherm French Door Open Out with Overlight

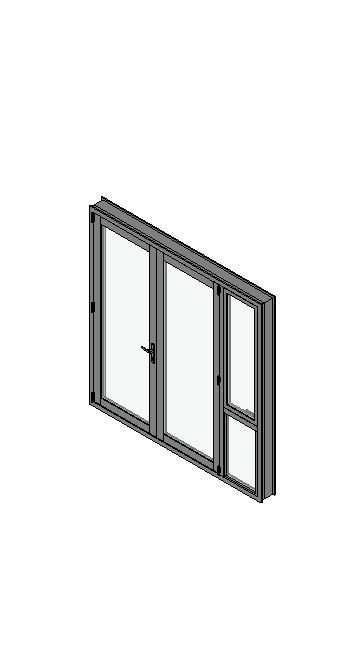

Altherm French Door Open Out with Sidelight

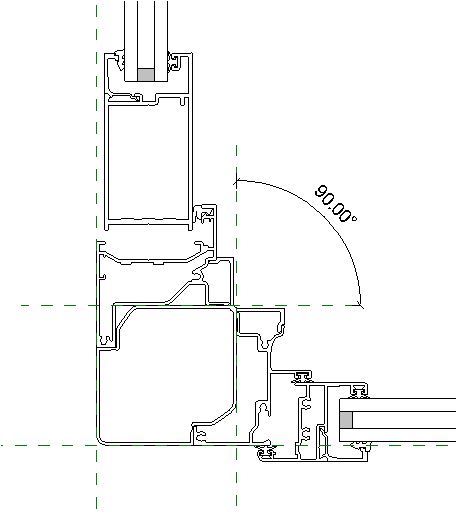

Altherm Hinged Door Corner Options

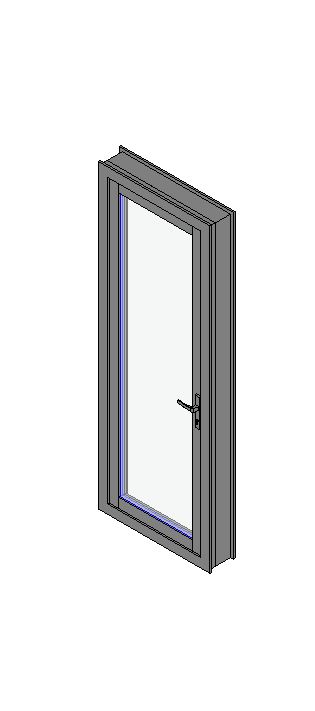

Altherm Hinged Door Open In
Altherm Hinged Door Open In with Overlight

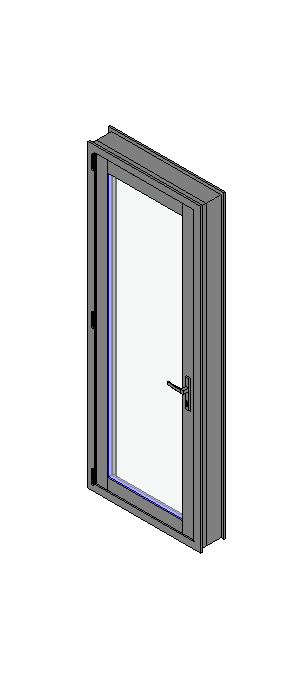

Altherm Hinged Door Open Out

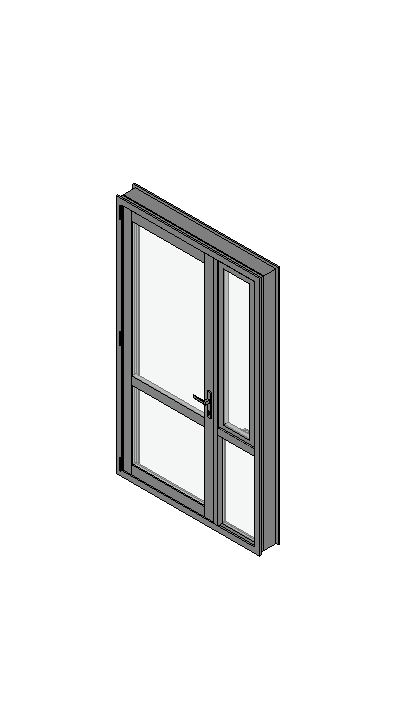

Altherm Hinged Door Open Out with Sidelight
APL Head Flashings

Revit LT 2020
