Metro Series Hinged & French Doors
APL Specifier Guide available Order now
Description

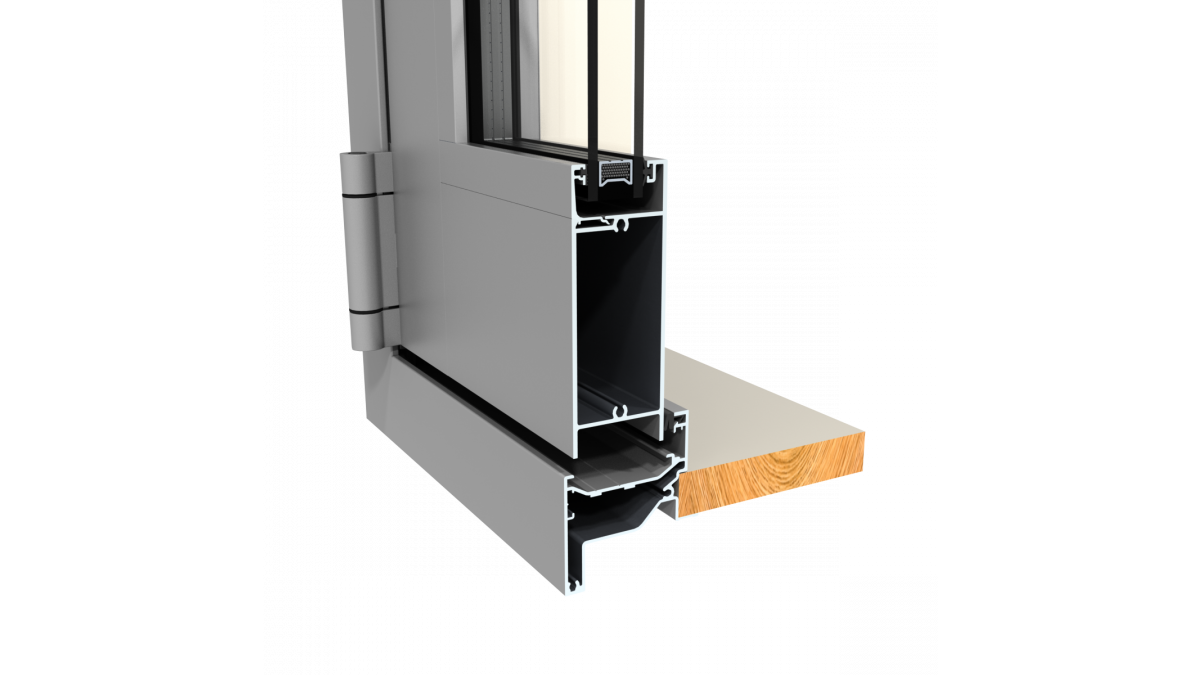

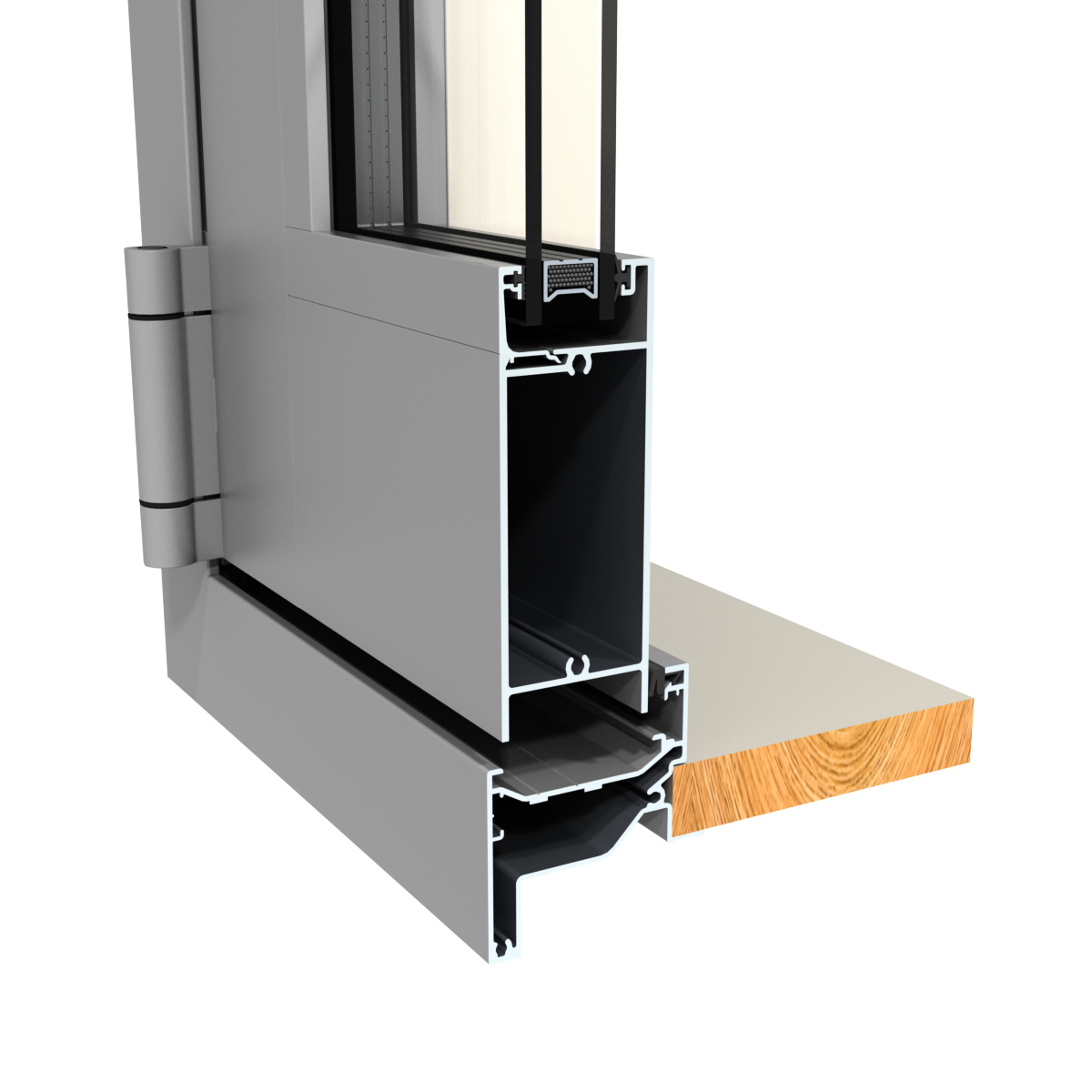

Metro Series hinged doors are 45mm thick and are available in open-out and open-in formats. Both frames have flat faces and can be coupled with sidelights and over-lights.

French doors have rebated meeting stiles for a clean, flush look. As with the rest of the Metro Series door range, hinged doors are rated up to 2.4m high in very high wind zones.

Key Features
  • Recommended maximum 2400mm high doors in Extra High wind zones. For larger sizes consider using the APL Architectural Series
  • Metro occupies an intermediate position between Altherm Residential and the APL Architectural Series

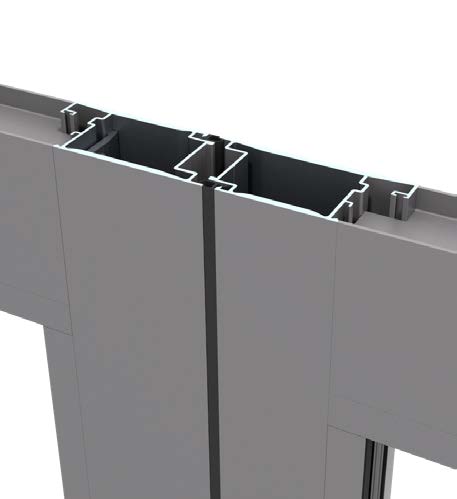

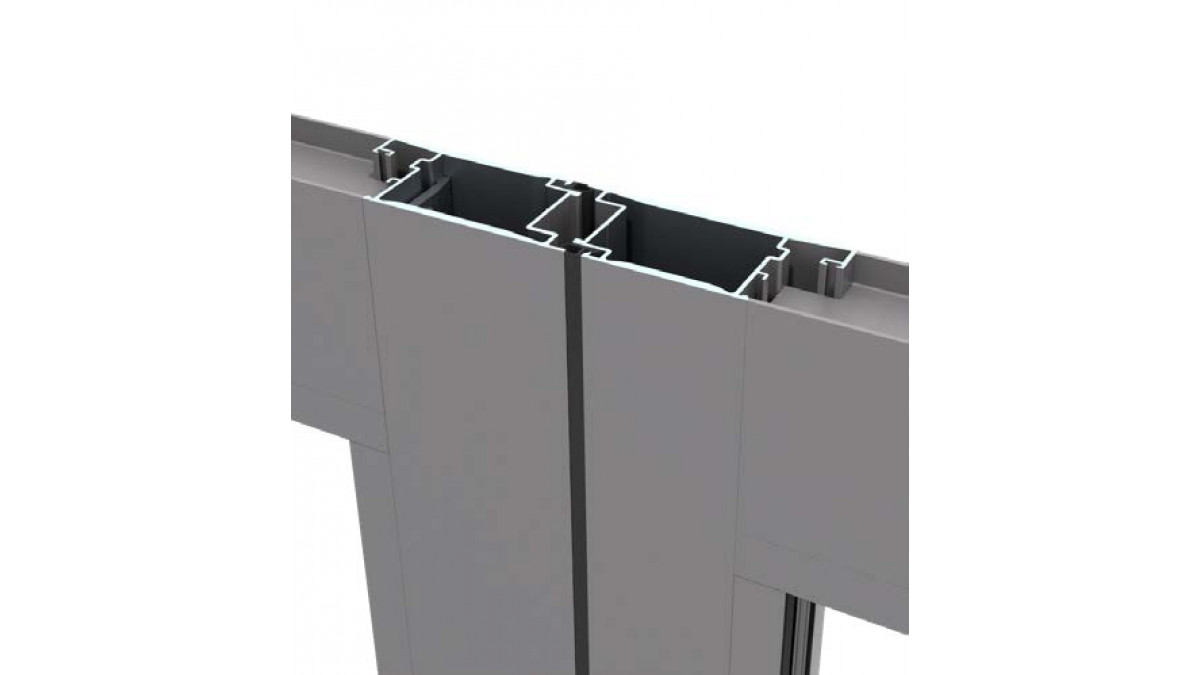

  • Rebated meeting stiles give a flush appearance where French doors overlap and provide superior weathering
  • Open-out and open-in frames available

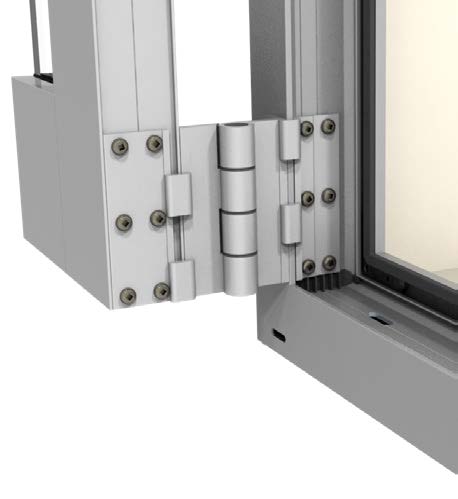

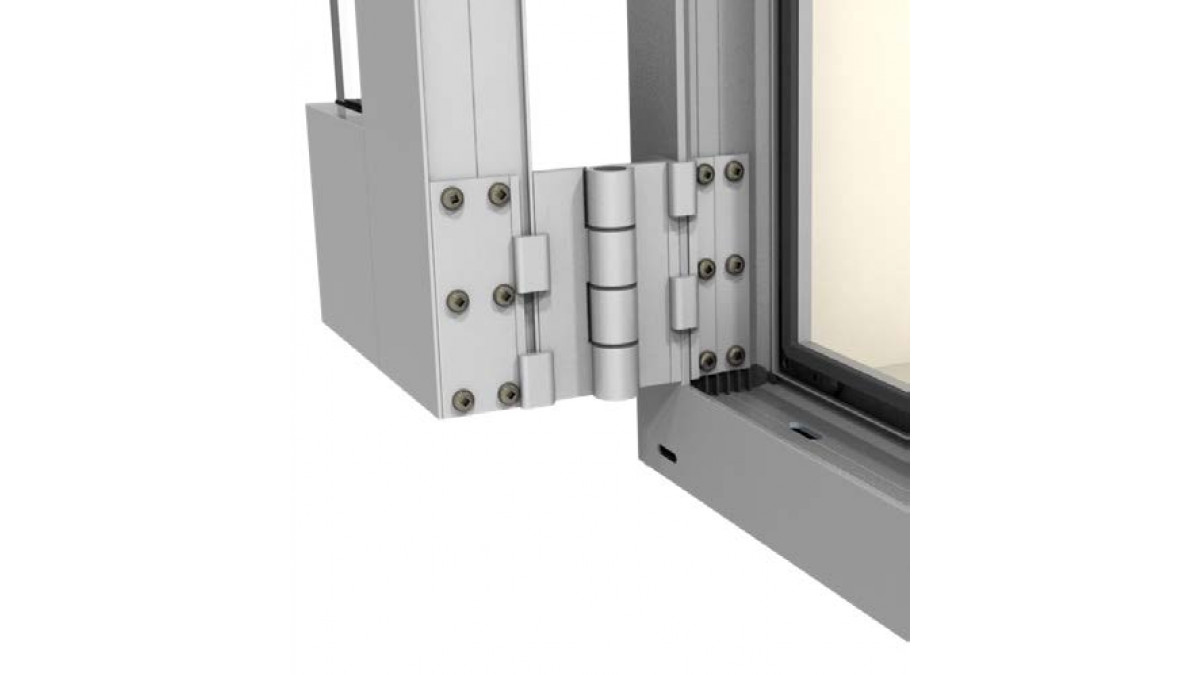

  • Parliament hinges allow doors to open outwards a full 180º in brick veneer situations
  • French door flush bolts are concealed from view in the leading edge of the 'lazy' door panel
  • Overlights and sidelights are possible
Scope of Use
  • Need to be used in defined maximum sizes according to the wind exposure
  • Single panels ideal as utility doors
  • Overlights and sidelights are possible
Limitations on Use
  • Open-in frame available but open-out applications will generally be preferred for utility and French doors
  • Recommended maximum 2400mm high doors in Extra High wind zones — For larger sizes consider using the APL Architectural Series
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2006
  • Design upgrades regularly released
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Data Sheet
Span Tables
Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

Full Specification
Specification Clause
Specifier Guide
WGANZ Guide to E2/AS1
Altherm Design Brochure

2020

APL and Sustainability

2019

Manufacturer Contact List
CAD/PDF Details
Full Set of Drawings

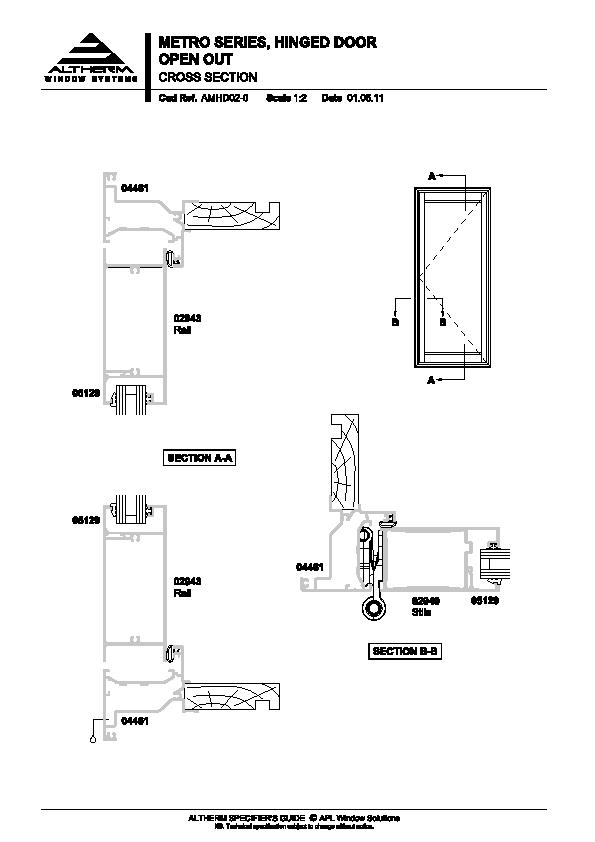

Altherm Metro Series Hinged Door Open Out

AMHD02-0

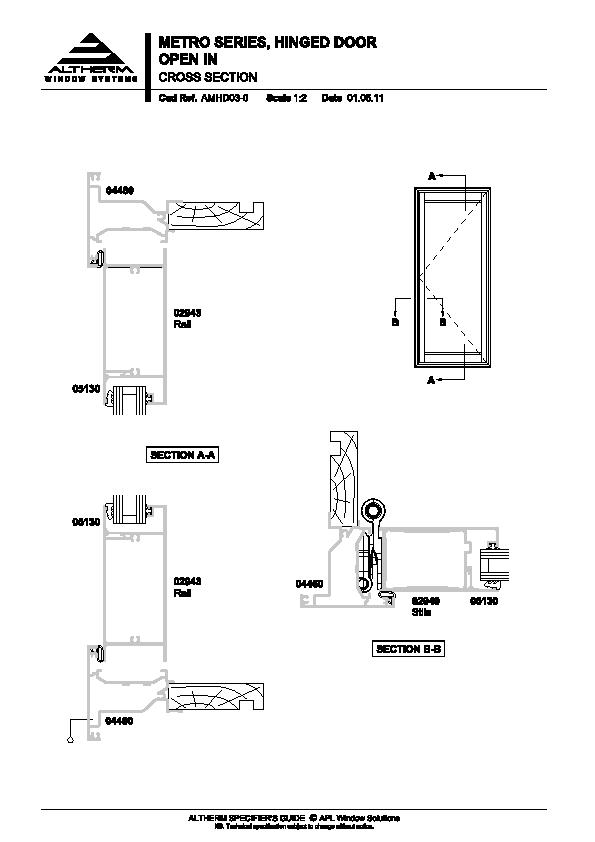

Altherm Metro Series Hinged Door Open In

AMHD03-0

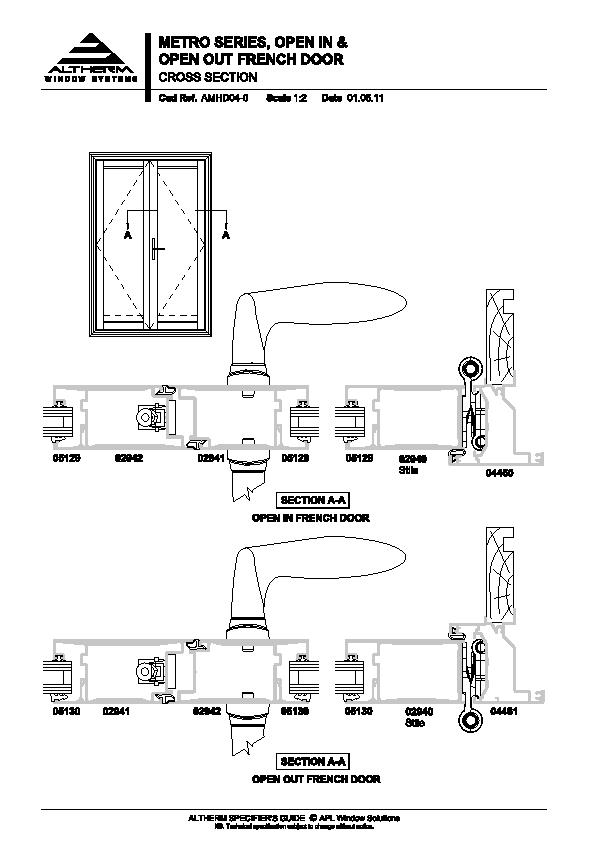

Altherm Metro Series Open In & Open Out French Door

AMHD04-0

Altherm Metro Series A520MS Open In & A500MS Open Out Hinged Door Coupled Sidelight

AMHD05-0

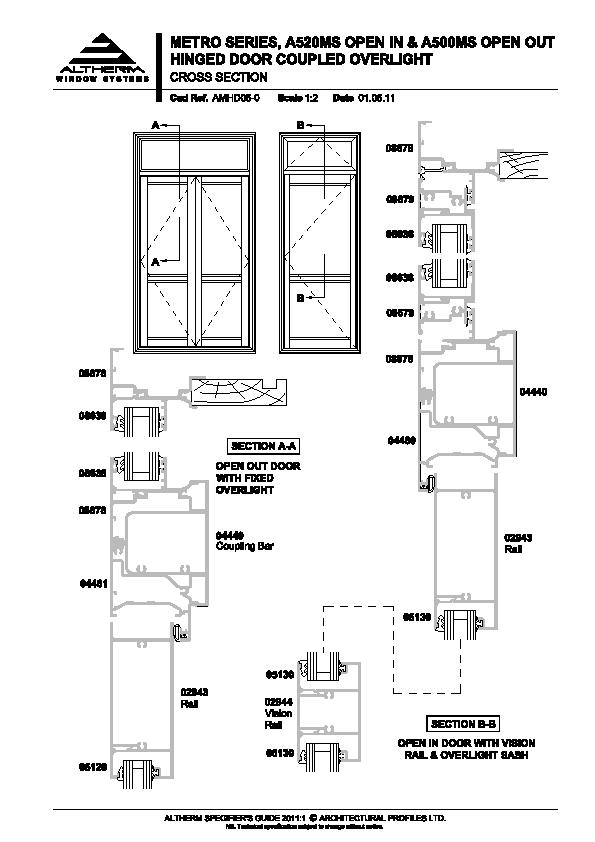

Altherm Metro Series A520MS Open In & A500MS Open Out Hinged Door Coupled Overlight

AMHD06-0

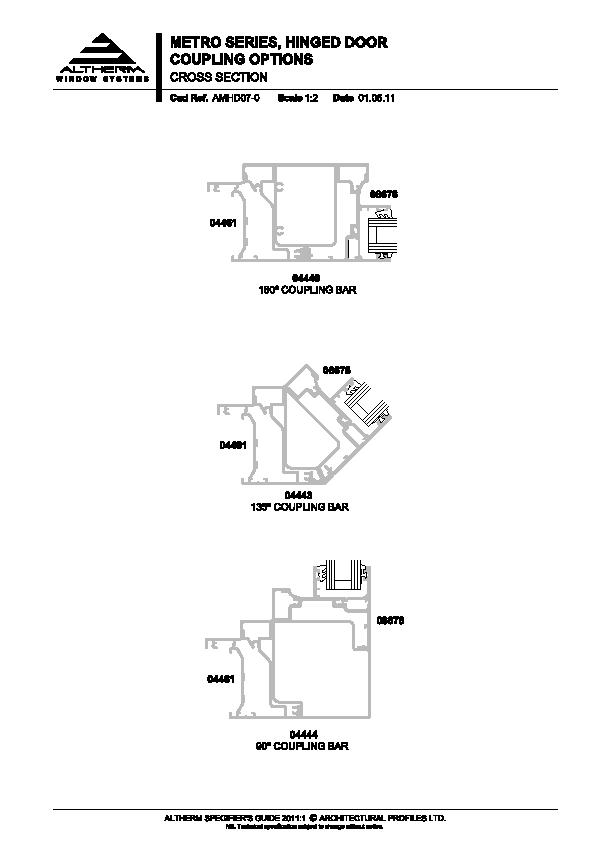

Altherm Metro Series Hinged Door Coupling Options

AMHD07-0

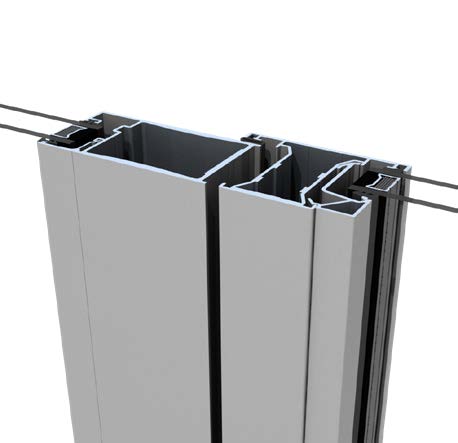

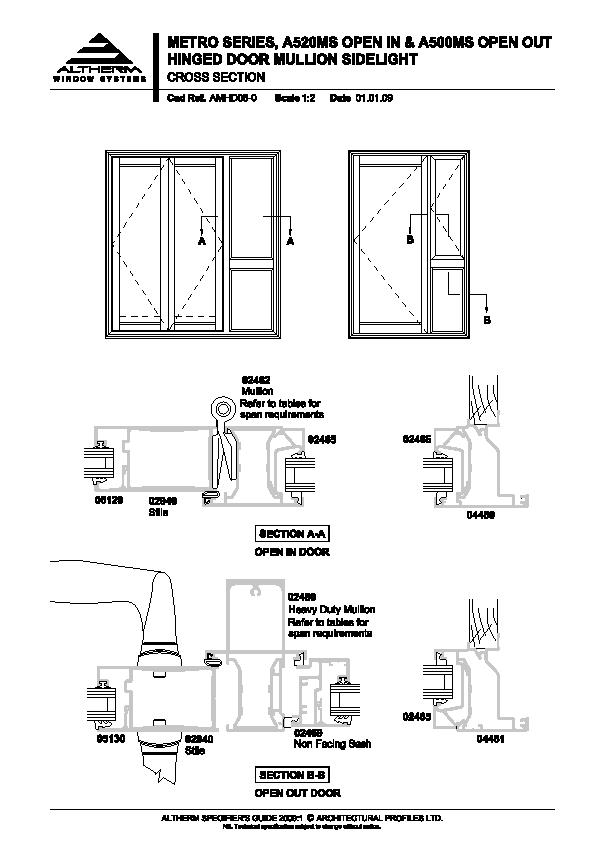

Altherm Metro Series A520MS Open In & A500MS Open Out Hinged Door Mullion Sidelight

AMHD08-0

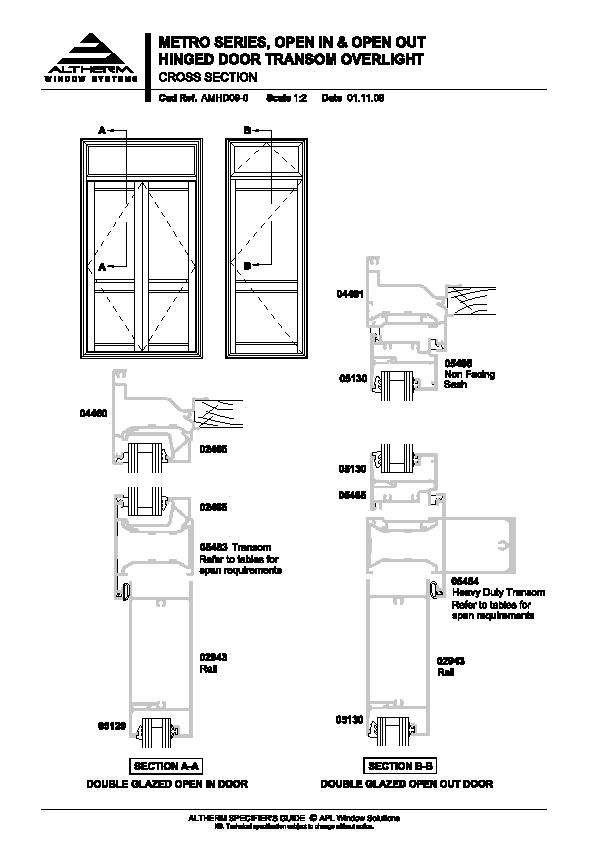

Altherm Metro Series Open In & Open Out Hinged Door Transom Overlight

AMHD09-0

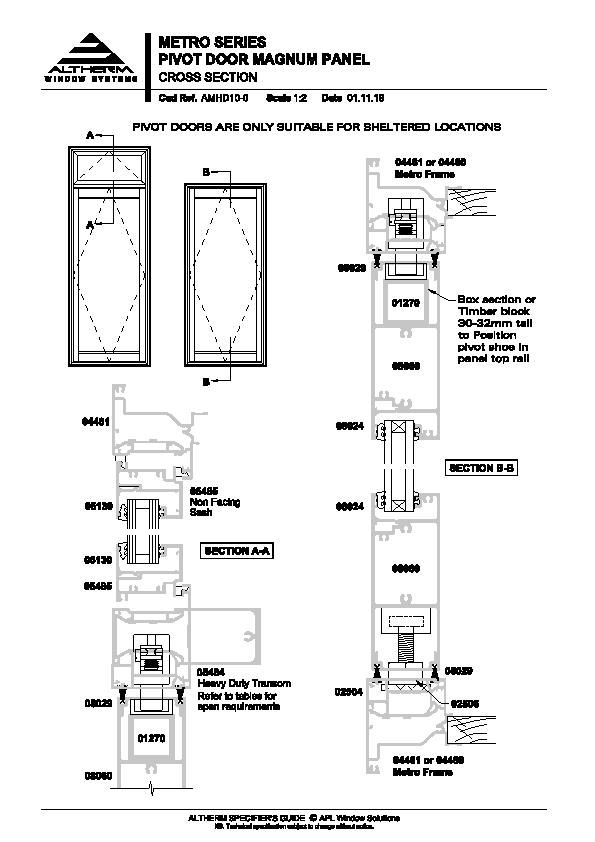

Altherm Metro Series Pivot Door Magnum Panel

AMHD10-0

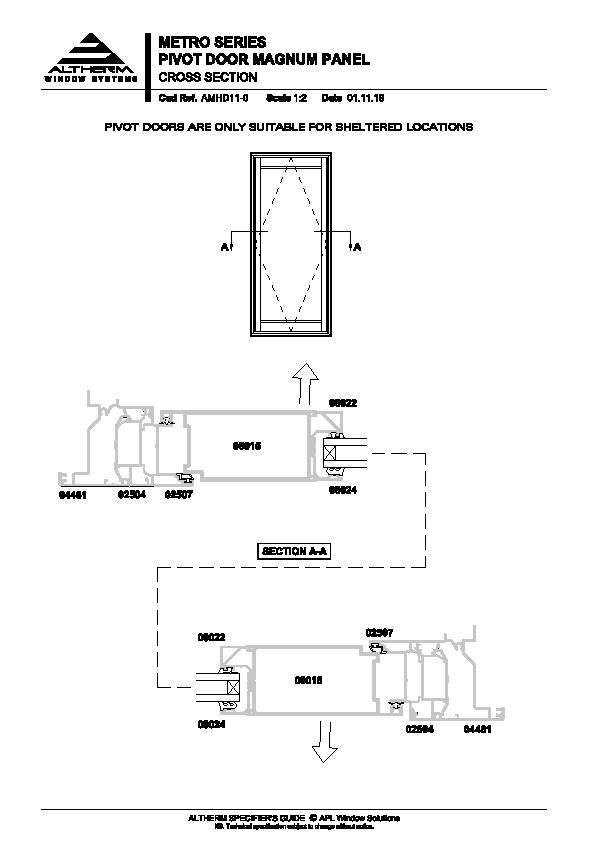

Altherm Metro Series Pivot Door Magnum Panel

AMSHD11-0

Installation Details

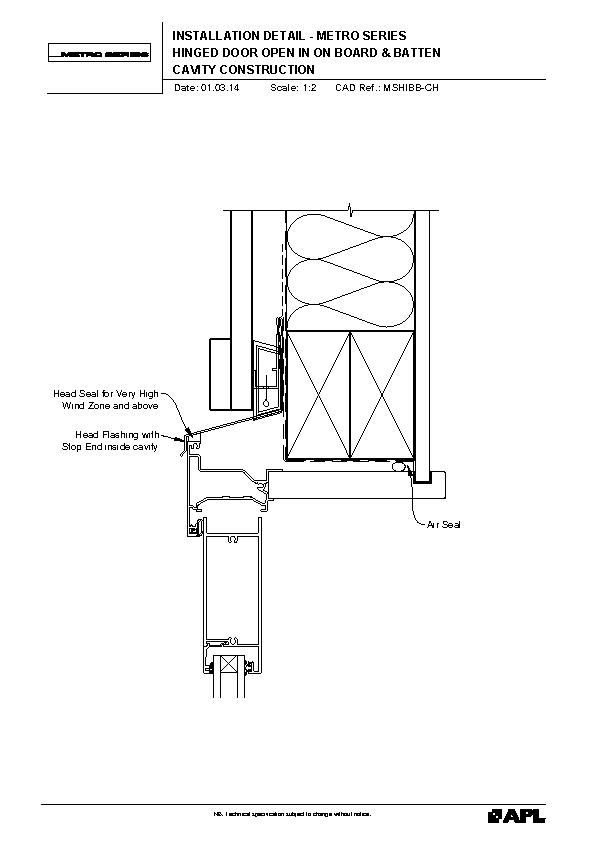

Altherm Metro Series Hinged Door Open In on Board & Batten

MSHIBB

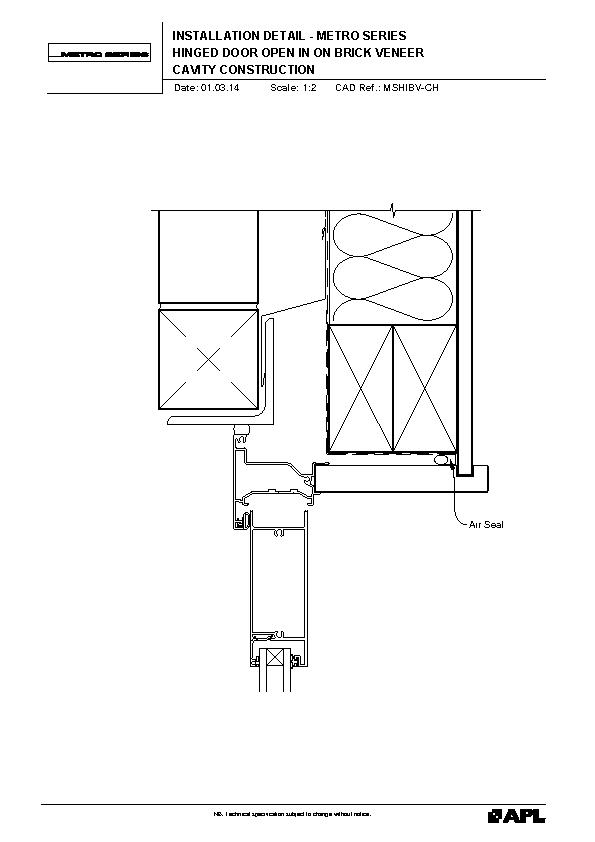

Altherm Metro Series Hinged Door Open In on Brick Veneer

MSHIBV

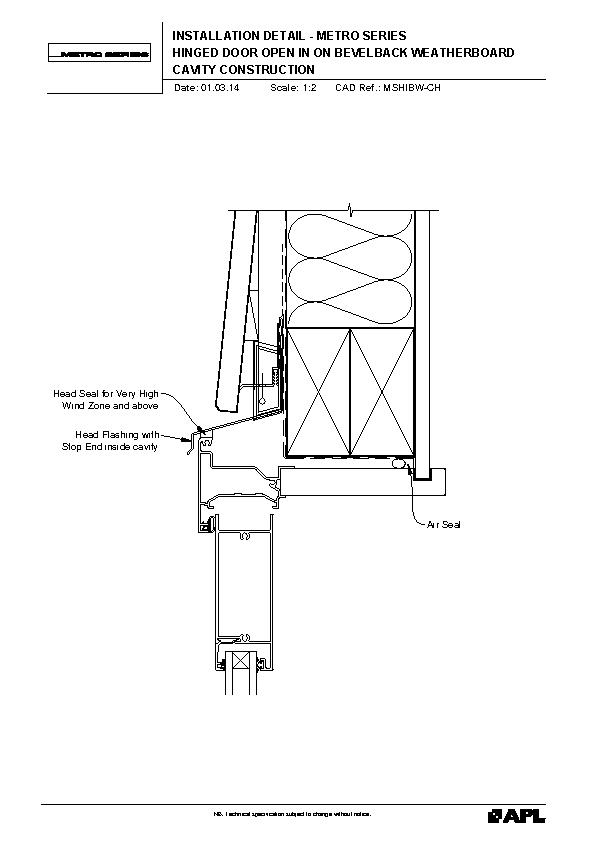

Altherm Metro Series Hinged Door Open In on Bevelback Weatherboard

MSHIBW

Altherm Metro Series Hinged Door Open In on Flat Sheet

MSHIFS

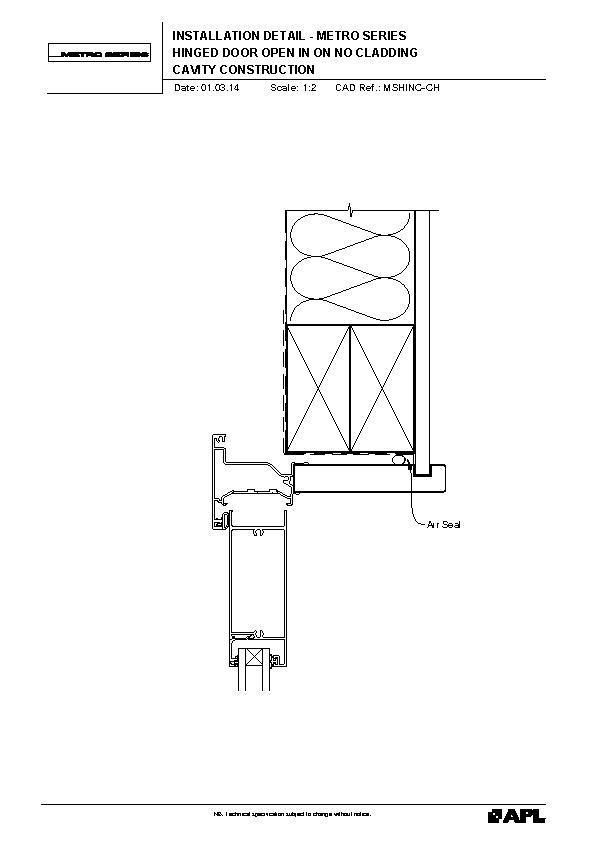

Altherm Metro Series Hinged Door Open In on No Cladding

MSHINC

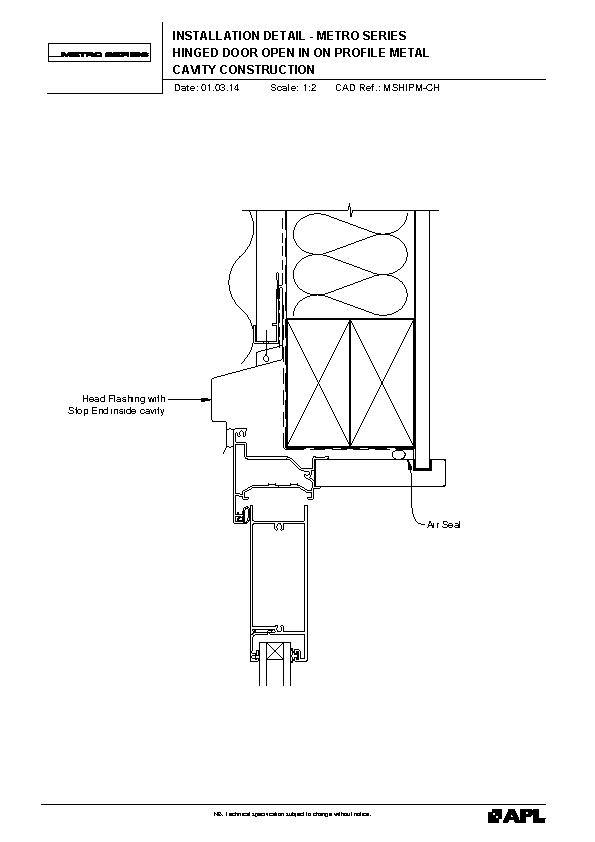

Altherm Metro Series Hinged Door Open In on Profile Metal

MSHIPM

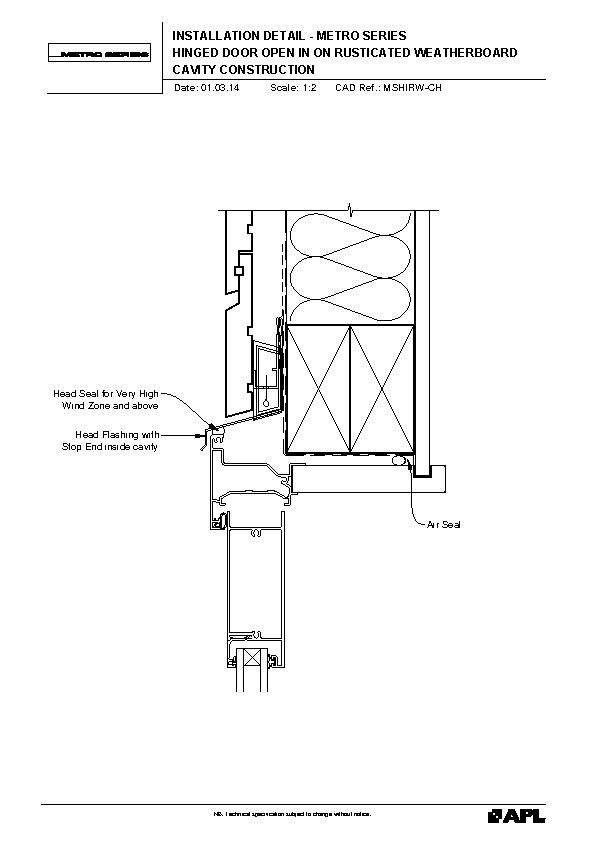

Altherm Metro Series Hinged Door Open In on Rusticated Weatherboard

MSHIRW

Altherm Metro Series Hinged Door Open In on Stucco

MSHIST

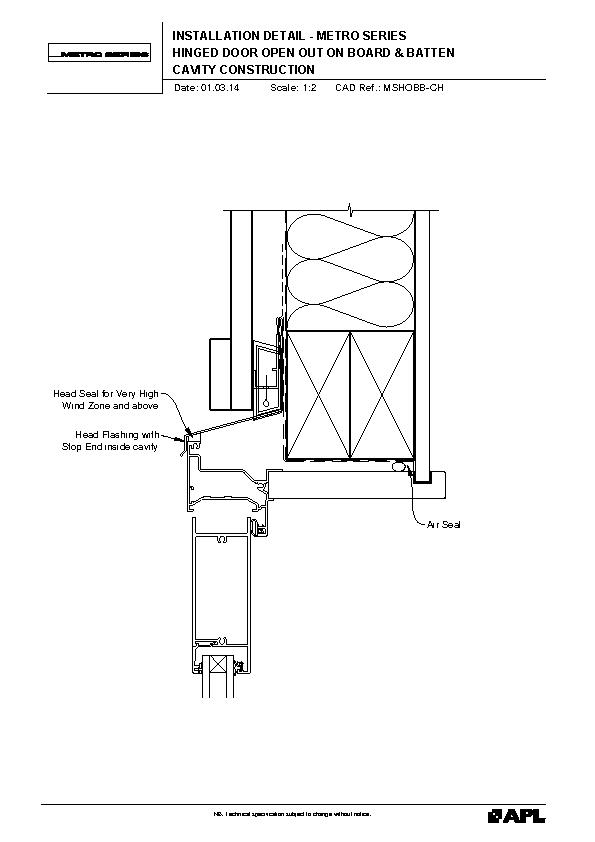

Altherm Metro Series Hinged Door Open Out on Board & Batten

MSHOBB

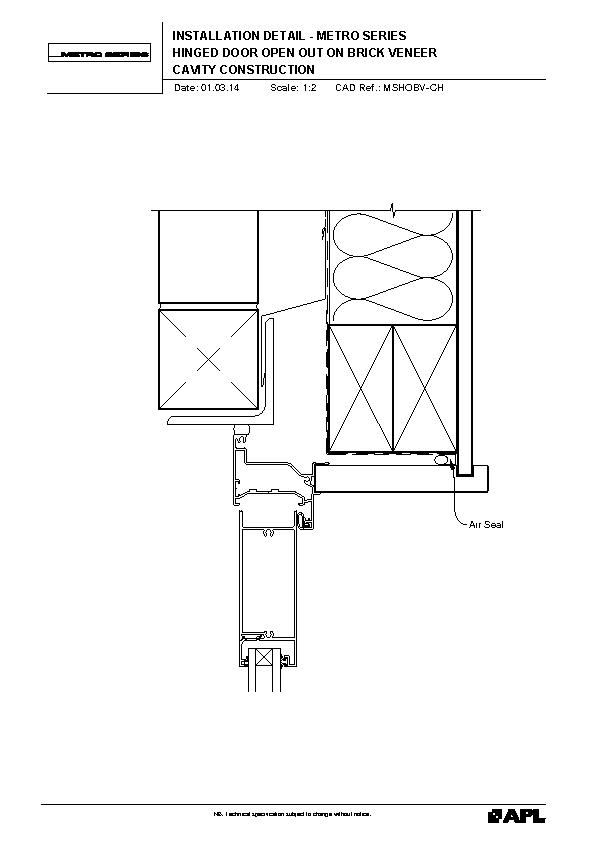

Altherm Metro Series Hinged Door Open Out on Brick Veneer

MSHOBV

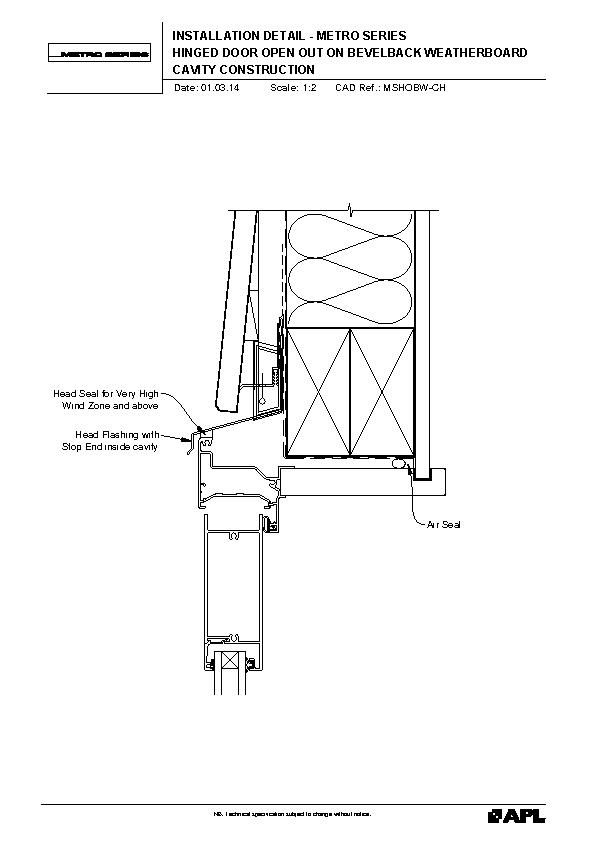

Altherm Metro Series Hinged Door Open Out on Bevelback Weatherboard

MSHOBW

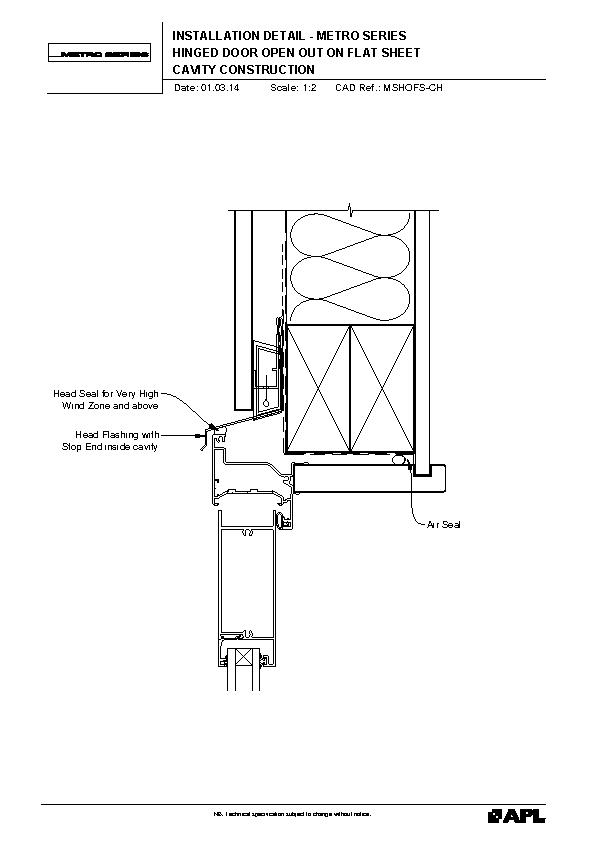

Altherm Metro Series Hinged Door Open Out on Flat Sheet

MSHOFS

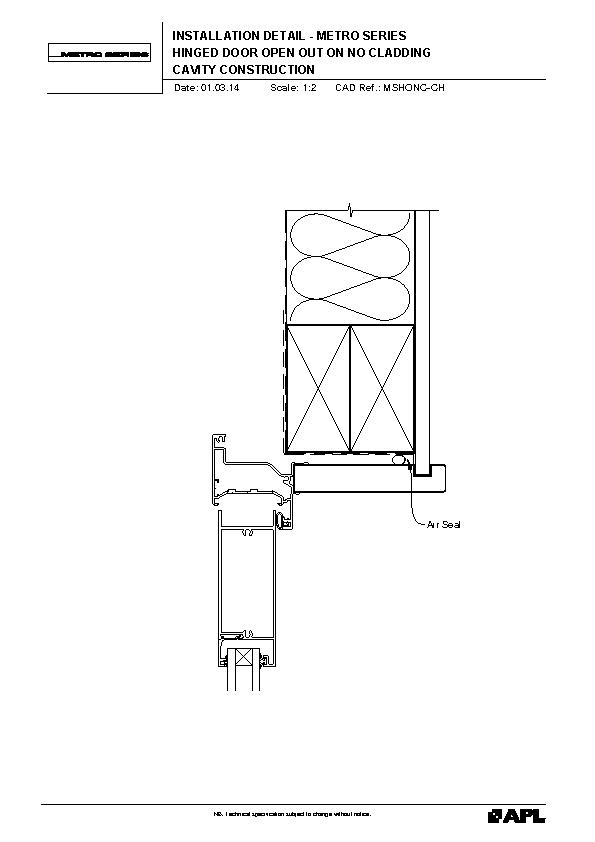

Altherm Metro Series Hinged Door Open Out on No Cladding

MSHONC

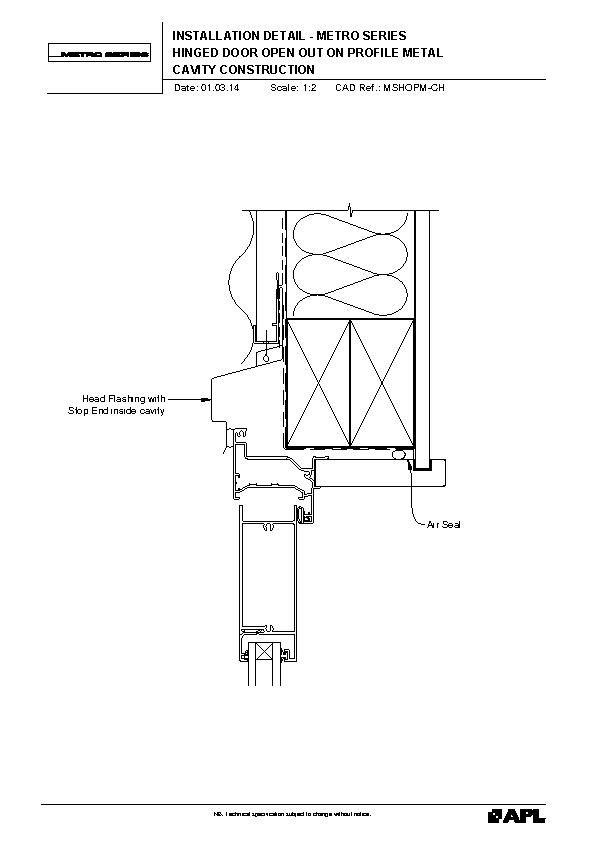

Altherm Metro Series Hinged Door Open Out on Profile Metal

MSHOPM

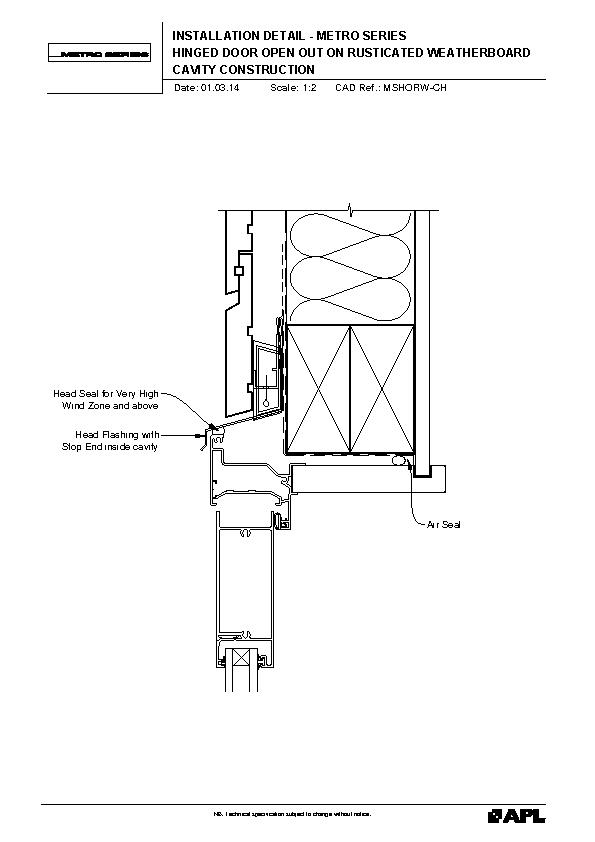

Altherm Metro Series Hinged Door Open Out on Rusticated Weatherboard

MSHORW

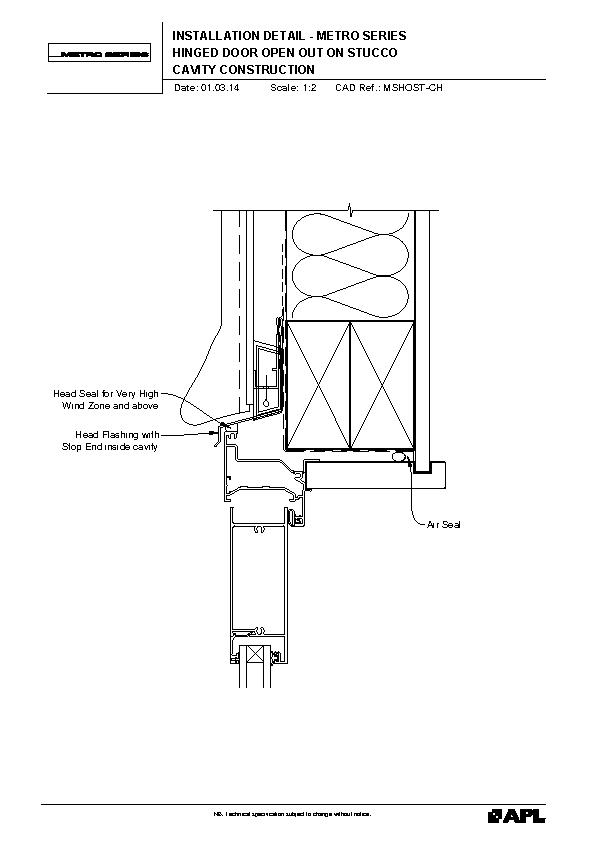

Altherm Metro Series Hinged Door Open Out on Stucco

MSHOST

BIM

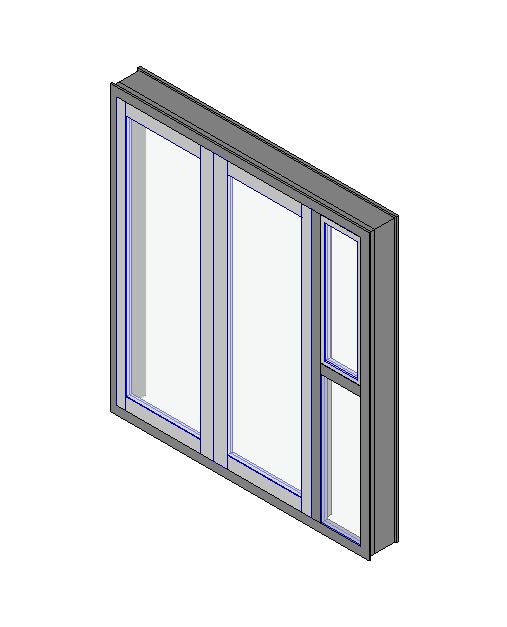

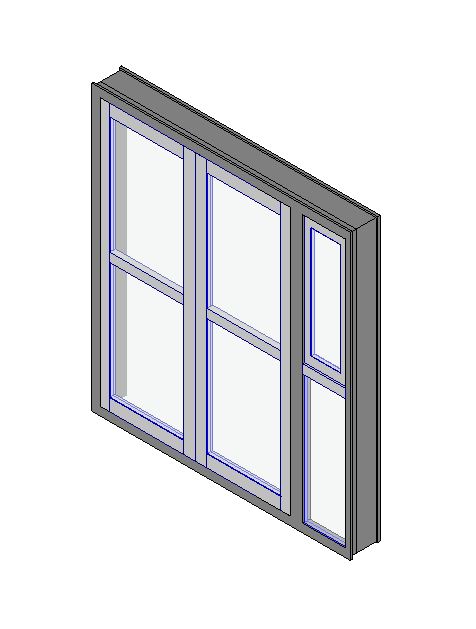

Altherm Metro Series French Door Coupled Sidelight Open Out
Altherm Metro Series French Door Mullion Sidelight Open Out

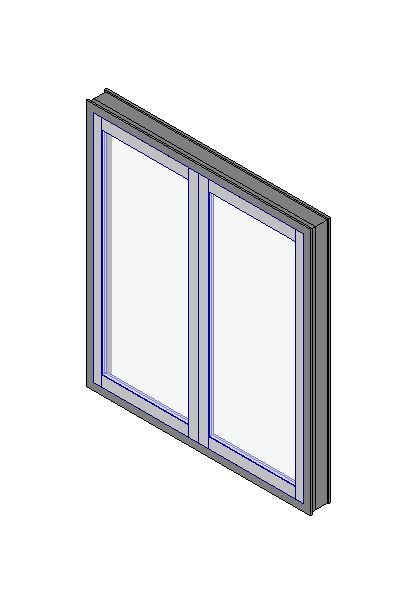

Altherm Metro Series French Door Open Out

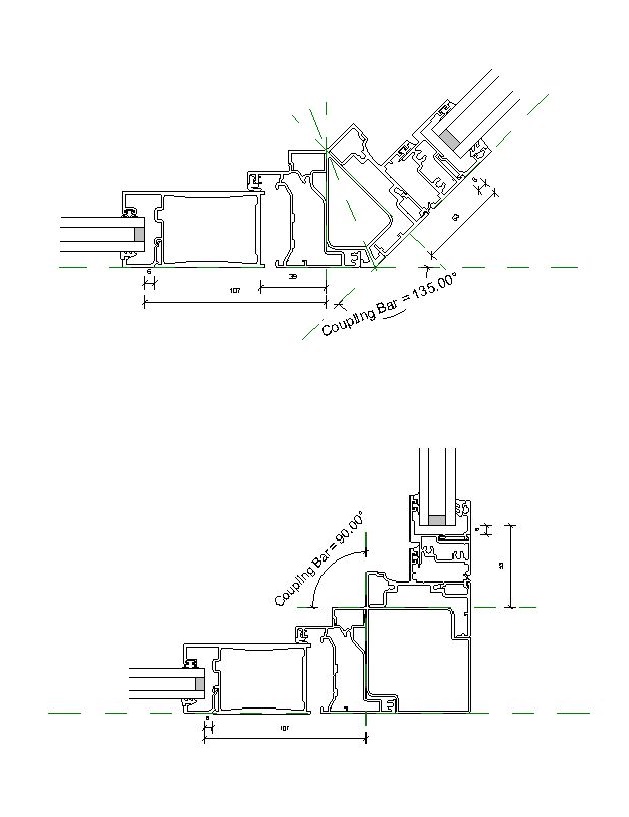

Altherm Metro Series Hinged Door 90° and 135° Coupling Open Out

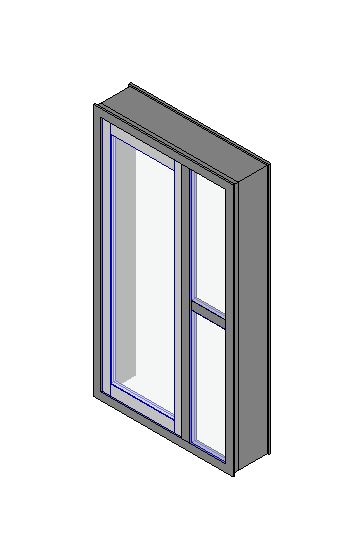

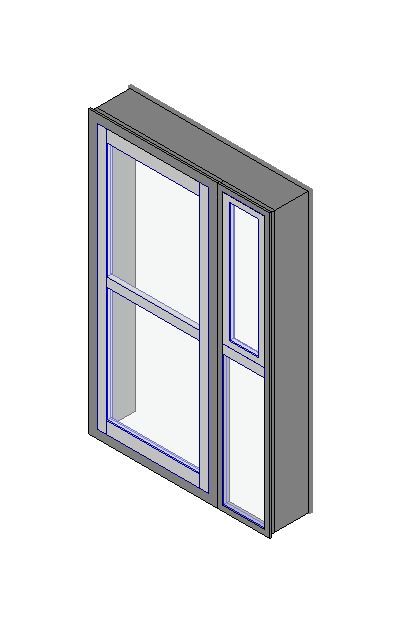

Altherm Metro Series Hinged Door Coupled Sidelight Open Out
Altherm Metro Series Hinged Door Mullion Sidelight Open In

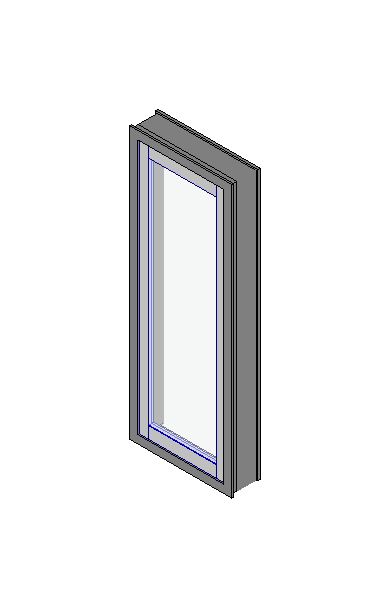

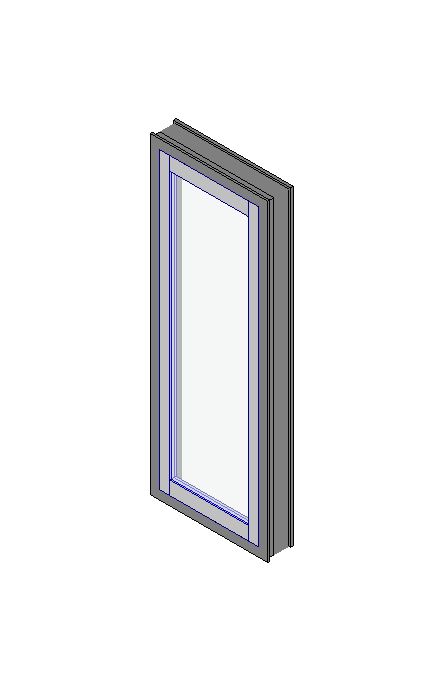

Altherm Metro Series Hinged Door Open In

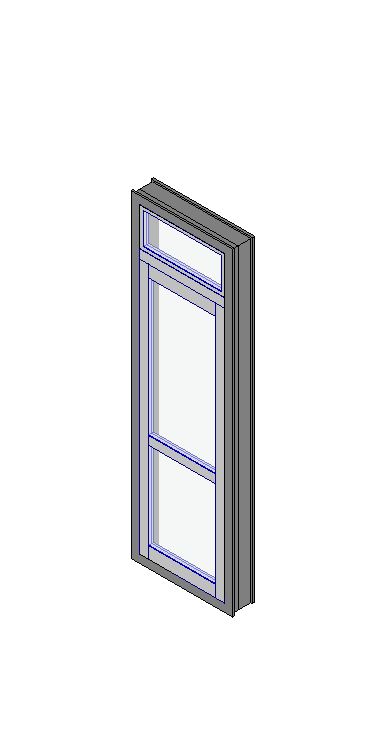

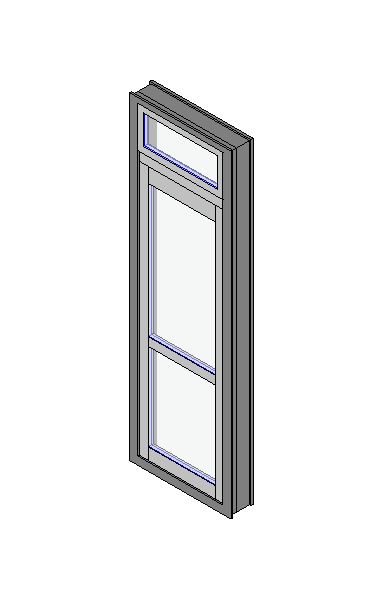

Altherm Metro Series Hinged Door Open In with Overlight
Altherm Metro Series Hinged Door Open Out
Altherm Metro Series Hinged Door Transom Overlight Open Out
APL Head Flashings

Revit LT 2020
