Altherm Commercial Magnum Commercial Doors
Description

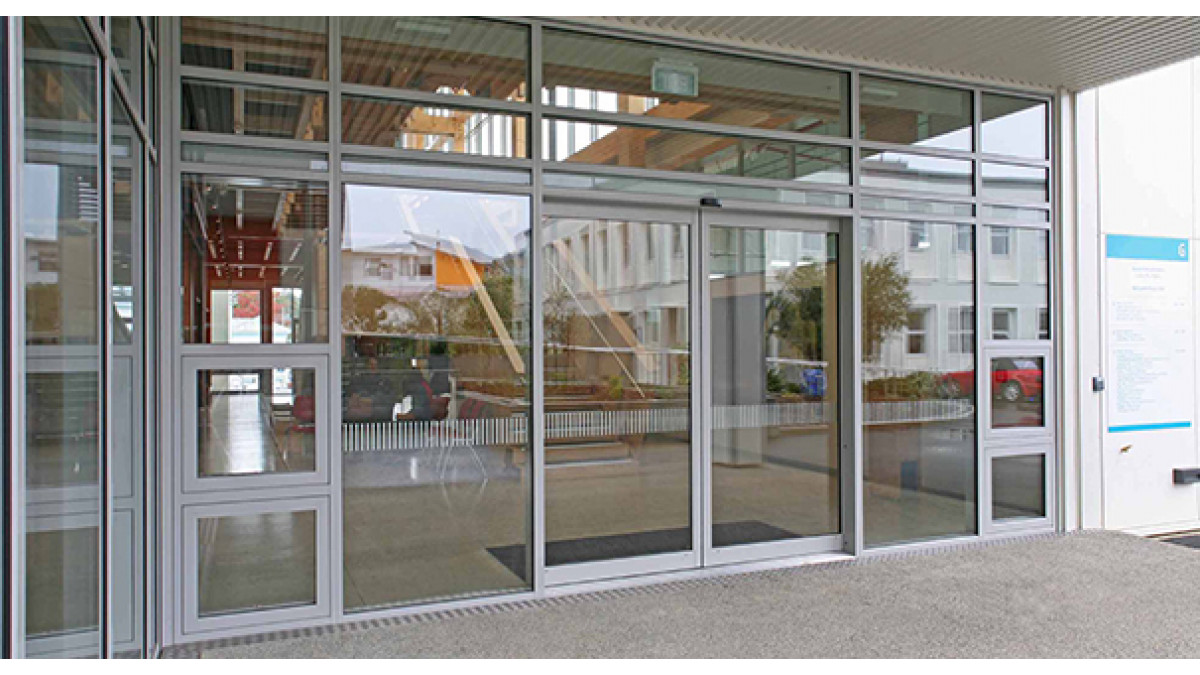

Magnum commercial doors are versatile and robust and are suitable for commercial, institutional and some specialised residential settings. They can be mounted in a range of styles — hinged, on floor springs or transom closers, or constructed as sliders, bottom rolling, top hung and with electronic control. Bi-folds are also available.

Magnum doors are compatible with most of the commercial window systems offered.

Key Features

A versatile and robust commercial door system that can be:

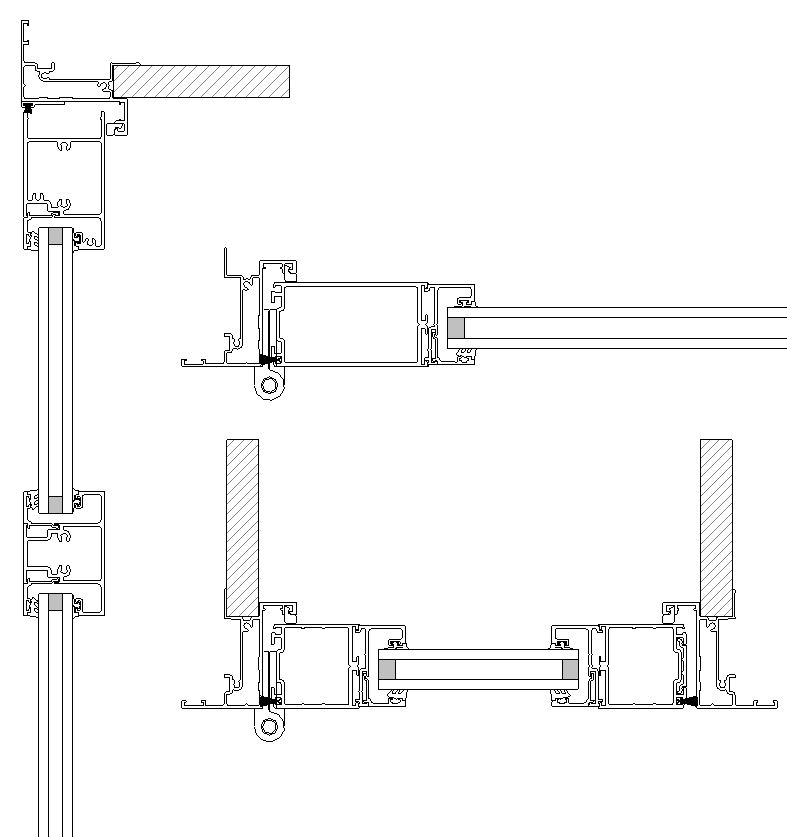

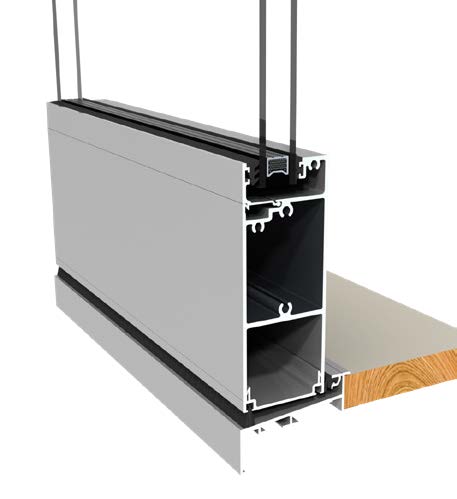

  • Hinged
  • Floor sprung (pivot door)
  • Hung on concealed transom closers (pivot door)

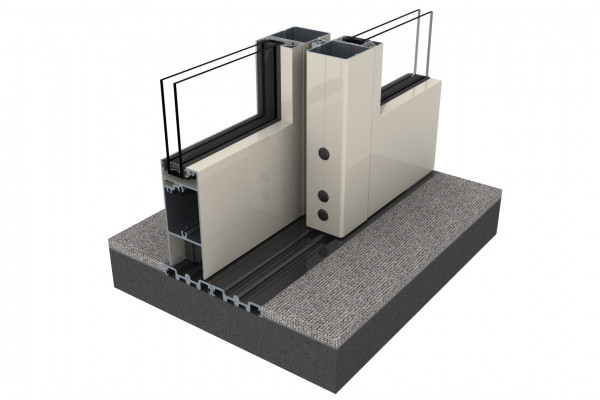

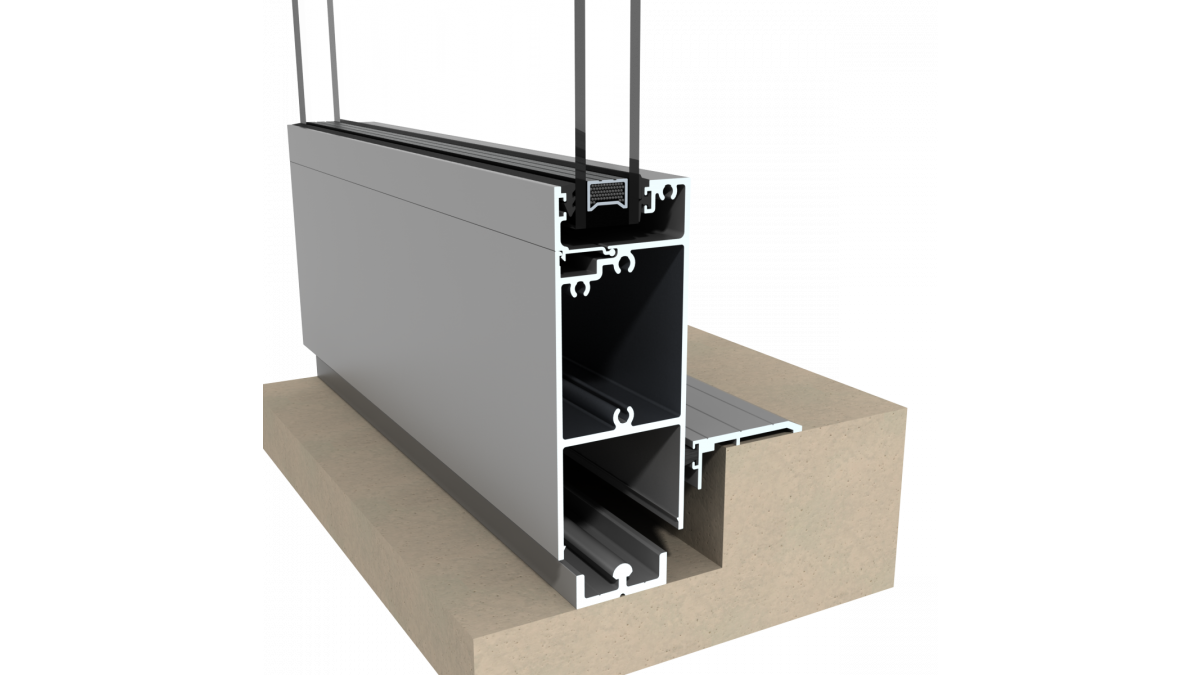

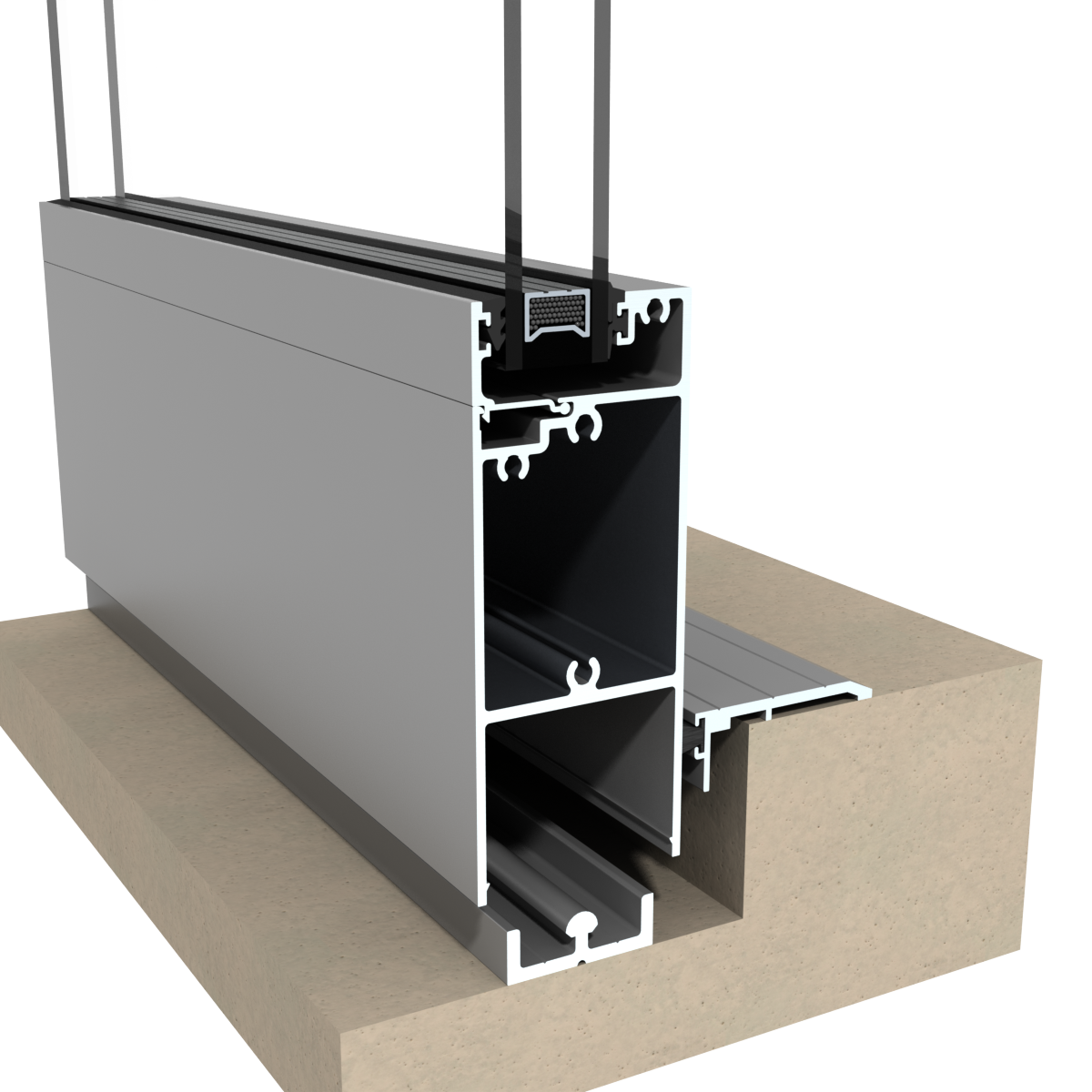

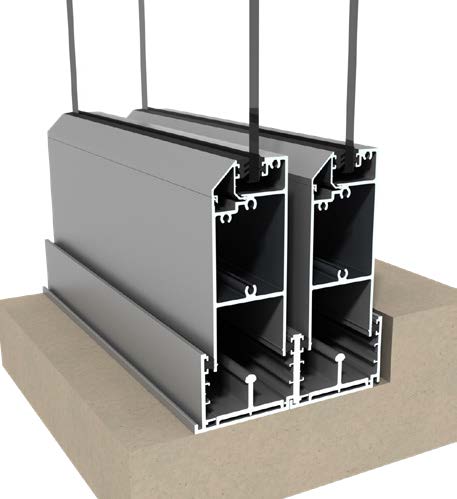

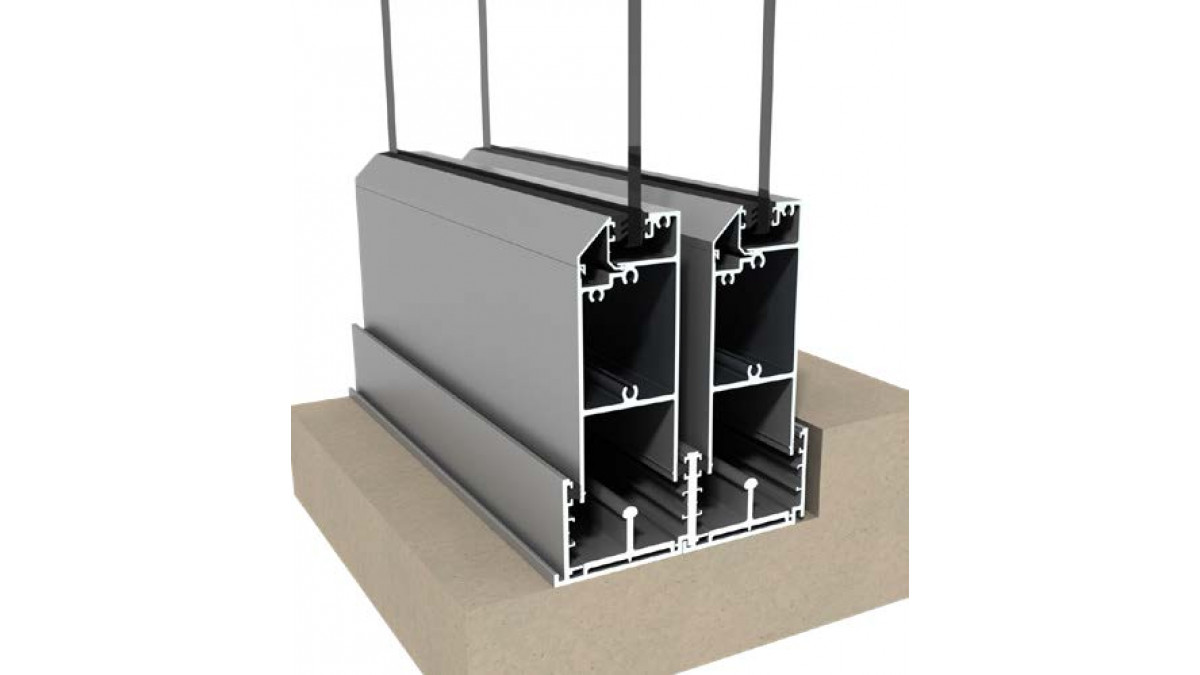

  • Sliding — stacking on multiple tracks (with bottom rollers)
  • Sliding top hung
Scope of Use
  • Suitable for a wide range of commercial environments
  • Also used in some residential applications
  • Location and exposure suitability will depend on door type used e.g. sliding, hinged
  • Magnum sliders are compatible with the 100mm Shopfront suite
  • Need to be used in defined maximum sizes according to the wind exposure
Limitations on Use
  • Magnum sliding doors need good weather cover in either commercial or residential settings (consider using APL Architectural Series sliders if appropriate)
  • Magnum overwall sliders can be specified with appropriate detailing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 1998
  • Some design upgrades released
  • Widely used by builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Literature
Product Assurance
Data Sheet
Warranty
Other Literature
Altherm Care & Maintenance Brochure 2017
APL and Sustainability 2017
Manufacturer Contact List
Span Tables
Specifier Guide
WANZ Guide to E2/AS1
CAD/PDF Details
Full Set of Drawings

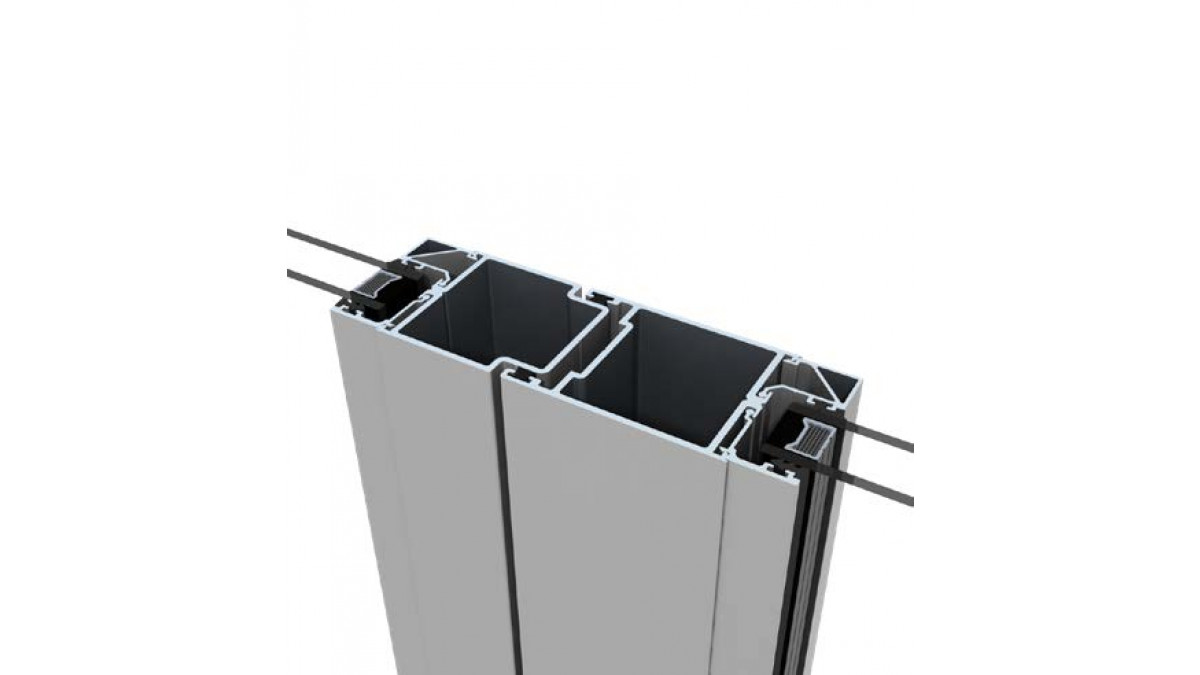

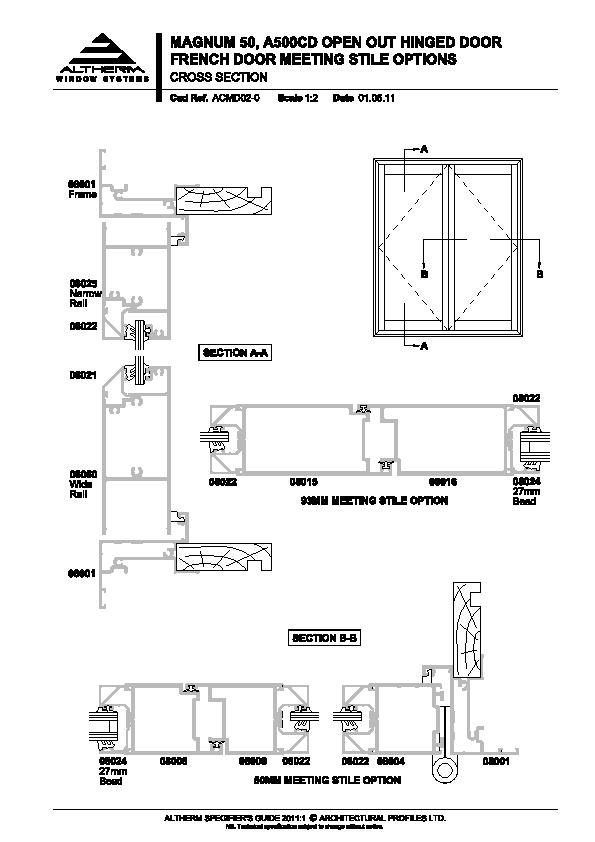

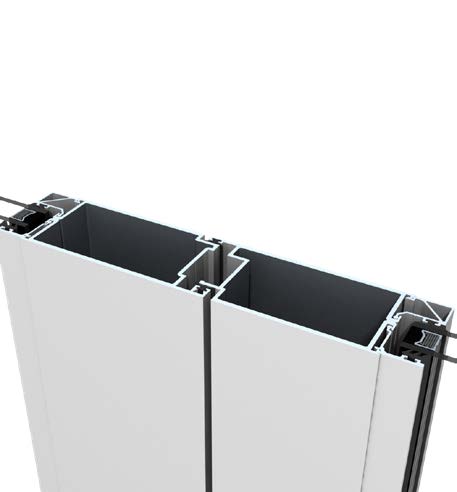

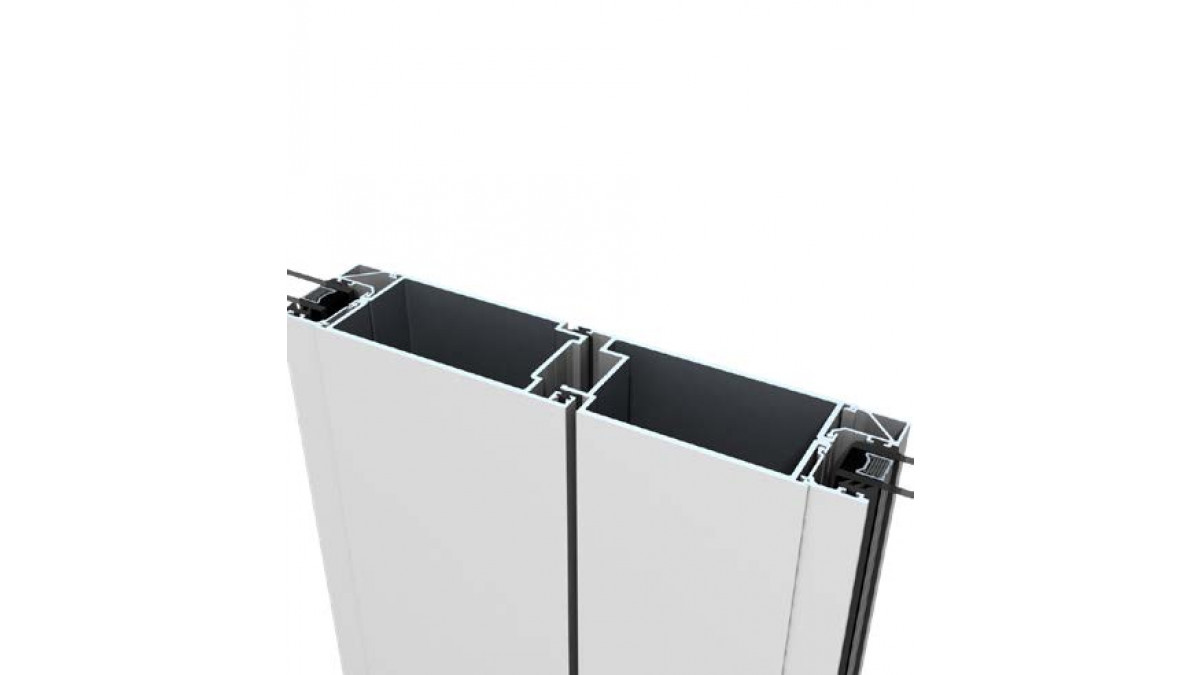

Altherm Commercial Magnum Commercial Doors Magnum 50, A500CD Open Out Hinged Door French Door Meeting Stile Options

ACMD02-0

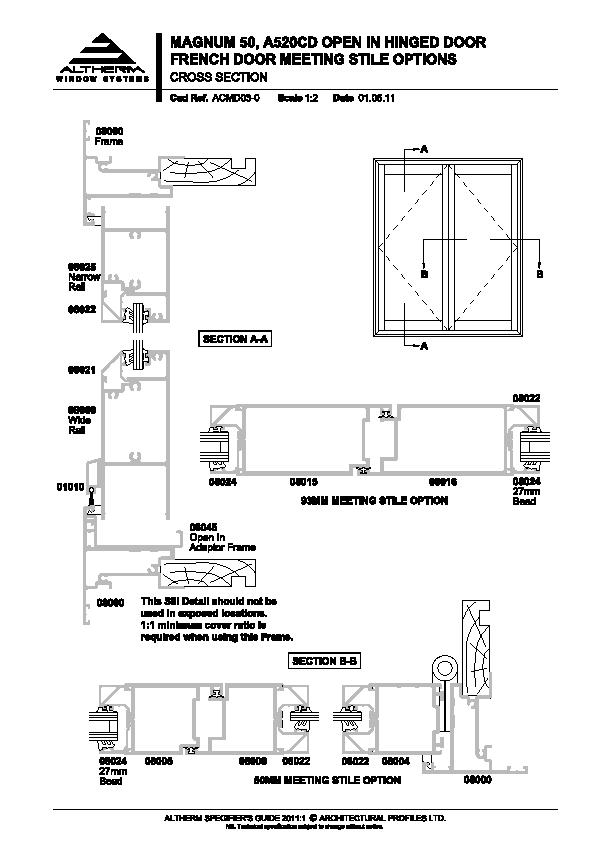

Altherm Commercial Magnum Commercial Doors Magnum 50, A520CD Open In Hinged Door French Door Meeting Stile Options

ACMD03-0

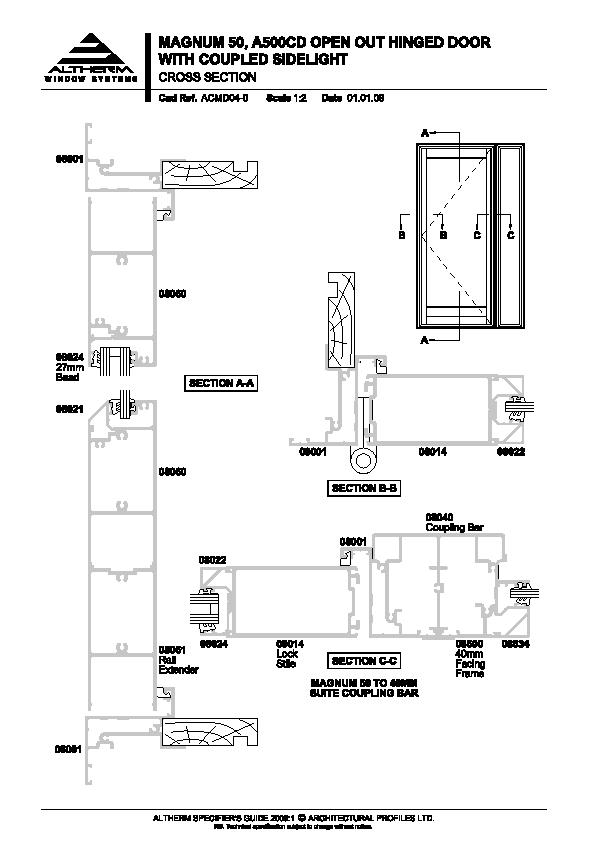

Altherm Commercial Magnum Commercial Doors Magnum 50, A500CD Open Out Hinged Door with Coupled Sidelight

ACMD04-0

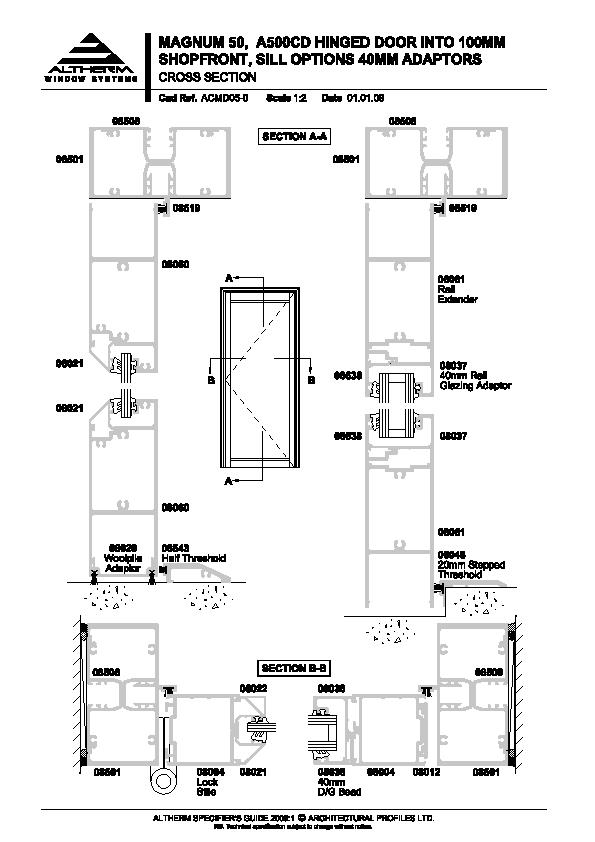

Altherm Commercial Magnum Commercial Doors Magnum 50, A500CD Hinged Door into 100mm Shopfront, Sill Options 40mm Adaptors

ACMD05-0

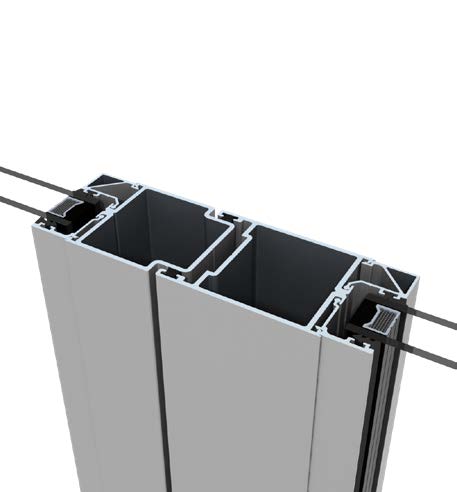

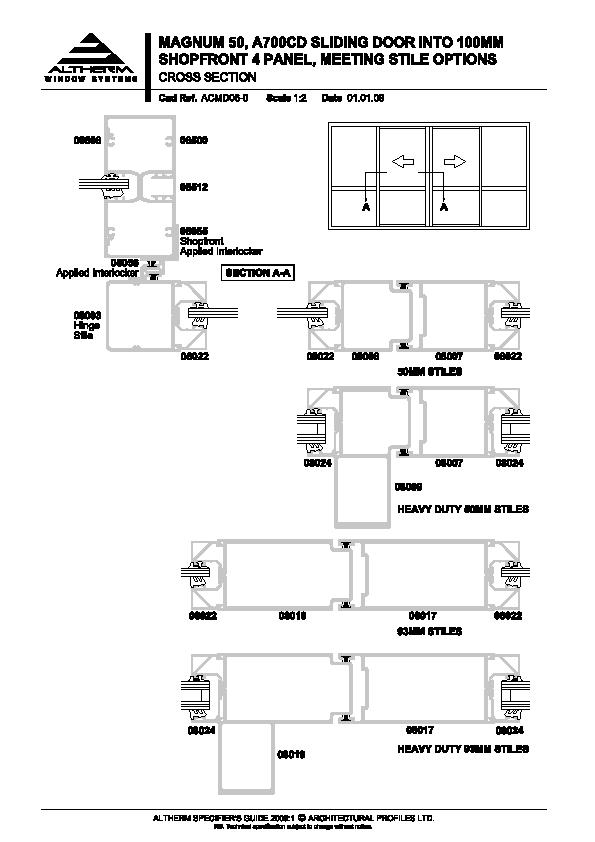

Altherm Commercial Magnum Commercial Doors Magnum 50, A700CD Sliding Door into 100mm Shopfront 4 Panel, Meeting Stile Options

ACMD06-0

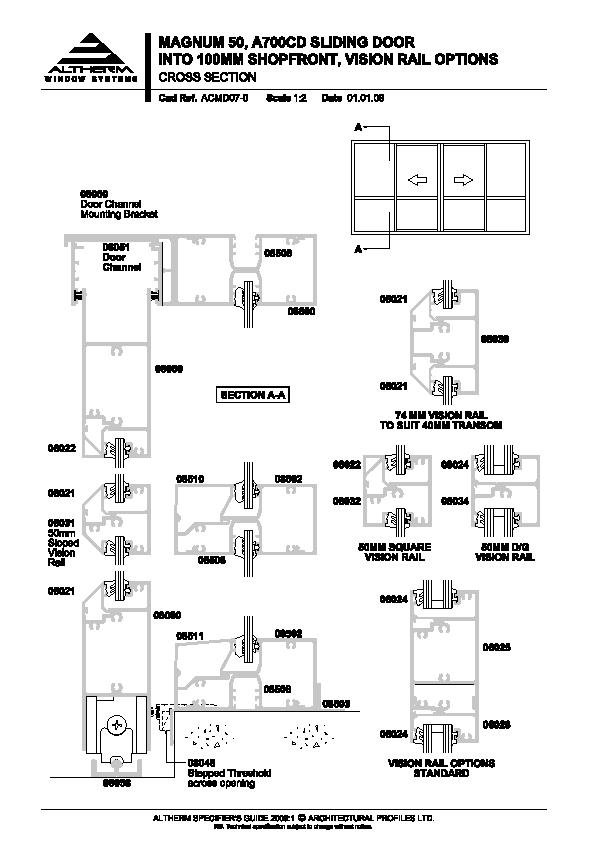

Altherm Commercial Magnum Commercial Doors Magnum 50, A700CD Sliding Door into 100mm Shopfront, Vision Rail Options

ACMD07-0

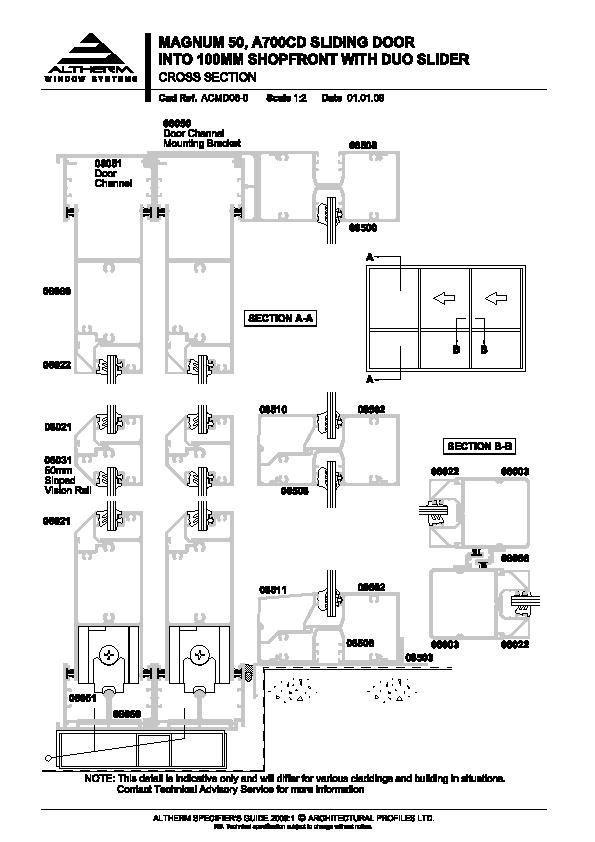

Altherm Commercial Magnum Commercial Doors Magnum 50, A700CD Sliding Door into 100mm Shopfront with Duo Slider

ACMD08-0

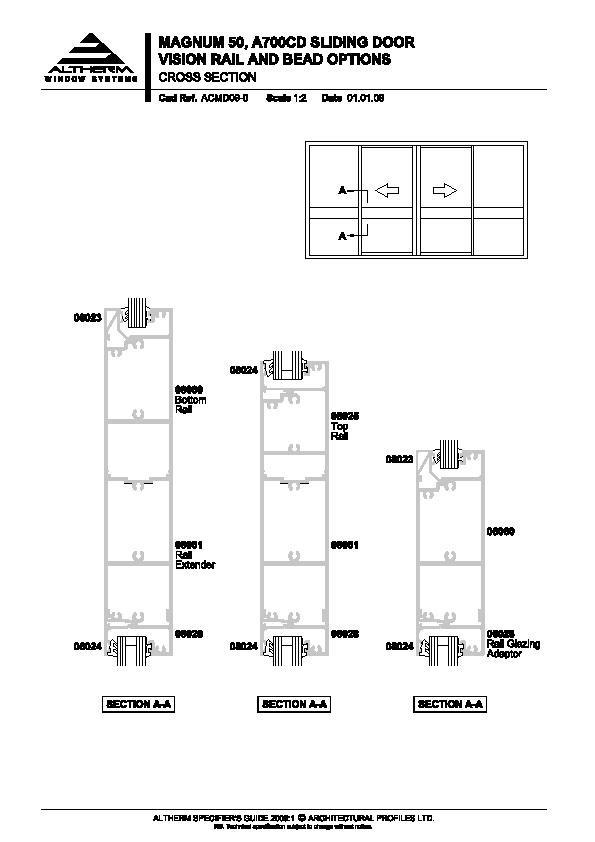

Altherm Commercial Magnum Commercial Doors Magnum 50, A700CD Sliding Door Vision Rail and Bead Options

ACMD09-0

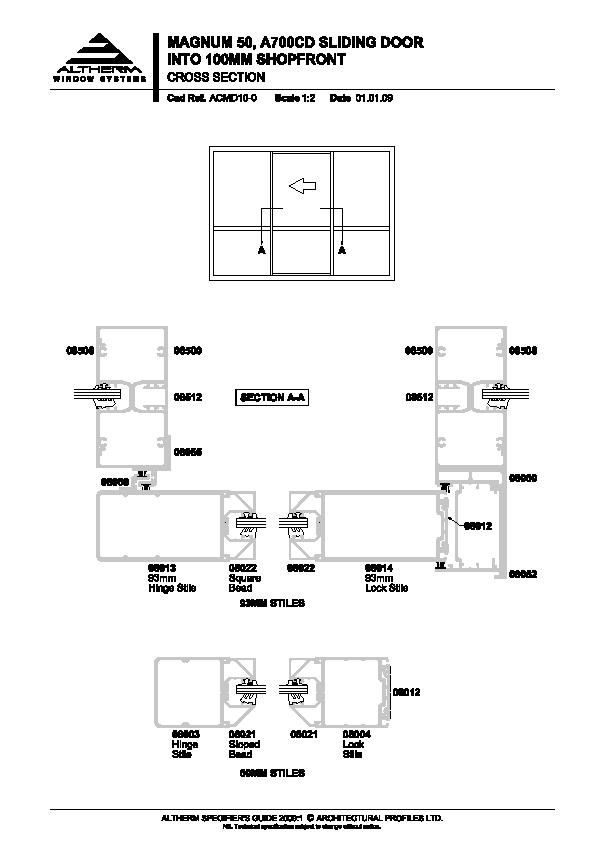

Altherm Commercial Magnum Commercial Doors Magnum 50, A700CD Sliding Door into 100mm Shopfront

ACMD10-0

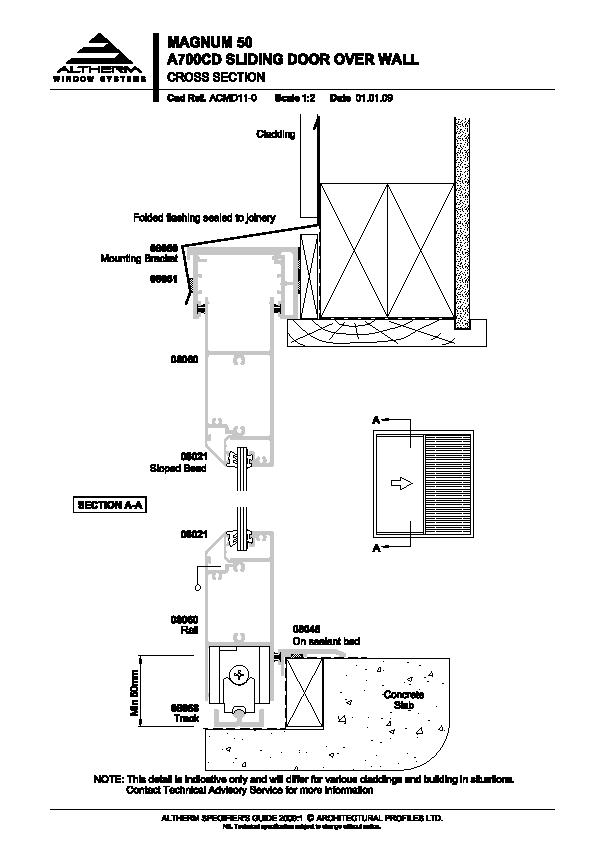

Altherm Commercial Magnum Commercial Doors Magnum 50 A700CD Sliding Door Over Wall

ACMD11-0

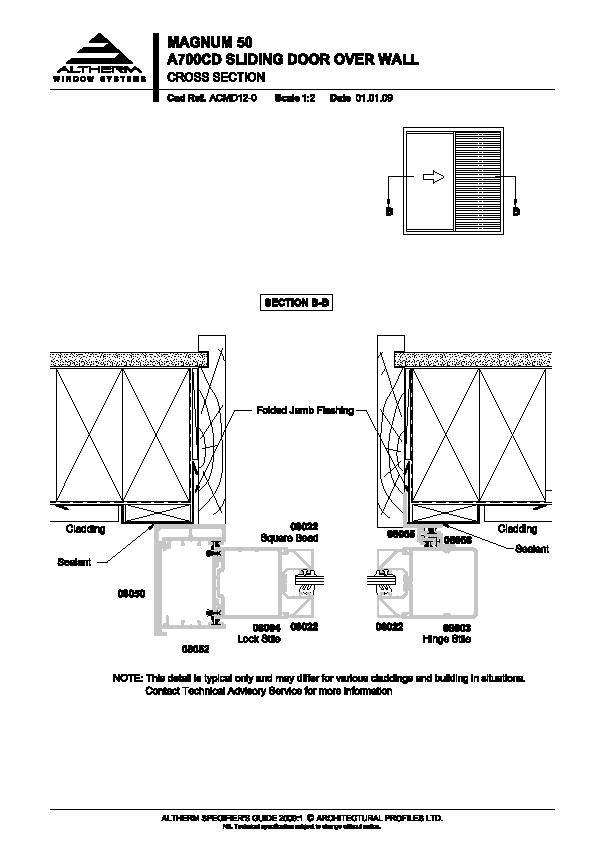

Altherm Commercial Magnum Commercial Doors Magnum 50 A700CD Sliding Door Over Wall

ACMD12-0

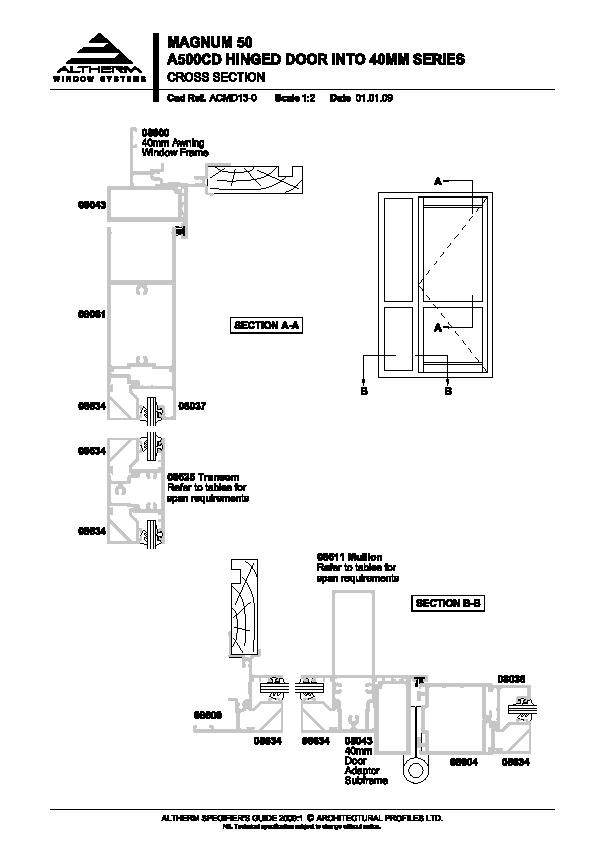

Altherm Commercial Magnum Commercial Doors Magnum 50 A500CD Hinged Door into 40mm Series

ACMD13-0

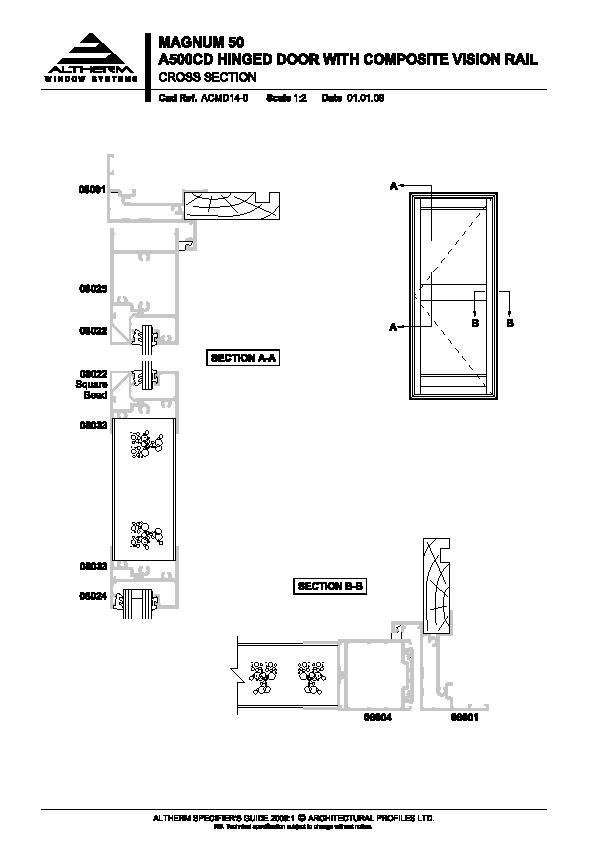

Altherm Commercial Magnum Commercial Doors Magnum 50 A500CD Hinged Door with Composite Vision Rail

ACMD14-0

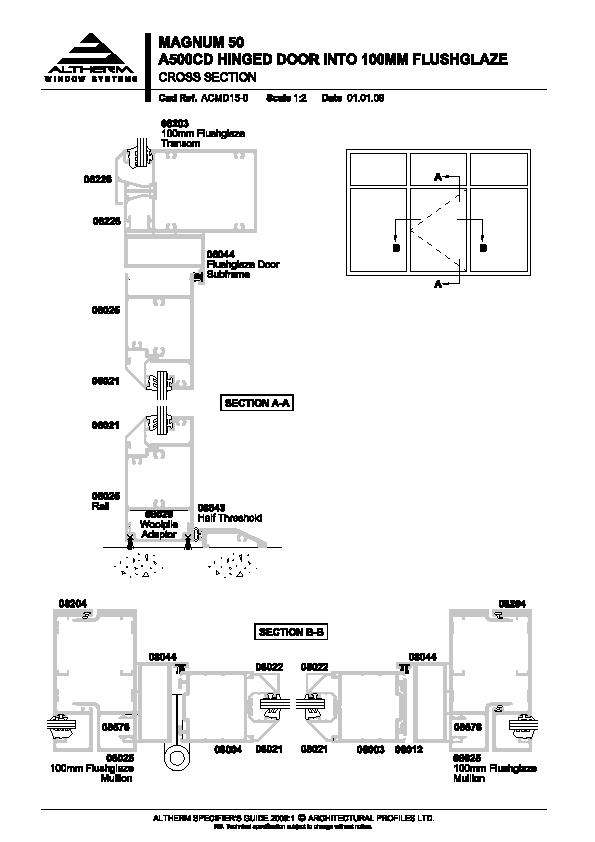

Altherm Commercial Magnum Commercial Doors Magnum 50 A500CD Hinged Door into 100mm Flushglaze

ACMD15-0

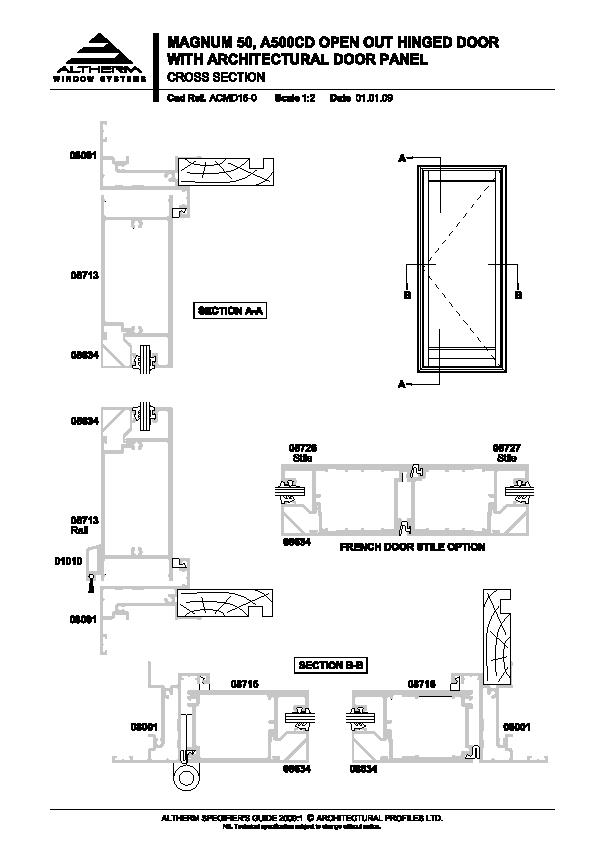

Altherm Commercial Magnum Commercial Doors Magnum 50, A500CD Open Out Hinged Door with Architectural Door Panel

ACMD16-0

BIM Objects

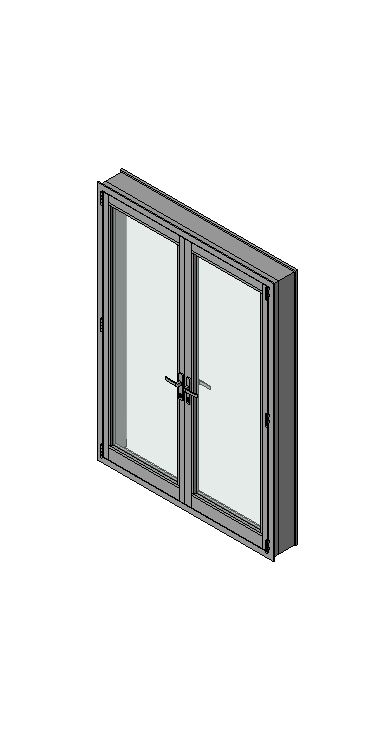

Altherm Commercial Magnum 50, French Door
