Altherm Commercial 125mm, 150mm and 168mm Structural Glaze Systems
Description

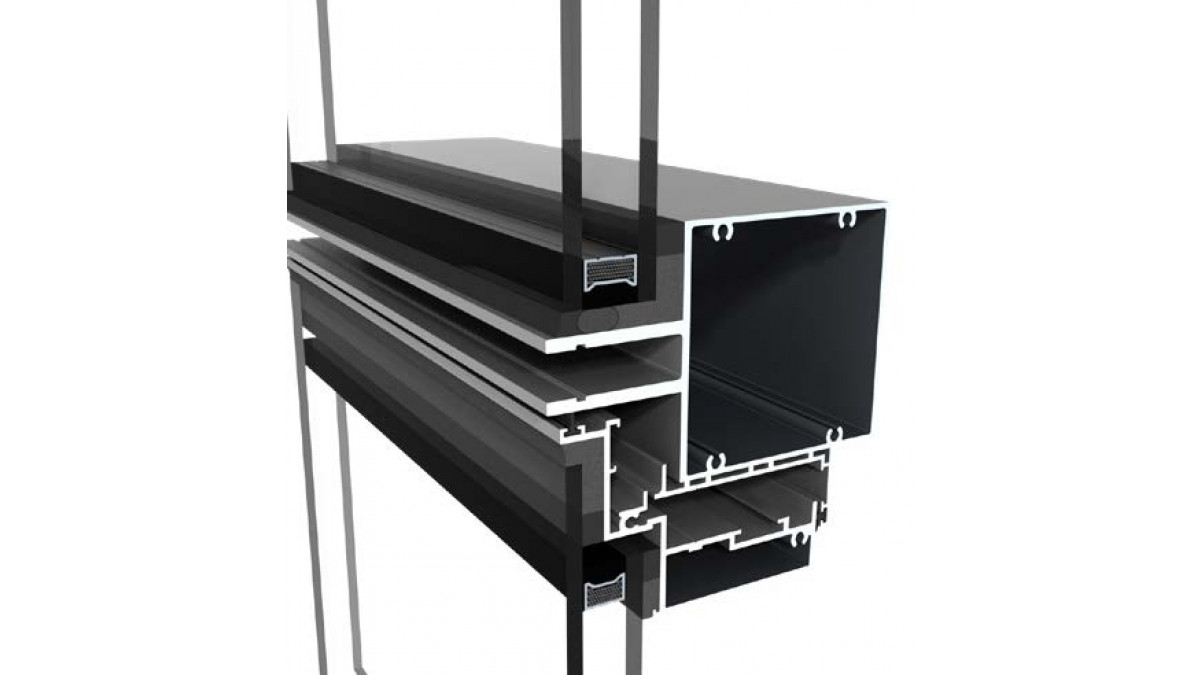

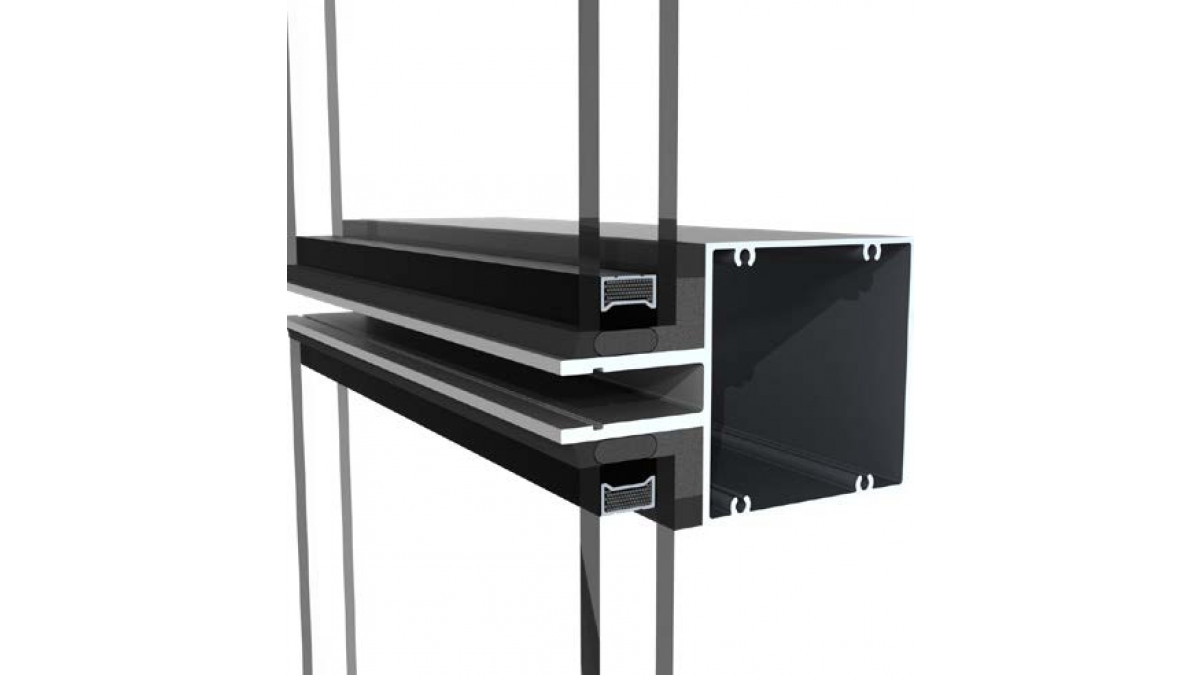

A four-sided structural glazed, fully panelised system for low to high rise applications. Glass is adhered to the outer edge of the extrusions, reducing the visual effect of aluminium as viewed from the outside.

Opening sashes can be incorporated in the facade without interrupting the glass look. Sun control fins can be added to the outside of transoms and provide a strong horizontal decorative element.

Key Features
  • For low to high rise applications
  • Four systems with different levels of performance available
  • A four-sided structural glazed, fully panelised system
  • Glazing is on the outer edge of the extrusions, reducing the visual effect of aluminium as viewed from the outside
  • The 168mm system has a thermally broken and shielded option available
  • Unobtrusive opening sashes for natural ventilation
  • Single and double glazing options, including within the same façade with retention of the glass plane
  • Sun control fins can be applied to the outside of transoms to aid solar control and accentuate the horizontal line
  • Can be used as a strip curtain wall system
Scope of Use
  • For low to high rise applications
  • Capable of a range of spans depending on aspect ratio, mullion spacing and wind pressure
  • Where thermal efficiency is a high priority, the 168mm thermally shielded system is recommended
  • Shop drawings can be supplied when specified
  • Compatible with Magnum commercial doors
Limitations on Use
  • Project-specific flashings and brackets are often required and are supplied by the window manufacturer
  • Tested to Very High wind zones and beyond but projects may require project-specific testing
  • Shop drawings can be supplied when specified
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2001
  • Some design upgrades released
  • Widely used by builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Literature
Product Assurance
Data Sheet
Span Tables: 125, 150mm
Span Tables: 168mm
Specifier Guide
Warranty
Other Literature
Altherm Care & Maintenance Brochure 2017
APL and Sustainability 2017
Manufacturer Contact List
WANZ Guide to E2/AS1
CAD/PDF Details
Full Set of Drawings
Full Set of Drawings

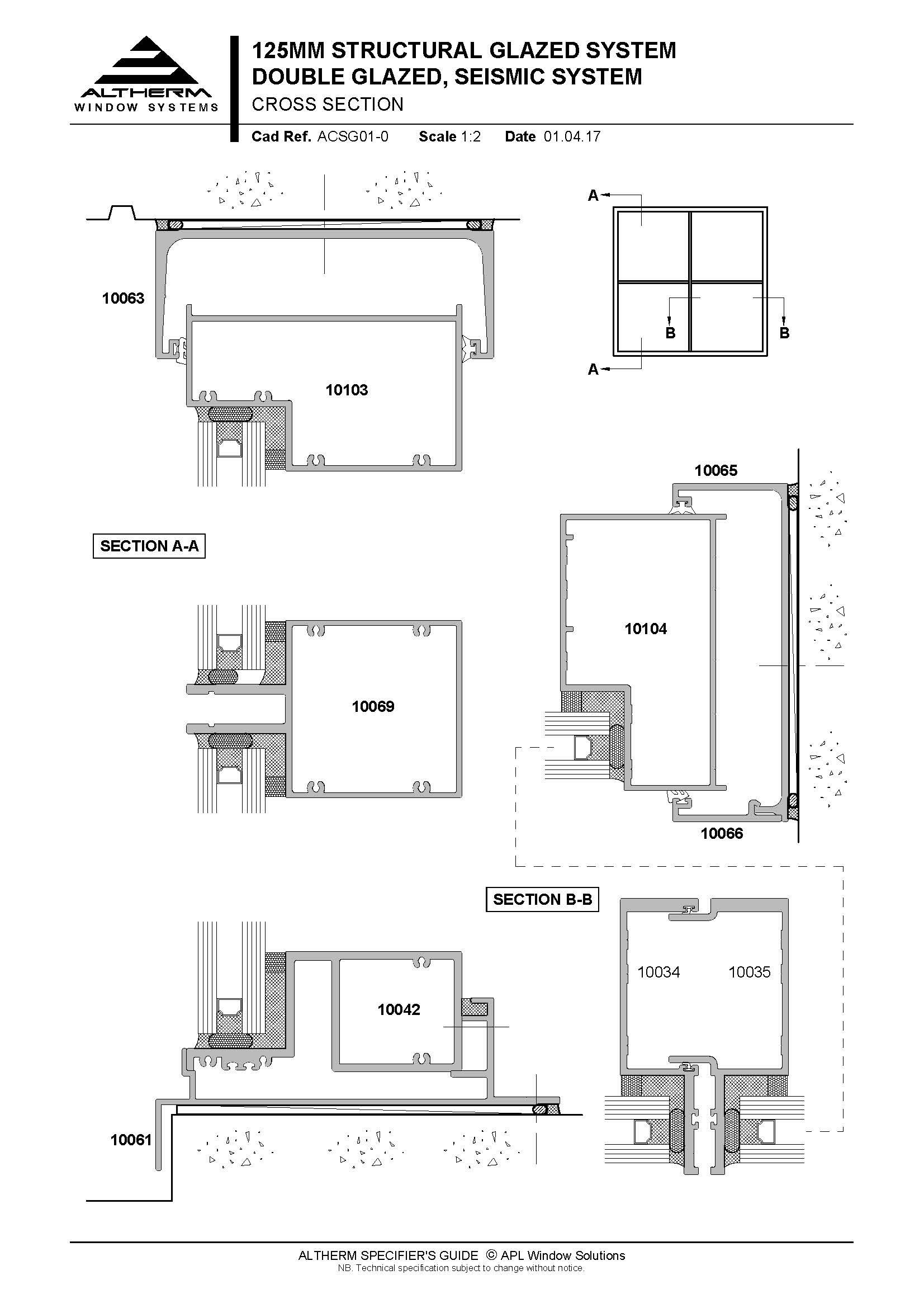

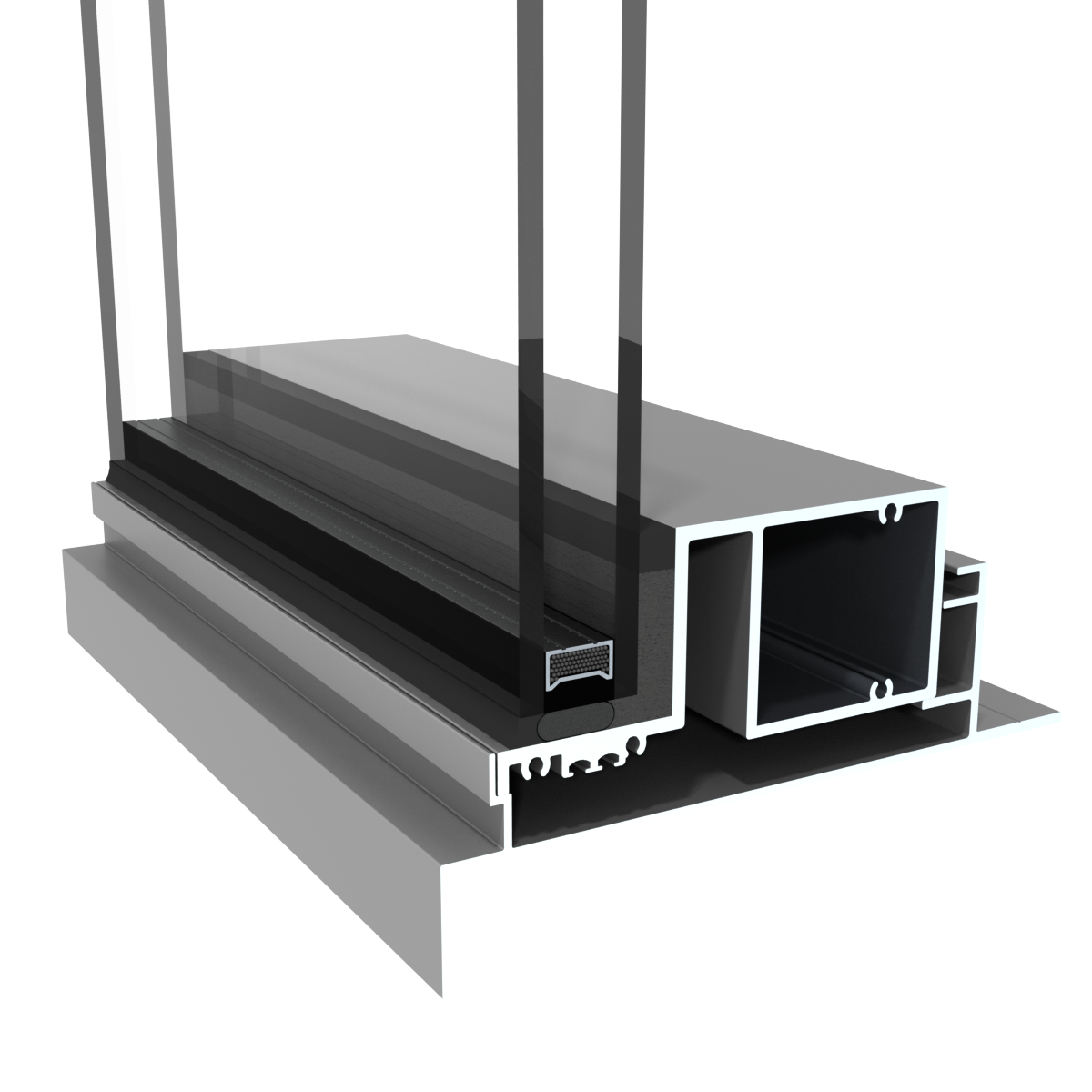

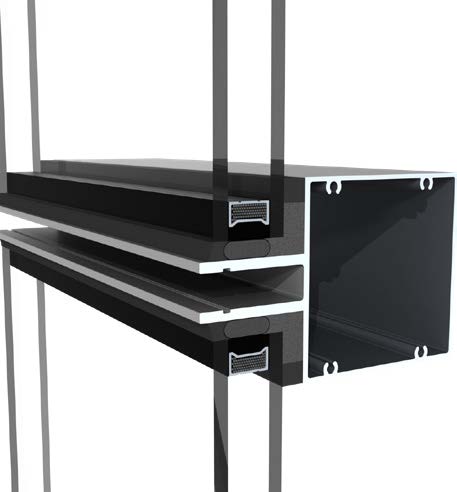

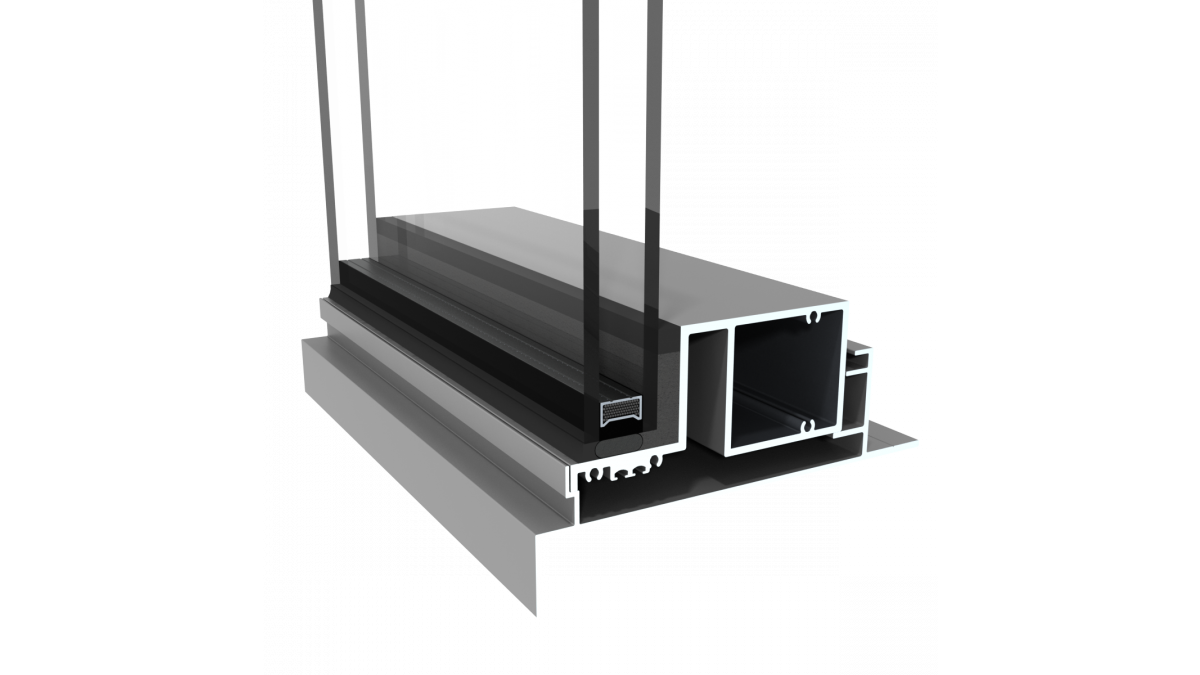

Altherm Commercial 125mm Structural Glazed, Seismic System

ACSG01-0

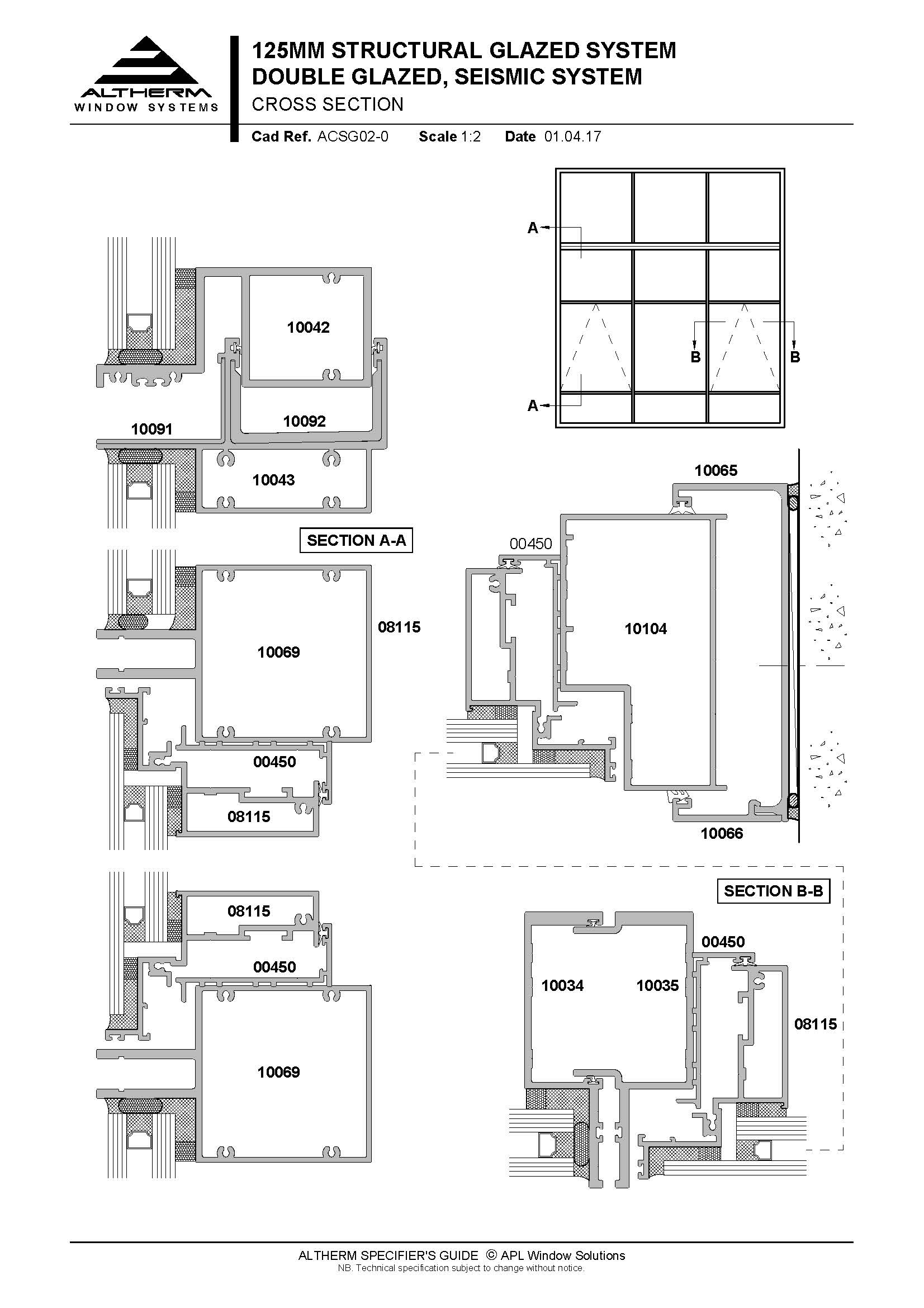

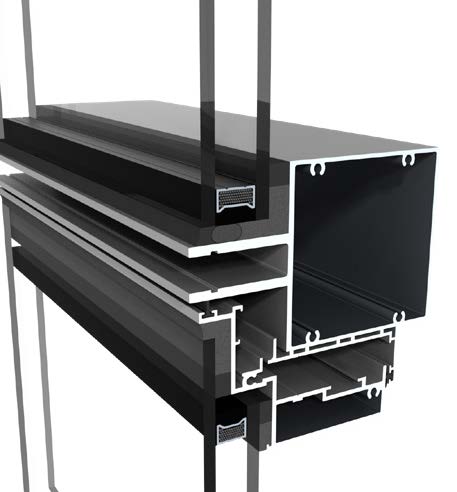

Altherm Commercial 125mm Structural Glazed, Seismic System Sash

ACSG02-0

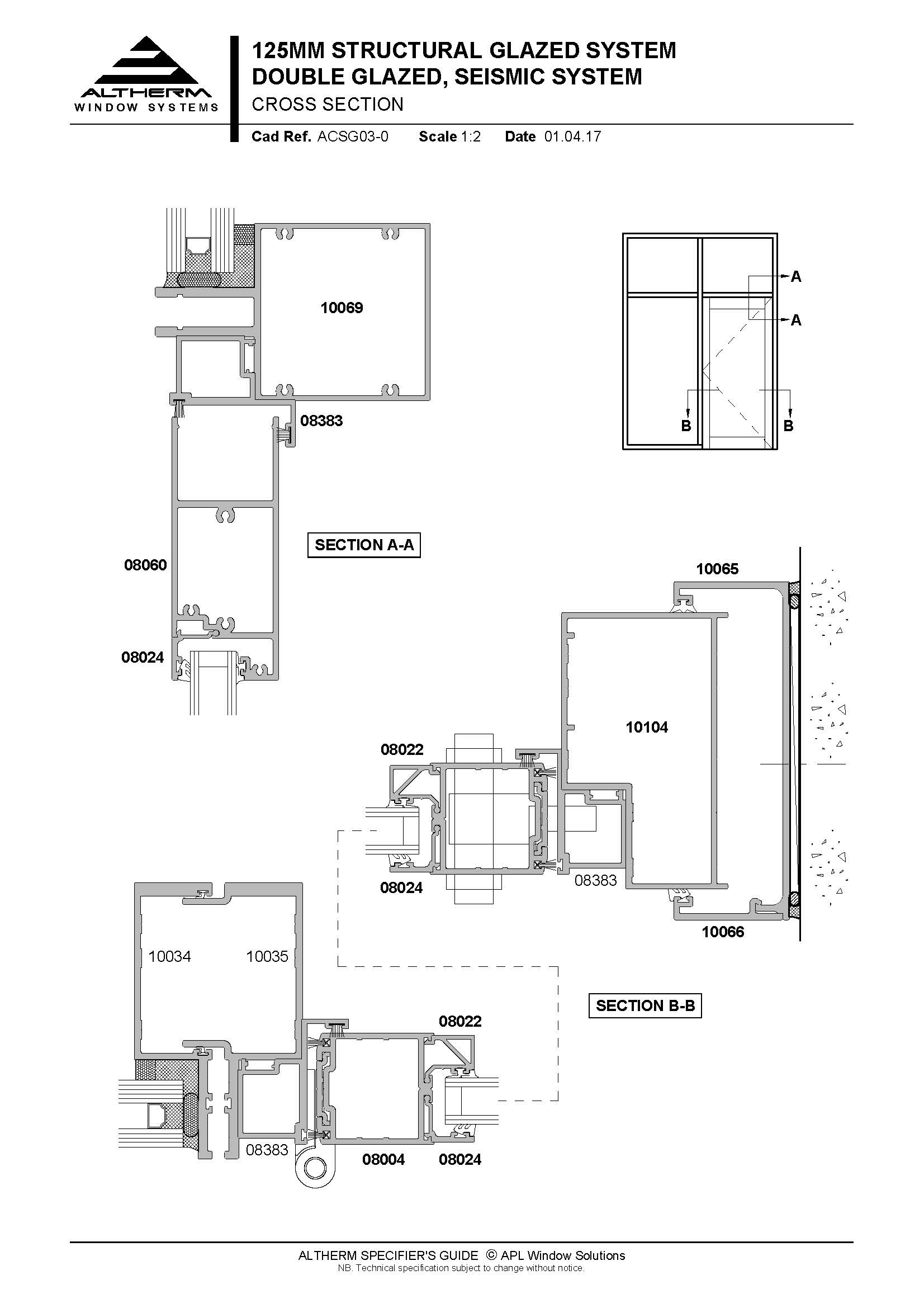

Altherm Commercial 125mm Structural Glazed, DG Hinged Door

ACSG03-0

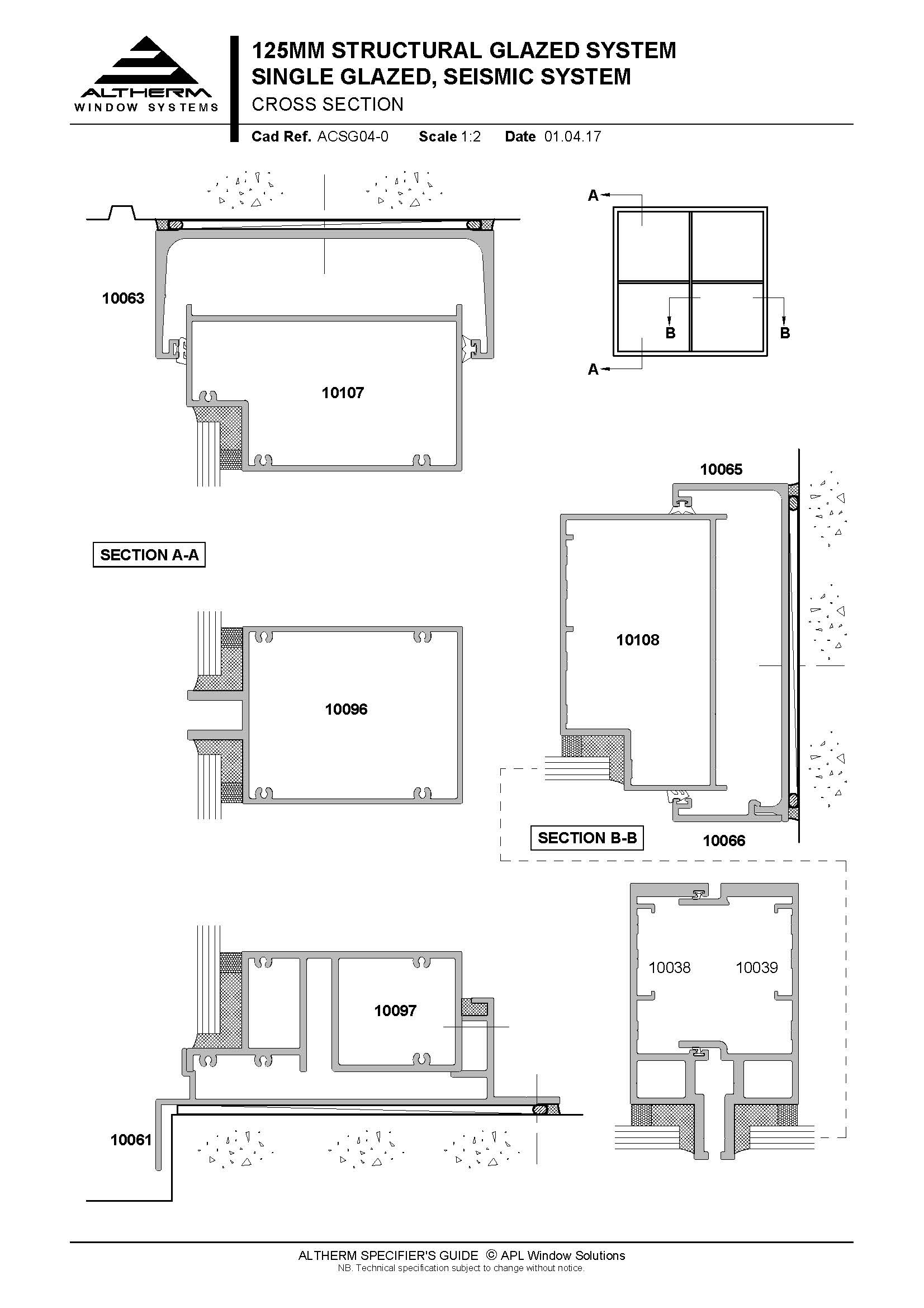

Altherm Commercial 125mm Structural Glazed, Single Glazed Seismic System

ACSG04-0

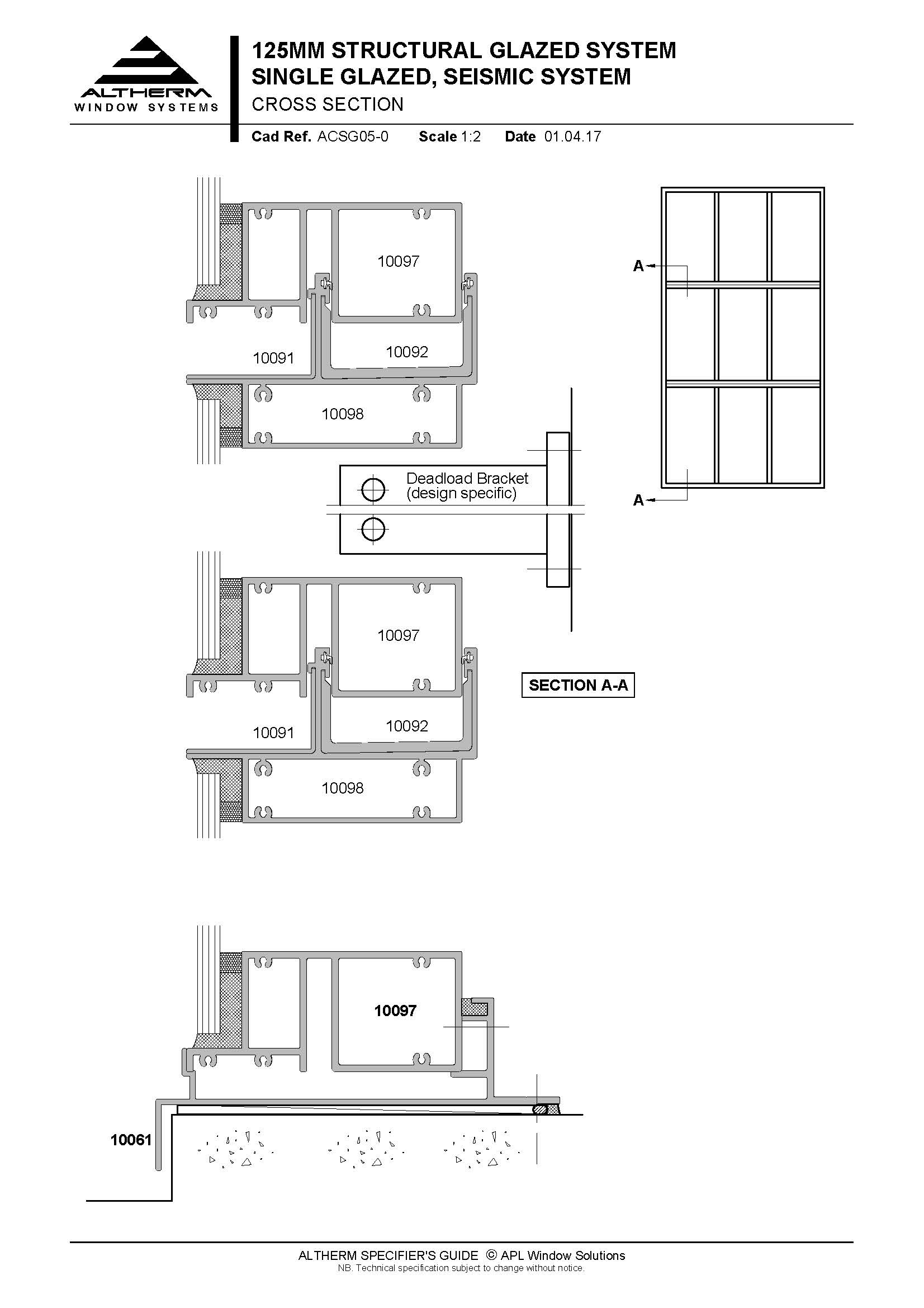

Altherm Commercial 125mm Structural Glazed, Single Glazed Seismic System

ACSG05-0

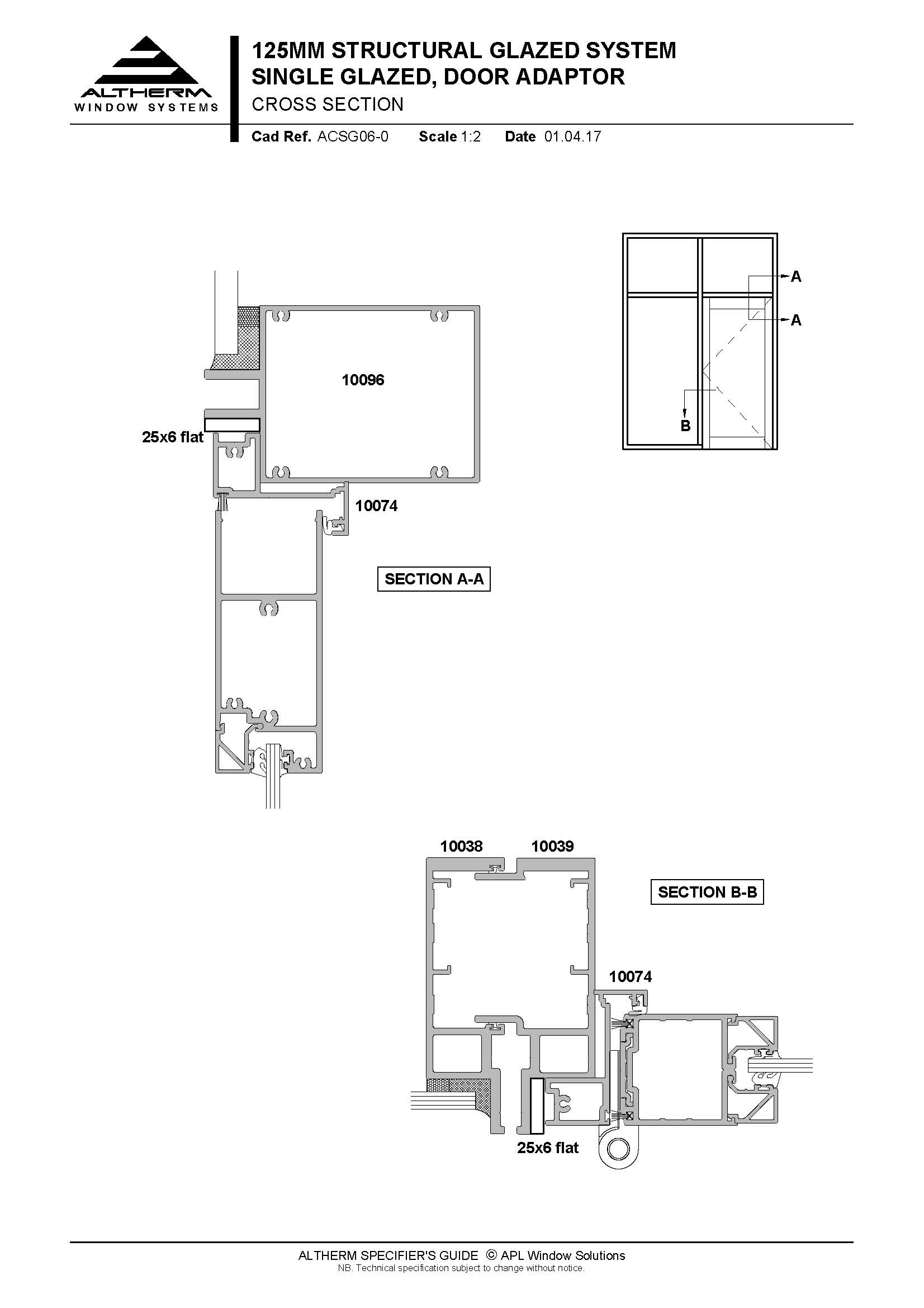

Altherm Commercial 125mm & 150mm Structural Glazed, Single Glazed Door Adaptor

ACSG06-0

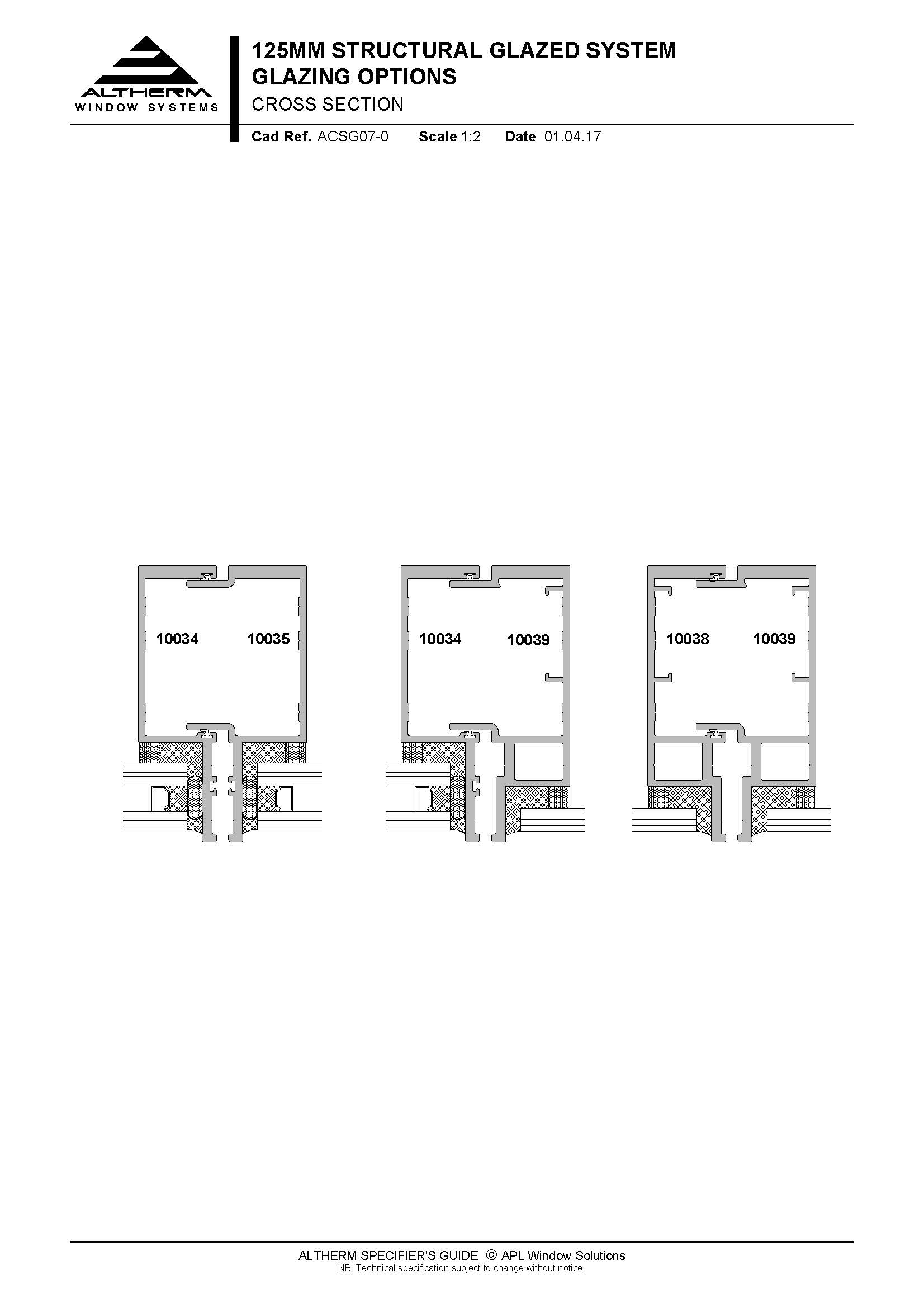

Altherm Commercial 125mm Structural Glazed, Glazing Options

ACSG07-0

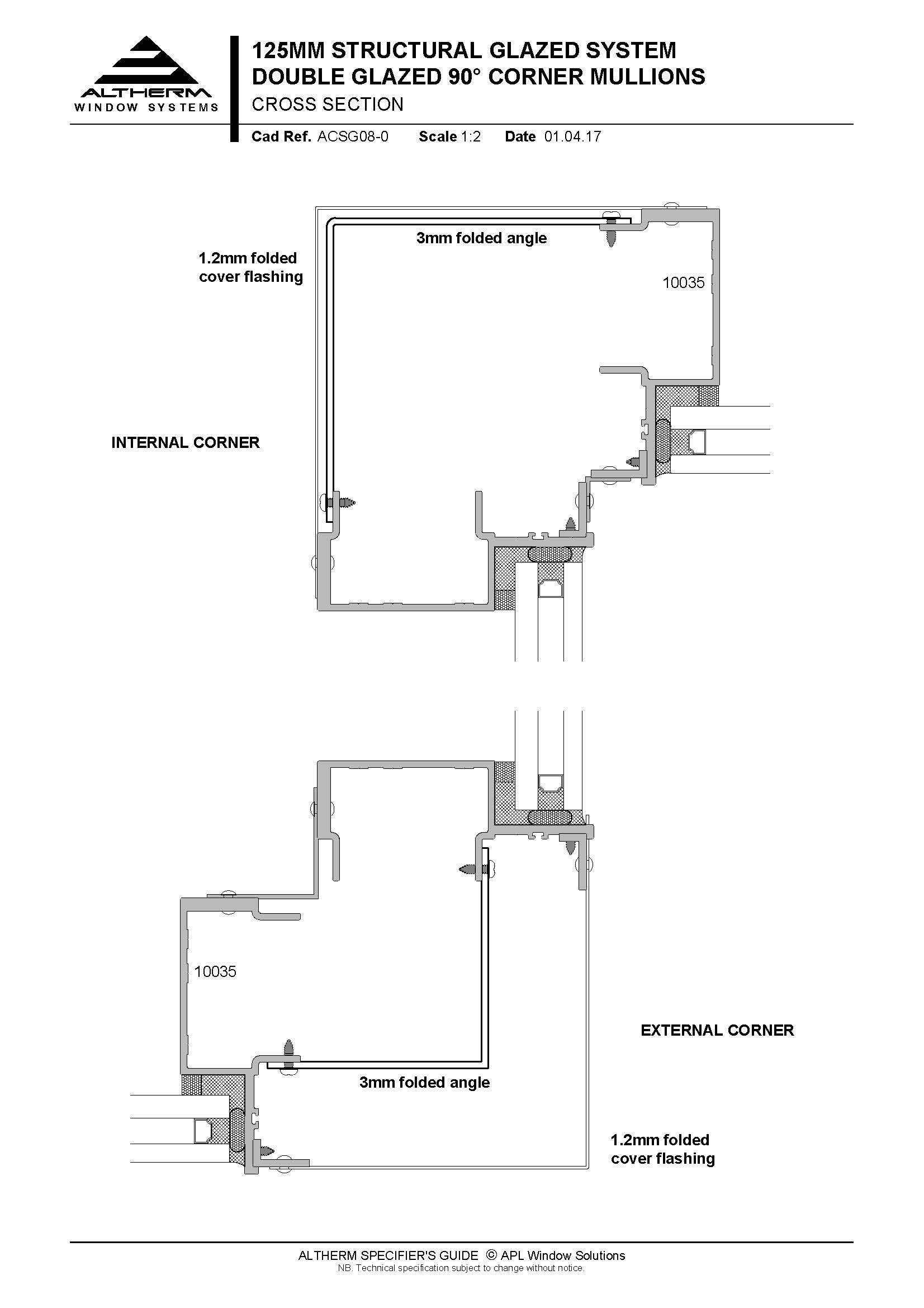

Altherm Commercial 125mm Structural Glazed, Double Glazed Corner Mullions

ACSG08-0

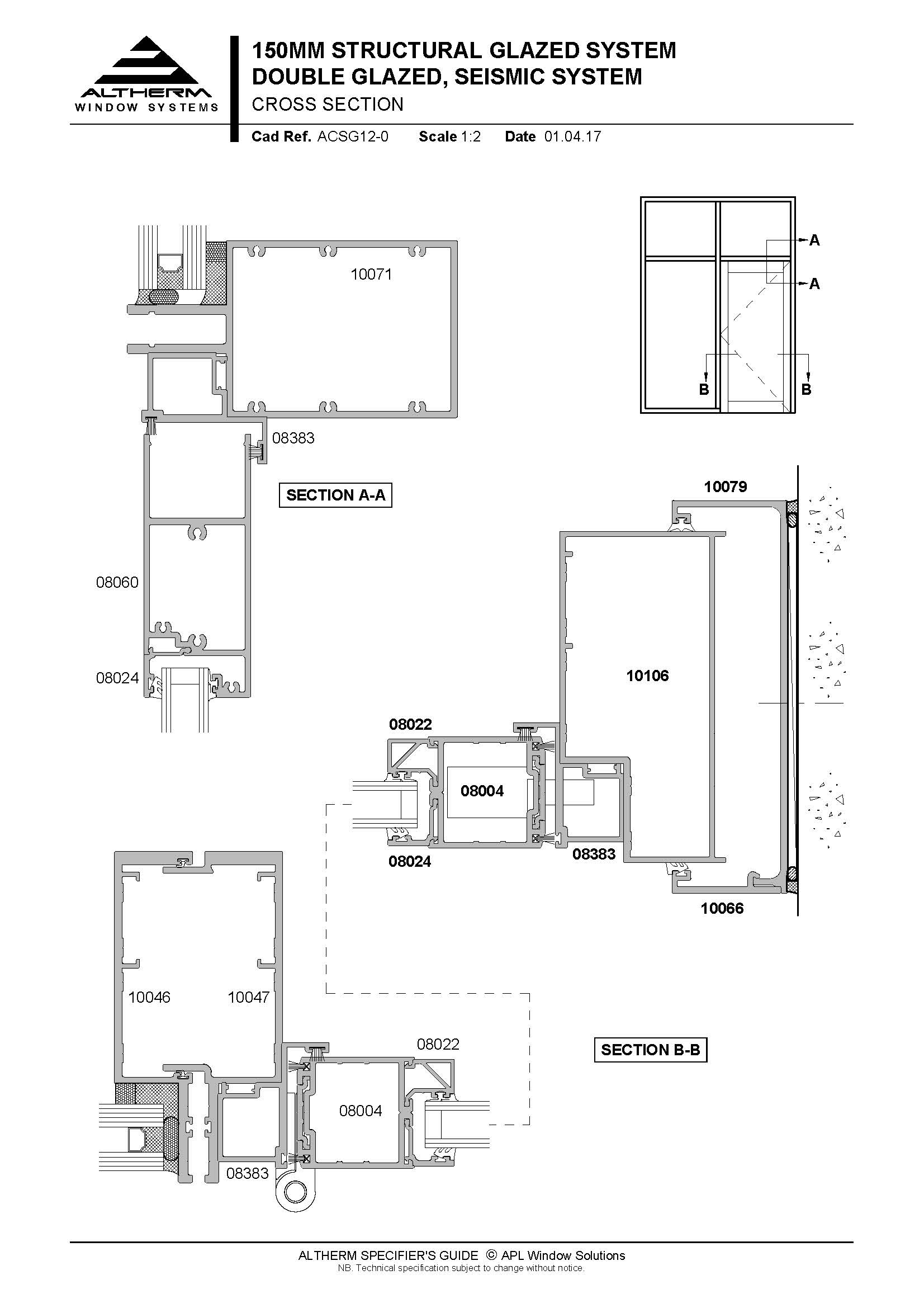

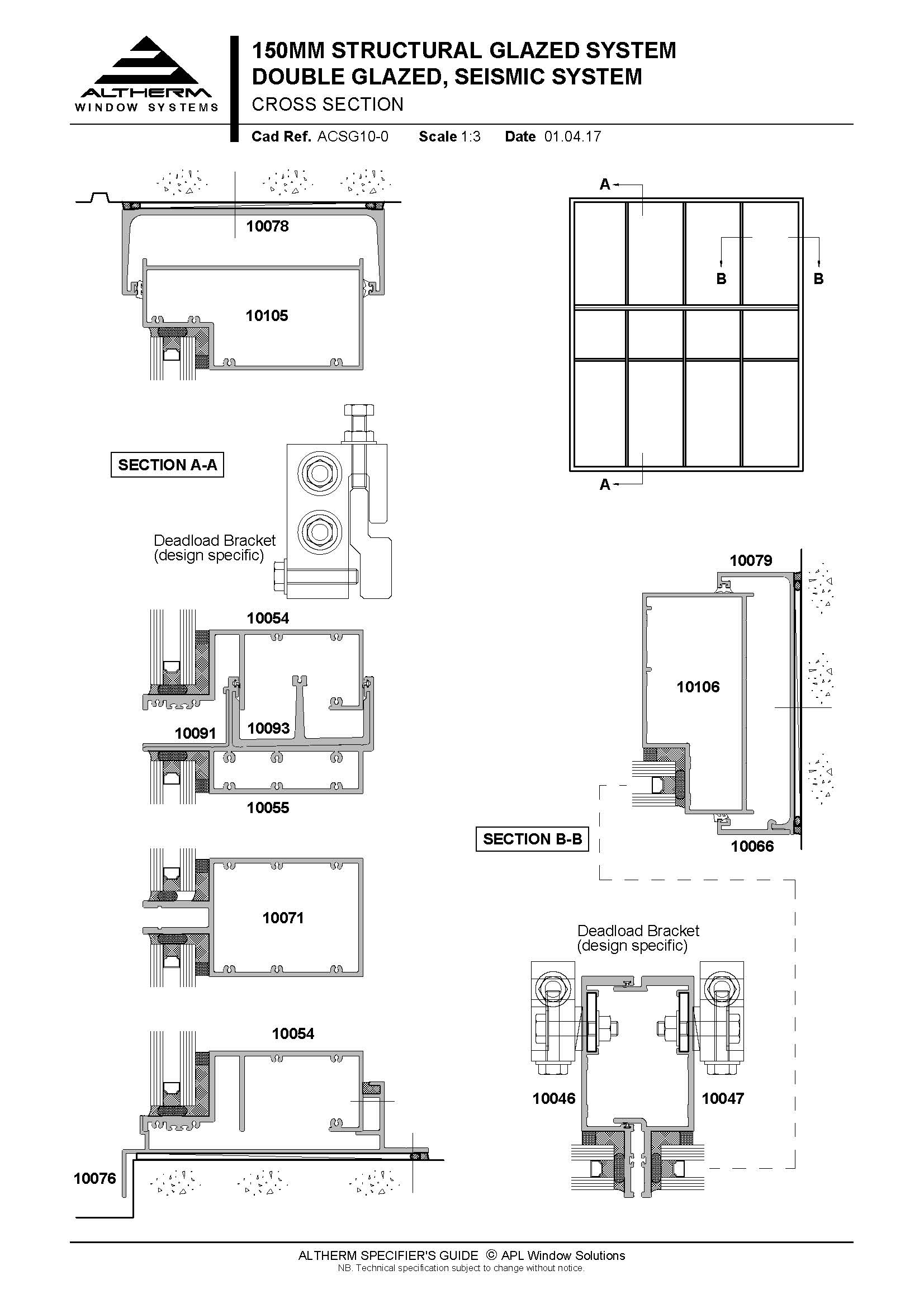

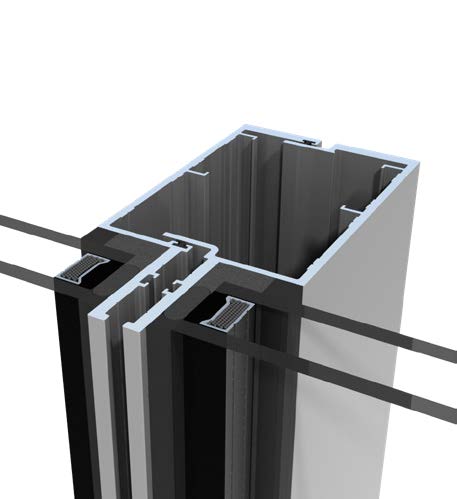

Altherm Commercial 150mm Structural Glazed, Double Glazed Seismic System

ACSG10-0

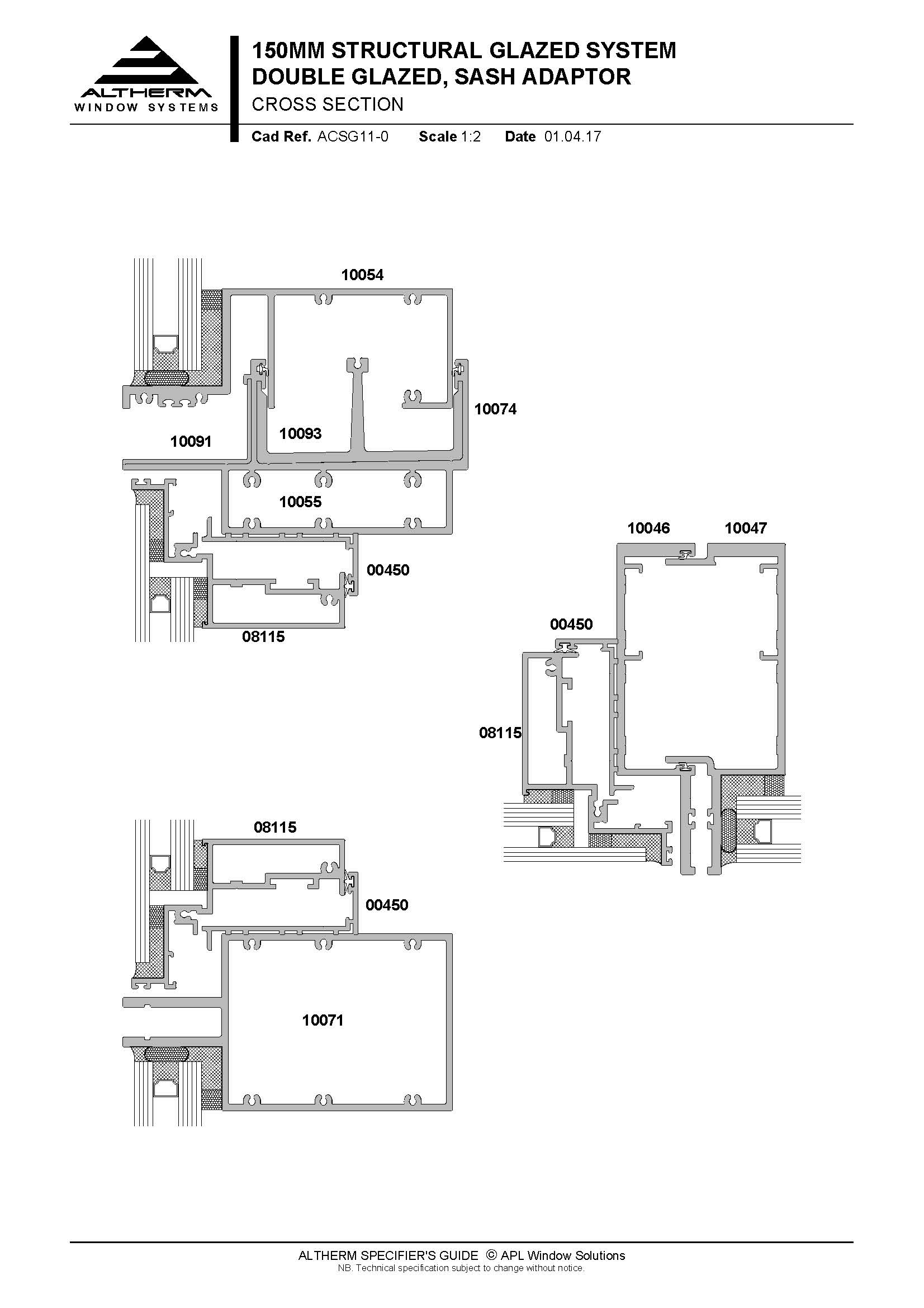

Altherm Commercial 150mm Structural Glazed, Double Glazed Sash

ACSG11-0

Altherm Commercial 150mm Structural Glazed, Double Glazed Door Adaptor

ACSG12-0

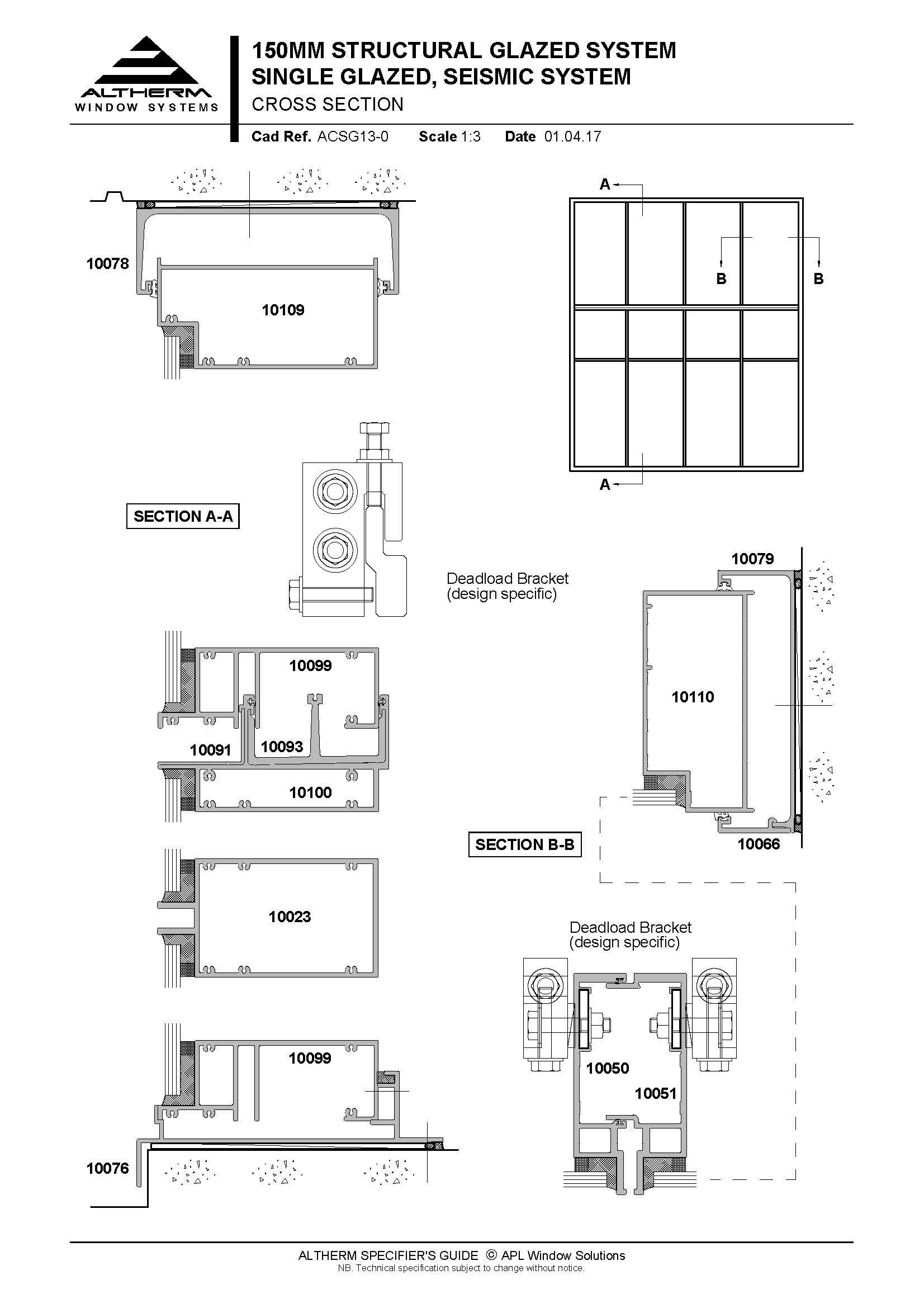

Altherm Commercial 150mm Structural Glazed, Single Glazed System

ACSG13-0

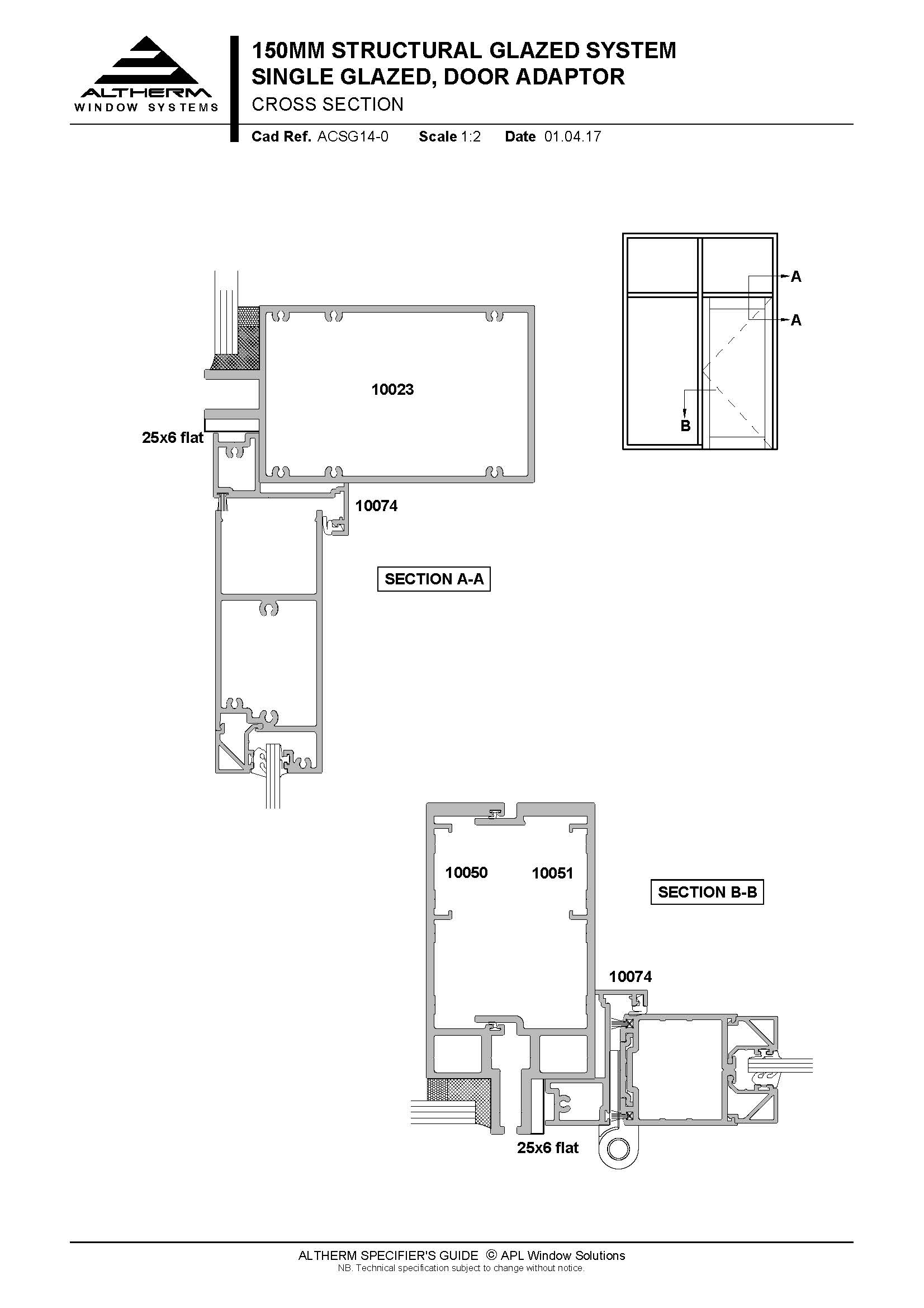

Altherm Commercial 150mm Structural Glazed, Single Glazed Door Adaptor

ACSG14-0

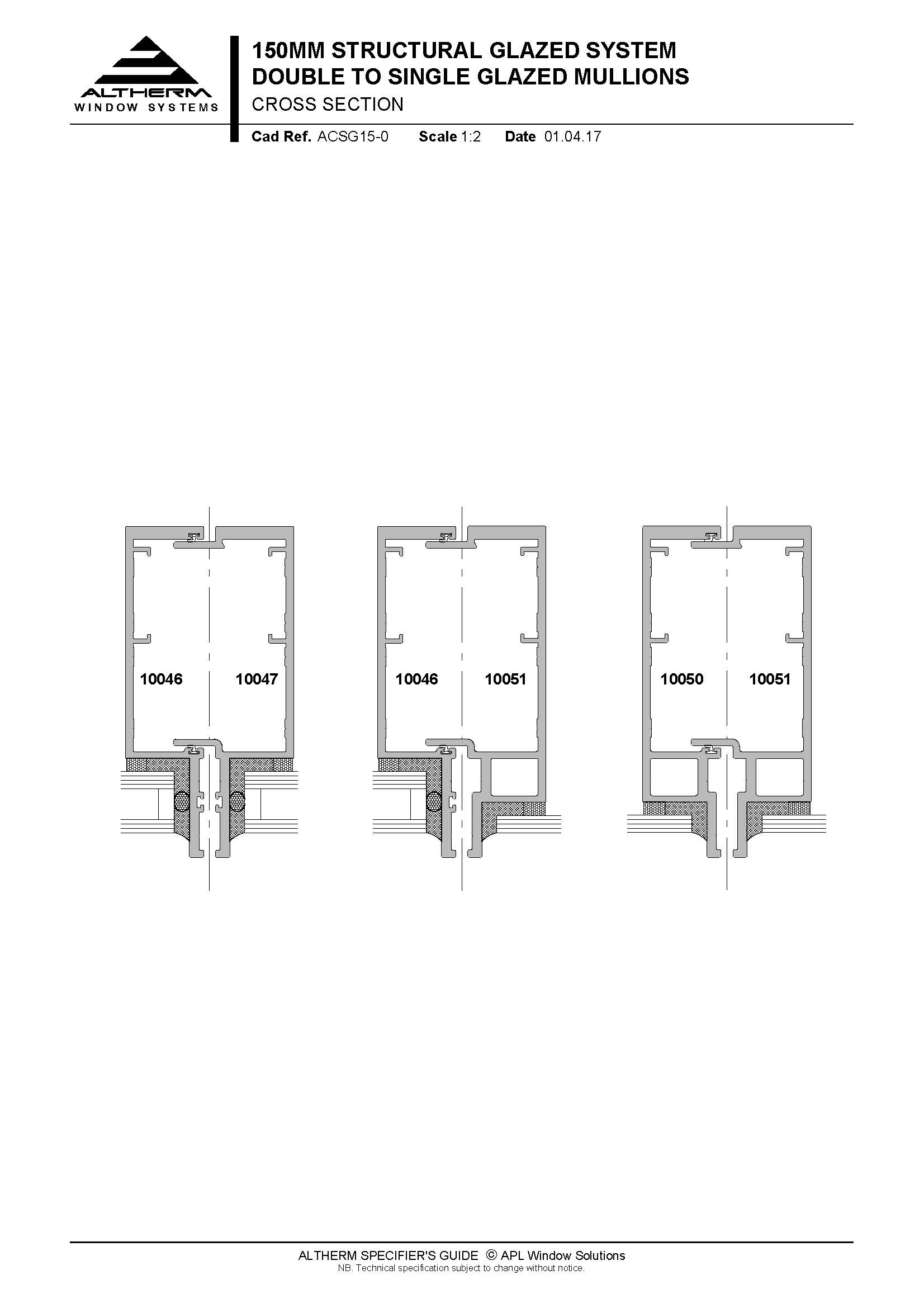

Altherm Commercial 150mm Structural, Glazing Options

ACSG15-0

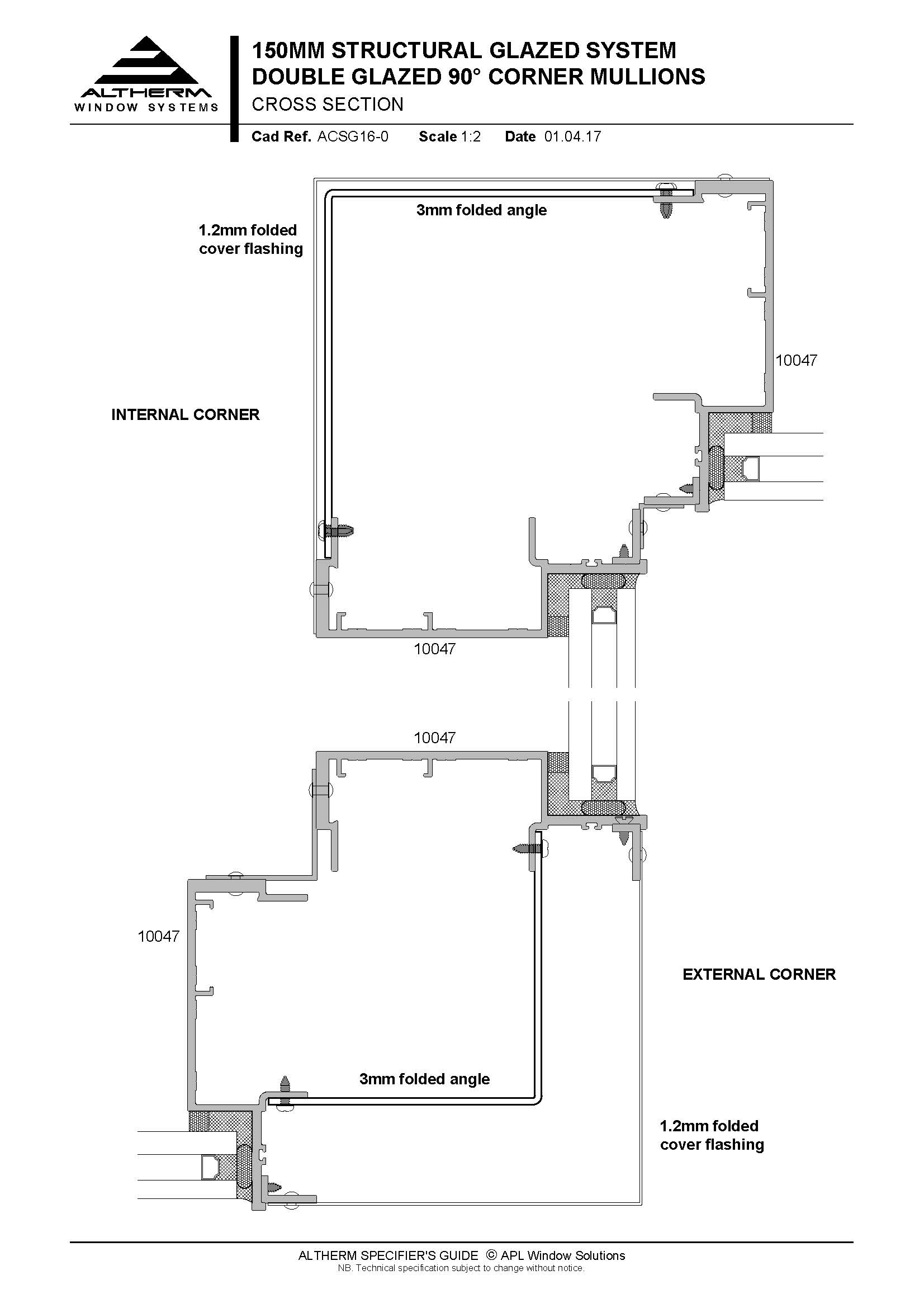

Altherm Commercial 150mm Structural Glazed, Corner Mullions

ACSG16-0

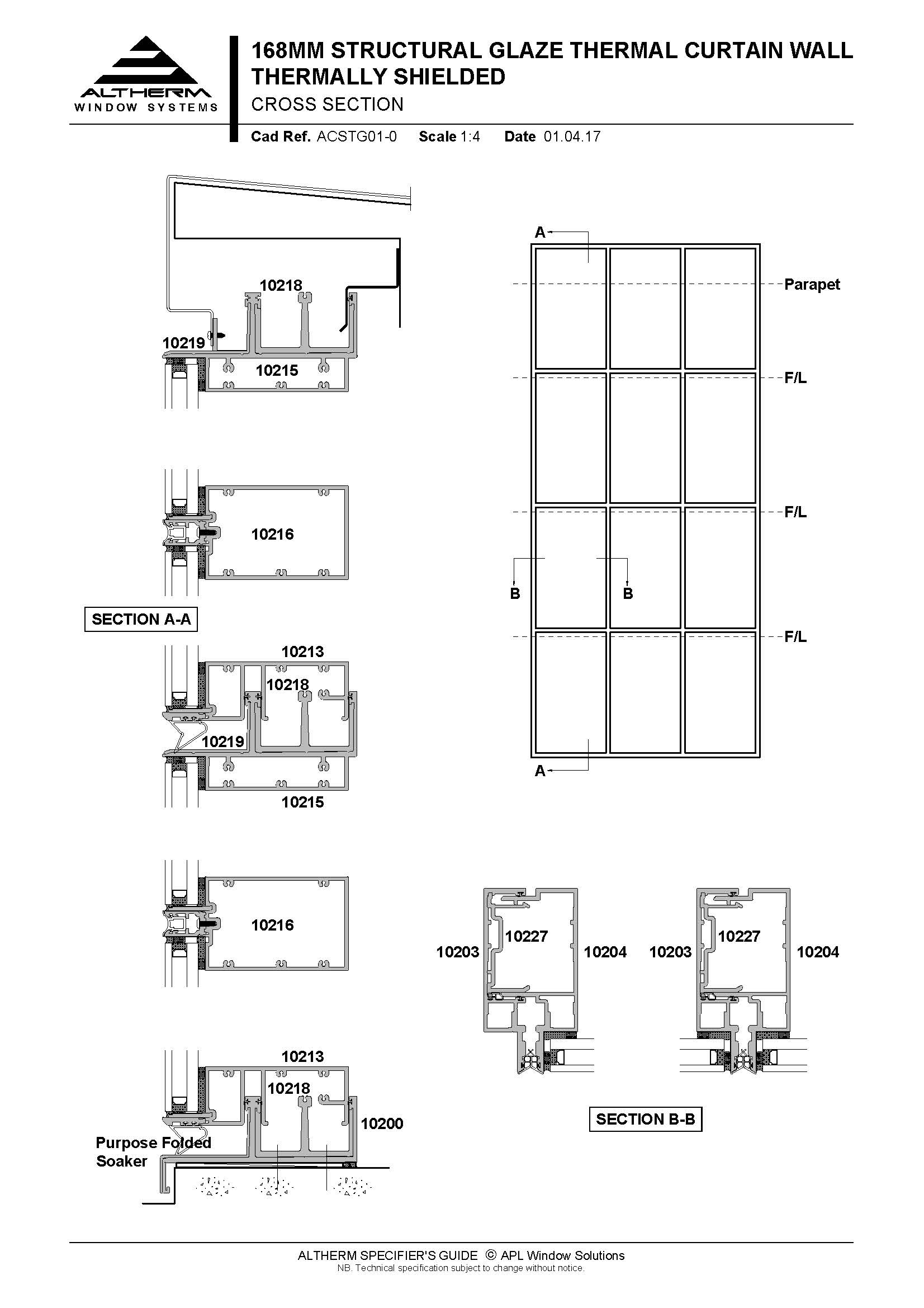

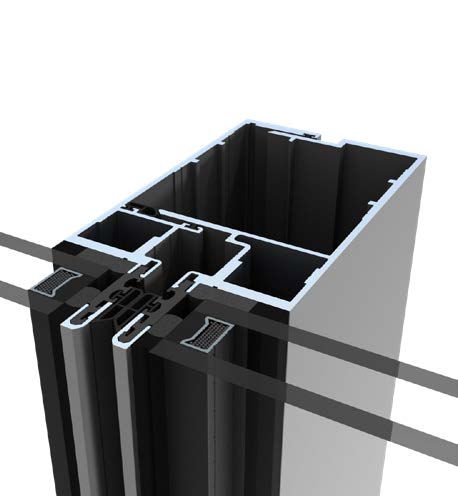

Commercial 168mm Structural Glaze Thermal Curtain Wall Thermally Shielded

ACSTG01

Commercial 168mm Structural Glaze Thermal Curtain Wall Thermally Broken

ACSTG02

BIM Objects

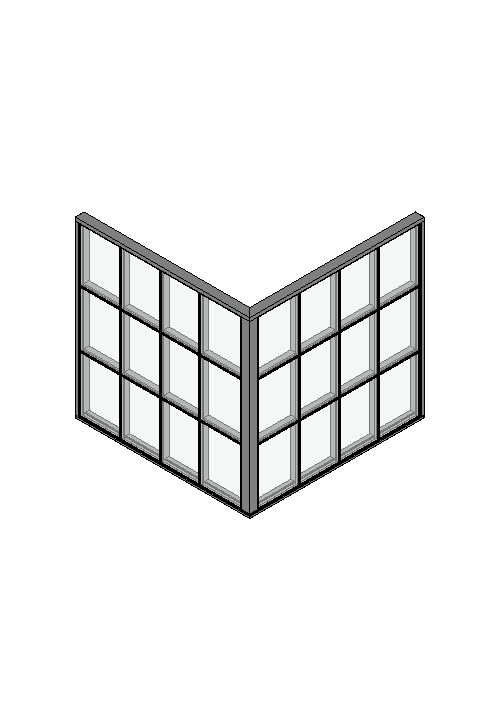

Altherm Commercial 125mm Structural Glaze System, External Corner (Curtain Wall)

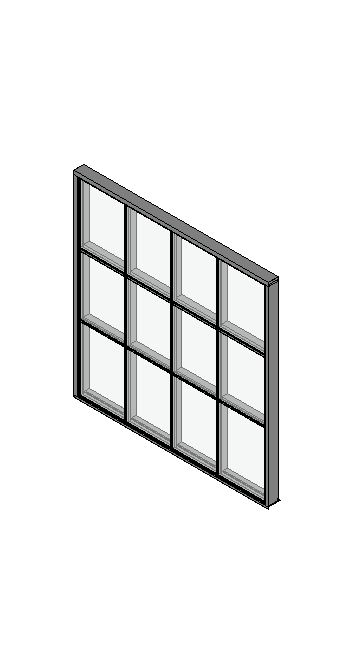

Altherm Commercial 125mm Structural Glaze System (Curtain Wall)

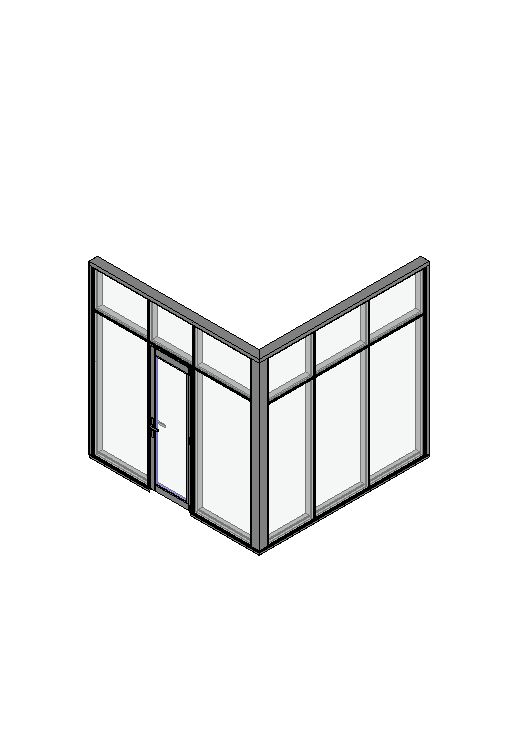

Altherm Commercial 125mm Structural Glaze System, External Corner With Hinged Door (Curtain Wall)

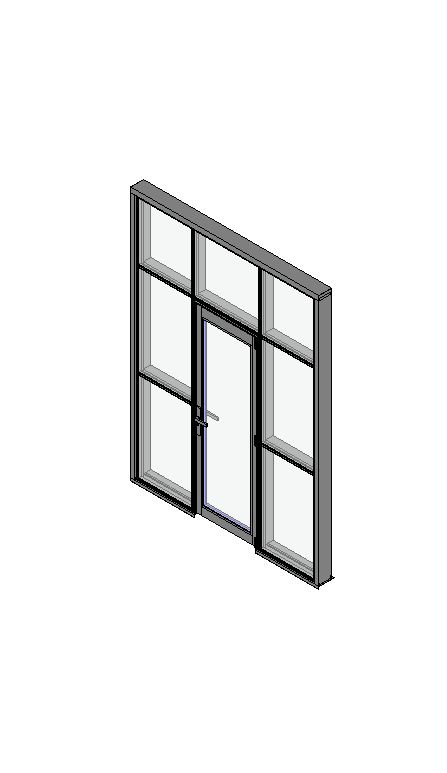

Altherm Commercial 125mm Structural Glaze System, Hinged Door (Curtain Wall)

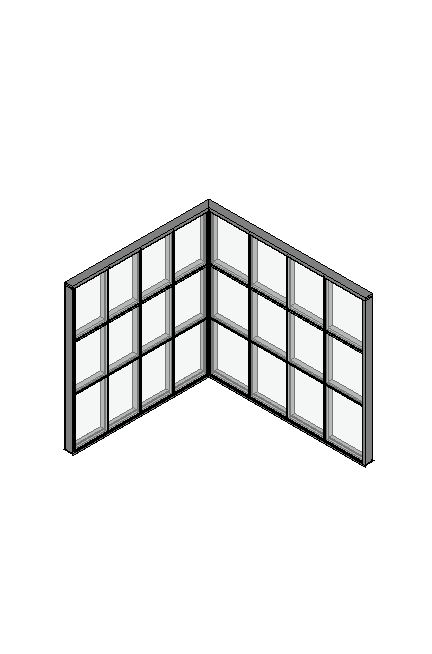

Altherm Commercial 125mm Structural Glaze System, Internal Corner (Curtain Wall)

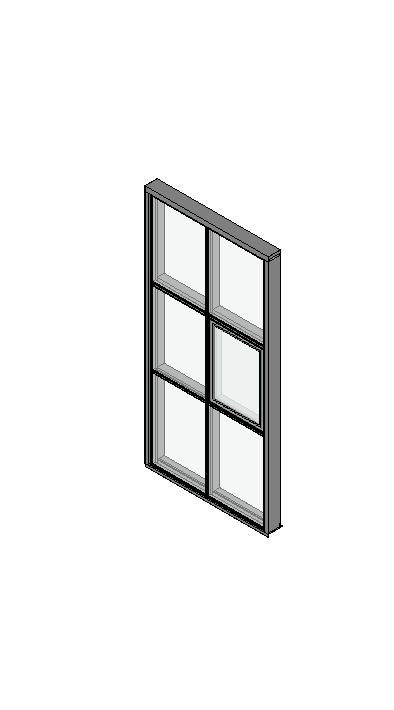

Altherm Commercial 125mm Structural Glazed System, Fixed System With Awning (Curtain Wall)

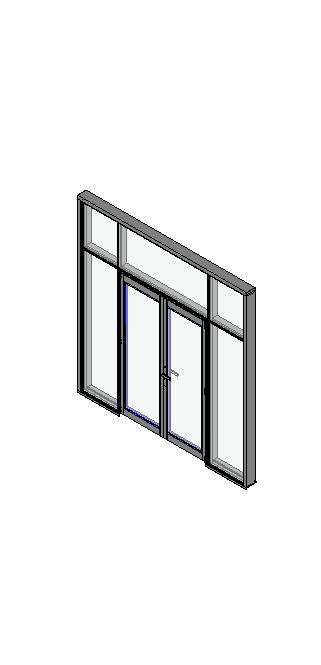

Altherm Commercial 125mm Structural Glazed System, French Door (Curtain Wall)

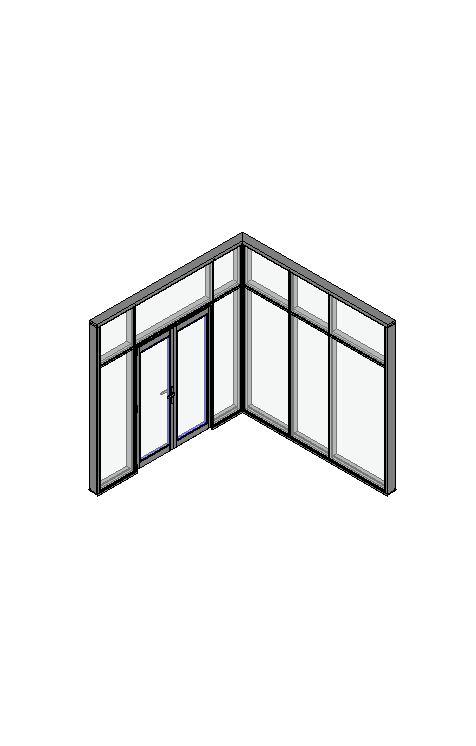

Altherm Commercial 125mm Structural System, Internal Corner With French Door (Curtain Wall)
Altherm Commercial 150mm Structural Glaze System (Curtain Wall)
Altherm Commercial 150mm Structural Glaze System, External Corner (Curtain Wall)
Altherm Commercial 150mm Structural Glaze System, External Corner With Hinged Door (Curtain Wall)
Altherm Commercial 150mm Structural Glaze System, Hinged Door (Curtain Wall)
Altherm Commercial 150mm Structural Glaze System, Internal Corner (Curtain Wall)
Altherm Commercial 150mm Structural Glazed System, Fixed System With Awning (Curtain Wall)
Altherm Commercial 150mm Structural Glazed System, French Door (Curtain Wall)
Altherm Commercial 150mm Structural System, Internal Corner With French Door (Curtain Wall)

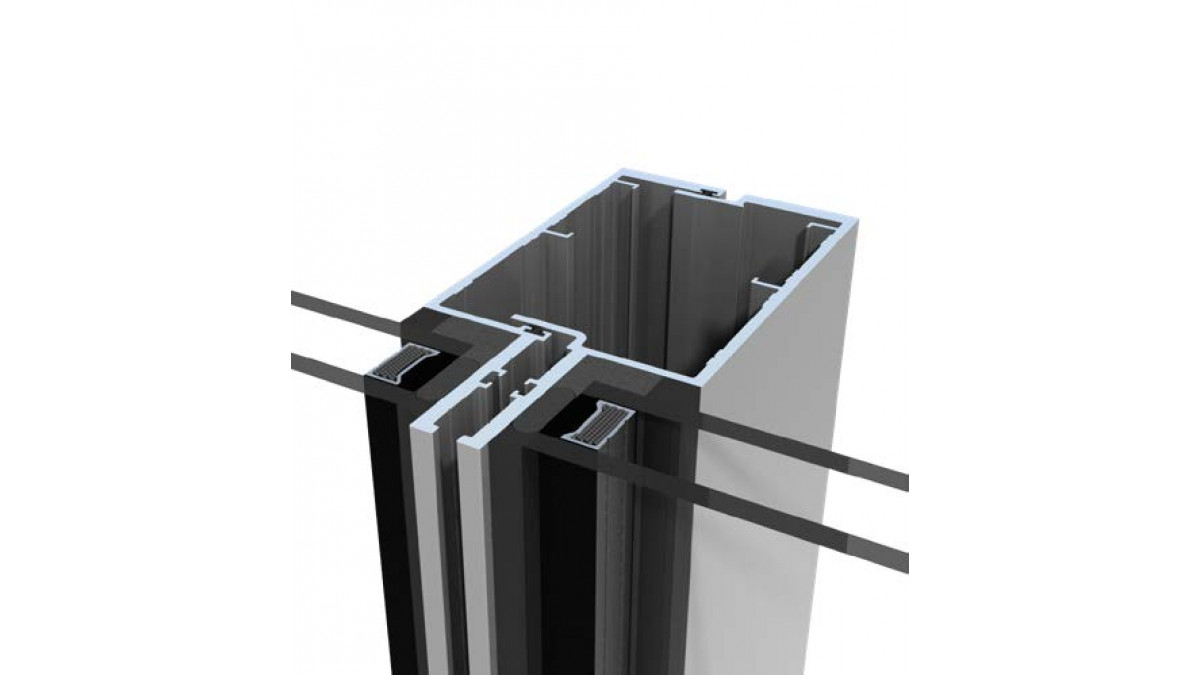

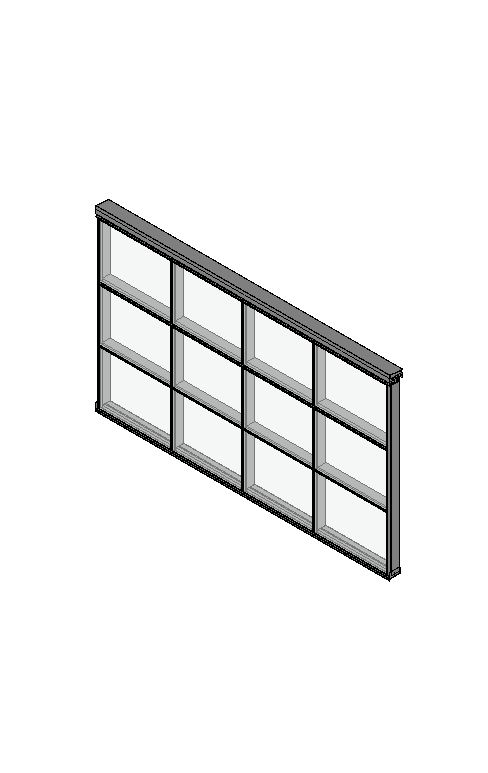

Altherm Commercial 168mm Structural Glaze Thermal, Thermally Broken (Curtain Wall)

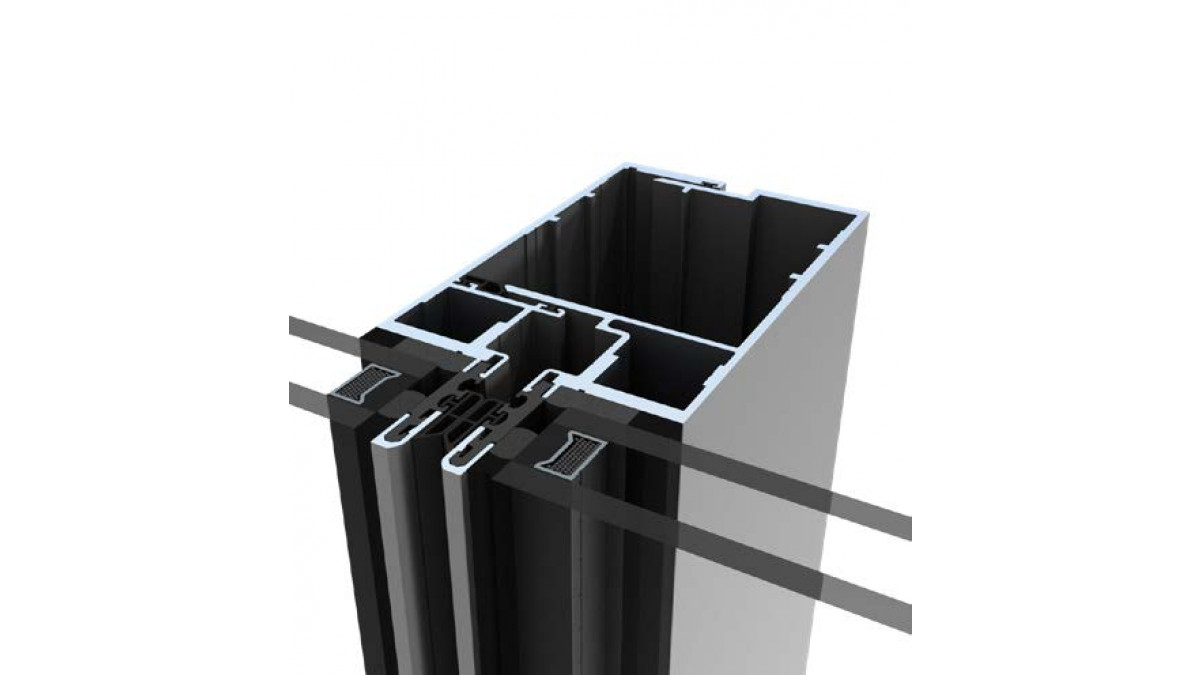

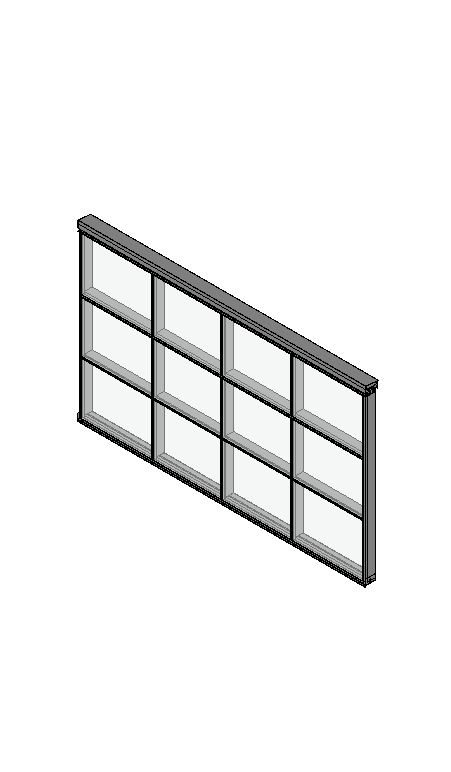

Altherm Commercial 168mm Structural Glaze Thermal, Thermally Shielded (Curtain Wall)
