Commercial 100mm, 125mm & 150mm Flushglaze System
ALTHERM Window Systems
All products
Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore

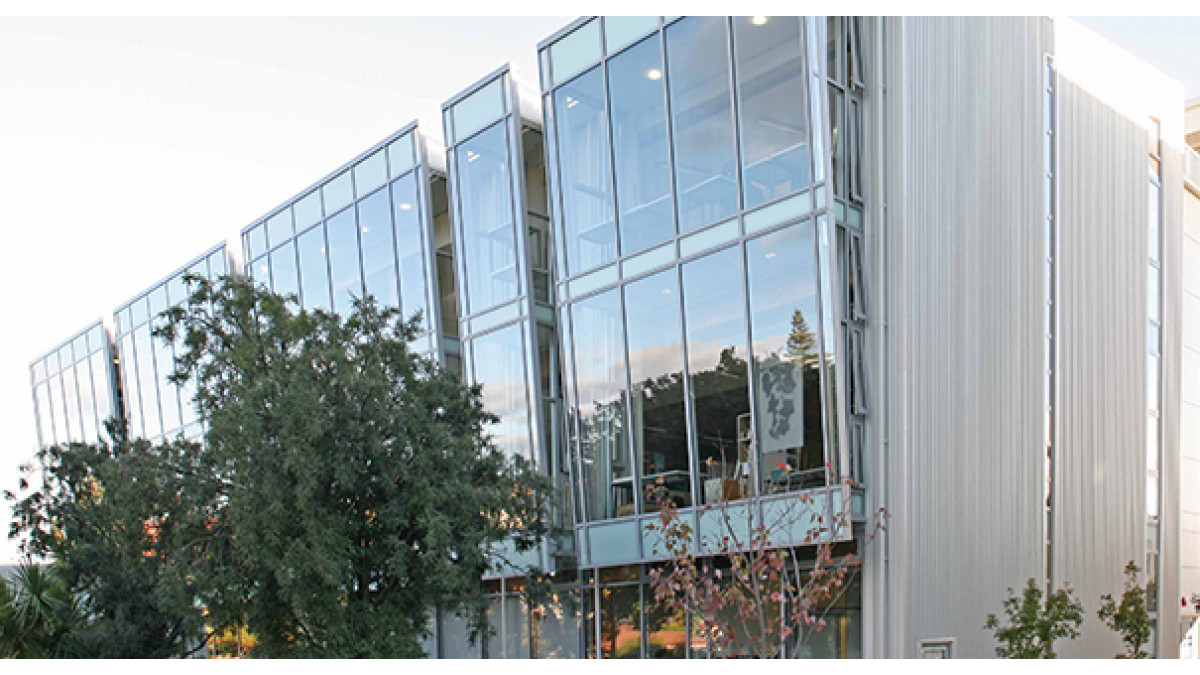

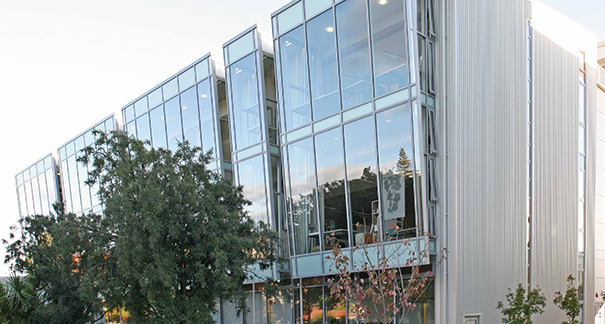

135mm Flushglaze NMIT

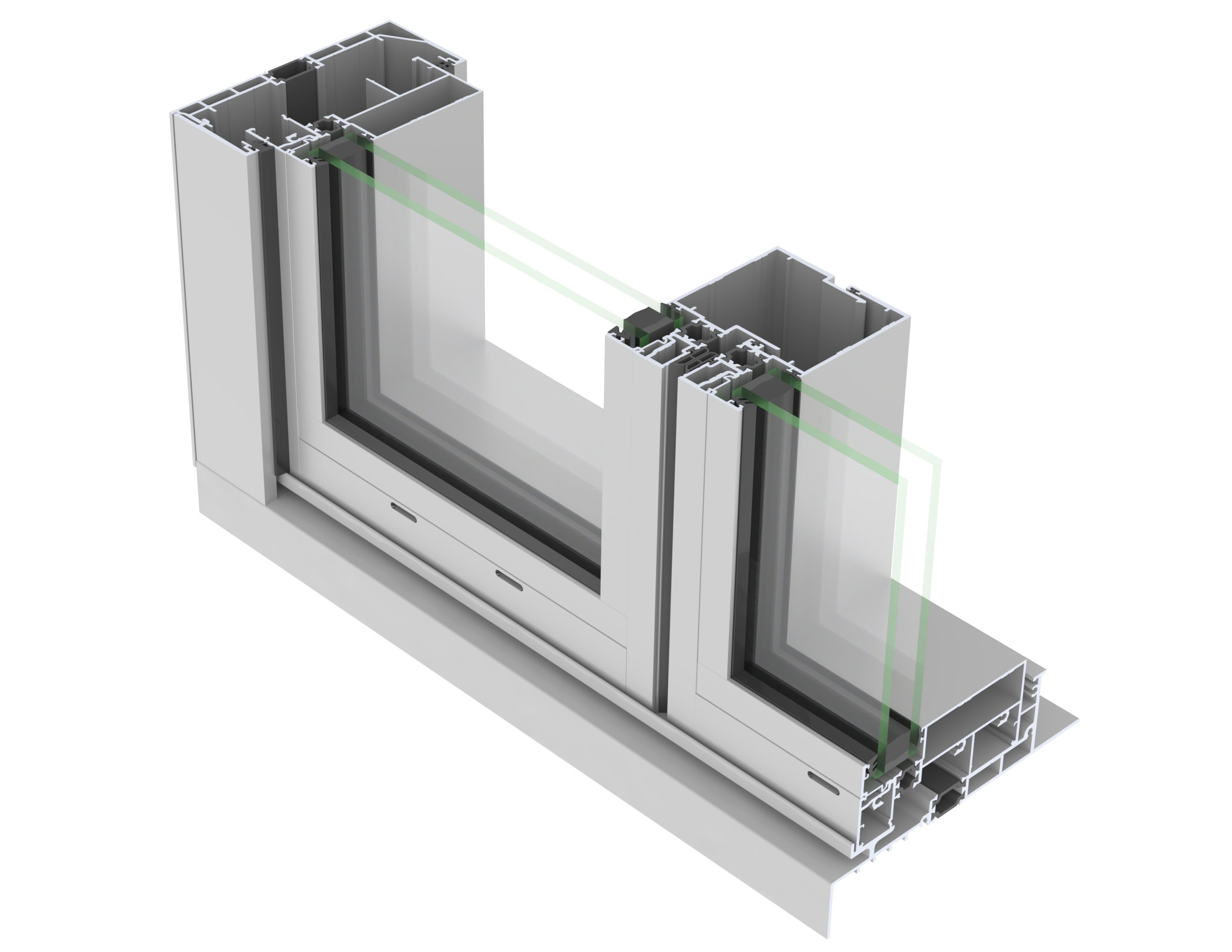

114 Seismic Jamb with Split Mullion
114 Seismic jamb with split mullion

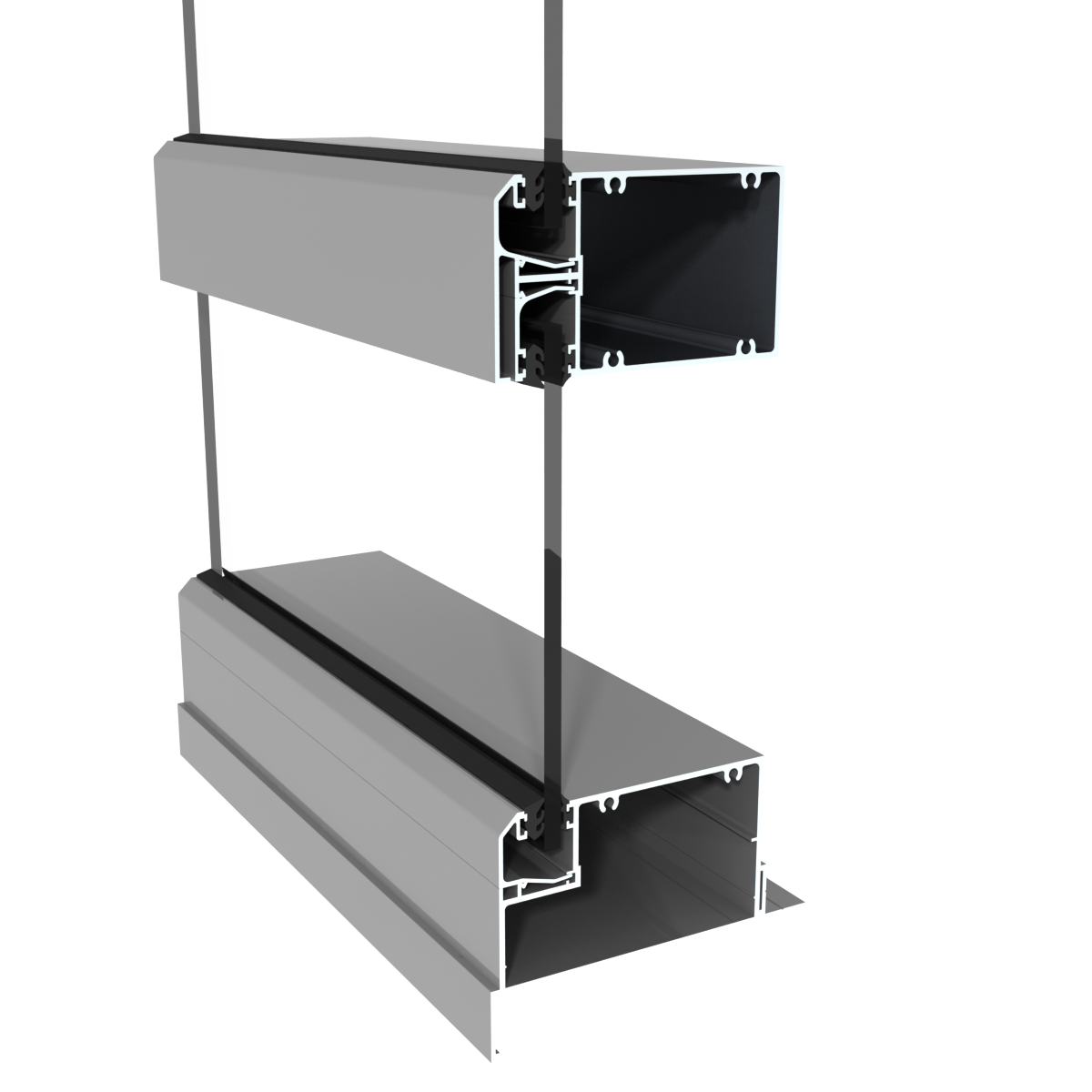

263 100mm Flushglaze Sill + Transom

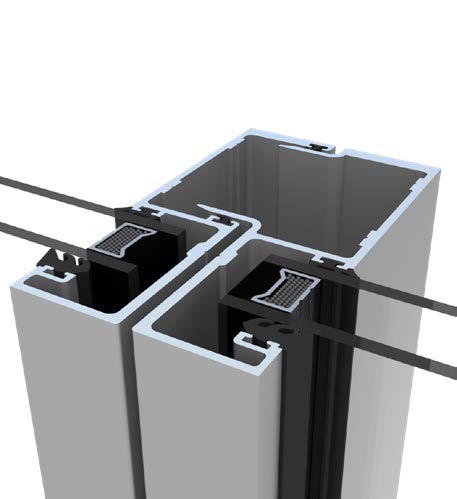

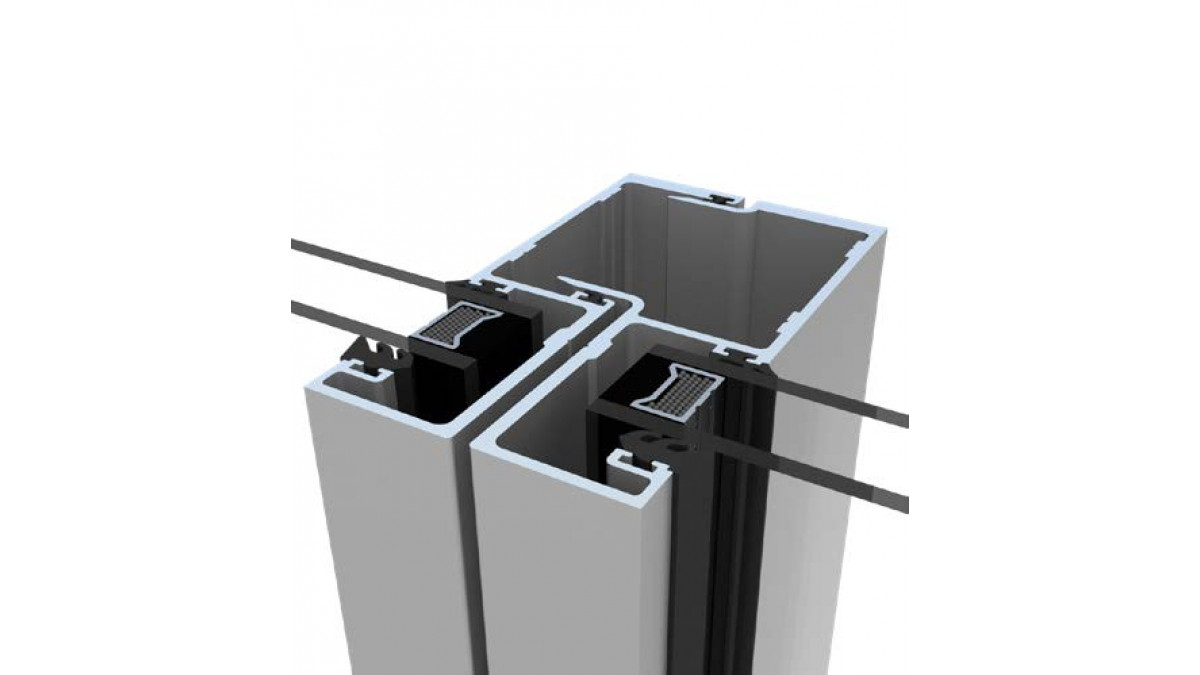

100mm Flushglaze mullion double glaze

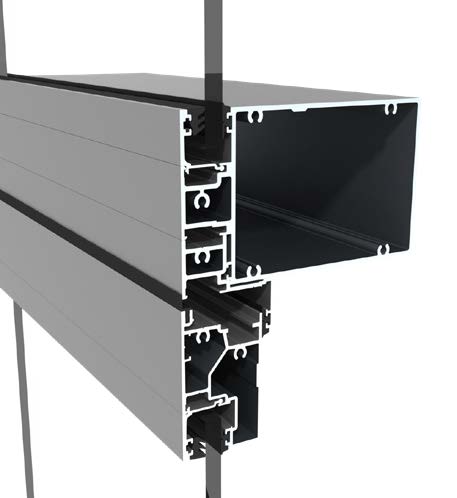

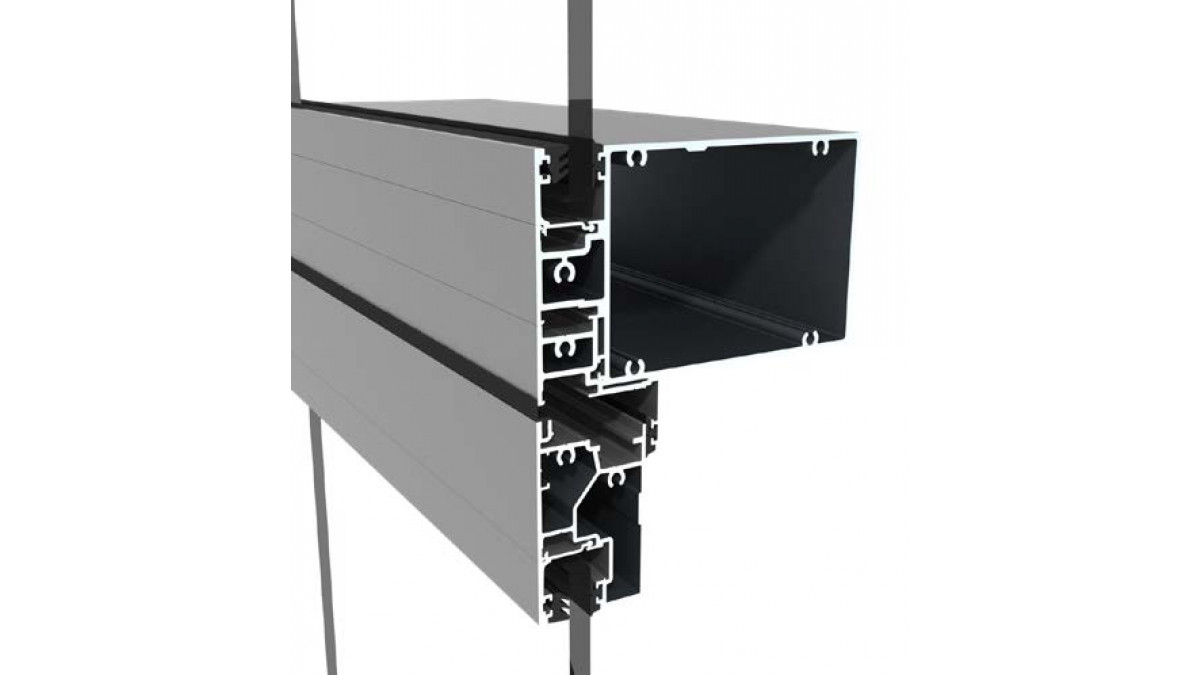

125mm Flushglaze transom and sash

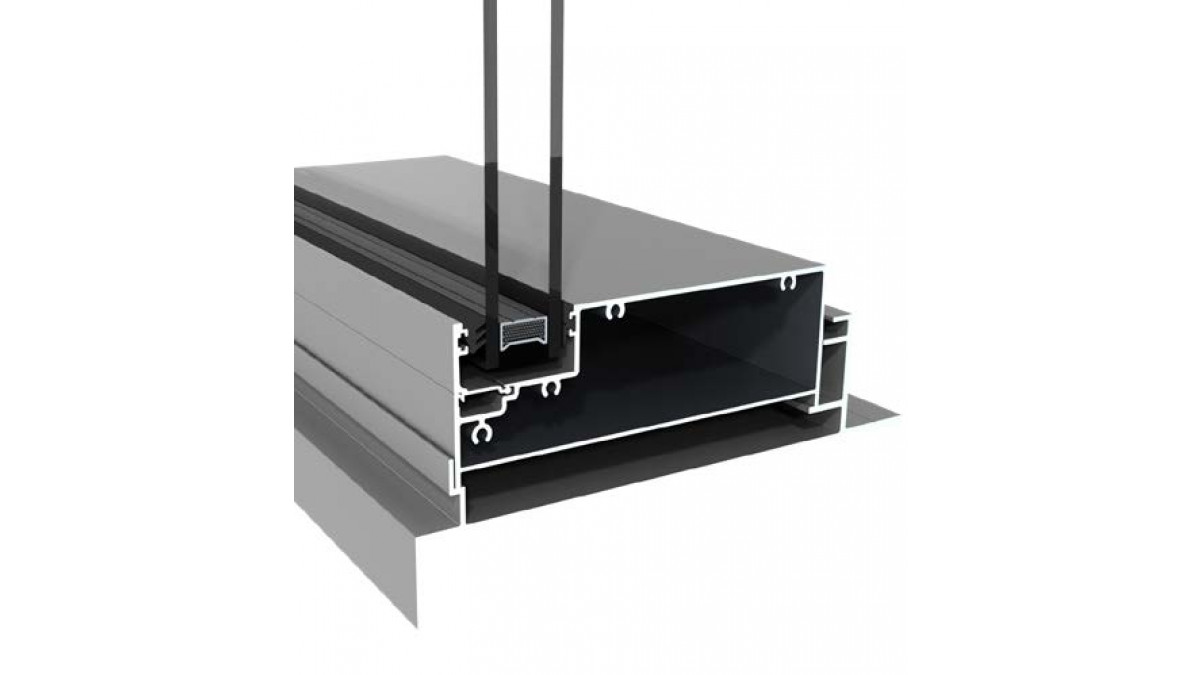

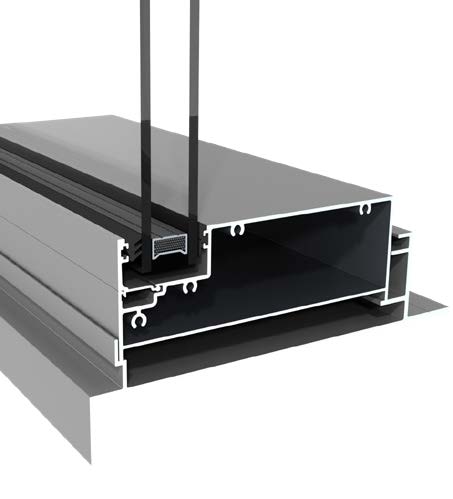

150mm Flushglaze seismic sill

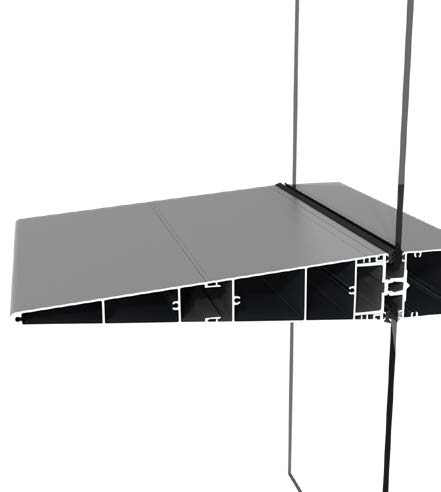

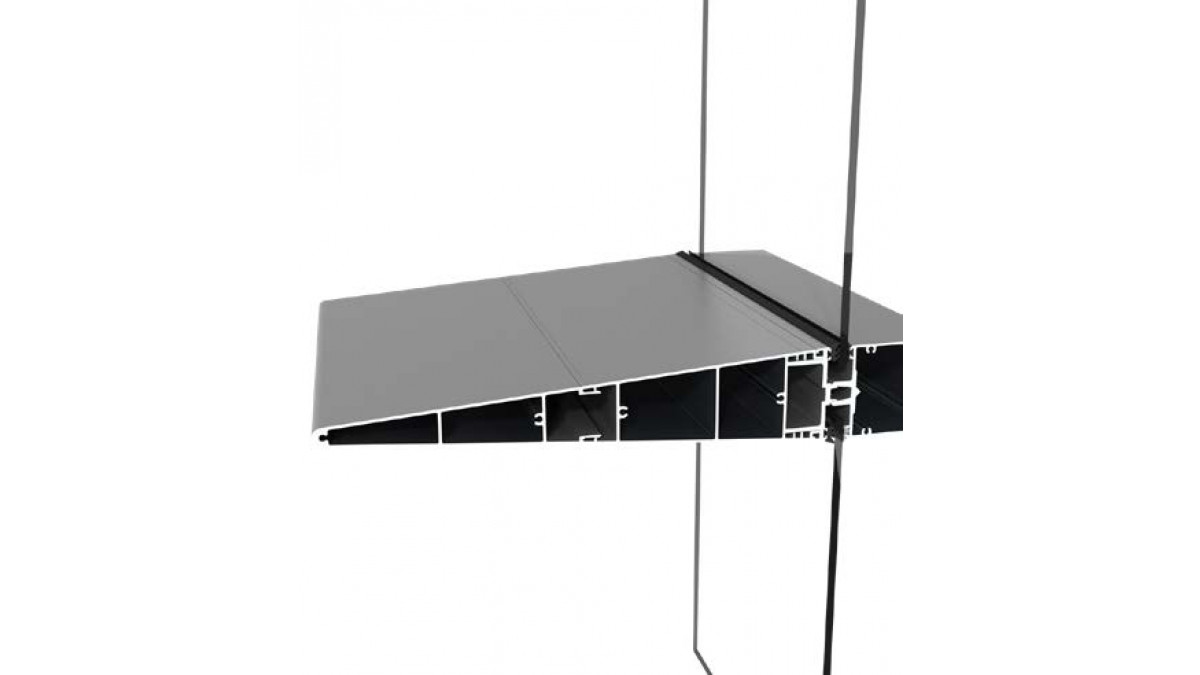

Flushglaze sun fin.
Description

This system is suitable for medium rise and shopfront use. Glazing is nearly flush with the outside face reducing the visual effect of aluminium profiles as viewed from the outside.

Two sash options can be incorporated. The flushglaze system can be used as a curtain wall. Provision can be made for seismic and thermal movement.

Key Features
  • Suitable for shopfront and medium rise commercial applications
  • Three systems with different levels of performance available
  • Glazing is near flush with the outside face reducing the visual effect of aluminium as viewed from the outside
  • Provision can be made for seismic and thermal movement
  • Can incorporate matching opening sashes, including an unobtrusive structurally glazed sash
  • Includes internal drainage which allows this system to be used with confidence on multi-storey buildings
  • Single and double glazing options including mixed within the same façade
  • Sun control fins can be applied to the outside of transoms to aid solar control and accentuate the horizontal line
  • Can be used as a strip curtain wall system and can be structurally glazed vertically to minimise the impact of aluminium beads
  • Structural glazed mullions can be included in the system
Categories
Commercial Windows and Shopfronts
Ranges
Commercial Series
Scope of Use
  • 114mm ThermalHeart+® split mullions are fully compatible with APL Architectural Series ThermalHeart+® system. A full seismic transom will be available early 2027
  • Suitable for shopfront and medium rise commercial applications
  • Capable of a range of spans depending on aspect ratio, mullion spacing and wind pressure. Consult Altherm for specific information
  • Compatible with Magnum commercial doors
Limitations on Use
  • Tested to Very High wind zones and beyond but projects may require project-specific testing
  • Shop drawings can be supplied when specified
  • Project-specific flashings and brackets are often required and are supplied by the window manufacturer
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2001
  • Some design upgrades released
  • Widely used by builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • Case Studies
  • News
Documents
Data Sheet
pdf
Span Tables
pdf
Environmental Product Declaration (EPD) Report

2023

URL
Altherm on Masterspec
URL
Specifier Guide
pdf
WGANZ Guide to E2/AS1
pdf
Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
AGP State of the Art Glass Brochure
URL
Altherm Design Brochure

2020

URL
APL and Sustainability

2019

URL
EPD: Understanding the global standard
pdf
Manufacturer Contact List
URL
CAD/PDF Details
View full
ACFG01 0
Full Set of Drawings

ACFG

pdf
ACFG01 0

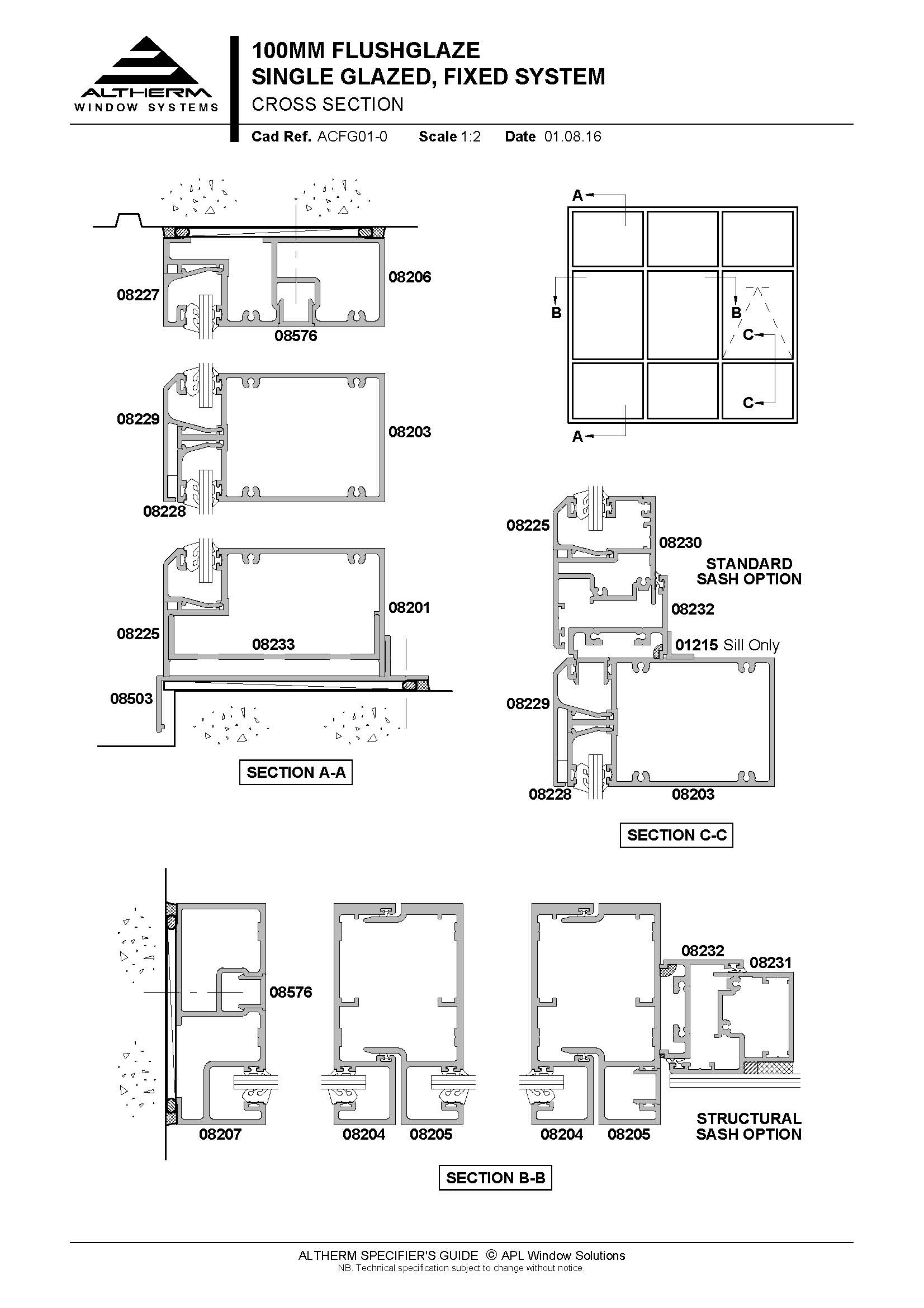

Altherm Commercial 100mm Flushglaze, Fixed System

ACFG01-0

dwf
dwg
dxf
pdf
ACFG02 0

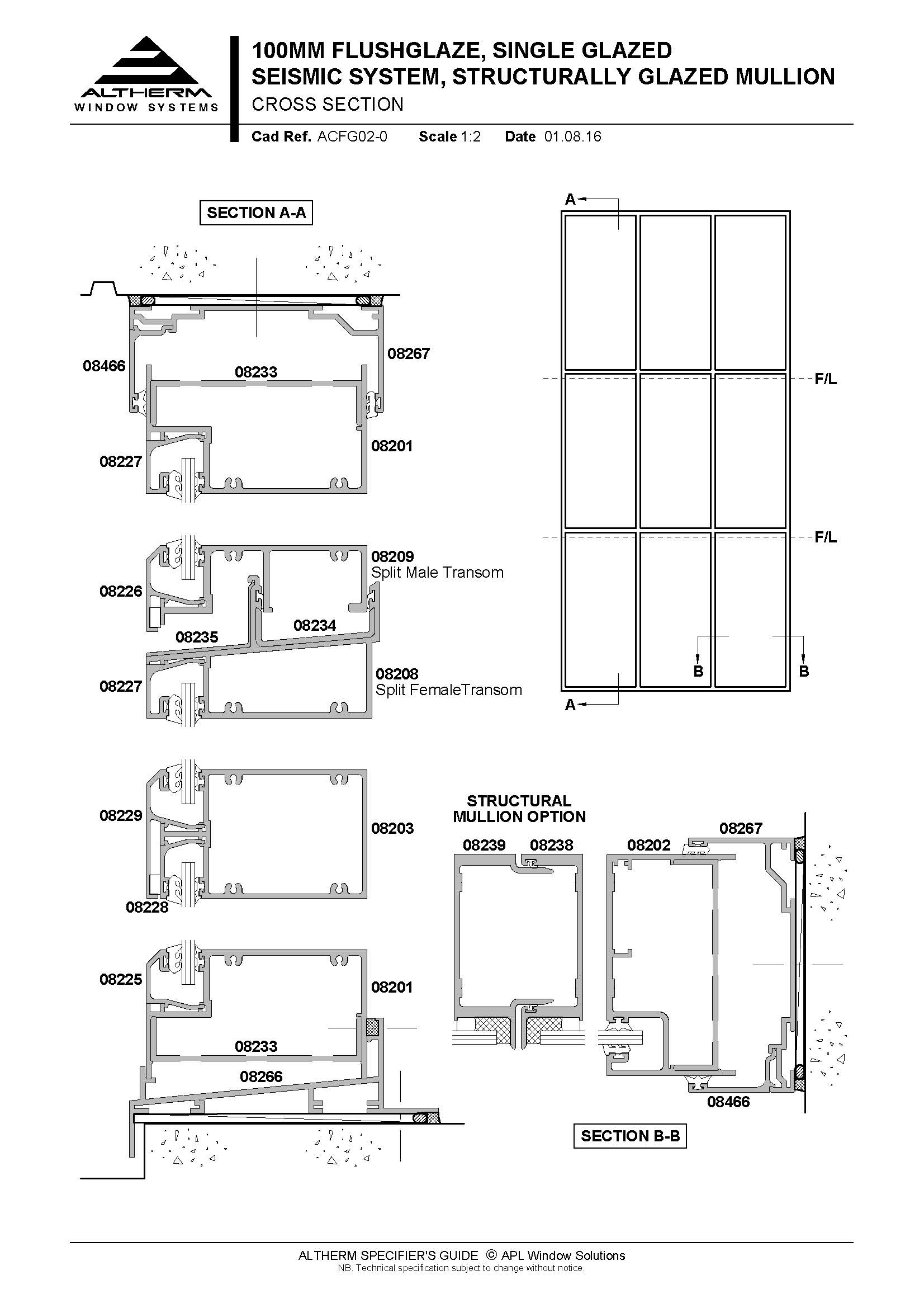

Altherm Commercial 100mm Flushglaze System, Seismic System Structurally Glazed Mullion

ACFG02-0

dwf
dwg
dxf
pdf
ACFG03 0

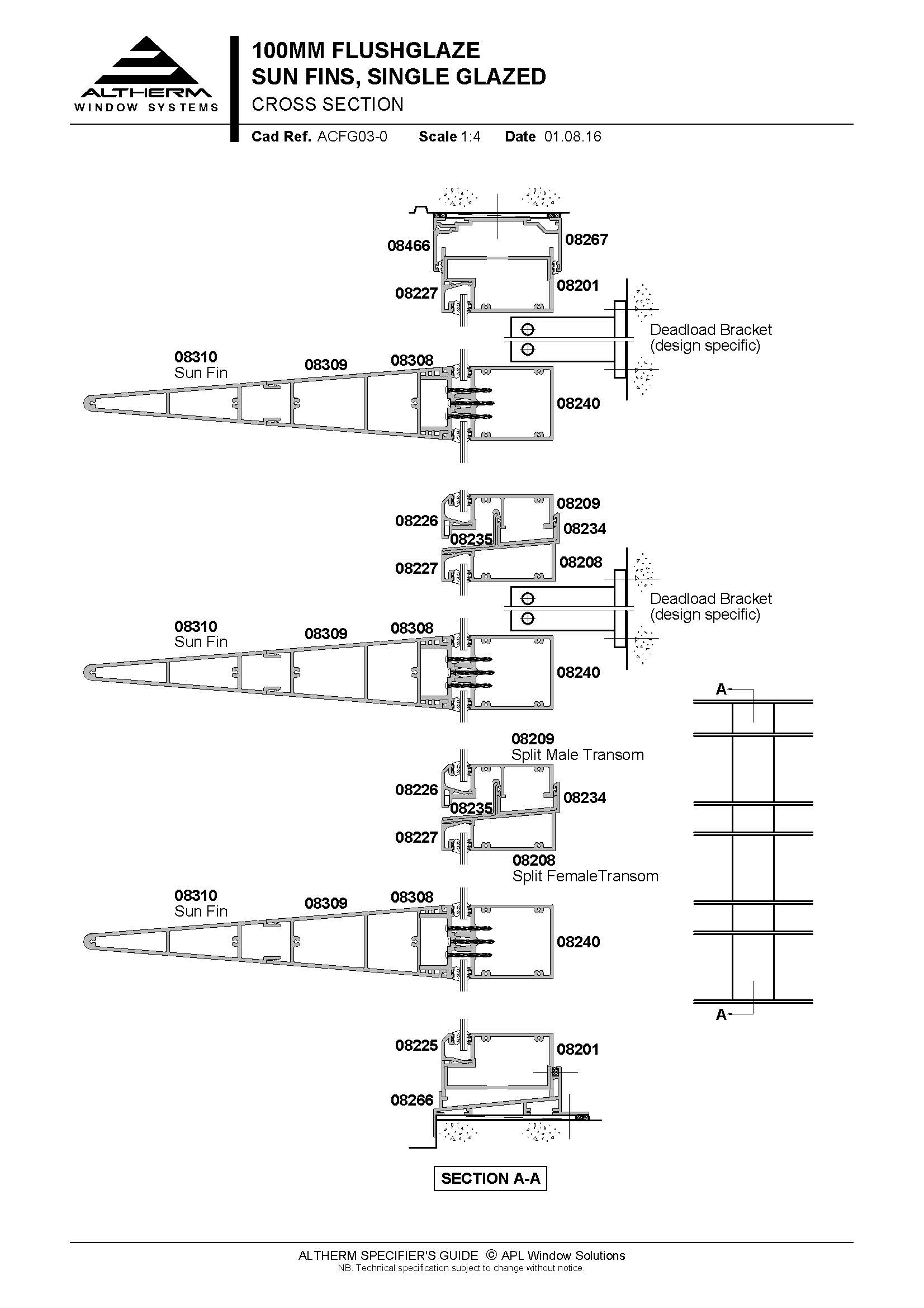

Altherm Commercial 100mm Flushglaze System, Sun Fins

ACFG03-0

dwf
dwg
dxf
pdf
ACFG04 0

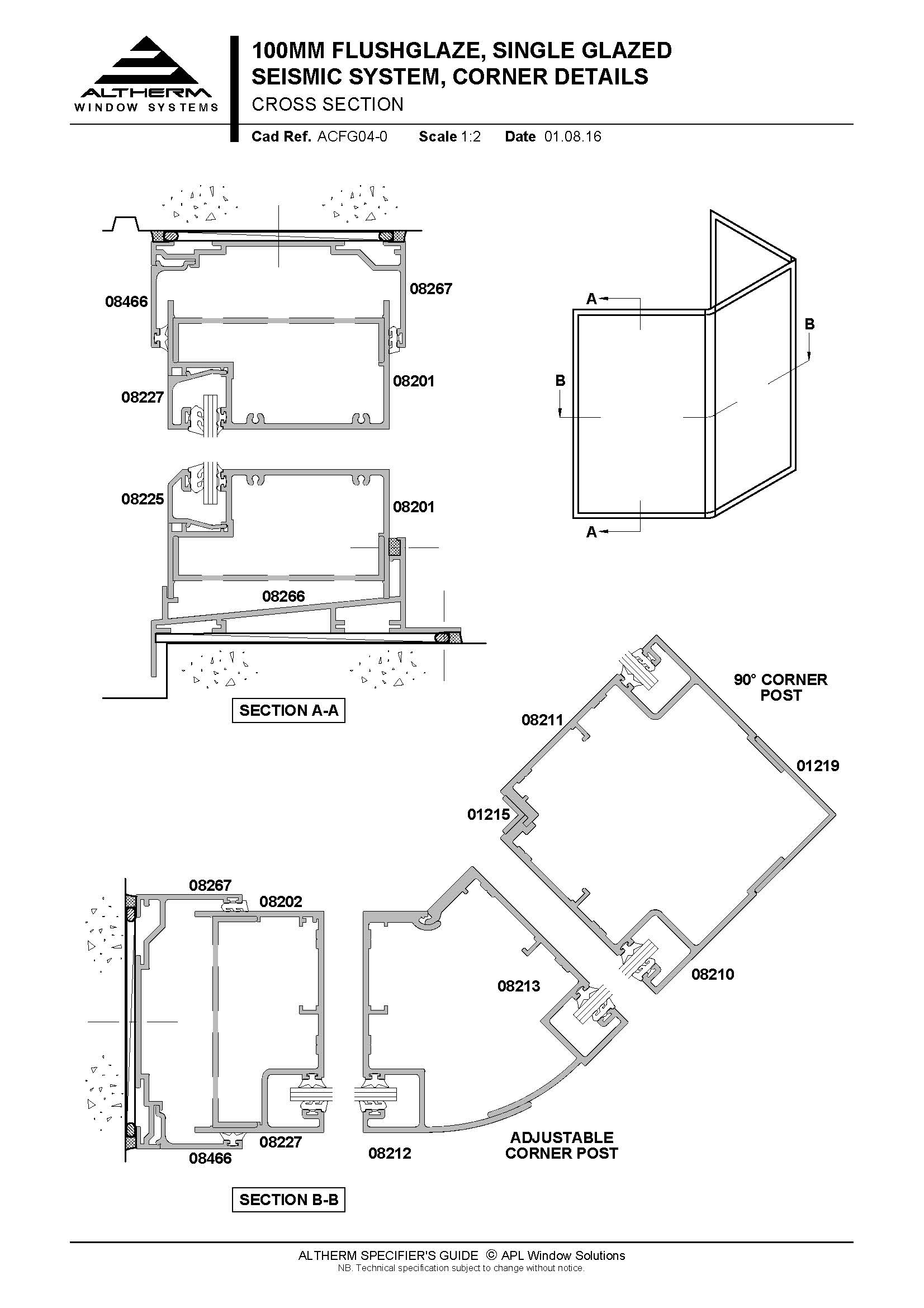

Altherm Commercial 100mm Flushglaze System, Seismic System Corner Details

ACFG04-0

dwf
dwg
dxf
pdf
ACFG05 0

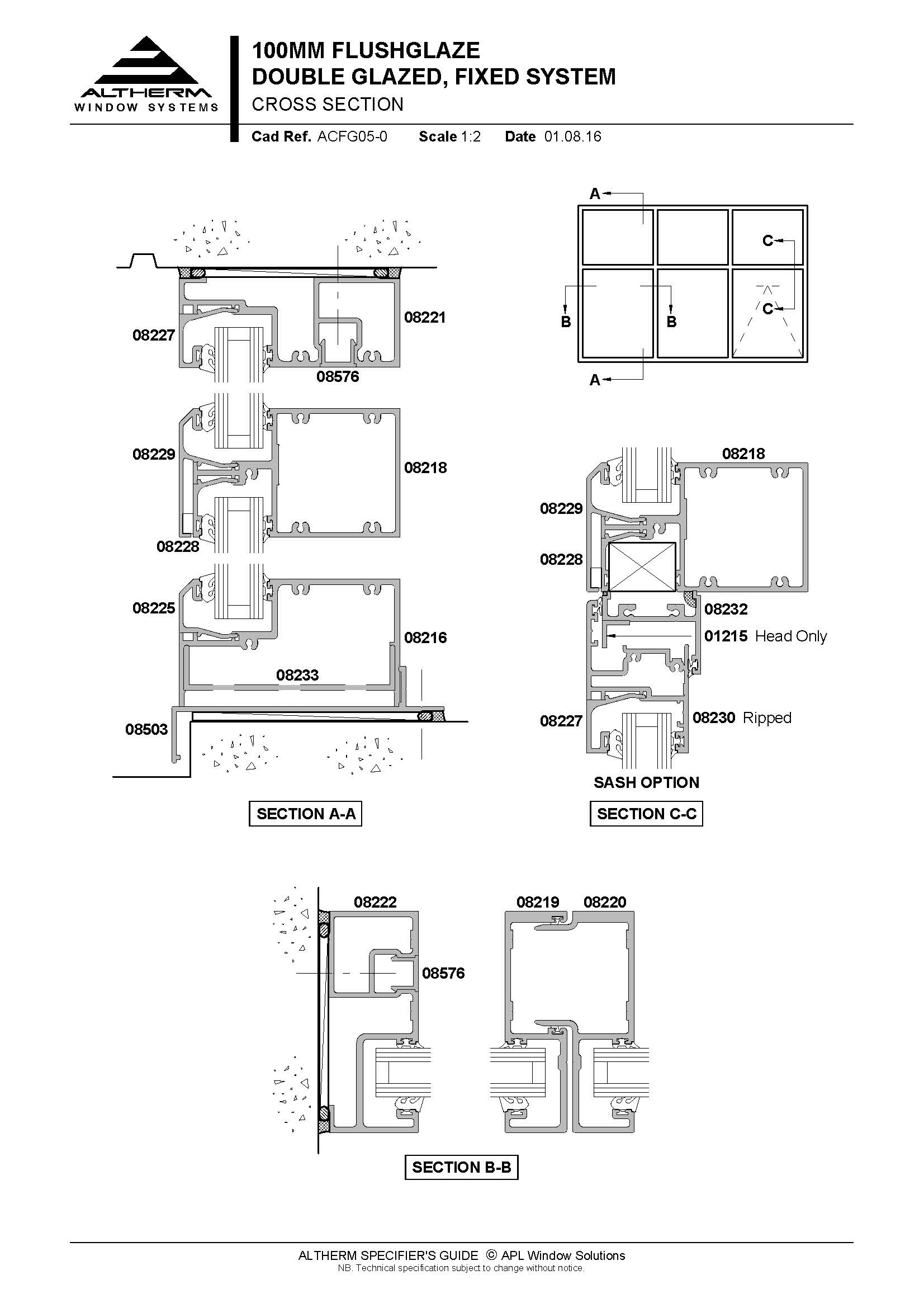

Altherm Commercial 100mm Flushglaze, Double Glazed Fixed System

ACFG05-0

dwf
dwg
dxf
pdf
ACFG06 0

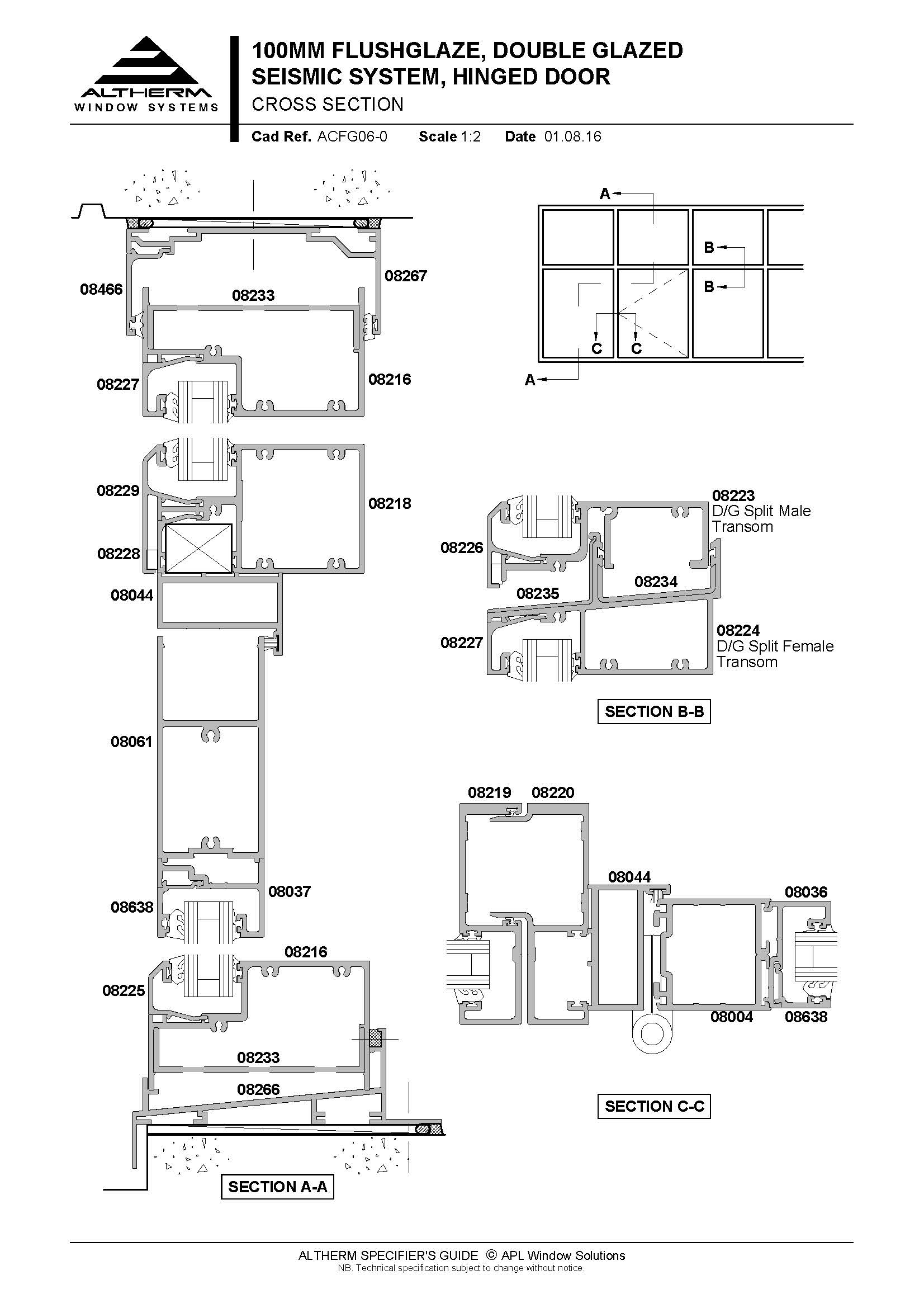

Altherm Commercial 100mm Flushglaze System, Seismic System Double Glazed Hinged Door

ACFG06-0

dwf
dwg
dxf
pdf
ACFG10 0

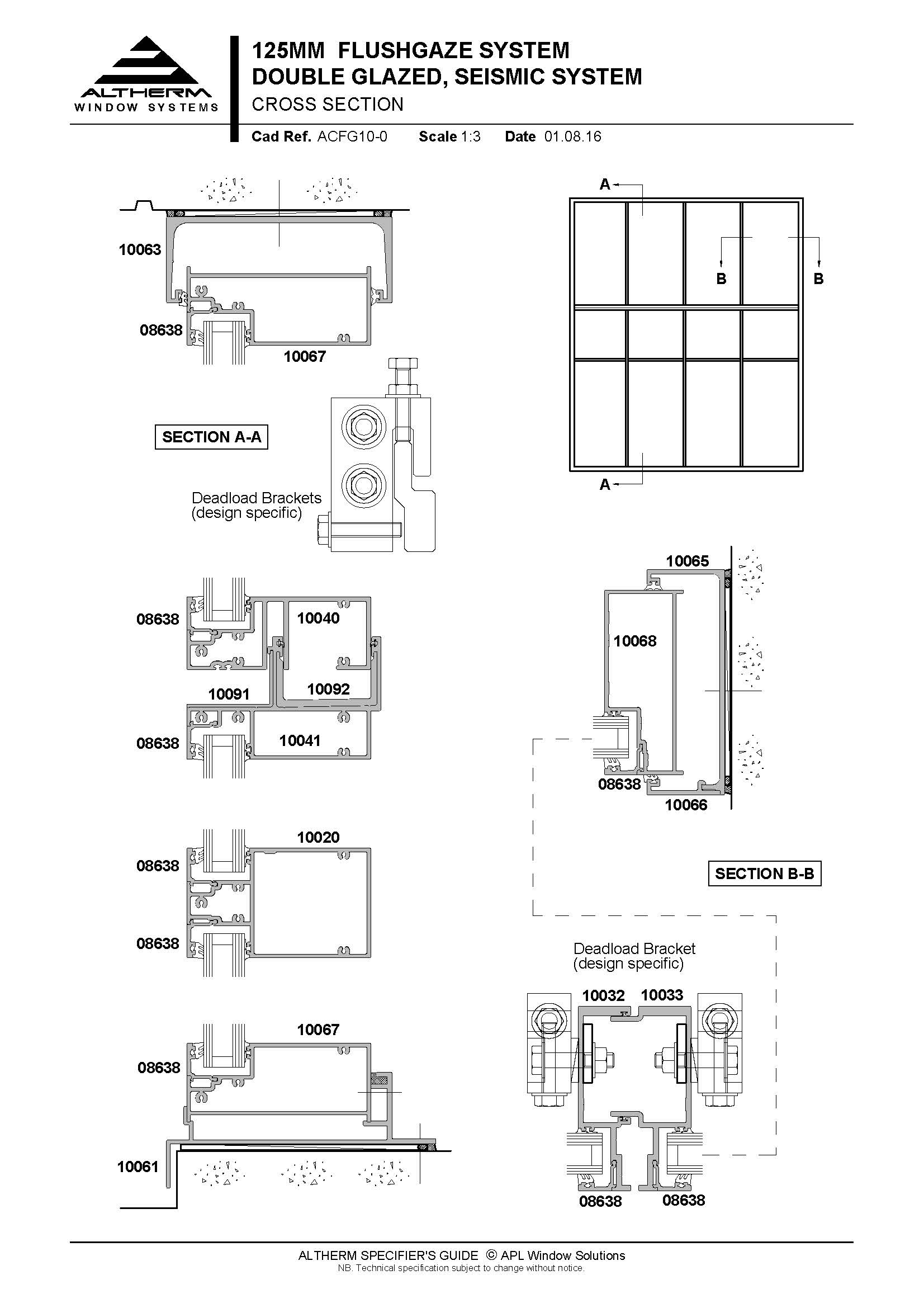

Altherm Commercial 125mm Flushglaze System, Seismic System

ACFG10-0

dwf
dwg
dxf
pdf
ACFG11 0

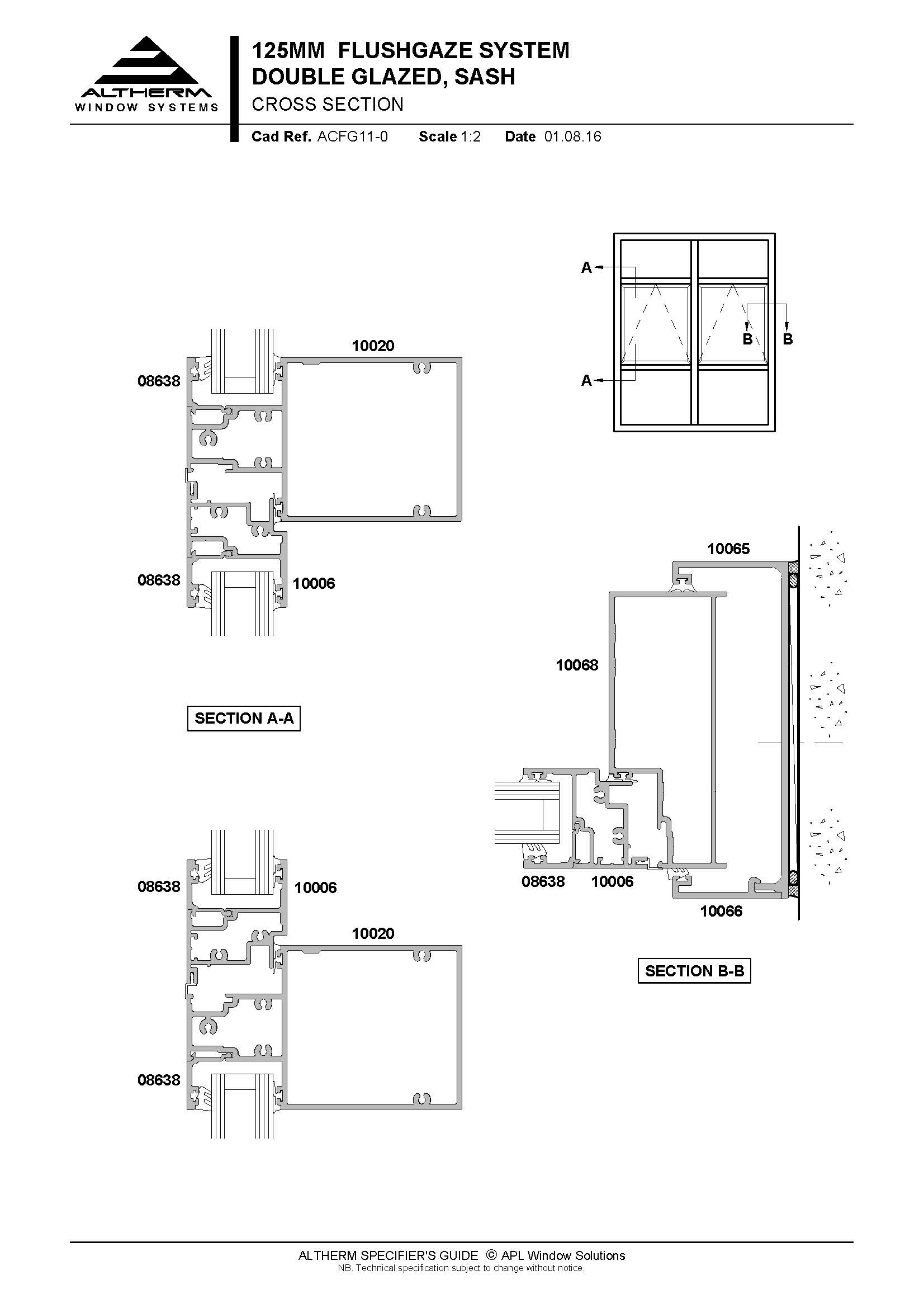

Altherm Commercial 125mm Flushglaze, Sash Double Glazed

ACFG11-0

dwf
dwg
dxf
pdf

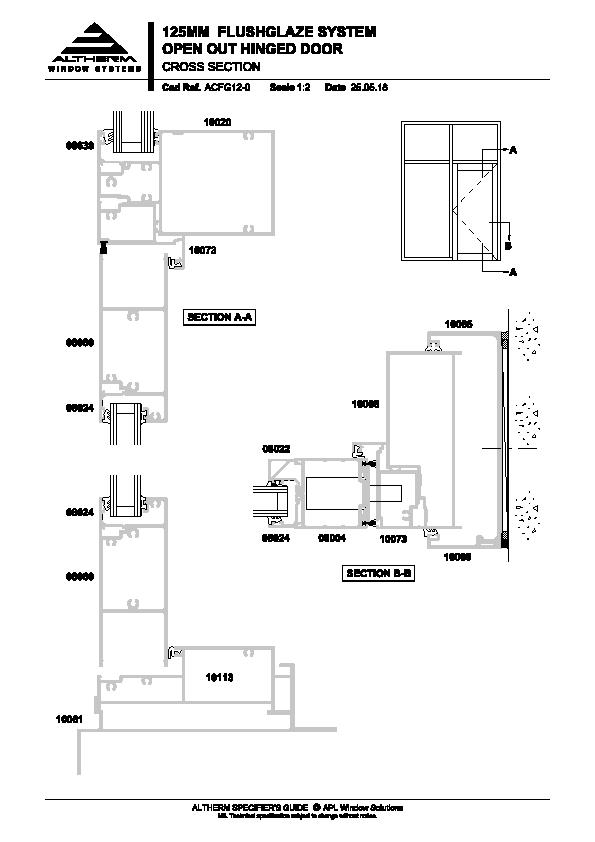

Altherm Commercial 125mm Flushglaze System, Open Out Hinged Door

ACFG12-0

dwf
dwg
dxf
pdf
ACFG13 0

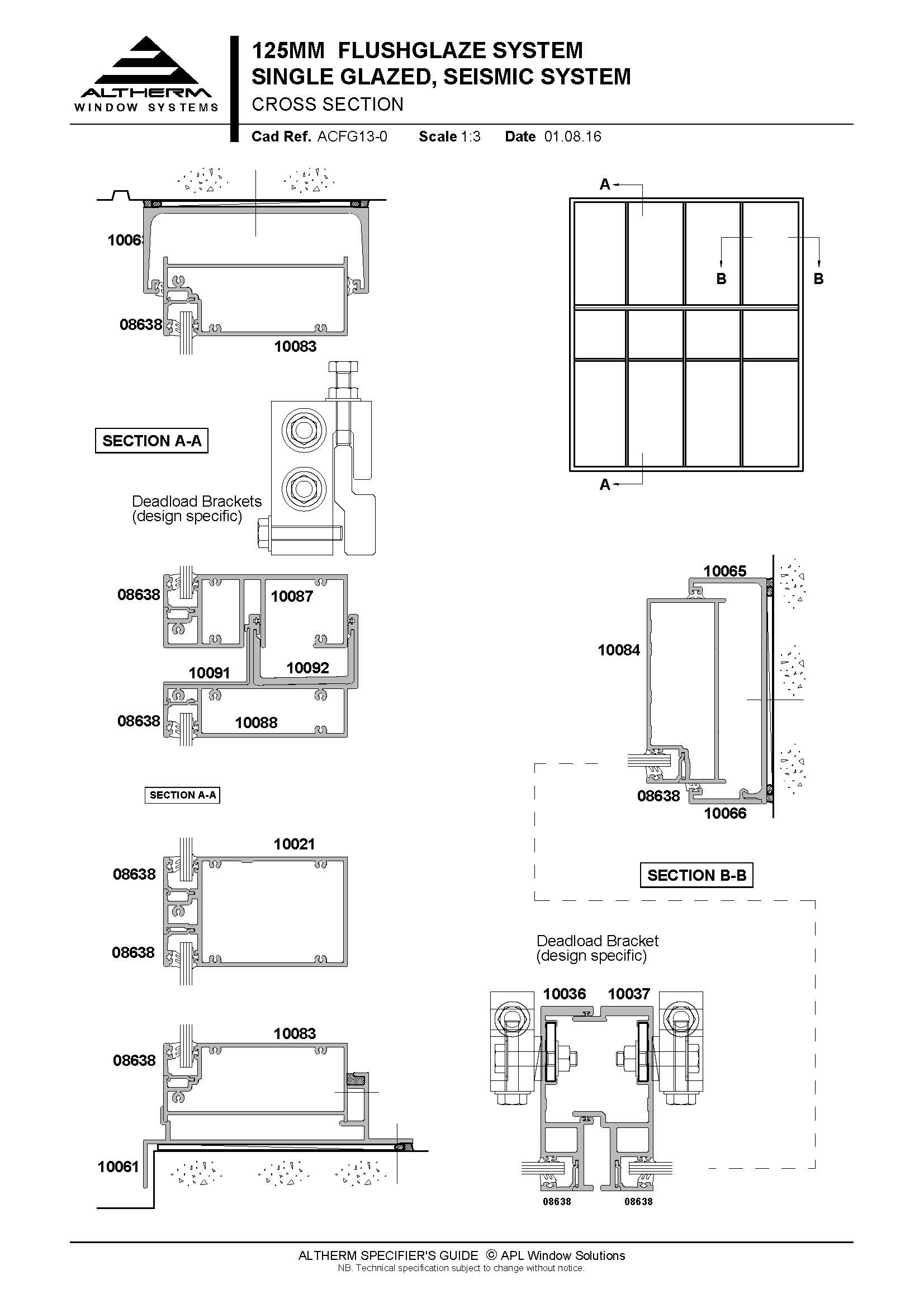

Altherm Commercial 125mm Flushglaze, Seismic System

ACFG13-0

dwf
dwg
dxf
pdf
ACFG14 0

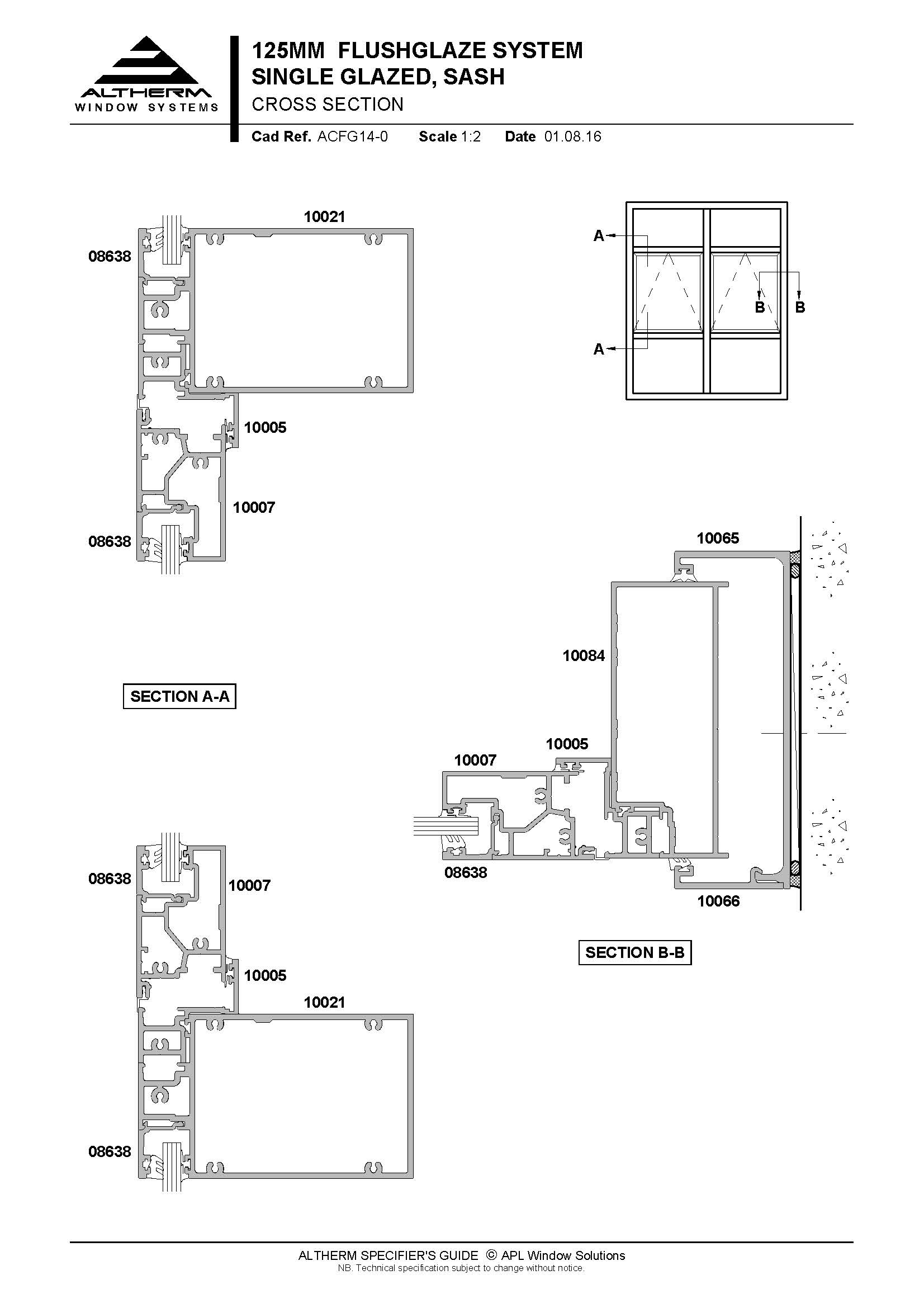

Altherm Commercial 125mm Flushglaze, Single Glazed Sash

ACFG14-0

dwf
dwg
dxf
pdf
ACFG15 0

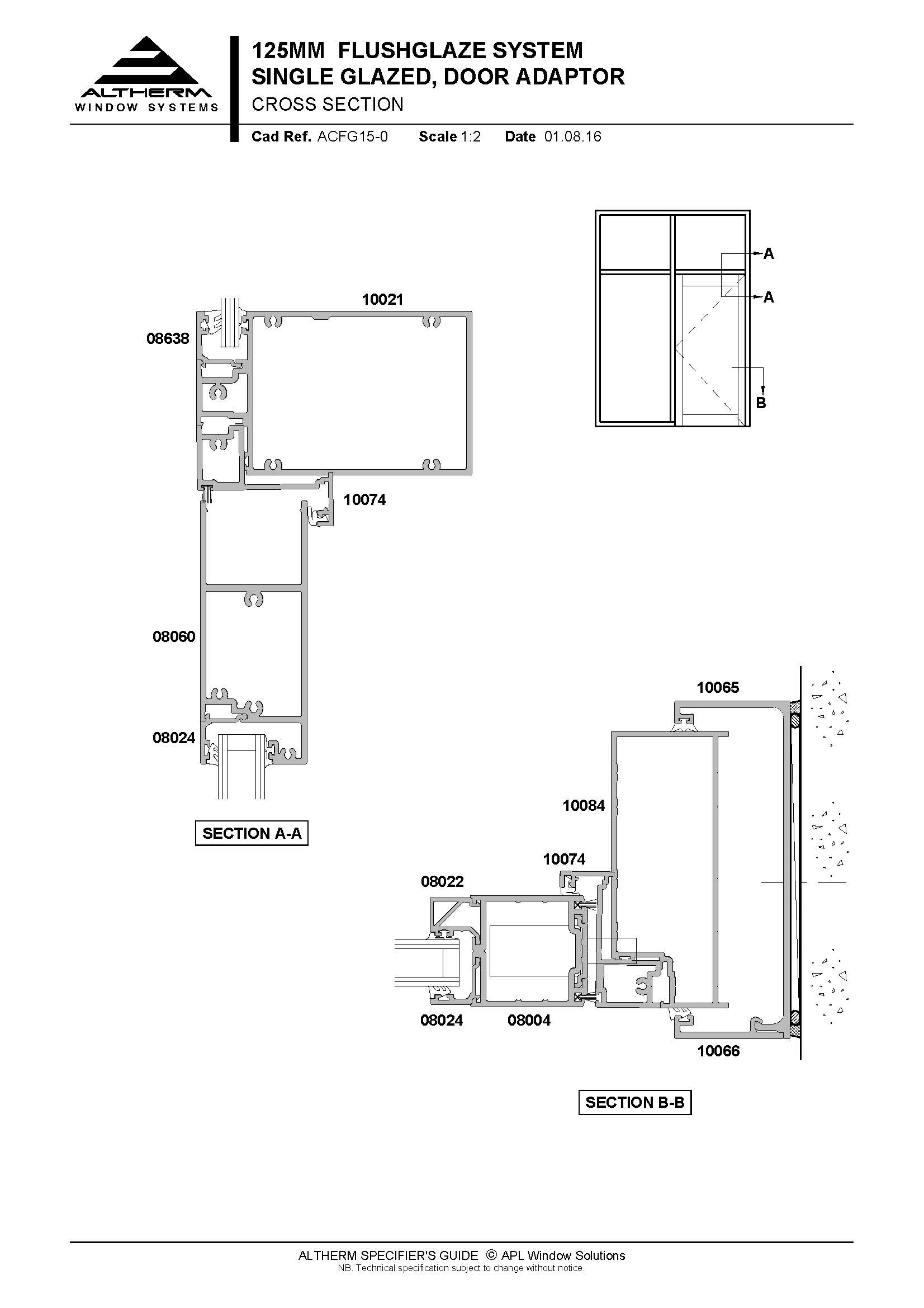

Altherm Commercial 125mm Flushglaze System, Seismic System Single Glazed Hinged Door

ACFG15-0

dwf
dwg
dxf
pdf
ACFG16 0

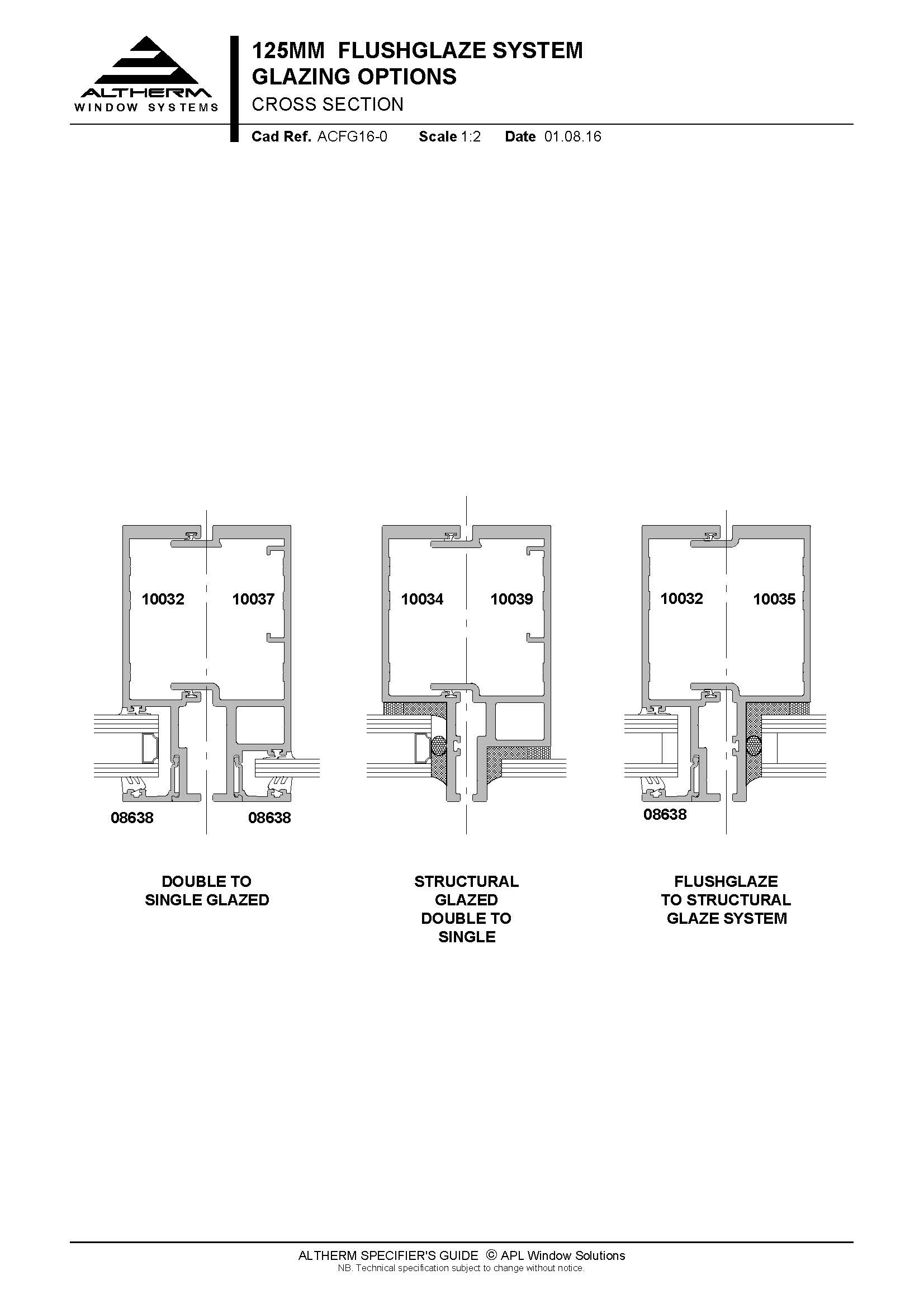

Altherm Commercial 125mm Flushglaze System, Glazing Options

ACFG16-0

dwf
dwg
dxf
pdf
ACFG17 0

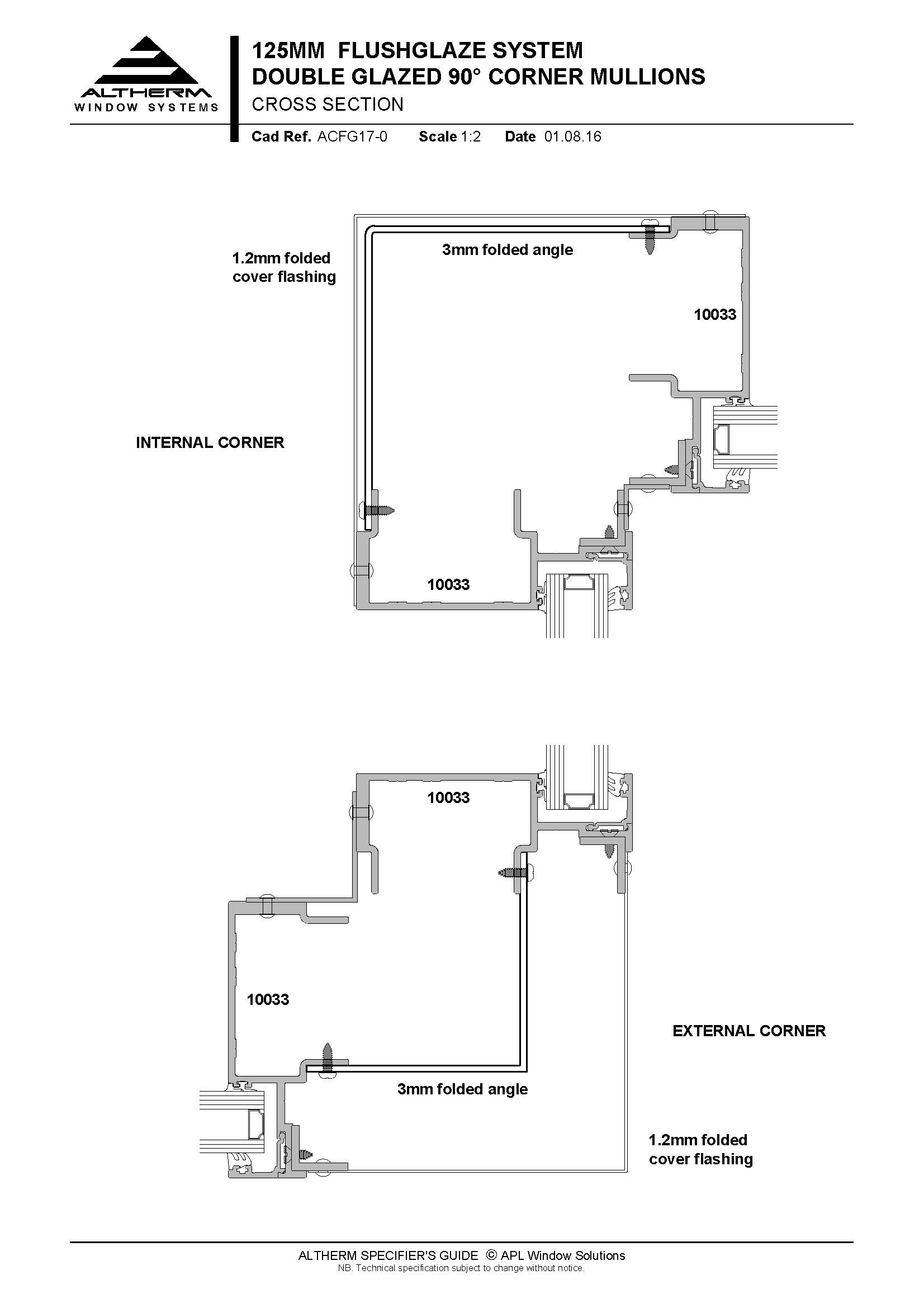

Altherm Commercial 125mm Flushglaze System, Corner Mullions

ACFG17-0

dwf
dwg
dxf
pdf

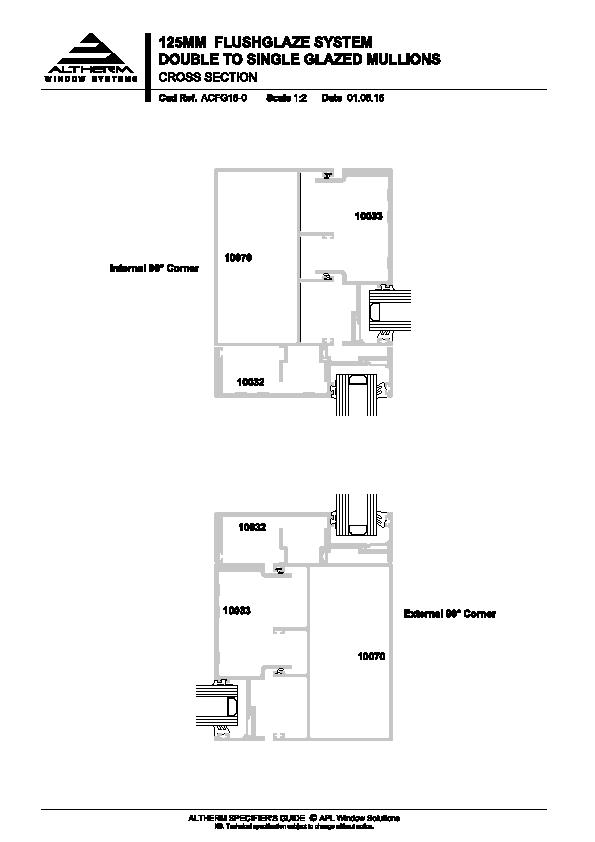

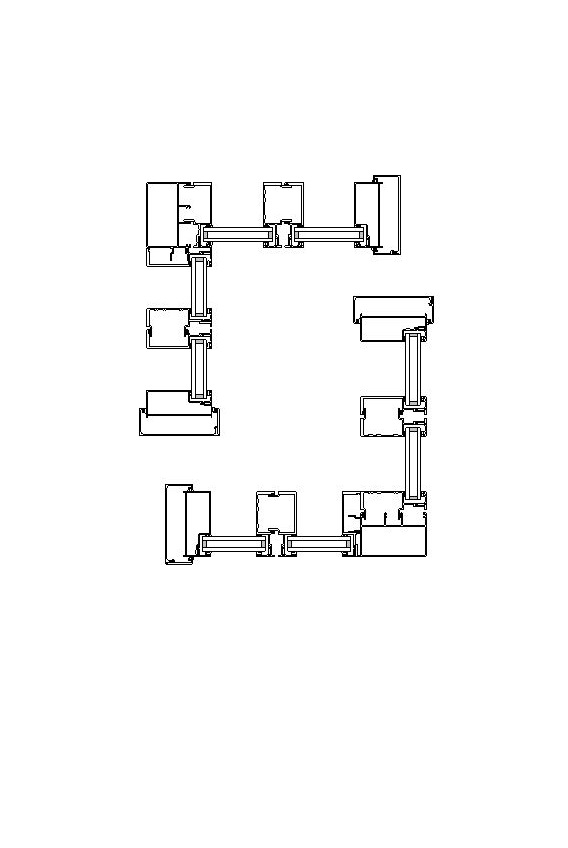

Altherm Commercial 125mm Flushglaze System, Strip Windows Corners

ACFG18-0

dwf
dwg
dxf
pdf
ACFG25 0

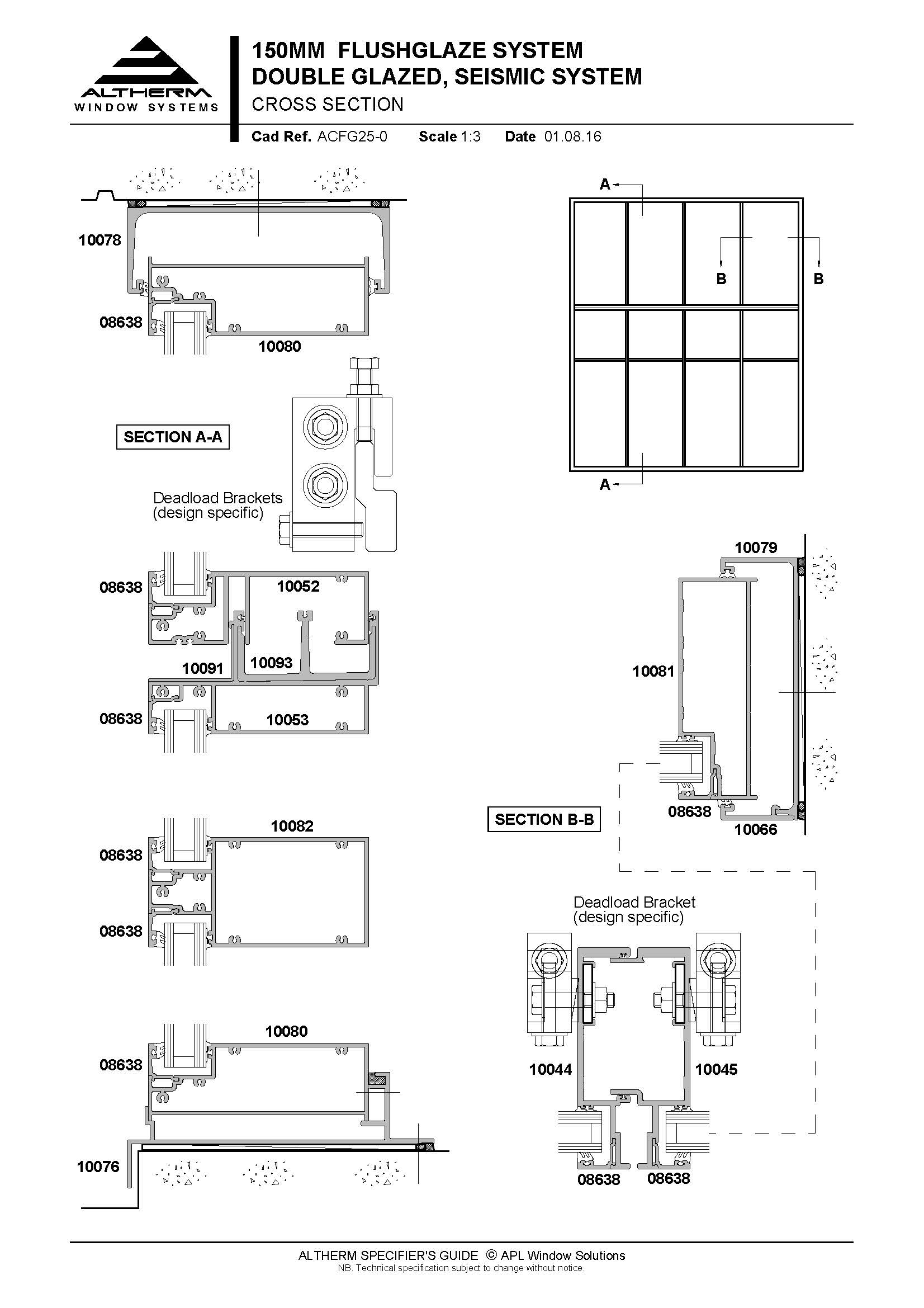

Altherm Commercial 150mm Flushglaze, Seismic System

ACFG25-0

dwf
dwg
dxf
pdf
ACFG26 0

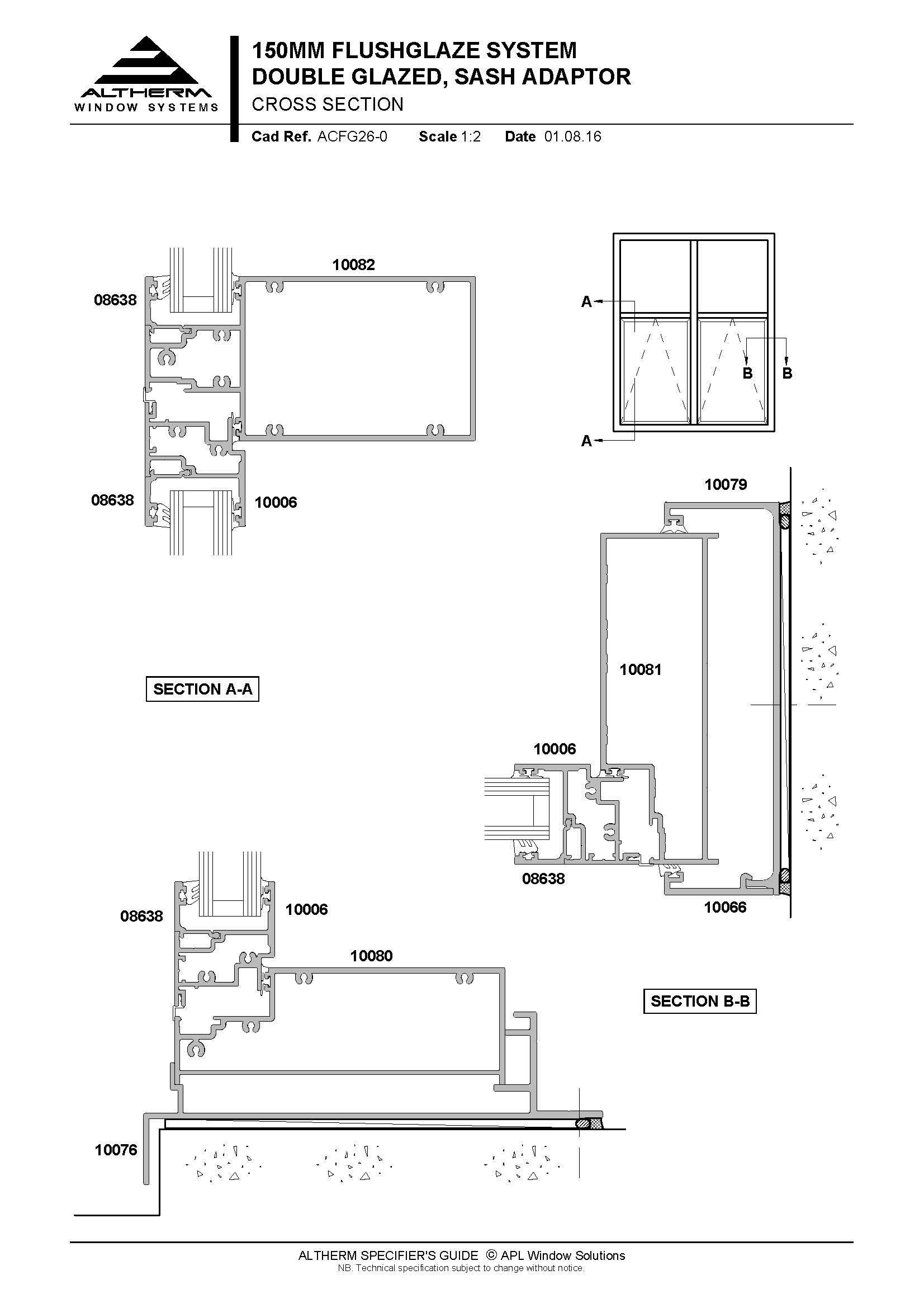

Altherm Commercial 150mm Flushglaze, Double Glazed Sash

ACFG26-0

dwf
dwg
dxf
pdf

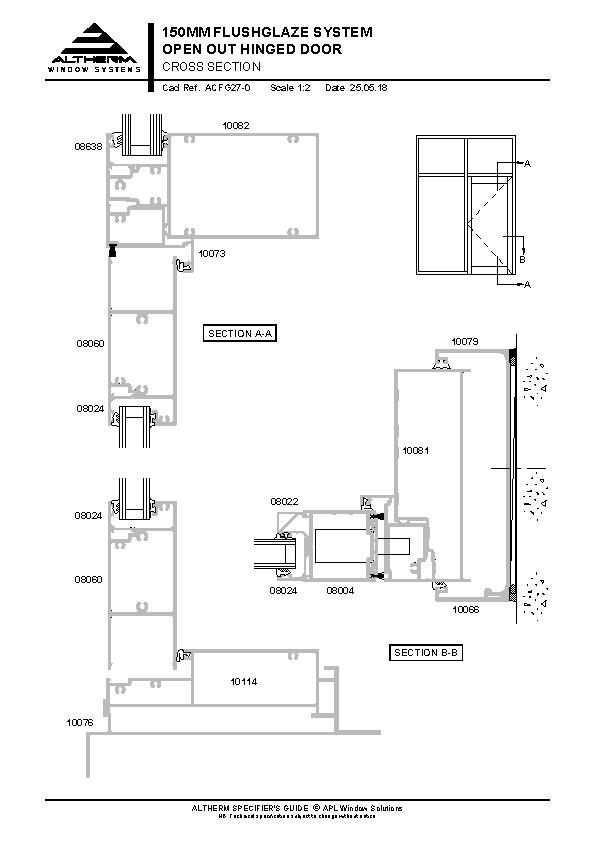

Altherm Commercial 150mm Flushglaze, Open Out Hinged Door

ACFG27-0

dwf
dwg
dxf
pdf
ACFG28 0

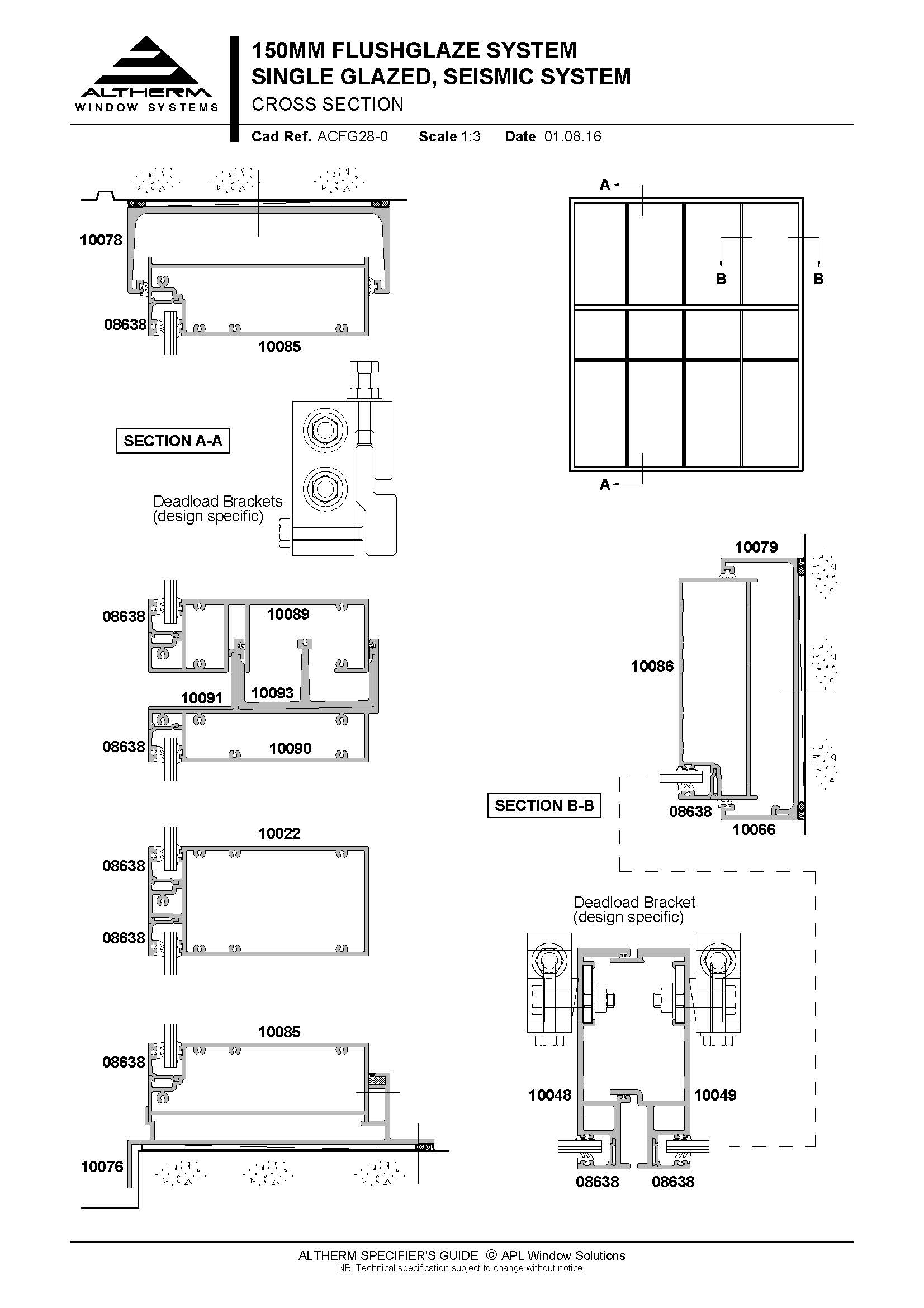

Altherm Commercial 150mm Flushglaze, Single Glazed Seismic System

ACFG28-0

dwf
dwg
dxf
pdf
ACFG29 0

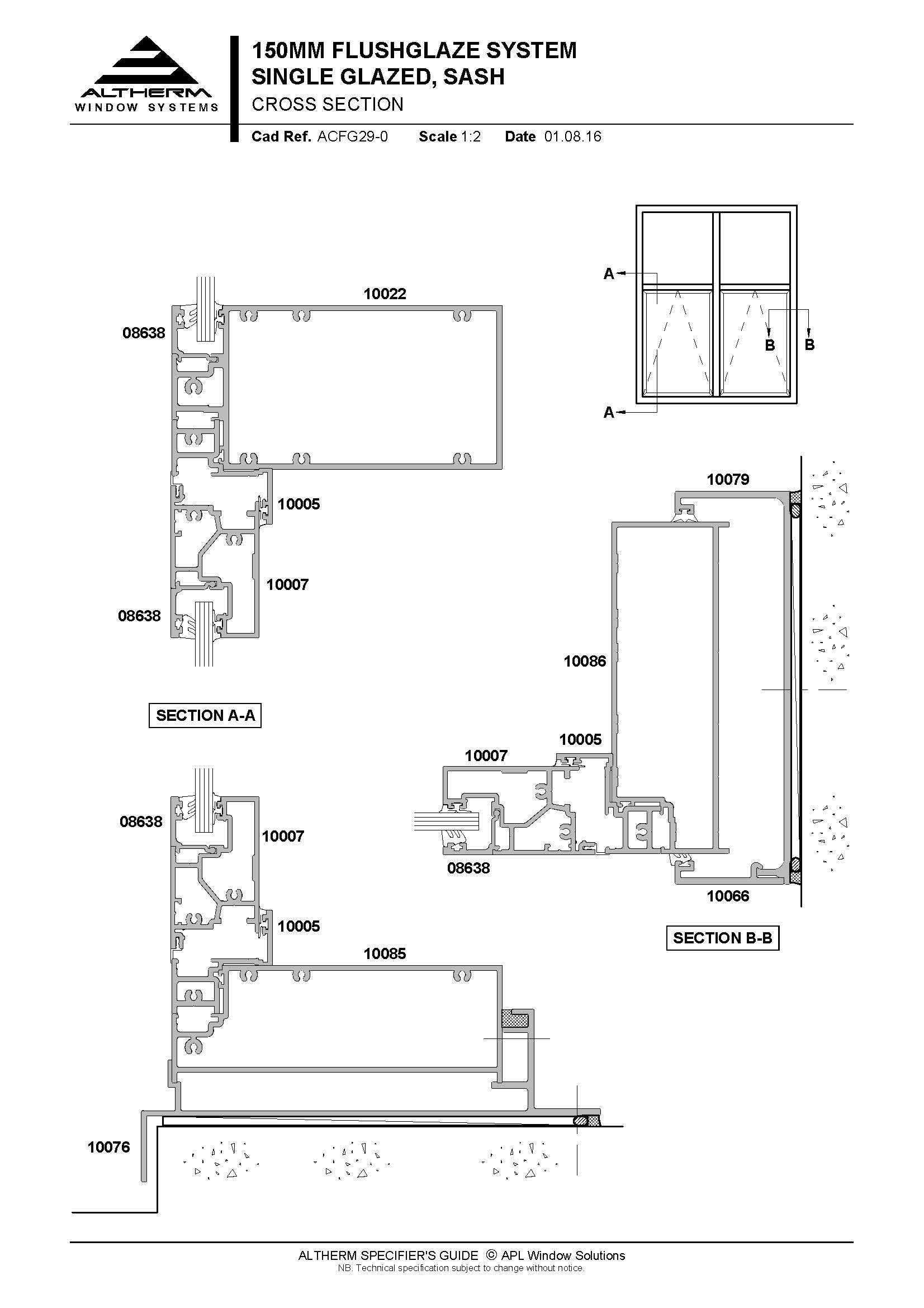

Altherm Commercial 150mm Flushglaze, Single Glazed Sash

ACFG29-0

dwf
dwg
dxf
pdf
ACFG30 0

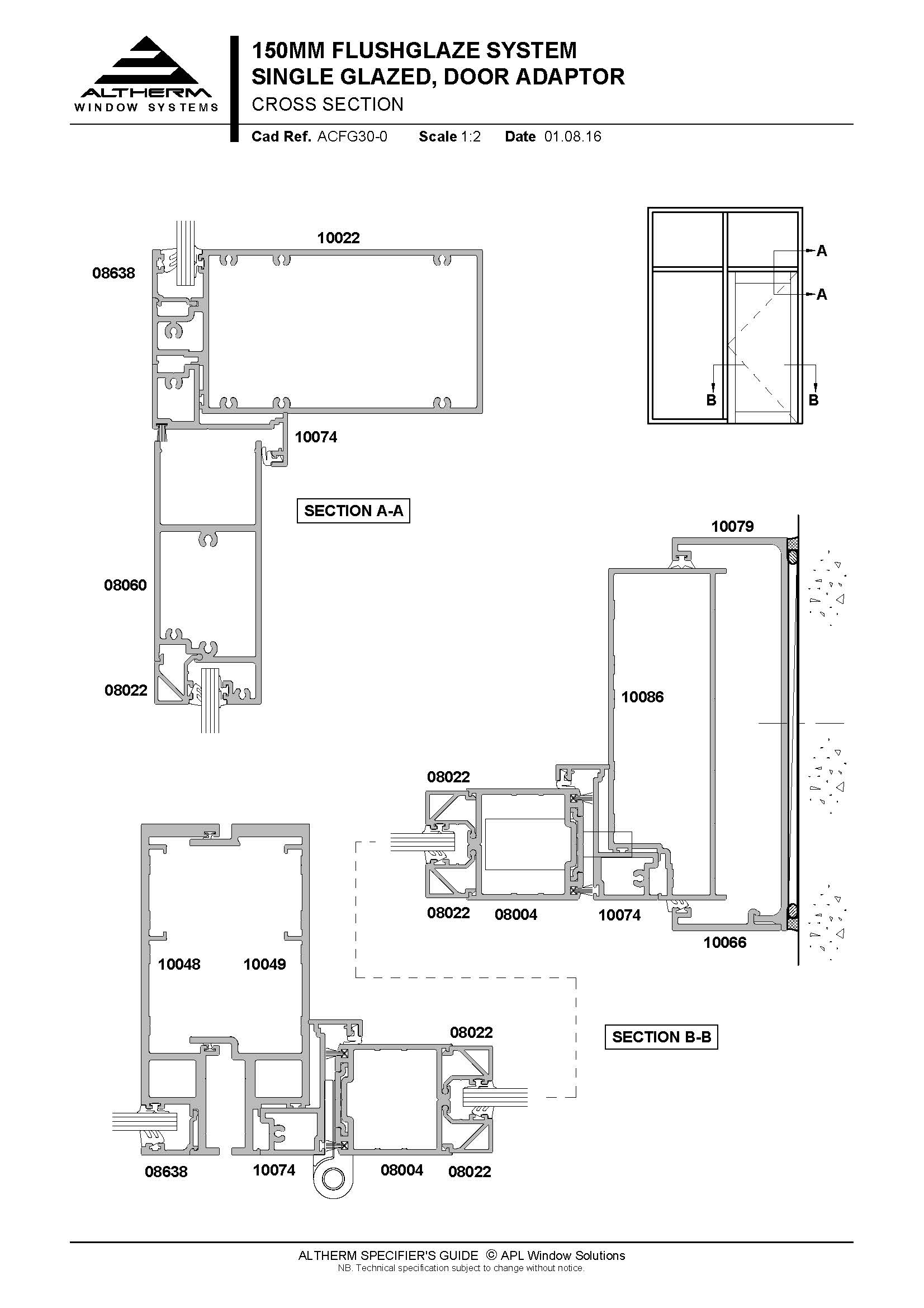

Altherm Commercial 150mm Flushglaze, Single Glazed Hinged Door

ACFG30-0

dwf
dwg
dxf
pdf
ACFG31 0

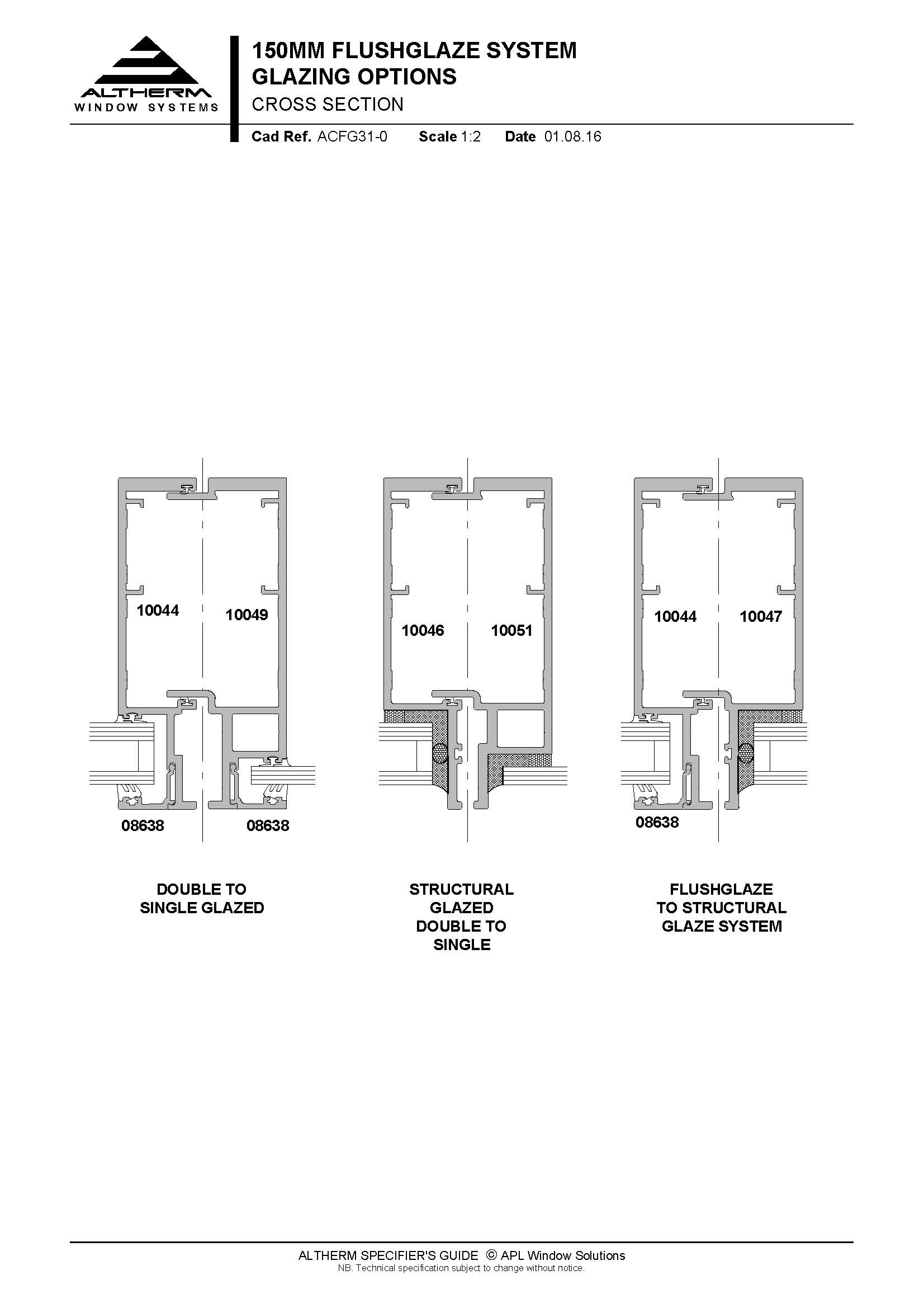

Altherm Commercial 150mm Flushglaze, Glazing Options

ACFG31-0

dwf
dwg
dxf
pdf
ACFG32 0

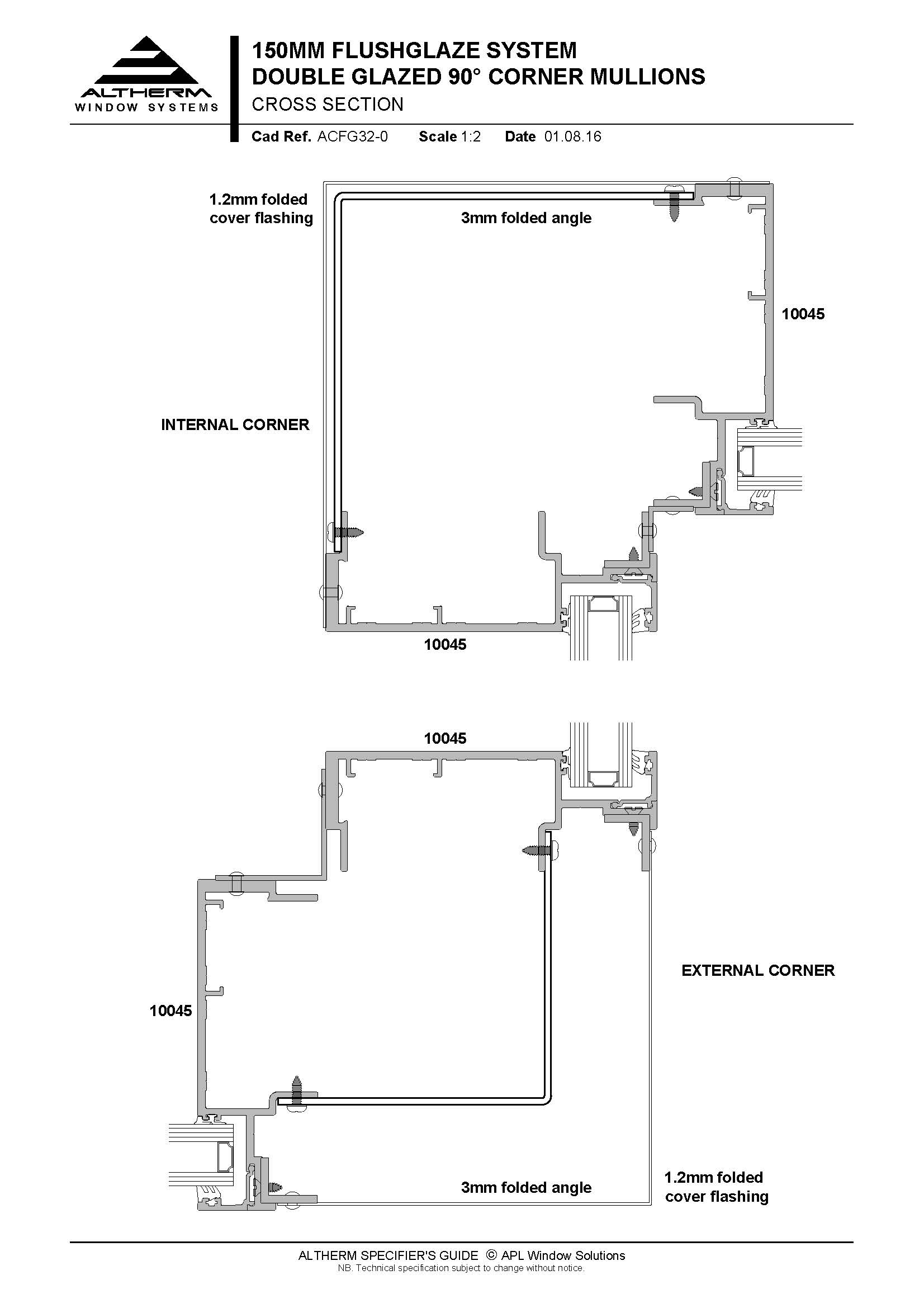

Altherm Commercial 150mm Flushglaze, Corner Mullions

ACFG32-0

dwf
dwg
dxf
pdf
BIM
View full

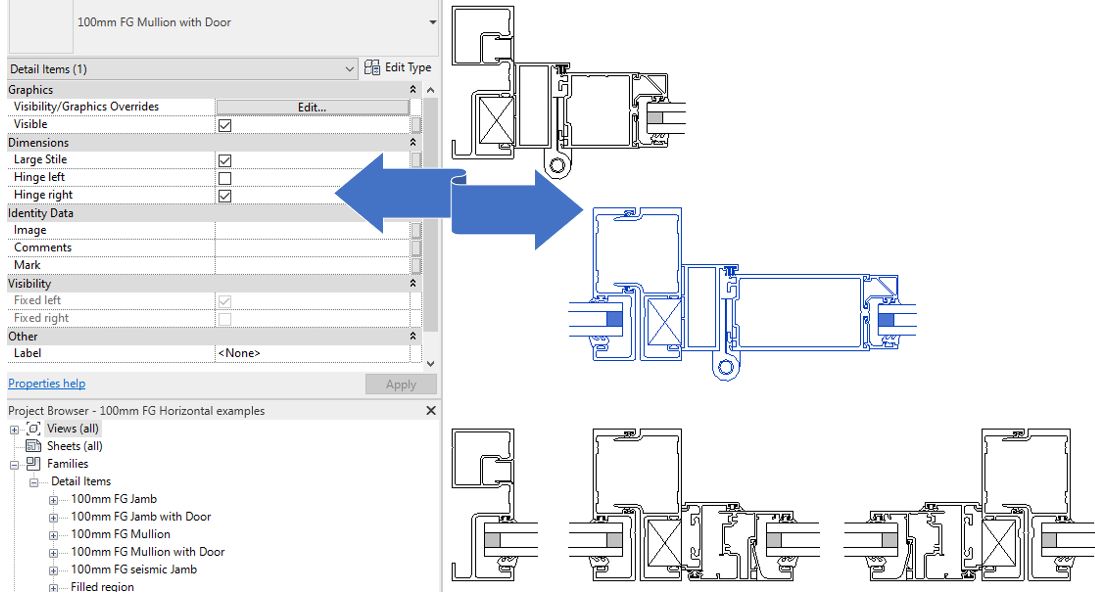

Capture
Altherm Commercial 100mm Flushglaze System

Revit LT 2020

zip

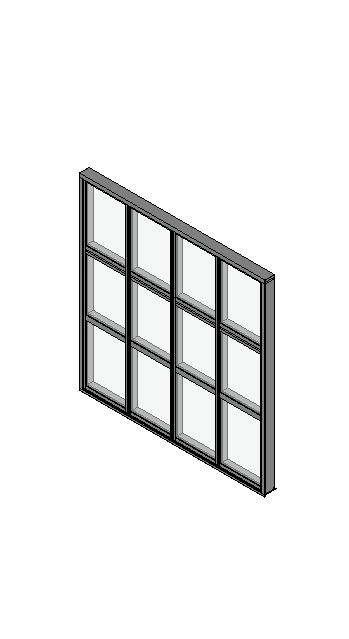

fixed system
Altherm Commercial 125mm Flushglaze System (Curtain Wall)
rfa
rfa
rvt

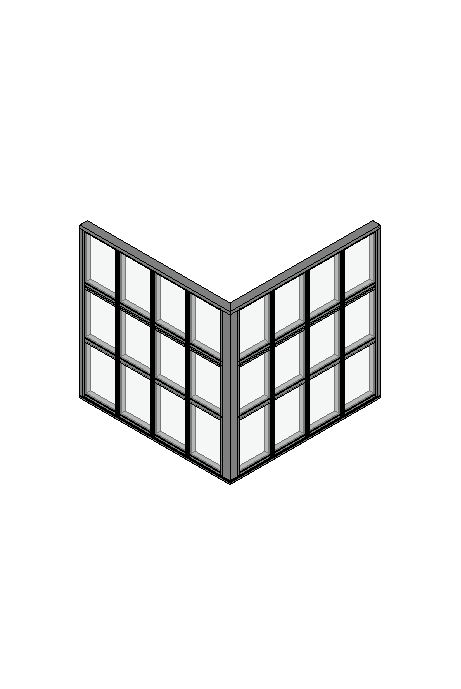

EXT Corner
Altherm Commercial 125mm Flushglaze System, External Corner (Curtain Wall)
rfa
rvt

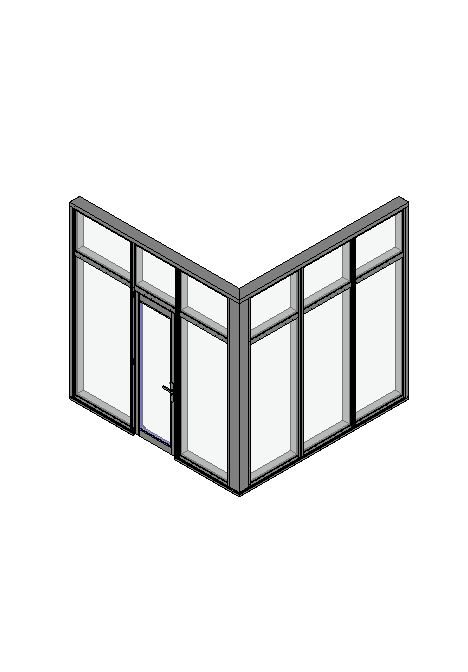

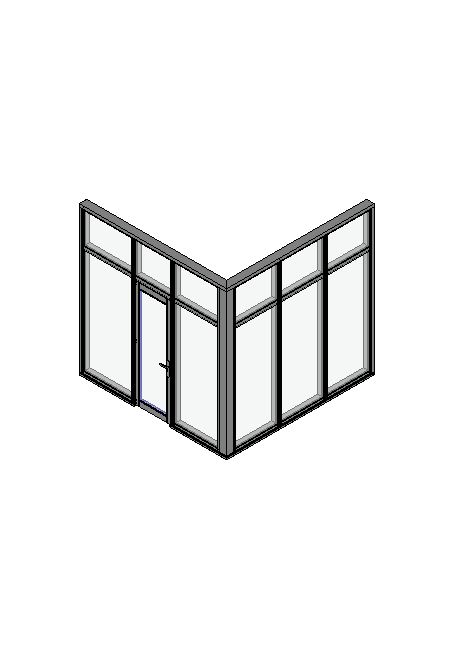

EXT corn with hinged
Altherm Commercial 125mm Flushglaze System, External Corner With Hinged Door (Curtain Wall)
rvt

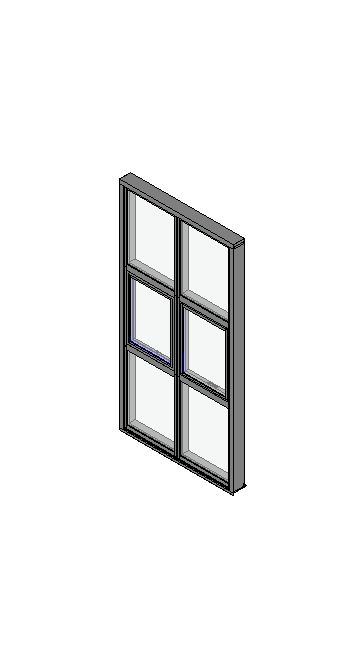

windows
Altherm Commercial 125mm Flushglaze System, Fixed System With Awning (Curtain Wall)
rfa
rfa
rfa
rfa
rvt

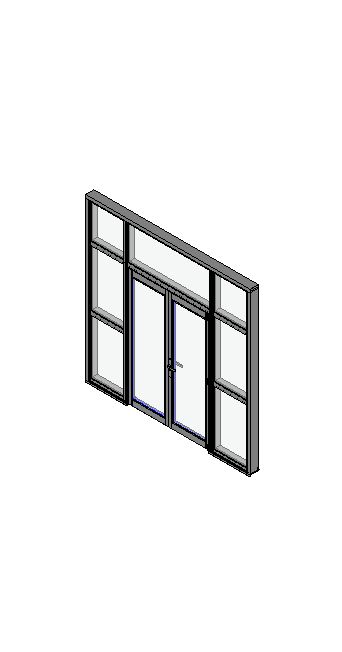

french door
Altherm Commercial 125mm Flushglaze System, French Door (Curtain Wall)
rfa
rfa
rvt

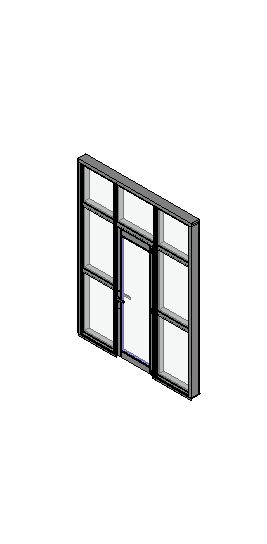

hinged door
Altherm Commercial 125mm Flushglaze System, Hinged Door (Curtain Wall)
rfa
rfa
rvt

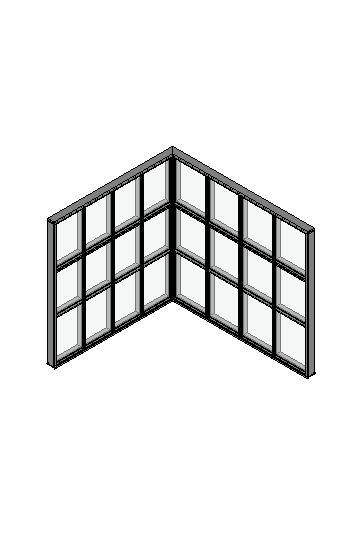

INT Corner
Altherm Commercial 125mm Flushglaze System, Internal Corner (Curtain Wall)
rfa
rvt

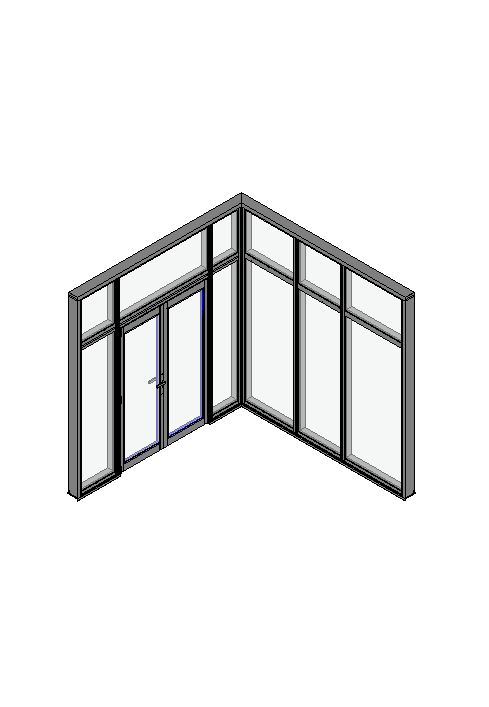

INT corn with French
Altherm Commercial 125mm Flushglaze System, Internal Corner With French Door (Curtain Wall)
rvt
Strip Window
Altherm Commercial 125mm Flushglaze System, Strip Windows Corners (2D)
rfa
rfa
fixed system
Altherm Commercial 150mm Flushglaze System (Curtain Wall)
rfa
rfa
rvt
EXT Corner
Altherm Commercial 150mm Flushglaze System, External Corner (Curtain Wall)
rfa
rvt
EXT corn with hinged
Altherm Commercial 150mm Flushglaze System, External Corner With Hinged Door (Curtain Wall)
rvt
windows
Altherm Commercial 150mm Flushglaze System, Fixed System With Awning (Curtain Wall)
rfa
rfa
rfa
rfa
rvt
french door
Altherm Commercial 150mm Flushglaze System, French Door (Curtain Wall)
rfa
rfa
rvt
hinged door
Altherm Commercial 150mm Flushglaze System, Hinged Door (Curtain Wall)
rfa
rfa
rvt
INT Corner
Altherm Commercial 150mm Flushglaze System, Internal Corner (Curtain Wall)
rfa
rvt
INT corn with French
Altherm Commercial 150mm Flushglaze System, Internal Corner With French Door (Curtain Wall)
rvt
