APL Architectural Series Hinged & French Doors
ALTHERM Window Systems
All products
Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore

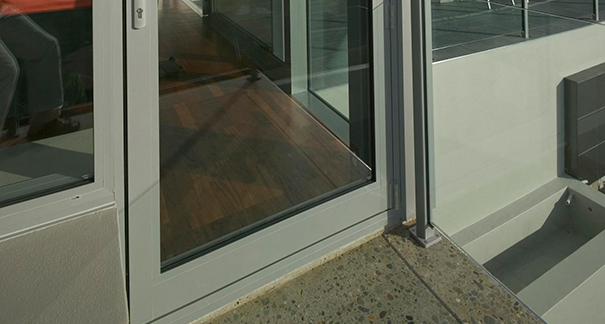

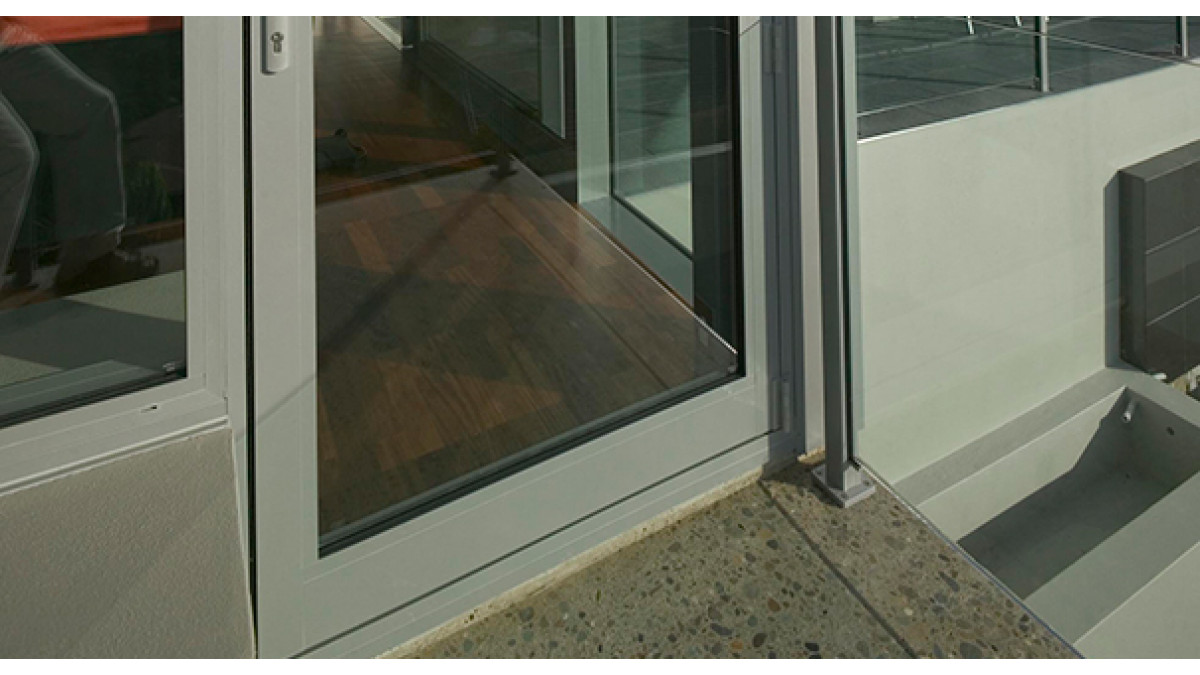

Alth Archi Series hinged dr

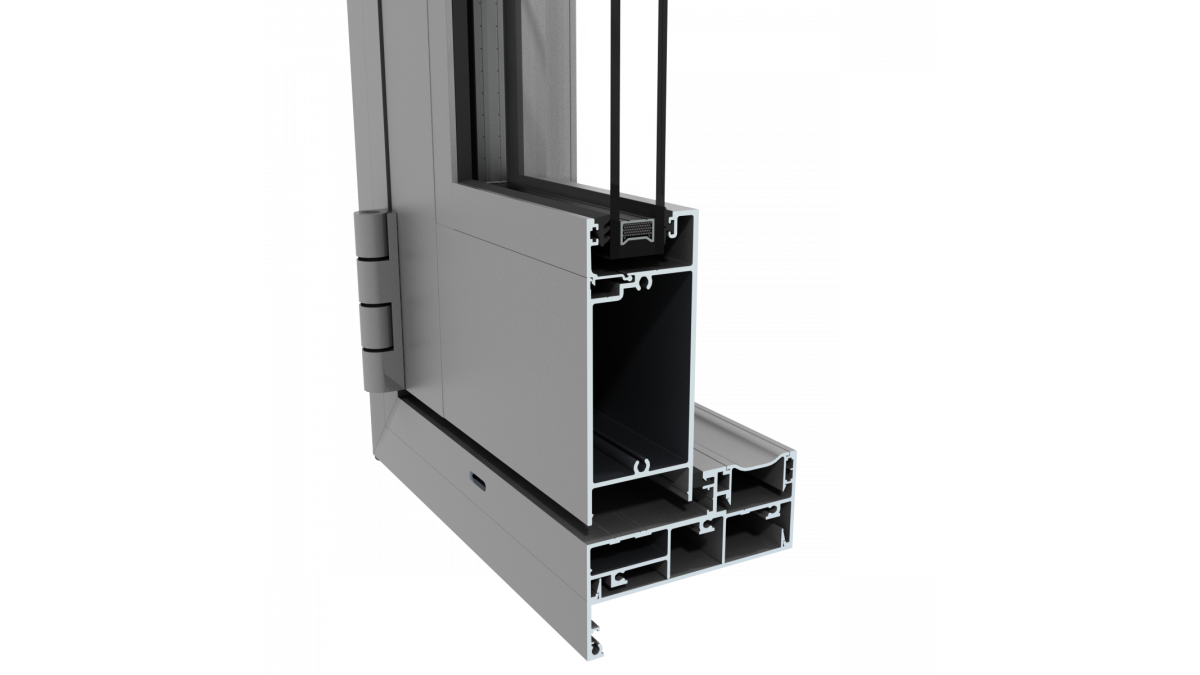

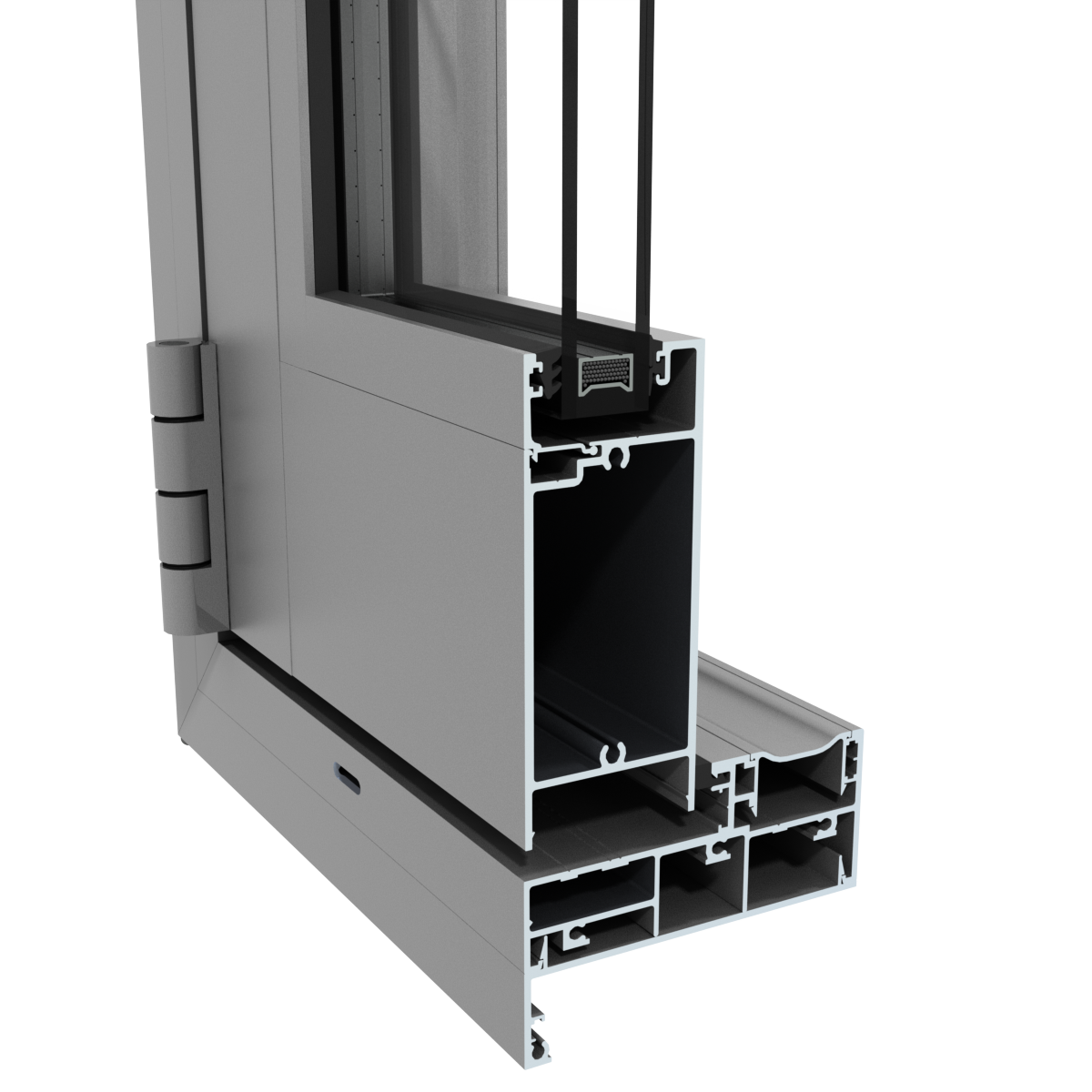

182 Arch OO Hinged Door 106mm1
Hinged door frame (106mm) – open-out

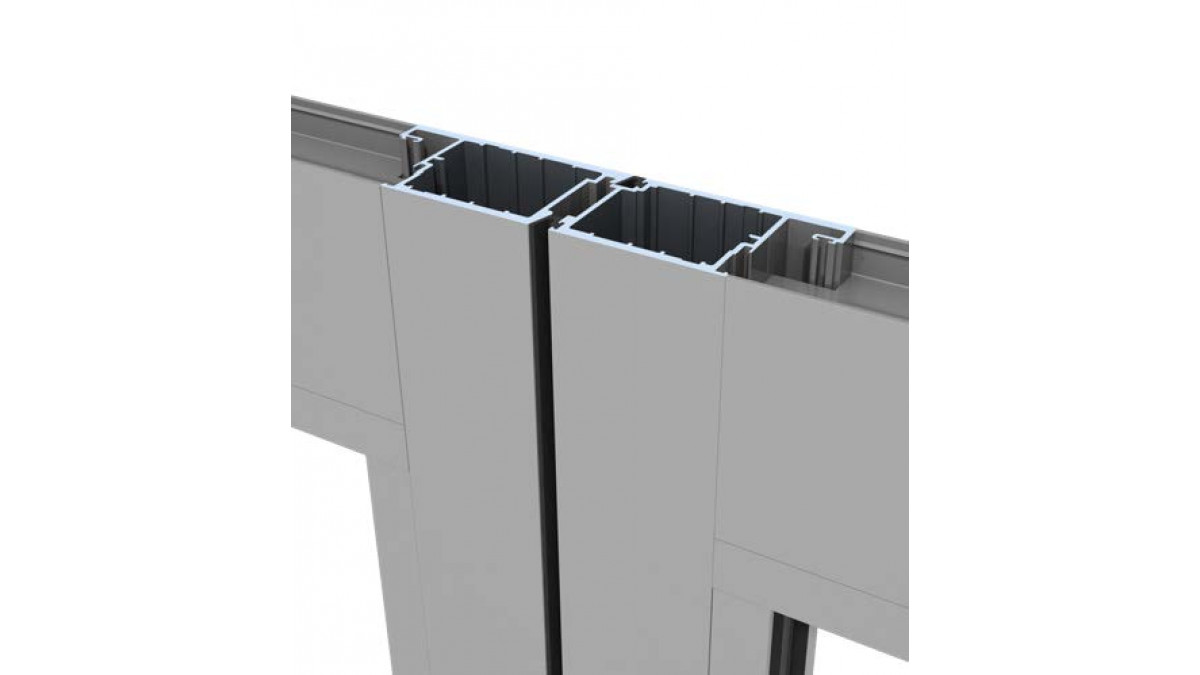

French door meeting stiles

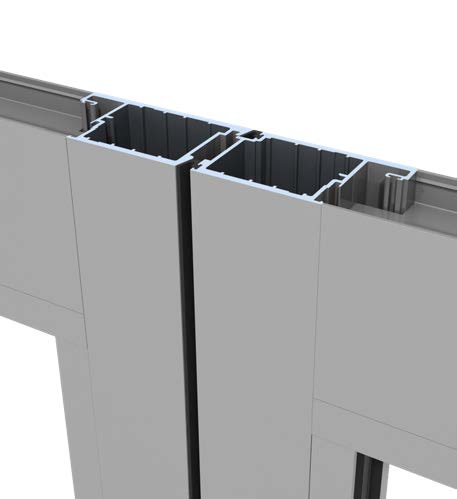

French door meeting stiles

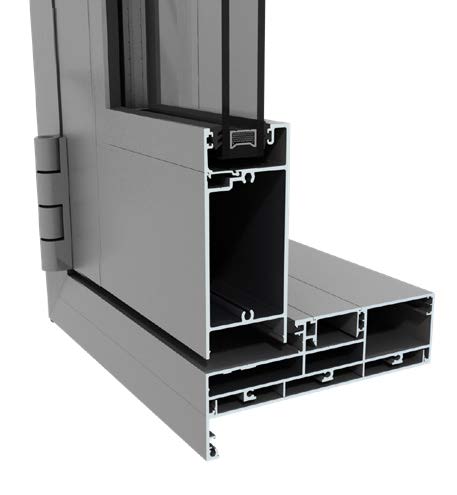

Hinged door frame 158mm open out

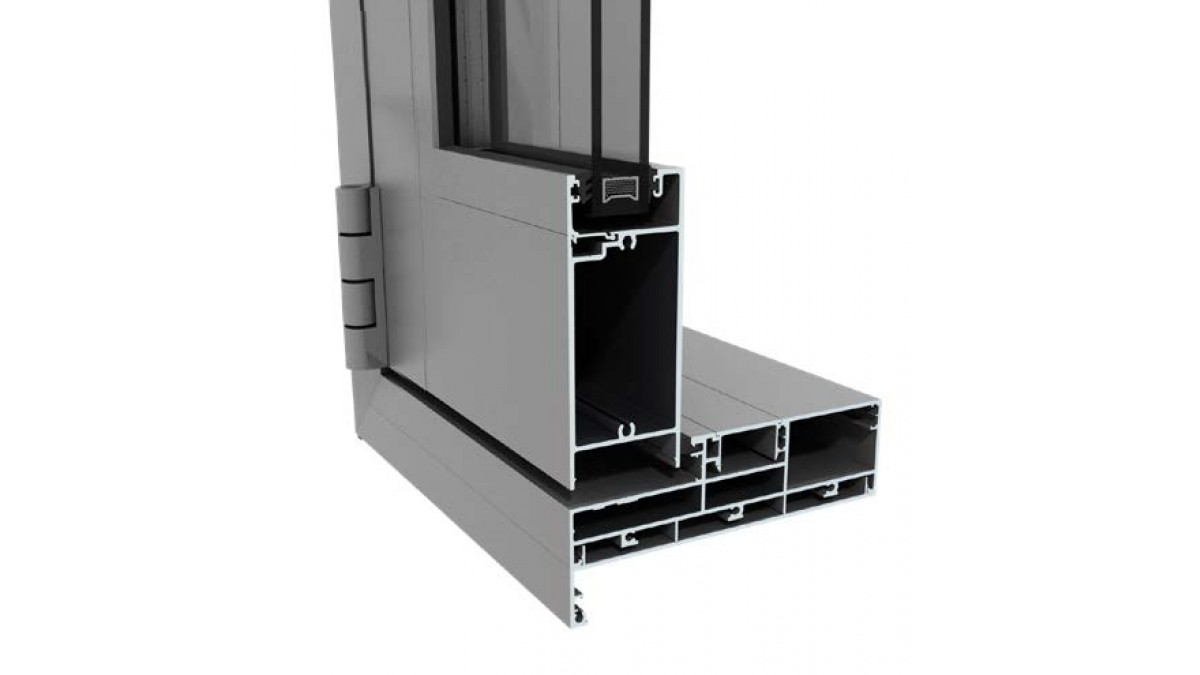

Hinged door frame (158mm) – open-out

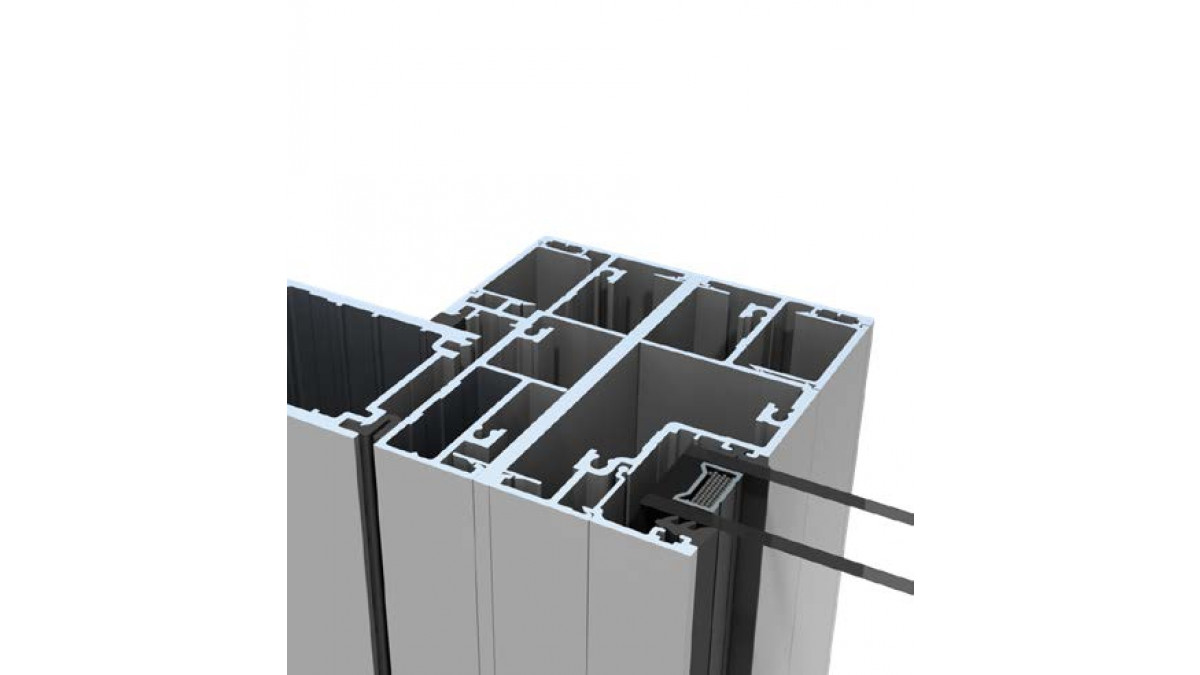

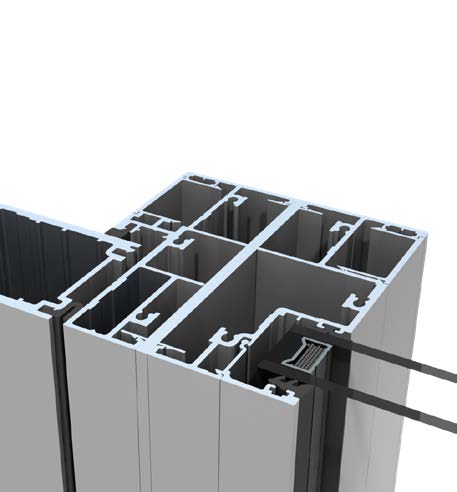

Hinged door coupling bar and sidelight on right
Hinged door, coupling bar and sidelight on right

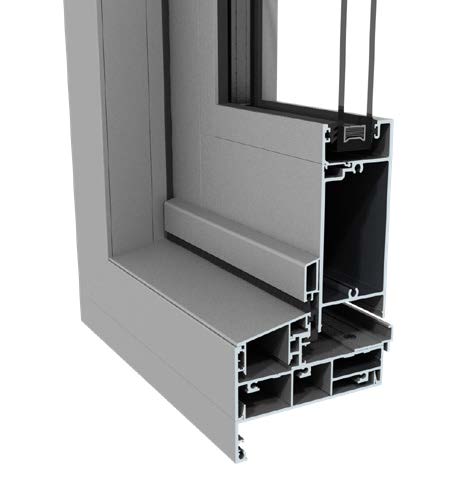

Open in door with weather bar on door rail

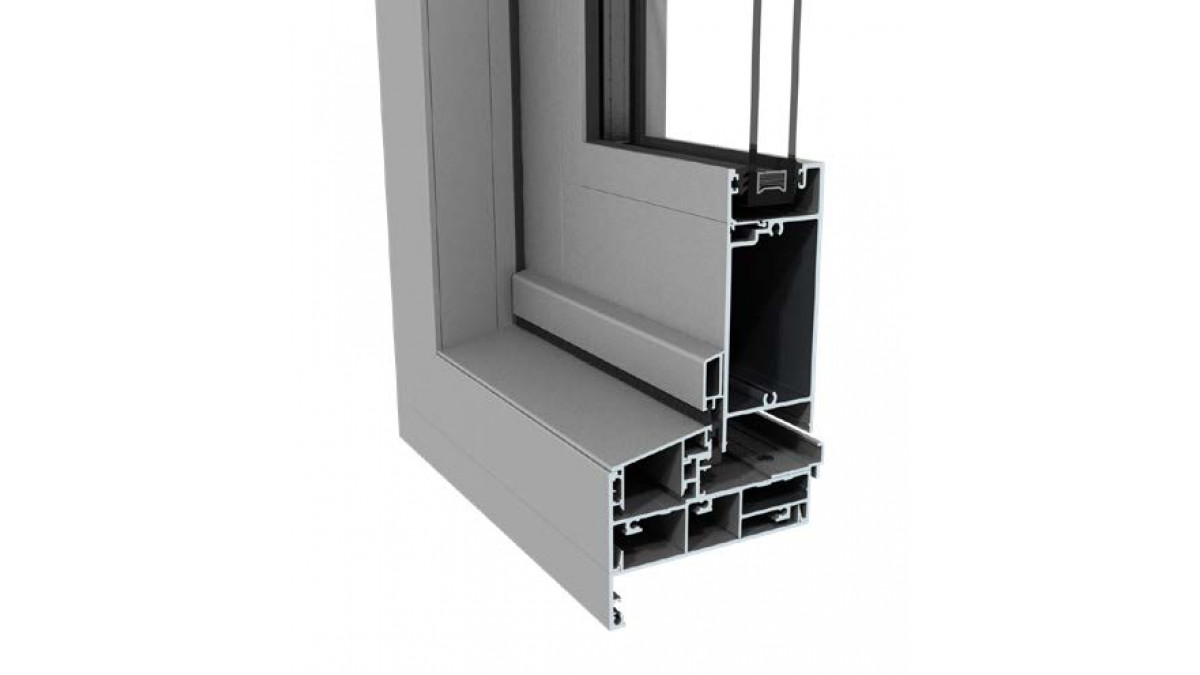

Open-in door with weather bar on door rail
Description

Hinged door panels are 50mm deep and are bead glazed externally on all sides.

Hinged doors are available as open-out and or open-in. The open-out door is available in the two frame options while the open-in door is available in one frame only. French doors have rebated meeting stiles for a flush look.

For best overall performance, pair with The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Key Features
  • Recommended maximum 2700mm high doors in Extra High wind zones
  • Flush meeting stiles for French doors
  • Open-out and open-in frames available
  • Frame facing adaptors available
  • Parliament hinges allow doors to open outwards a full 180º in brick veneer situations
  • French door flush bolts are concealed from view in the leading edge of the 'lazy' door panel
  • Overlights and sidelights are possible
Categories
Hinged and French Doors
Ranges
APL Architectural Series
Scope of Use
  • Suitable for most residential environments in larger sizes
  • Need to be used in defined maximum sizes according to the wind exposure
  • Single panels ideal as utility doors
  • Overlights and sidelights are possible
Limitations on Use
  • Open-in frame available but open-out applications will generally be preferred for utility and French doors
  • Recommended maximum 2700mm high doors in 'Extra High' wind zones
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2004
  • Design upgrades regularly released
  • Widely used by homeowners, builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • Case Studies
Documents
Data Sheet
pdf
Span Tables
pdf
Declare Label

2025

pdf
AGP Care & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
Altherm on Masterspec
URL
Calculate R-Value and Ug-Value
pdf
Full Specification
docx
Specification Clause
docx
Specifier Guide
pdf
WGANZ Guide to E2/AS1
pdf
Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
AGP State of the Art Glass Brochure
URL
Altherm Design Brochure

2020

URL
APL and Sustainability

2019

URL
Manufacturer Contact List
URL
CAD/PDF Details
View full
Full Set of Drawings
pdf

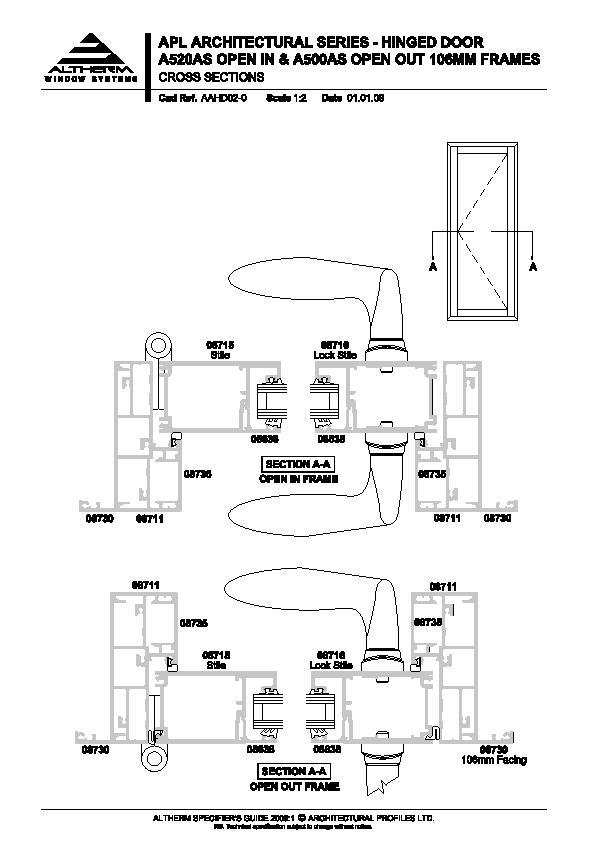

Altherm APL Architectural Series Hinged Door A520AS Open In & A500AS Open Out 106mm Frames

AAHD02-0

dwf
dwg
dxf
pdf

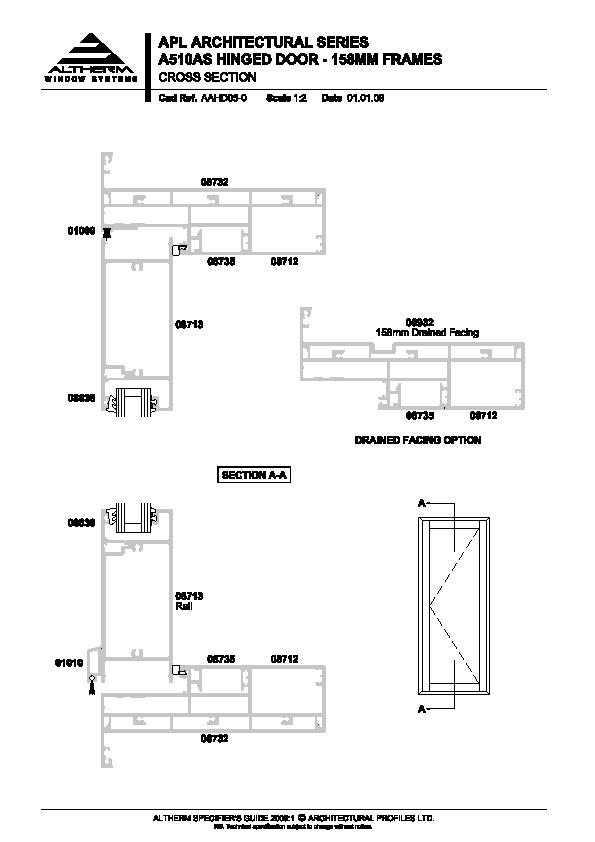

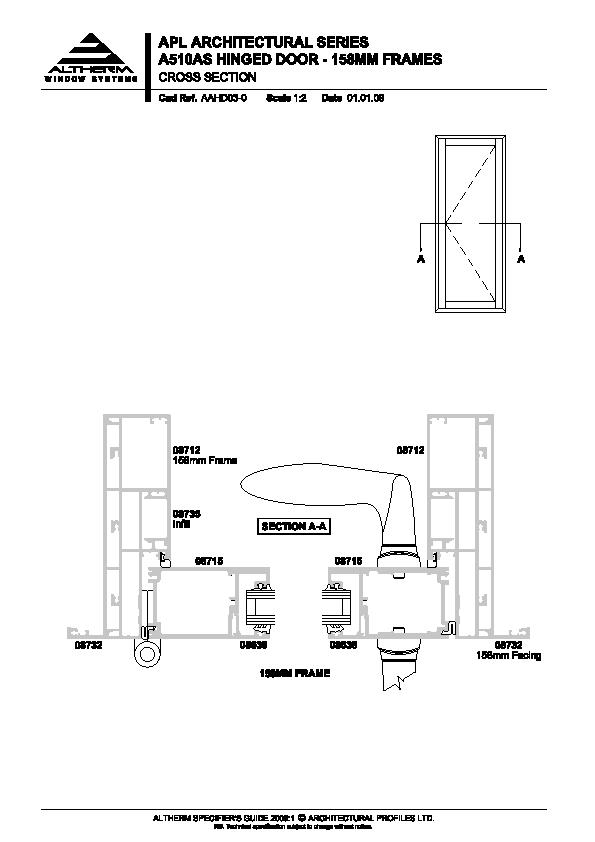

Altherm APL Architectural Series A510AS Hinged Door - 158mm Frames

AAHD03-0

dwf
dwg
dxf
pdf

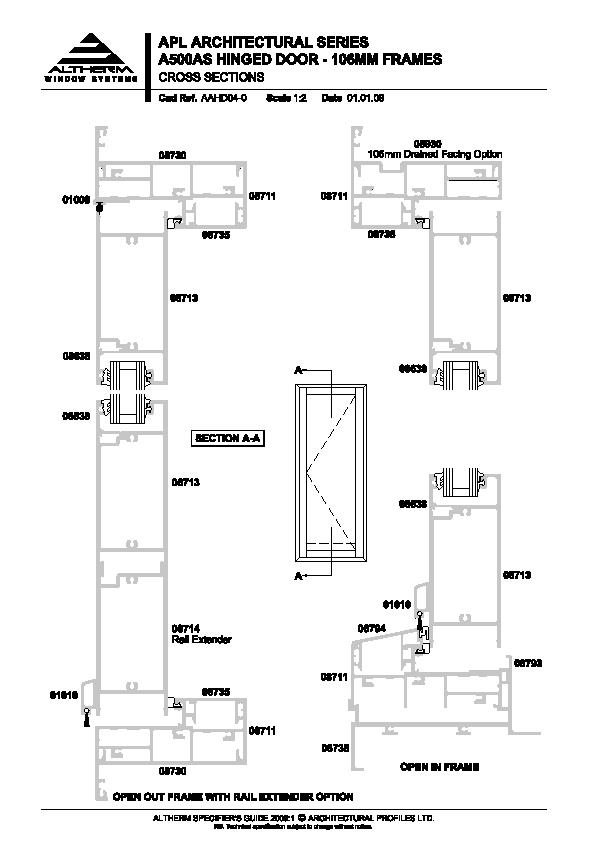

Altherm APL Architectural Series A500AS Hinged Door - 106mm Frames

AAHD04-0

dwf
dwg
dxf
pdf
Altherm APL Architectural Series A510AS Hinged Door - 158mm Frames

AAHD05-0

dwf
dwg
dxf
pdf

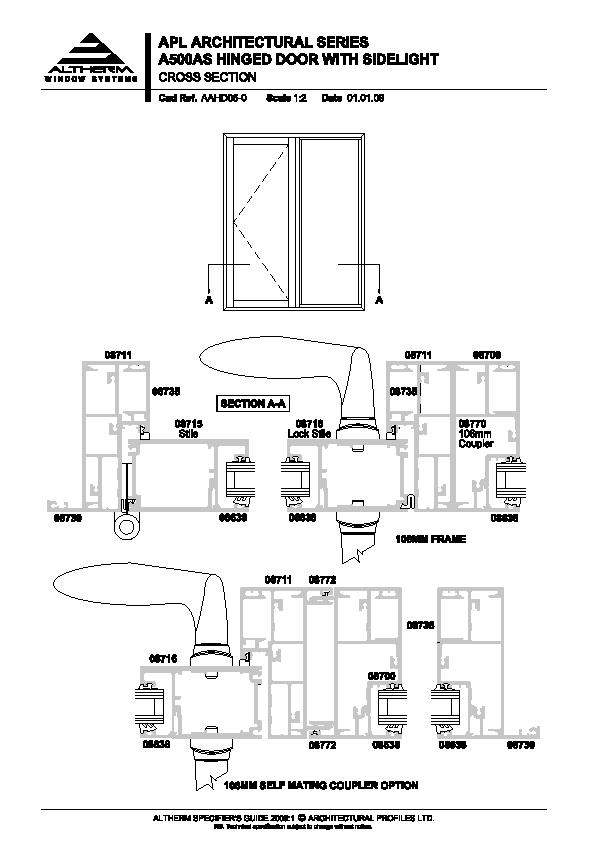

Altherm APL Architectural Series A500AS Hinged Door with Sidelight

AAHD06-0

dwf
dwg
dxf
pdf

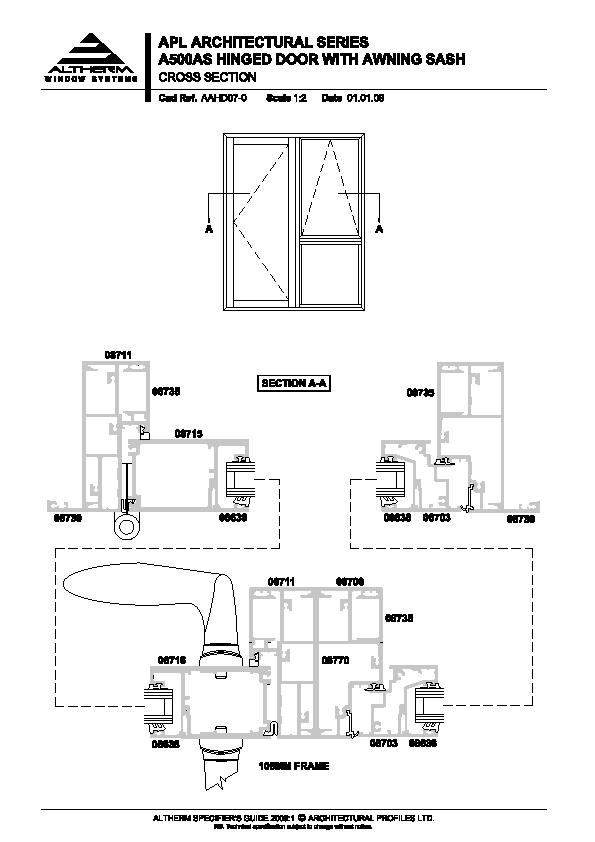

Altherm APL Architectural Series A500AS Hinged Door with Awning Sash

AAHD07-0

dwf
dwg
dxf
pdf

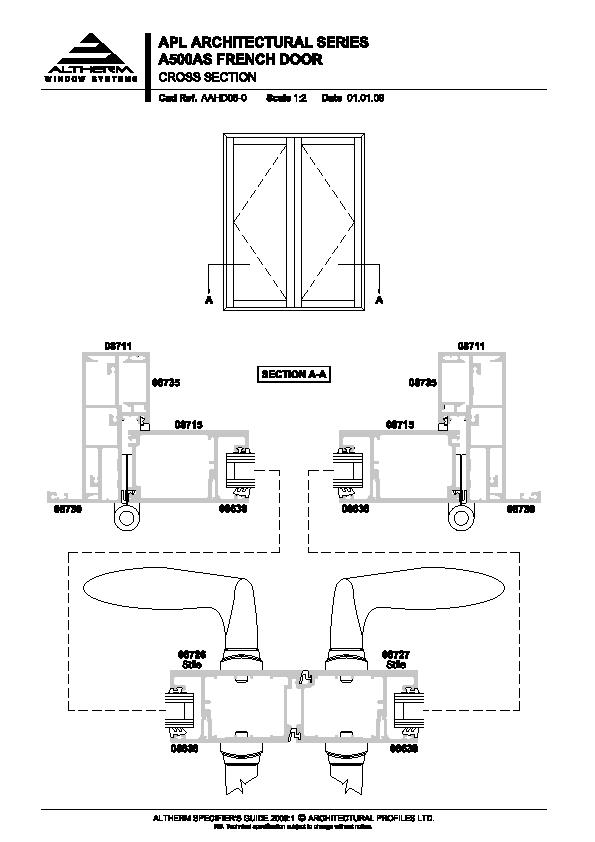

Altherm APL Architectural Series A500AS French Door

AAHD08-0

dwf
dwg
dxf
pdf

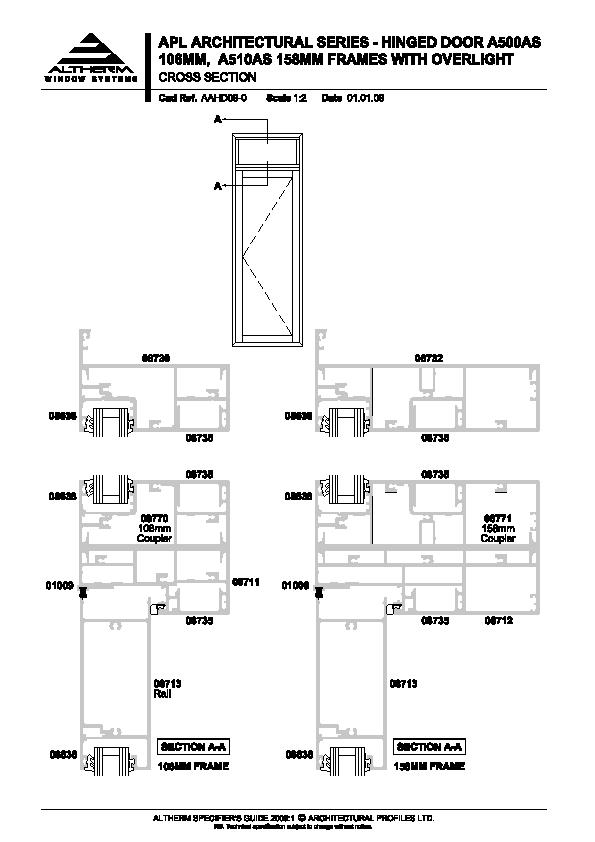

Altherm APL Architectural Series Hinged Door A500AS 106mm, A510AS 158mm Frames with Overlight

AAHD09-0

dwf
dwg
dxf
pdf

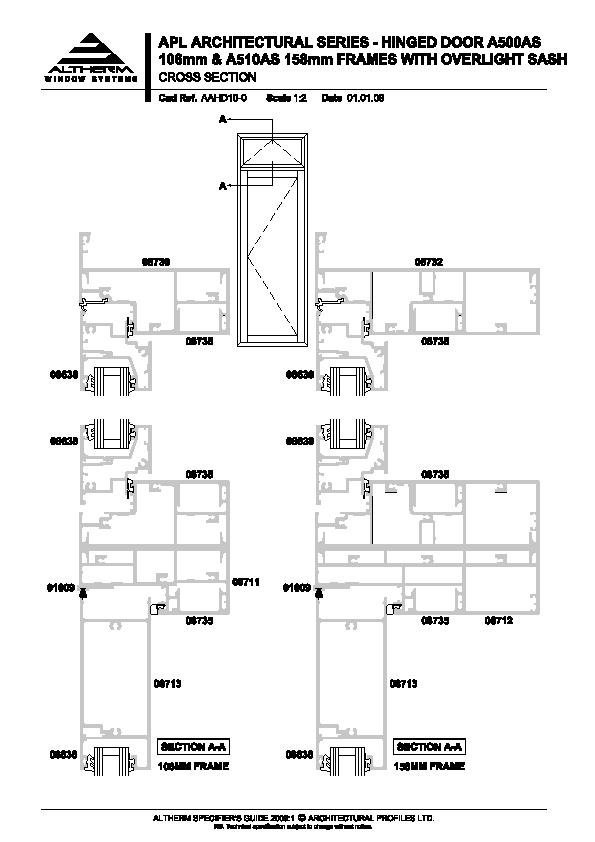

Altherm APL Architectural Series - Hinged Door A500AS 106mm & A510AS 158mm Frames with Overlight SA

AAHD10-0

dwf
dwg
dxf
pdf
Installation Details
View full

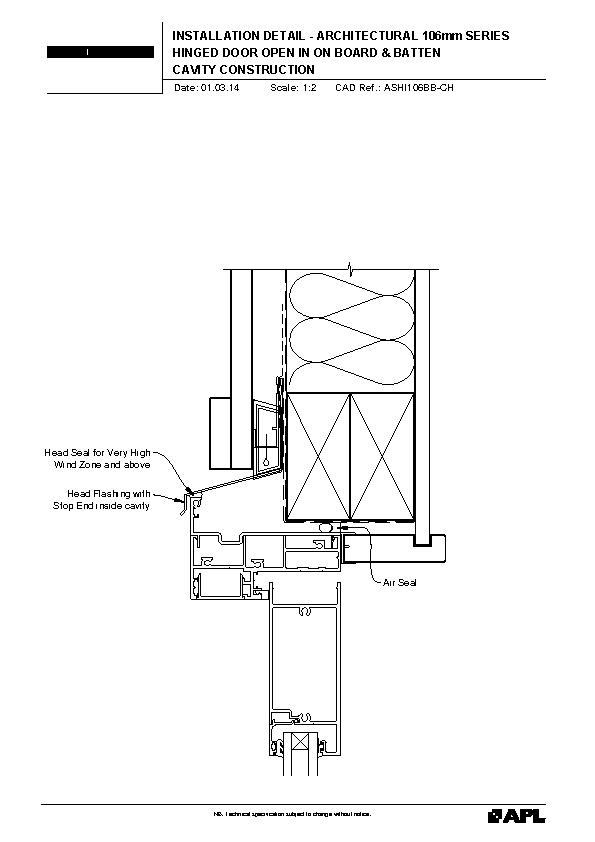

Altherm APL Architectural Series 106mm Hinged Door Open In on Board & Batten

ASHI106BB

dwg
pdf

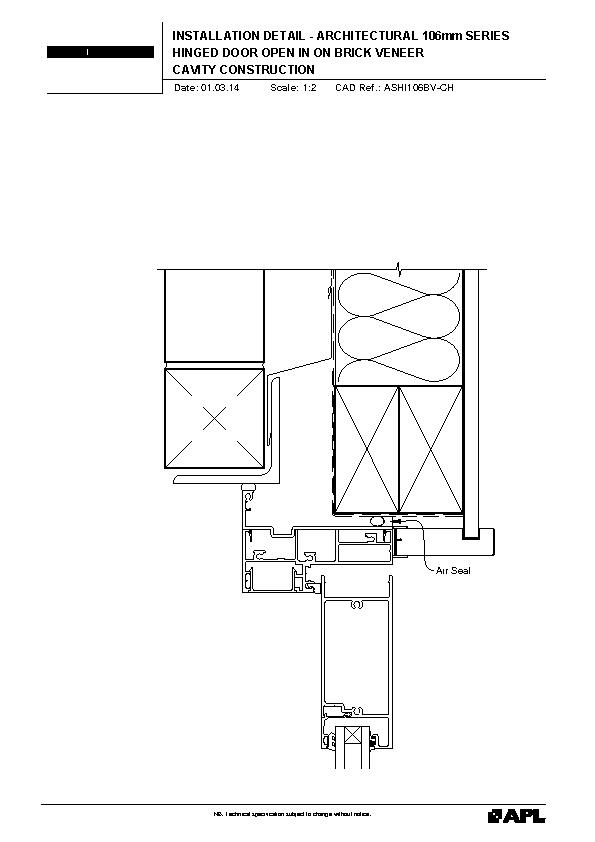

Altherm APL Architectural Series 106mm Hinged Door Open In on Brick Veneer

ASHI106BV

dwg
pdf

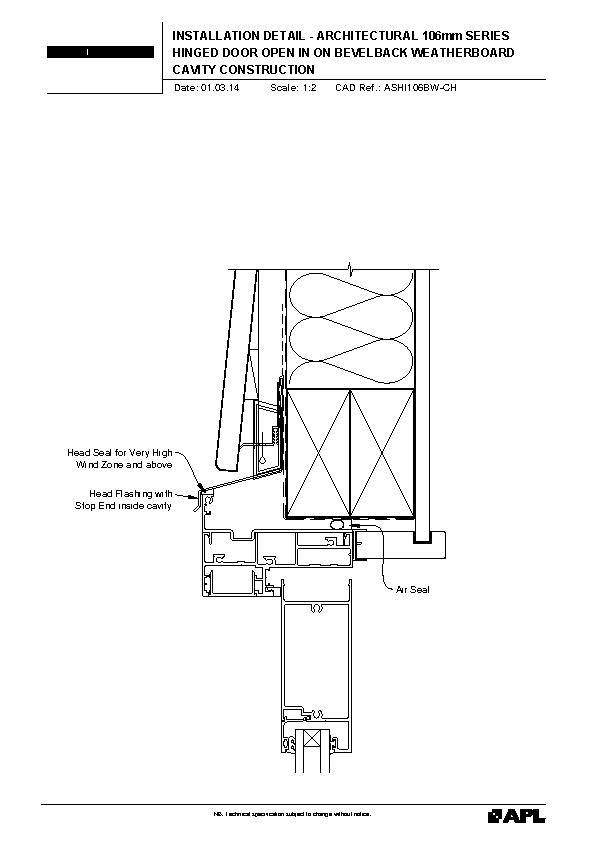

Altherm APL Architectural Series 106mm Hinged Door Open In on Bevelback Weatherboard

ASHI106BW

dwg
pdf

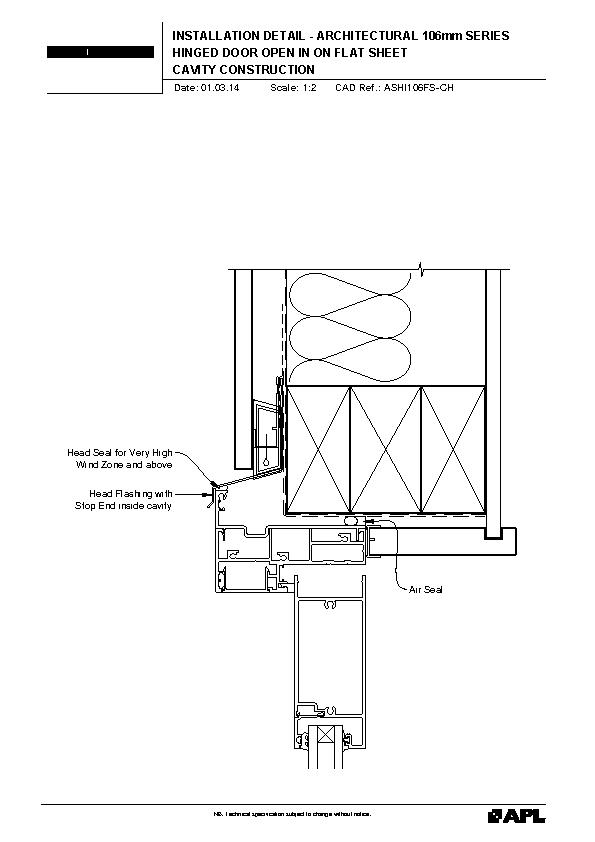

Altherm APL Architectural Series 106mm Hinged Door Open In on Flat Sheet

ASHI106FS

dwg
pdf

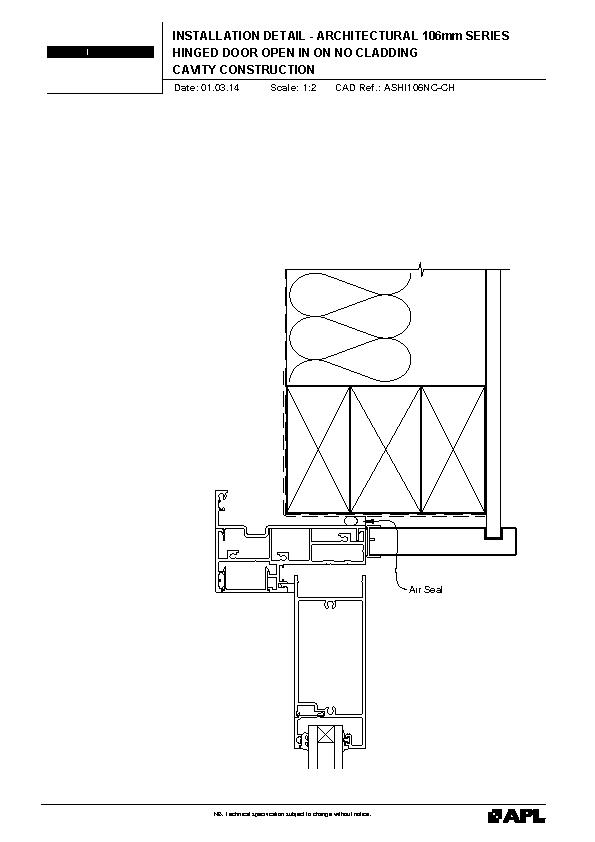

Altherm APL Architectural Series 106mm Hinged Door Open In on No Cladding

ASHI106NC

dwg
pdf

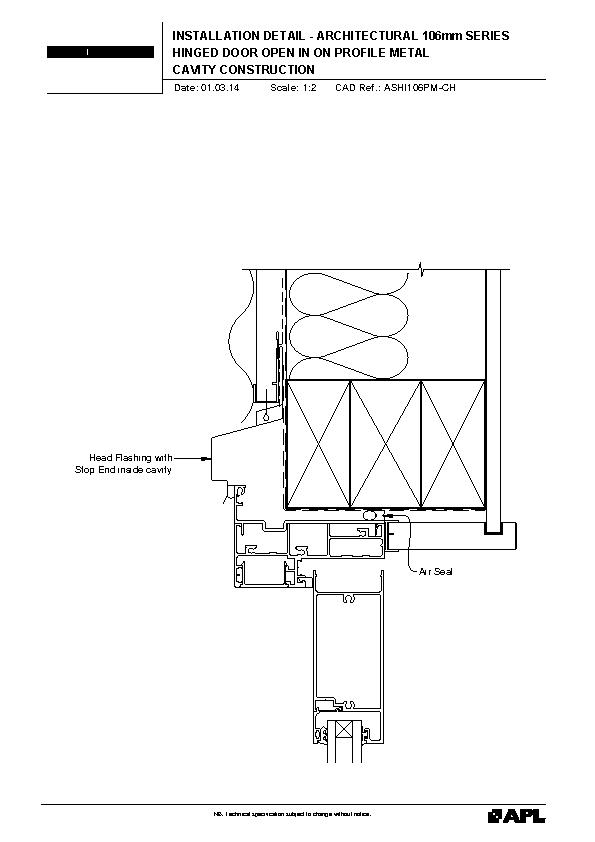

Altherm APL Architectural Series 106mm Hinged Door Open In on Profile Metal

ASHI106PM

dwg
pdf
Altherm APL Architectural Series 106mm Hinged Door Open In on Rusticated Weatherboard

ASHI106RW

dwg
pdf
Altherm APL Architectural Series 106mm Hinged Door Open In on Stucco

ASHI106ST

dwg
pdf

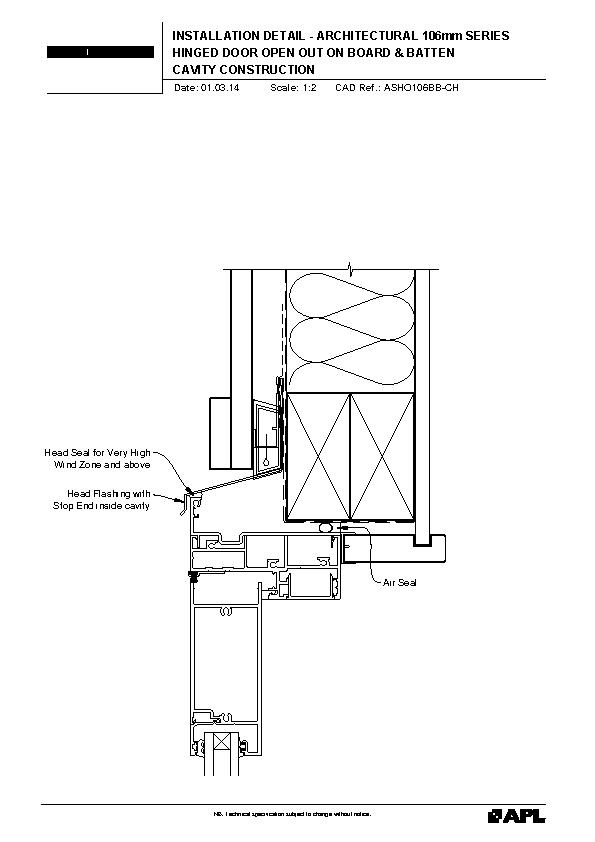

Altherm APL Architectural Series 106mm Hinged Door Open Out on Board & Batten

ASHO106BB

dwg
pdf

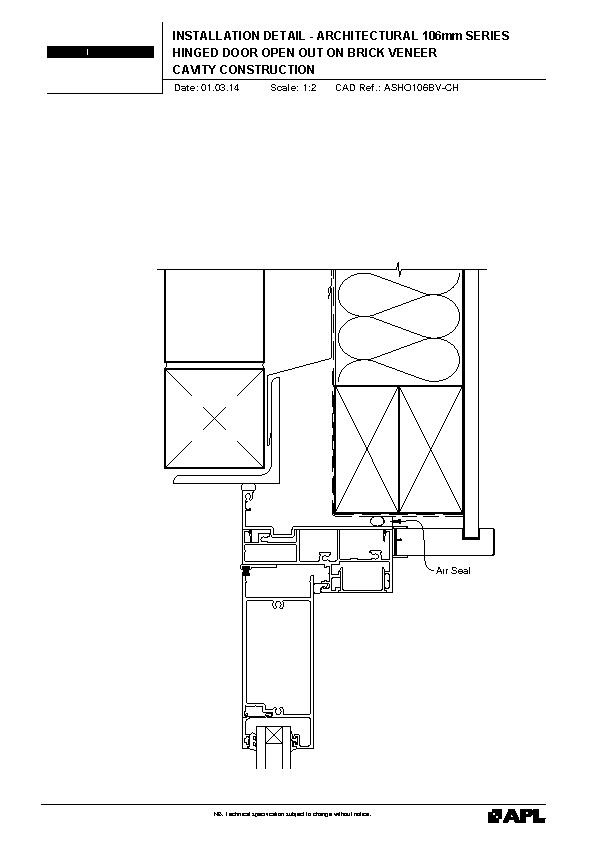

Altherm APL Architectural Series 106mm Hinged Door Open Out on Brick Veneer

ASHO106BV

dwg
pdf

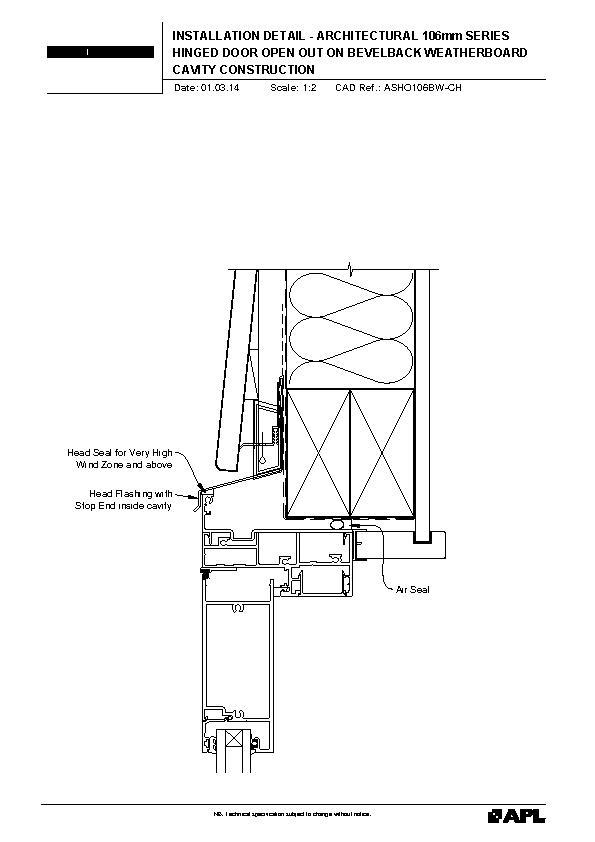

Altherm APL Architectural Series 106mm Hinged Door Open Out on Bevelback Weatherboard

ASHO106BW

dwg
pdf

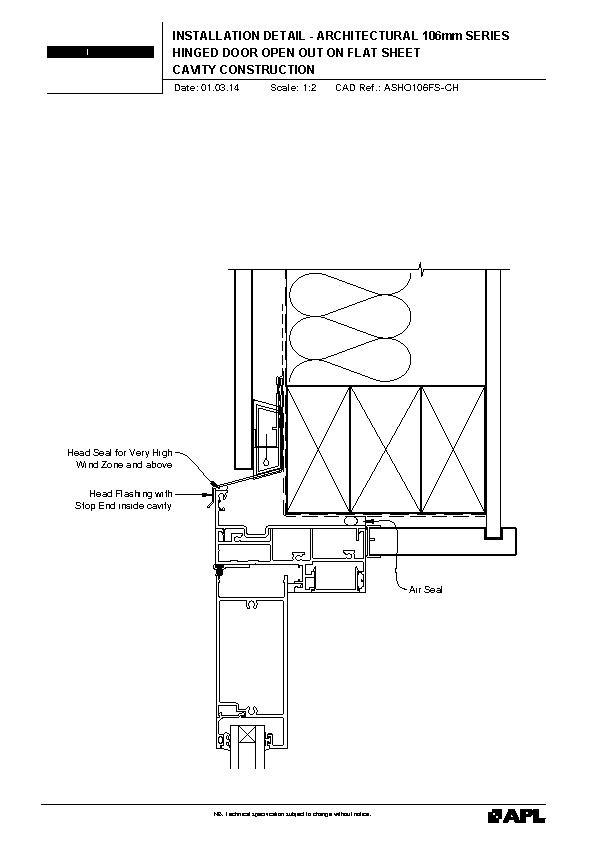

Altherm APL Architectural Series 106mm Hinged Door Open Out on Flat Sheet

ASHO106FS

dwg
pdf

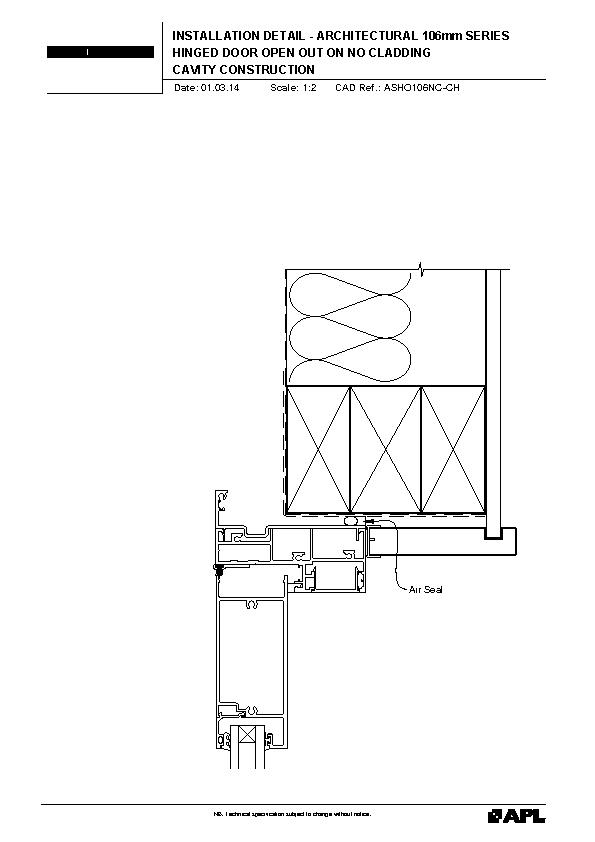

Altherm APL Architectural Series 106mm Hinged Door Open Out on No Cladding

ASHO106NC

dwg
pdf

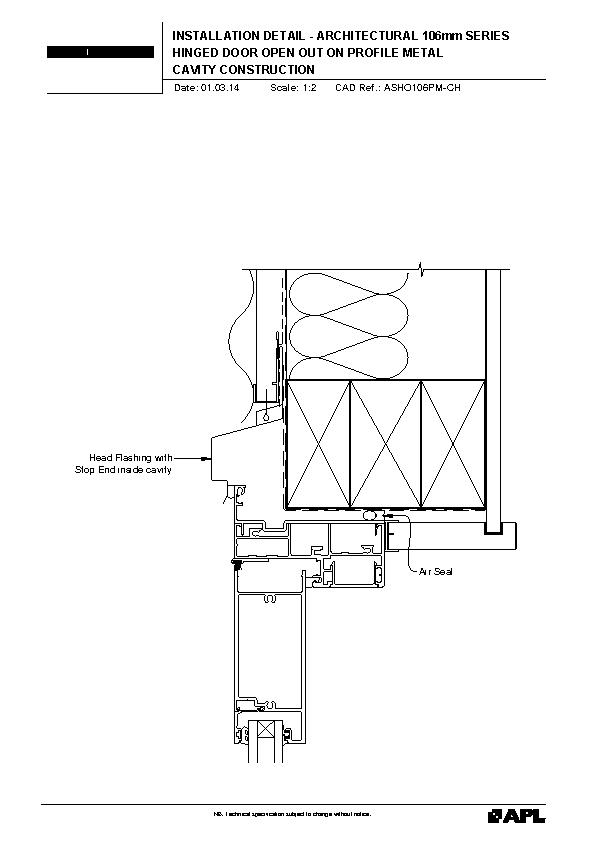

Altherm APL Architectural Series 106mm Hinged Door Open Out on Profile Metal

ASHO106PM

dwg
pdf

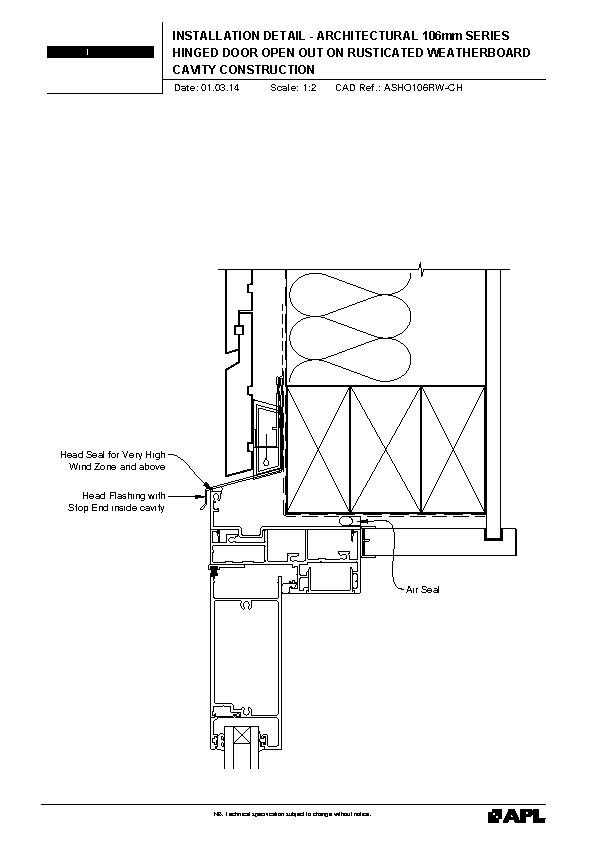

Altherm APL Architectural Series 106mm Hinged Door Open Out on Rusticated Weatherboard

ASHO106RW

dwg
pdf

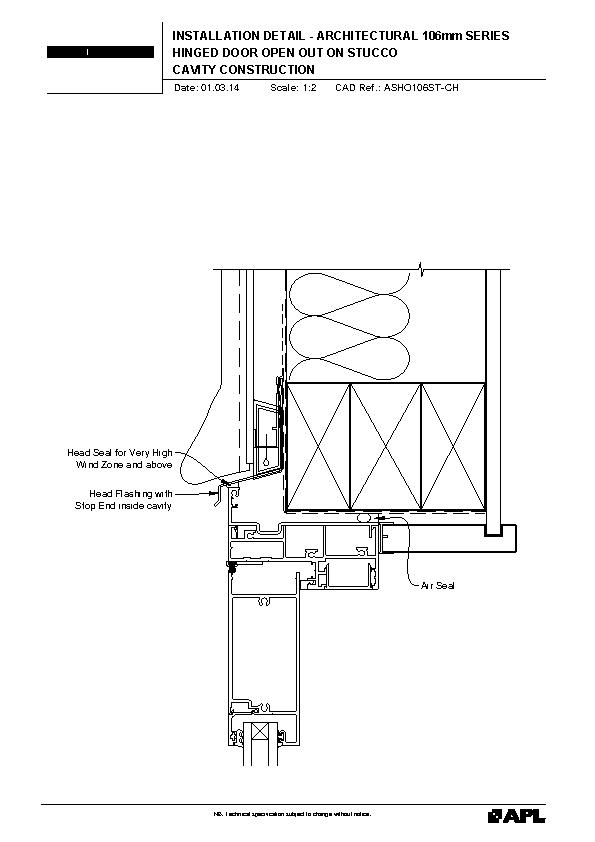

Altherm APL Architectural Series 106mm Hinged Door Open Out on Stucco

ASHO106ST

dwg
pdf

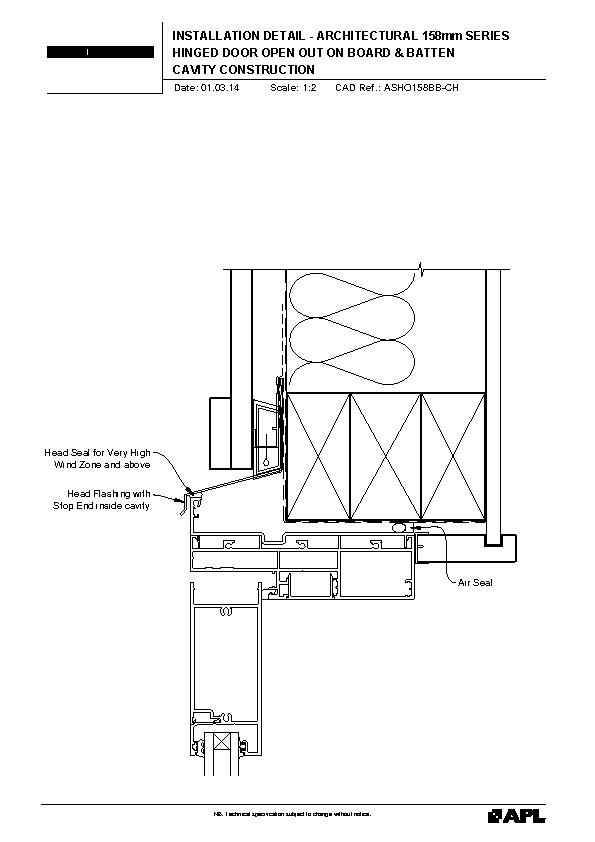

Altherm APL Architectural Series 158mm Hinged Door Open Out on Board & Batten

ASHO158BB

dwg
pdf

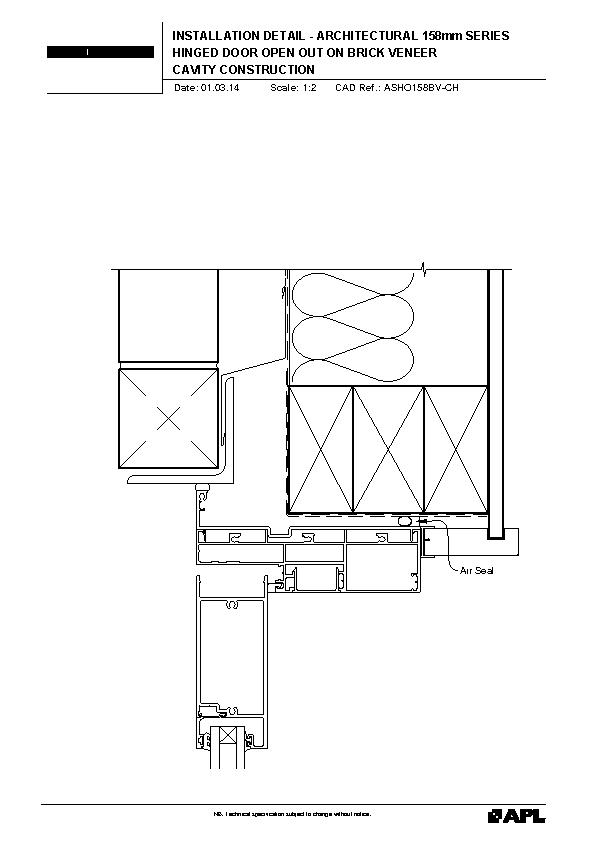

Altherm APL Architectural Series 158mm Hinged Door Open Out on Brick Veneer

ASHO158BV

dwg
pdf
Altherm APL Architectural Series 158mm Hinged Door Open Out on Bevelback Weatherboard

ASHO158BW

dwg
pdf

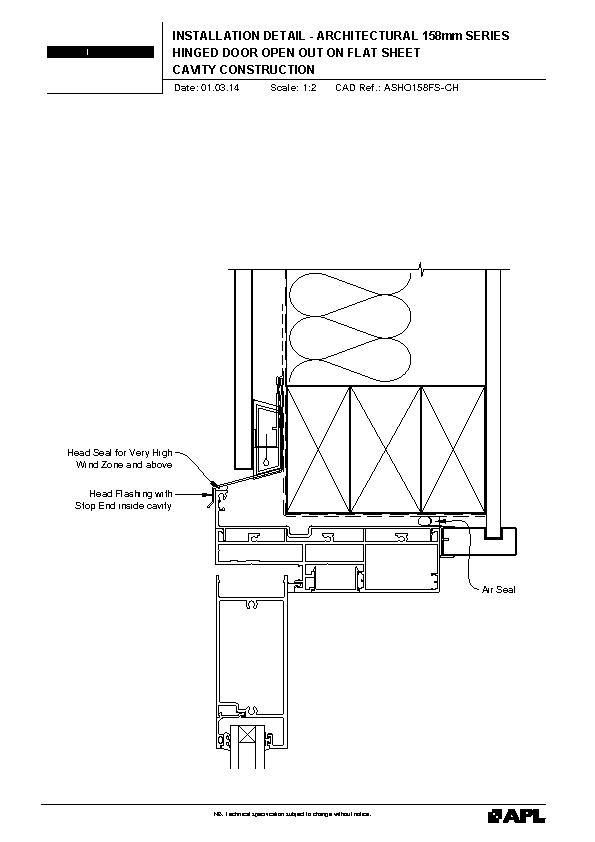

Altherm APL Architectural Series 158mm Hinged Door Open Out on Flat Sheet

ASHO158FS

dwg
pdf

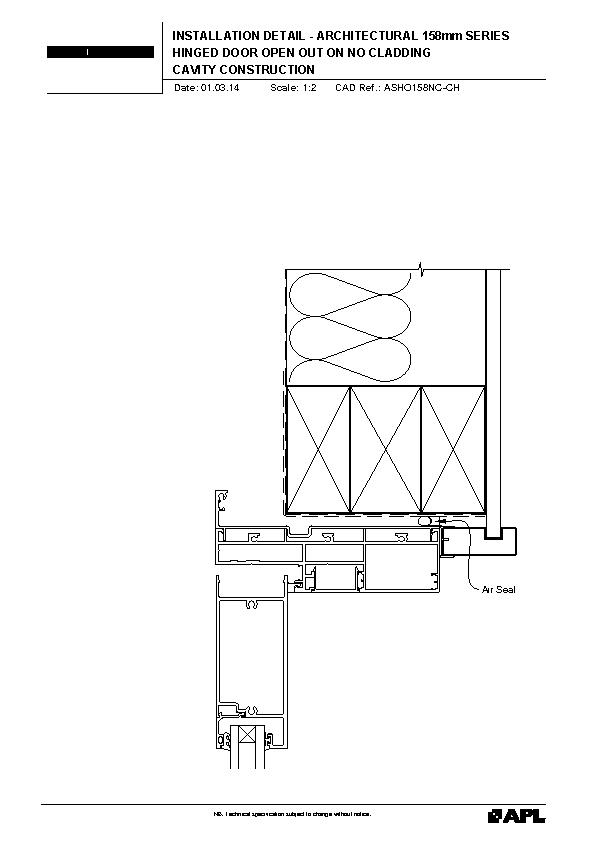

Altherm APL Architectural Series 158mm Hinged Door Open Out on No Cladding

ASHO158NC

dwg
pdf

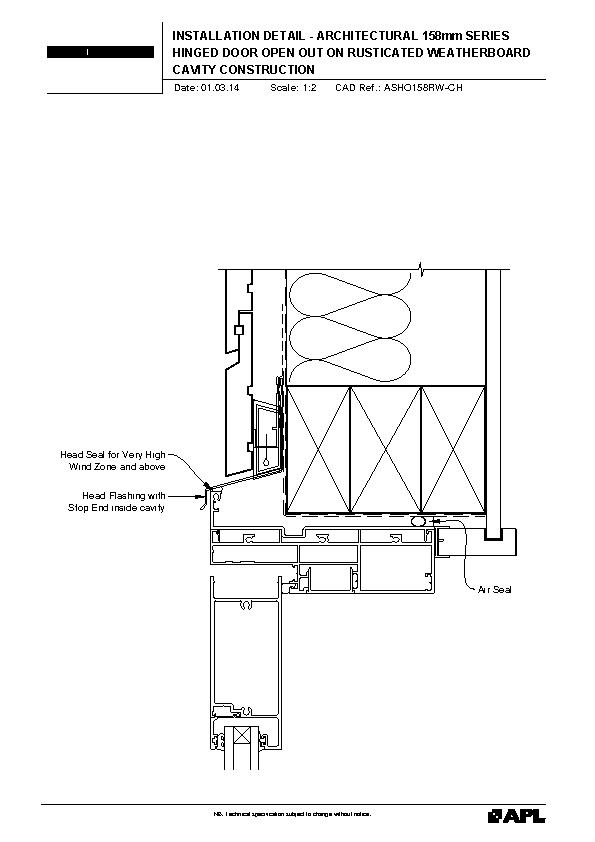

Altherm APL Architectural Series 158mm Hinged Door Open Out on Rusticated Weatherboard

ASHO158RW

dwg
pdf

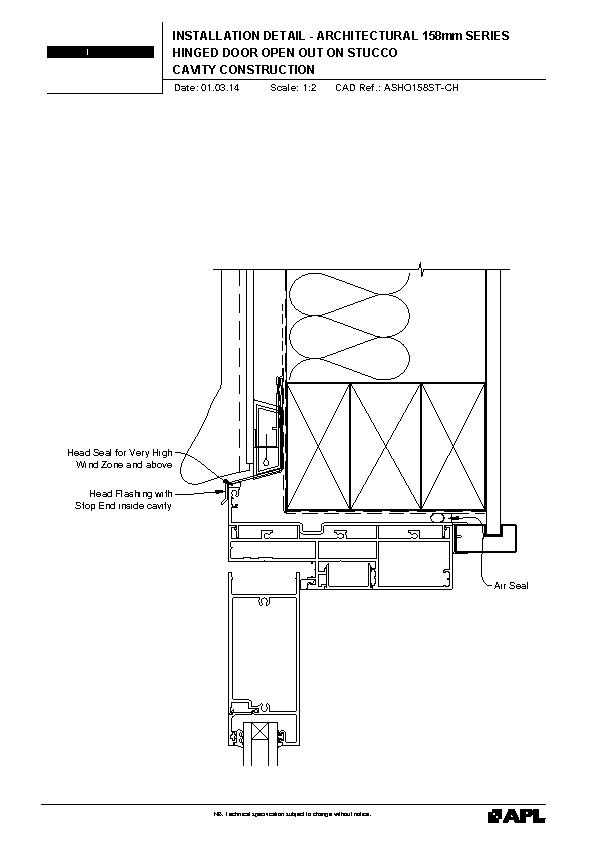

Altherm APL Architectural Series 158mm Hinged Door Open Out on Stucco

ASHO158ST

dwg
pdf

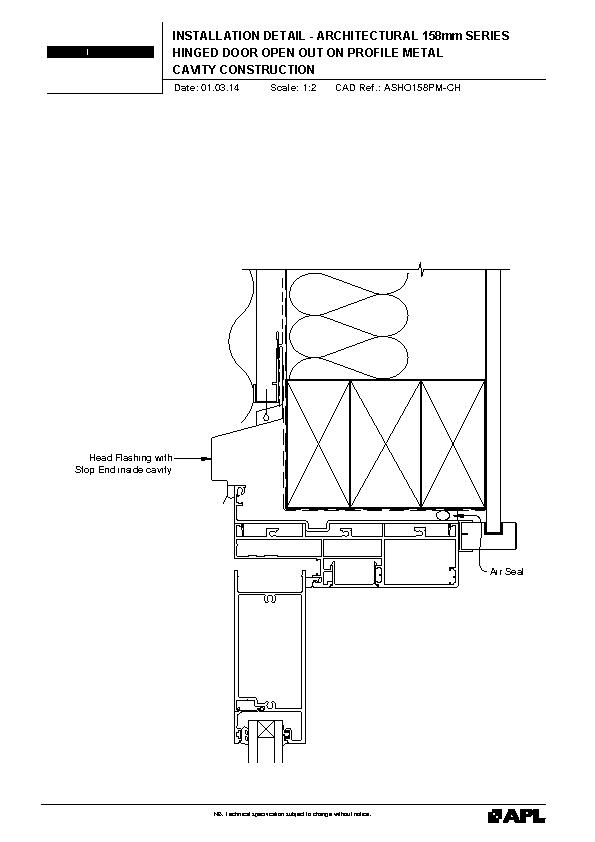

Altherm APL Architectural Series 158mm Hinged Door Open Out on Profile Metal

ASHO15PM

dwg
pdf
BIM
View full

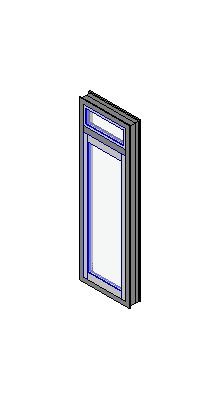

overlight sash open out
Altherm APL 106mm Architectural Series Hinged Door, Open Out with Overlight Sash
zip

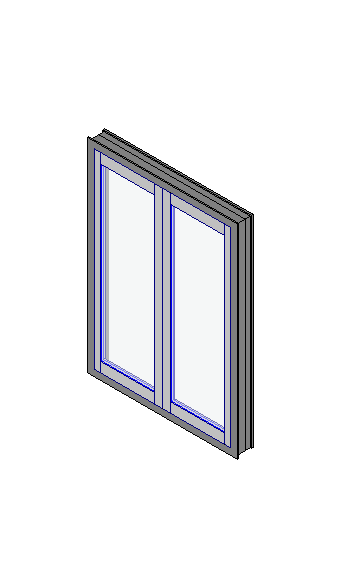

french door
Altherm APL 106mm Architectural Series French Door, Open Out
zip

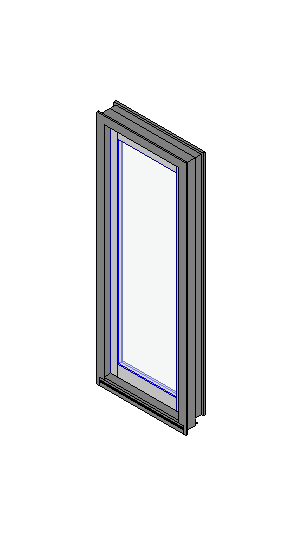

open in
Altherm APL 106mm Architectural Series Hinged Door Open In
zip

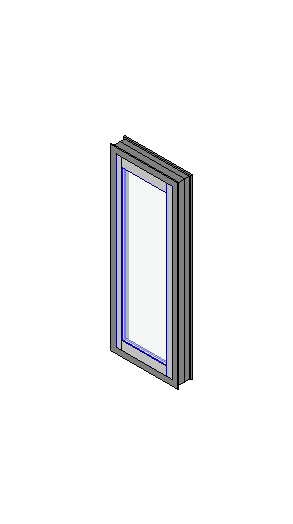

open out
Altherm APL 106mm Architectural Series Hinged Door Open Out
zip

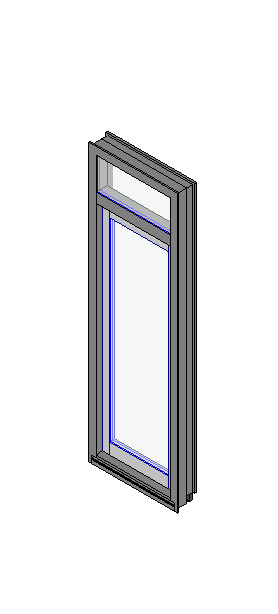

overlight open in
Altherm APL 106mm Architectural Series Hinged Door, Open In with Overlight
zip

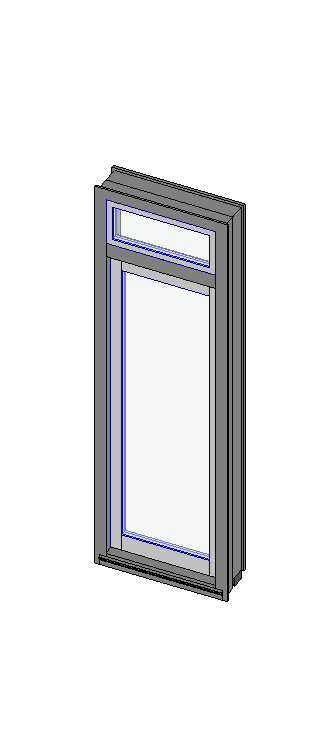

Overlight with Sash open in
Altherm APL 106mm Architectural Series Hinged Door, Open In with Overlight Sash
zip

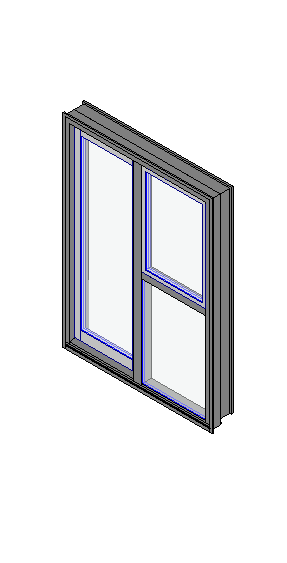

hinged door with sidelight open in
Altherm APL 106mm Architectural Series Hinged Door, Open In with Sidelight
zip

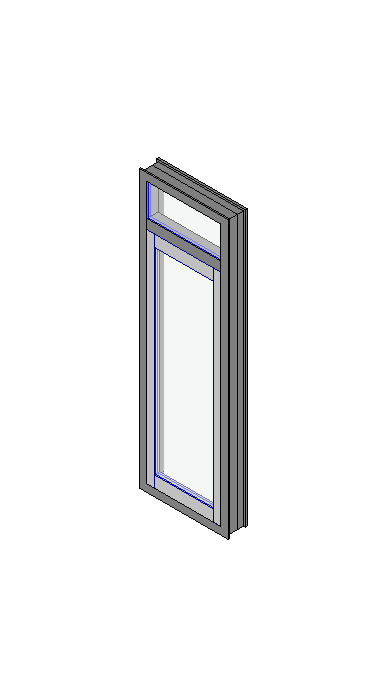

overlight open out
Altherm APL 106mm Architectural Series Hinged Door, Open Out with Overlight
zip
hinge door with sidelight open out
Altherm APL 106mm Architectural Series Hinged Door, Open Out with Sidelight
zip

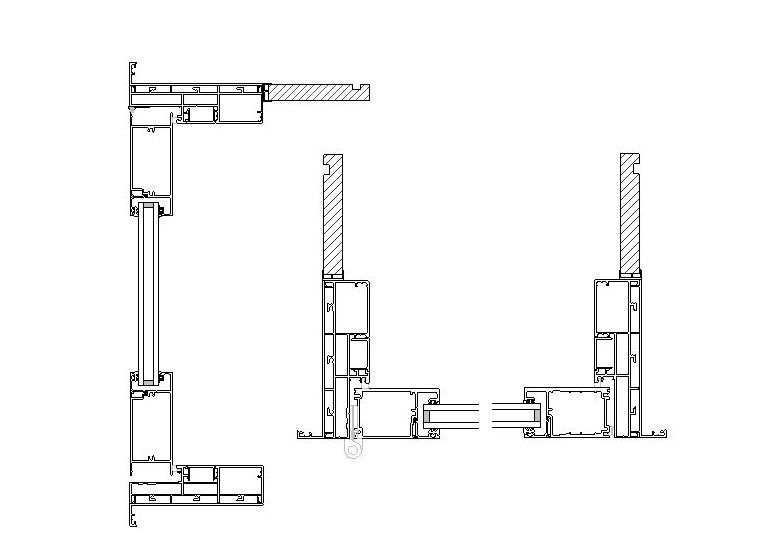

vert horiz
Altherm APL 158mm Architectural Series Hinged Door Open Out
zip

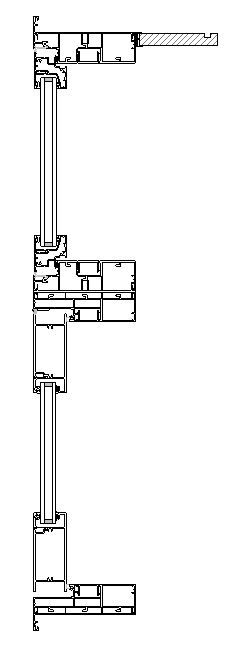

overlight sash
Altherm APL 158mm Architectural Series Hinged Door, Open Out with Overlight Sash (2D only)
zip

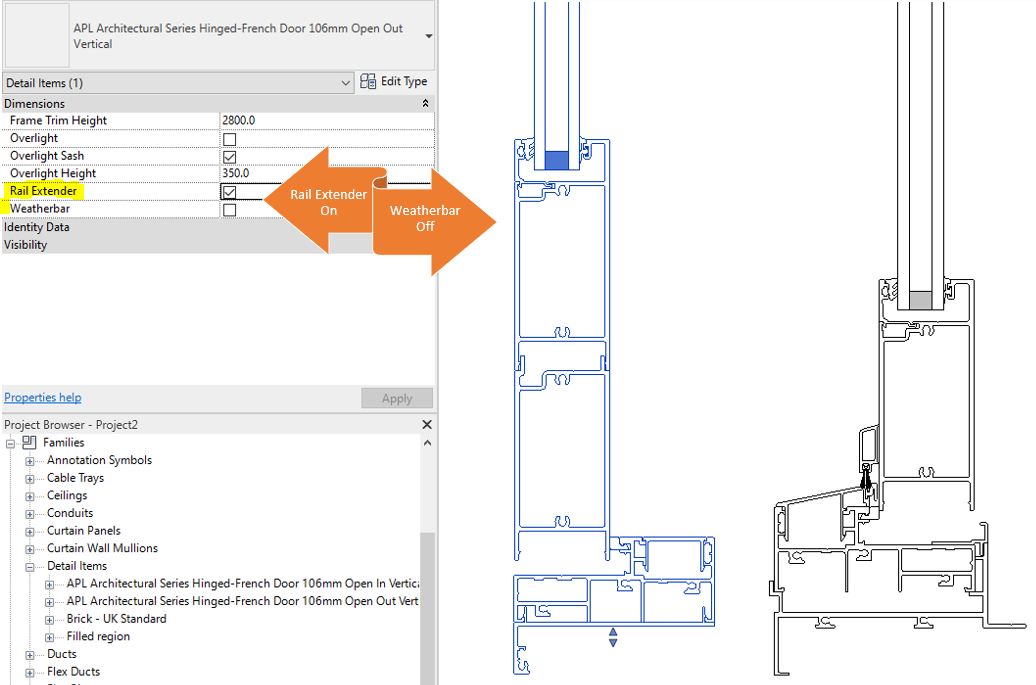

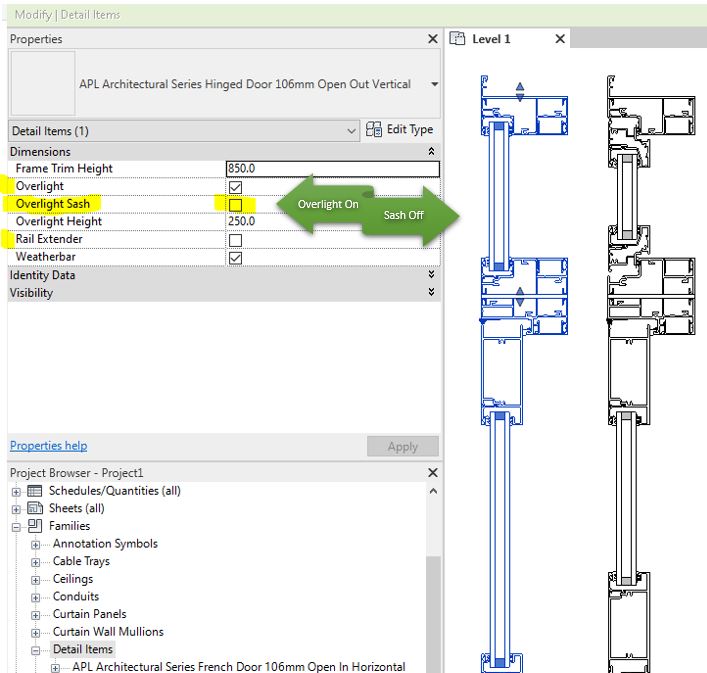

Example Hinge French Door 2
Architectural Series 106mm French Door Sectional Details

Revit LT 2020

zip
Example Hinge French Door
Architectural Series 106mm Hinge Door Sectional Details

Revit LT 2020

zip

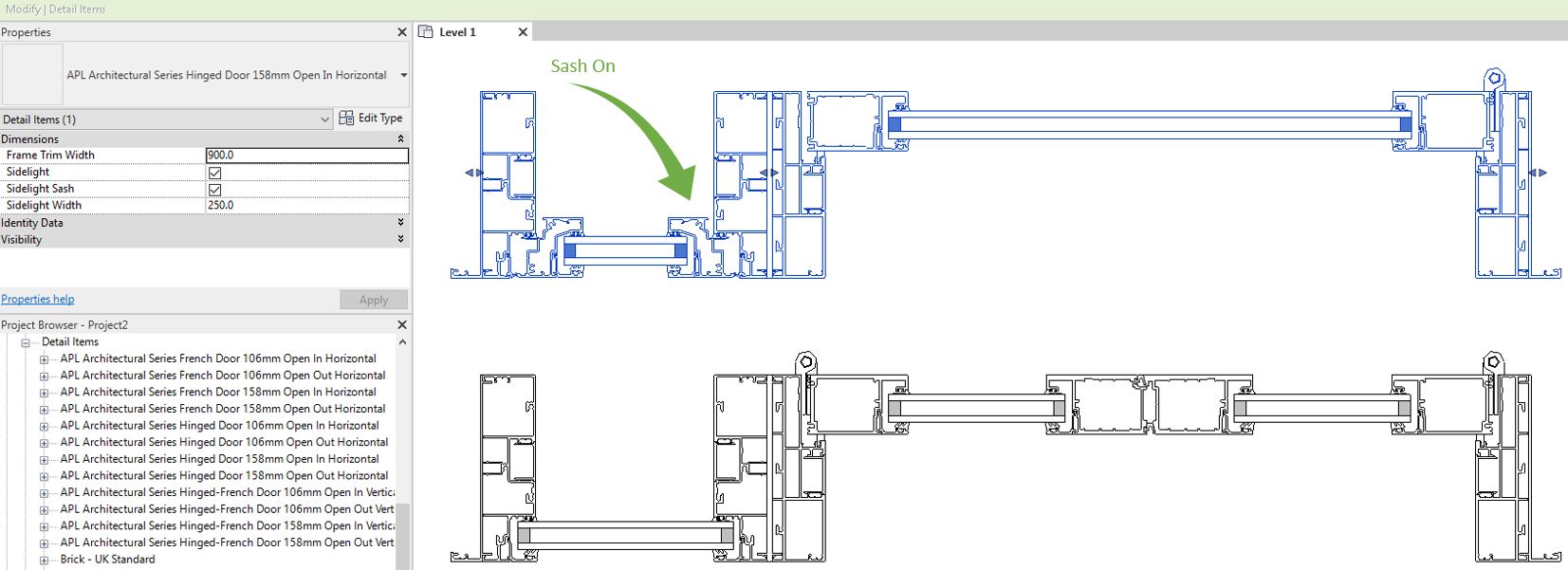

Example 158mm French
Architectural Series 158mm French Door Sectional Details

Revit LT 2020

zip
Example 158mm Hinge
Architectural Series 158mm Hinged Door Sectional Details

Revit LT 2020

zip
