Legge G2
Allegion
All products

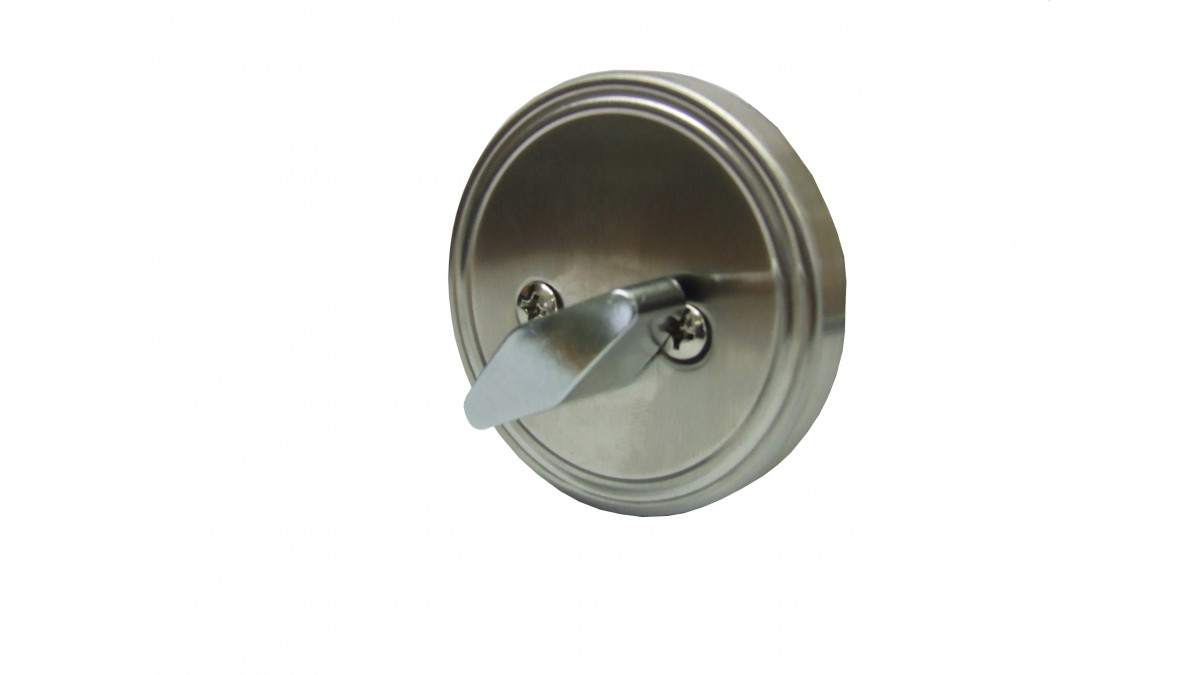

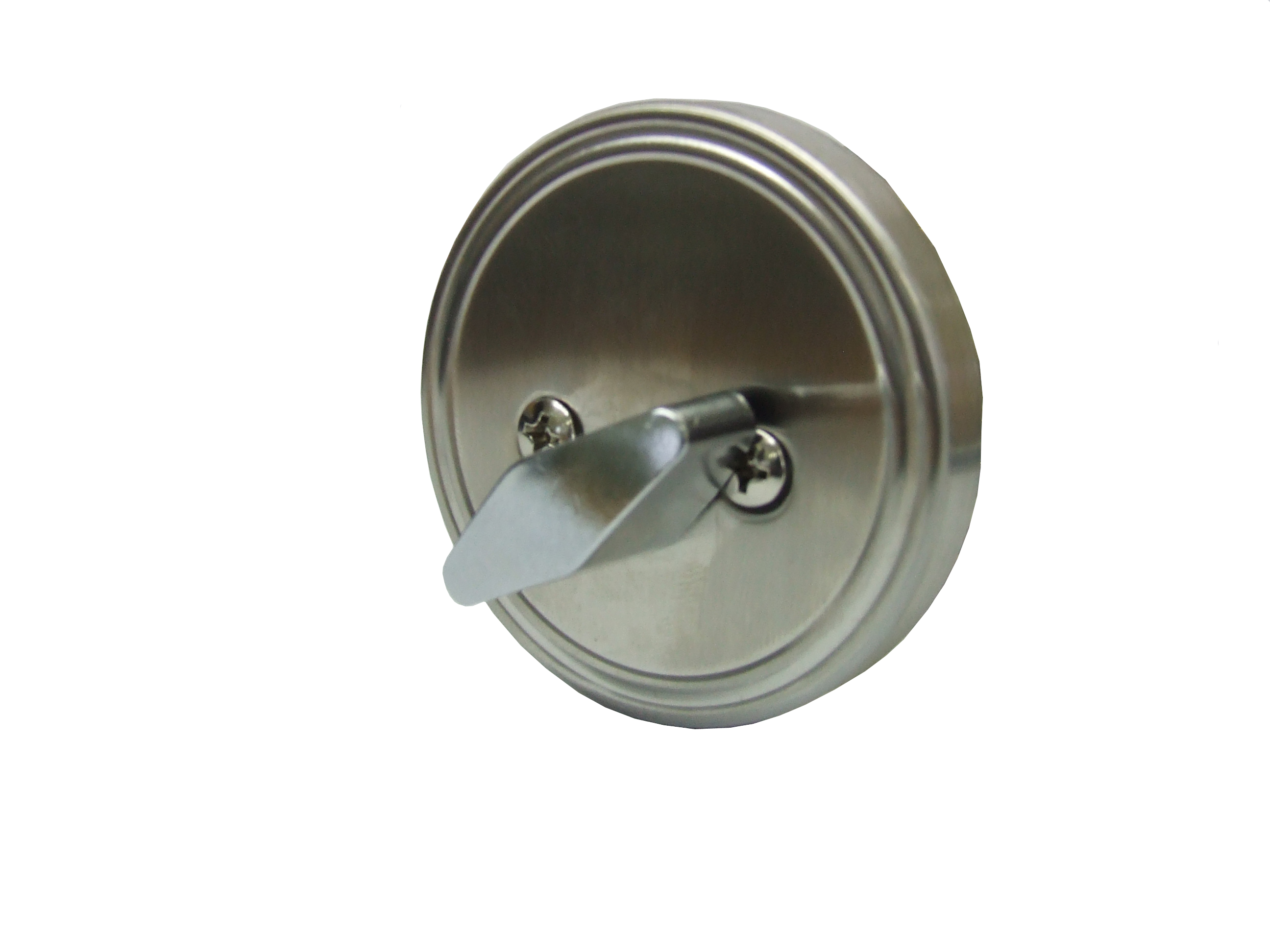

G2 Deadbolt Turn

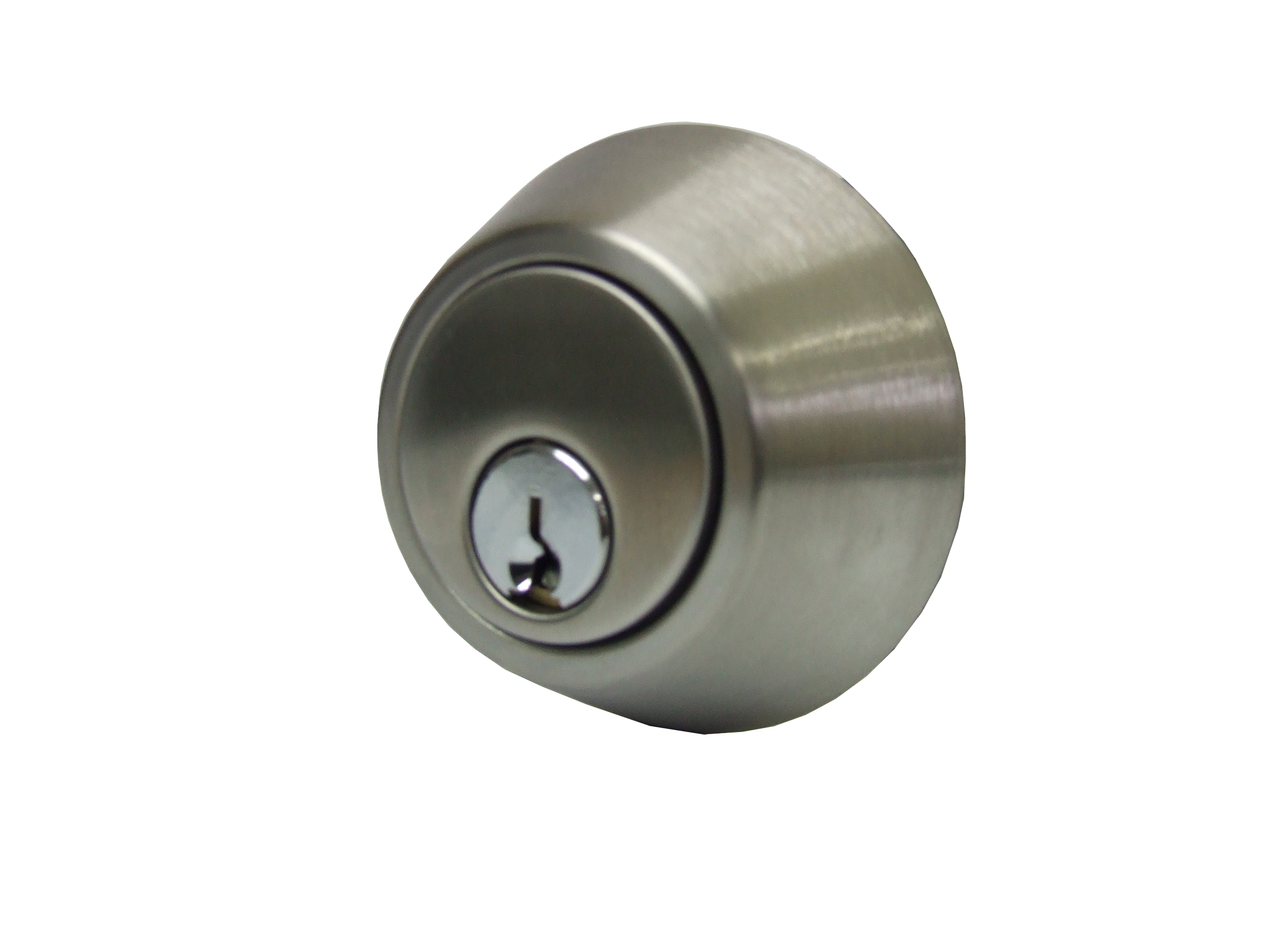

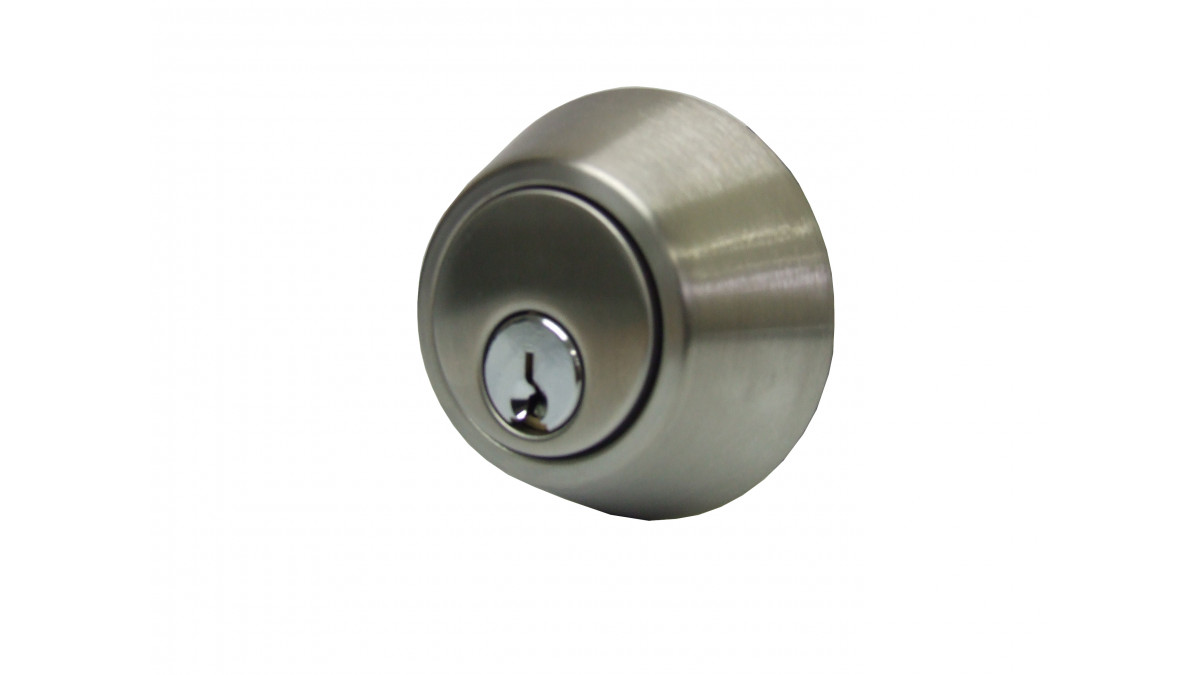

G2 Deadbolt

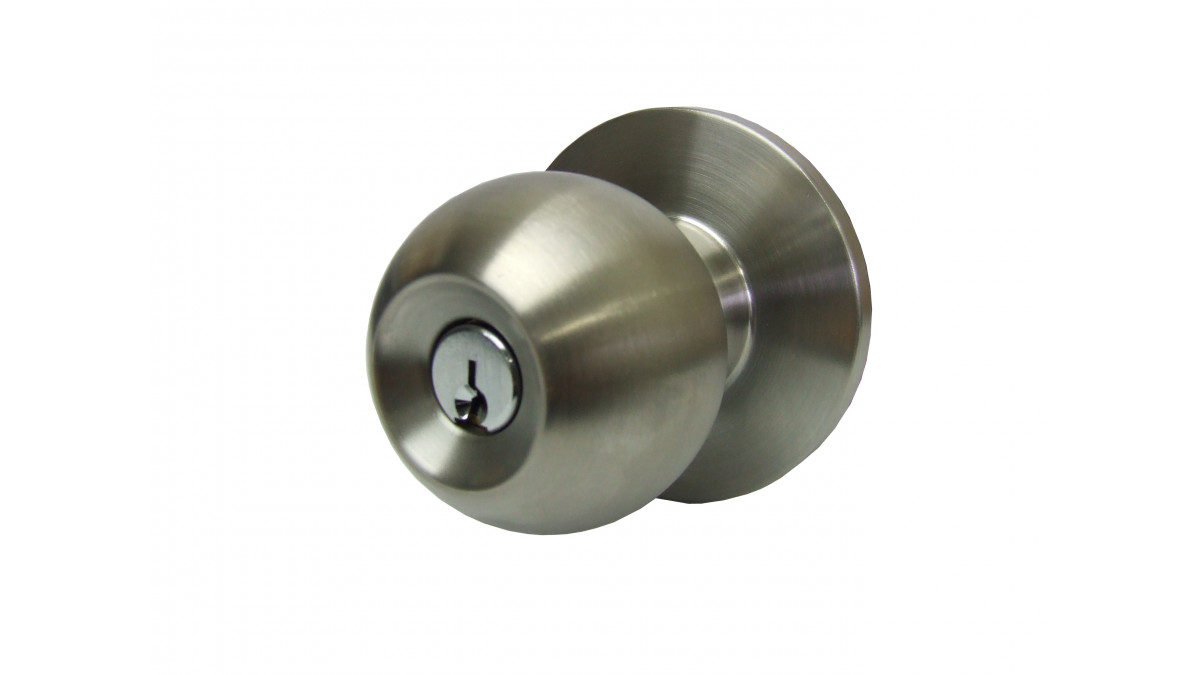

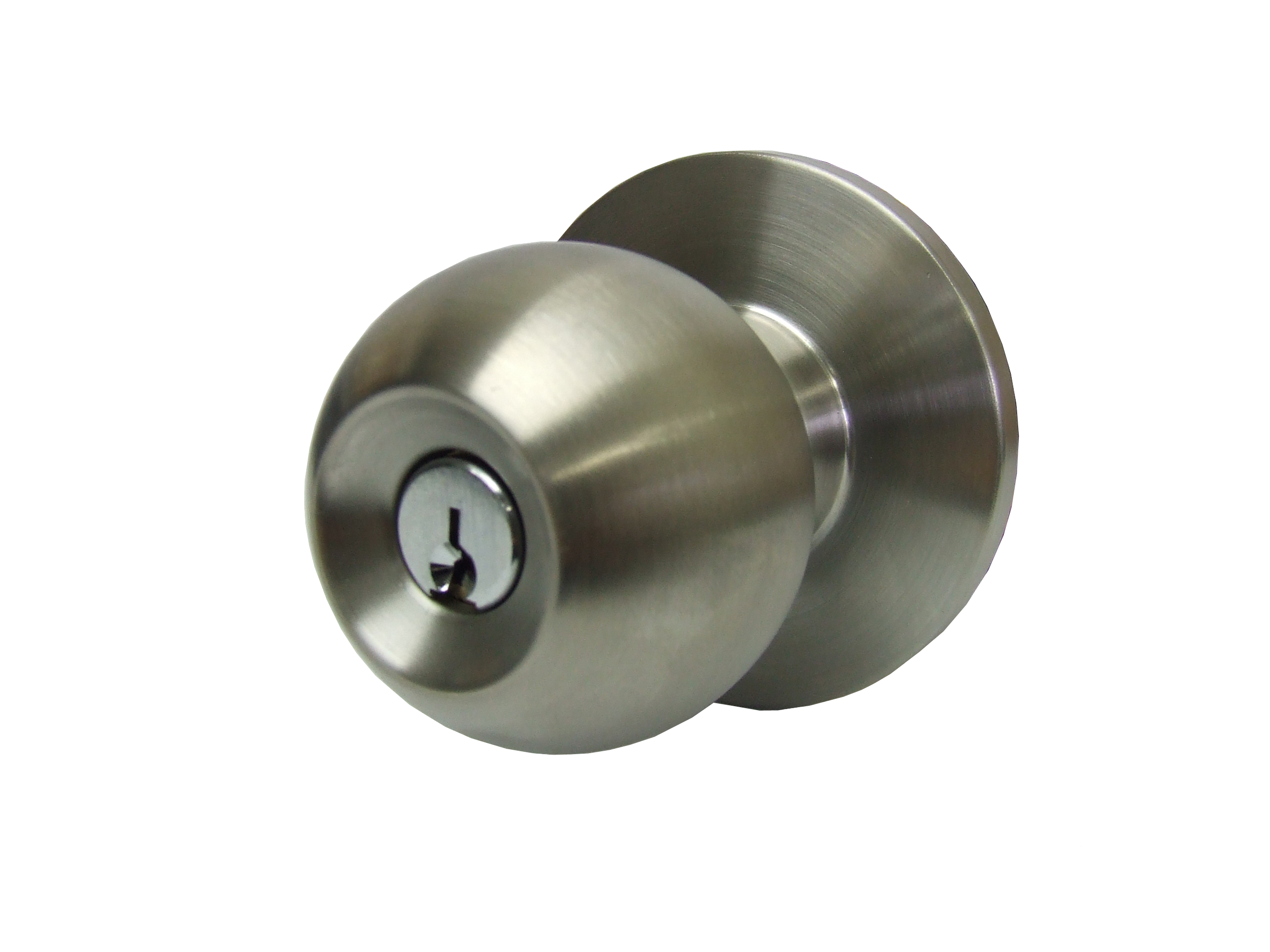

G2 Entrance set knob

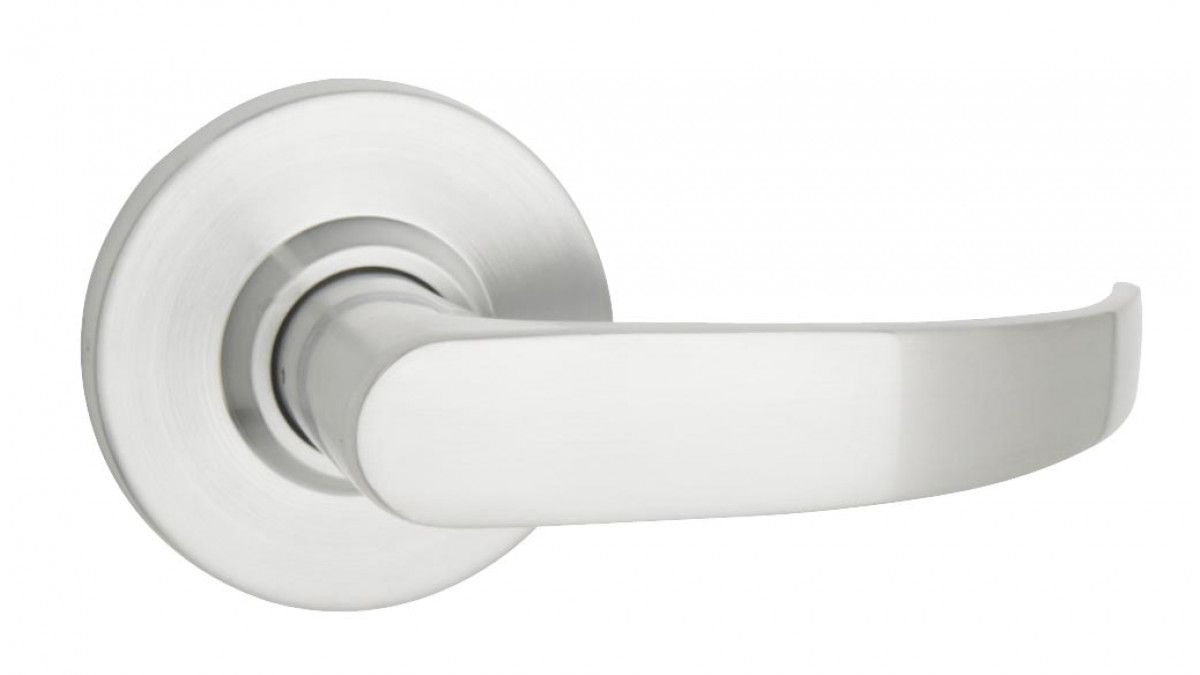

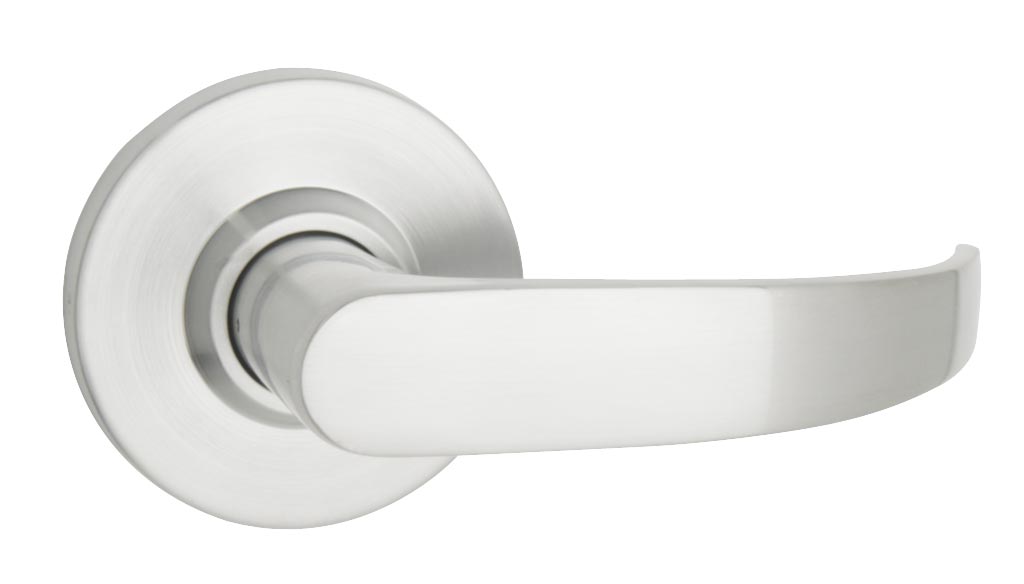

Schlage G2 Series Neptune
Description

Legge has long been associated with providing Australasia industry-leading safety, security, style and convenience and the G2 deadbolt is no exception. The G2 deadbolt offers ANSI/BHMA Grade 2 certification and makes it suitable for both residential and light to medium commercial applications.

Key Features
  • Tested in excess of 400,000 operating cycles
  • Quick and easy cylinder replacement
  • Two nickel silver keys per lock supplied with Schlage C4 6 pin keyway as standard
  • The G2 series is ideally suited for residential, light, and medium-duty commercial applications
  • Non-handed
  • Door type: Timber or metal
  • Door thickness: 35mm to 50mm
  • Chassis: Steel, zinc dichromate plated
  • Outer forend: Stainless steel
  • Bolt: Stainless steel
  • Strike plate: Stainless steel
  • Backsets: 60mm or 70mm standard
  • Key cylinder :Schlage C4 6 pin keyway standard, Schlage SR1 keyway optional
  • Finish: Satin chrome plate



Categories
Locks
Ranges
Legge Door Furniture
Scope of Use
  • Suitable for both residential and light to medium commercial applications
  • G2 Series functions include entrance, passage, privacy, patio and dummy trim
  • Commercial functions such as classroom, storeroom and Vanguard options are also available for added security and safety
  • Non-handed
  • Door type: Timber or metal
  • Door thickness: 35mm to 50mm
  • Backsets: 60mm or 70mm standard
  • Key cylinder :Schlage C4 6 pin keyway standard, Schlage SR1 keyway optional
Statement of Building Code Compliance

Sparta lever is compliant with AS1428:1-2009. Tested in excess of 400,000 operating cycles.

Documents
Installation and Operation
pdf
Commercial Warranty 2023
pdf
G2 Series Brochure
pdf
G2 Series Deadbolt Brochure
pdf

Allegion locally manufactures residential and commercial hardware: electronic locks, mechanical door furniture, cylinder, keying, door control, exit devices and hardware for sliding and folding doors.
