A Maxispan and Colorcote Combo for Winning Sistema

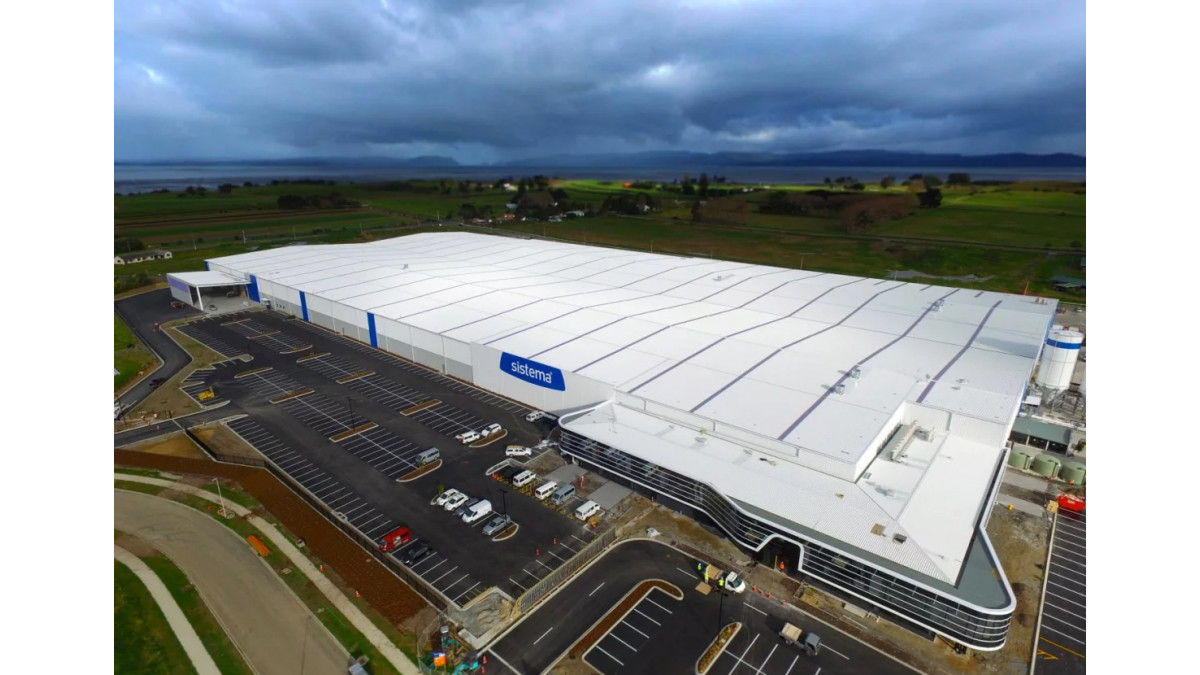

Located in Mangere, Auckland, the new Sistema Manufacturing Facility features 51,500m² of manufacturing, storage and distribution areas and 3,500m² of corporate office space. The state-of-the-art facility designed by Woodhams Meikle Zhan Architects and built by Haydn & Rollett, won the Supreme Award at the 2017 Property Council awards.

For the roof of the building, Haydn & Rollett were assisted by Steel Roofing who helped reduce costs and project time by streamlining the roof design and ensuring smooth installation of the 55,000m² building’s roof. Roofing Industries were contracted to supply a combination of Maxispan high rib roofing and Multirib cladding, using Colorcote Zinacore X pre-painted steel in 'Pacific White'.

A strong and aesthetically pleasing high rib roofing and cladding profile, Maxispan provides an attractive and durable roof for the facility. The practical design of the profile also aided the construction programme. “The Maxispan high rib roofing and cladding profile provides significant spanning advantages with low pitch and wide cover,” explains Paul Ross, Roofing Industries. “This contributed to reducing installation time.”

Complementing the Maxispan profile, the use of Colorcote Zinacore X ensures an attractive and long-lasting finish for the roof. “Zinacore X has excellent colour and gloss retention,” explains Paul. “This makes it ideal for industrial sites where there is a high risk of deterioration from corrosive elements in the environment.”

In addition to the roofing, Roofing Industries’ Multirib metal wall cladding was also specified for large sections of the building.

This effective combination of Roofing Industries’ roofing and cladding systems has resulted in a durable and attractive building that will accommodate Sistema’s growth, well into the future.

Architects: Woodhams Meikle Zhan Architects
Building Contractor: Haydn & Rollett
Roofing Manufacturer: Roofing Industries Ltd.
Roofing and Cladding Installer: Steel Roofing
Roofing and Cladding Products: 0.55g Maxispan Zinacore X in Colorcote 'Pacific White' (roof) & 0.40g Multirib Zinacore X Double Sided in 'Pacific White'

Maxispan Metal Roofing

Roofing Industries

View Product

Maxispan is a strong and aesthetically pleasing high rib roofing and cladding profile.

For industrial and commercial roofing and cladding projects where low pitch and high spanning is a prerequisite
Use as Vertical, Horizontal and Raked cladding
Drape curving
Carports
Water reservoir roofing and cladding
Rural and lifestyle roofing and cladding
Dairy shed roofing
Can be 'reverse run' and the swage removed for wall cladding application
This profile is also available with DRI-CLAD drip-resistant lining

Refer to Roofing Industries Profile Technical Summary for tables of maximum spans (intermediate and end) for each wind zone.

Metal cladding materials used to construct the building envelope shall be:

In accordance with the durability requirements of NZBC B2 suitable for their end use, location and environment as shown in E2/AS1 Table 20, and;
Compatible with adjoining materials as shown in E2/AS1 Table 21 and Table 22; and
Meet NZ Metal Roof and Wall Cladding code of practice.

3°

Maxispan will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B2 — Durability: Performance B2.3.1(b)
Clause E2 — External moisture: Performance E2.3.1, E2.3.2

Selection of the correct grade of material and appropriate surface coating is imperative to ensure Maxispan performs satisfactorily in the environment it is to be installed, meeting the requirements of The NZ Building Code.

Durability

External Moisture

Multirib Metal Roofing

Roofing Industries

View Product

Multirib is a medium height, long run roofing and cladding profile designed primarily for industrial and commercial applications.

For industrial and commercial roofing and cladding projects where both high spanning and a low pitch is required
Residential roofing
Industrial and commercial horizontal and vertical cladding in both standard and reverse run applications
Rural and lifestyle roofing and cladding
Drape curving
This profile is also available with DRI-CLAD drip-resistant lining

Metal cladding materials used to construct the building envelope shall be:

In accordance with the durability requirements of NZBC B2 suitable for their end use, location and environment as shown in E2/AS1 Table 20, and;
Compatible with adjoining materials as shown in E2/AS1 Table 21 and Table 22; and
Meet NZ Metal Roof and Wall Cladding code of practice.

3°

Multirib will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B2 — Durability: Performance B2.3.1(b)
Clause E2 — External moisture: Performance E2.3.1, E2.3.2

Selection of the correct grade of material and appropriate surface coating is imperative to ensure Multirib performs satisfactorily in the environment it is to be installed, meeting the requirements of The NZ Building Code.

Durability

External Moisture
