Maxispan Metal Roofing
Roofing Industries
All products

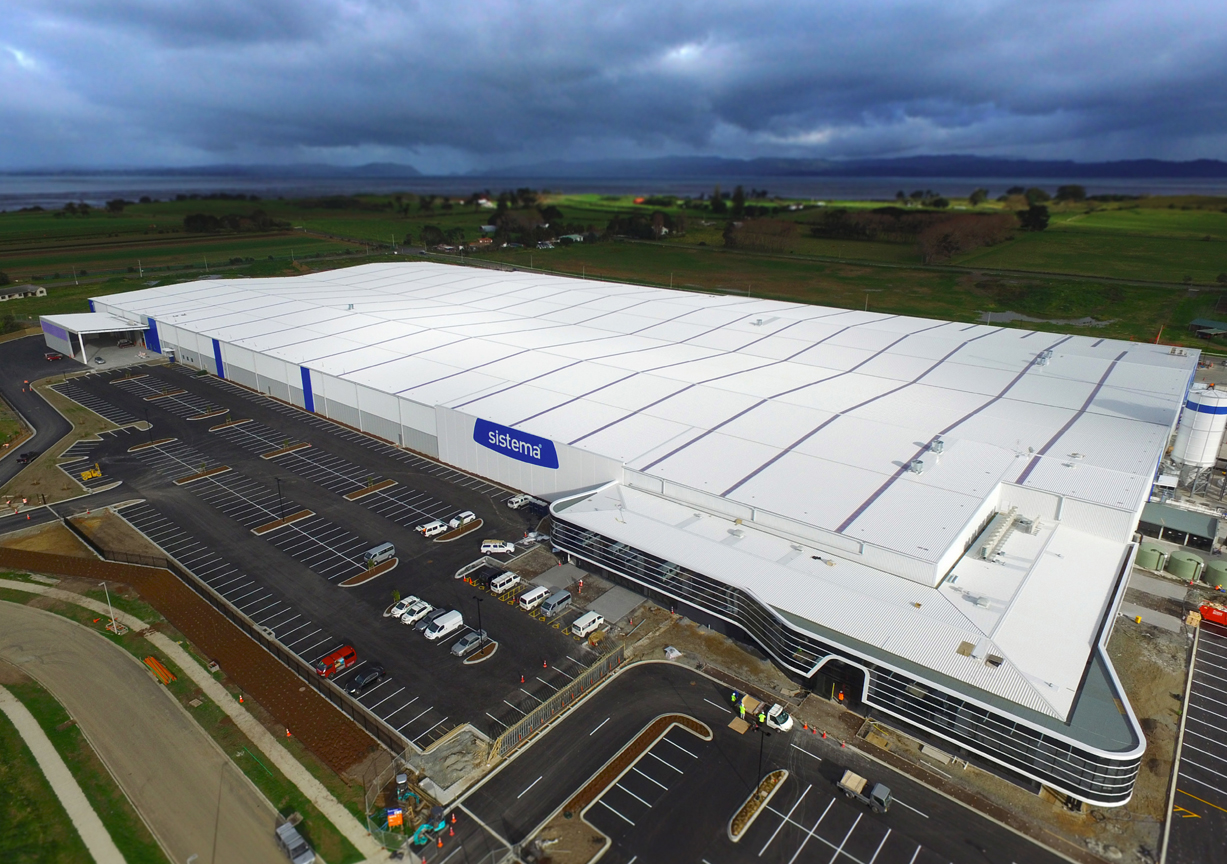

Sistema Maxispan roofing edit

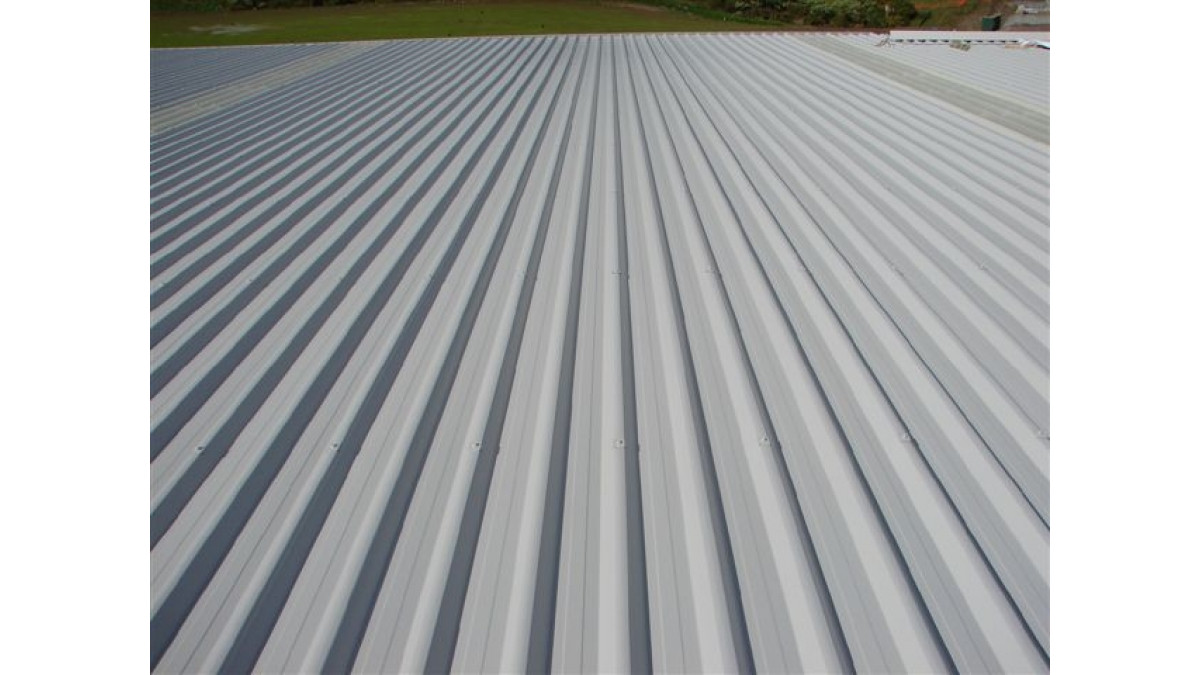

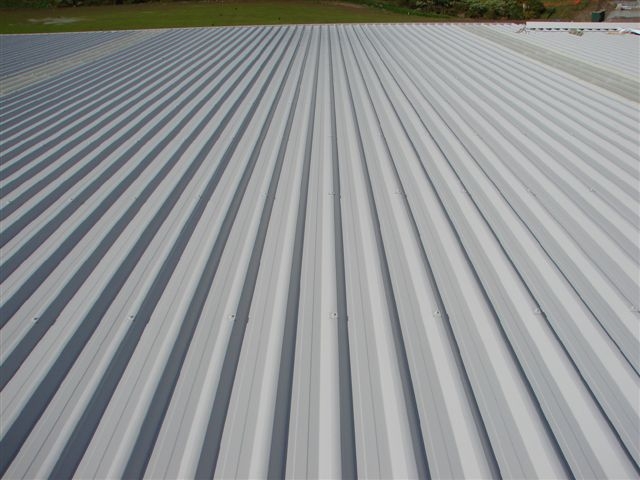

maxi1
Description

Maxispan is a strong and aesthetically pleasing high rib roofing and cladding profile. It has been developed by some of New Zealand’s most accomplished roofing professionals who have been actively involved in the roofing industry for over a quarter of a century.

The profile incorporates a number of innovative practical design features and provides significant spanning advantages to building designers.

Key Features
  • Convex ribs provide strength and water run-off away from the fixings
  • Twin capillary breaks on the lap
  • Purpose designed leg provides support to the underlap
  • Installers feet fit neatly in the pan avoiding damage to the ribs
  • Can be 'reverse run' and the swage removed for wall cladding application
  • Lap can be altered in the reverse run process to ensure improved aesthetics and water tightness (.55 BMT recommended)
  • High volume water carrying capacity
  • Wide cover reduces installation time
  • Superior spanning at low pitch
  • Also available with DRI-CLAD drip-resistant lining
  • Supported by Wind and Concentrated Load Span Design graphs derived from extensive industry test rig trials
Categories
Metal Cladding Metal Roofing
Scope of Use
  • For industrial and commercial roofing and cladding projects where low pitch and high spanning is a prerequisite
  • Use as Vertical, Horizontal and Raked cladding
  • Drape curving
  • Carports
  • Water reservoir roofing and cladding
  • Rural and lifestyle roofing and cladding
  • Dairy shed roofing
  • Can be 'reverse run' and the swage removed for wall cladding application
  • This profile is also available with DRI-CLAD drip-resistant lining

Refer to Roofing Industries Profile Technical Summary for tables of maximum spans (intermediate and end) for each wind zone.

Metal cladding materials used to construct the building envelope shall be:

  • In accordance with the durability requirements of NZBC B2 suitable for their end use, location and environment as shown in E2/AS1 Table 20, and;
  • Compatible with adjoining materials as shown in E2/AS1 Table 21 and Table 22; and
  • Meet NZ Metal Roof and Wall Cladding code of practice.
Limitations on Use
  • Minimum roof pitch 3°
3° Minimum Roof Pitch Required
3°
Statement of Building Code Compliance

Maxispan will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B2 — Durability: Performance B2.3.1(b)
  • Clause E2 — External moisture: Performance E2.3.1, E2.3.2

Selection of the correct grade of material and appropriate surface coating is imperative to ensure Maxispan performs satisfactorily in the environment it is to be installed, meeting the requirements of The NZ Building Code.

B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
  • Case Studies
Documents
Product Brochure: DRI-CLAD

Nov 2023 v4

pdf
Product Brochure: Maxispan

2023

pdf
Selection Guide: Maxispan

2012

pdf
Brochure: Ezy-Flo Rainwater Systems
pdf
Brochure: Ezy-Lok Gutter & Valley Screens
pdf
Brochure: Roofing with Style

2023

pdf
Profile Technical Summary

2012

pdf
Tekton Report — E2 Compliance: Maxispan

2020

pdf
Handling and Storage of Metal Roofing and Cladding
pdf
Installation Guide: Metal Longrun Roofing & Cladding

2022

pdf
Installation: MRM Code of Practice
URL
Maintenance Instructions

2017

pdf
RANZ Roofing Guide
URL
CAD/PDF Details
View full
Filters
Commercial or Residential
Roofing Details
Wall Cladding Details
Clear filters

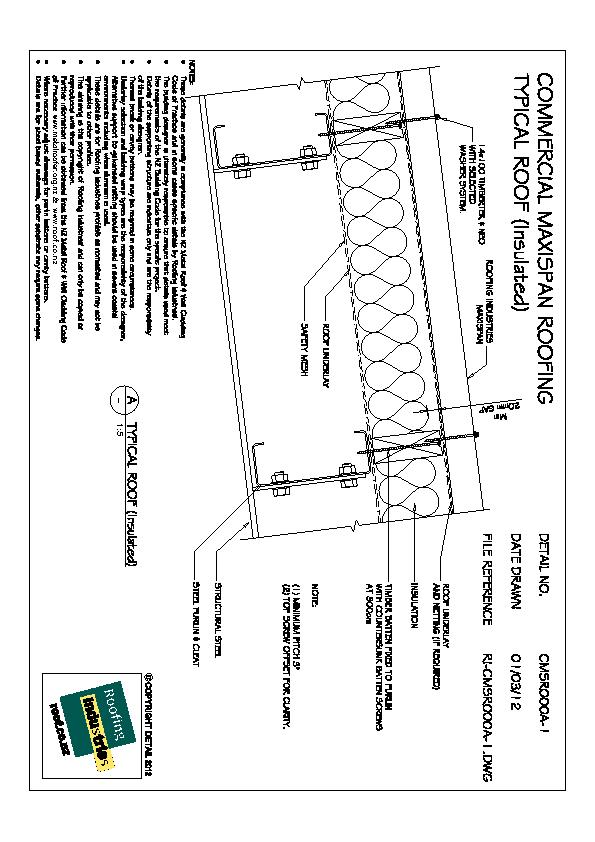

Com. Maxispan Typical Roof (Insulated)

RI-CMS-000A-1

dwg
pdf

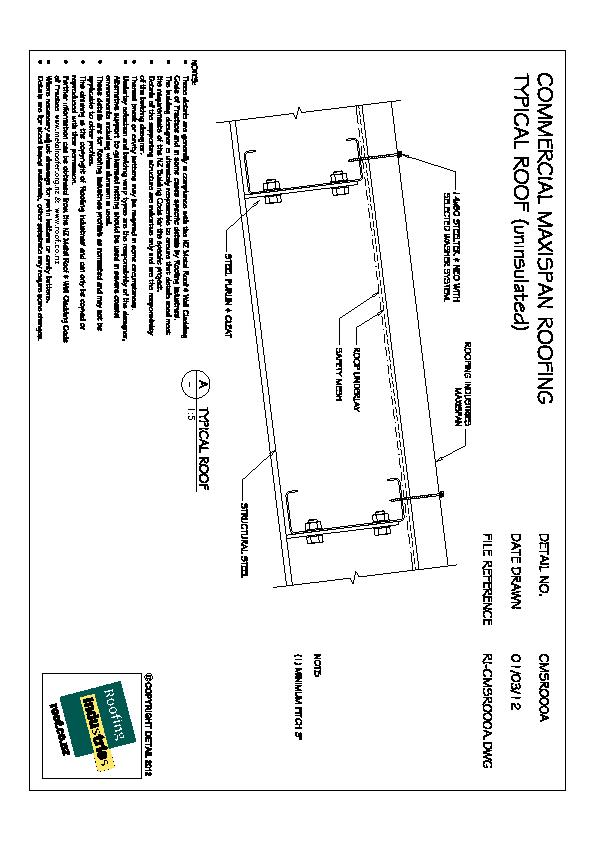

Com. Maxispan Typical Roof (Uninsulated)

RI-CMS-R000A

dwg
pdf

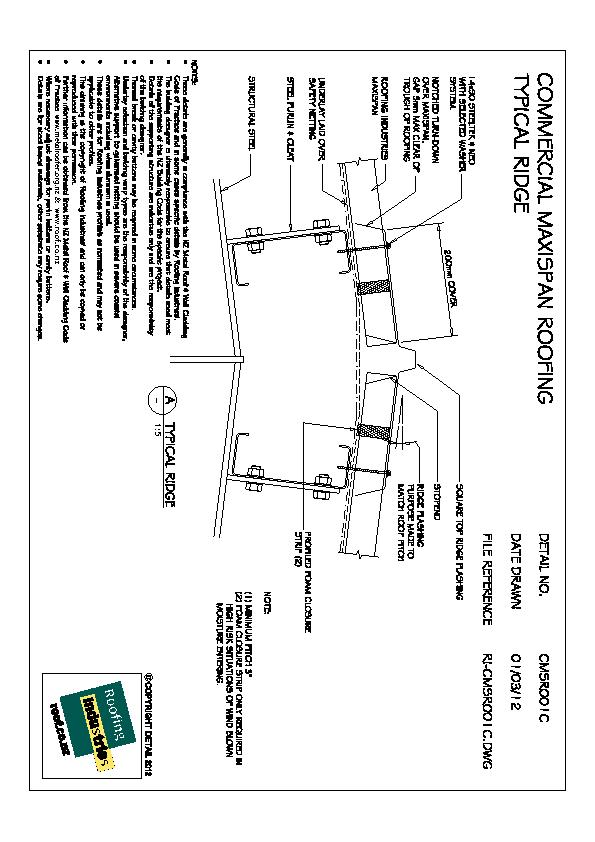

Com. Maxispan Typical Ridge

RI-CMS-R001C

dwg
pdf

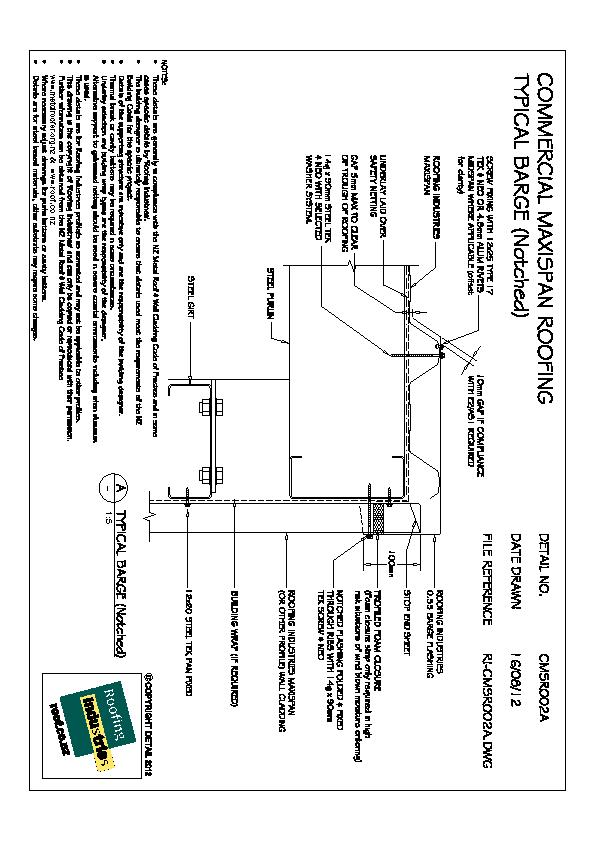

Com. Maxispan Typical Barge (Notched)

RI-CMS-R002A

dwg
pdf

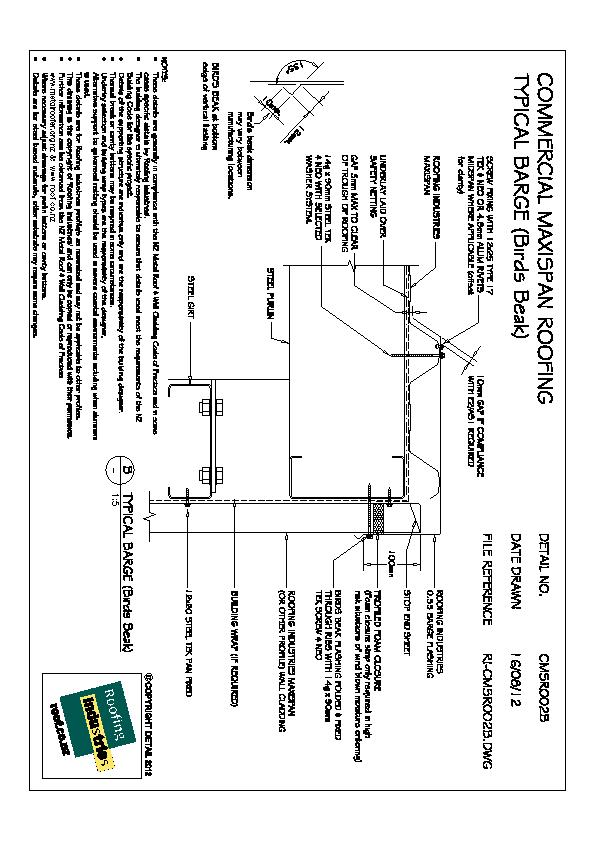

Com. Maxispan Typical Barge (Bird's Beak)

RI-CMS-R002B

dwg
pdf

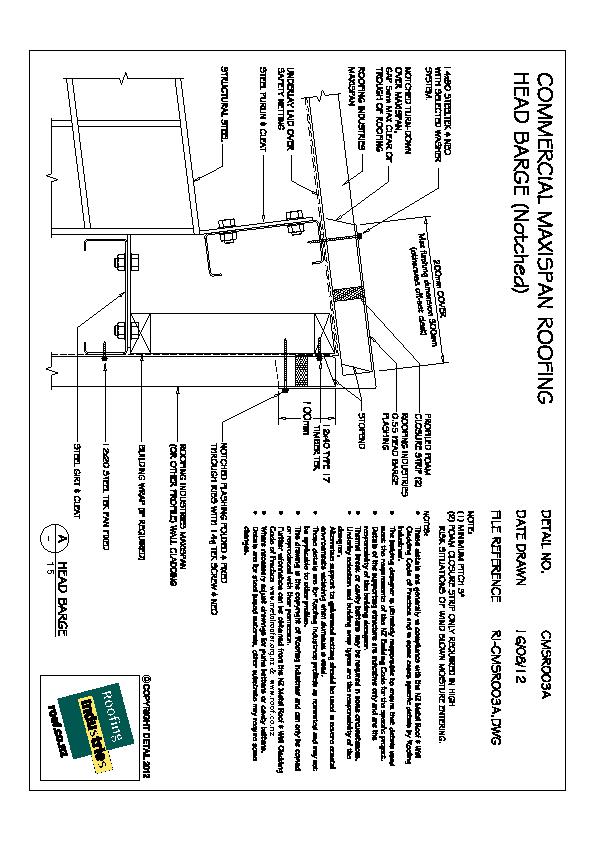

Com. Maxispan Head Barge (Notched)

RI-CMS-R003A

dwg
pdf

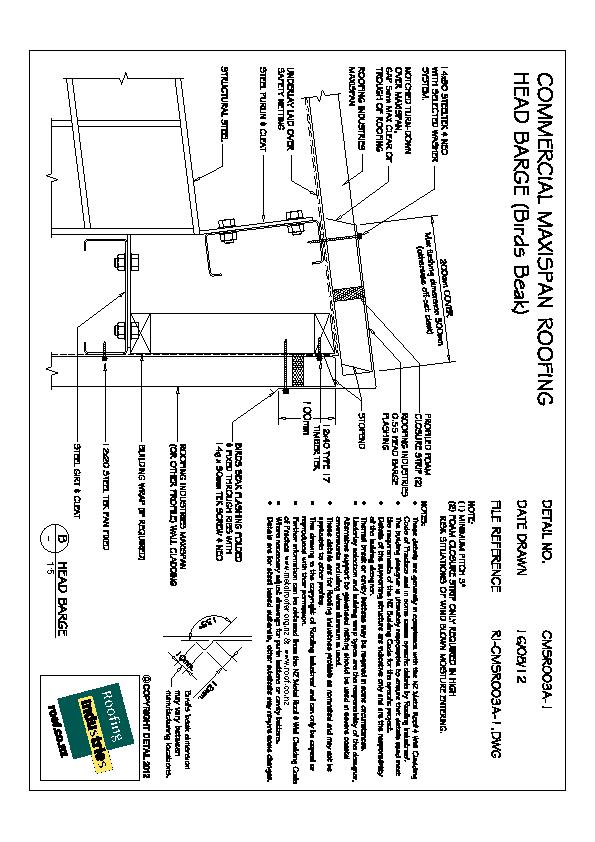

Com. Maxispan Head Barge (Bird's Beak)

RI-CMS-R003A-1

dwg
pdf

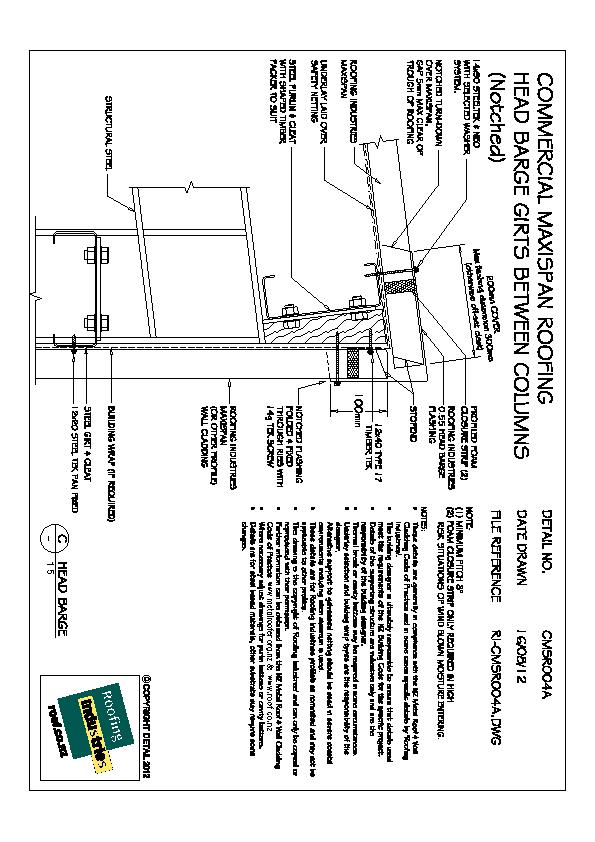

Com. Maxispan Head Barge Girts Between Columns (Notched)

RI-CMS-R004A

dwg
pdf

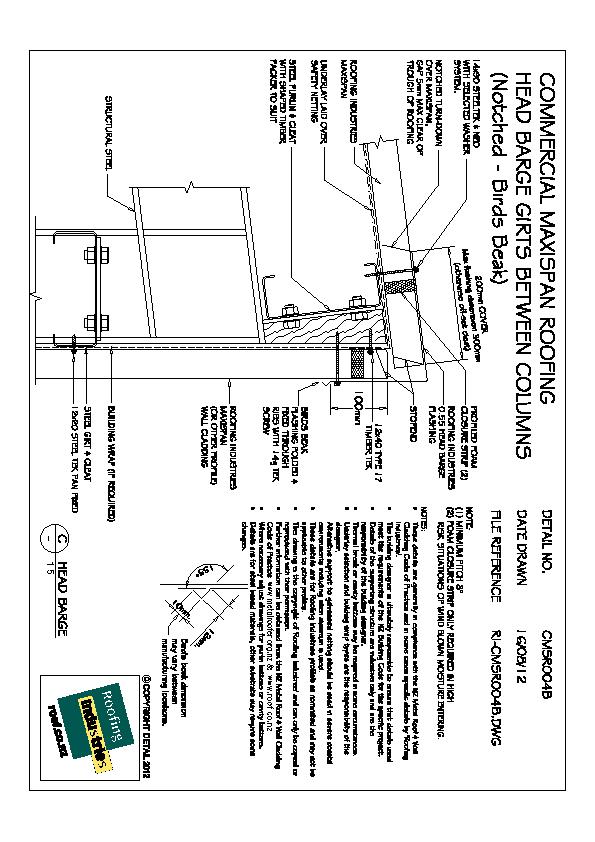

Com. Maxispan Head Barge Girts Between Columns (Notched — Bird's Beak)

RI-CMS-R004B

dwg
pdf

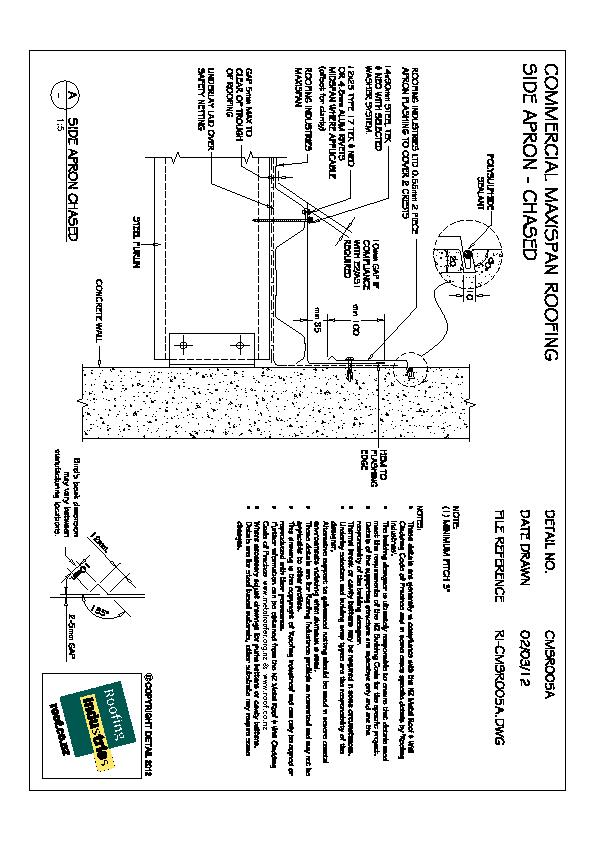

Com. Maxispan Side Apron — Chased

RI-CMS-R005A

dwg
pdf

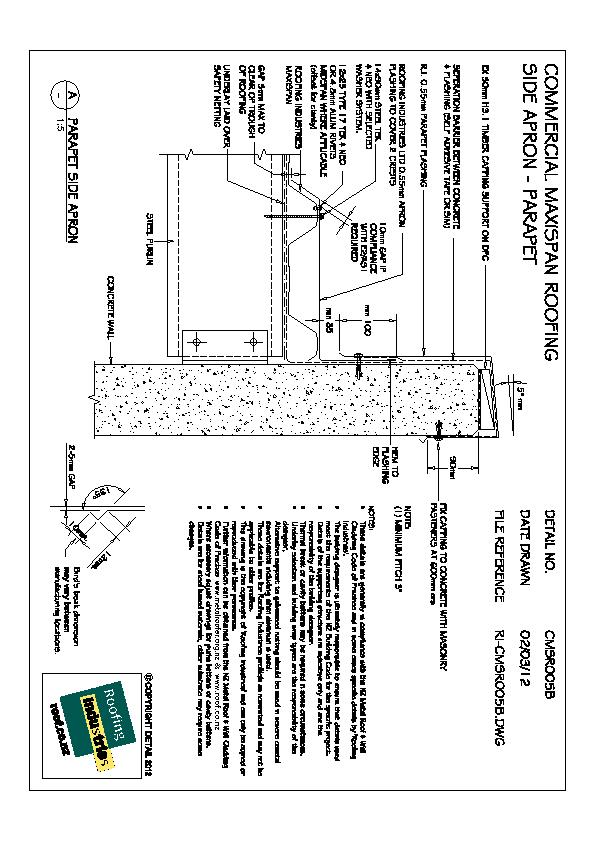

Com. Maxispan Side Apron — Parapet

RI-CMS-R005B

dwg
pdf

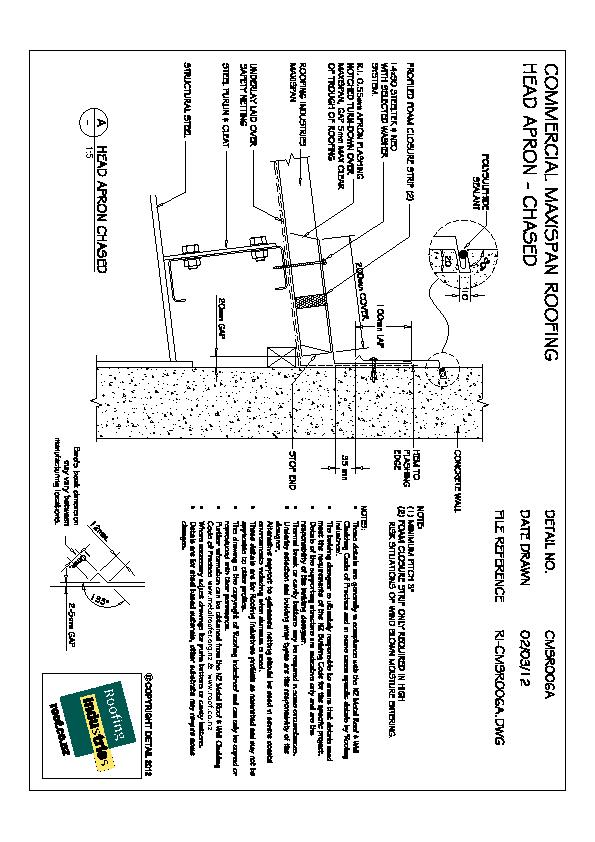

Com. Maxispan Head Apron — Chased

RI-CMS-R006A

dwg
pdf

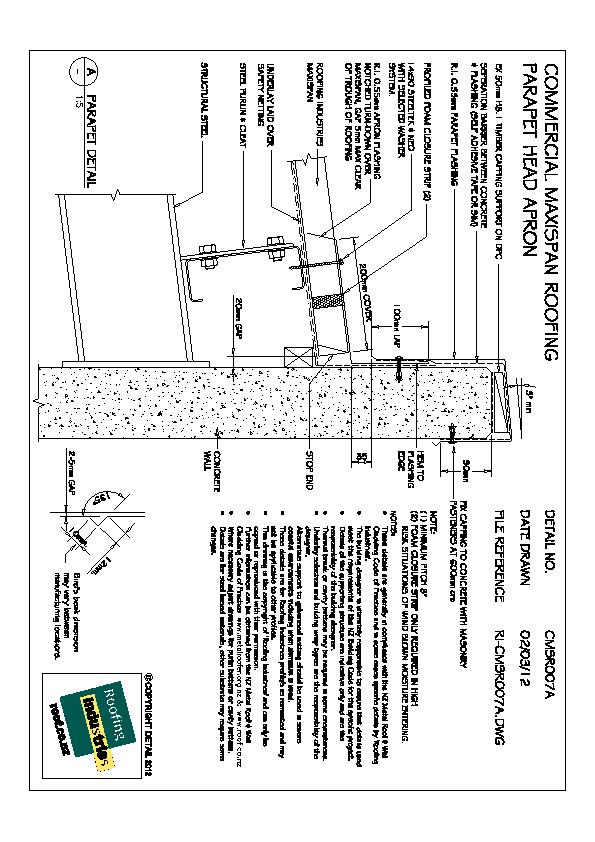

Com. Maxispan Parapet Head Apron

RI-CMS-R007A

dwg
pdf

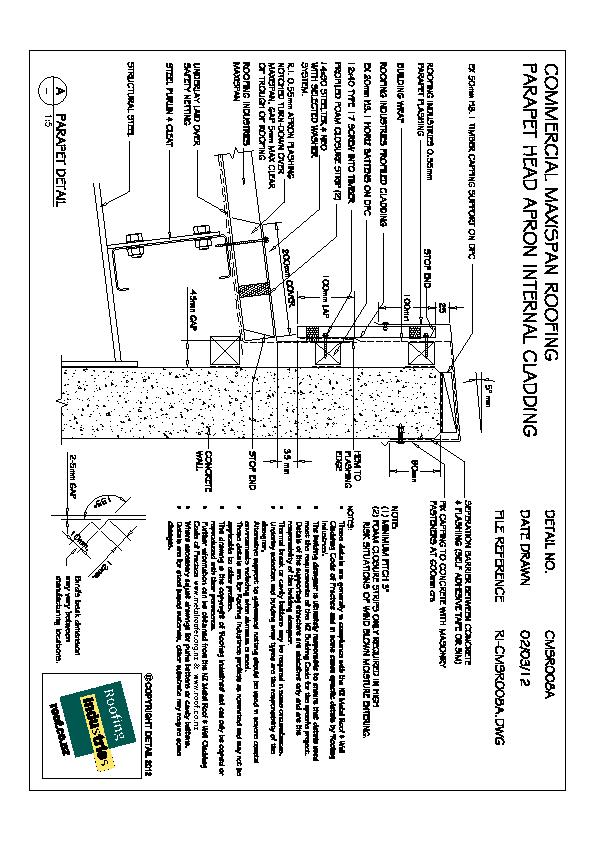

Com. Maxispan Parapet Head Apron Internal Cladding

RI-CMS-R008A

dwg
pdf

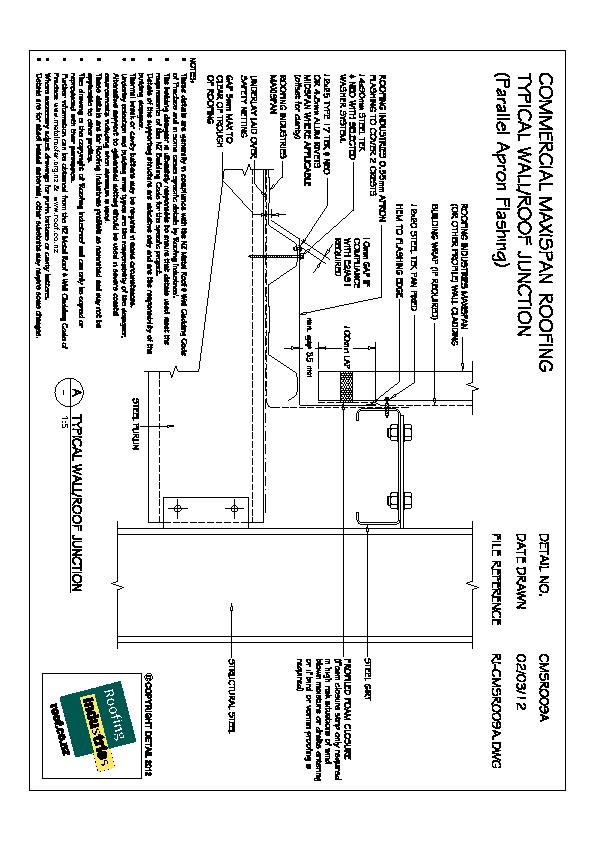

Com. Maxispan Typical Wall/Roof Junction (Parallel Apron Flashing)

RI-CMS-R009A

dwg
pdf

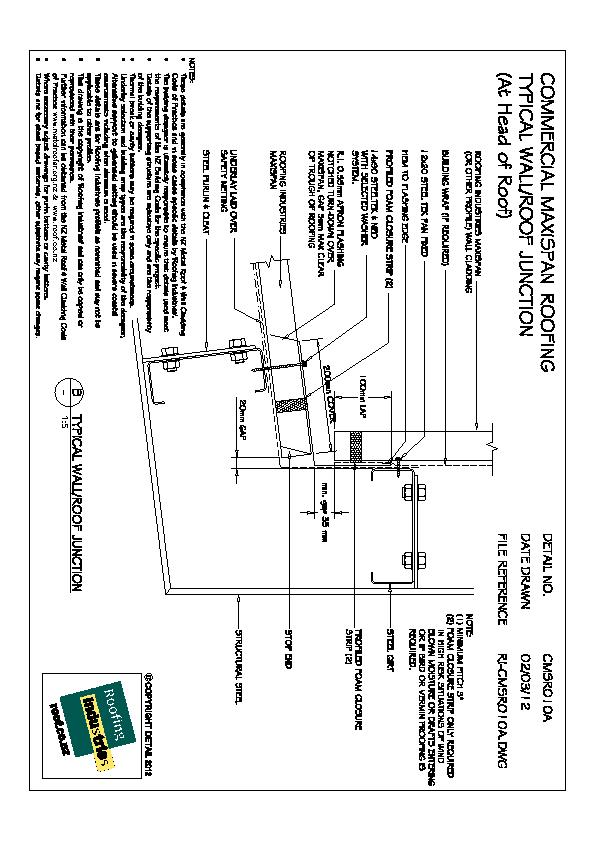

Com. Maxispan Typical Wall/Roof Junction (At Head of Roof)

RI-CMS-R010A

dwg
pdf

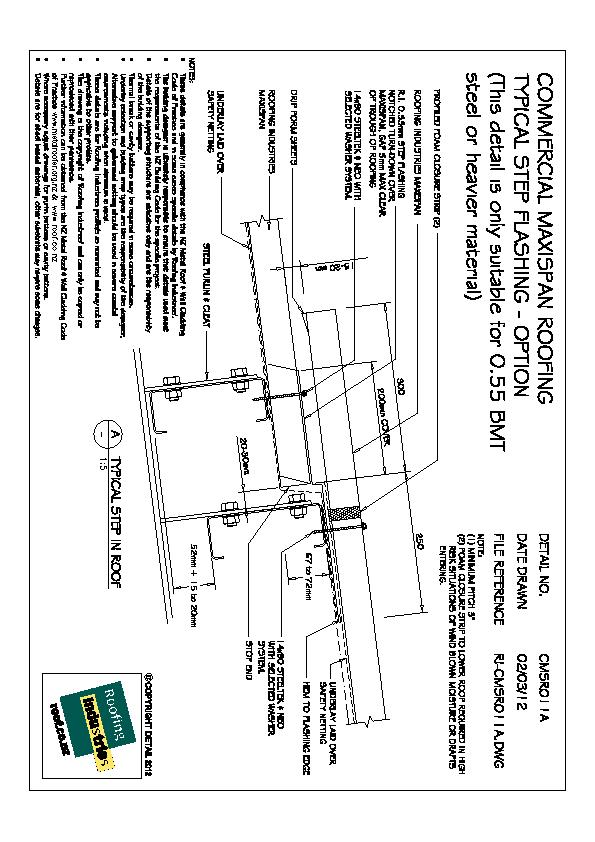

Com. Maxispan Typical Step Flashing — Option

RI-CMS-R011A

dwg
pdf
Com. Maxispan Typical Step Flashing — Alternative

RI-CMS-R011A-1

dwg
pdf
Com. Maxispan Box Gutter Detail

RI-CMS-R012A

dwg
pdf
Com. Maxispan Penetration Round & Watershed to Under Ridge

RI-CMS-R017A

dwg
pdf
Com. Maxispan Penetration Flashing — EPDM

RI-CMS-R017A-1

dwg
pdf
Com. Maxispan Penetration Flashing Watershed to Under Ridge

RI-CMS-R018A

dwg
pdf
Com. Maxispan Penetration Soaker Flashing

RI-CMS-R019A

dwg
pdf
Com. Maxispan Cable Entry Penetration Flashing

RI-CMS-R020A

dwg
pdf
Com. Maxispan End Lap Detail

RI-CMS-R021A

dwg
pdf
Com. Maxispan 125 Box Gutter Detail (Internal Bracket)

RI-CMS-R030A

dwg
pdf
Com. Maxispan 125 Box Gutter Detail (Internal Bracket — Alternative)

RI-CMS-R030A-1

dwg
pdf

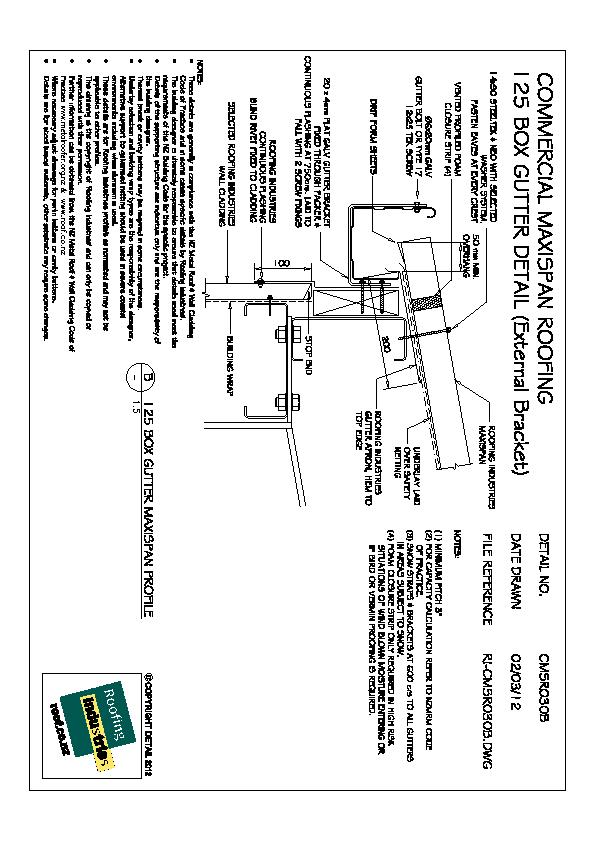

Com. Maxispan 125 Box Gutter Detail (External Bracket)

RI-CMS-R030B

dwg
pdf

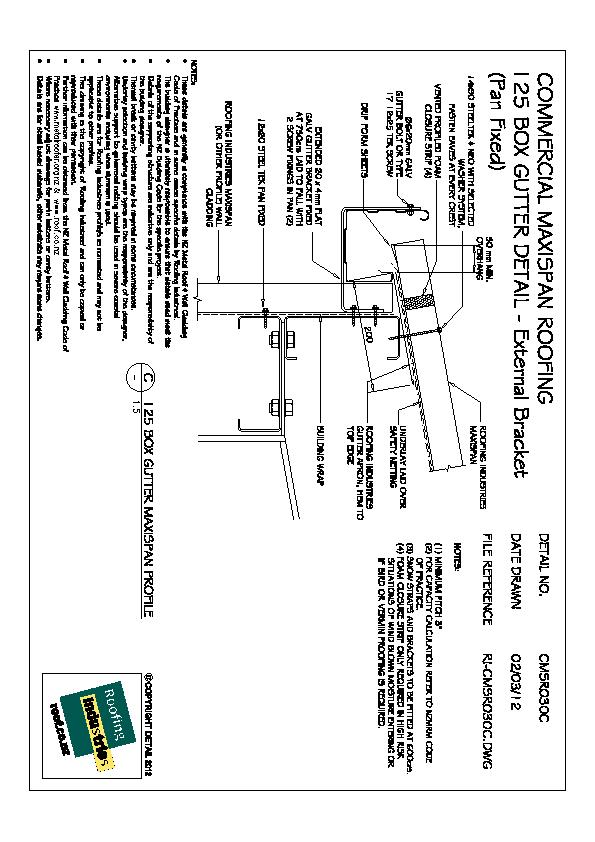

Com. Maxispan 125 Box Gutter Detail — External Bracket (Pan Fixed)

RI-CMS-R030C

dwg
pdf

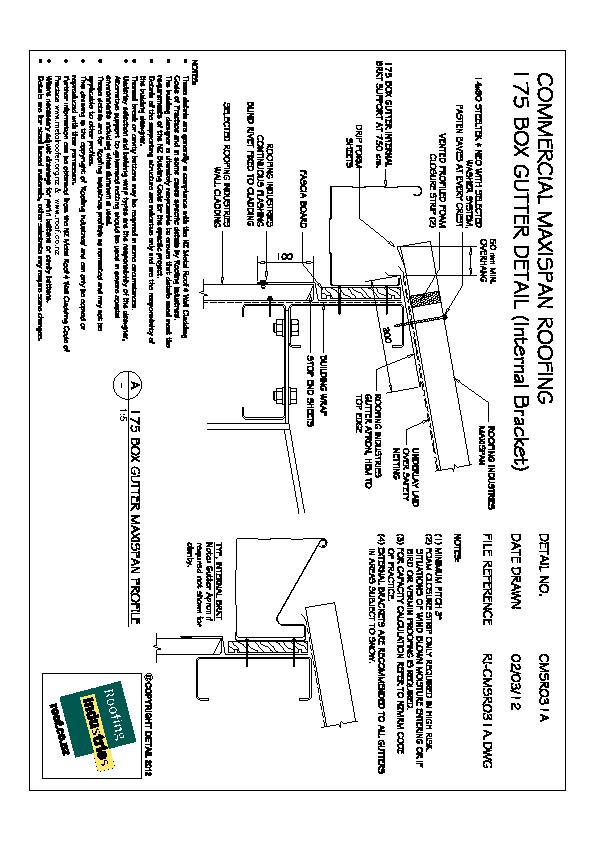

Com. Maxispan 175 Box Gutter Detail — (Internal Bracket)

RI-CMS-R031A

dwg
pdf

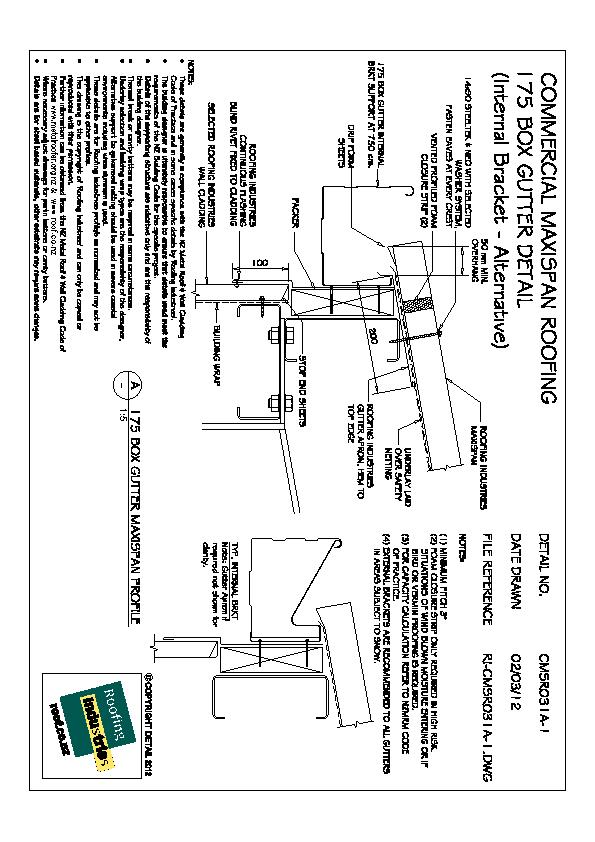

Com. Maxispan 175 Box Gutter Detail (Internal Bracket — Alternative)

RI-CMS-R031A-1

dwg
pdf

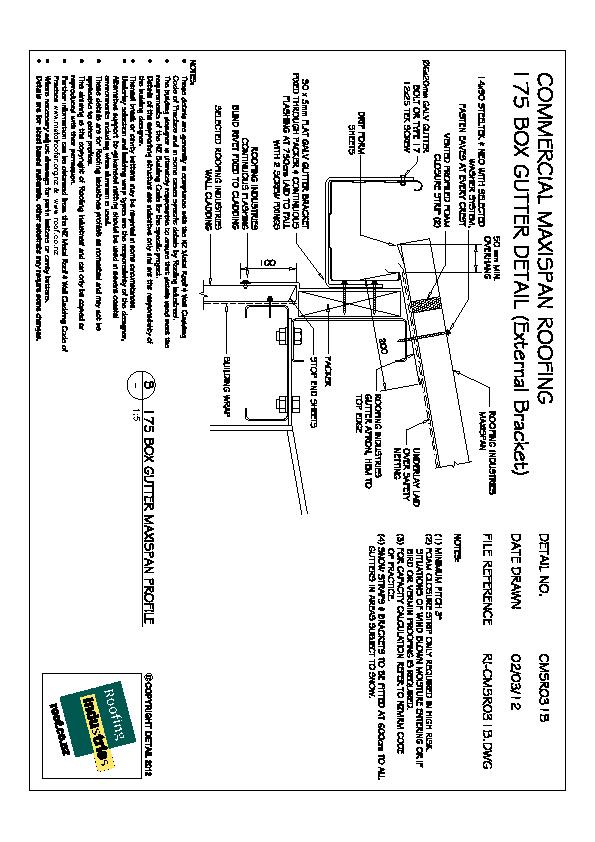

Com. Maxispan 175 Box Gutter Detail (External Bracket)

RI-CMS-R031B

dwg
pdf

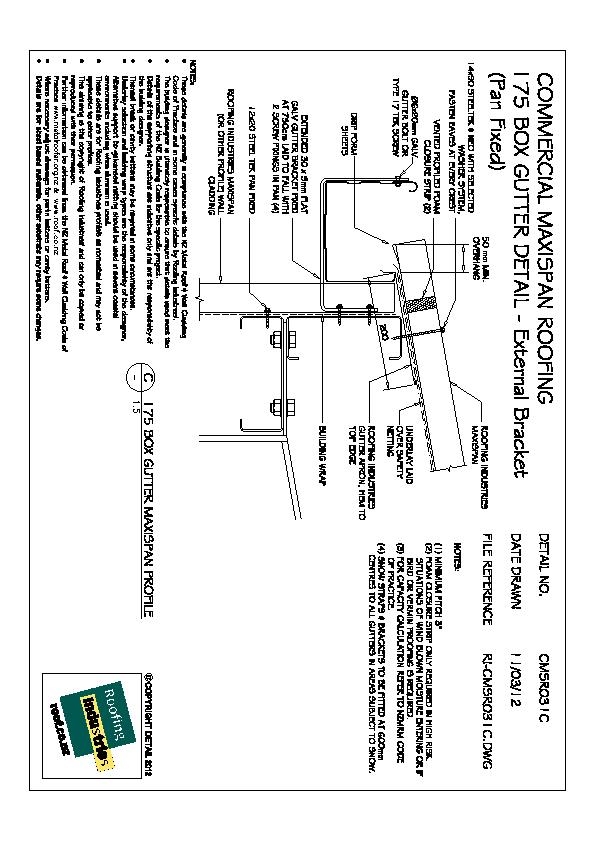

Com. Maxispan 175 Box Gutter Detail — External Bracket (Pan Fixed)

RI-CMS-R031C

dwg
pdf

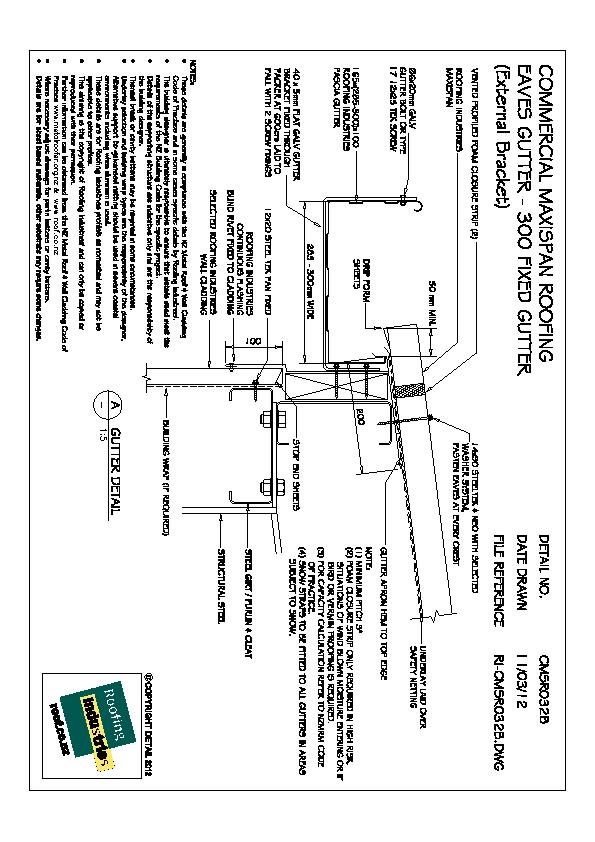

Com. Maxispan Eaves Gutter Detail — 300 Fixed Gutter (External Bracket)

RI-CMS-R032B

dwg
pdf

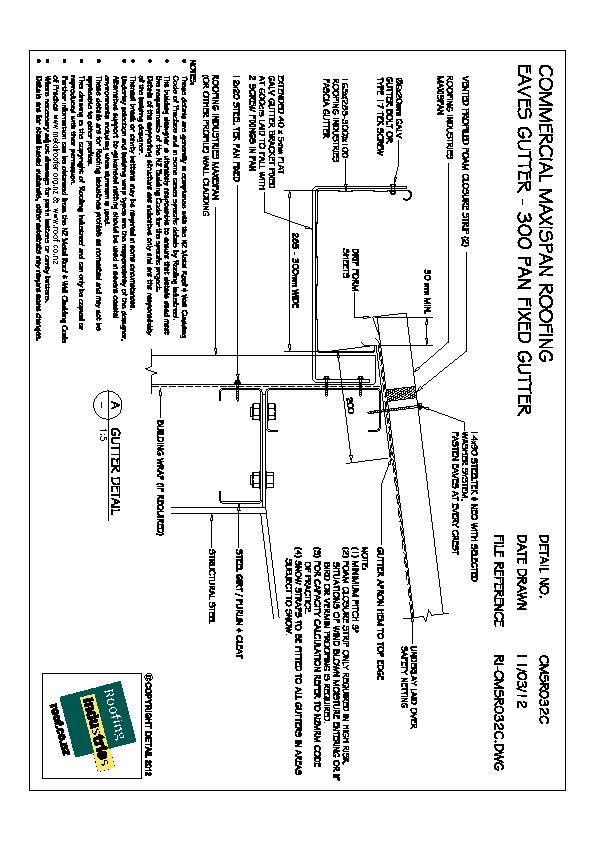

Com. Maxispan Eaves Gutter — 300 Pan Fixed Gutter

RI-CMS-R032C

dwg
pdf

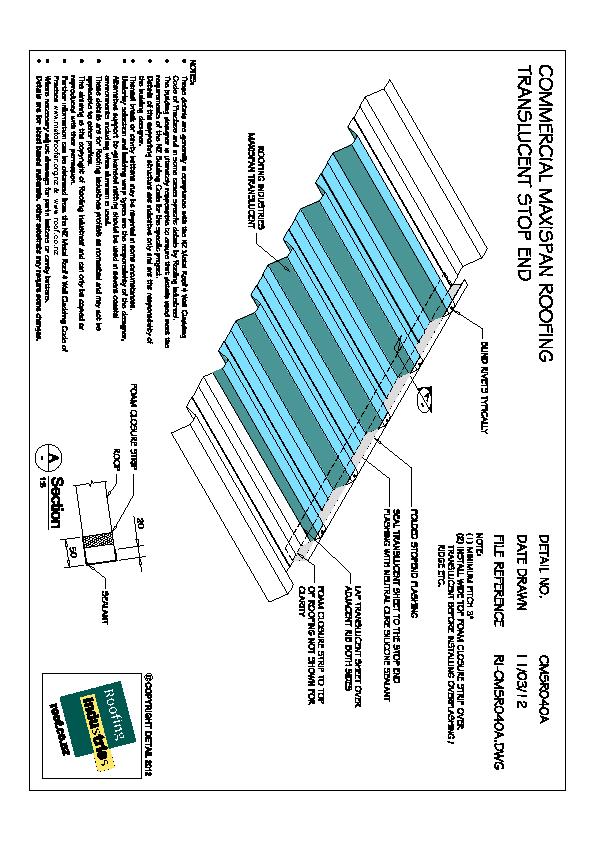

Com. Maxispan Translucent Stop End

RI-CMS-R040A

dwg
pdf

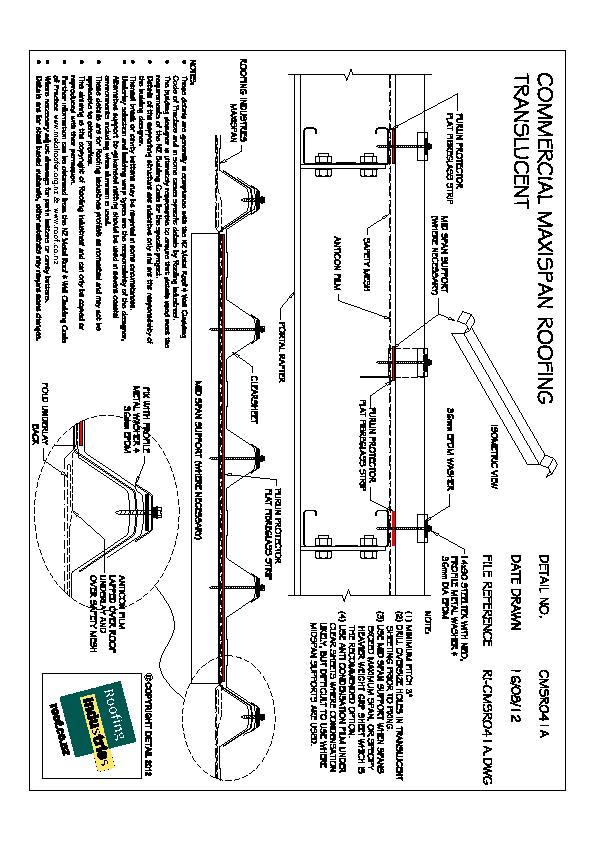

Com. Maxispan Translucent

RI-CMS-R041A

dwg
pdf

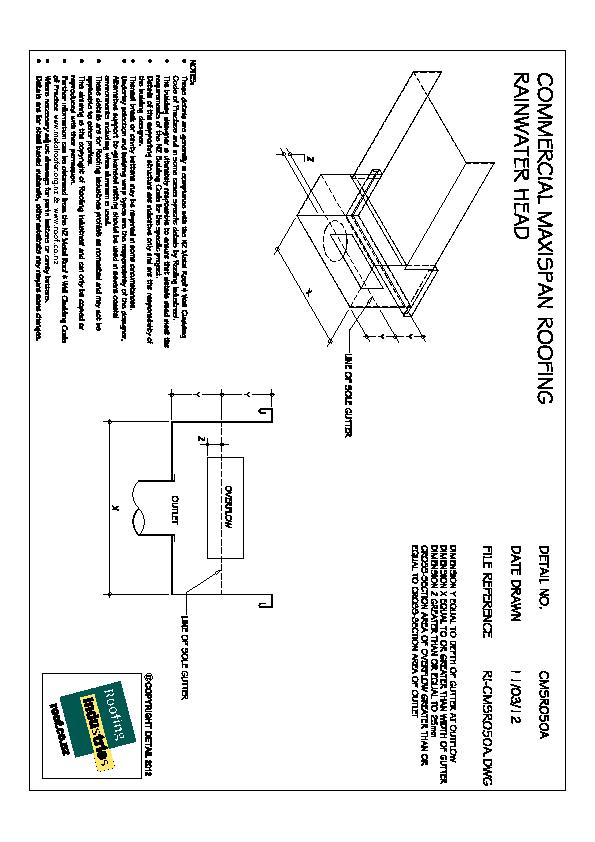

Com. Maxispan Rainwater Head

RI-CMS-R050A

dwg
pdf

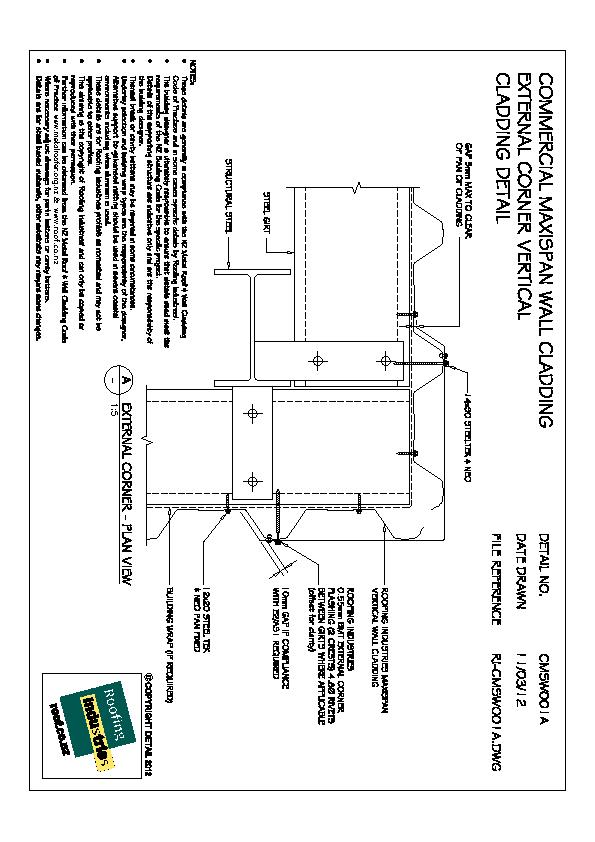

Com. Maxispan External Corner Vertical Cladding Detail

RI-CMS-W001A

dwg
pdf

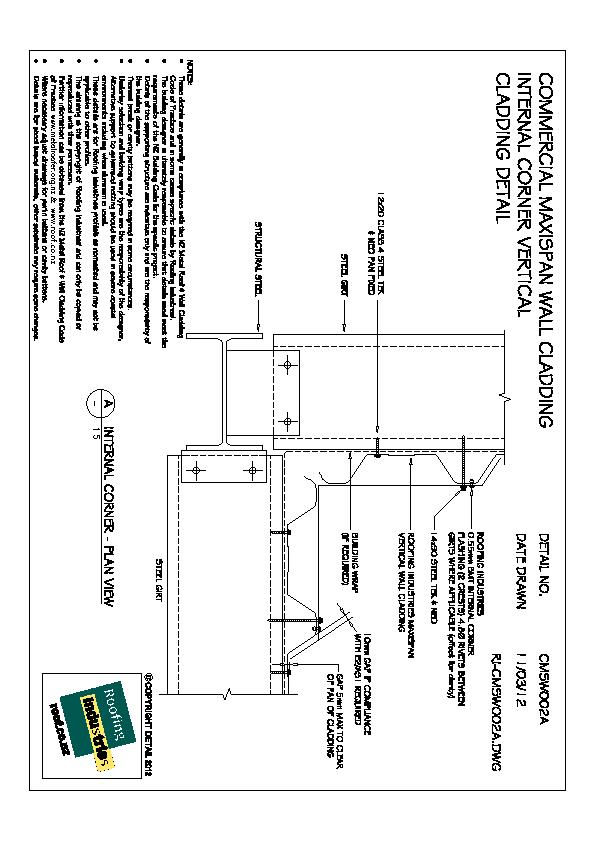

Com. Maxispan Internal Corner Vertical Cladding Detail

RI-CMS-W002A

dwg
pdf

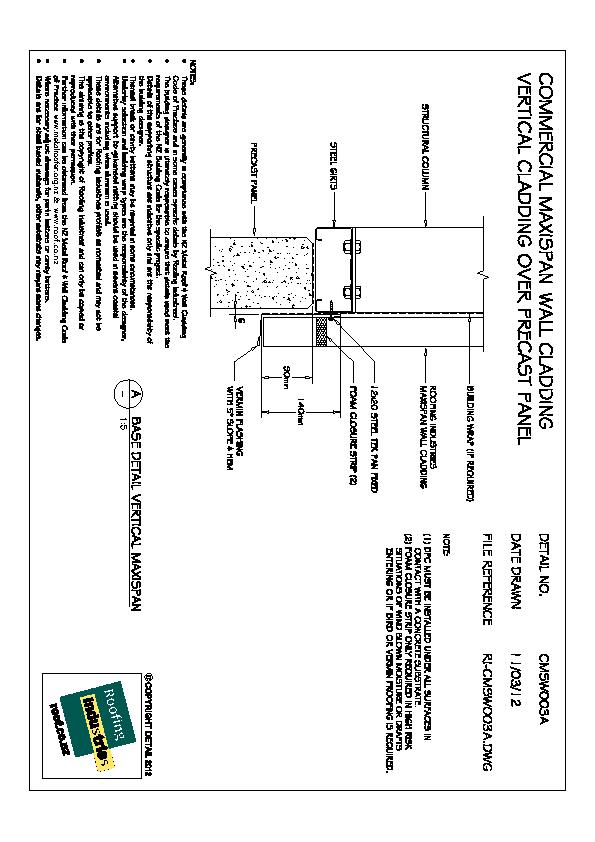

Com. Maxispan Vertical Cladding Over Precast Panel

RI-CMS-W003A

dwg
pdf

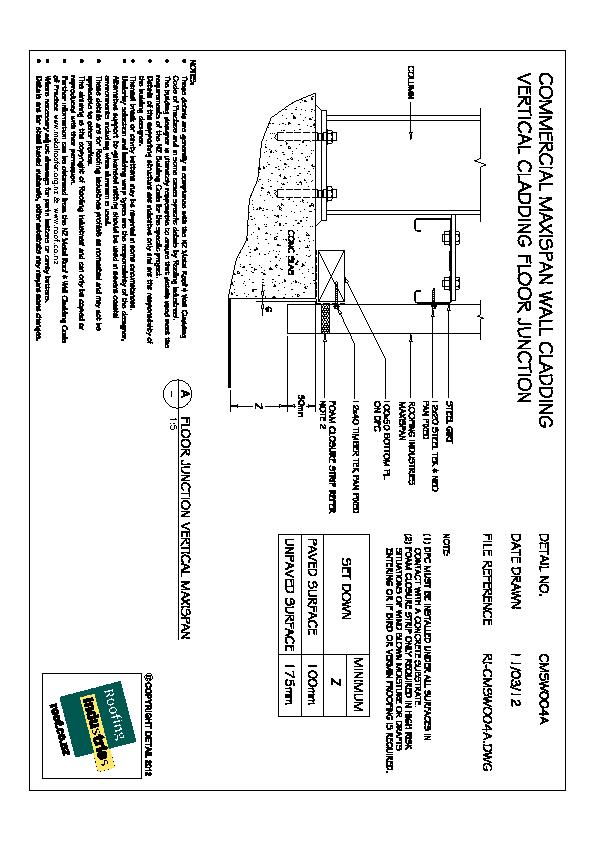

Com. Maxispan Vertical Cladding Floor Junction

RI-CMS-W004A

dwg
pdf

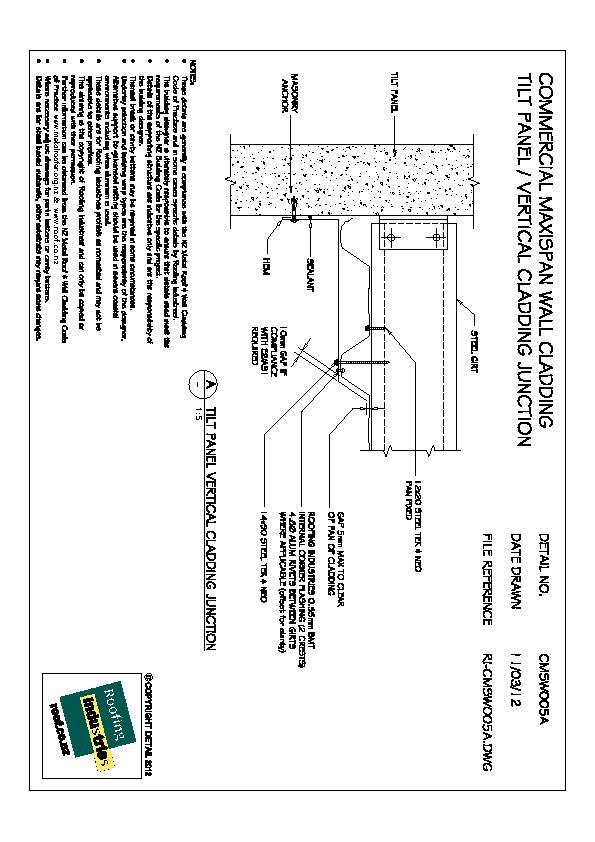

Com. Maxispan Tilt Panel / Vertical Cladding Junction

RI-CMS-W005A

dwg
pdf

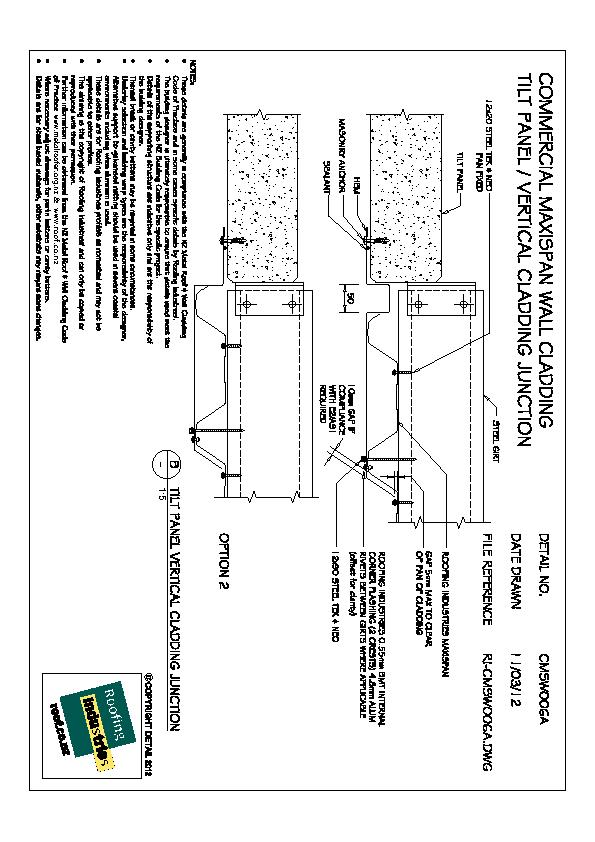

Com. Maxispan Tilt Panel / Vertical Cladding Junction (2)

RI-CMS-W006A

dwg
pdf

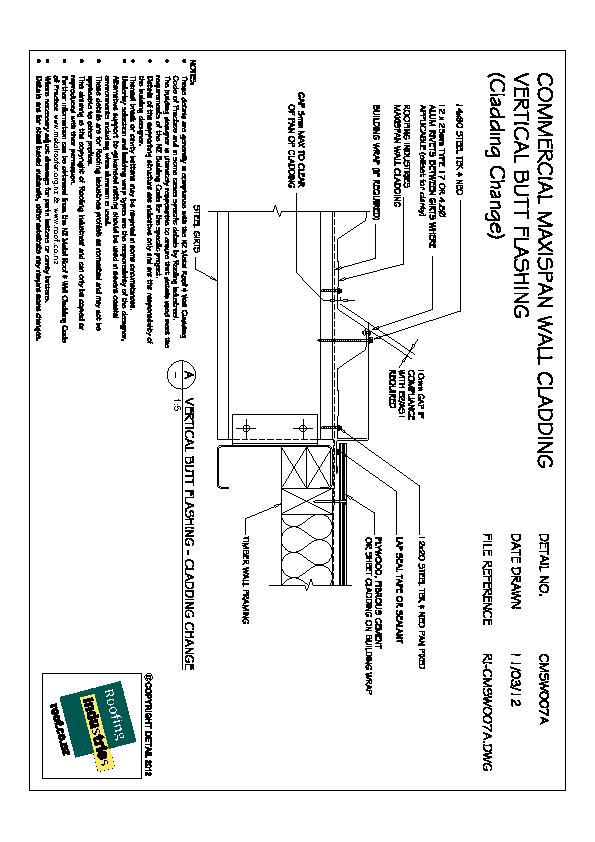

Com. Maxispan Vertical Butt Flashing (Cladding Change)

RI-CMS-W007A

dwg
pdf

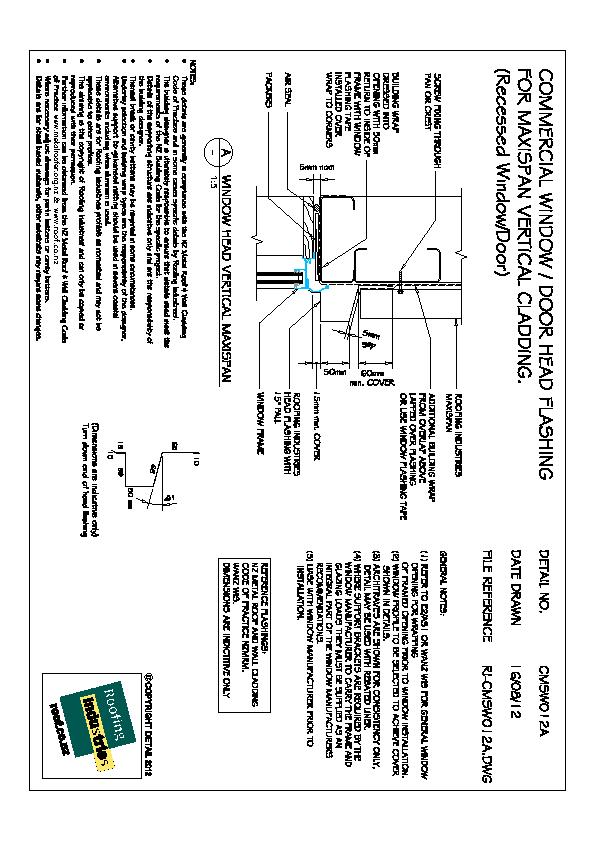

Com. Maxispan Window/Door Head Flashing Vertical Cladding (Recessed Window/Door)

RI-CMS-W012A

dwg
pdf

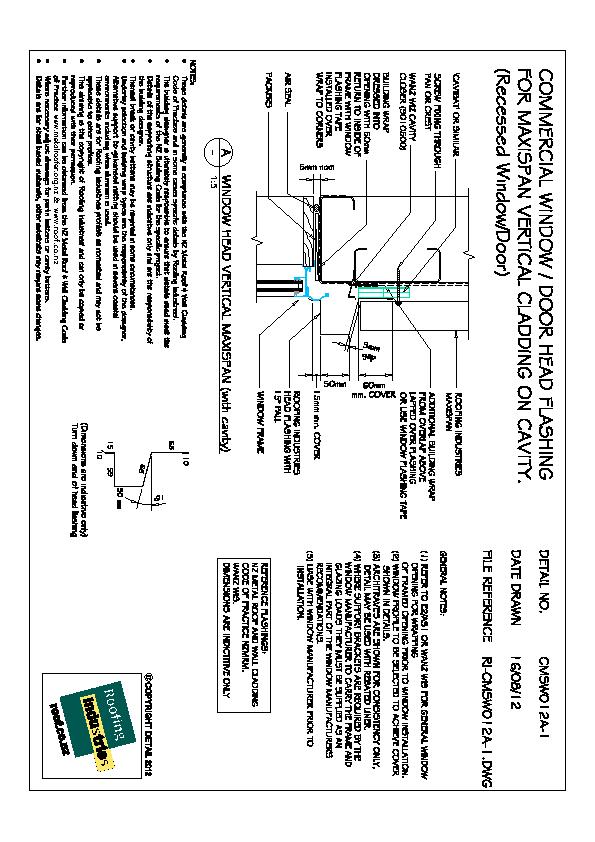

Com. Maxispan Window/Door Head Flashing Vertical Cladding on Cavity (Recessed Window/Door)

RI-CMS-W012A-1

dwg
pdf

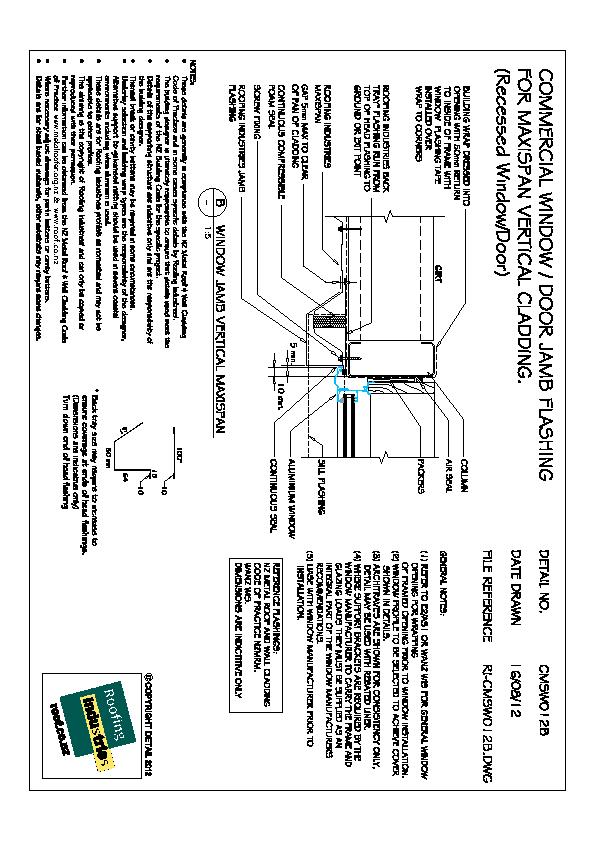

Com. Maxispan Window/Door Jamb Flashing Vertical Cladding (Recessed Window/Door)

RI-CMS-W012B

dwg
pdf
Com. Maxispan Window/Door Jamb Flashing Vertical Cladding on Cavity (Recessed Window/Door)

RI-CMS-W012B-1

dwg
pdf

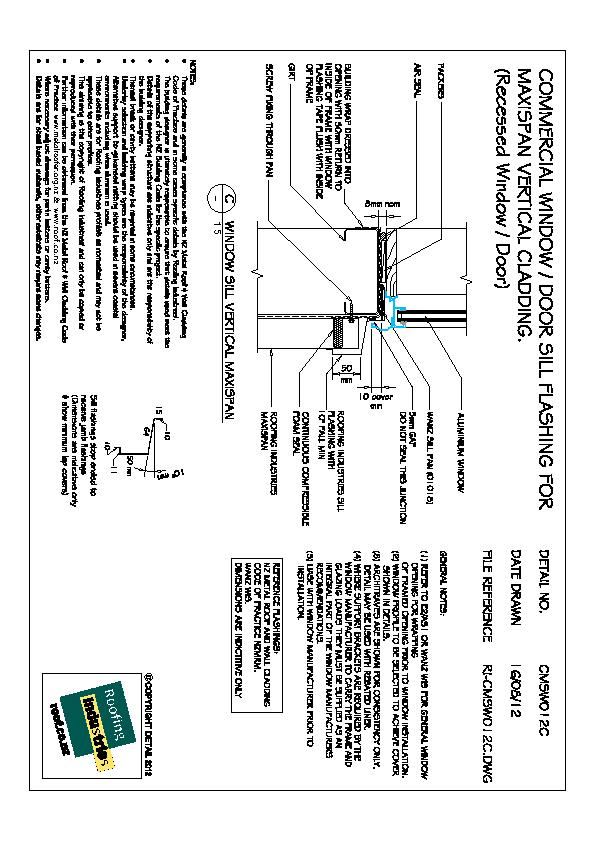

Com. Maxispan Window/Door Sill Flashing Vertical Cladding (Recessed Window/Door)

RI-CMS-W012C

dwg
pdf

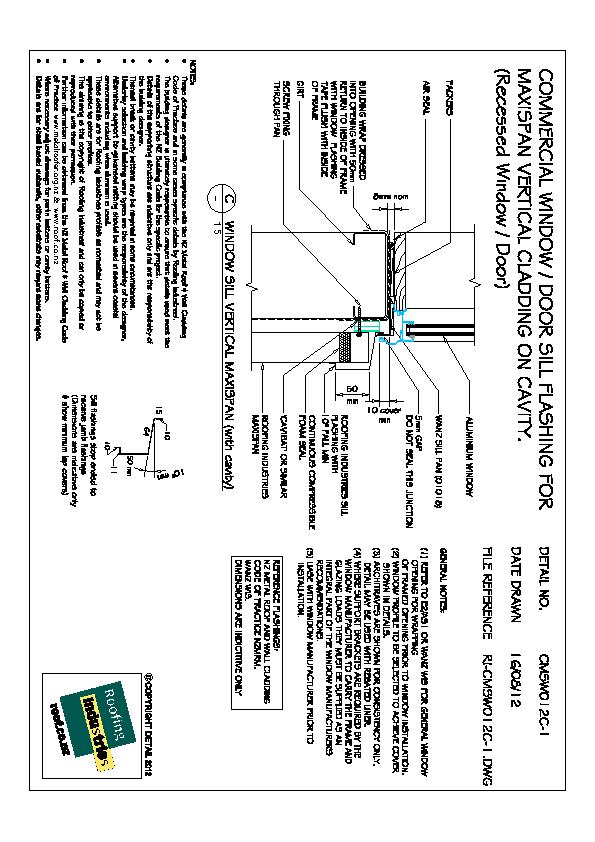

Com. Maxispan Window/Door Sill Flashing Vertical Cladding on Cavity (Recessed Window/Door)

RI-CMS-W012C-1

dwg
pdf

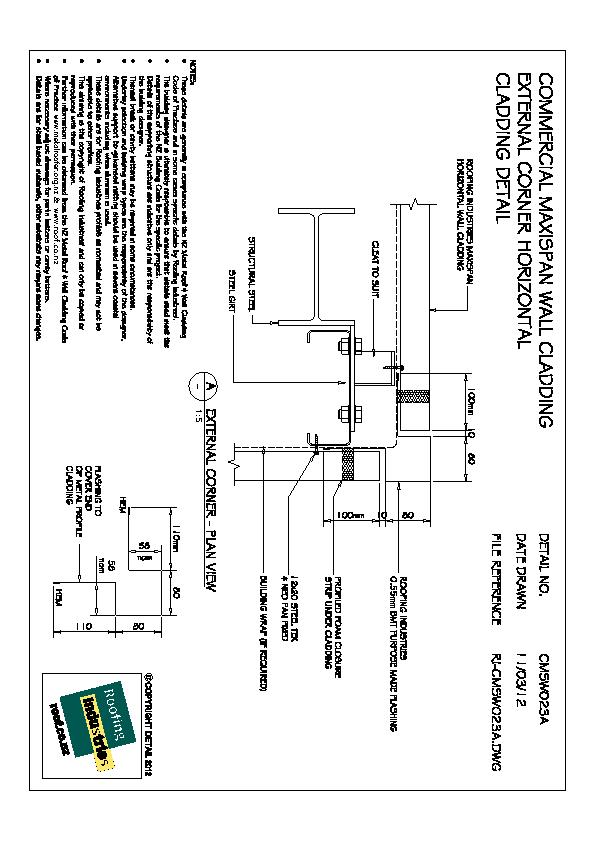

Com. Maxispan External Corner Horizontal Cladding Detail

RI-CMS-W023A

dwg
pdf

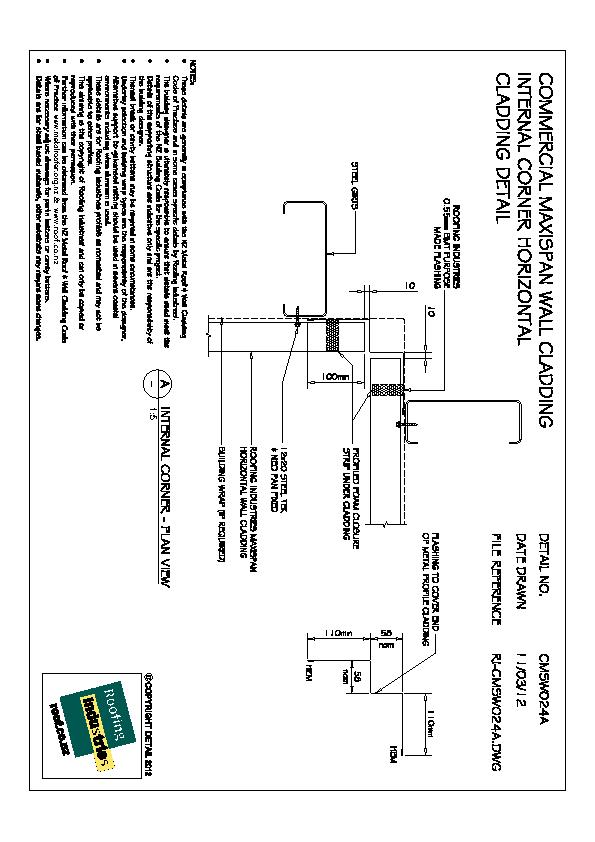

Com. Maxispan Internal Corner Horizontal Cladding Detail

RI-CMS-W024A

dwg
pdf

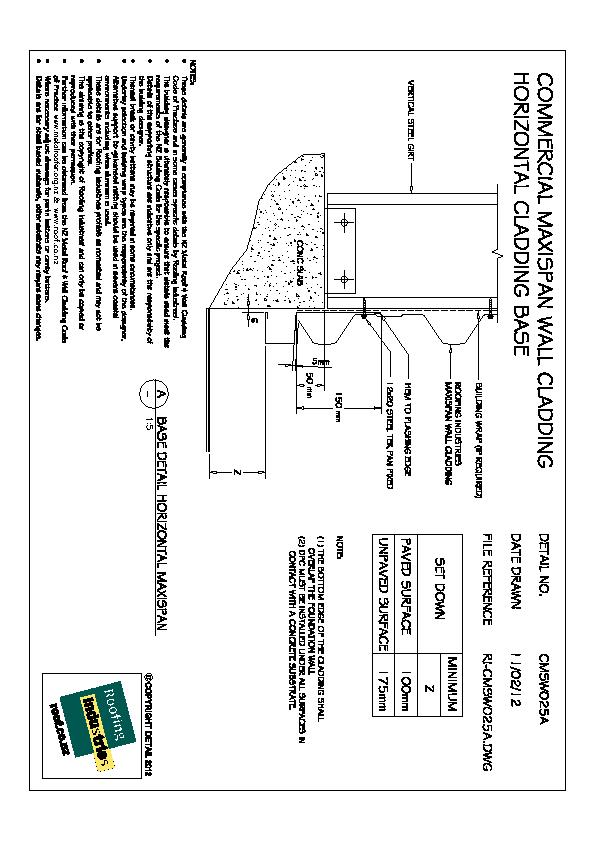

Com. Maxispan Horizontal Cladding Base

RI-CMS-W025A

dwg
pdf

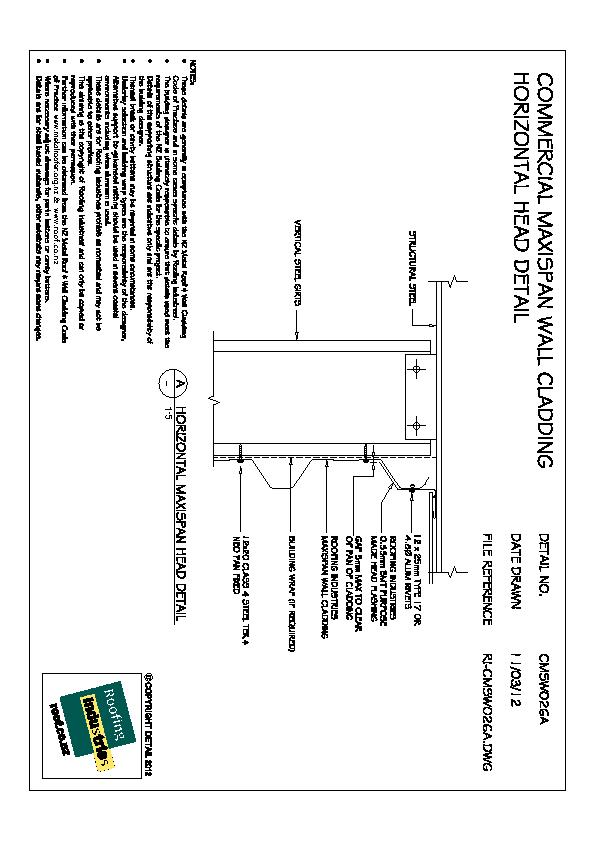

Com. Maxispan Horizontal Head Detail

RI-CMS-W026A

dwg
pdf

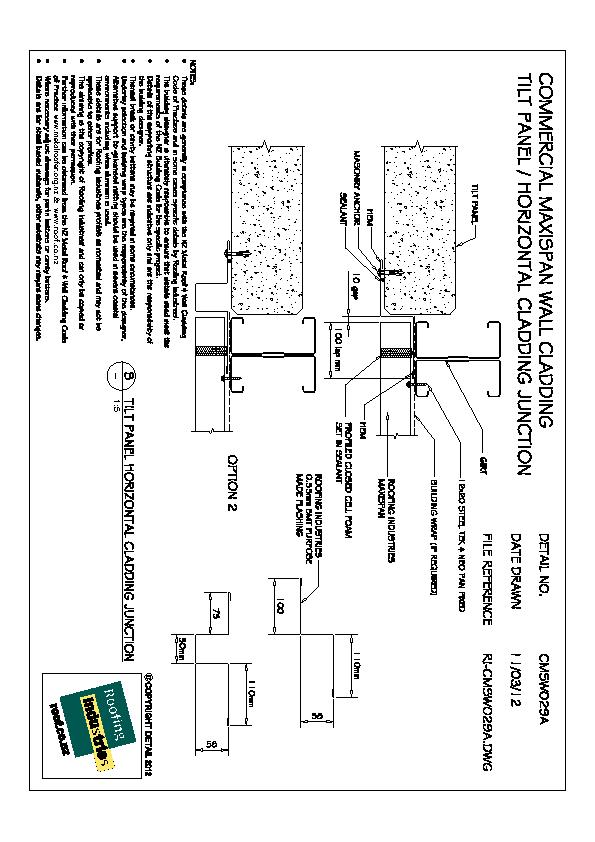

Com. Maxispan Tilt Panel / Horizontal Cladding Junction

RI-CMS-W029A

dwg
pdf
Com. Maxispan Tilt Panel / Horizontal Cladding Junction (2)

RI-CMS-W030A

dwg
pdf

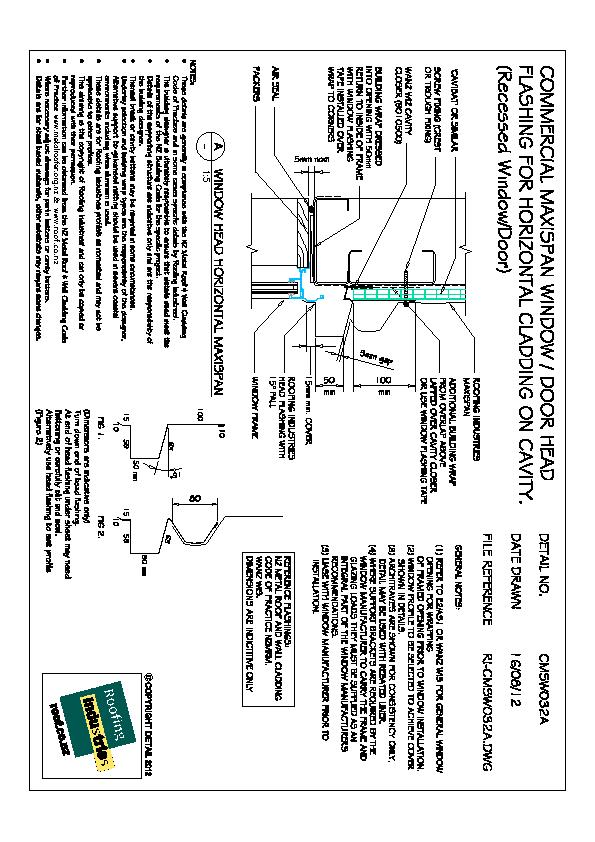

Com. Maxispan Window/Door Head Flashing Horizontal Cladding on Cavity (Recessed Window/Door)

RI-CMS-W032A

dwg
pdf

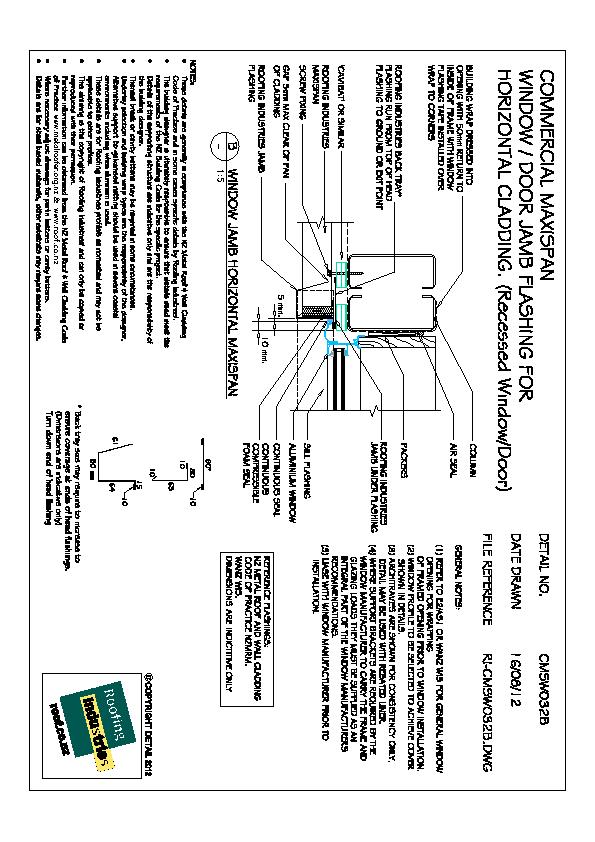

Com. Maxispan Window/Door Jamb Flashing Horizontal Cladding on Cavity (Recessed Window/Door)

RI-CMS-W032B

dwg
pdf
Com. Maxispan Window/Door Sill Flashing Horizontal Cladding on Cavity (Recessed Window/Door)

RI-CMS-W032C

dwg
pdf
Com. Maxispan Roller Door Head for Vertical Cladding

RI-CMS-W090A

dwg
pdf
Com. Maxispan Roller Door Head for Horizontal Cladding

RI-CMS-W090A-1

dwg
pdf
Com. Maxispan Roller Door Jamb for Vertical Cladding

RI-CMS-W090B

dwg
pdf
Com. Maxispan Roller Door Jamb for Horizontal Cladding

RI-CMS-W090B-1

dwg
pdf
Roofing Industries Gutter Profiles

RI-F01

2020

dwg
pdf
Roofing Industries Fascia Profiles

RI-F02

2020

dwg
pdf
BIM
View full
Filters
RVT Version
Commercial or Residential
Clear filters
RI Fascia and gutters image
Fascia and Gutter Profiles

RI-AF01 2016

Revit 2016

rvt
