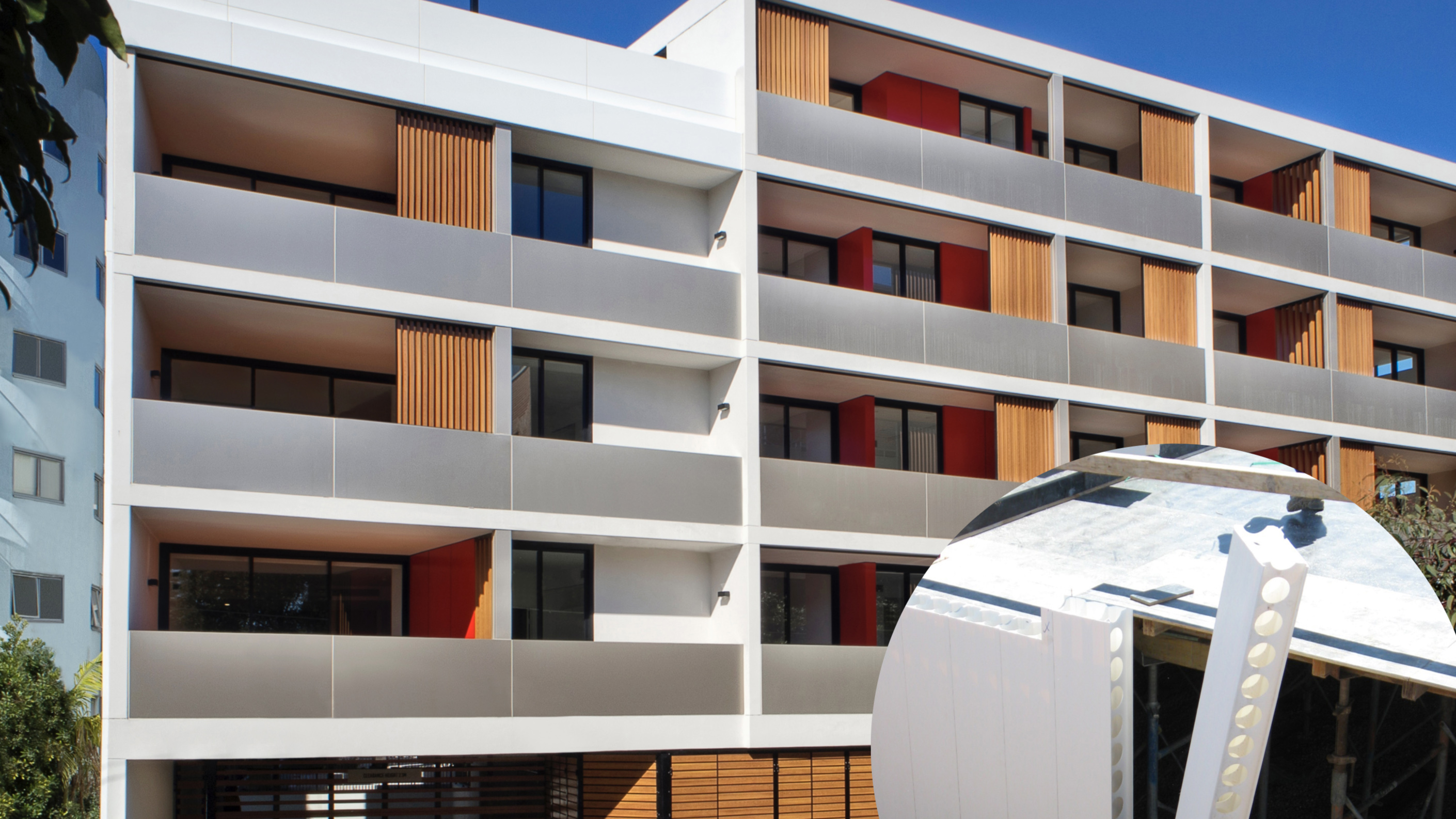

Dincel Structural Walling are stay-in-place polymer formwork panels that encapsulate a concrete wall.
Show more
Can be integrated throughout a whole building design from deep excavation basements to lift shafts, stairwells, walls, columns and facades up to 60 storeys high.
- Civil and industrial construction
- Water tanks and reservoirs
- Swimming pools
- Retaining walls
Show more
B1 Structure: B1.1, B1.2, B1.3.1, B1.3.2, B1.3.3, B1.3.4, B1.3.5, B1.3.6, B1.3.7
- Specific Design
- Verification Method B1/VM1 — NZS 3101:Part 1 Concrete
- AS/NZS 1170: Structural design actions: Part 0: 2002, Part 1: 2002, Part 3: 2003
- NZS 1170: Part 5, NZS 3106: 2009
- NZS 3109: 1997,
- NZS 3112: Part 2: 1986
- NZS 3402: 1989
- Structural performance is provided by specifically designed infill concrete structure
B2 Durability: B2.1, B2.2, B2.3.1(a), B2.3.2
- Refer to Dincel web site testing documentation: Structural Engineering Design Certification For Dincel Construction System
- Verification Method B2/VM1 – NZS 3101: Part 1 Section 3
C1 Protection From Fire
C3 Fire Affecting Areas Beyond The Fire Source
C6 Structural Stability:
- Refer to Dincel web site testing documentation: Dincel Wall Fire Assessment New Zealand Standards and Verification Methods VM1/AS1
- AS/NZS 3837:1998, NZS 3101
- Australian Standards: AS 3600: 2009, AS 5395: 2009 Test methods AS1530
E2 External Moisture: E2.1, E2.2, E2.3.2, E2.3.3, E2.3.4, E2.3.5, E2.3.6, E2.3.7
- Refer to Dincel web site testing documentation: Waterproof Walls
- Verification Method E2/VM1
- New Zealand Standards (Testing): AS/NZS4347:1995
- International Standards (Testing): ASTM E514-08, ASTM E96/M
- Acceptable Solution E2/AS1
E3 Internal Moisture: E3.1, E3.2, E3.3.1, E3.3.2, E3.3.4, E3.3.5, E3.3.6
- Refer to Dincel web site testing documentation: Waterproof Walls
- Verification Method E3/VM1
- New Zealand Standards (Testing): AS/NZS4347:1995
- International Standards (Testing): ASTM E514-08, ASTM E96/M
- Acceptable Solution E3/AS1
F2 Hazardous Building Materials:
- Refer to Dincel web site testing documentation: VOC Emission Test Certificate
- Verification Method F1/VM1
- ASTM D5116-97 Test Method. Certified as Low VOC Emissions
G6 Airborne and Impact Sound: G6.1, G6.2, G6.3.1, G6.3.2,
- Specific Design
- Acceptable Solution G6/AS1
H1 Energy Efficiency:
- While Dincel have prepared compliance details within their documentation. Designers are required to prepare design in compliance with New Zealand Building Code
- Dincel polymer wall should not be considered as a ‘R’ value in the construction component, calculations shall be prepared using the Mass Concrete structure for this component
- Verification Methods of VM1 & Acceptable Solutions AS1
- New Zealand Standard: NZS 4214:2009, NZS 4218:2004, NZS 4243:2007 can be applied
