Regupol 4515 Acoustic Underlay
Description

Tough, durable acoustic underlay designed to reduce impact sound from footfall — 17-20dB dependent on overlay product.

Key Features
  • Made from PUR bound cork particles and PUR foam

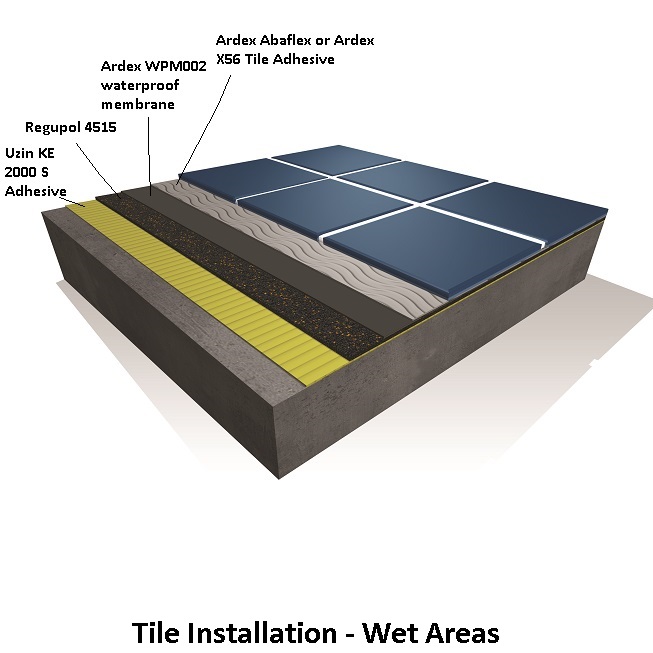

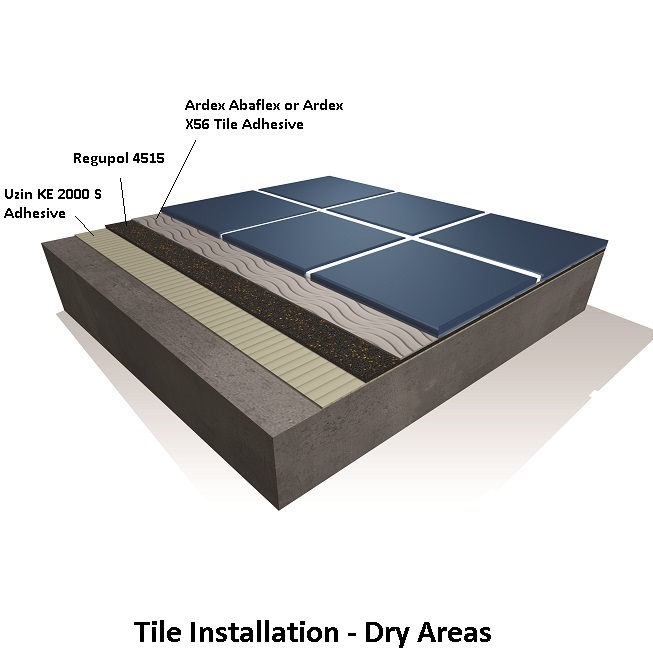

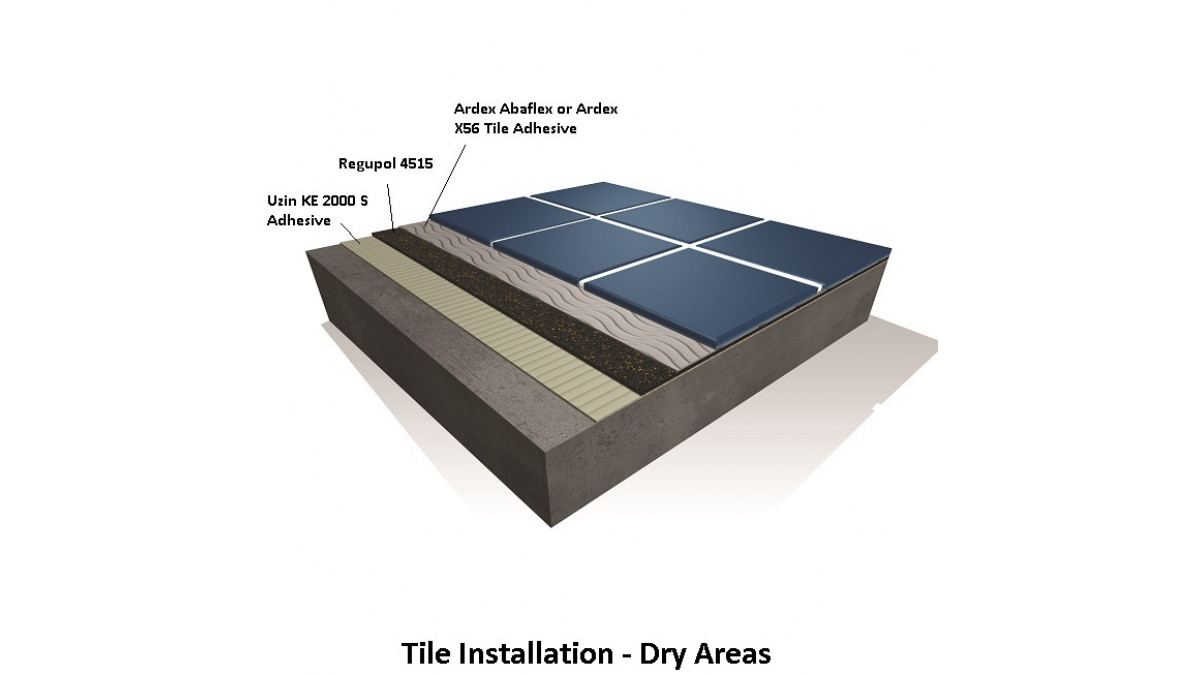

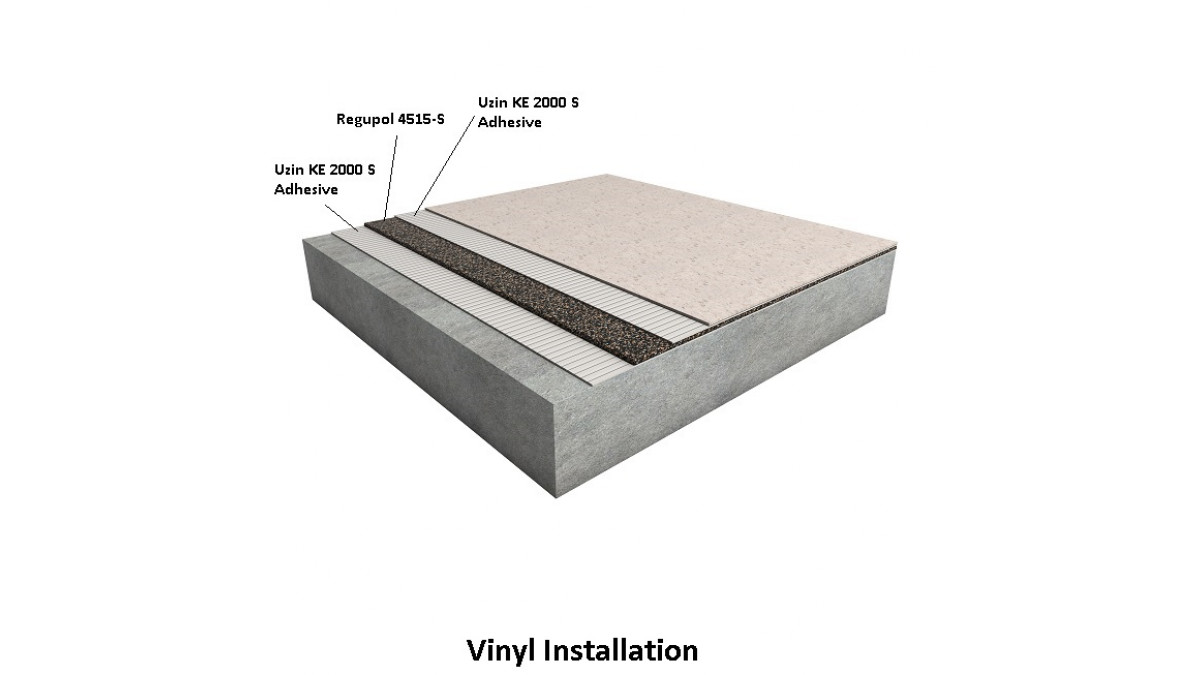

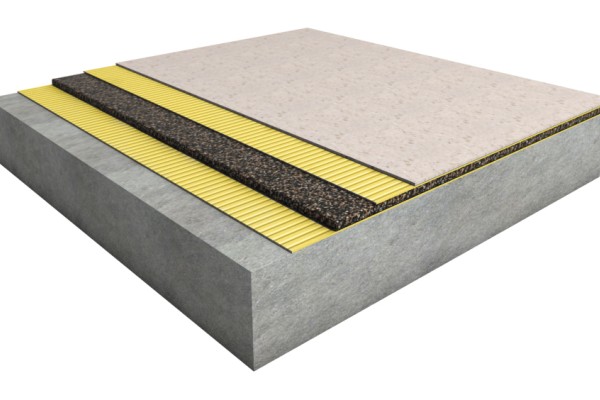

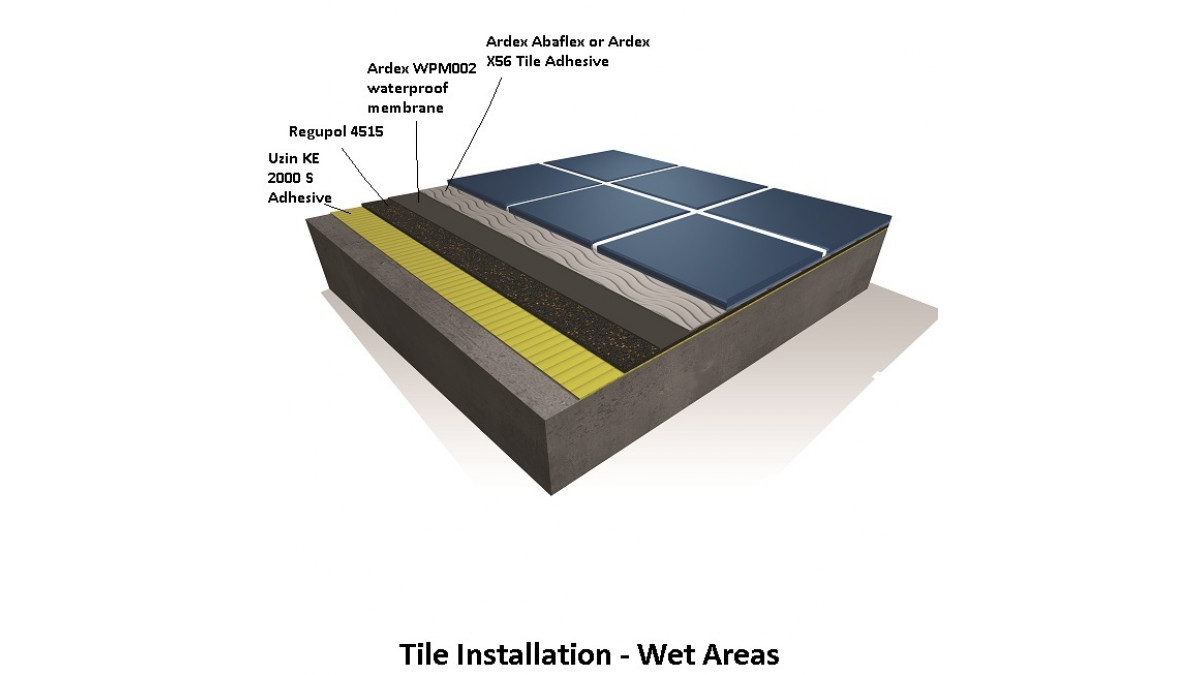

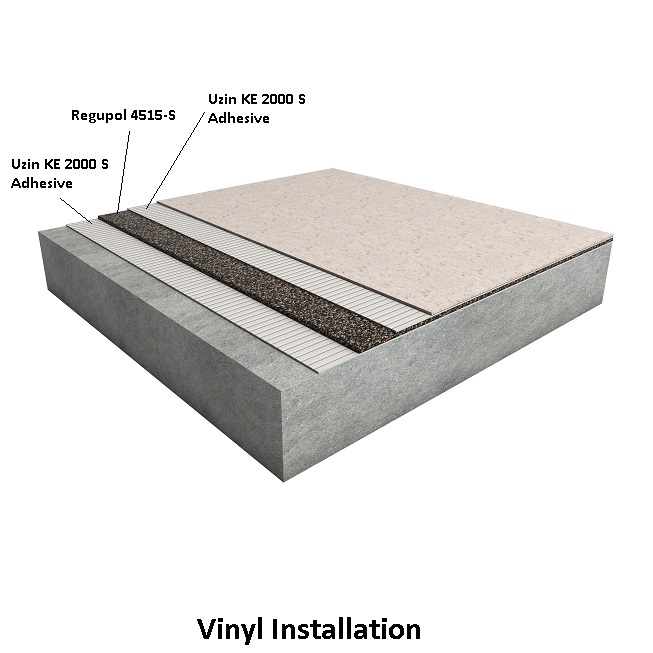

  • Suitable for installation under wood, laminate and tiles (4.5mm thickness) or vinyl sheet (3mm thickness)

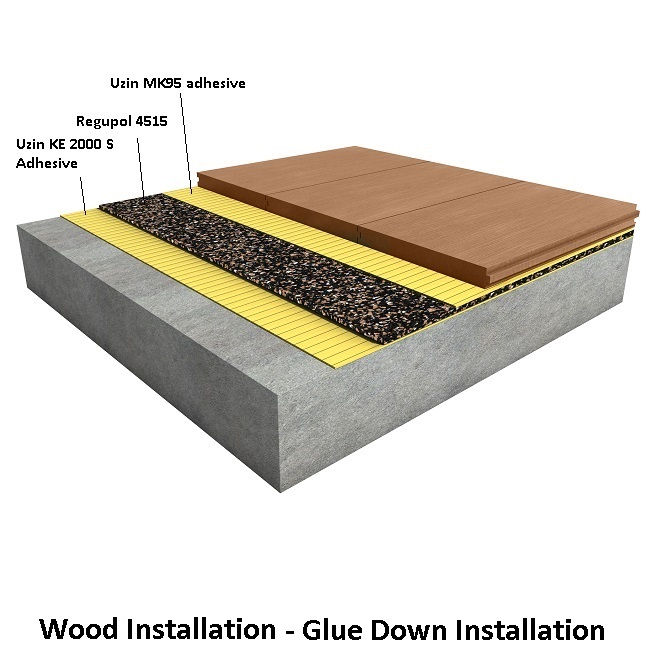

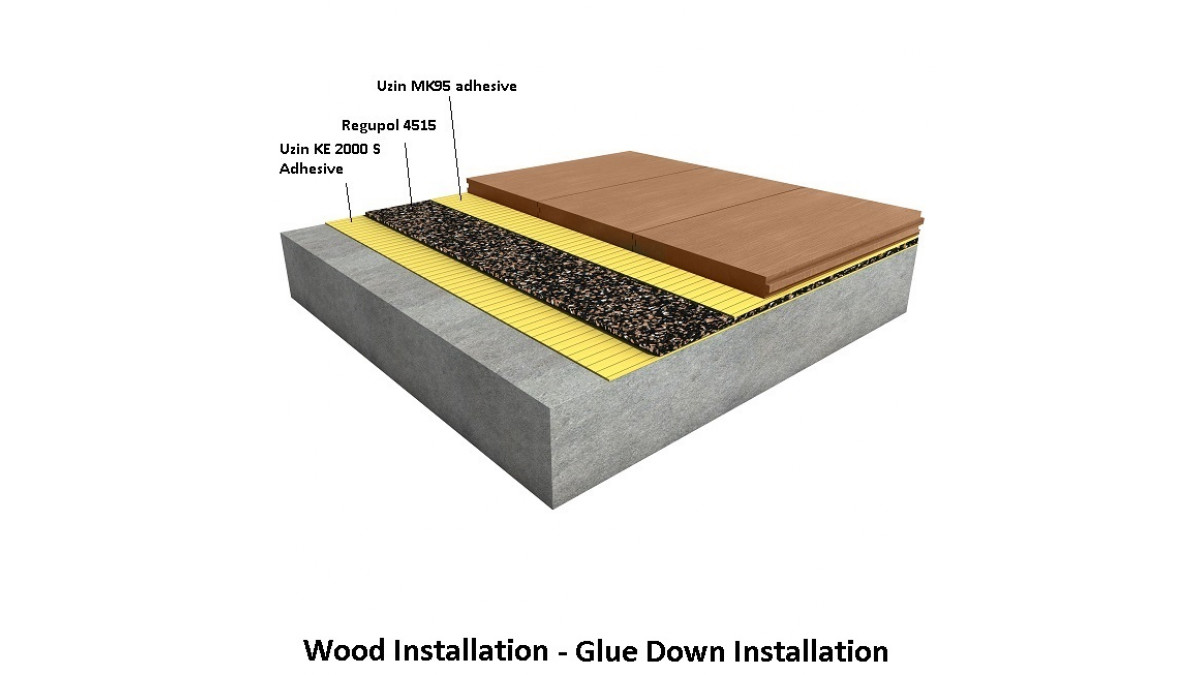

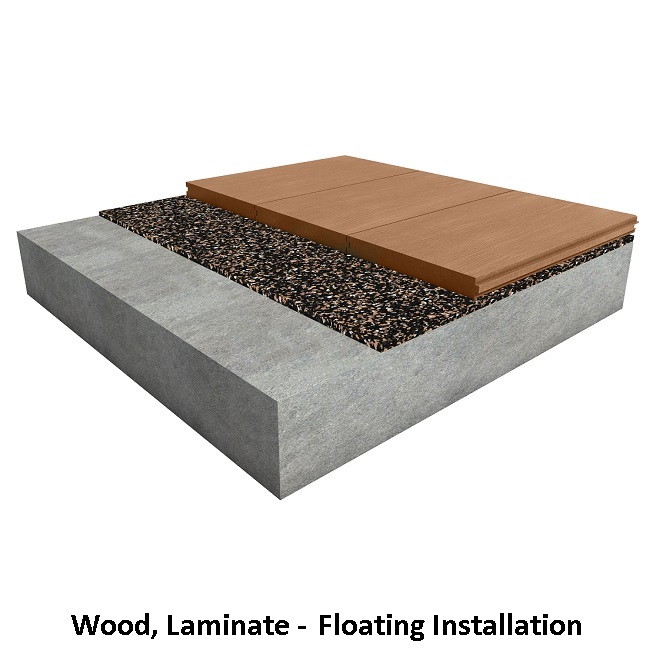

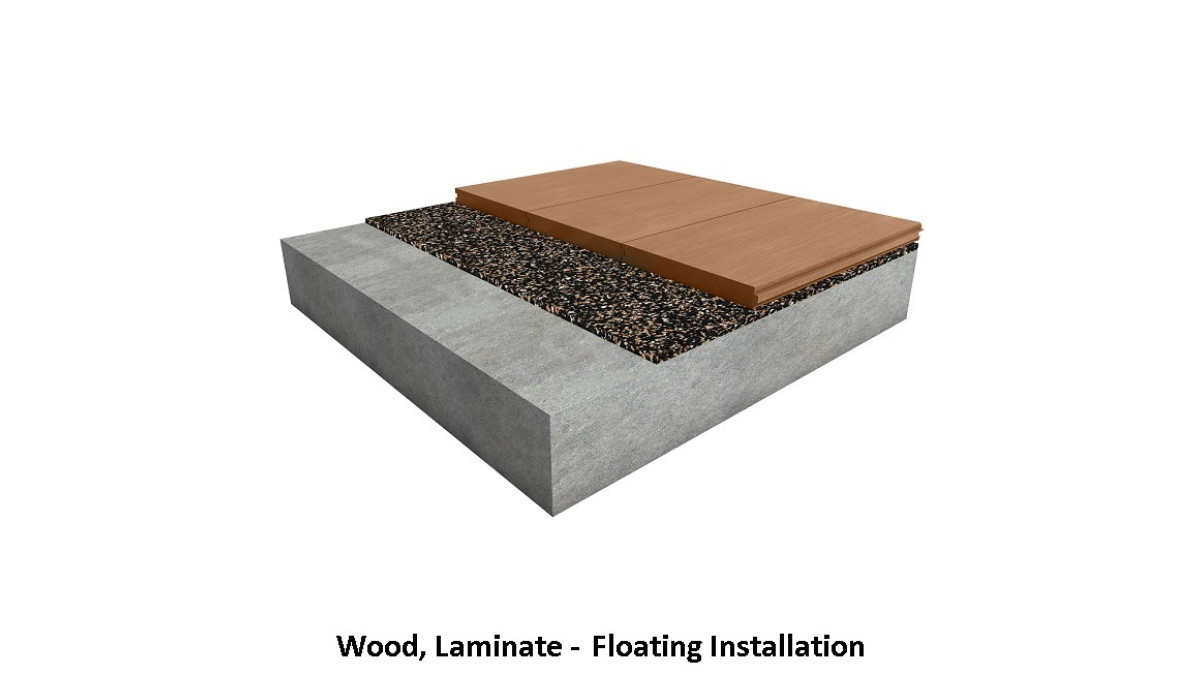

  • Can be glued down or floated over subfloor
  • High load bearing capacity
  • Resistant to ageing and deformation
  • PVC free
  • Made from recycled materials
  • Good Environmental Choice
Homestar / Green Star (Envirospec) Compliant
Homestar / Green Star
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Can be used in residential and commercial applications where impact sound insulation is required
  • Suitable for installation under wood, laminate and tiles (4.5mm thickness) or vinyl sheet (3mm thickness)
  • Can be glued down or floated over subfloor
Statement of Building Code Compliance

The critical radiant flux in accordance with ISO9239-1:2010 for Regupol 4515 acoustic underlay with the following products are listed below:

  • 8mm Laminate — 5.6 kW/m2
  • 14mm timber — 4.7 kW/m2
  • 2mm vinyl — 11.0 kW/m2
In-Service History

Regupol rubber flooring has been supplied in to the New Zealand market by Jacobsen Creative Surfaces for over 25 years.

C Protection from Fire compliant
Protection from Fire
Test Results
Test Results
Literature
Product Assurance
Data Sheet
Data Sheet: 4515 3mm
Installation Instructions
Test Results: Acoustic - Decotile LVT
Test Results: Acoustic - Pergo Laminate
Test Results: Acoustic - Pergo Timber
Test Results: Acoustic - Tarkett Vinyl
Test Results: Fire
Other Literature
Brochure: Resilient Flooring
Brochure: Tiled Floors
Brochure: Timber Floors
Product Page on Supplier Website
