CS For Doors Supplies Oversized Sliding Whiteboard for Datacom

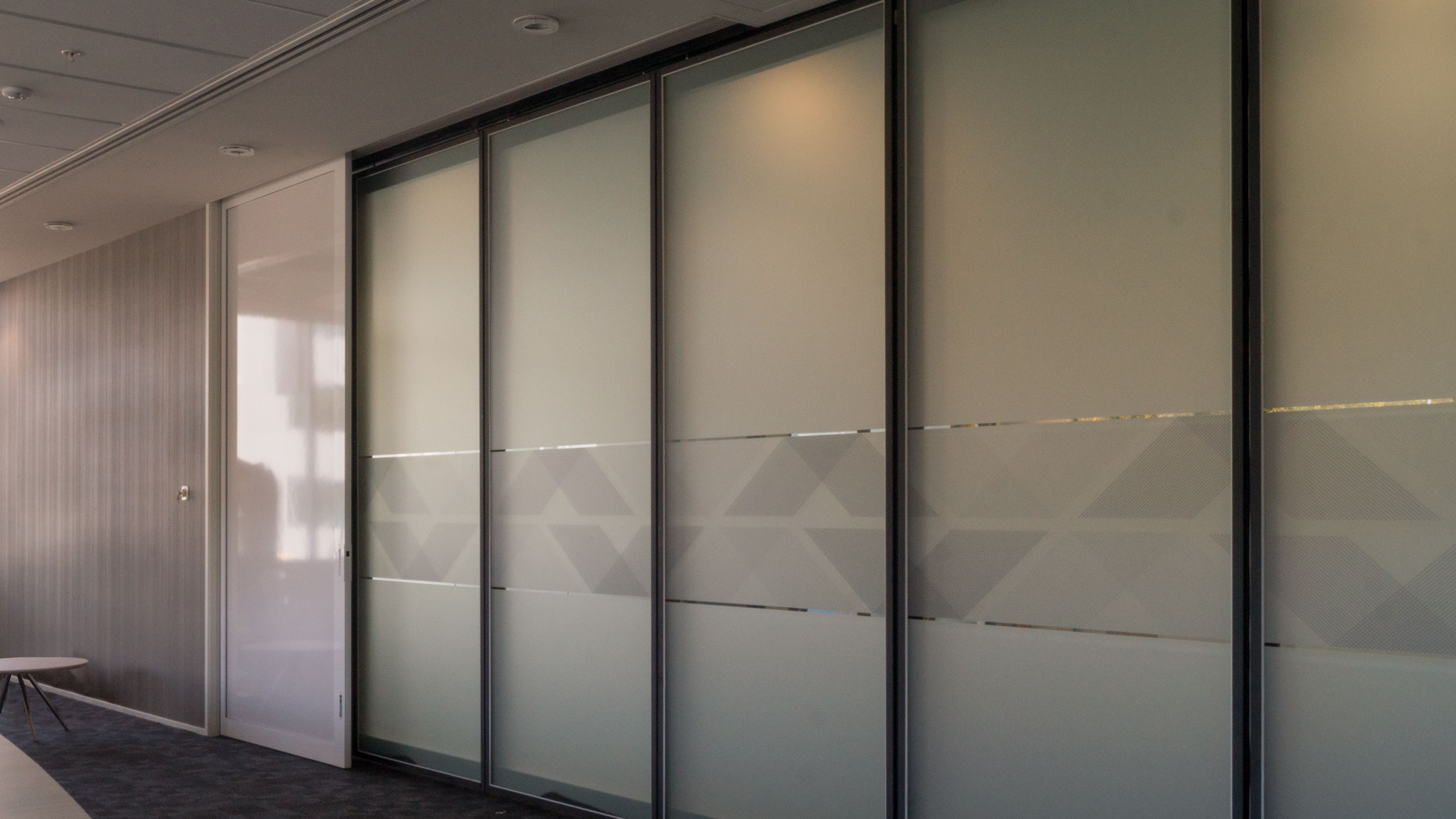

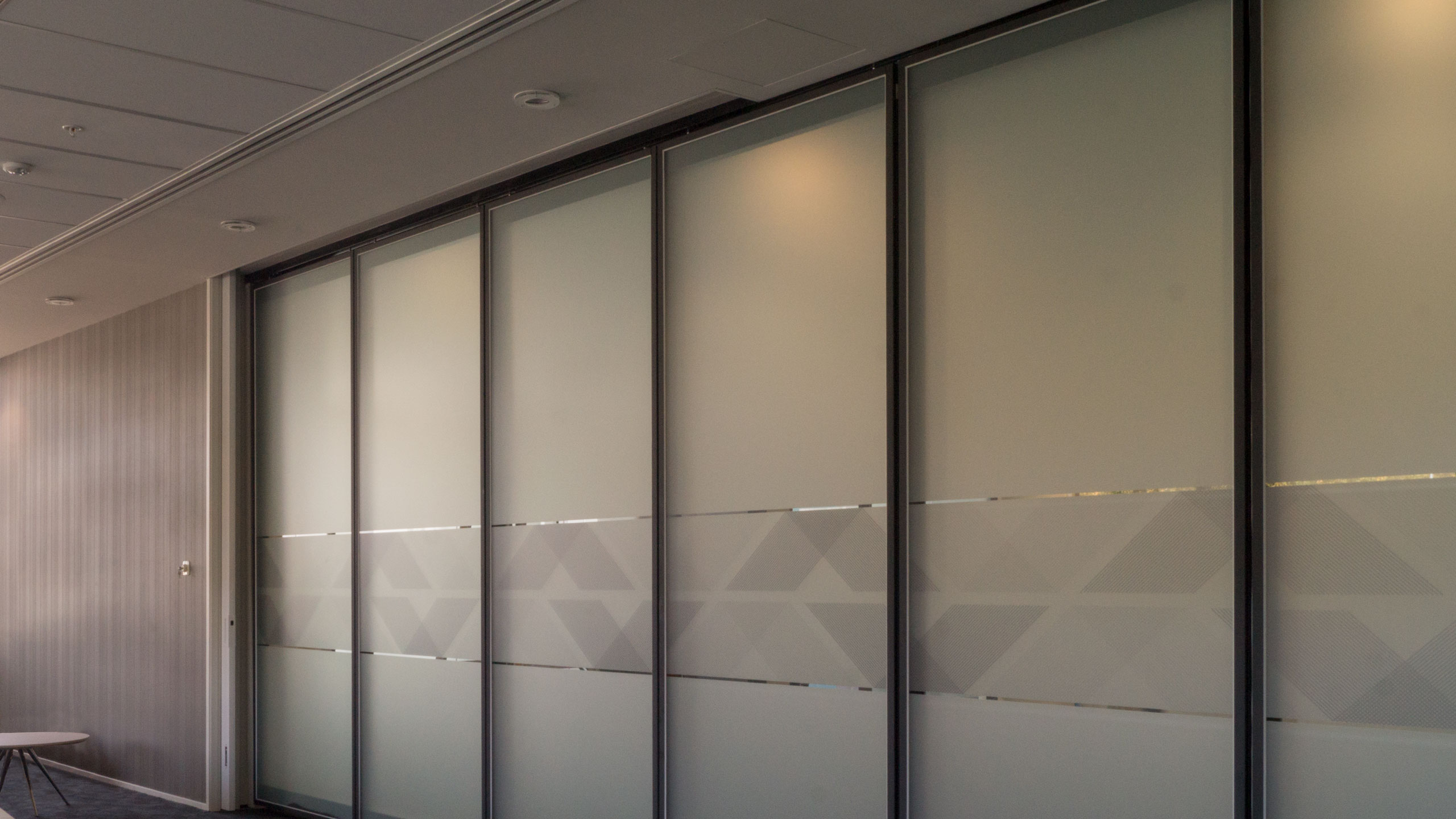

The newly completed Datacom building in Auckland's Wynyard Quarter has open-plan workspaces with wireless capability throughout, allowing Datacom 'rovers' to move freely around the building to form collaborative work groups.

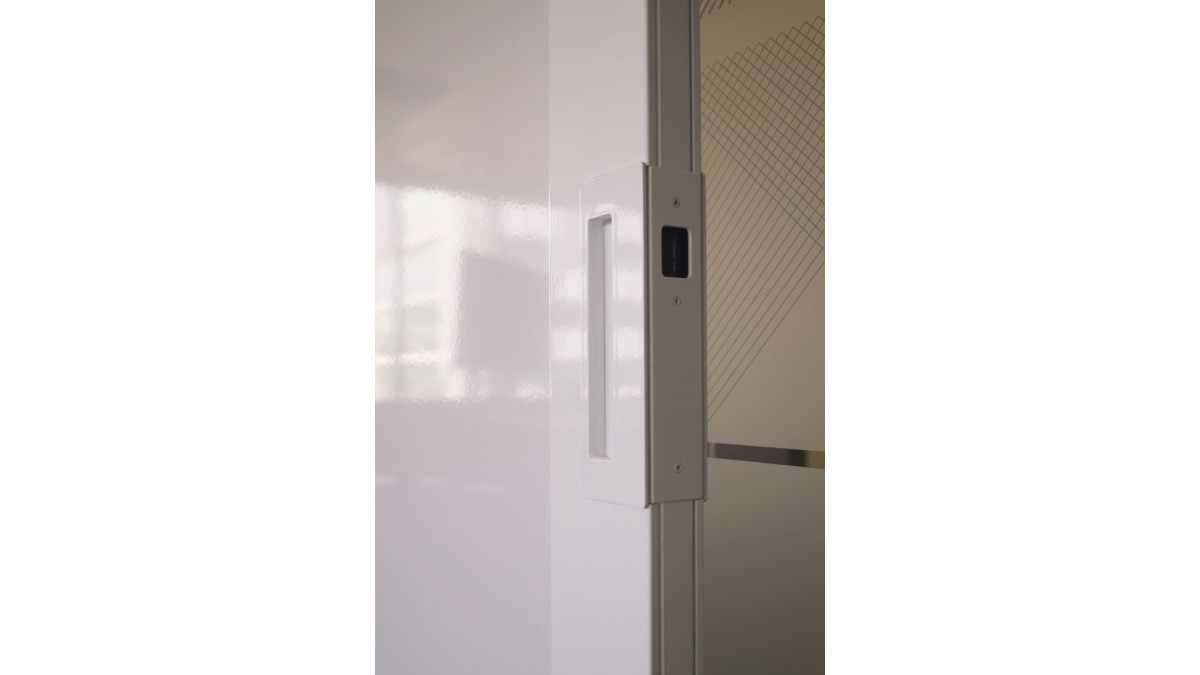

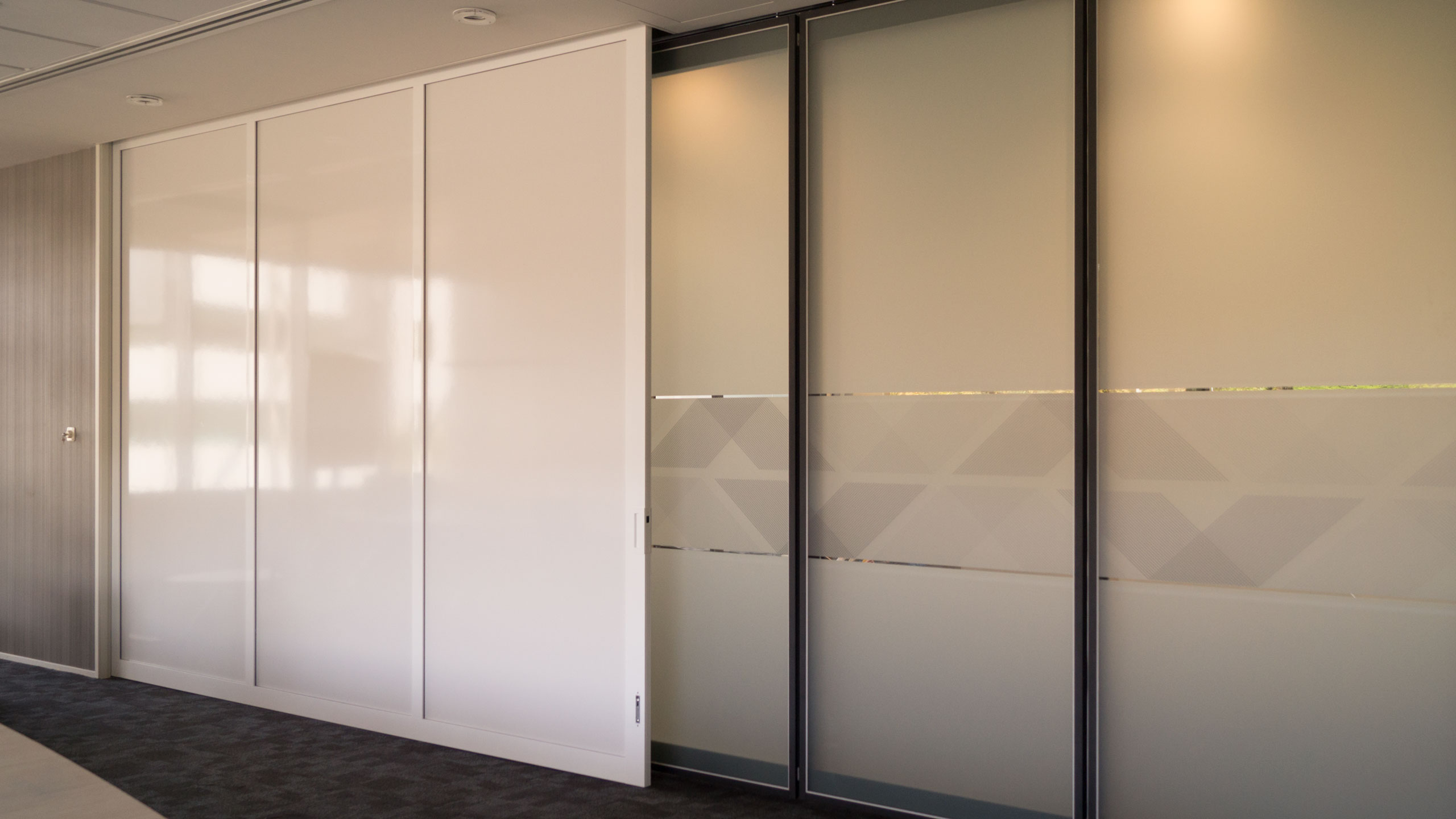

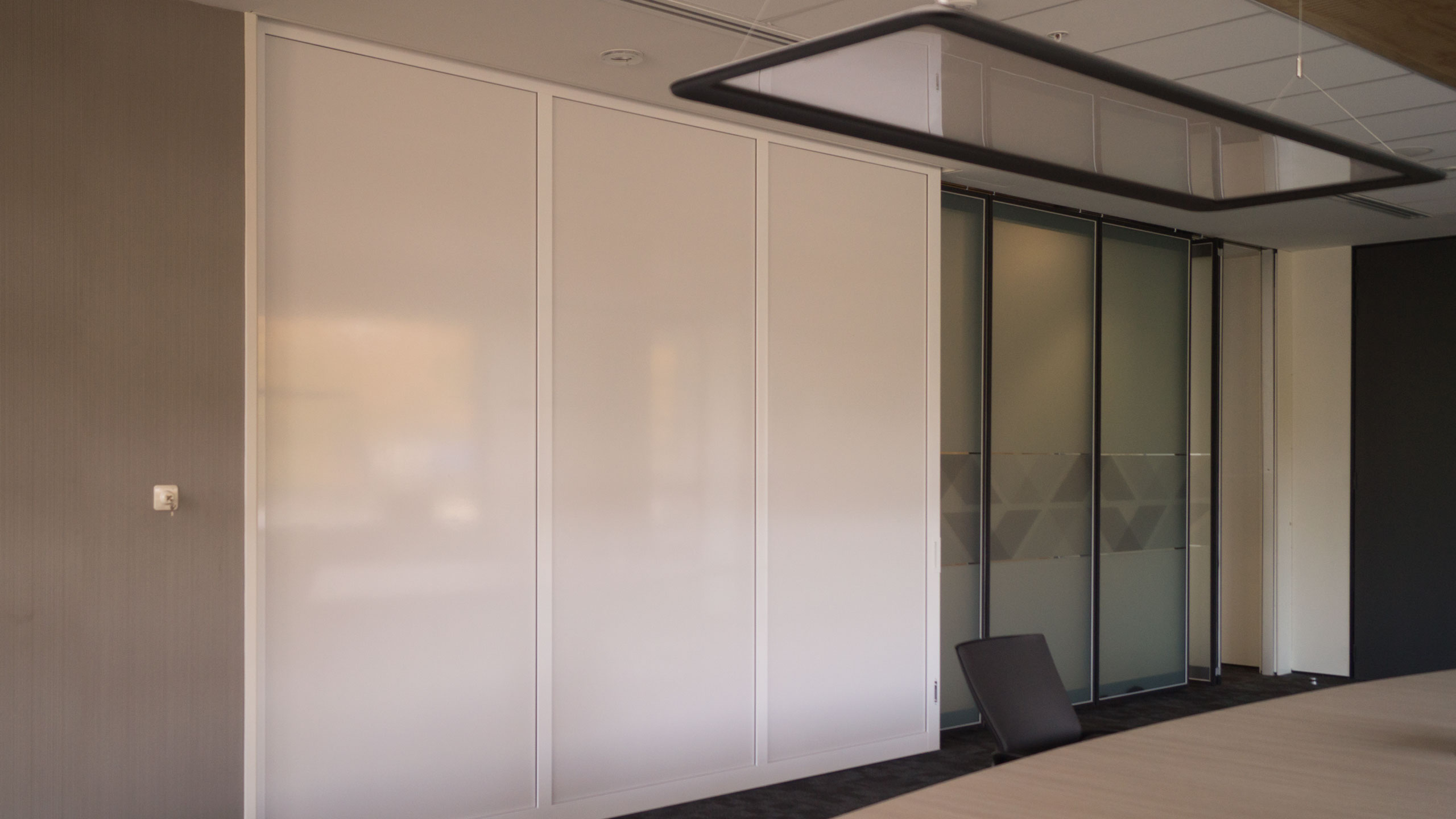

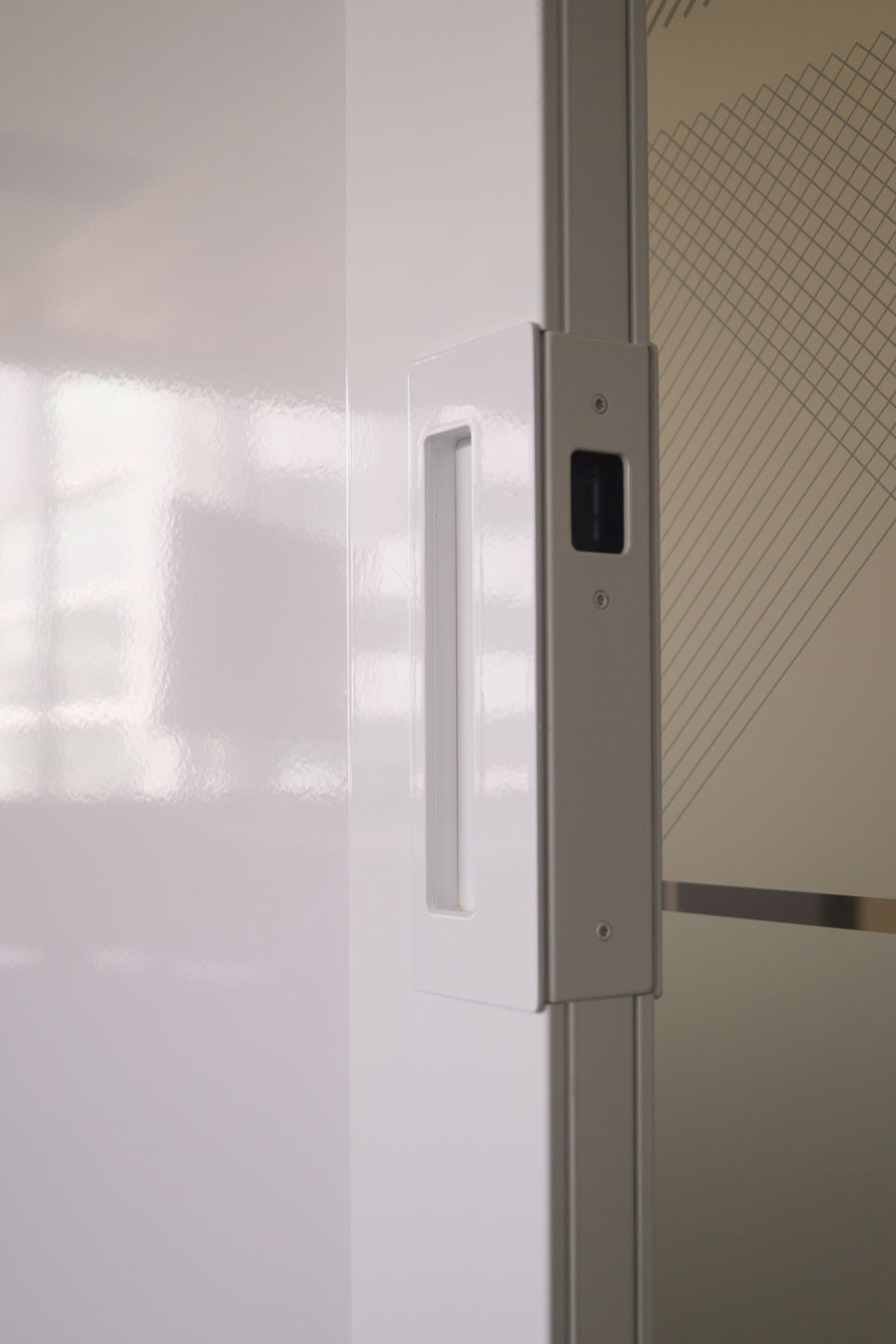

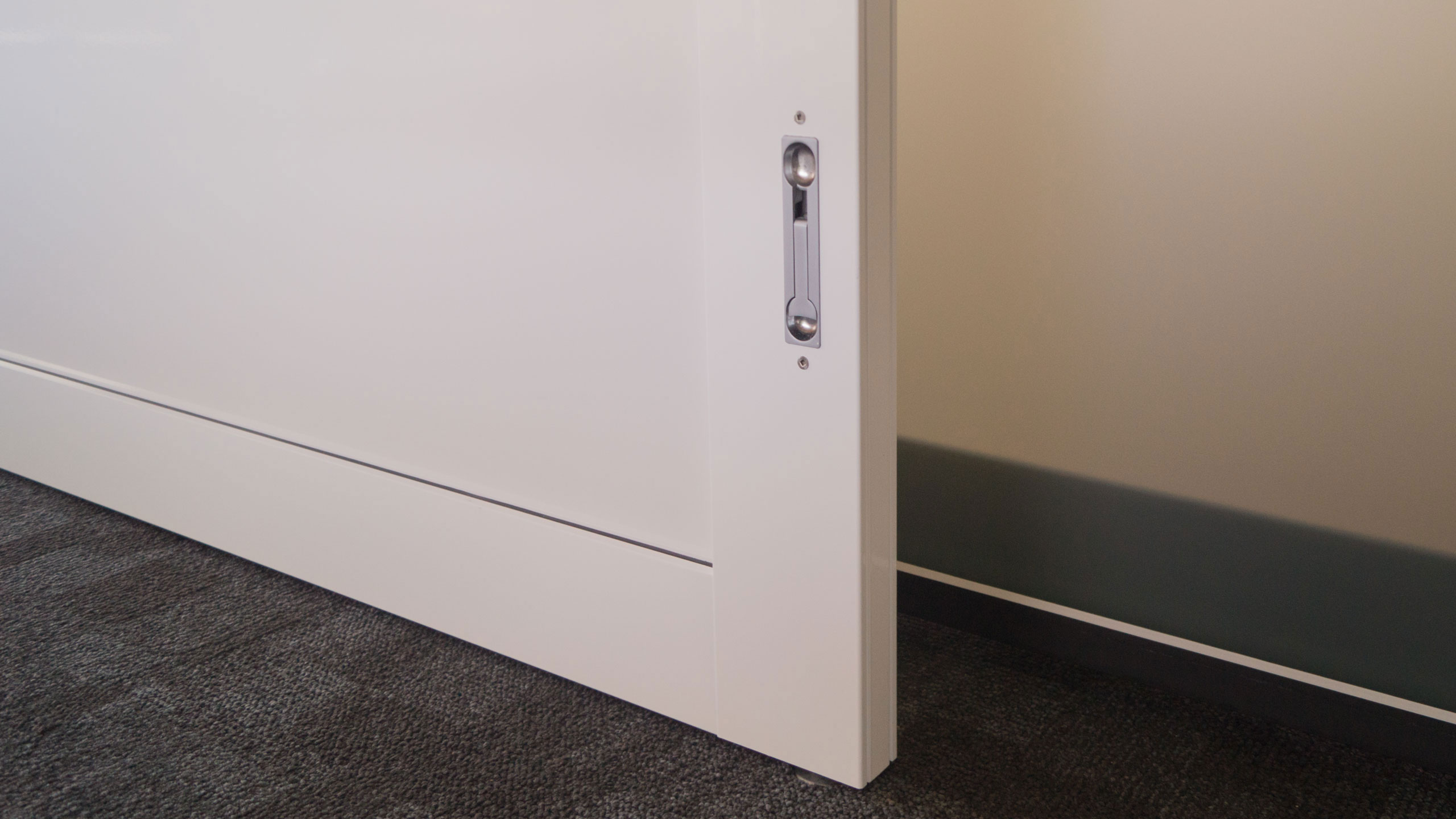

To assist with the open plan boardroom layout, CS For Doors supplied a 3m high x 4m wide whiteboard door designed to slide completely away into the cavity pocket when not in use. The top-hung door was manufactured as a single 3-lite CS NewYorker, with white powder coated frame and three vertical whiteboard panels. The CL400 Magnetic handle was also powder coated white to match the door. When fully extended, the door can be fixed in place using the NewYorker drop bolt in the front stile.

The door slides back into a CS Ultimate cavity pocket, suitable for 140mm framing. It has custom split jambs, no closing jamb and full height detail. The pocket also has acoustic batts fitted for added sound insulation. Due to site access restrictions, the track had to be supplied in two pieces and joined on site. The door was also assembled on site.

Builder: Fletcher Construction
Architect: Gaze

CS NewYorker Door

CS For Doors

View Product

The CS NewYorker is a stylish pre-finished door frame that can be glazed using a wide range of materials, glass being the most popular.

NZ Made

CS Door Leaves are suitable for use in sliding, pivot or hinged applications in residential, commercial and light industrial buildings
Handles: A variety of handles can be factory fitted including a custom designed recessed leading edge pull
The CS NewYorker is 38mm thick, and has been purpose designed to work in conjunction with CS Cavity Sliders and CS Pre-Hung Jamb systems for a complete solution

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.

BRANZ Appraised

CS Ultimate Cavity Slider

CS For Doors

View Product

CS Ultimate is a heavy duty cavity sliding door system designed for higher, wider, thicker and heavier doors.

NZ Made

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

Designed for higher, wider, thicker and heavier doors
Customised the timber frame jambs to suit the thickness door specified — from 10mm glass to 88mm thick timber door leaf

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.

Structure

Durability

Hazardous Building Materials

BRANZ Appraised
