FireZone F1E Pigmented Exterior Timber Cladding Intumescent Fire Protection
Description

Firezone F1E is a breakthrough in exterior fire protection coating systems. Designed to protect timber cladding weatherboards from ignition and flame spread.

Firezone F1E’s intumescent technology, when in contact with embers, sparks, radiant heat or direct flame, forms a Carbon insulating layer that seals off the substrate, preventing ignition or flame spread on the coated surface.

Key Features
  • Allows timber to be used on multi-storey construction (7m residential, 10m commercial)
  • Can be used within a 1m proximity to a boundary

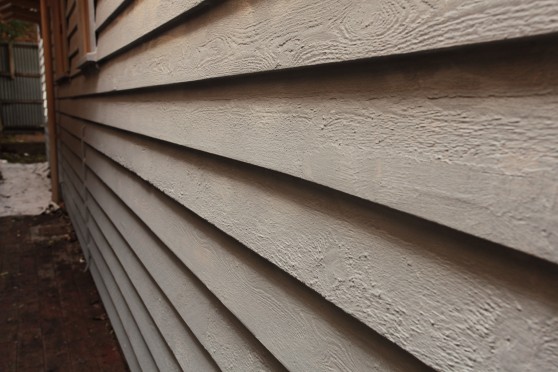

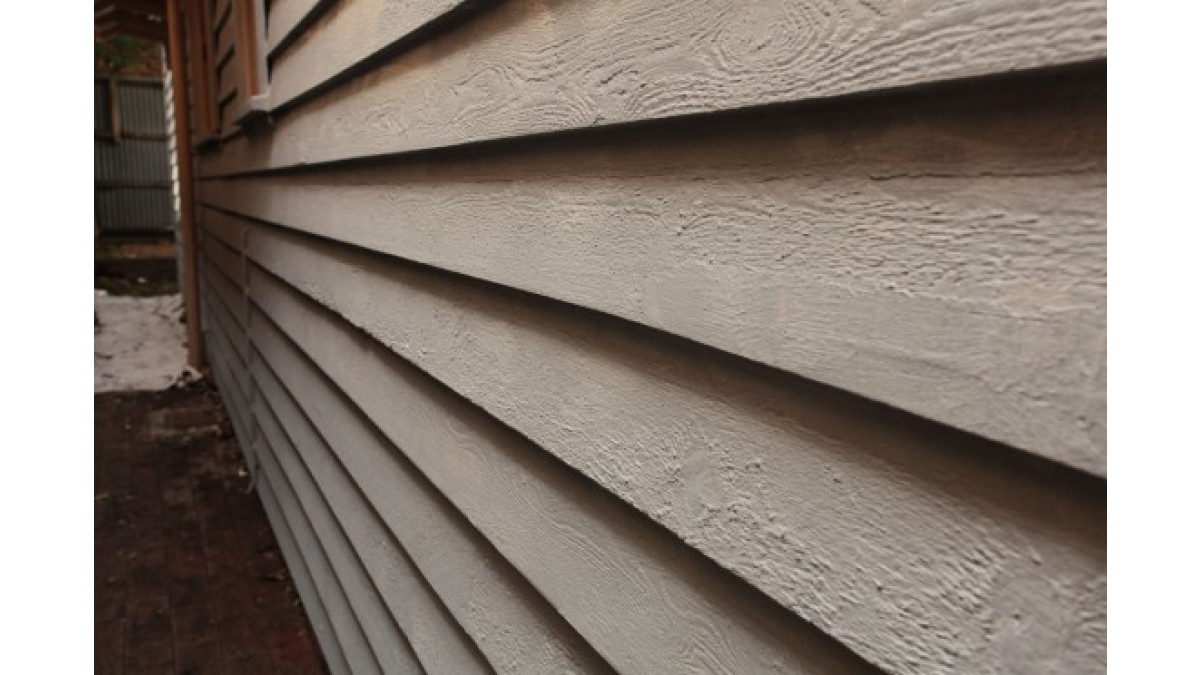

  • Suitable on exterior timber cladding weatherboards (Western Red Cedar and Pine)
  • Firezone™ F1E is a 1-part self-priming system, applied to bare timber cladding followed by top coating with an acrylic exterior finish
  • High performance, non hazardous, waterbased low VOCs
  • Protective coating is sprayed on-site to achieve the nominated dry-film thickness
  • Applied by ZONE’s preferred applicators for compliance
Scope of Use
  • Used on exterior weatherboard timber cladding to protect from ignition and flame spread
  • Allows timber to be used on multi-storey construction (7m residential, 10m commercial)
  • Can be used within a 1m proximity to a boundary
  • Firezone™ F1E is a 1-part self-priming system, applied to bare timber cladding followed by top coating with an acrylic exterior finish



Limitations on Use
  • Applied by ZONE’s preferred applicators for compliance
Statement of Building Code Compliance
  • Tested: Independently tested to ISO 5660.1-2015
  • Tested: Accelerated Weathering to ASTM D 2898 Method B with waterflow rate from Method A

FireZone™ F1E Exterior Timber Intumescent – ignition barrier for an exterior wall cladding

system to achieve compliance with the New Zealand Building Code C/AS2 Acceptable

Solutions for Buildings, External cladding systems, Paragraph 5.8.1, Table 5.5 distance to

boundary less than 1.0m and multi-storey ≥7m (residential) ≥10m (commercial)

In-Service History

Has 15 year durability when used in conjunction with Wattyl Solagard Exterior Paint system

Other Performance Attributes

Refer to Peak Heat Release and Total Heat Release values from Zone

  • Mould Resistance: Excellent
  • Washability: Excellent exterior performance
  • Flexibility: Highly ductile coating
  • Durability: 15 years with Wattyl Solagard Exterior Paint
Documents
Product Technical Statement

20200818 FireZone F1E
