Description

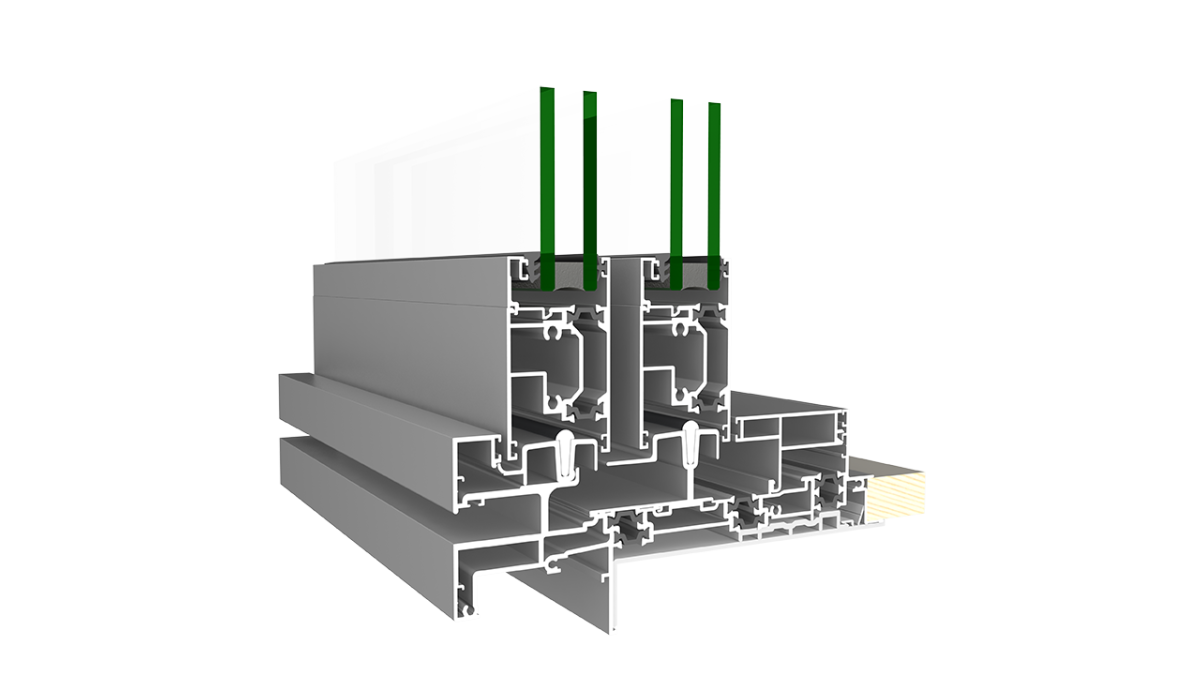

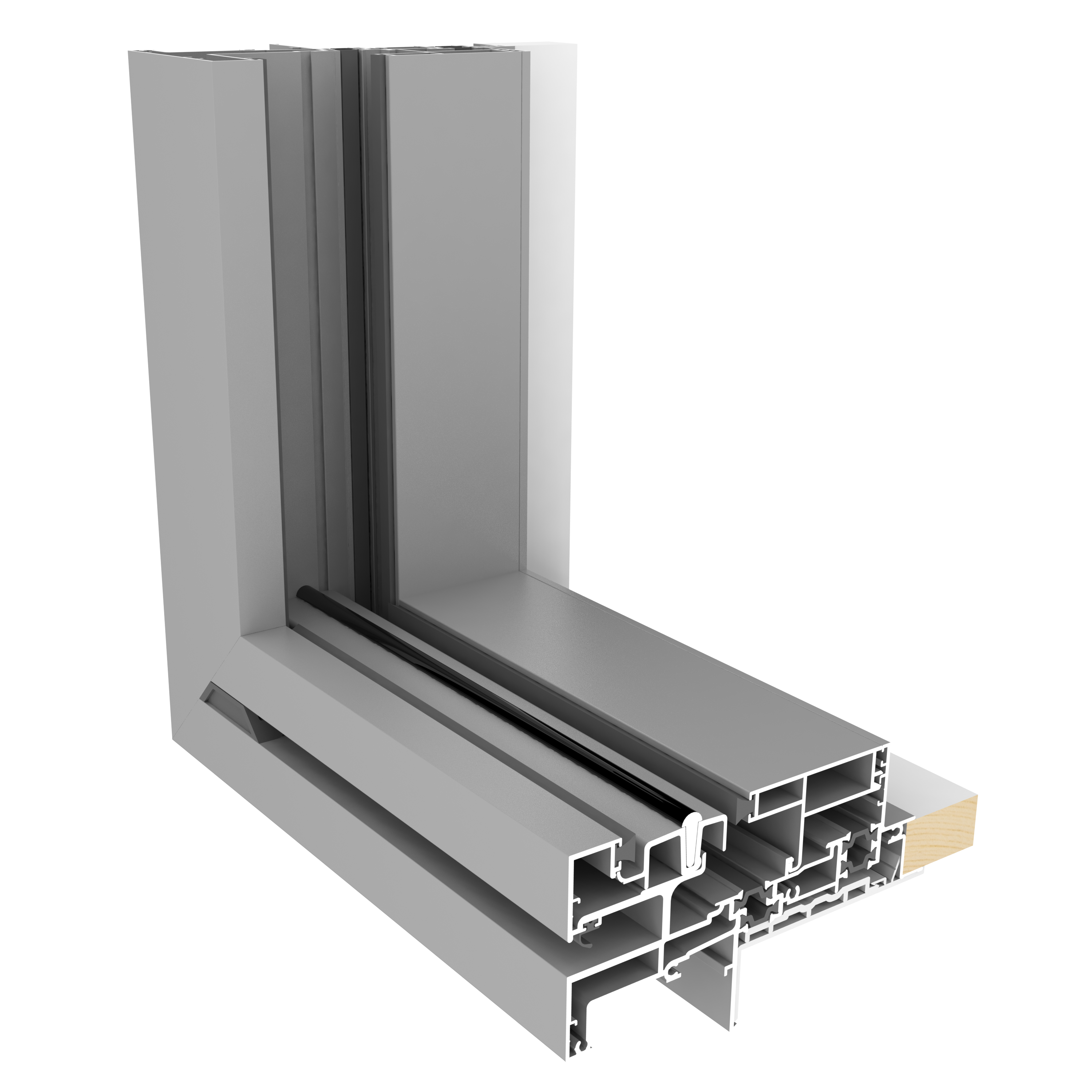

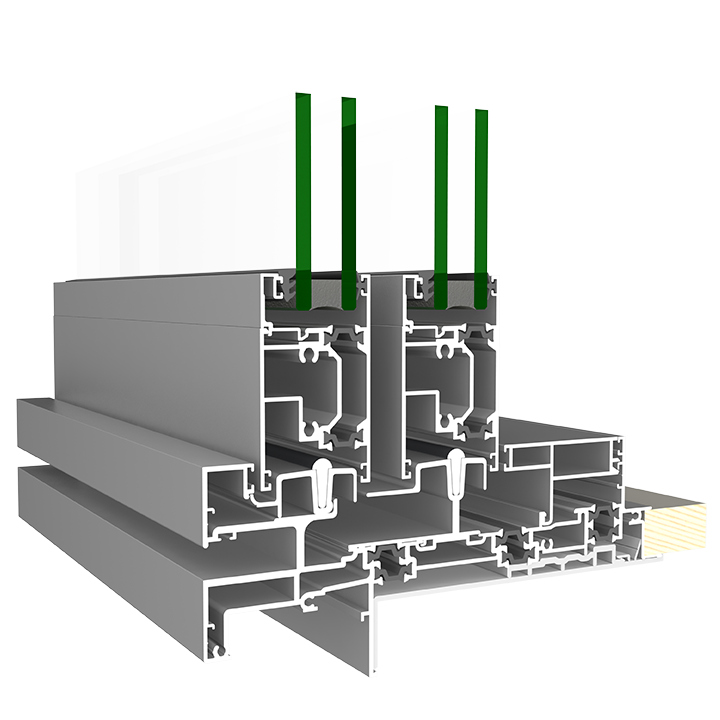

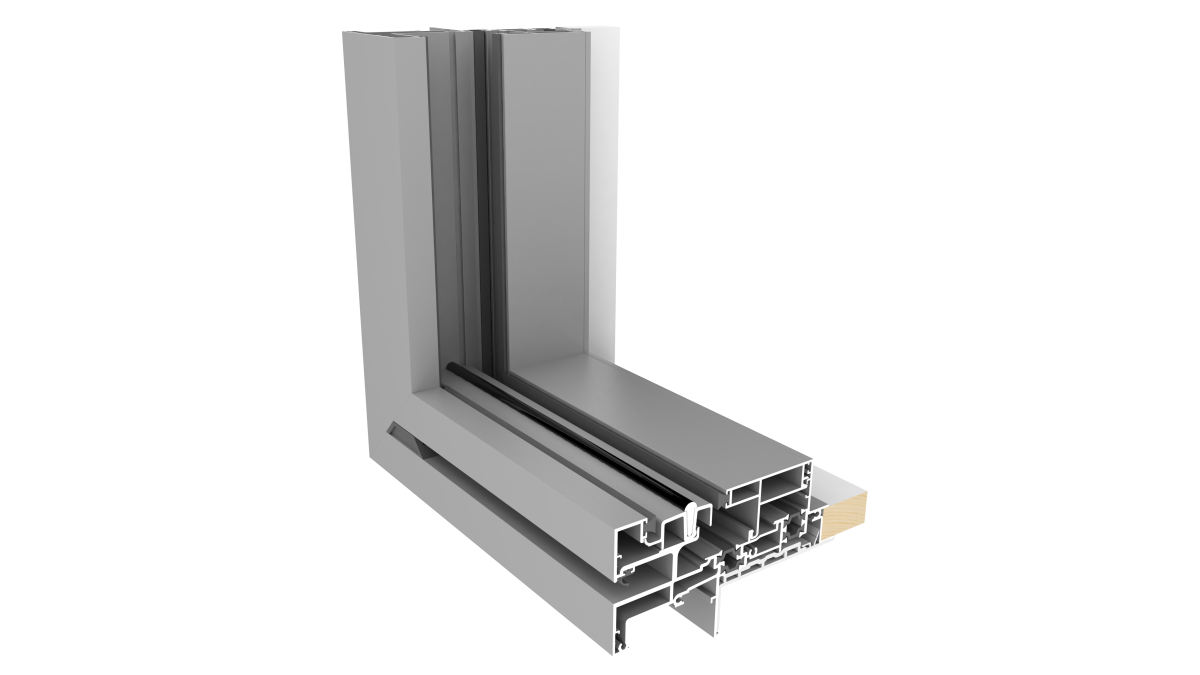

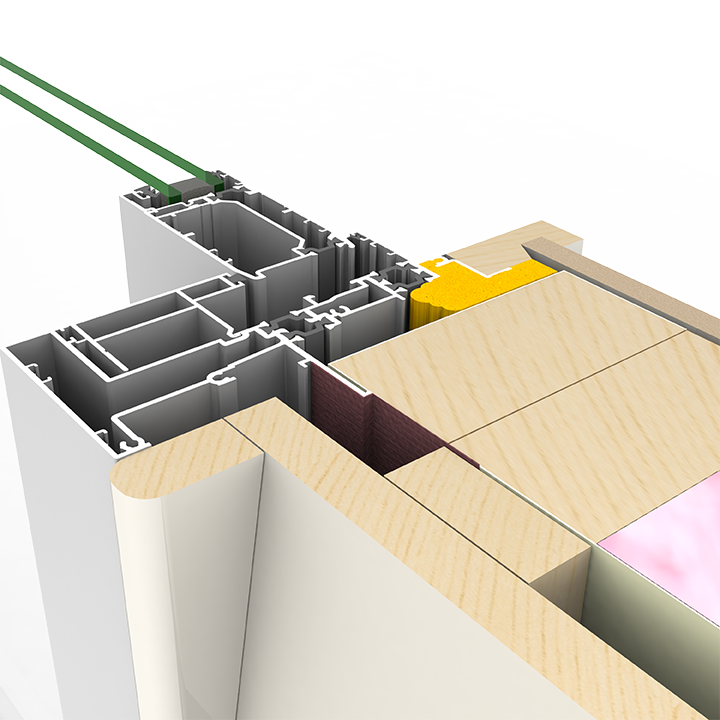

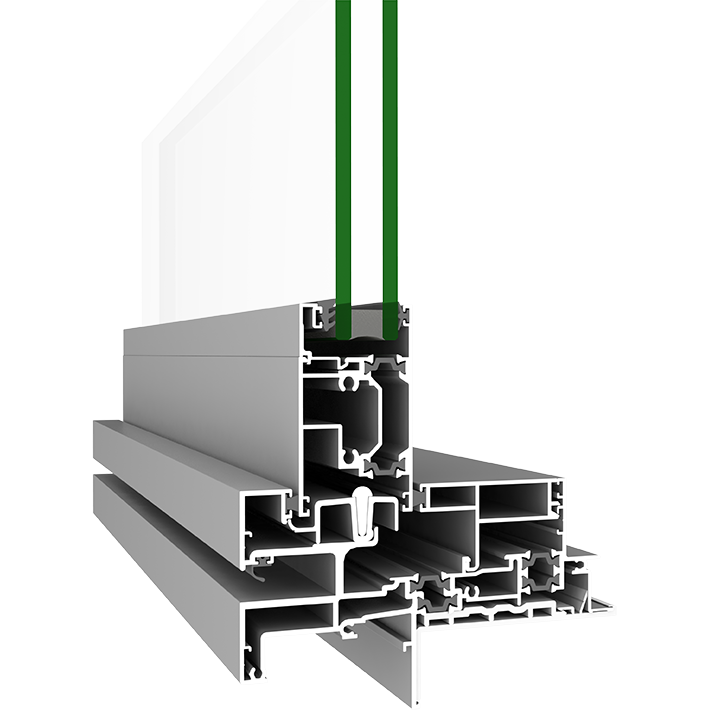

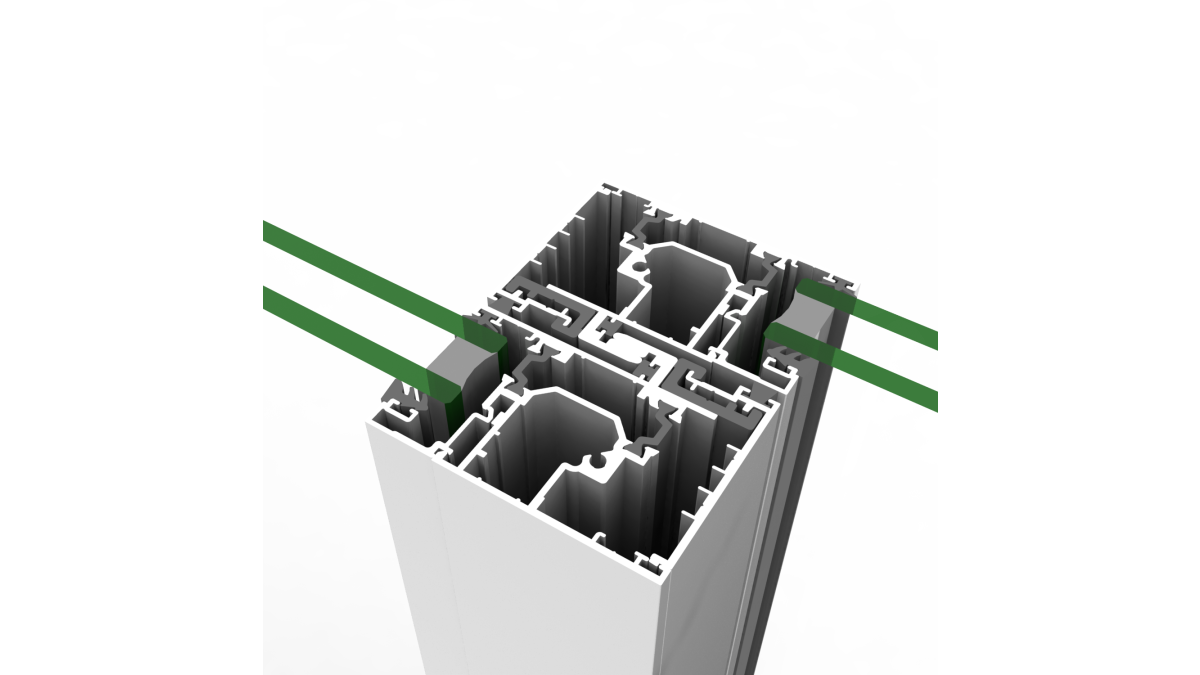

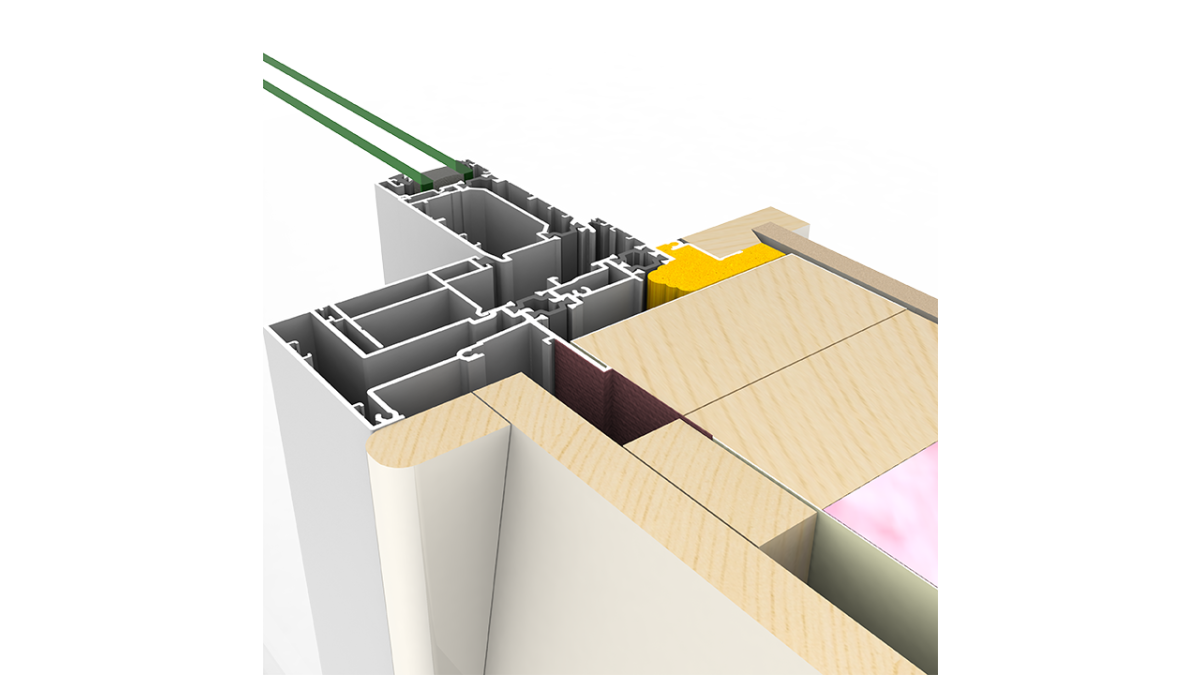

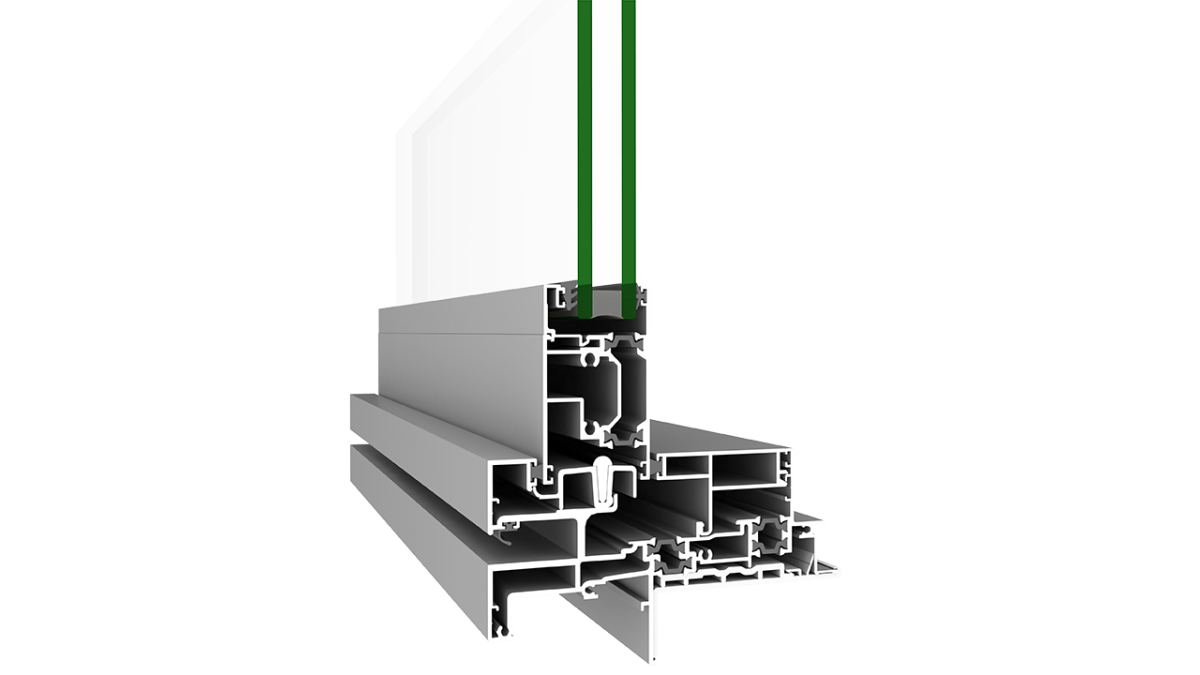

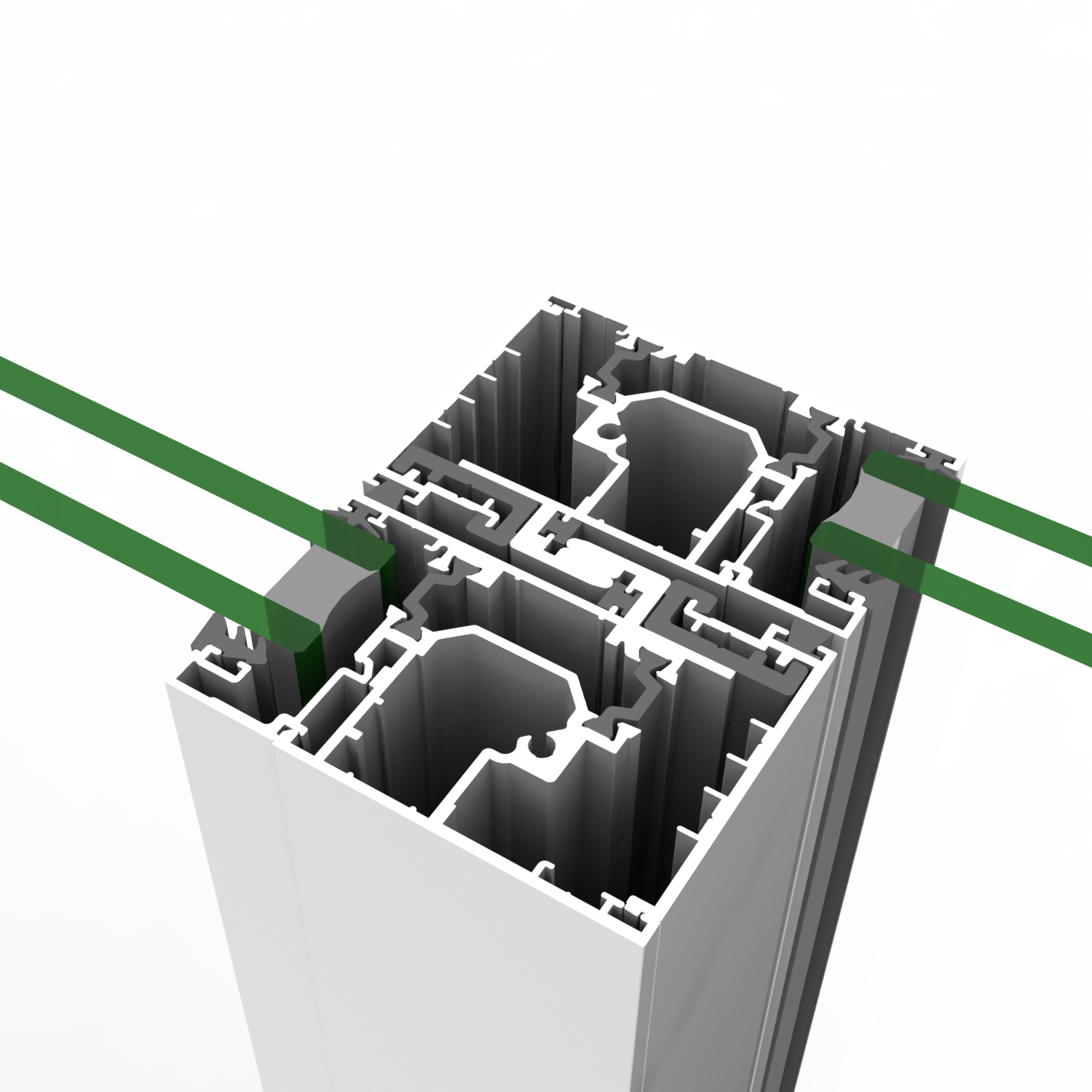

Sliding windows use the sliding door system, which has slender sightlines. The sill frame has a flush track. Interlocker stiles and mullions are flush in the closed position.

For best overall performance, pair with The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Key Features

An exterior sliding track as standard
Glazing is deeply set within the building wall, delivering a strong appearance
Ideal for non-projecting or servery windows
Smooth sliding action
Wide opening is possible in bi-parting or stacking configurations.
Stiles and rails feature slender sightlines
Maximum glass thickness of 44mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Ranges

Metro Series ThermalHeart+® with Centrafix®

Scope of Use

Suitable for broad residential use, including in apartments and buildings over 10m in height
Available in defined maximum sizes

Limitations on Use

Recommended in maximum sizes
Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Conforms to all relevant NZ Building Code clauses

In-Service History

Metro Series ThermalHeart+® with Centrafix® is a new system introduced in 2023

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected. Metro Series ThermalHeart+® with Centrafix® products can have a different colour on the interior and exterior faces as an optional choice
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

News

Added Confidence with EM9 Appraised Centrafix Window System

VANTAGE Windows & Doors

October 2025

Product News

APL Outlines Commitment to Sustainability

VANTAGE Windows & Doors

August 2024

Product News

APL’s Windows and Doors for Passive House Use

VANTAGE Windows & Doors

February 2024

New Products

Documents

Specifier Guide

pdf

Centrafix® System Guide

2023

URL

Data Sheet: Metro Series ThermalHeart+® with Centrafix® Windows

2023

pdf

Span Tables: Metro Series ThermalHeart+® with Centrafix® Sliding Windows

2023

pdf

Declare Label

2023

pdf

Calculate R-Value and Ug-Value

pdf

Full Specification Guide: Metro Series ThermalHeart+® with Centrafix®

docx

Specification Guide: Metro Series ThermalHeart+® with Centrafix® Sliding Windows

docx

Vantage on Masterspec

URL

Manufacturer Contact List

URL

Vantage Care, Maintenance & Warranty Brochure (with AGP)

2020

URL

AGP State of the Art Glass Brochure

URL

Vantage Brochure

URL

AGP Care & Maintenance

pdf

AGP Condensation Guide

pdf

AGP Visual Quality of Glass

pdf

APL and Sustainability

URL

EPD: Understanding the global standard

pdf

CAD/PDF Details

View full

APL Metro Thermal Heart Sliding Window Cfx Drawings pdf

Metro Series ThermalHEART® with Centrafix™ Sliding Windows

FULL SET

PDF and ZIP (contains all DWGs)

pdf

zip

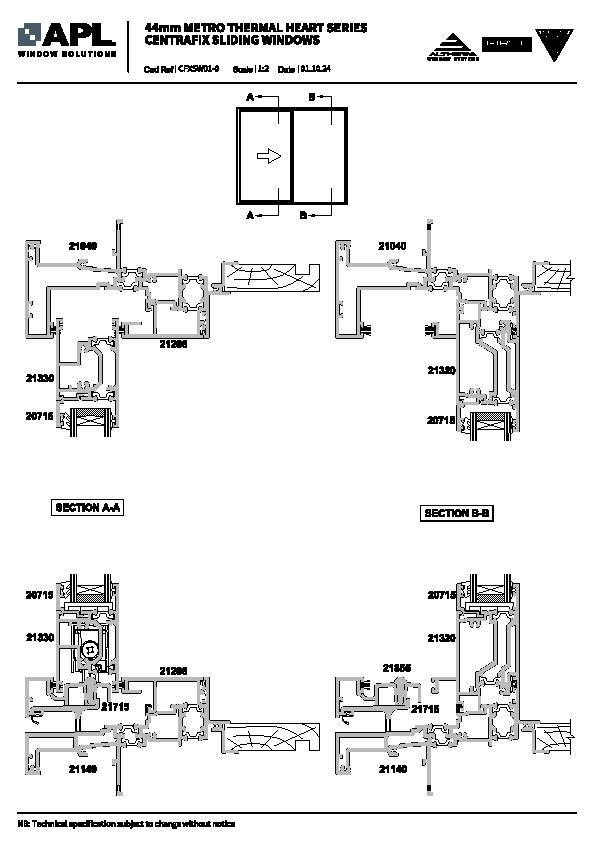

Metro Series ThermalHEART® with Centrafix™ Sliding Windows (44mm)

CFXSW01

dwg

dxf

pdf

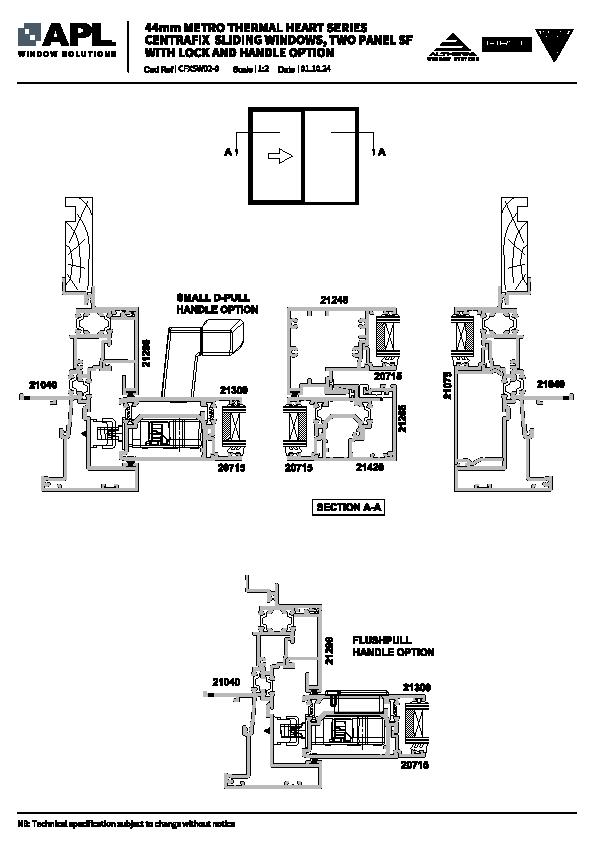

Metro Series ThermalHEART® with Centrafix™ Sliding Windows — Two Panel SF (44mm)

CFXSW02

dwg

dxf

pdf

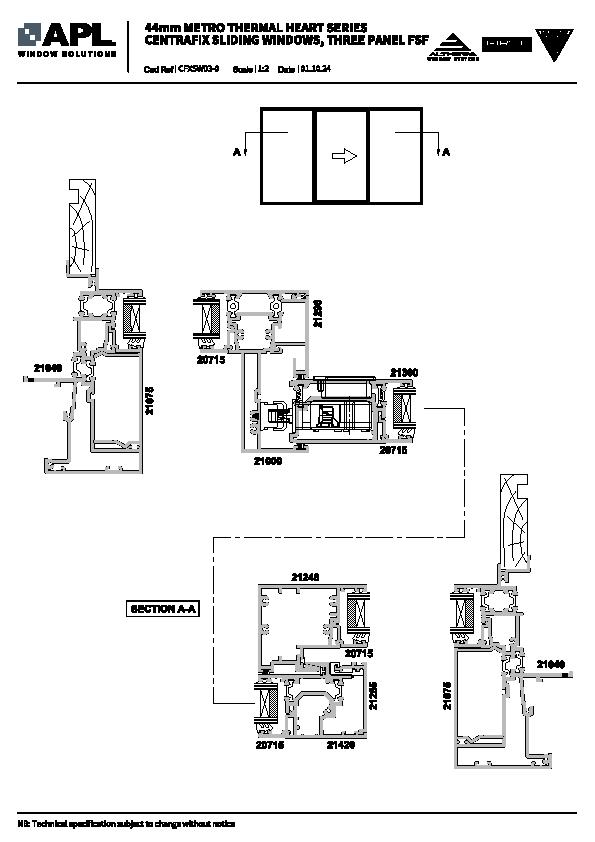

Metro Series ThermalHEART® with Centrafix™ Sliding Windows — Three Panel FSF (44mm)

CFXSW03

dwg

dxf

pdf

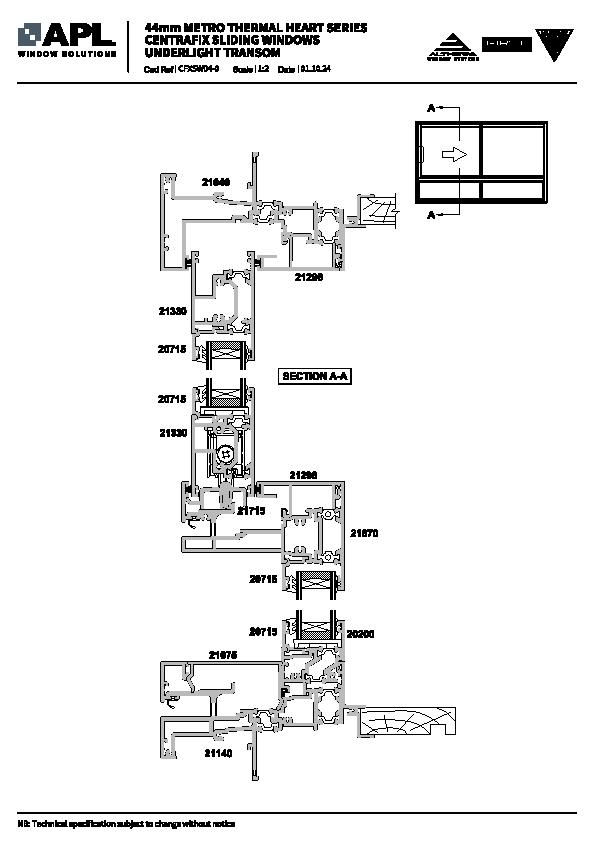

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Windows — Underlight Transom (44mm)

CFXSW04

dwg

dxf

pdf

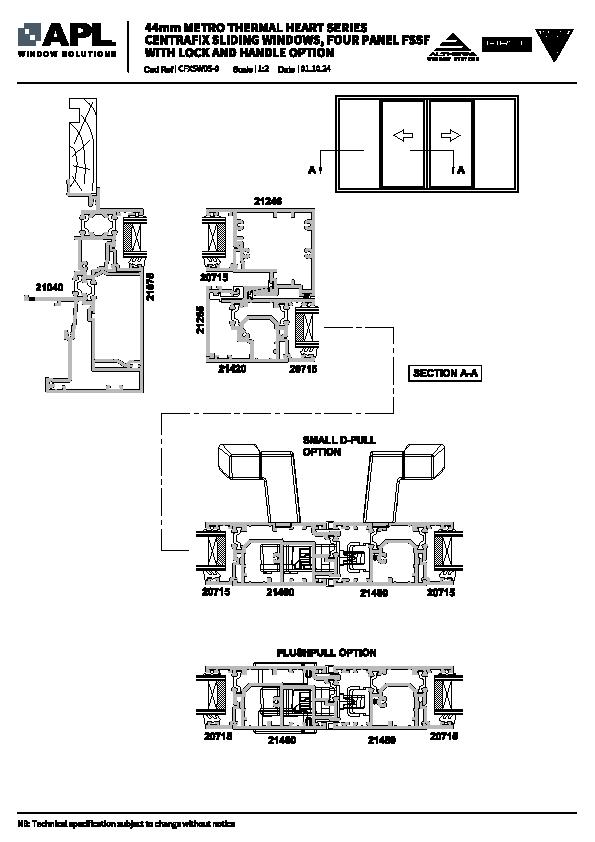

Metro Series ThermalHEART® with Centrafix™ Sliding Windows — Four Panel FSSF (44mm)

CFXSW05

dwg

dxf

pdf

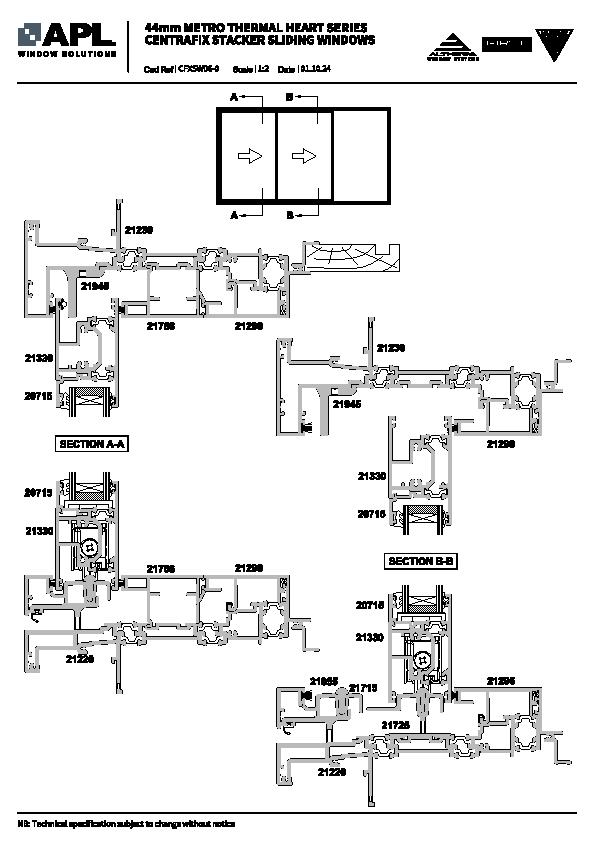

Metro Series ThermalHEART® Stacker Sliding Windows (44mm)

CFXSW06

dwg

dxf

pdf

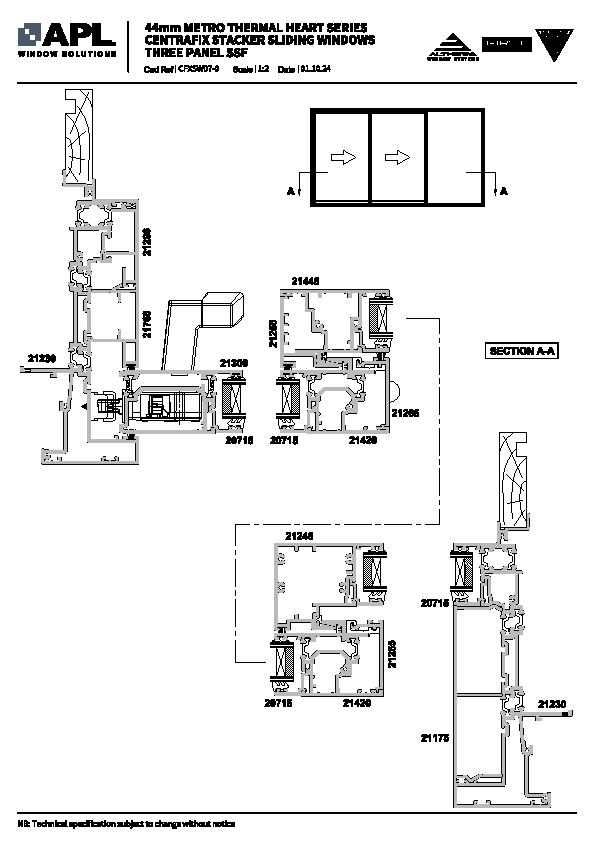

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Windows — Three Panel SSF (44mm)

CFXSW07

dwg

dxf

pdf

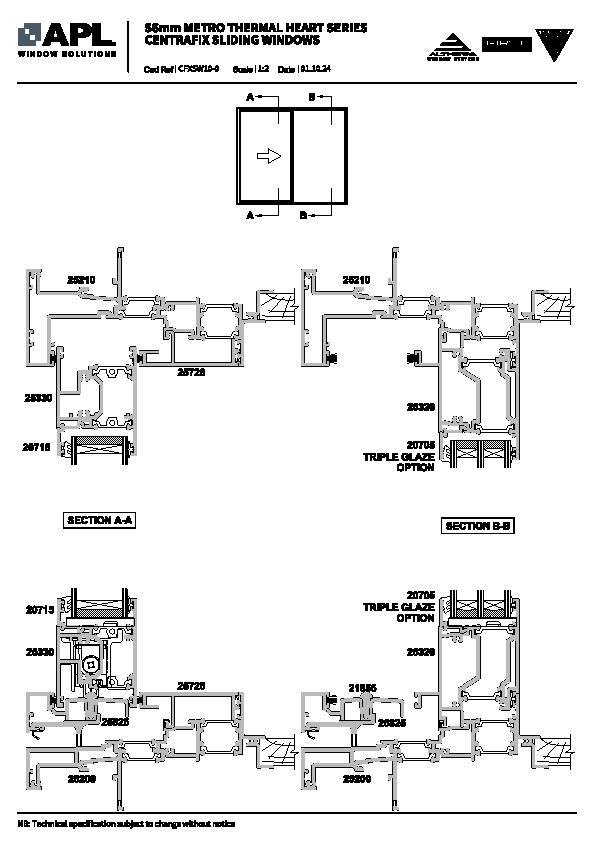

Metro Series ThermalHEART® with Centrafix™ Sliding Windows (56mm)

CFXSW10

dwg

dxf

pdf

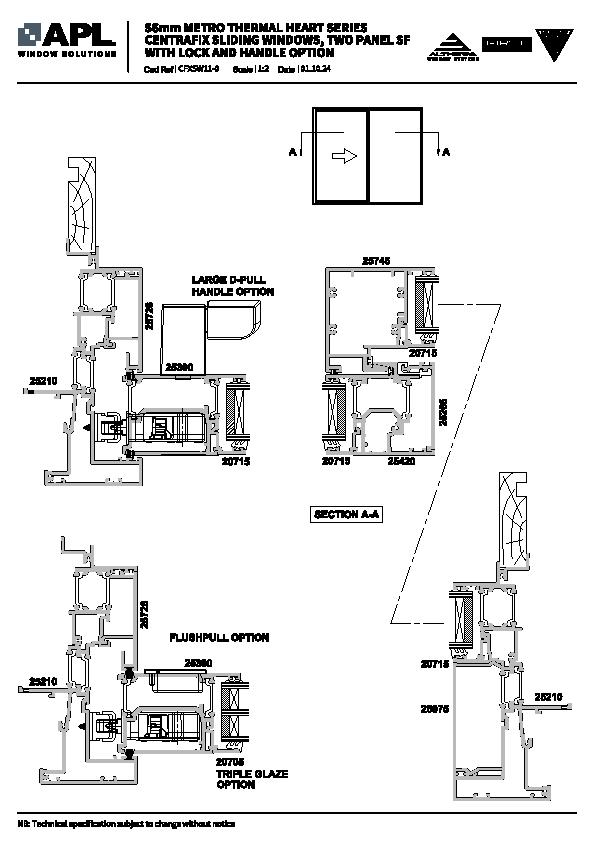

Metro Series ThermalHEART® with Centrafix™ Sliding Windows — Two Panel SF (56mm)

CFXSW11

dwg

dxf

pdf

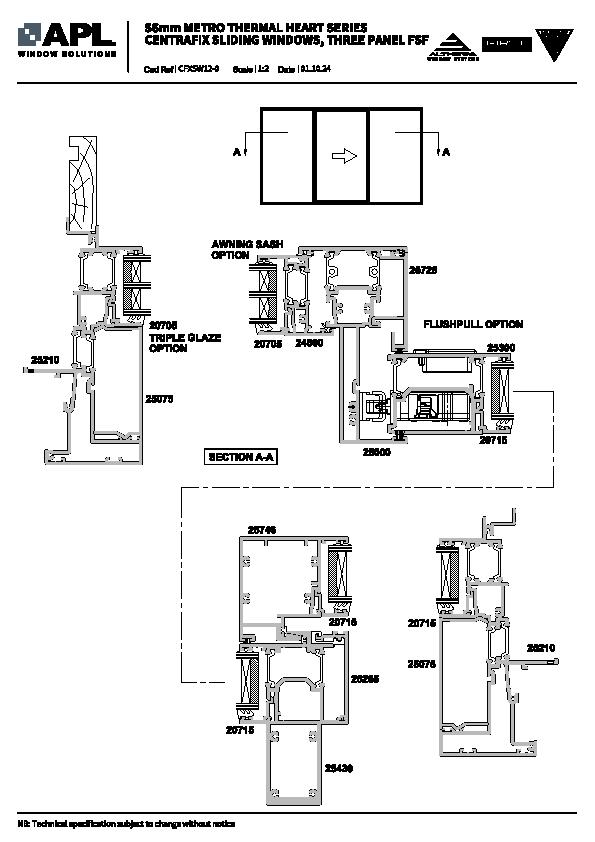

Metro Series ThermalHEART® with Centrafix™ Sliding Windows — Three Panel FSF (56mm)

CFXSW12

dwg

dxf

pdf

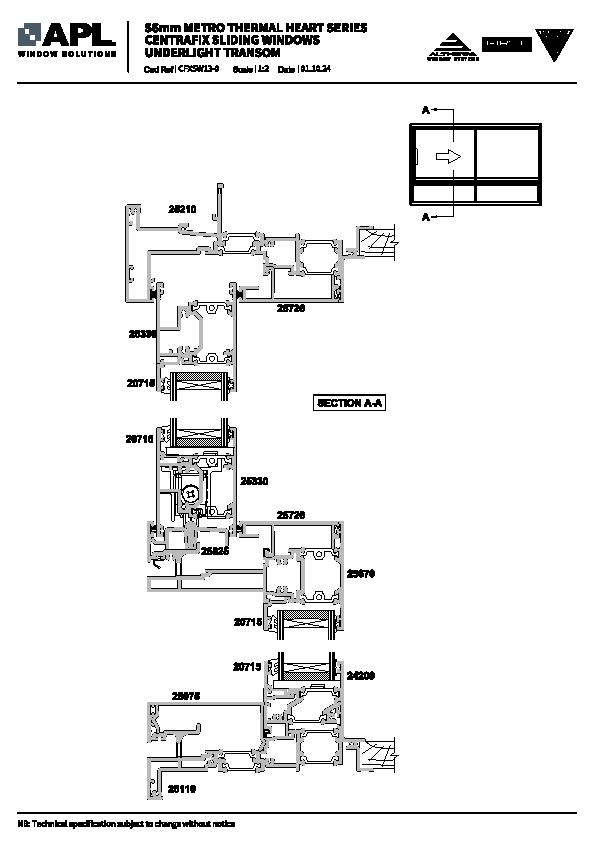

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Windows — Underlight Transom (56mm)

CFXSW13

dwg

dxf

pdf

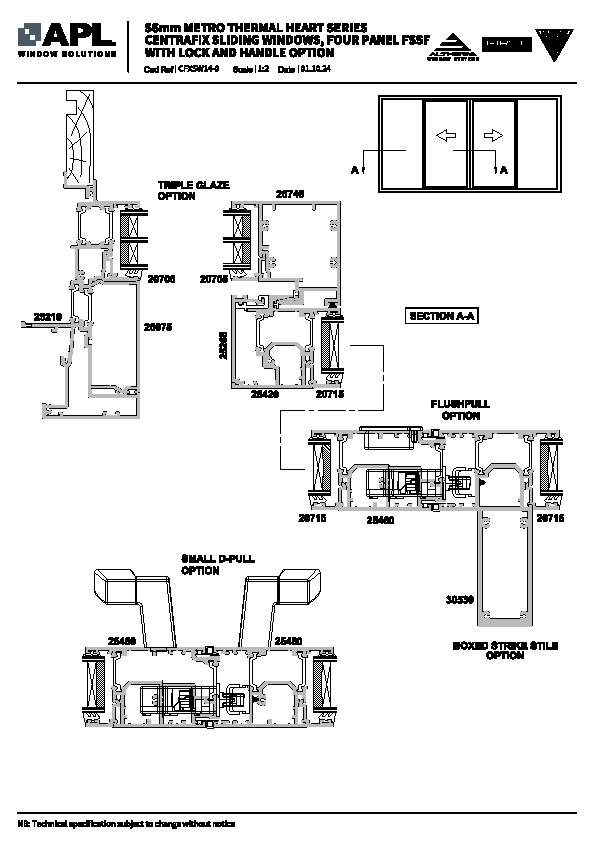

Metro Series ThermalHEART® with Centrafix™ Sliding Windows — Four Panel FSSF (56mm)

CFXSW14

dwg

dxf

pdf

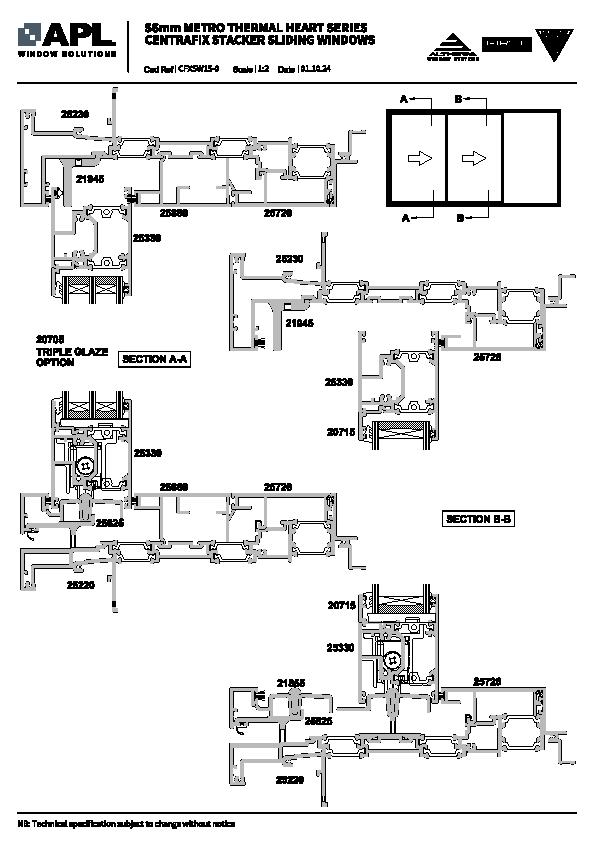

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Windows (56mm)

CFXSW15

dwg

dxf

pdf

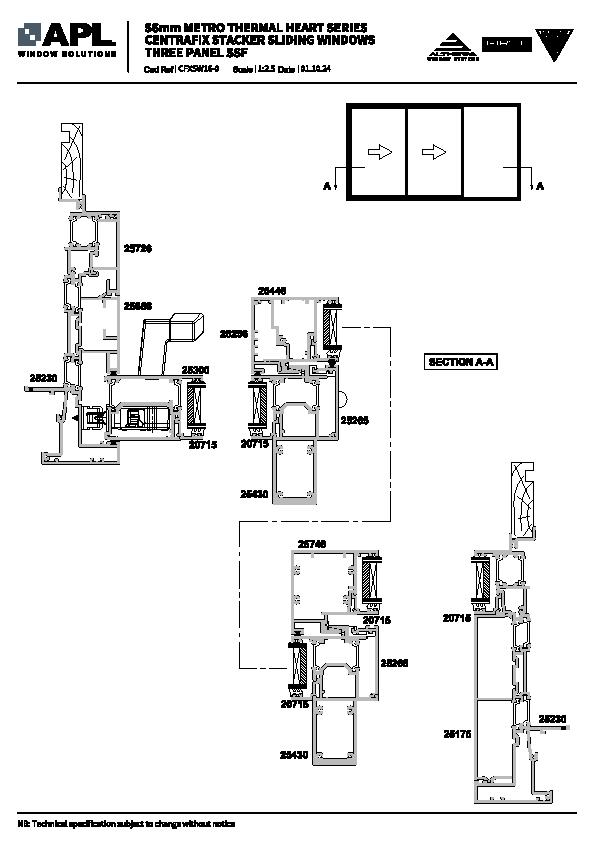

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Windows — Three Panel SSF (56mm)
