Vertical Lifeline for Ladders
Total Height Safety
All products
V Line
20221125 133114
20200611 122650
Description

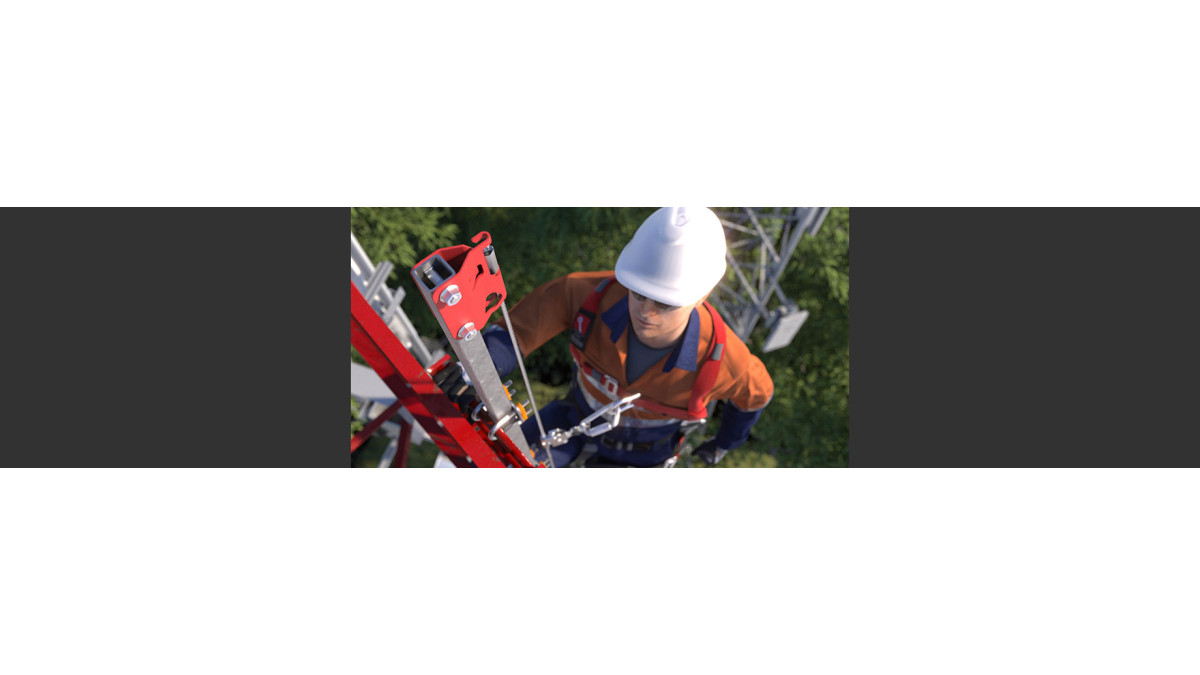

The SafetyLink V-Line Vertical Lifeline System is a permanent vertical fall protection system designed to provide continuous fall protection for personnel accessing fixed ladders. The system utilises an energy-absorbing shuttle that travels with the user and automatically locks onto the lifeline in the event of a fall.

The V-Line can be installed as part of the SafetyLink FastFit Ladder System or retrofitted to existing fixed steel ladders, providing a compliant solution for both new construction and existing buildings. The lifeline may be mounted to either side of the ladder to suit project.

Key Features
  • Permanent vertical lifeline system.
  • Compatible with the SafetyLink FastFit Ladder System.
  • Rated for up to 4 users per system.
  • Can be retrofitted to existing fixed steel ladders.
  • Energy-absorbing shuttle provides continuous attachment while climbing.
  • Automatically locks in the event of a fall.
  • Manufactured from 316 stainless steel and galvanised steel components.
  • Designed to AS/NZS 1891.3.
Categories
Roof Access, Walkways and Fall Protection
Ranges
Ladder | Stair | Guardrail | Walkway Roof Hatch Access Systems
Scope of Use
  • Commercial and industrial buildings.
  • Roof access ladders.
  • Fixed vertical access ladders.
  • Plant and maintenance access.
  • New construction and retrofit projects.
Limitations on Use
  • Designed for permanent fixed ladders or verticle face.
  • System supplied, installed and certified by Total Height Safety in accordance with the manufacturer's requirements.
  • Inspect and maintain in accordance with manufacturer requirements.
Statement of Building Code Compliance

Contributes towards compliance with NZBC:

  • B1 Structure
  • B2 Durability
  • F4 Safety from Falling

Tested and/or certified to AS/NZS 5532 and AS/NZS 1891.3.

Other Performance Attributes
  • 316 stainless steel construction.

Warranty & Maintenance

  • Manufacturer's warranty applies when installed in accordance with SafetyLink requirements.
  • Inspect and re-certify by a competent person in accordance with AS/NZS 1891.4.
  • Case Studies
Documents
Height Safety Systems and Design Guide
pdf
7938TH Product Specification
docx
DESIGN: No Substitution Principle
pdf
Specification Guide
pdf
Total Height Safety on Masterspec
docx
Handbook: V-Line
pdf
Flyer: ViLine
pdf
