SurfaceLink Membrane Roof Anchor
Description

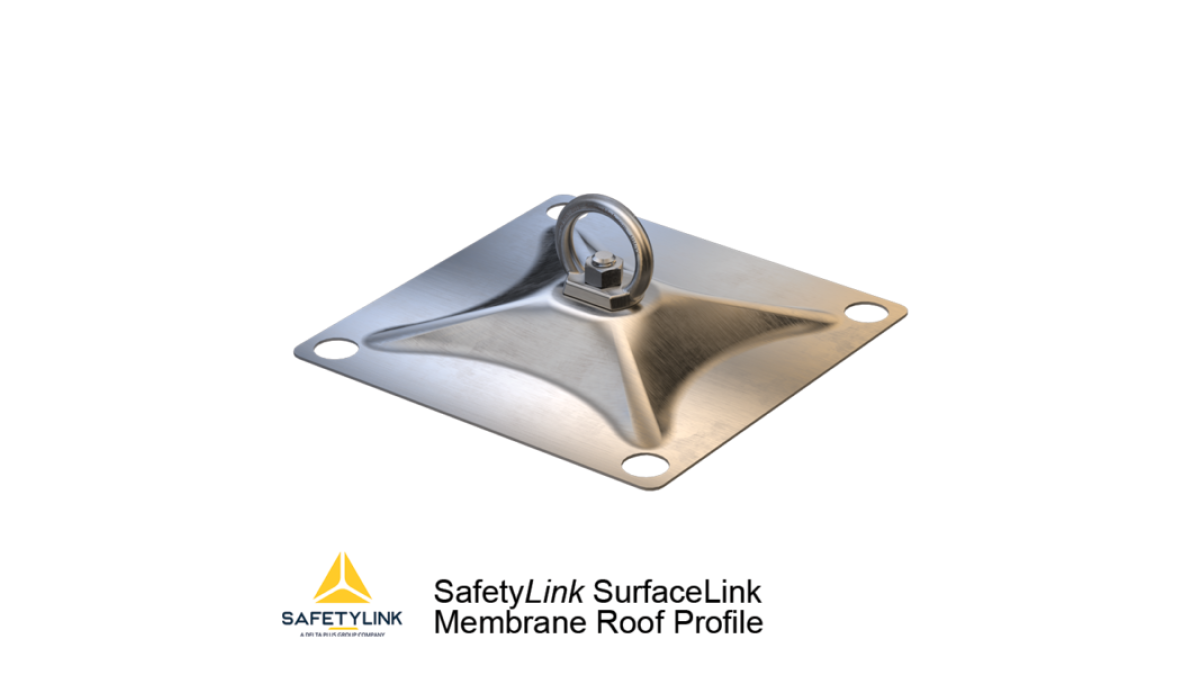

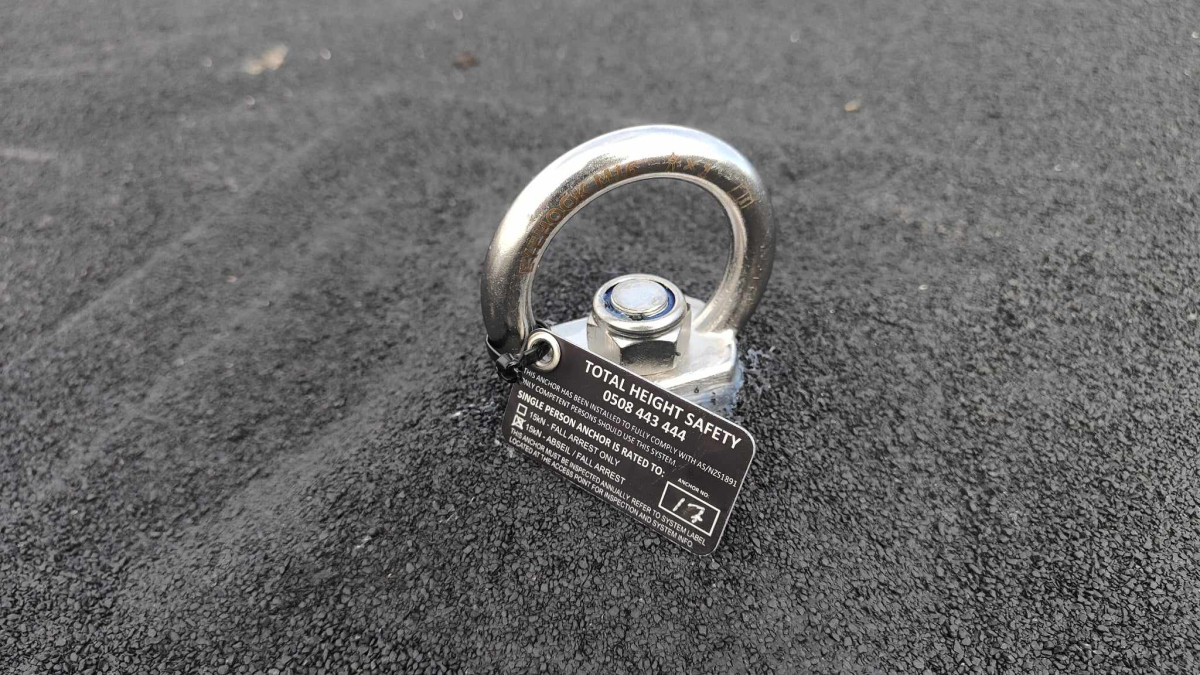

The SafetyLink SurfaceLink Surface-Mounted Anchor for Membrane Roof is a permanent single-person anchor designed for fall arrest, rope access and abseiling applications on membrane roof systems. Manufactured from 316 stainless steel, the anchor is installed over the completed membrane roof using approved toggle fixings. The base plate is fully membrane flashed by the roofing contractor, providing a weatherproof and watertight installation while maintaining the integrity of the roofing system.

Key Features
  • Surface-mounted anchor for membrane roof systems.
  • 316 stainless steel construction.
  • Single-person 15 kN anchor.
  • Suitable for fall arrest, rope access and abseiling.
  • Multi-directional loading capability.
  • Designed specifically for permanent membrane roof safety systems.

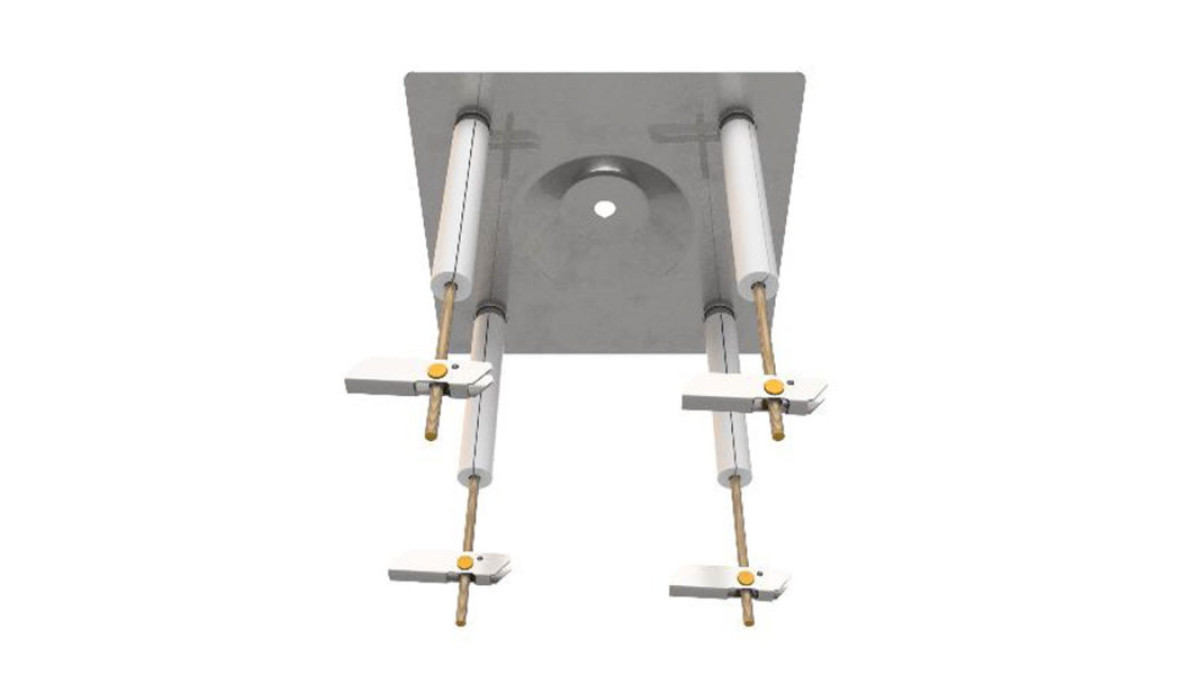

  • Installed using approved toggle anchor fixings.
  • Low-profile design.
Scope of Use
  • Commercial, industrial and institutional buildings.
  • Compatible with fully adhered and mechanically fixed membrane roofing systems.
  • Permanent roof access and fall protection systems, rope access and abseiling
  • New construction and retrofit applications.
  • Maintenance access to rooftop plant and equipment.
  • Multi-directional loading capability.
  • Installed using approved toggle anchor fixings.
Limitations on Use
  • Suitable for membrane warm roof systems.
  • Membrane installation by the roofing contractor in accordance with the membrane manufacturer's requirements.
  • System supplied, installed and certified by Total Height Safety in accordance with the manufacturer's requirements.
  • Inspection and recertification in accordance with AS/NZS 1891.4.
Statement of Building Code Compliance

Contributes towards compliance with NZBC:

  • B1 Structure
  • B2 Durability
  • F4 Safety from Falling

;Tested and/or certified to AS/NZS 5532 and AS/NZS 1891.4.

Other Performance Attributes
  • 316 stainless steel construction.

Warranty & Maintenance

  • Manufacturer's warranty applies when installed in accordance with SafetyLink requirements.
  • Inspect and re-certify by a competent person in accordance with AS/NZS 1891.4.
Documents
Height Safety Systems and Design Guide
Data Sheet: Anchor Toggle-fix
7938TH Product Specification
DESIGN: No Substitution Principle
Specification Guide
Total Height Safety on Masterspec

Specialising in fall protection solutions, Total Height Safety design, supply, install, and certify engineered height safety and roof access systems for New Zealand's commercial construction sector.
