RetroLink Anchor
Total Height Safety
All products
Retro roof anchor 600x600
RetroLink 600x600

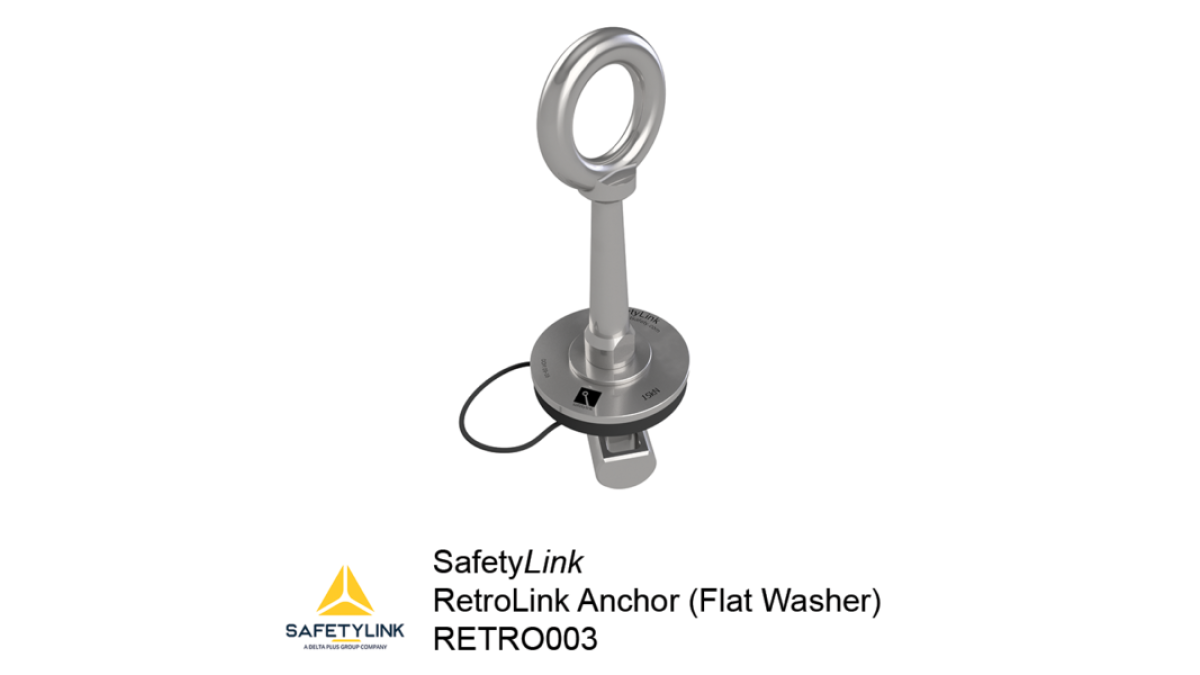

RETRO003 600x600
Description

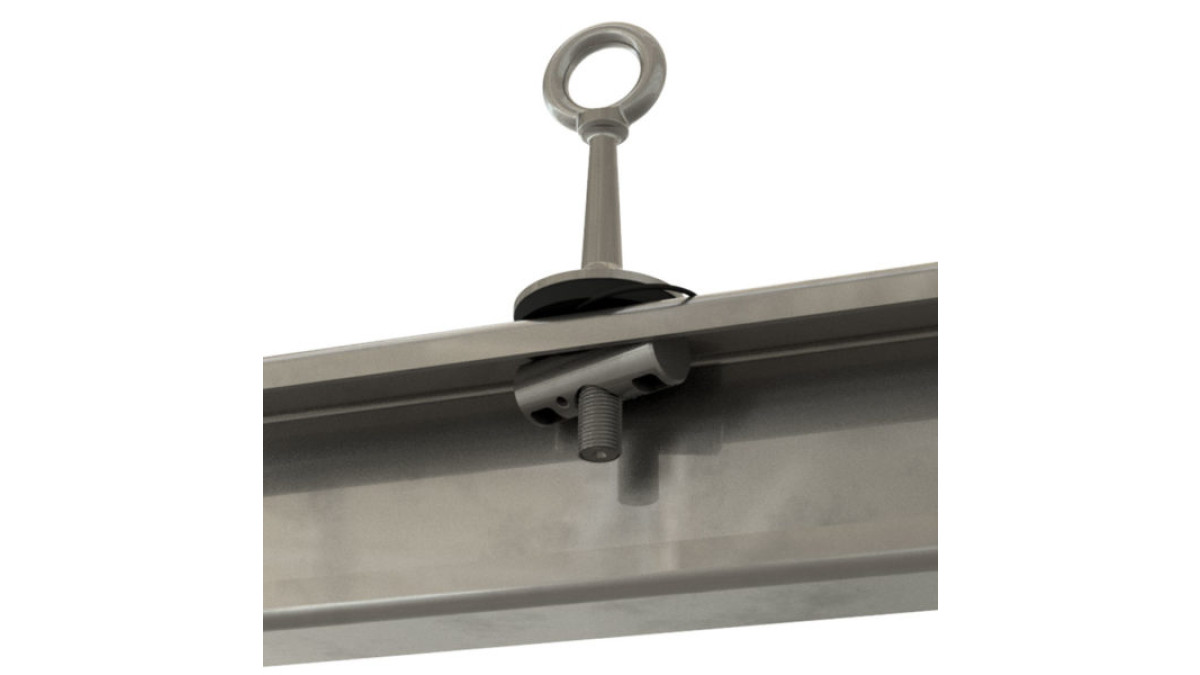

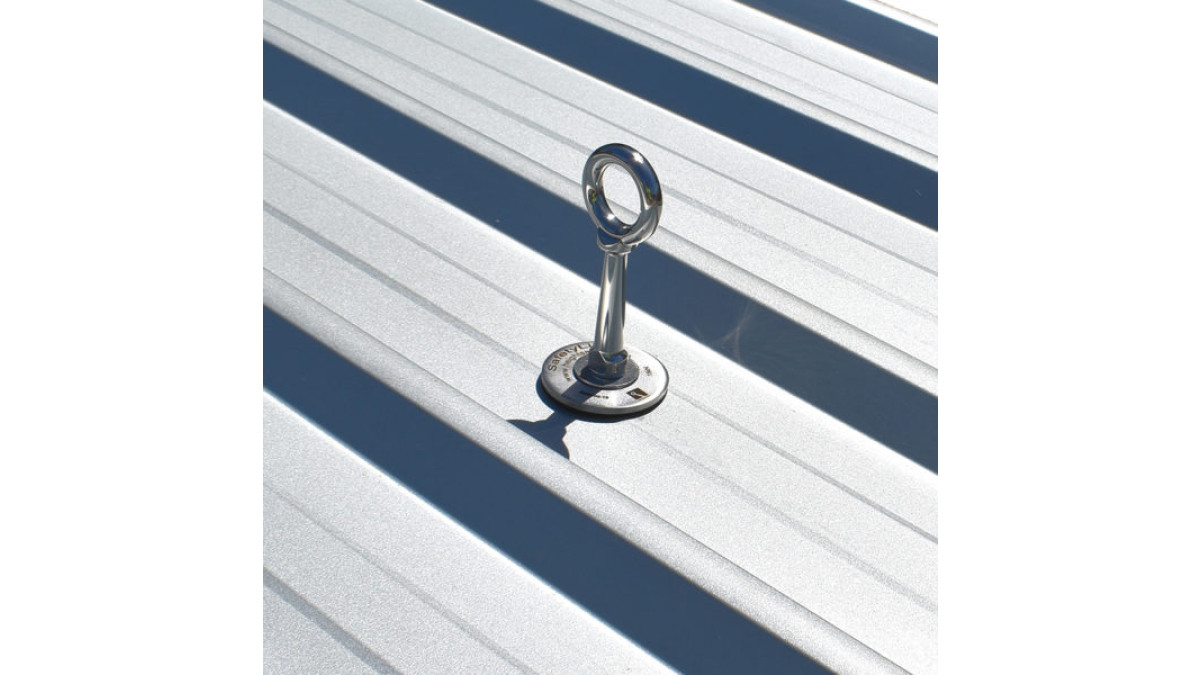

The SafetyLink RetroLink Purlin-Mounted Roof Anchor is a permanent single-person anchor designed for fall arrest, rope access and abseiling applications on metal roof structures. The patented system installs through the roof sheeting directly into steel C or Z purlins without requiring access beneath the roof. Manufactured from 316 stainless steel, the anchor incorporates an energy-absorbing design that reduces loads transferred to both the user and the supporting structure.

Key Features
  • Patented purlin-mounted roof anchor.
  • 316 stainless steel construction.
  • Single-person 15 kN energy-absorbing anchor.
  • Suitable for fall arrest, rope access and abseiling.
  • Multi-directional loading capability.
  • Installs through roof sheeting with no underside access required.
  • Minimal roof penetration using a single drilled hole.
  • Compatible with steel C and Z purlin structures.
Categories
Roof Access, Walkways and Fall Protection
Ranges
Metal Roof Access Systems Roof Anchor Systems — Fall Arrest Abseil Anchorage Systems
Scope of Use
  • Commercial, industrial and residential buildings.
  • Metal roof systems supported by steel C or Z purlins.
  • Permanent roof fall protection systems.
  • Rope access and abseiling applications.
  • New construction and retrofit installations.
  • Maintenance access to rooftop plant and equipment.
Limitations on Use
  • Suitable for compatible steel purlin structures only.
  • System supplied, installed and certified by Total Height Safety in accordance with the manufacturer's requirements.
  • Requires periodic inspection and recertification in accordance with AS/NZS 1891.4.
Statement of Building Code Compliance

Contributes towards compliance with NZBC:

  • B1 Structure
  • B2 Durability
  • F4 Safety from Falling.

Tested and manufactured in accordance with AS/NZS 1891.2 and other referenced international standards.

Other Performance Attributes
  • 316 stainless steel construction.

Warranty & Maintenance

  • Manufacturer's warranty applies when installed in accordance with SafetyLink requirements.
  • Inspect and re-certify by a competent person in accordance with AS/NZS 1891.4.
Documents
Height Safety Systems and Design Guide
pdf
Data Sheet: RetroLink
pdf
7938TH Product Specification
docx
DESIGN: No Substitution Principle
pdf
Specification Guide
pdf
Total Height Safety on Masterspec
docx
Handbook: RetroLink Anchor
pdf
Flyer: RetroLink
pdf
