FrogLine — ConcreteLink Lifeline
Total Height Safety
All products

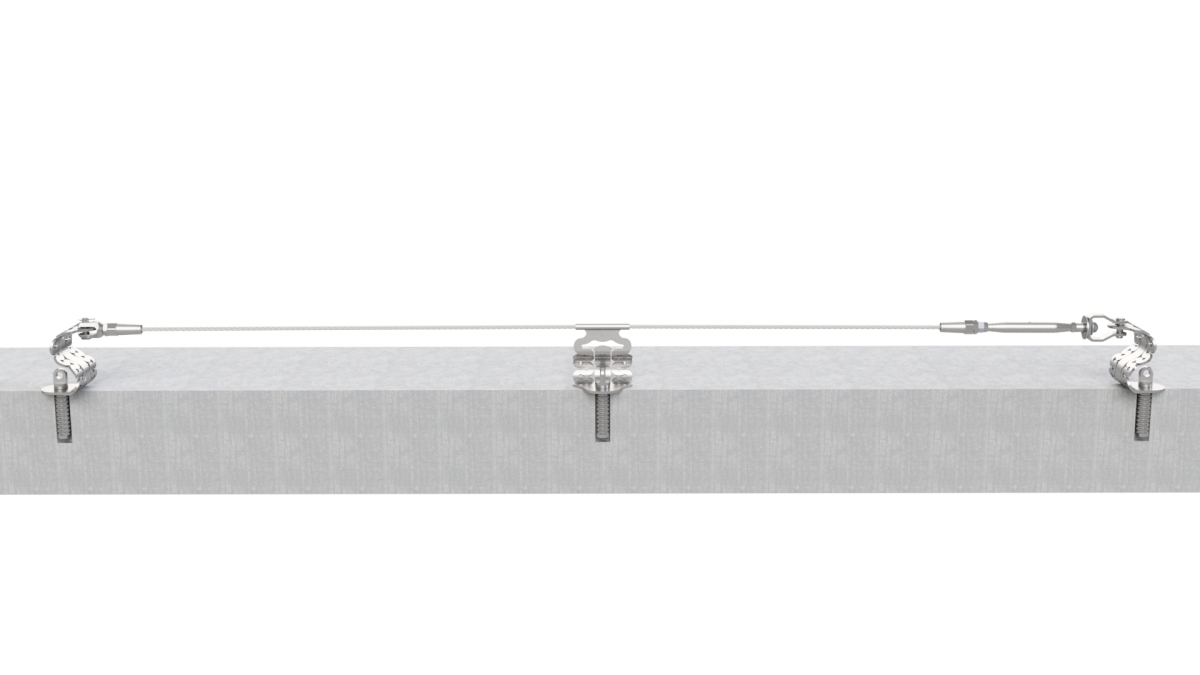

FROGLINE SYSTEM CONCRETE

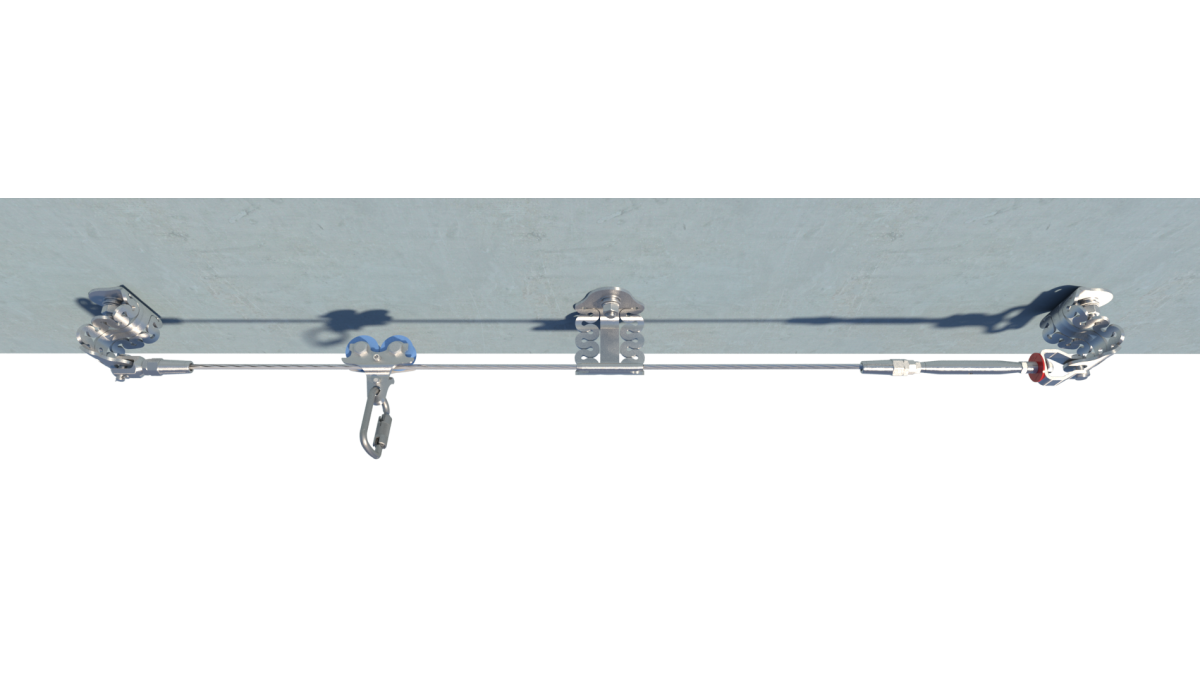

FROGLINE OVERHEAD CONCRETE 01

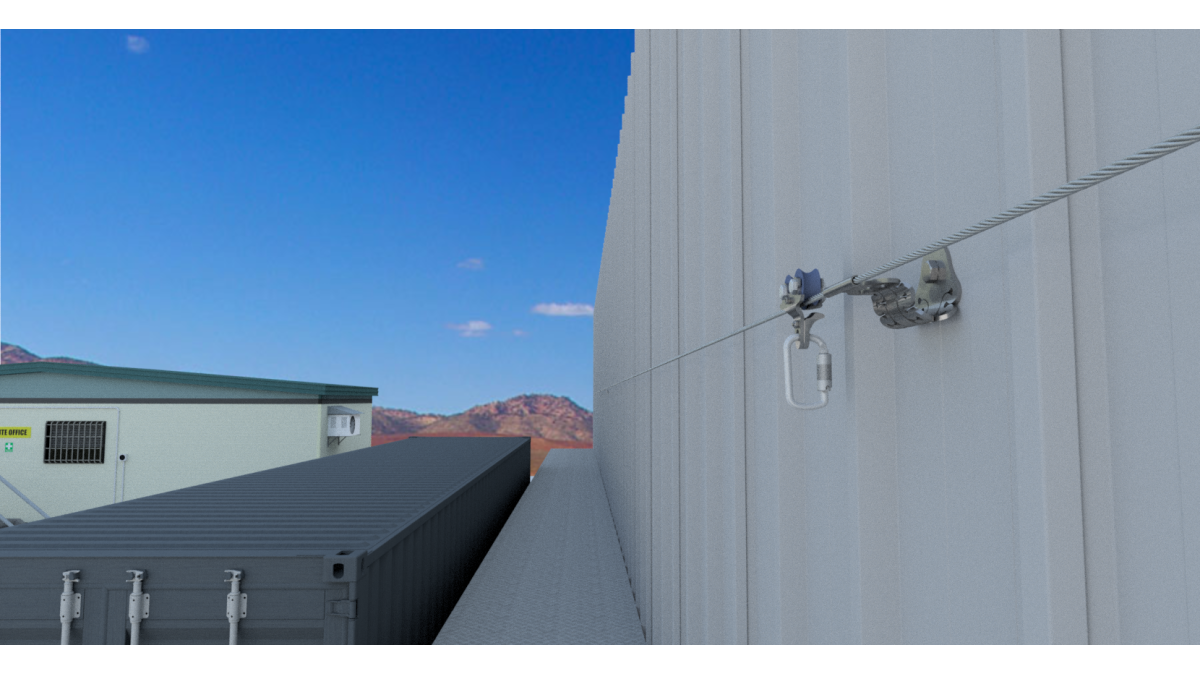

FROGLINE STEEL WALL MOUNT

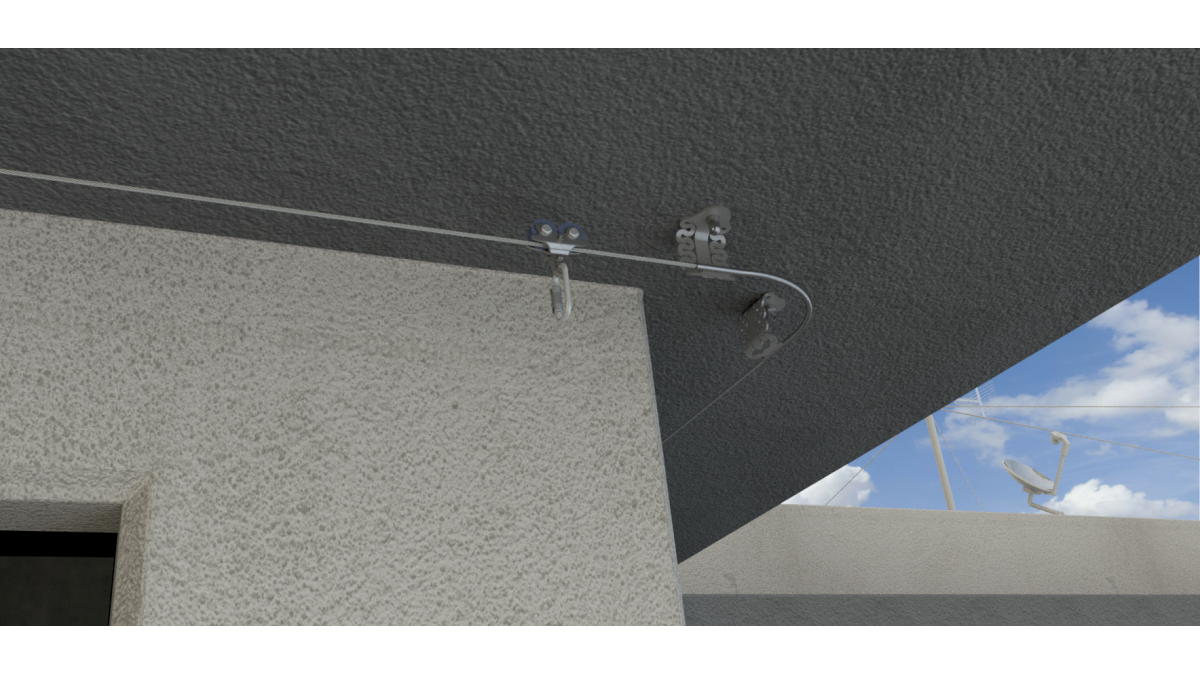

FROGLINE CONCRETE OVERHEAD

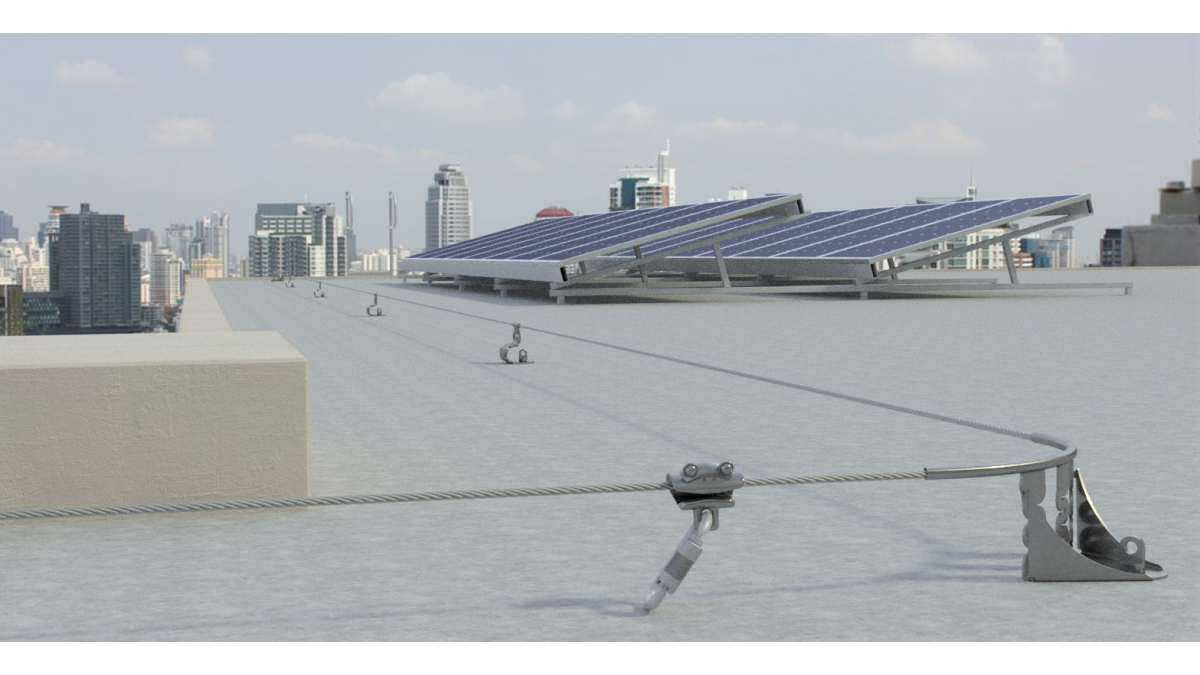

CONCRETE LINE 02

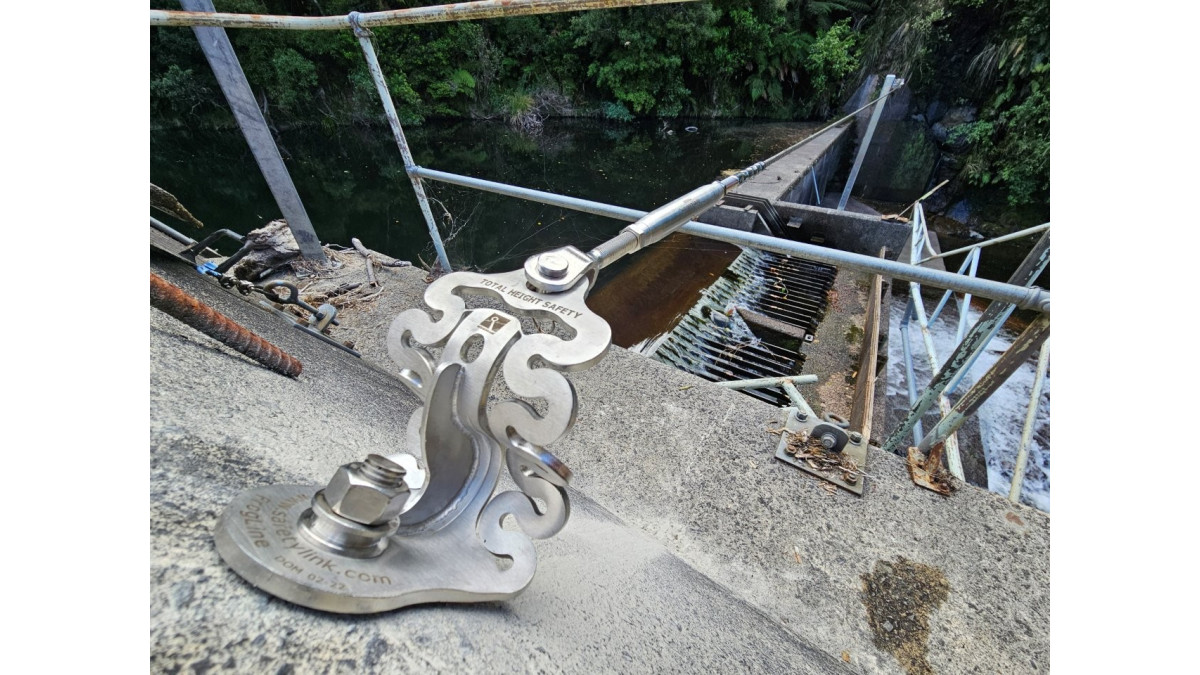

20231212 170848

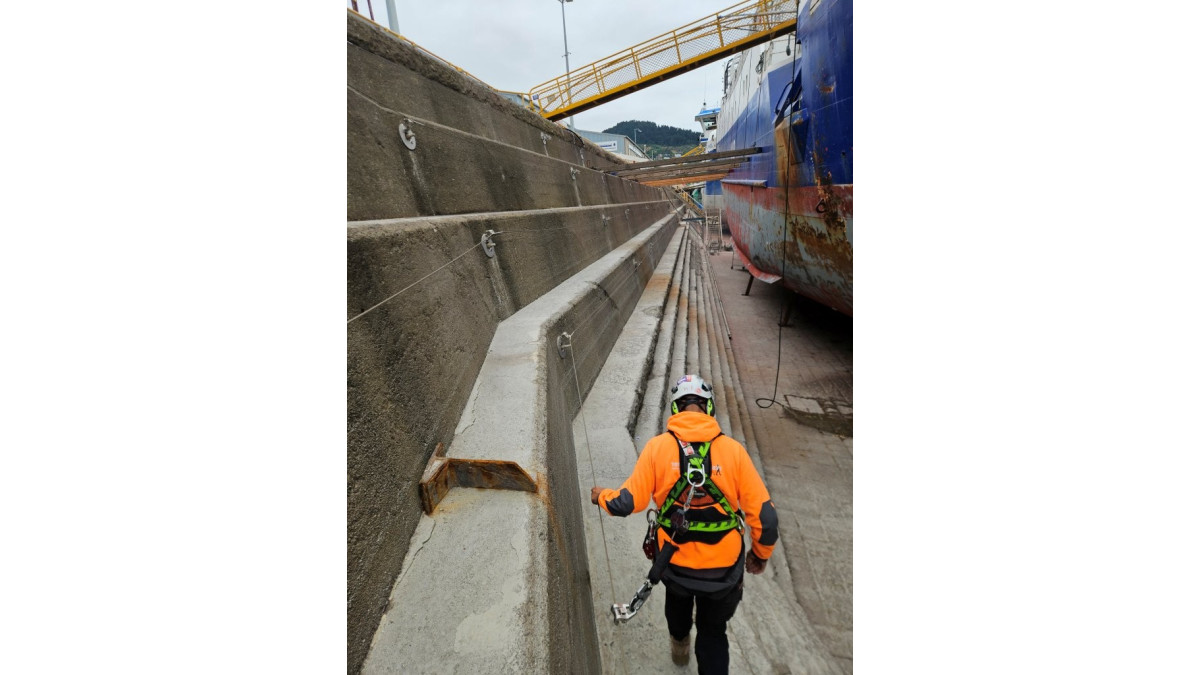

20250213 110020

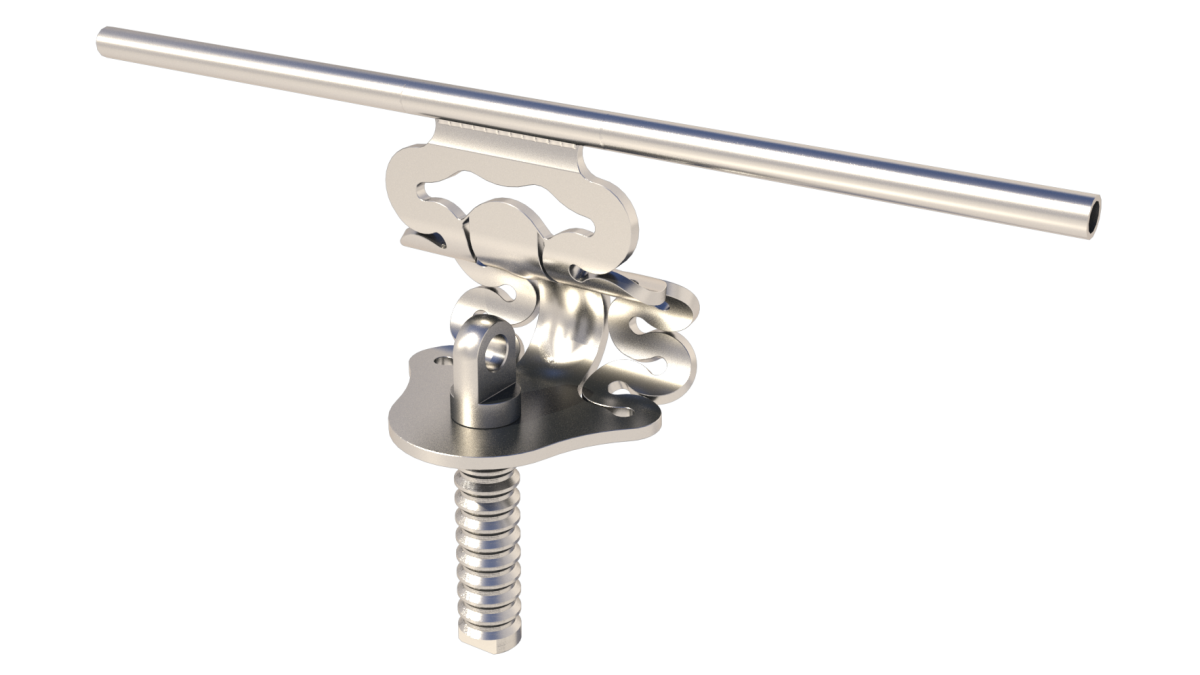

STAT.FROGCON008
Description

The SafetyLink FrogLine Concrete Mounted Horizontal Lifeline is a permanent horizontal lifeline system designed for installation into concrete structures. The system incorporates engineered energy-absorbing end and intermediate anchors to reduce loads on both users and the supporting structure in the event of a fall. Continuous attachment is maintained using the FrogLine Shuttle on an 8mm stainless steel cable, allowing up to four users per system (maximum two users per span).

Key Features
  • Permanent horizontal lifeline for concrete structures.
  • Concrete-mounted using chemically fastened anchor inserts.
  • Engineered energy-absorbing end and intermediate anchors.
  • Continuous attachment using the FrogLine Shuttle.
  • 8mm stainless steel lifeline.
  • Supports up to four users per system (maximum two users per span).
  • 316 stainless steel components.
Categories
Roof Access, Walkways and Fall Protection
Ranges
Concrete Roof Access Systems Roof Lifeline Systems — Fall Arrest
Scope of Use
  • Commercial, industrial and infrastructure buildings.
  • Permanent roof access systems.
  • Concrete roof structures.
  • New construction and retrofit applications.
  • Inspection and maintenance activities.
  • Supports up to four users per system (maximum two users per span).
Limitations on Use
  • Suitable for concrete substrates only.
  • Must be installed using an approved chemical anchoring system.
  • System supplied, installed and certified by Total Height Safety in accordance with the manufacturer's requirements.
  • Anchors require proof testing after installation.
  • Inspection and recertification required.
Statement of Building Code Compliance

Contributes towards compliance with NZBC B1, B2 and F4.

  • Manufactured and tested to AS 5532.
  • Installed and maintained in accordance with AS/NZS 1891.4.
Other Performance Attributes
  • 316 stainless steel construction.

Warranty & Maintenance

  • Manufacturer's warranty applies when installed in accordance with SafetyLink requirements.
  • Inspect and re-certify by a competent person in accordance with AS/NZS 1891.4.
Documents
Height Safety Systems and Design Guide
pdf
Data Sheet: SafetyLink FrogLine - Concrete
pdf
7938TH Product Specification
docx
DESIGN: No Substitution Principle
pdf
Specification Guide
pdf
Total Height Safety on Masterspec
docx
Handbook: FrogLine
pdf
Operation Manual: FrogLine Lifeline
pdf
Flyer: SafetyLink FrogLine - Concrete
pdf
