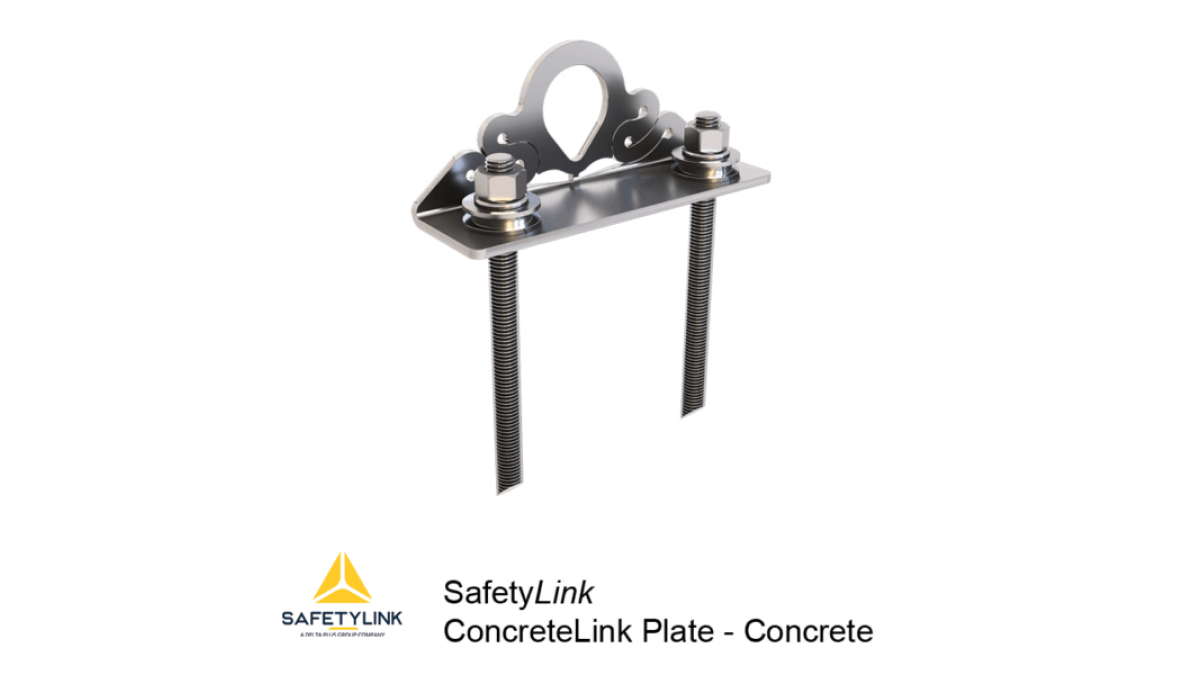

ConcreteLink Plate Anchor
Description

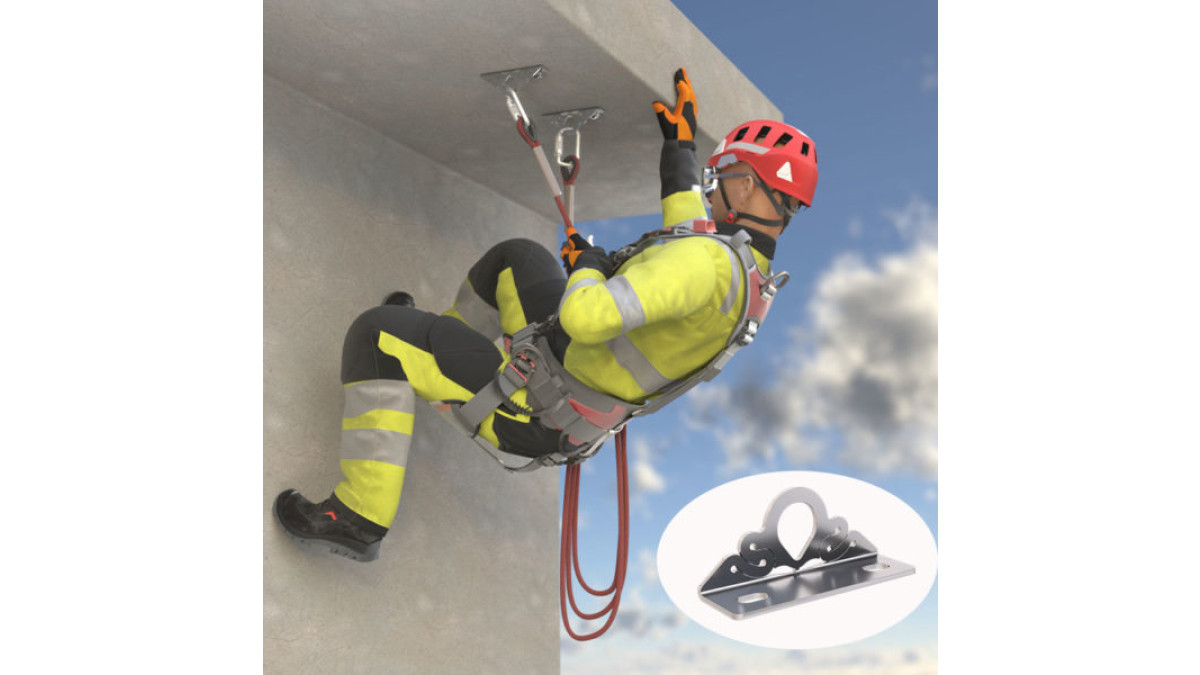

The SafetyLink ConcreteLink Energy Absorbing Plate Anchor is a permanent single-person anchor designed for fall arrest, rope access and abseiling applications. Manufactured from 316 stainless steel, the anchor is suitable for installation into concrete or steel structures using approved fastening systems. Its patented energy-absorbing design reduces loads transferred to the supporting structure in the event of a fall.

Key Features
  • Energy absorbing plate anchor.
  • 316 stainless steel construction.
  • Suitable for concrete and steel structures.
  • Single-person 15 kN anchor.
  • Suitable for fall arrest, rope access and abseiling.
  • Low-profile design.
  • Integrated fall indicator.
  • Multi-directional loading capability.
Scope of Use
  • Commercial, industrial and infrastructure projects.
  • Concrete and steel structures.
  • Wall, overhead and floor installations.
  • Permanent roof and façade access systems.
  • New construction and retrofit applications.
Limitations on Use
  • Must be installed using approved chemical or structural fastening systems.
  • System supplied, installed and certified by Total Height Safety in accordance with the manufacturer's requirements.
  • Periodic inspection and recertification required in accordance with AS/NZS 1891.4.
Statement of Building Code Compliance

Contributes towards compliance with NZBC:

  • B1 Structure
  • B2 Durability
  • F4 Safety from Falling

Tested and/or certified to AS/NZS 5532 and AS/NZS 1891.4.

Other Performance Attributes
  • 316 stainless steel construction.

Warranty & Maintenance

  • Manufacturer's warranty applies when installed in accordance with SafetyLink requirements.
  • Inspect and re-certify by a competent person in accordance with AS/NZS 1891.4.
Documents
Height Safety Systems and Design Guide
Data Sheet: ConcreteLink Plate Anchor
7938TH Product Specification
DESIGN: No Substitution Principle
Specification Guide
Total Height Safety on Masterspec
Handbook: ConcreteLink Plate
Flyer: ConcreteLink Plate
