Roof Jockey - Needle Anchor
Total Height Safety
All products

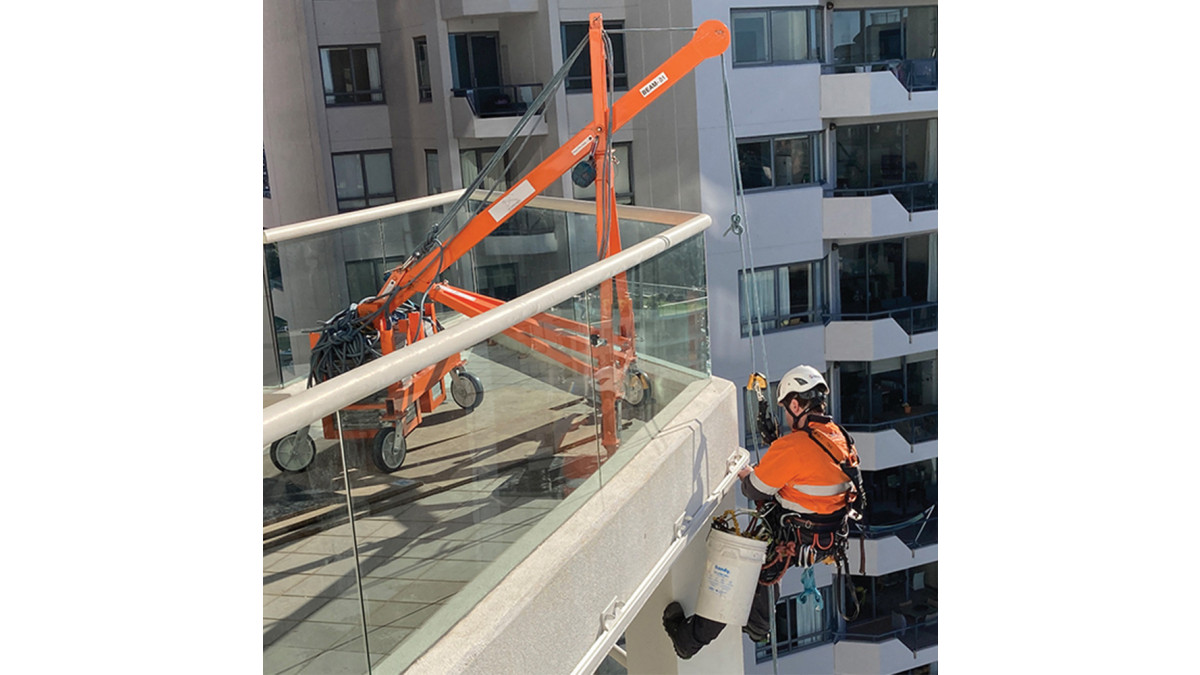

Hi Rise RoofJockey Edge App 1

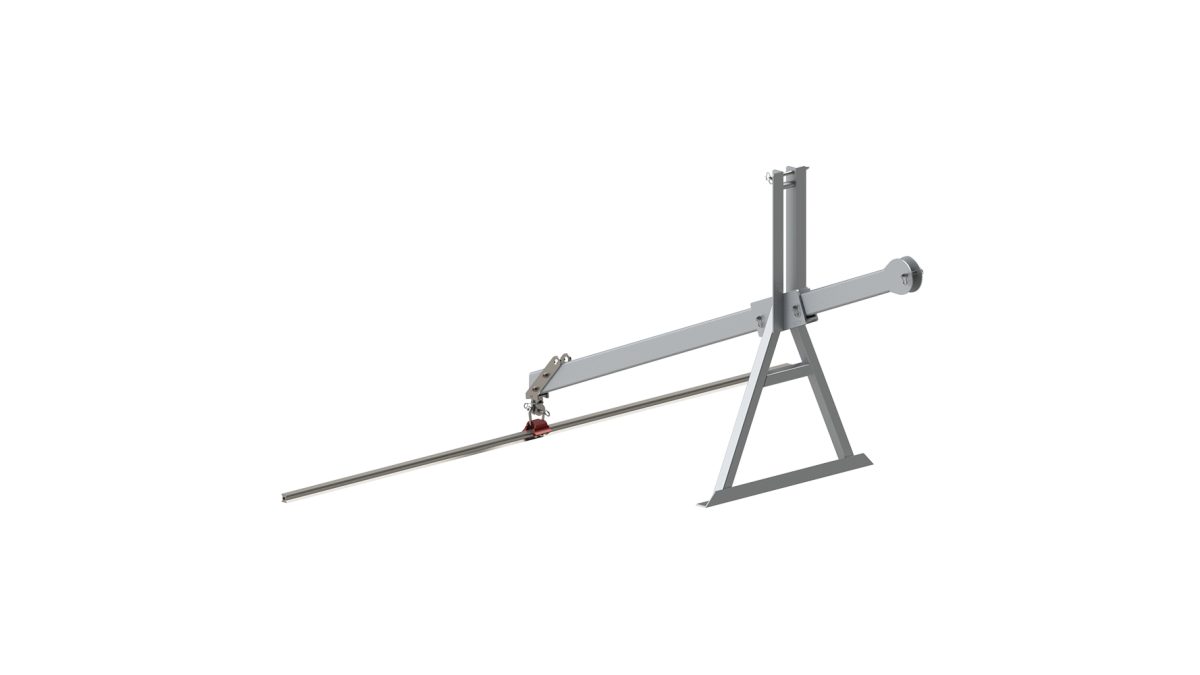

Hi Rise Lightweight Needle

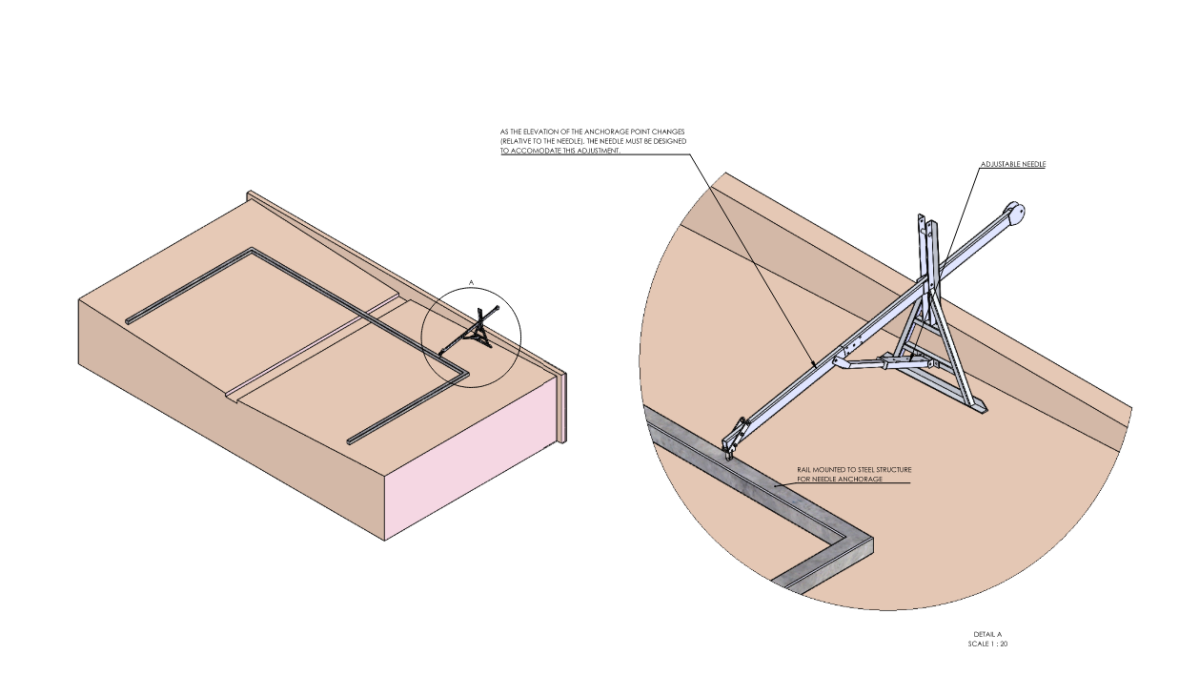

Screenshot 2026 07 22 162706
Description

The HI-RISE Lightweight Needle is a portable rope access anchorage system designed for temporary work at height applications.

The lightweight aluminium frame is designed for rapid assembly and positioning and connects to a range of rear anchorage options, including Multi-Fixing Anchorage (RCP) and Rigid Rail Systems.

The system is rated as a 12 kN single-user rope access anchorage in accordance with AS/NZS 5532.

Key Features
  • Lightweight aluminium frame
  • 12kN single-user rope access anchorage
  • Portable and easy to assemble
  • Multiple outreach and backleg configurations
  • Compatible with Multi-Fixing Anchorage and Rigid Rail Systems
Categories
Roof Access, Walkways and Fall Protection
Ranges
Warm Roof Access Systems Concrete Roof Access Systems Concrete Warm-Roof Access Systems Ply Warm Roof Access Systems Davits and Needles
Scope of Use
  • Temporary rope access operations
  • 2x Units required for abseil applications - User buddy system
  • Commercial and industrial maintenance
  • Façade access
  • Inspection and maintenance activities
  • 12kN single-user rope access anchorage
  • Portable and easy to assemble
  • Multiple outreach and backleg configurations
  • Compatible with Multi-Fixing Anchorage and Rigid Rail Systems
Limitations on Use
  • Single-user rope access only
  • Use on a horizontal surface
  • A-frame must remain within 5° of vertical
  • Rope system must remain vertical
  • System supplied and certified by Total Height Safety
Statement of Building Code Compliance
  • Contributes towards compliance with NZBC F4 Safety from Falling where incorporated into an appropriate height safety system.
  • Rated as a 12 kN single-user rope access anchorage in accordance with AS/NZS 5532. Rope access work should be undertaken in accordance with AS/NZS ISO 22846 and AS/NZS 1891
Other Performance Attributes
  • Lightweight aluminium construction
  • Stainless steel rear connection
Documents
Data Sheet: Roof Jokey Needle
pdf
7938TH Product Specification
docx
Specification Guide
pdf
Total Height Safety on Masterspec
docx
Brochure: Roof Jokey Needle
pdf
