FrogLine — Toggle-fix Lifeline
Total Height Safety
All products

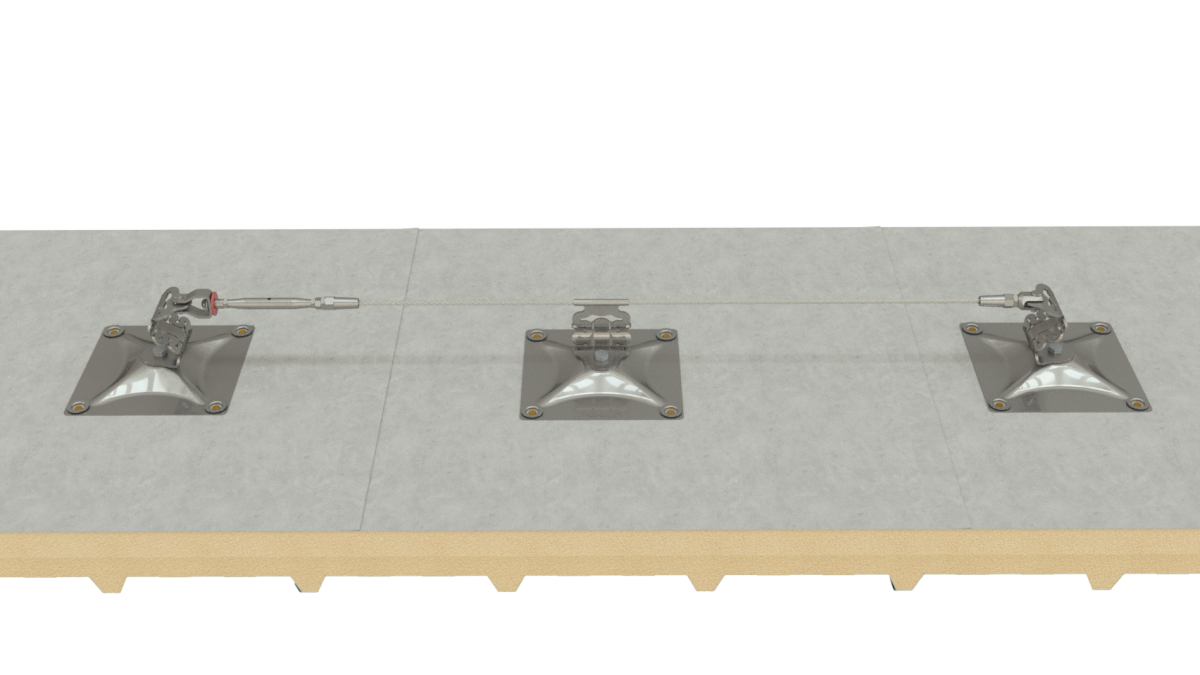

WARM ROOF ASSEMBLY

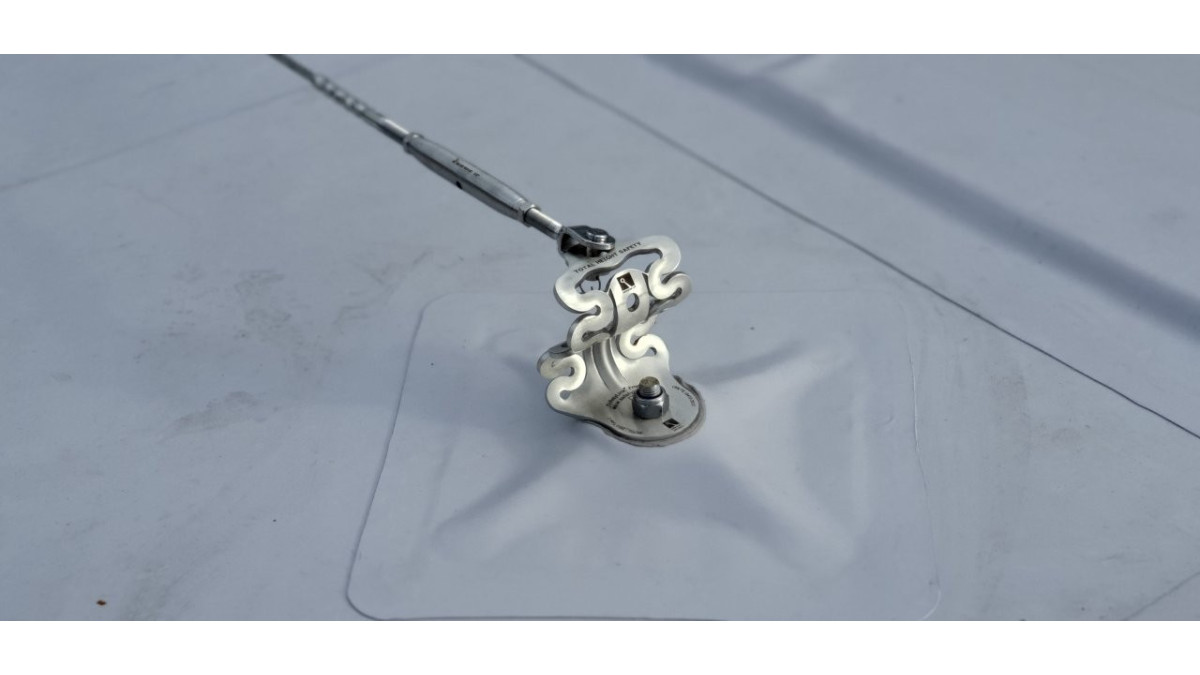

20220824 154932

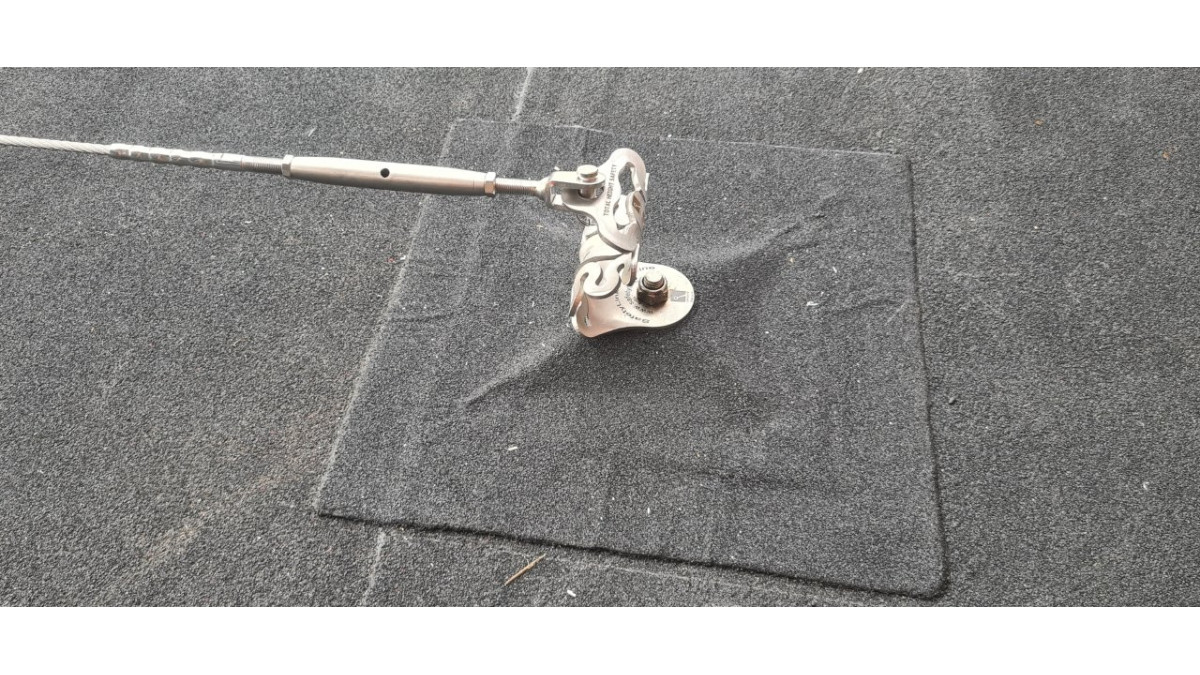

FL01 INSTALLED
Description

The SafetyLink FrogLine Membrane Surface Mounted Horizontal Lifeline is a permanent fall protection system designed for membrane roof applications. The system incorporates engineered energy absorbing anchor components to minimise loads on users and the supporting structure in the event of a fall. Continuous connection is achieved using an 8mm stainless steel cable and the SafetyLink FrogLine shuttle system.

Key Features
  • Permanent horizontal lifeline system for plywood substrates.
  • Engineered energy absorbing anchor system.
  • Continuous connection using 8mm stainless steel cable.
  • Up to four users per system, maximum two users per span.
  • 316 stainless steel components.
  • Quick-connect FrogLine shuttle.
  • Suitable for roof pitches up to 15° and across roof pitches up to 25°.
Categories
Roof Access, Walkways and Fall Protection
Ranges
Warm Roof Access Systems Ply Warm Roof Access Systems Roof Recovery Access Systems Roof Lifeline Systems — Fall Arrest
Scope of Use
  • Commercial, industrial and institutional membrane roofs.
  • Permanent roof access.
  • Warm roof construction.
  • New build and retrofit.
  • Suitable for roof pitches up to 15° and across roof pitches up to 25°.

Installation:

Install onto structural plywood using the approved SafetyLink SurfaceLink fixing system and fasteners in accordance with the SafetyLink Installation Manual.

Limitations on Use
  • Suitable only for warm roof substrates.
  • System supplied, installed and certified by Total Height Safety in accordance with the manufacturer's requirements.
  • Use approved SafetyLink components only.
  • Inspect and re-certify in accordance with AS/NZS 1891.4.
Statement of Building Code Compliance

Contributes towards compliance with NZBC:

  • B1 Structure
  • B2 Durability
  • F4 Safety from Falling

Tested and manufactured in accordance with AS/NZS 1891.2 and other referenced international standards.

Other Performance Attributes
  • 316 stainless steel components.

Warranty & Maintenance

  • Manufacturer's warranty applies when installed in accordance with SafetyLink requirements.
  • Inspect and re-certify by a competent person in accordance with AS/NZS 1891.4.
Documents
Height Safety Systems and Design Guide
pdf
Data Sheet: FrogLine — Toggle-fix
pdf
7938TH Product Specification
docx
DESIGN: No Substitution Principle
pdf
Specification Guide
pdf
Total Height Safety on Masterspec
docx
Handbook: FrogLine Warm Roof
pdf
Operation Manual: FrogLine Lifeline
pdf
Flyer: FrogLine — Toggle-fix
pdf
