VersiWall Greenwall Planter (VGP) System
Description

Versiwall Greenwall Planter from Elmich is an easy-to-install, low-maintenance vertical greening system with a variety of mounting, planting density and growth media options to suit different installation requirements. VGP can be utilised for both outdoor and indoor green wall installations.

VGP allows for convenient plant maintenance and design change, with trays easily removed from their mounts individually — each VGP tray has a water reservoir with a cover designed to allow re-use of stored water via capillary action to sustain plant growth and minimise maintenance. The flexibility of the system allows architects and designers the full expression using a palette of plants to articulate spaces with green walls, creating inspired, environmentally beneficial habitats to live and work in.

VGP is manufactured from UV-stabilised recycled polypropylene that meets requirements for the international 'Green Building' certification, and is also available in a fire-resistant version.

Key Features
  • Flexible Design and Planting Options — Flexible vertical and horizontal tray spacing allows variable plant density for design options even on curved walls

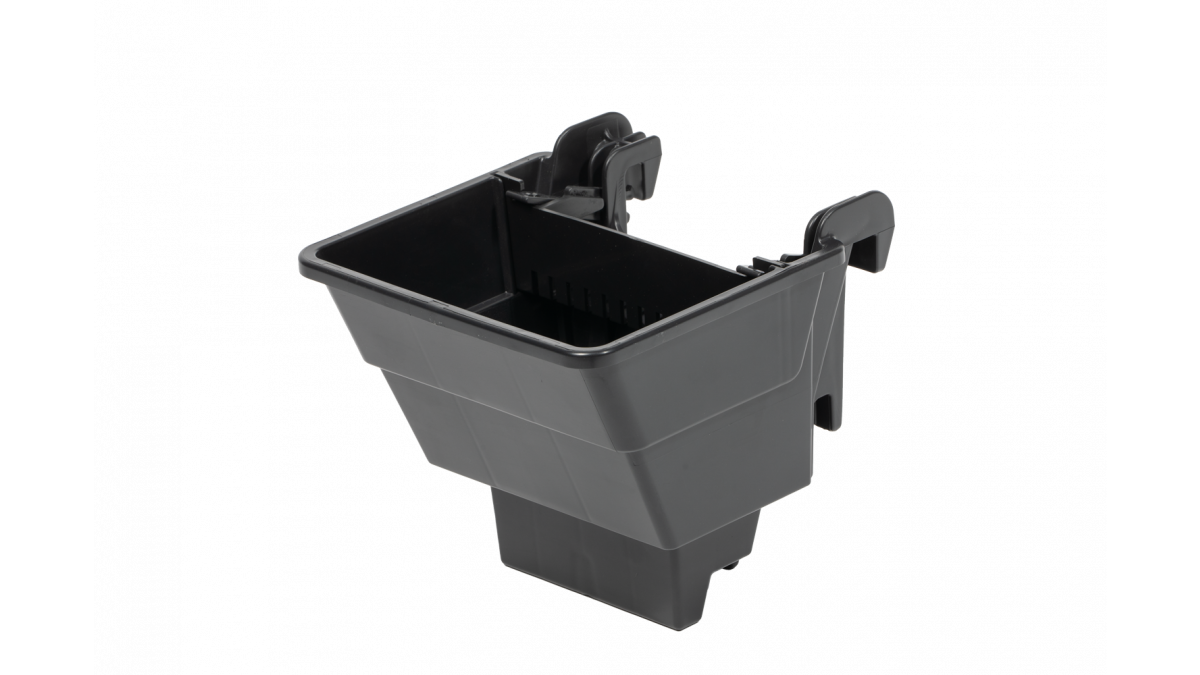

  • Planter Size and Growing Medium — The 200mm wide tray holds 1.8L of soil, equivalent to a 150mm diameter planting pot and gives room for plants to branch and grow, and is suitable for a variety of growing mediums
  • Irrigation and Water Use — Irrigation pipes are concealed between trays or at the rear, drainage outlets allows excess water to flow into underlying trays or to be channelled away, preventing spillage, and the base plate with capillary function enables use of stored water/fertiliser in reservoir

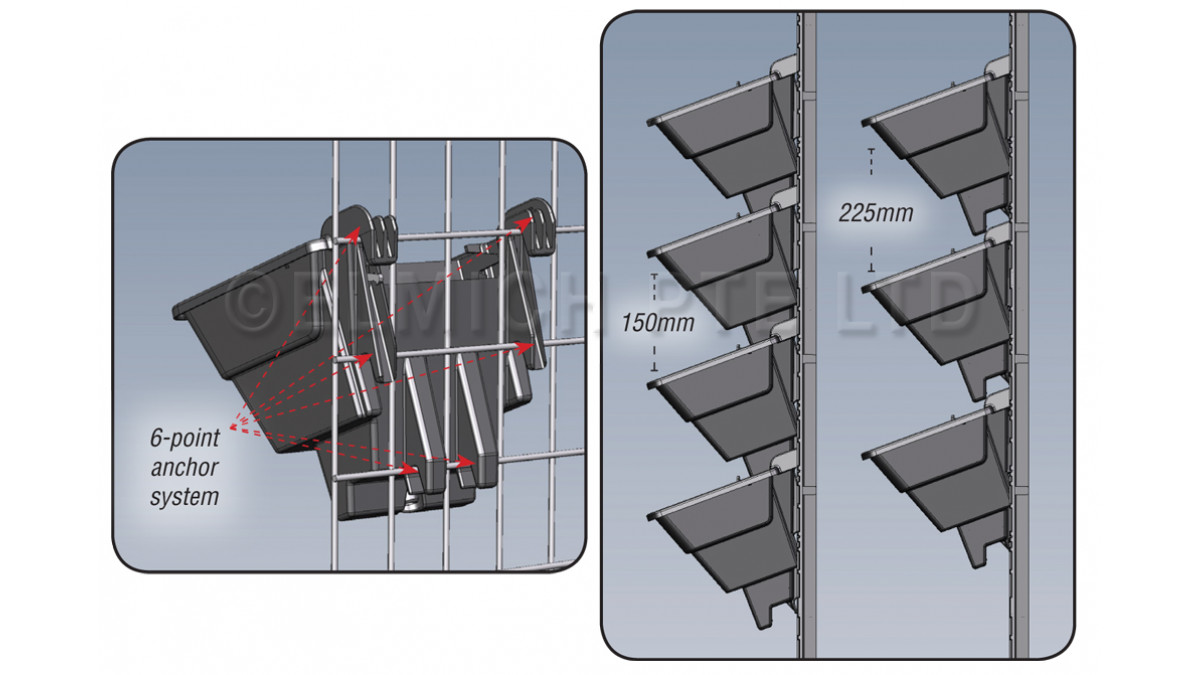

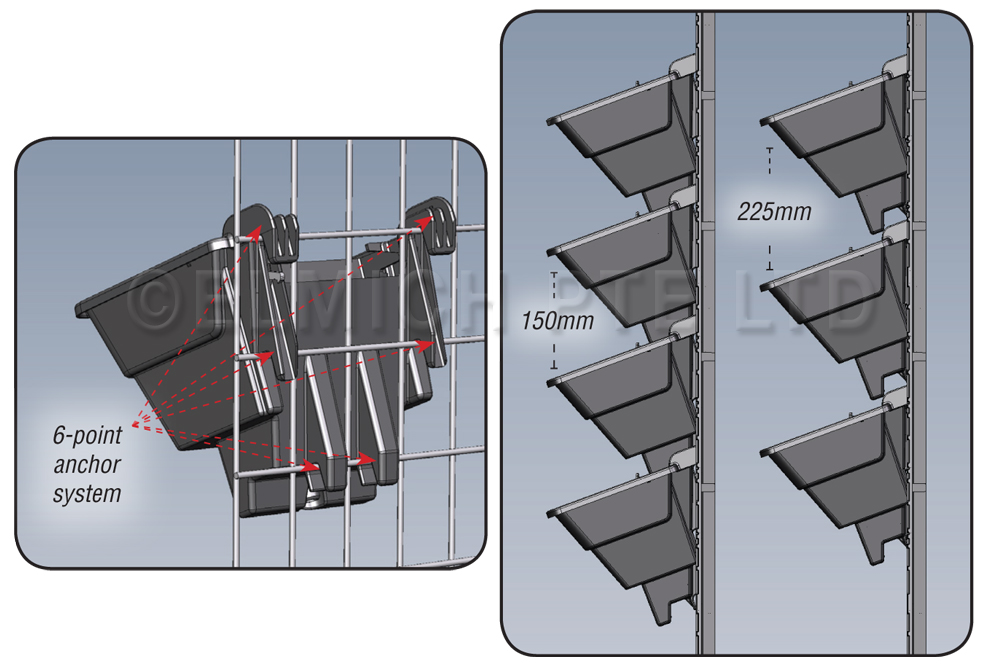

  • Easy Installation — Proprietary Mounting Panels facilitate easy mounting, the 6-point anchor system allows flexibility of mounting options.
  • Safe and Clean — The anti-lift arm prevents inadvertent dislodgement of trays, while a baffle plate distributes irrigation, prevents media spillage and allows trays to neatly overlap in close planting
Categories
Green Walls
Ranges
Greenwalls
Scope of Use
  • Suitable for indoor and outdoor planting
  • Can be used on curved walls
  • Mounting options:

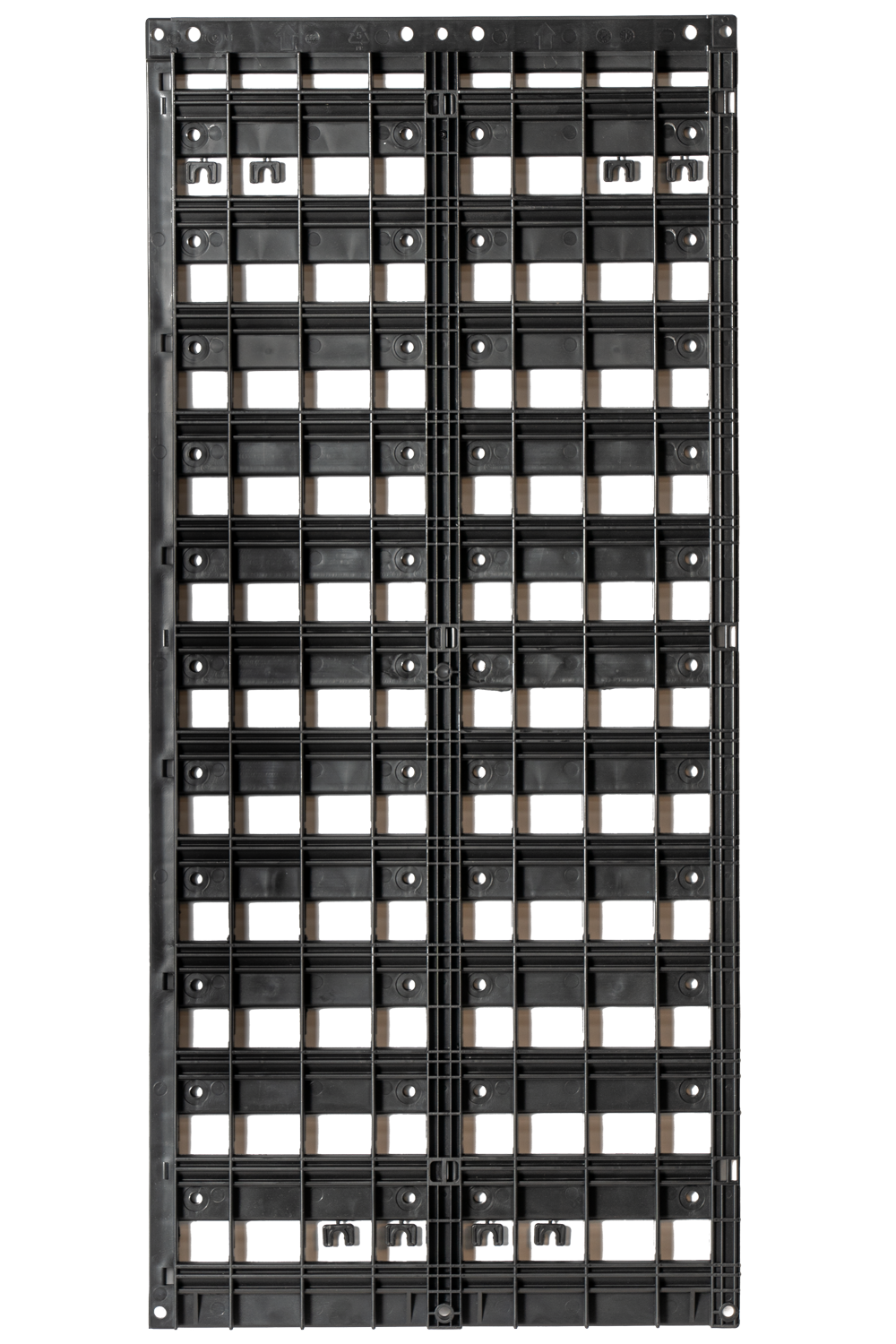

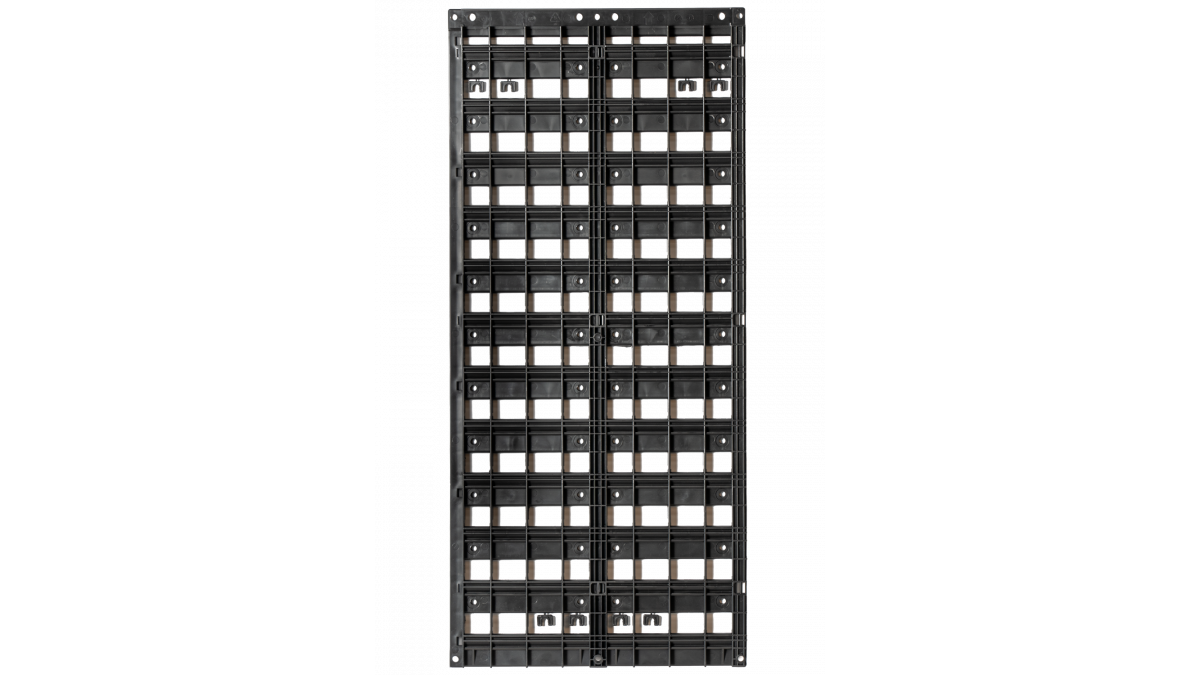

    • GP Mounting Panel — made from recycled plastics
    • Welded mesh — standard mesh with rod spacing 50mm wide x 75 or 150mm high
    • Steel rods — at 75 or 150mm intervals for a more minimalistic design
Statement of Building Code Compliance

VersiWall is available in a fire-resistant version — VGP FR

Other Performance Attributes

VGP is manufactured from UV-stabilised recycled polypropylene that meets requirements for the international 'Green Building' certification.

Documents
VersiWall GP Planter Tray
