• Residential installations with solid fuel wood burning appliances only
• Appliances tested to AS/NZS 2918:2018 with maximum average heat output up to 15 kW
• Suitable for typical NZ wind zones, including high wind, when braced in accordance with manufacturer instructions
• Applicable in seismic zones when installed with appropriate bracing and clearances

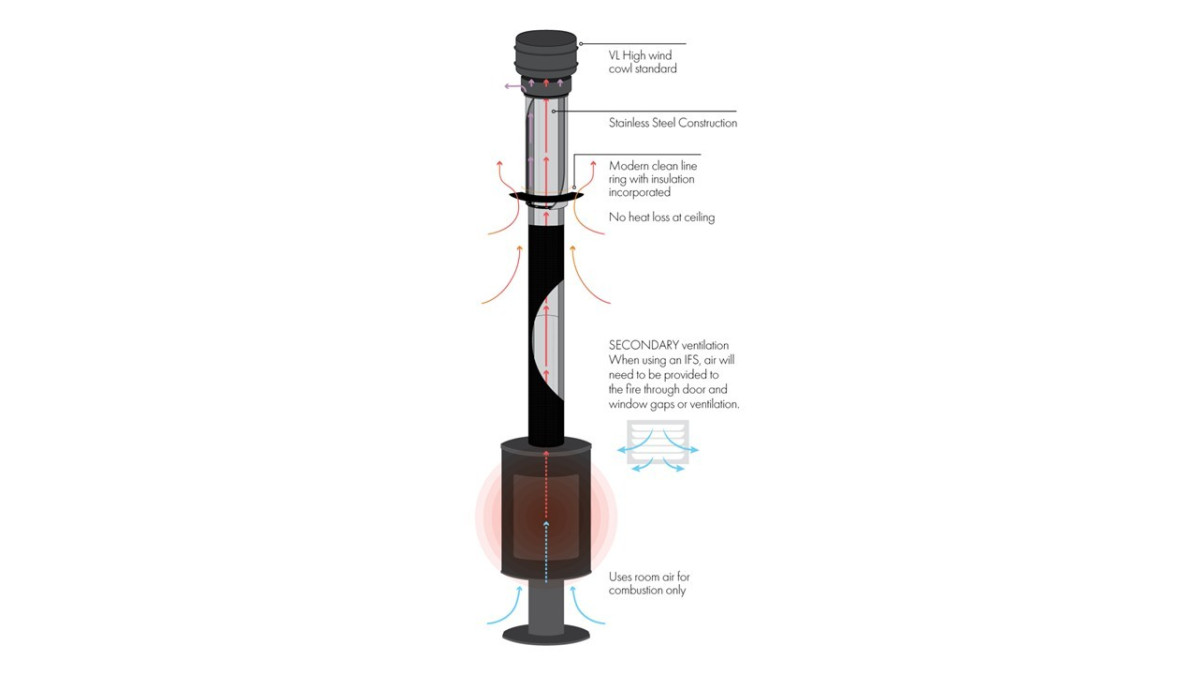

• Suitable for internal and through roof vertical flue installations
• Minimum clearances to combustibles as specified in AS/NZS 2918:2018 and the appliance compliance plate
• Flue termination heights in accordance with AS/NZS 2918:2018 roof penetration rules
• Modular component system allowing fixed, adjustable and offset configurations
• Optional bracing systems for roof and wall support in exposed conditions

• For solid fuel wood appliances only, not suitable for gas or liquid fuel systems
• Maximum appliance average heat output 15kW
• Only VisionLINE IFS components permitted, no mixing with other flue systems
• Adjustable sections must not be cut
• Installation by qualified installer only
• Clearances to combustibles must be maintained, 25mm at ceiling penetration, 50mm elsewhere
• Additional flue shielding required for appliances above 12kW up to 15kW
• Not intended for shared flue systems or commercial scale installations

The VisionLINE IFS Insulated Flue System is tested to AS/NZS 2918:2018 Domestic solid fuel burning appliances, installation. Testing includes Appendix B and Appendix F requirements for flue systems used with solid fuel appliances up to 15 kW average output.

In relation to the New Zealand Building Code, the system contributes to compliance with:

• Clause B2 Durability, stainless steel 304 construction and ceramic insulation suitable for long term residential exposure
• Clause C Protection from Fire, by maintaining tested clearances to combustible materials and providing insulated flue construction
• Clause F2 Hazardous Building Materials, stainless steel and ceramic fibre insulation used in accordance with tested applications
• Clause H1 Energy Efficiency, indirectly by supporting compliant installation of solid fuel heating appliances

Compliance claims are based on testing to AS/NZS 2918:2018 and manufacturer documentation.

The VisionLINE IFS system has been tested under AS/NZS 2918:2018 and supplied for residential solid fuel installations in Australia and New Zealand since at least 2018.

• Powder coated satin black external finish for corrosion resistance and aesthetic integration

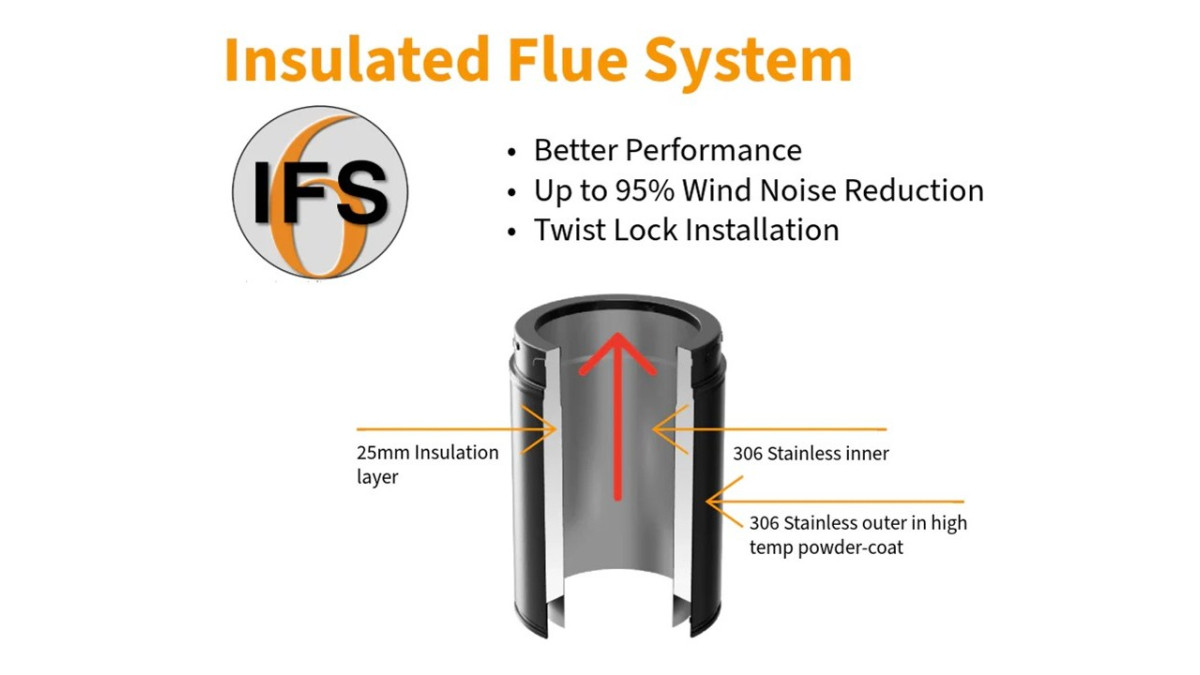

• Ceramic fibre insulation improves flue gas temperature retention and draft performance
