Phonic Impact
T&R Interior Systems
All products

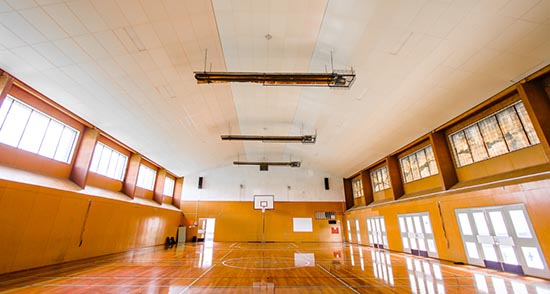

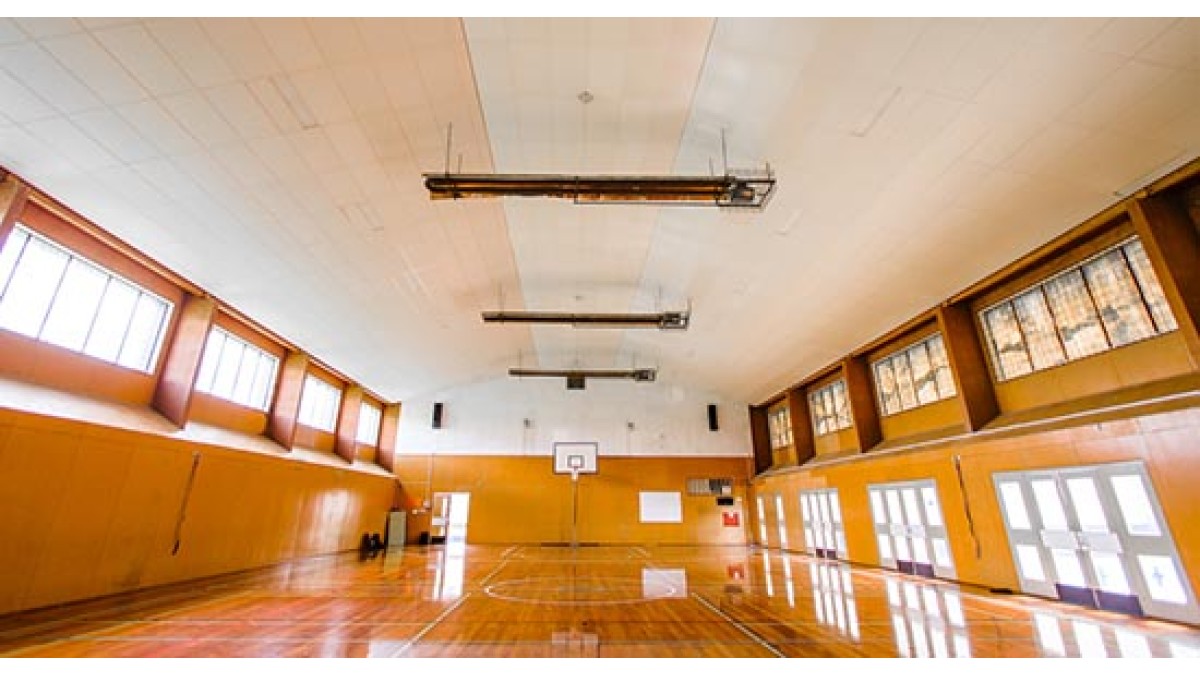

C Max IMpact2 for eboss

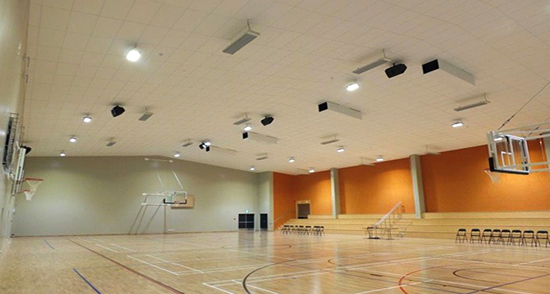

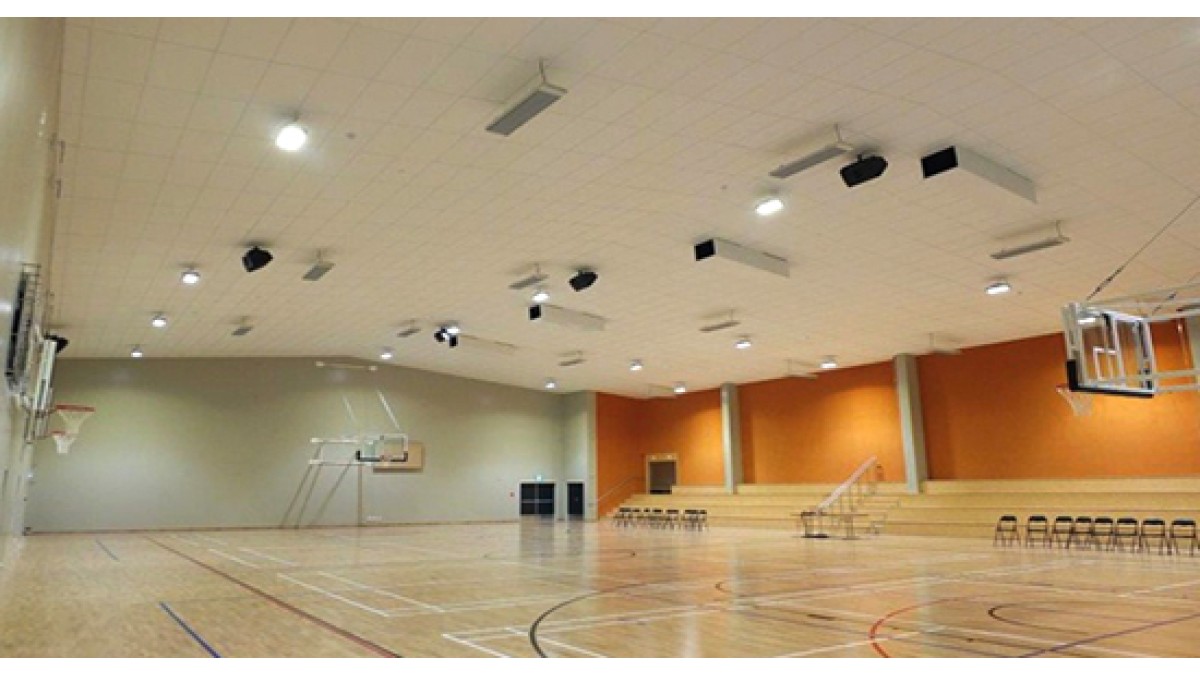

DSCF0236

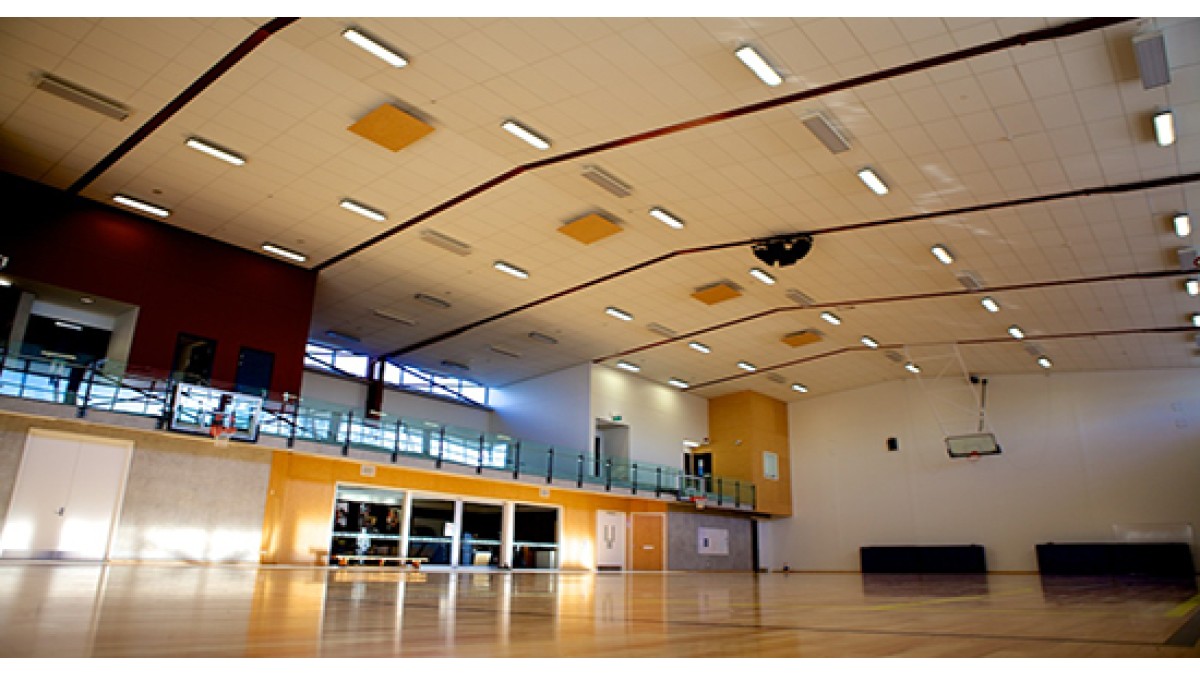

Impact sports panels cropped

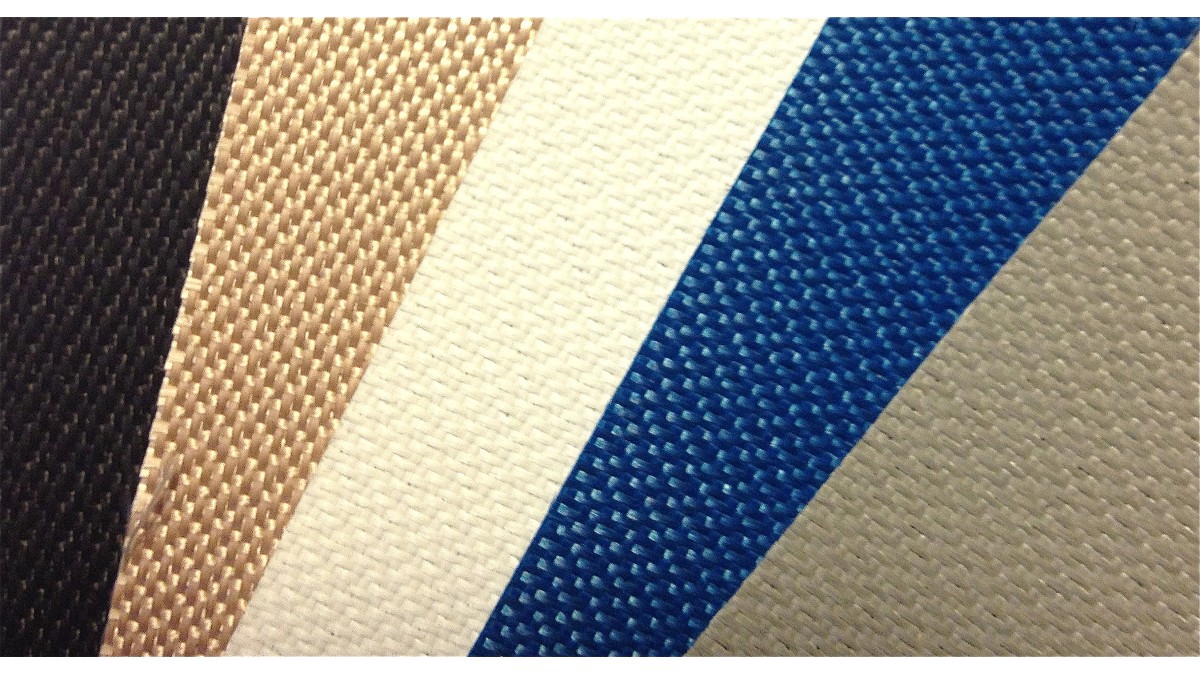

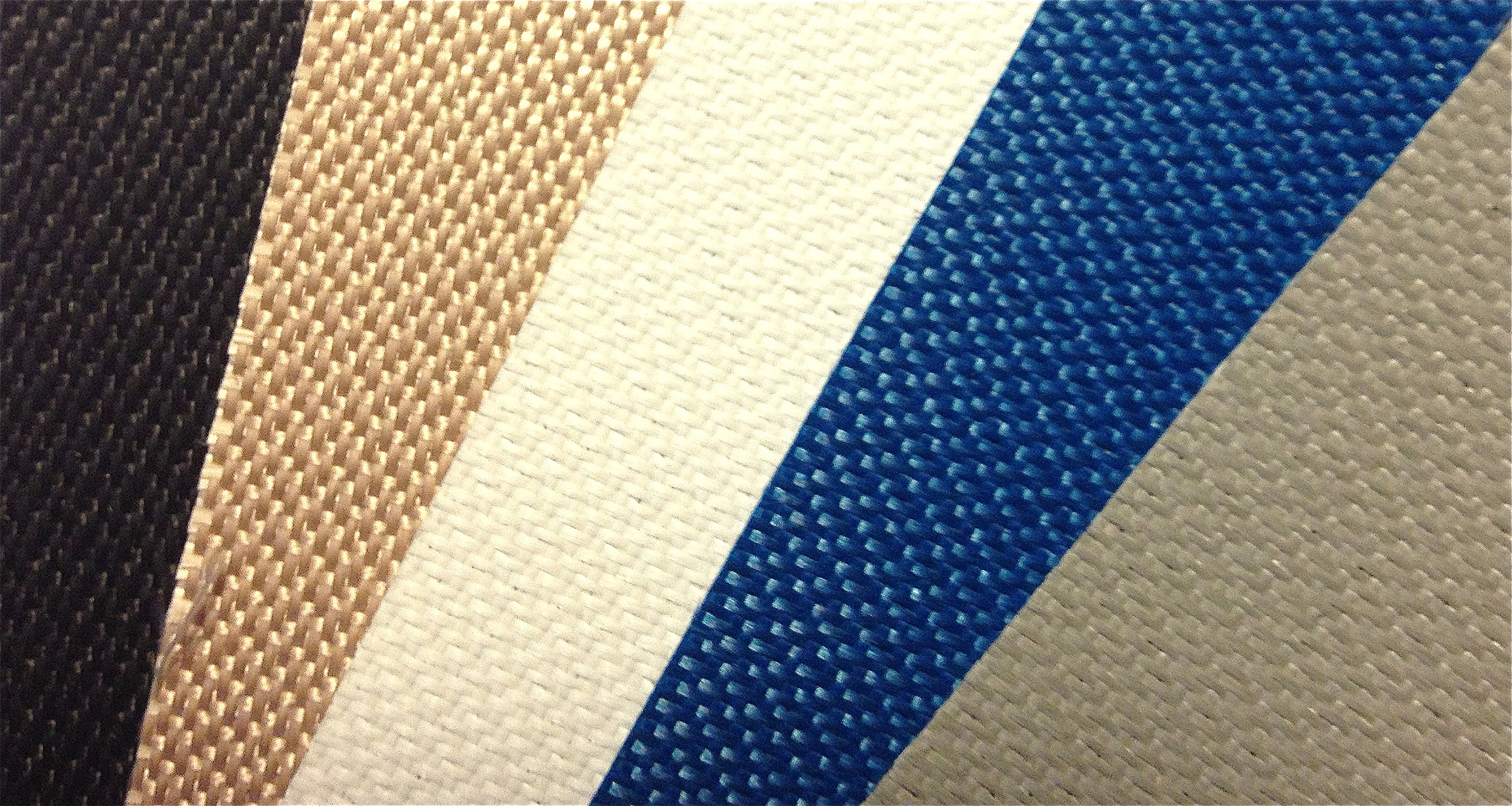

C Max Impact Combo 50mm Panel Front View Edit2

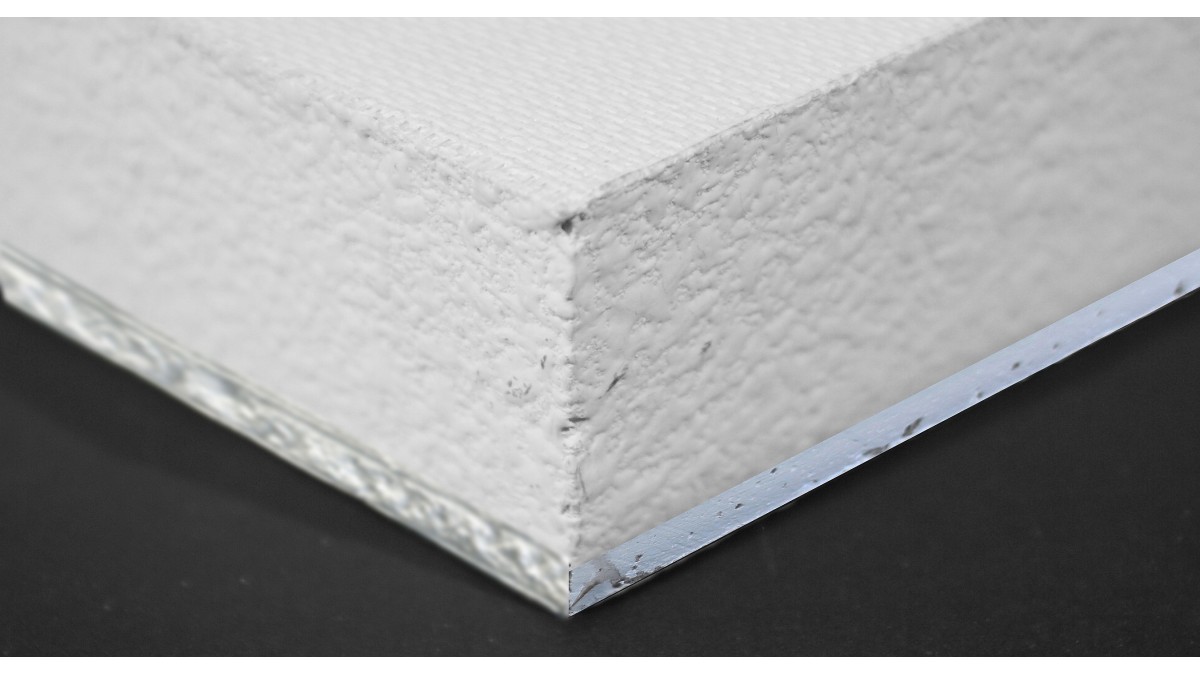

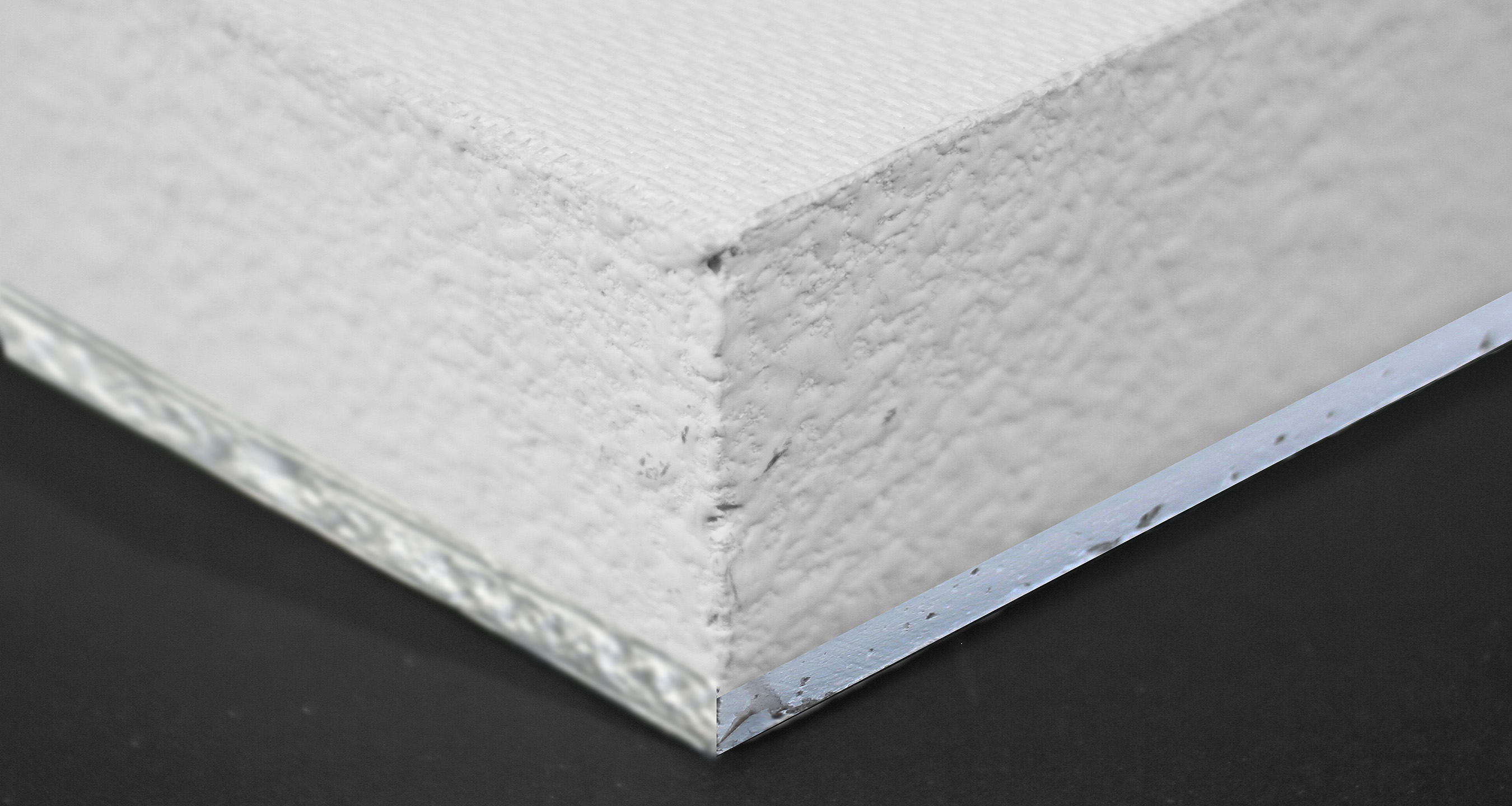

C Max Impact Combo 50mm Panel Side View Edit
Description

Phonic Impact Sports Panel is a 40mm thick fibre glass ceiling and wall panel with a strong fibre glass face. This panel has exceptionally high acoustic properties and is priced mid-range. The compounded, high density glass-wool design results in a light weight, durable, high performance sound panel which is ideal for use in gymnasiums, Sport Centres, Community Halls and schools. Available in a selection of colours and can be ink-jet printed with custom designs and logos.

Key Features
  • Exceptionally high acoustic properties — the high Noise Reduction Coefficient will reduce reverberation time
  • Withstands knocks and ball impact
  • Mid range tile and panel
  • This product is constructed from 90% dry felt resin bonded glass wool, utilising longer fibres in a compact fibre arrangement
  • The non-absorbent, non water soluble design gives C Max Impact improved durability when compared to mineral fibre
  • Due to its unique strong impact resistant fibre glass face, it is ideal for gymnasiums, sports centres, schools and community halls
  • Made from a compounded, high density glass wool which achieves a density of 100kg/m³ — light-weight, high performance, user-friendly ceiling tiles
  • Suspend Phonic Impact Sports Panels in a standard T&R Interior System two way grid or direct fix with a very simple and quick install system — Use Robo clips to prevent tiles from dislodging
  • Can be ink-jet printed with custom design and logos
  • Available in a selection of colours — standard colour is white
Categories
Suspended Ceilings Fire, Acoustic & Special Performance Ceilings
Ranges
Ceiling Systems Acoustic Ceiling Tiles
Scope of Use
  • Mid range tile and panel
  • Ideal for gymnasiums, sports centres, schools and community halls
  • Suspend in a standard T&R Interior System two way grid or direct fix with a very simple and quick install system
Statement of Building Code Compliance
  • Acoustic Absorption: NRC 0.90
  • Fire Performance: Group 1-S
In-Service History
  • Middleton Grange, Christchurch
Interior Fire Rating 1S
1S
Documents
Data Sheet
pdf
Additional Information
URL
BIM
View full
Phonic Impact
zip

T&R Interior Systems specialise in the supply of quality interior building and acoustic products fully backed by extensive technical support and friendly service.
