SoundDown Semplicé Acoustic Flooring Panel
Description

Semplicé is a low profile acoustic flooring panel that reduces sound transmission, is quick to install and well-suited to both new builds and retrofits.

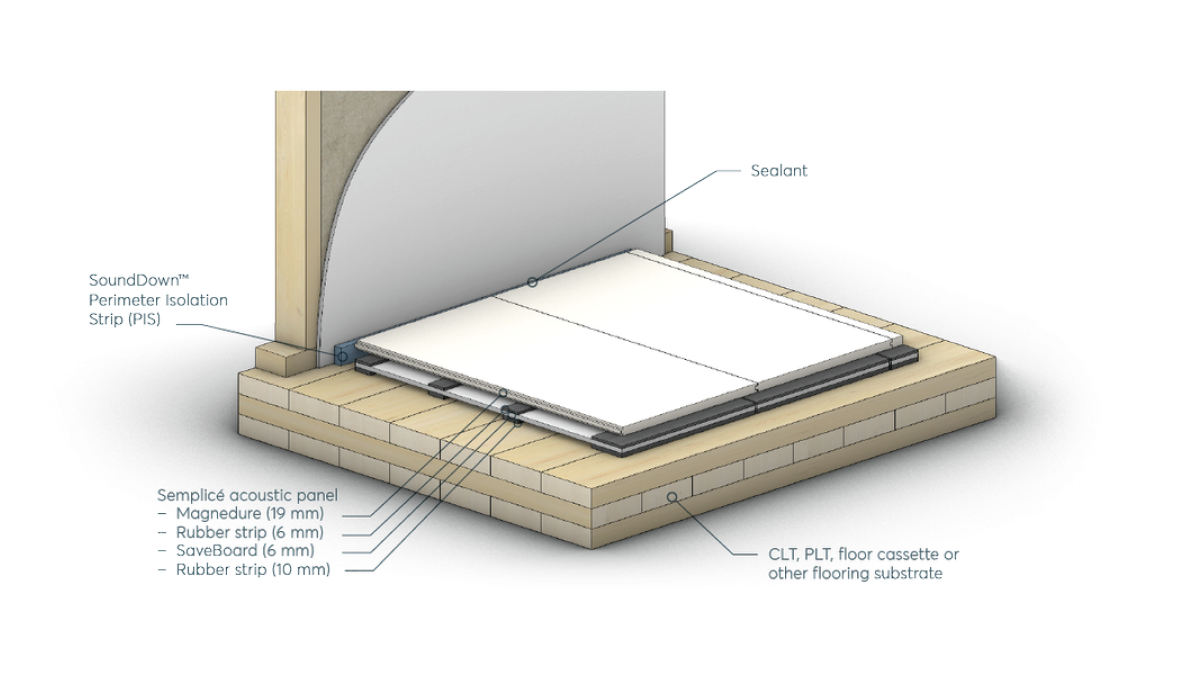

Semplicé comprises a layer of Magnedure (19mm), and a layer of SaveBoard (6mm). The layers are separated by rubber strips (6mm) with another layer of rubber strips (10mm) below the SaveBoard.

The Semplicé panel features a tongue and groove finish on the long side and butt finish on the shorter. When installed, it has finished dimensions of 1350 x 600 x 42mm.

Once laid the floor is ready for the final floor covering to be laid.

SoundDown supplies supplementary solutions to facilitate the installation of a level entry shower as well as specifically design FireStop battens to simplify the installation of a fire door where a SoundDown Acoustic flooring system is being installed.

Key Features
  • Simple to install
  • Supply only or supply/install options
  • Supplementary solutions
  • Supporting documentation to enable simple specification and installation, and to manage council requirements
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
Scope of Use
  • An interior acoustic flooring system, intended for installation in conjunction with a substrate that complies with the building code (new build) or where the substrate is suitable for the intended building work (retrofit). Substrates include: CLT, PLT, timber and steel framing, concrete (precast or in‑situ), cassette floor systems.
  • Depending on assembly may satisfy NZBC Clause G6 (Airborne and Impact Sound) in intertenancy/mid‑floor situations.
  • Able to be used in all situations up to a point load of 5kPa.
  • Level-entry showers and wet areas can be installed in conjunction with Endurabase Flex System.
  • Fire-stopping battens simplify the installation of  fire doors.
Limitations on Use
  • Must be specified, installed and maintained in accordance with all applicable technical information
  • Only specified flooring toppings are permitted—OSB/3, Magnedure, or fibre cement; substitutions are not allowed
  • Installation must be carried out or supervised by an LBP.
  • Acoustic performance depends on the assembly — refer to SoundDown for tested assemblies.
  • Where G6 compliance is required and the assembly is not part of SoundDown’s tested assemblies then on-site testing or expert opinion is required.
Statement of Building Code Compliance

The SoundDown Semplicé Acoustic Flooring System, if designed, installed, and maintained in accordance with SoundDown's technical documentation, may comply with or contribute to compliance with the following performance provisions of the New Zealand Building Code:

  • Clause B1 STRUCTURE: Performance: B1.3.1, B1.3.2, B1.3.3 (a, b), B1.3.4
  • Clause B2 DURABILITY: Performance B2.3.1(a)  B2.3.2(a)
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1
  • Clause G6 AIRBORNE AND IMPACT SOUND: Performance G6.3.1, G6.3.2
Other Performance Attributes
  • Sustainability: Uses recycled plastic (SaveBoard), and recycled rubber isolation content
  • Warranty: 15 year manufacturer warranty on SoundDown Semplicé panels
Documents
BPIR Product Statement: Semplicé

V1.0 May 2025

Design Guide: Semplicé

V1.0 May 2025

Specification: Semplicé

V1.0 May 2025

Endurabase/Semplicé Layout & Fixing

v.2

Installation Guide: Semplicé

V1.0 May 2025

SoundDown Technical Resources
Installation Details
Acoustic Batten Layout & Fixing Details: Semplicé

V1.0

Endurabase Layout & Fixing Details: Semplicé

V1.0

SoundDown are a leading brand in innovative acoustic rated floor systems with solutions designed to deliver a high performing acoustic mid-floor to suit almost any building.
