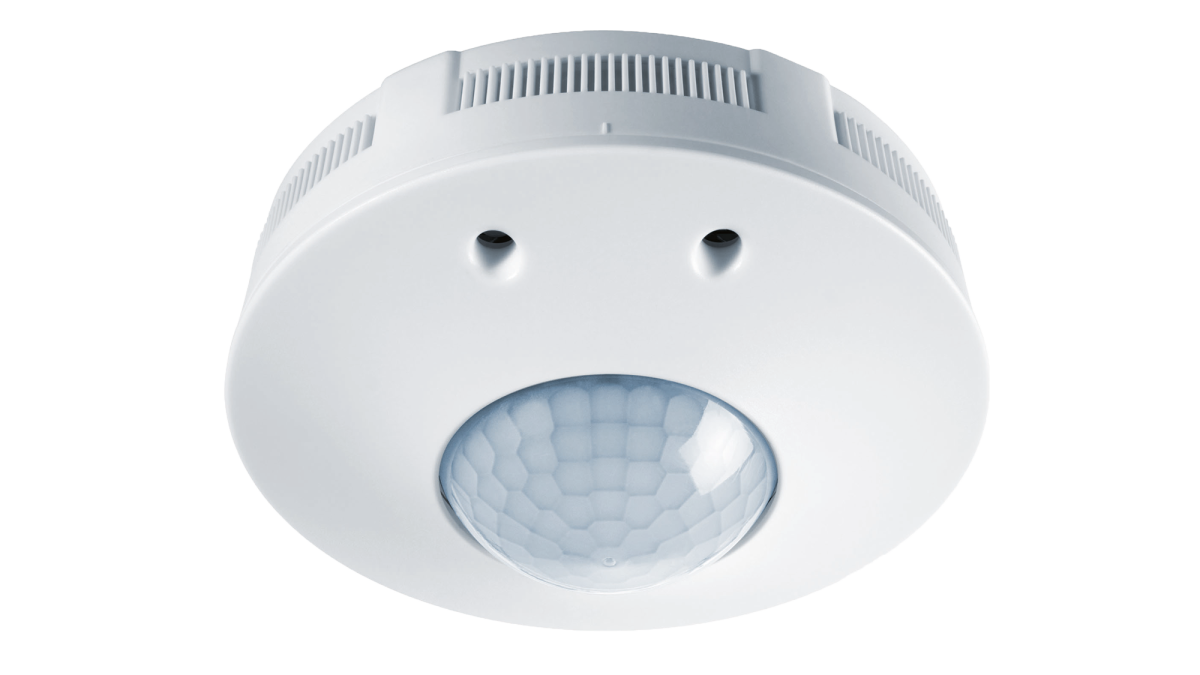

• For indoor ceiling installation as part of a KNX building automation system.
• Suitable for commercial, educational, healthcare and institutional buildings where presence, daylight and indoor environmental conditions are used to control building services.
• Typical applications include open-plan and single offices, meeting and conference rooms, classrooms and staff rooms, waiting areas, canteens and refectories, fitness and changing rooms, and sanitary facilities where IP20 installation conditions are maintained.
• T model: presence, acoustic, light and temperature sensing for spaces requiring lighting and temperature-related control.
• A model: adds relative humidity measurement for spaces where humidity is used as a control input.
• O AUX model: adds VOC-based air-quality measurement for spaces where ventilation or air purification is controlled in response to indoor air quality.

• IP20 rated and intended for dry indoor locations. It is not suitable for exposed exterior locations or wet areas where a higher IP rating is required.
• Permissible ambient operating temperature is +5 °C to +35 °C.
• The detector is designed for use within a KNX system and is not a standalone mains switching sensor. System performance depends on compatible KNX components, system design and commissioning.
• The PD-ATMO 360i/8 O AUX 30V KNX requires an auxiliary 24–30 V DC supply in addition to the KNX supply.
• The O AUX model measures VOC-based air quality. It does not directly measure CO2.
• Installation should follow ESYLUX mounting, detection-zone and commissioning requirements.

ESYLUX are a German based manufacturer of Lighting and Automation Controls for over 30years. Their business is accredited to ISO9001 and ISO14001.

ATMO sensors were first introduced in 2012 and have been installed extensively throughout Europe since.

Simx Ltd have been supplying electrical products to the electrical trade in New Zealand since 1983. They have been the exclusive New Zealand distributor of ESYLUX products since 2016.

• ATMO sensors are KNX certified devices. EPD declarations are available.
• The ESYLUX ATMO series is covered by a five-year manufacturer warranty. Installation and commissioning are to be completed in accordance with ESYLUX product instructions and the requirements of the associated KNX system.
