HY-XP Extreme Performance Hybrid Mortar Anchor
Simpson Strong-Tie
All products
HY XP Application 01
HY XP Application 03
HY XP Application 04
HY XP 03
HY XP 00
Description

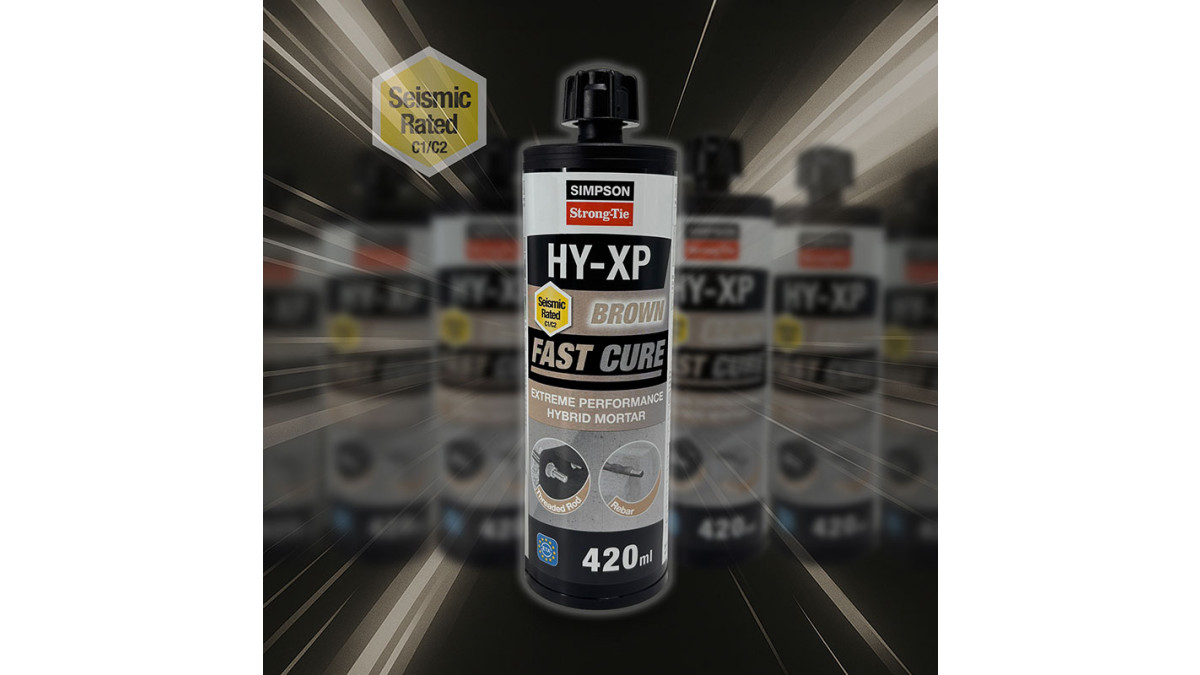

Fast and strong for greater productivity, HY-XP is an extreme performance fast cure hybrid mortar with ETA including seismic C1 and C2, for use in commercial and residential applications with heavy-duty anchoring and structural steel.

Key Features
  • Suitable for use in cracked and non-cracked concrete M8 to M30 / rebar Ø8 to Ø32
  • Extreme performance for structural applications with high loads, ideal for commercial use
  • Qualified for use in seismic applications C1 and C2
  • Fast cure formulation ideal for increased productivity

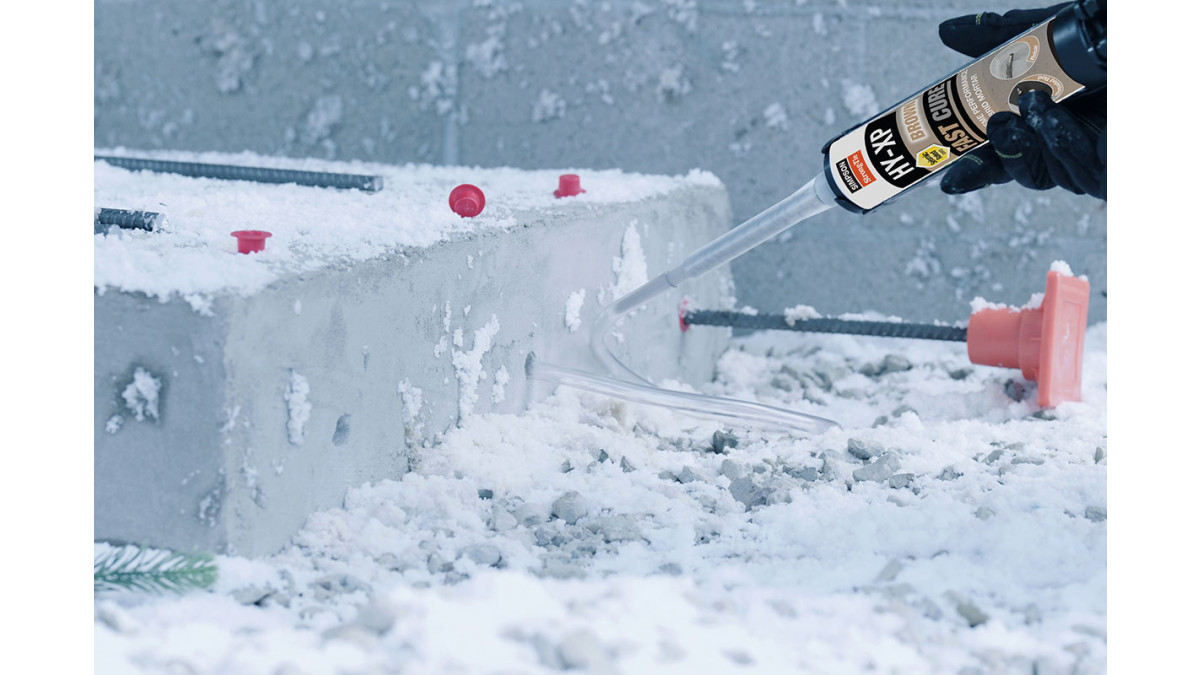

  • Can be used in dry and damp conditions, wet or flooded environments (not sea water)
  • 420ml coaxial cartridge is compatible with the Simpson Strong-Tie DT420 dispensing tool
  • Installation temperature of base material: -5°C to +40°C
  • Service temperature: -40°C to +160°C
  • Styrene free
  • Shelf-life of 18 months from date of production
Categories
Fasteners and Connectors
Ranges
Anchoring Systems
Scope of Use

Installation:

  • Refer to product label for hole and cartridge preparation, installation and technical data.

Applications:

  • Post-installed Rebar

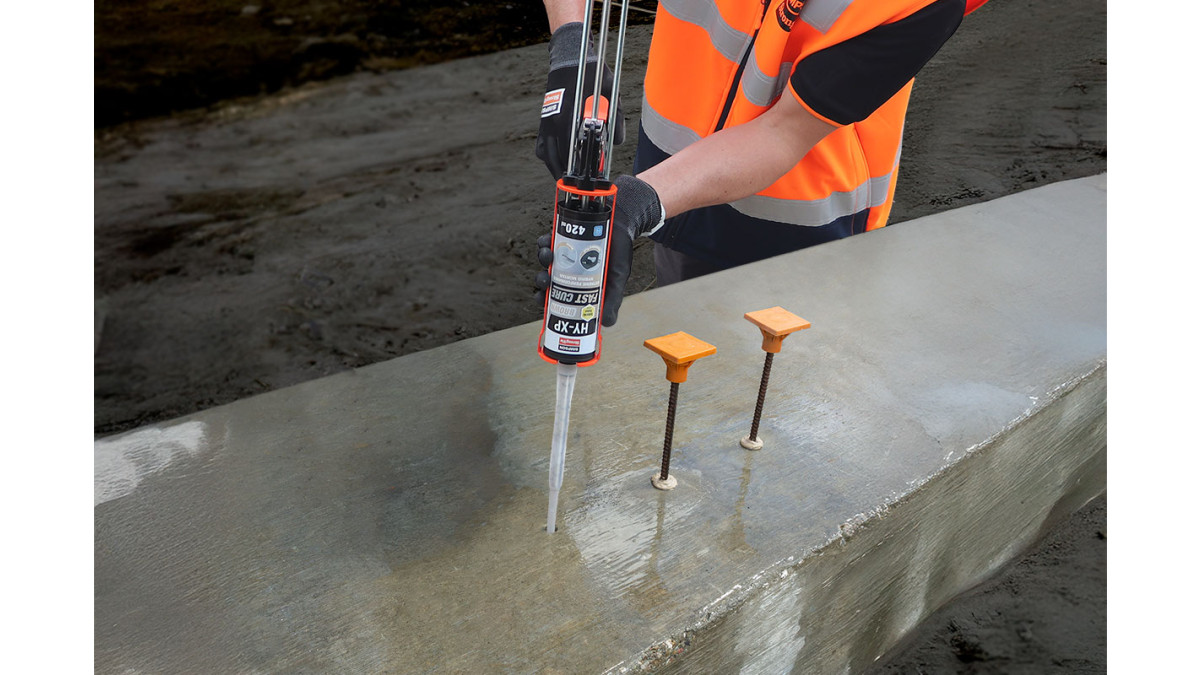

  • Threaded Rod Anchoring
  • Structural Steel

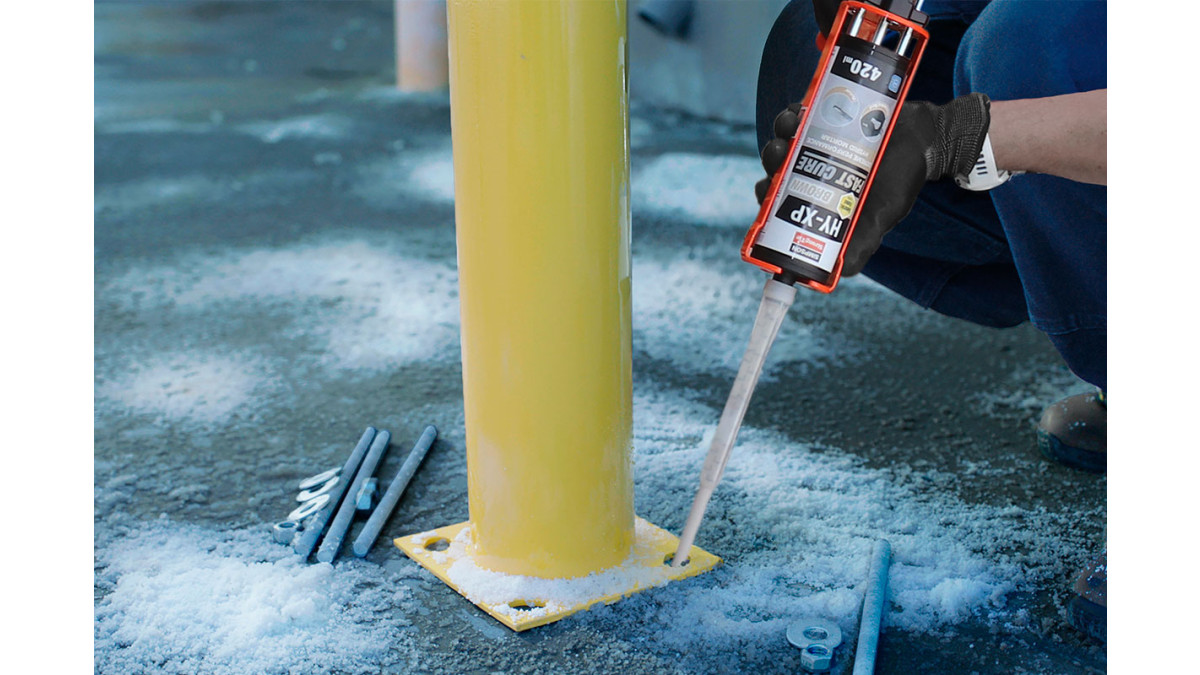

  • Steel Columns and Beams, Post Bases, Concrete Columns
  • Balcony Extensions
  • Facades, Safety Barriers
  • Fences, Gates, Industrial Garage and Warehouse applications

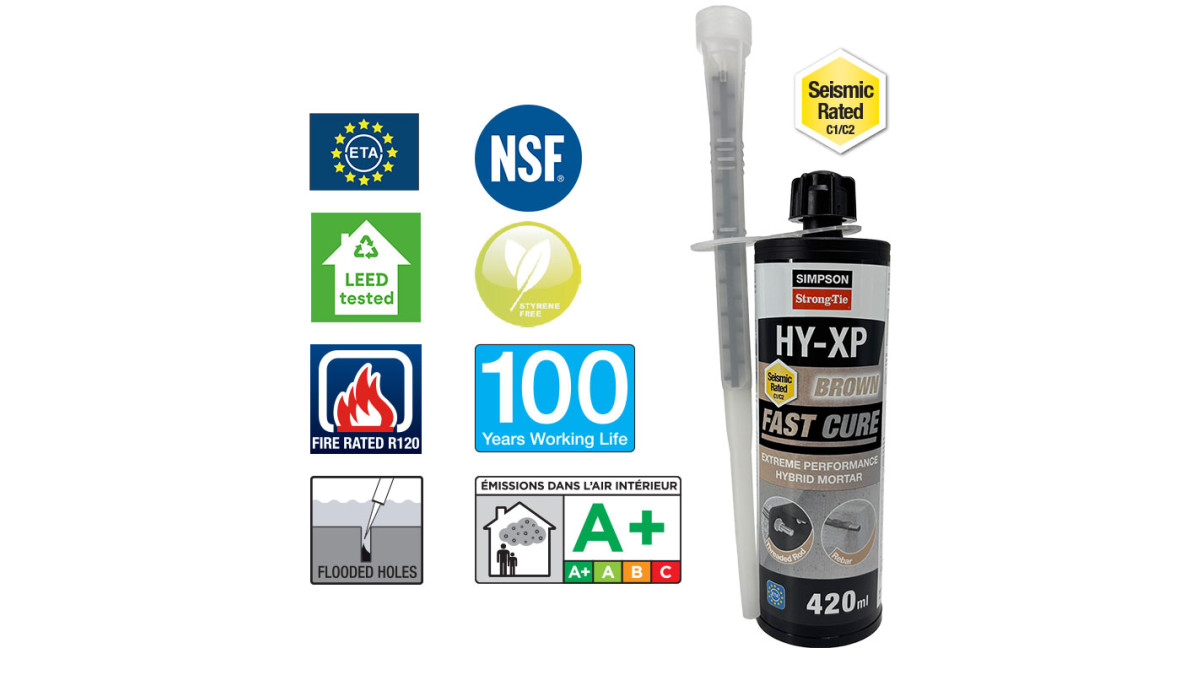

Other Performance Attributes
  • ETA-25/0533 for use in concrete
  • ETA-25/0356 for rebar
  • Fire Rated R120
  • NSF Certified (drinking water)
  • LEED tested for sustainable construction
  • 100 year working life
  • VOC compliant (A+ rating)
Other Independent Assessment
Other Independent Assessment
  • News
Documents
Material Safety Data Sheet - A
pdf
Material Safety Data Sheet - B
pdf
Technical Data Sheet
pdf
ETA-25/0355 (Rebar)
pdf
ETA-25/0483 (Concrete)
pdf
LEED Attestation
pdf
VOC Attestation
pdf
Flyer
pdf

A leader in structural systems research, testing and innovation, Simpson Strong-Tie is among the world's largest suppliers of solutions and products, helping build safer, stronger structures.
