EP-XP Extreme Performance Epoxy Anchor
Simpson Strong-Tie
All products
EP XP Application 05
EP XP Application 03
EP XP Application 04
EP XP 03
EP XP 00
Description

The ultimate strength for commercial applications. EP-XP is an extreme performance slow cure pure epoxy with seismic ETA C1 and C2, ideal for commercial and residential applications with heavy-duty anchoring, such as structural steel and rebar connections.

Key Features
  • Suitable for use in cracked and non-cracked concrete M8 to M30 / rebar Ø8 to Ø40
  • Extreme performance for structural applications with high loads, ideal for commercial use

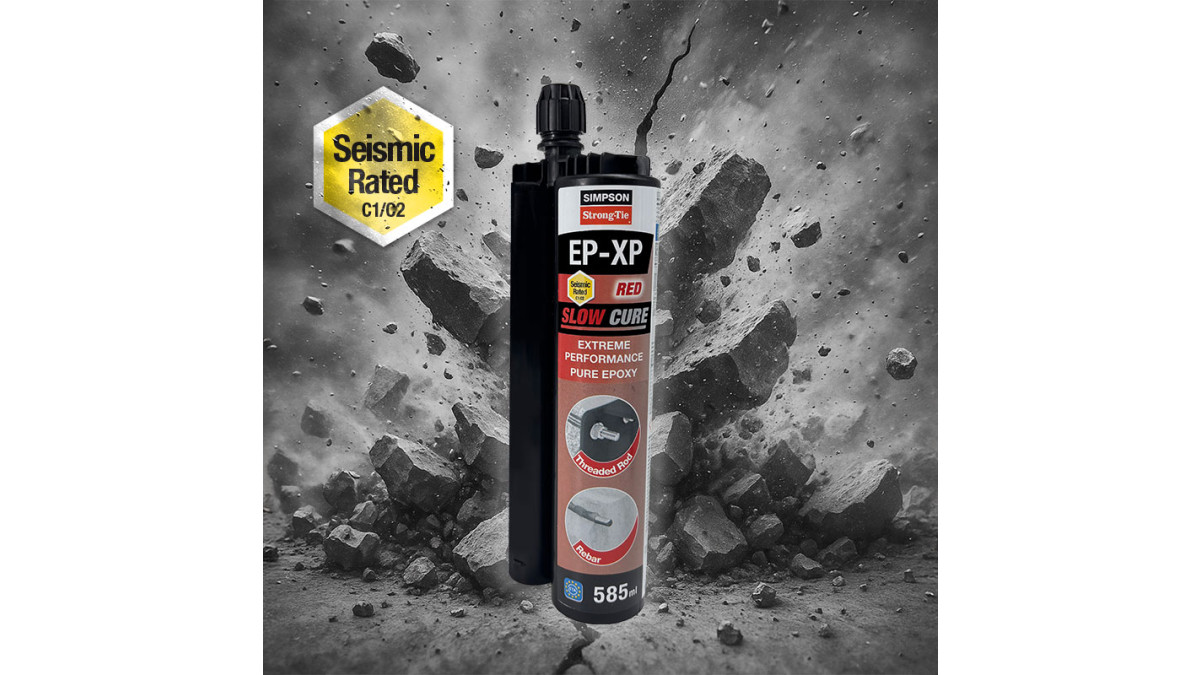

  • Qualified for use in seismic applications C1 and C2
  • Slow cure formulation ideal for deep embedment

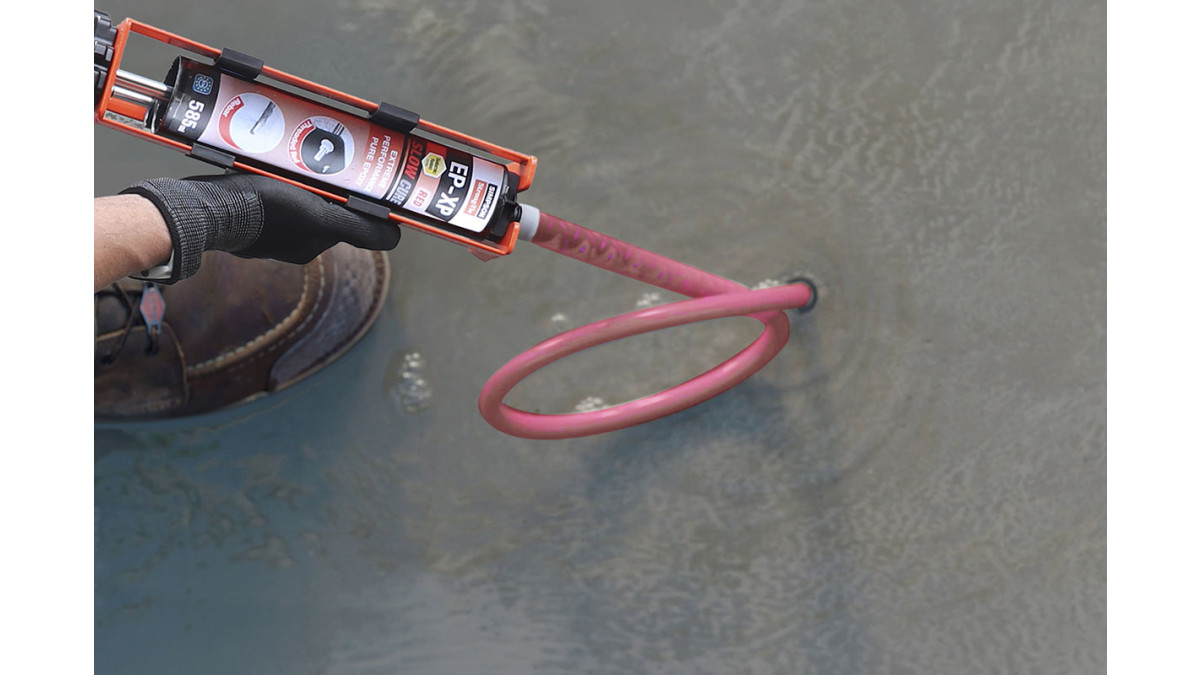

  • Can be used in dry and damp conditions, wet or flooded environments (not sea water)
  • 585ml side-by-side cartridge is compatible with the Simpson Strong-Tie DT585 dispensing tool
  • Installation temperature of base material: 0°C to +40°C
  • Service temperature: -40°C to +80°C
  • Styrene free
  • Shelf-life of 24 months from date of production
Categories
Fasteners and Connectors
Ranges
Anchoring Systems
Scope of Use

Installation:

  • Refer to product label for hole and cartridge preparation, installation and technical data.

Applications:

  • Post-installed Rebar

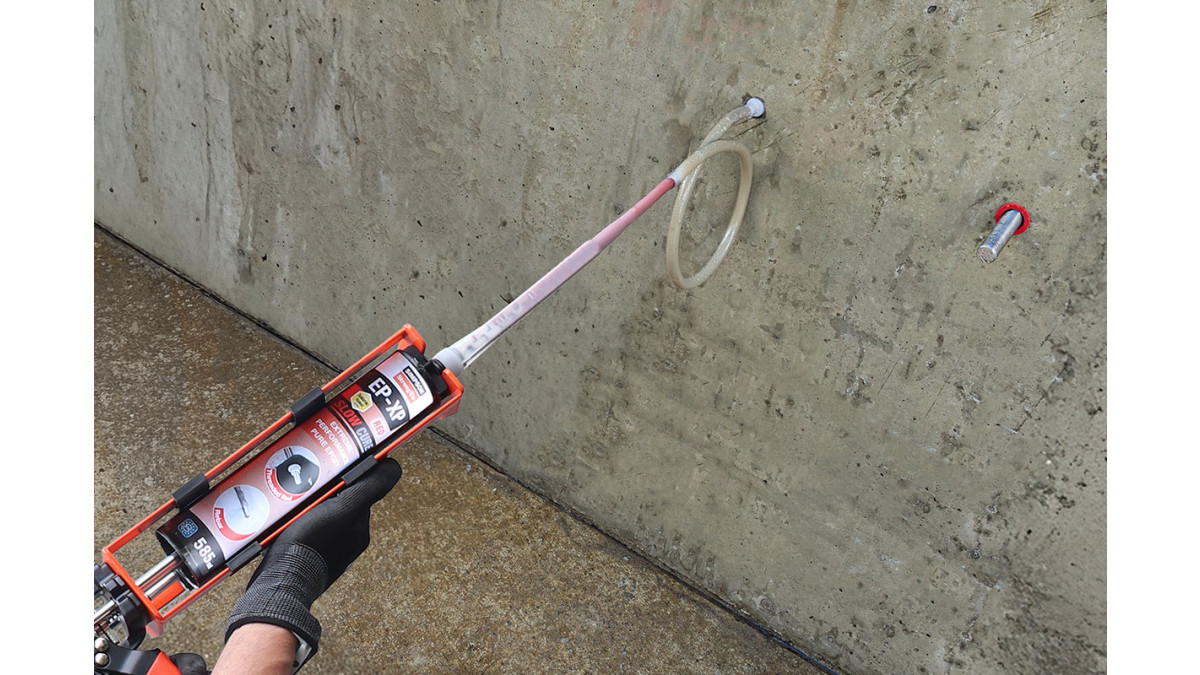

  • Threaded Rod Anchoring

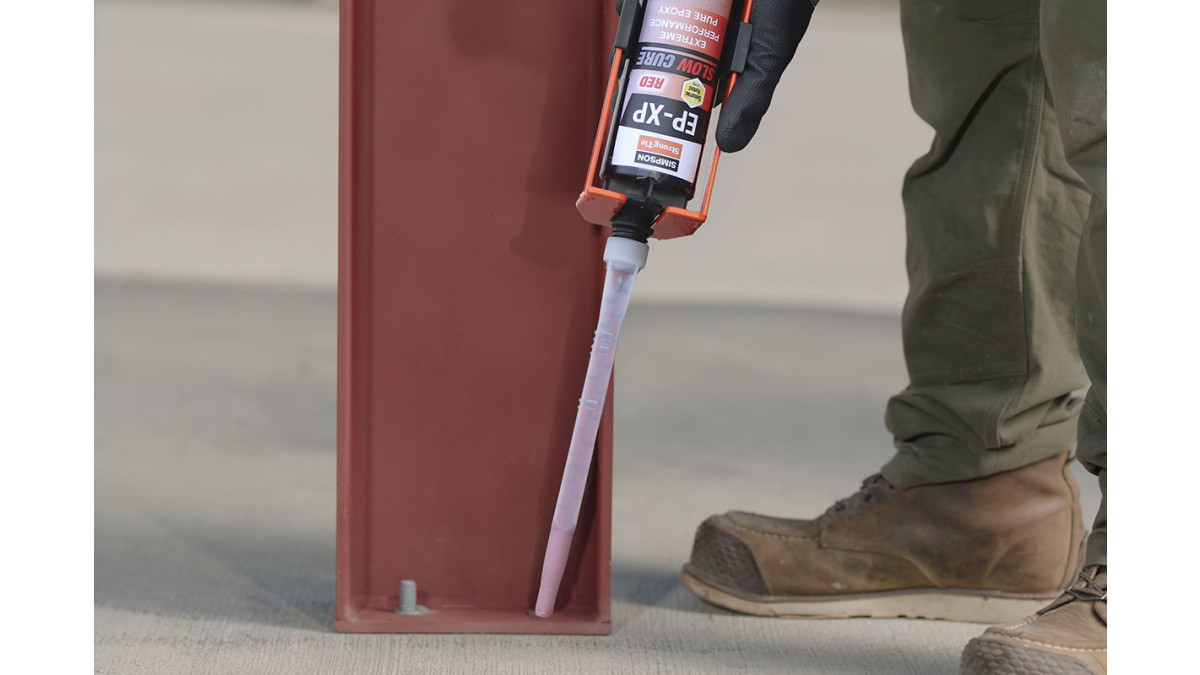

  • Structural Steel
  • Steel Columns and Beams, Post Bases, Concrete Columns
  • Balcony Extensions
  • Facades, Safety Barriers
  • Fences, Gates, Industrial Garage and Warehouse applications
Other Performance Attributes
  • ETA-25/0483 for use in concrete
  • ETA-25/0355 for rebar
  • ETA-25/0652 for bond splitting
  • Fire rated R120
  • NSF Certified (drinking water)
  • LEED tested for sustainable construction
  • 100 year working life
  • VOC compliant (A+ rating)
Other Independent Assessment
Other Independent Assessment
  • News
Documents
Material Safety Data Sheet - A
pdf
Material Safety Data Sheet - B
pdf
Technical Data Sheet
pdf
ETA-25/0355 (Rebar)
pdf
ETA-25/0483 (Concrete)
pdf
ETA-25/0652 (Bond Splitting)
pdf
LEED Attestation
pdf
VOC Attestation
pdf
Flyer
pdf
