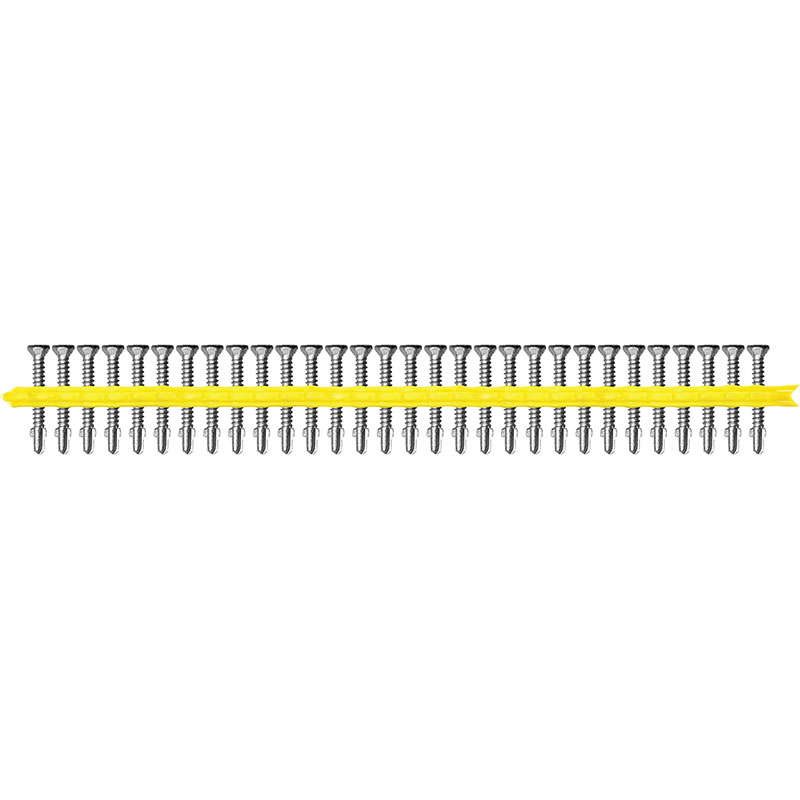

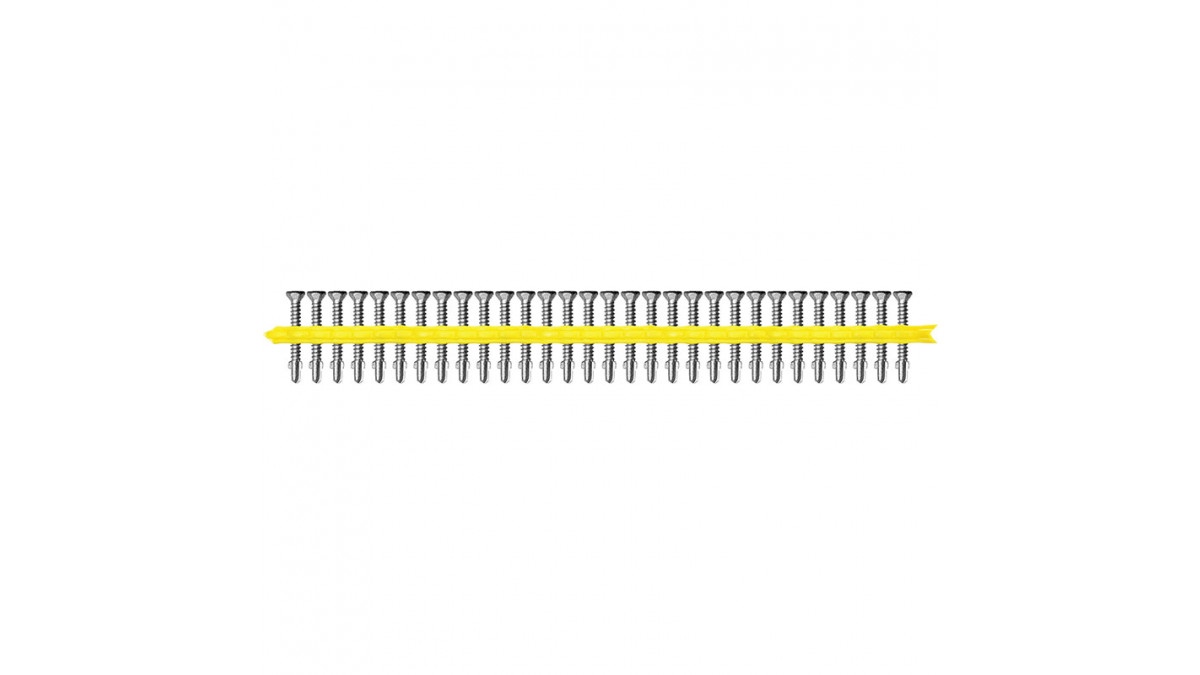

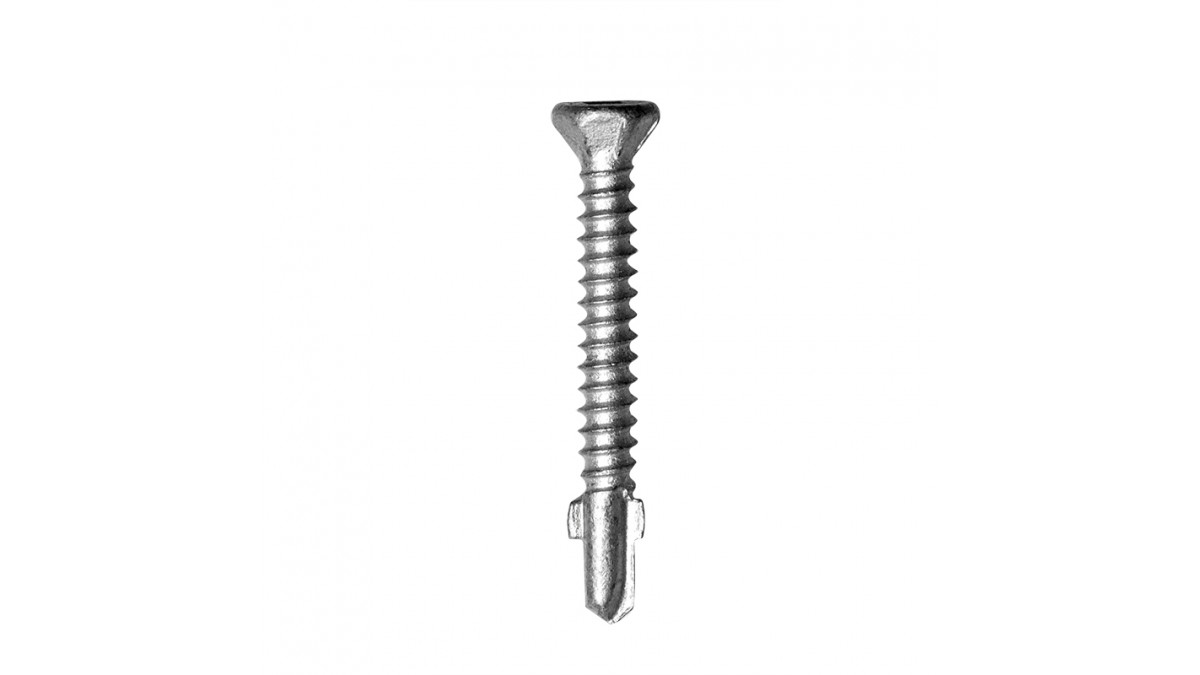

CBSDG Steel Frame Self-drilling Screw
Description

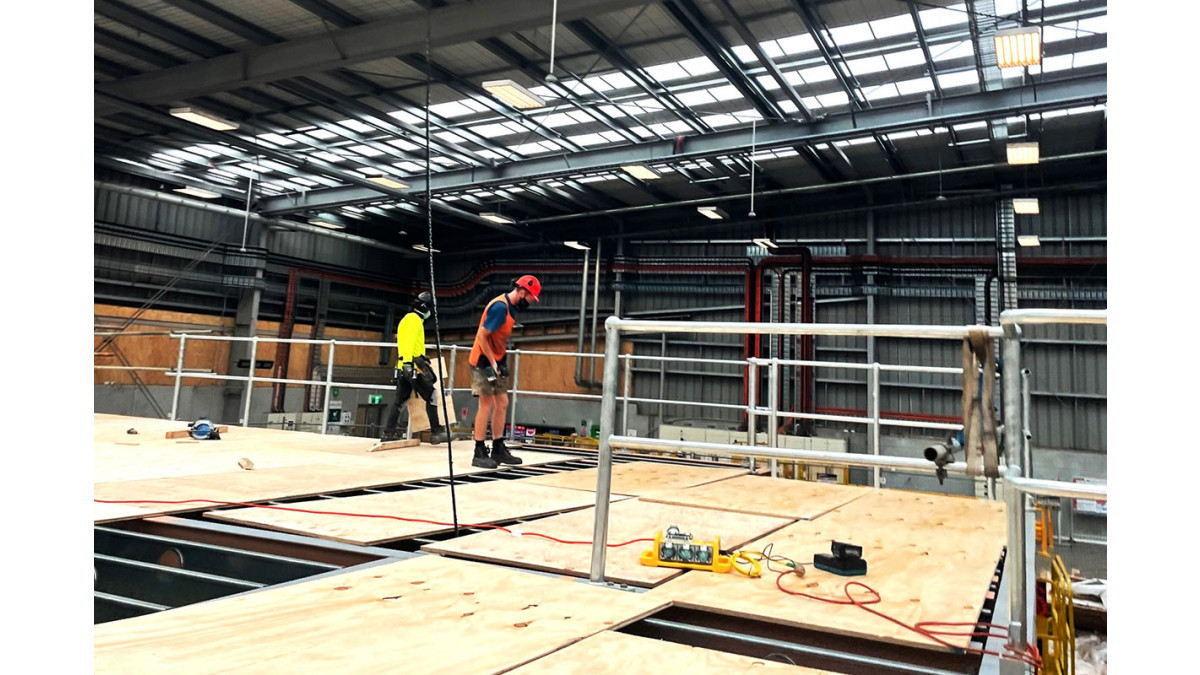

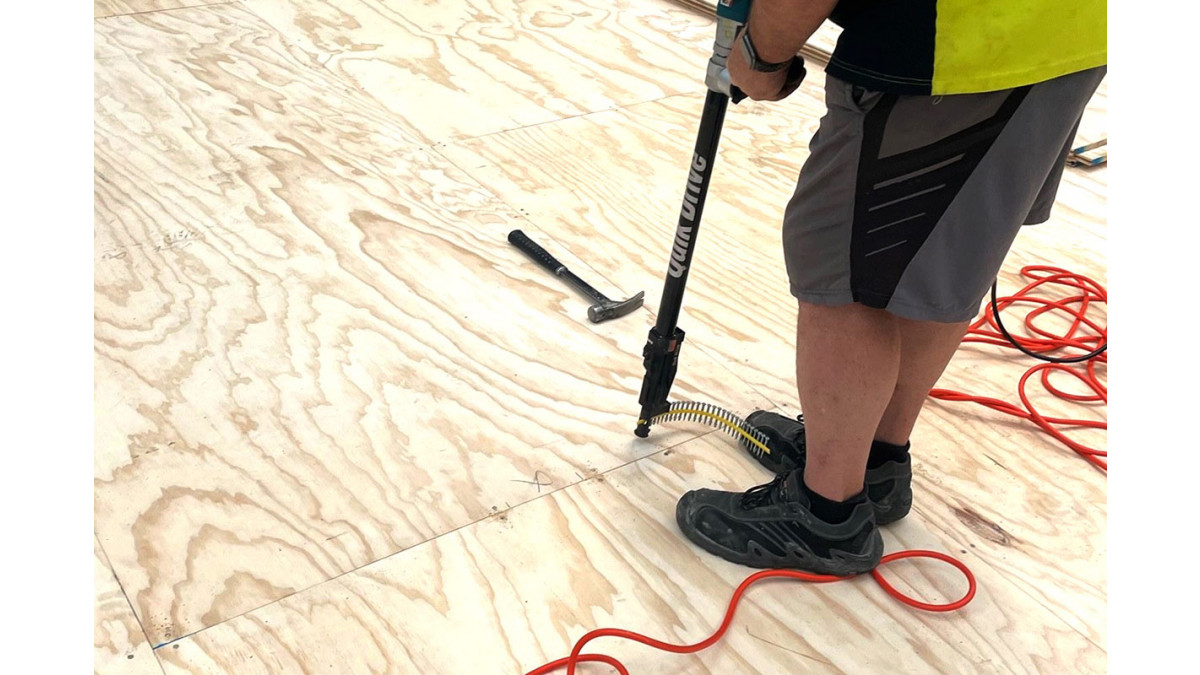

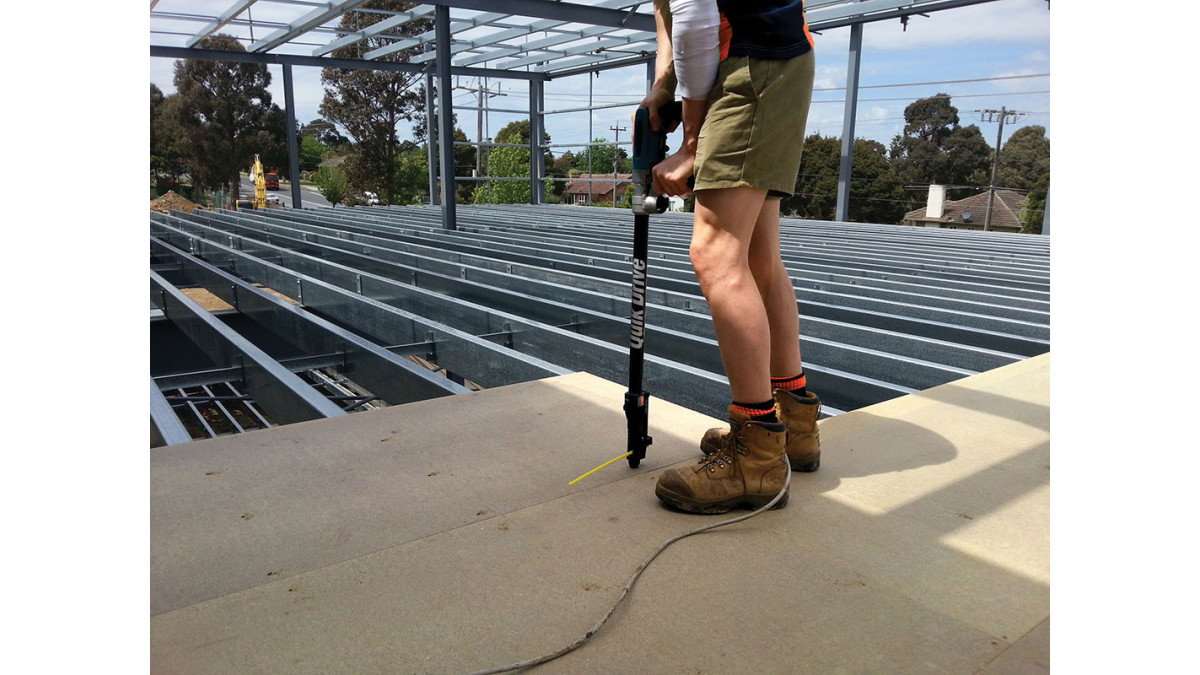

The CBSDG cement sheet screw is ideal for fixing cement sheeting-to-steel joists. The CBSDG winged self-drilling screw requires no predrilling, making them easier and faster to install than standard winged self-drilling screws.

Key Features

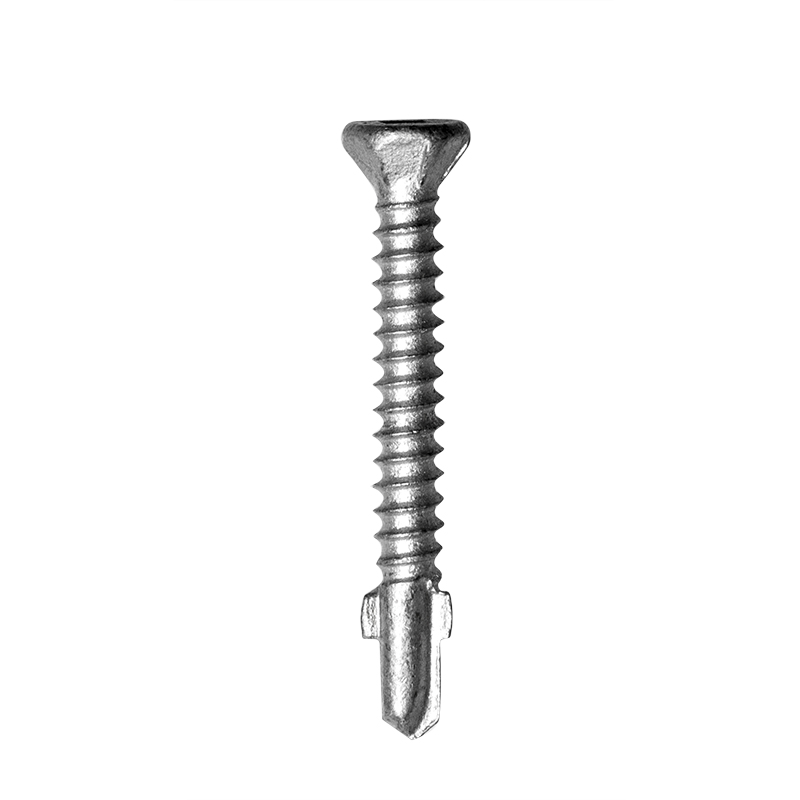

  • Drill Point with wings drives easily through 1.2mm–2.4mm steel without pre-drilling
  • Ribbed Flat Head with Nibs for countersunk finish
  • Winged design avoids sheet ride
  • #2 undersized square drive
Scope of Use

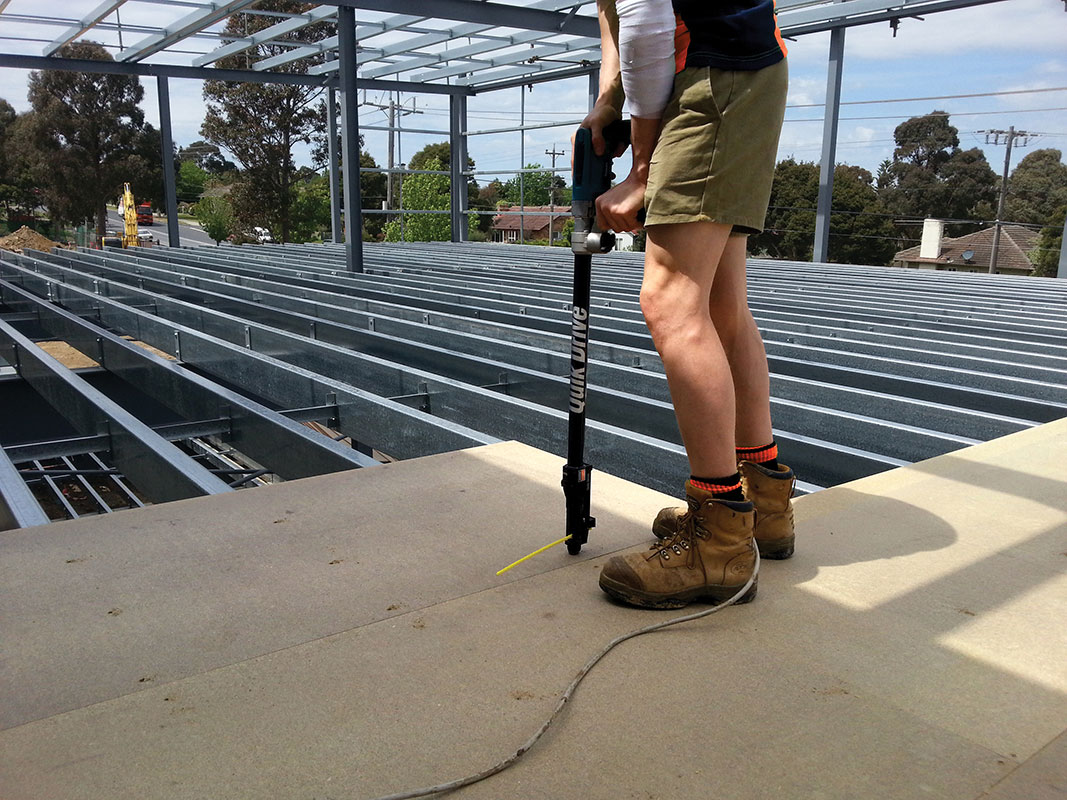

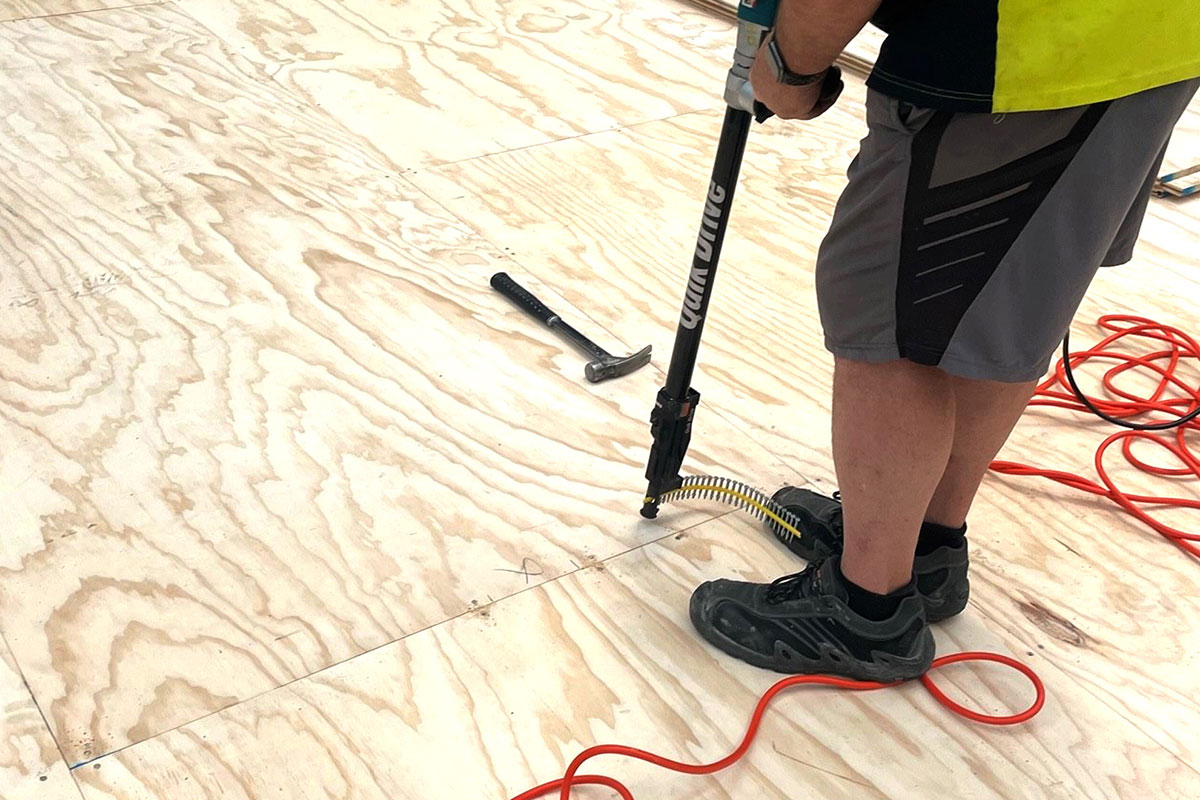

  • Cement Sheet/Underlay/Timber-to-Steel
  • Steel Frame
  • Recommended steel thickness; 0.8mm–2.4mm CBSDG Series,
  • 1.2mm–3mm CBSDGL Series
Statement of Building Code Compliance
  • CBSDG Steel Frame Screws are compliant with NZS 3604:2011
B1 Structure compliant
Structure
B2 Durability compliant
Durability
Documents
Technical Data Sheet
Full Catalogue: Timber Connectors NZS3604

F-C-NZS3604-23
