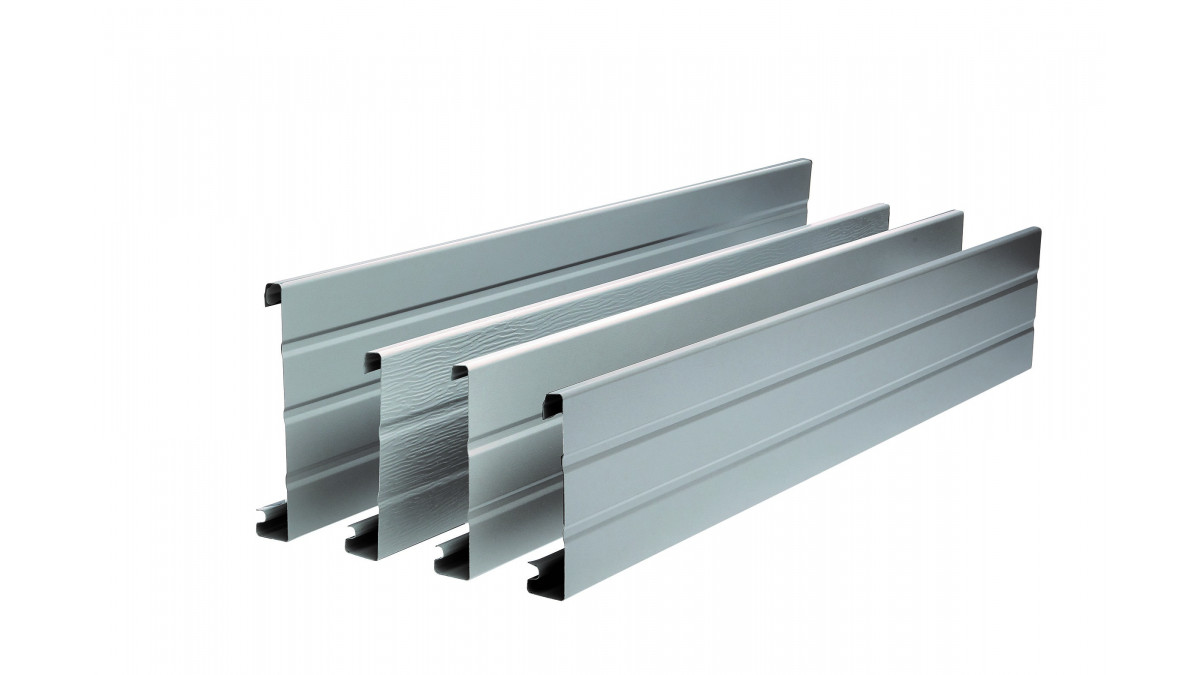

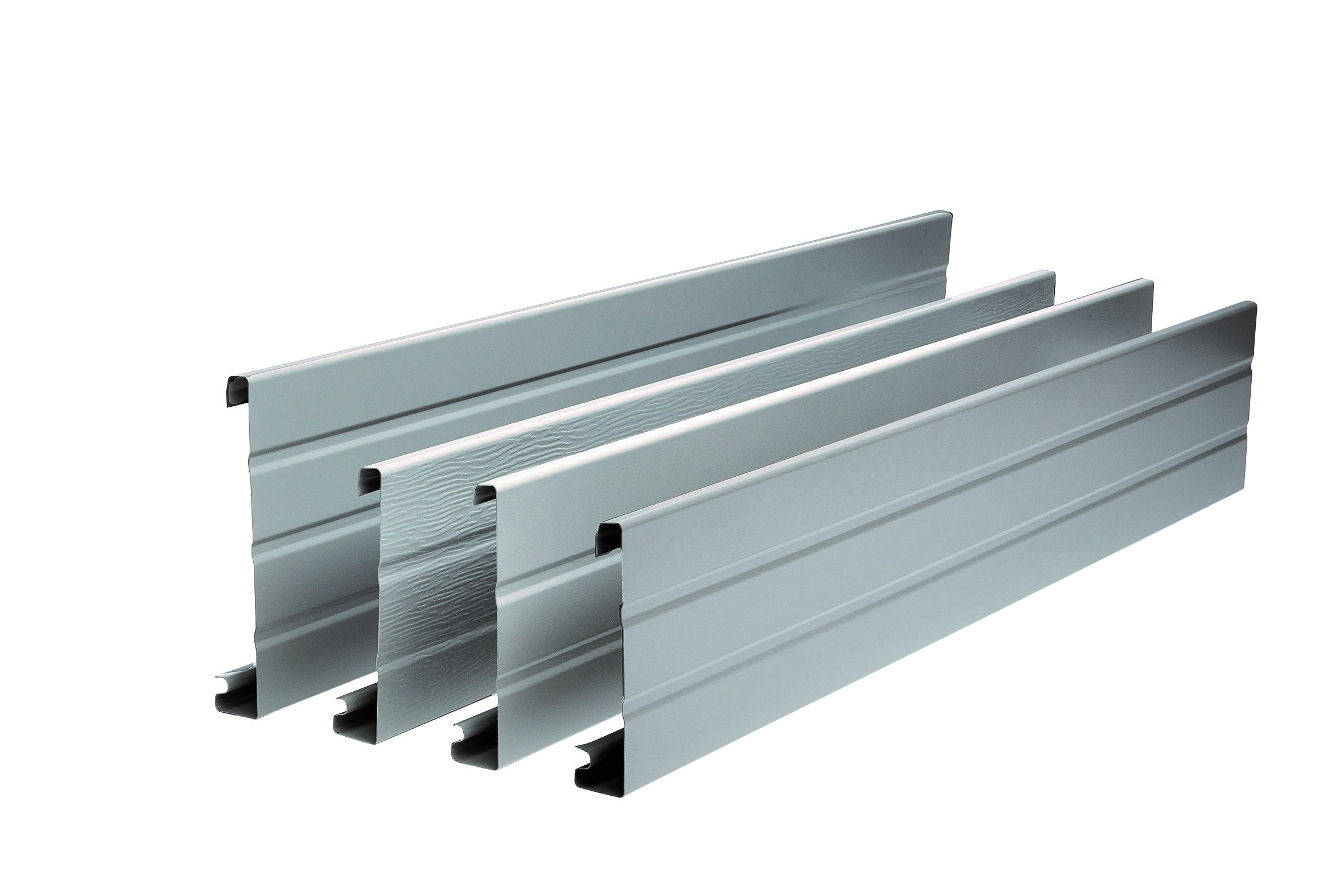

EZI-FLO™ Multifit™ External Fascia
Description

EZI-FLO™ Multifit™ is an extremely practical and attractive metal fascia system and available with a smoother embossed faced option. Multifit external fascia can be used in conjunction with all roof and spouting types, is suitable for a large number of building designs and incorporates a proprietary attachment system.

Multifit external fascia has become the popular fascia system mostly replacing the timber fascia of yesteryear. Simply select the desired spouting type and is fitted to the outside fascia with adjustable proprietary brackets.

Multifit fascia is supplied up to 8000mm in length in a wide range of metal substrates and surface finishes including, ColorCote®, COLORSTEEL®, copper, stainless steel, aluminium, galvanised, zinc alloy magnesium, Zincalume®, and zinc. Additional specialised substrates and paint coatings may be available subject to minimum order.

Key Features
  • Available in 136mm, 150mm and 185mm sizes
  • Supplied as either concealed or external option
  • Each product can be manufactured to exact length, thereby reducing the number of joins
  • Can be supplied in smooth and embossed surface finishes
  • Supplied with strippable surface protection film to prevent damage prior to installation
  • Can be used in conjunction with all roofing products
  • Can be combined with most spouting and gutter types
  • Hides unsightly roof sheeting edges
  • Water overflow feature prevents water entering the building in the event of downpipe blockage
Scope of Use
  • Multipurpose concealed or external option fascia systems
  • Available in 136mm, 150mm and 185mm sizes
  • Can be used in conjunction with all roof and combined with most spouting and gutter types
  • Suitable for a large number of building designs
  • Can be manufactured to exact length
  • Proprietary bracket system allows simple removal and re-installation
  • Range of metal substrates including: ColorCote®, COLORSTEEL®, copper, stainless steel, aluminium, galvanised, zinc alloy magnesium, Zincalume®, and zinc. Additional specialised substrates and paint coatings may be available subject to minimum order.
Other Performance Attributes
  • Water overflow feature prevents water entering the building in the event of downpipe blockage
Documents
Brochure: EZI-FLO Rainwater Solutions

2020

Roofing with Style Brochure

2025

Installation Guide: Metal Longrun Roofing & Cladding

2022

Installation: MRM Code of Practice
Brochure: EZI-FLO Rainwater Systems
RANZ Roofing Guide
CAD/PDF Details
Filters
Project Type
Roofing Details
Fascia Set Out Details

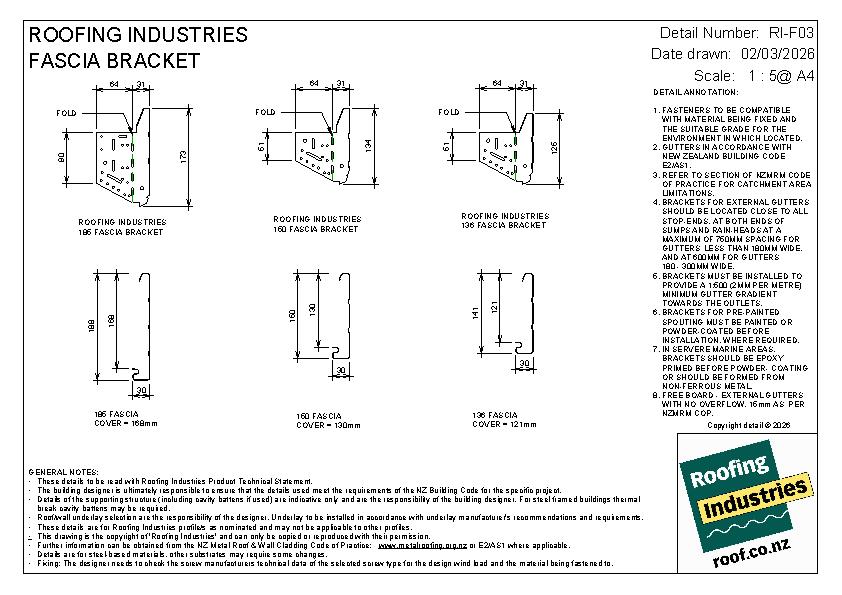

Multifit Fascia Details - Fascia Bracket

R1-F03

September 2024

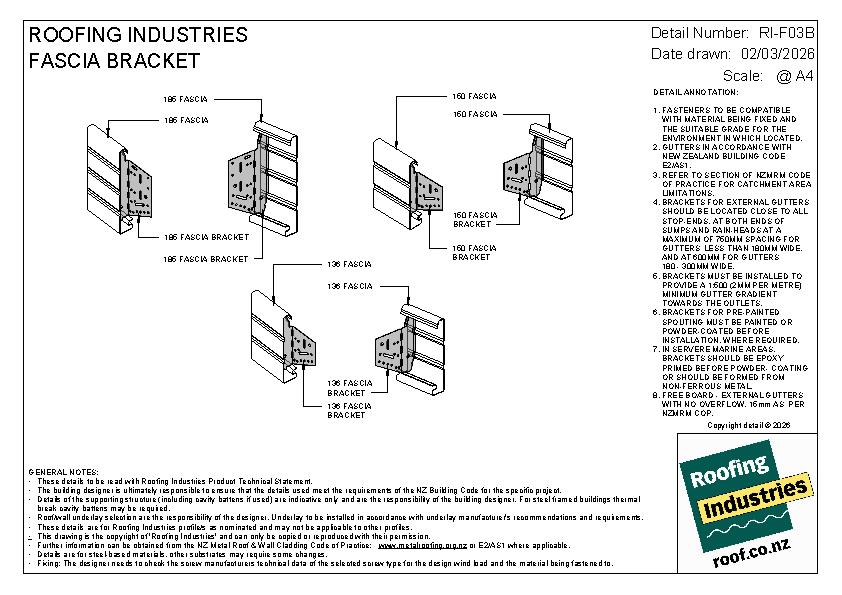

Multifit Fascia Details - Fascia & Bracket

R1-F03B

April 2025

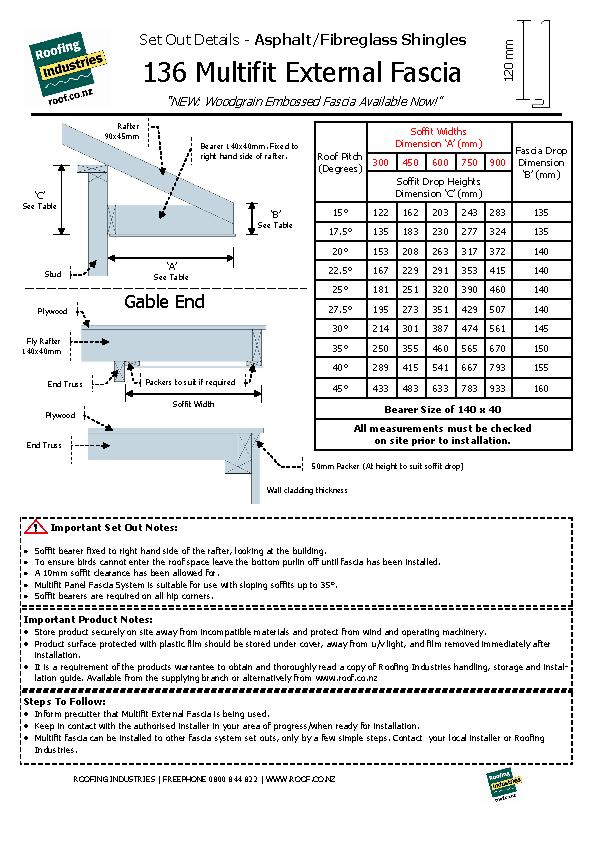

Fascia 136 Multifit External Fascia — Asphalt/Fibreglass Shingles

RI-Fascia-136

V1.1 February 2026

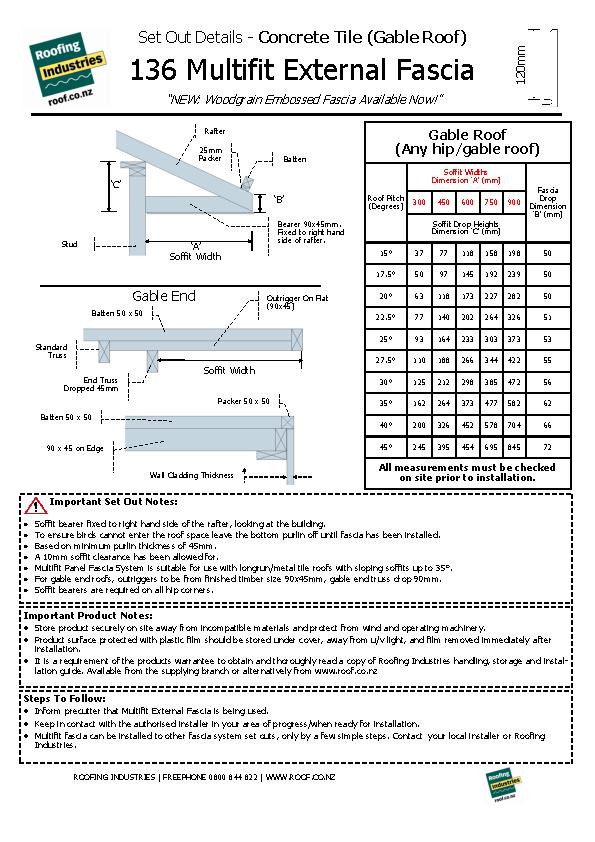

Fascia 136 Multifit External Fascia — Concrete Tile (Gable Roof)

RI-Fascia-136

V1.1 February 2026

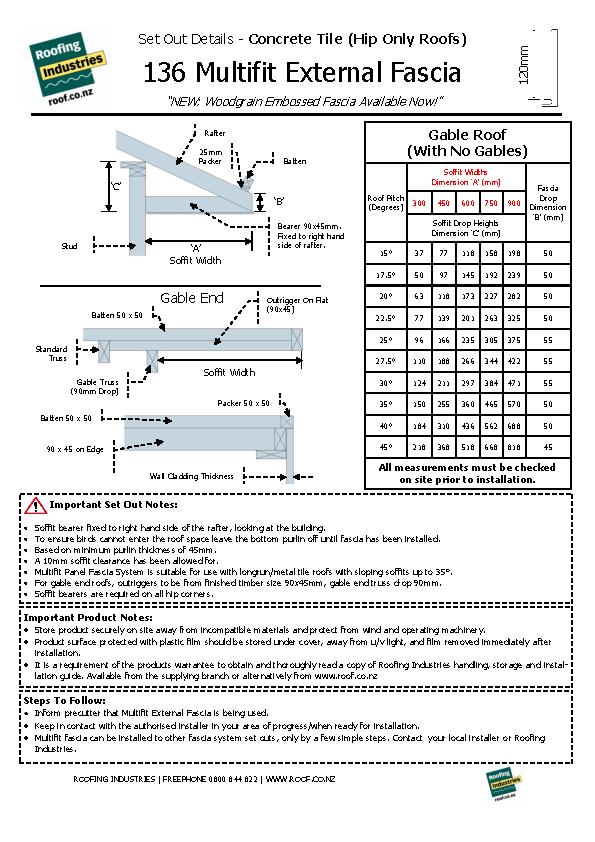

Fascia 136 Multifit External Fascia — Concrete Tile (Hip Only Roofs)

RI-Fascia-136

V1.1 February 2026

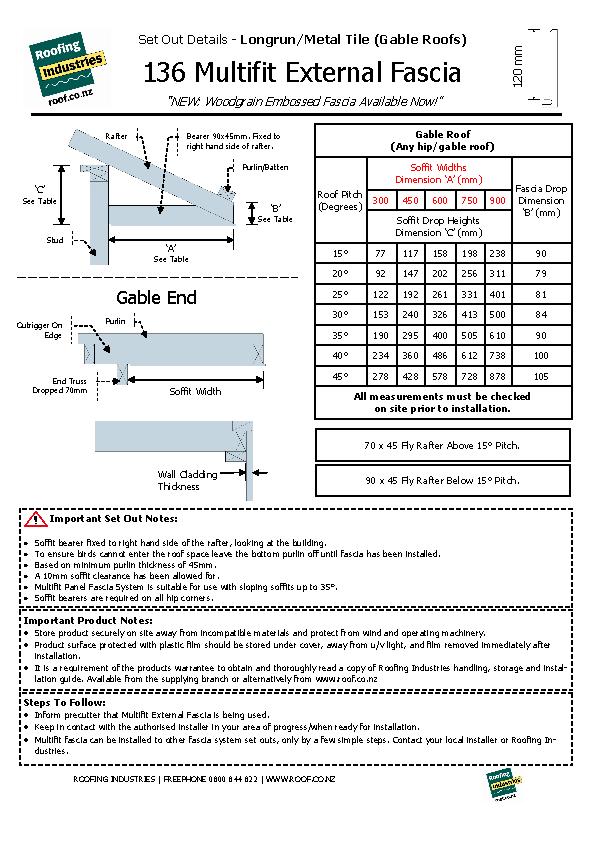

Fascia 136 Multifit External Fascia — Longrun/Metal Tile (Gable Roofs)

RI-Fascia-136

V1.1 February 2026

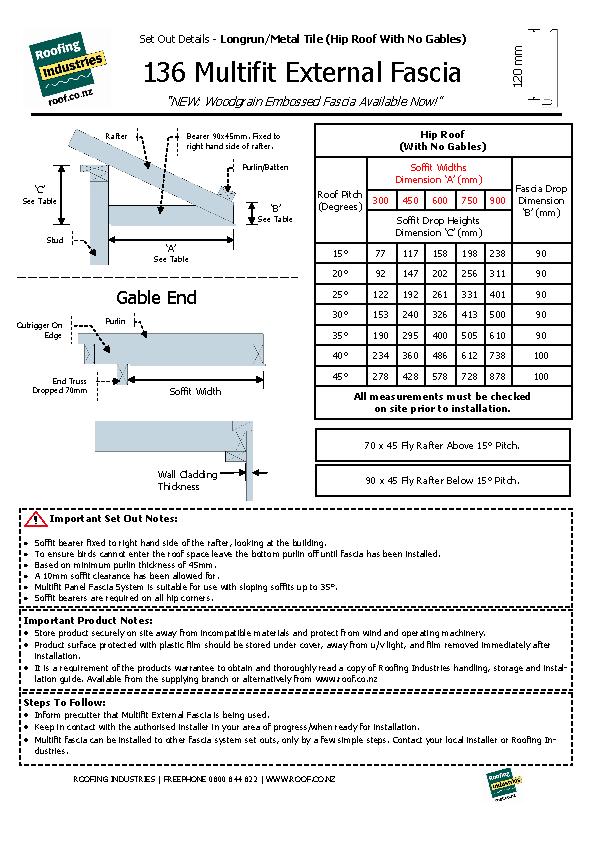

Fascia 136 Multifit External Fascia — Longrun/Metal Tile (Hip Roof No Gables)

RI-Fascia-136

V1.1 February 2026

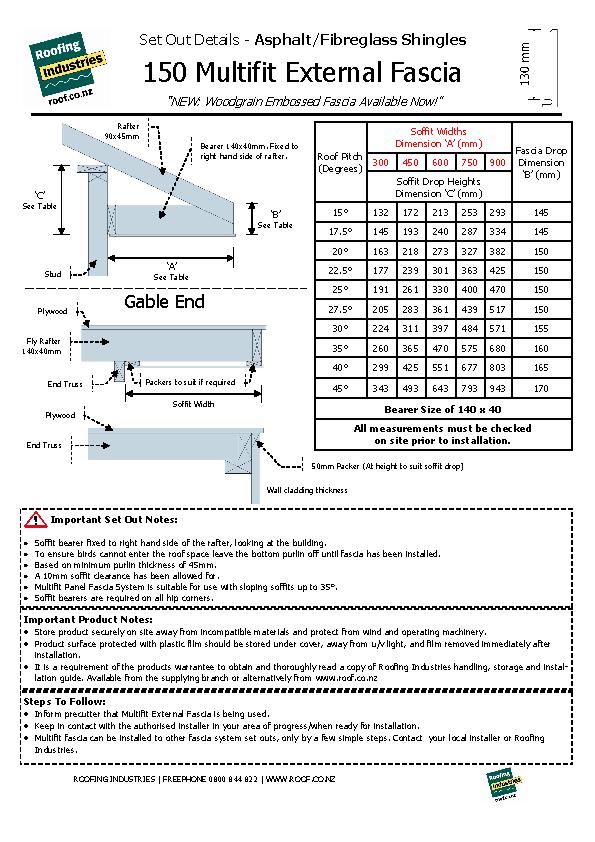

Fascia 150 Multifit External Fascia — Asphalt/Fibreglass Shingles

RI-Fascia-150

V1.1 February 2026

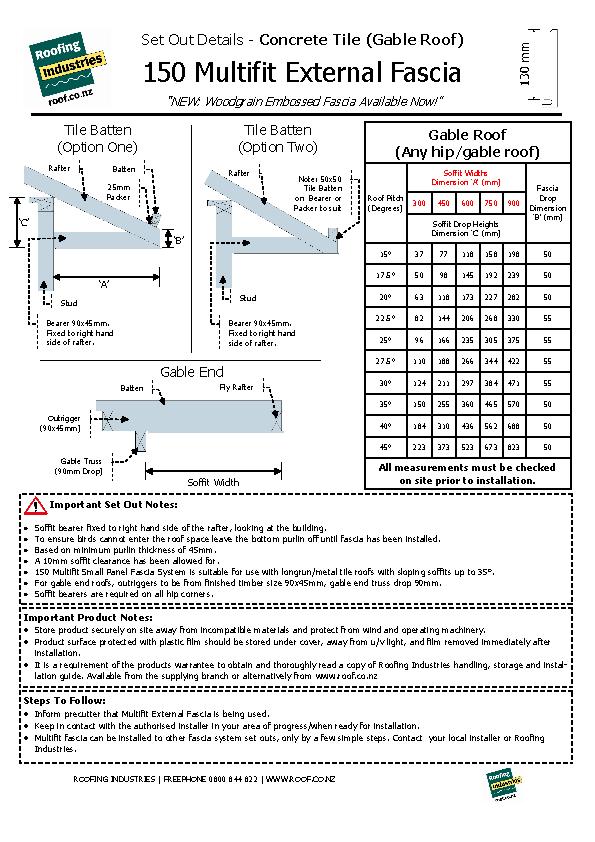

Fascia 150 Multifit External Fascia — Concrete Tile (Gable Roof)

RI-Fascia-150

V1.1 February 2026

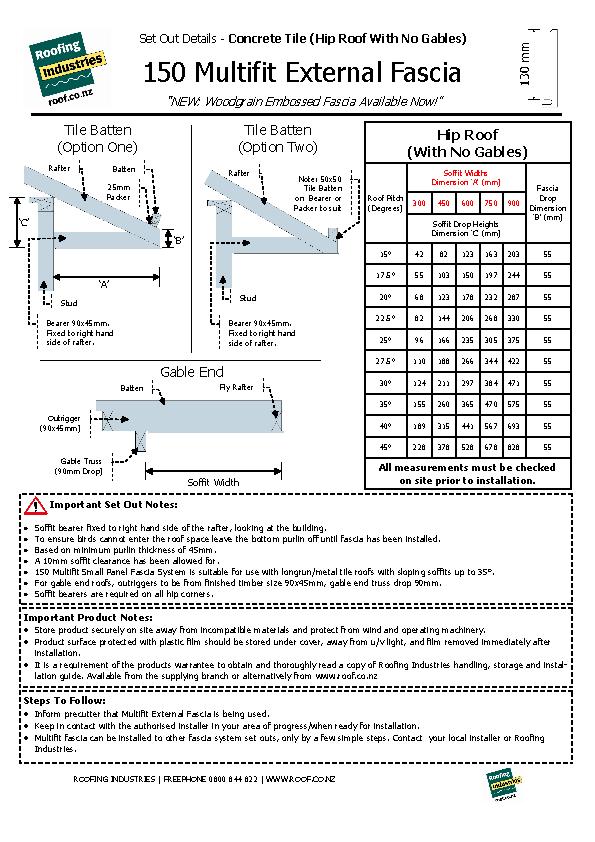

Fascia 150 Multifit External Fascia — Concrete Tile (Hip Roof No Gables)

RI-Fascia-150

V1.1 February 2026

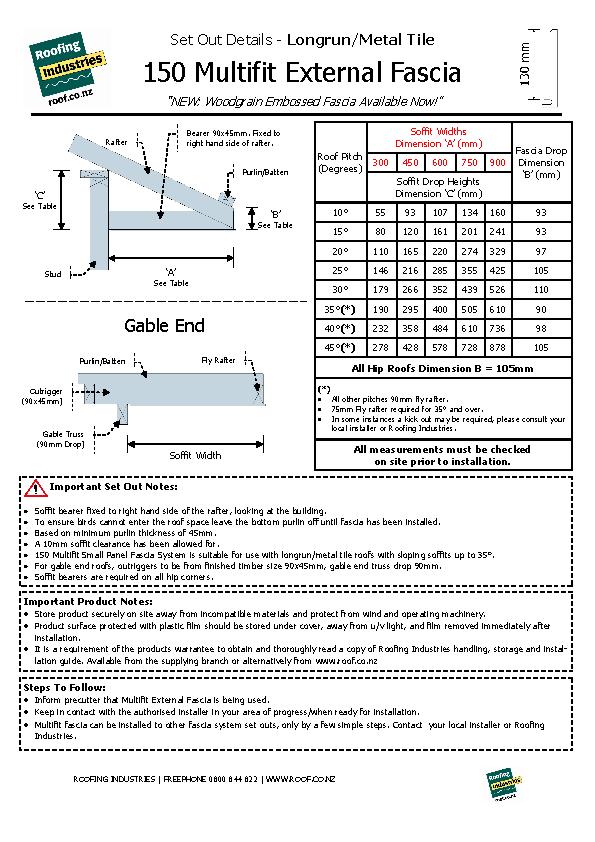

Fascia 150 Multifit External Fascia — Longrun/Metal Tile

RI-Fascia-150

V1.1 February 2026

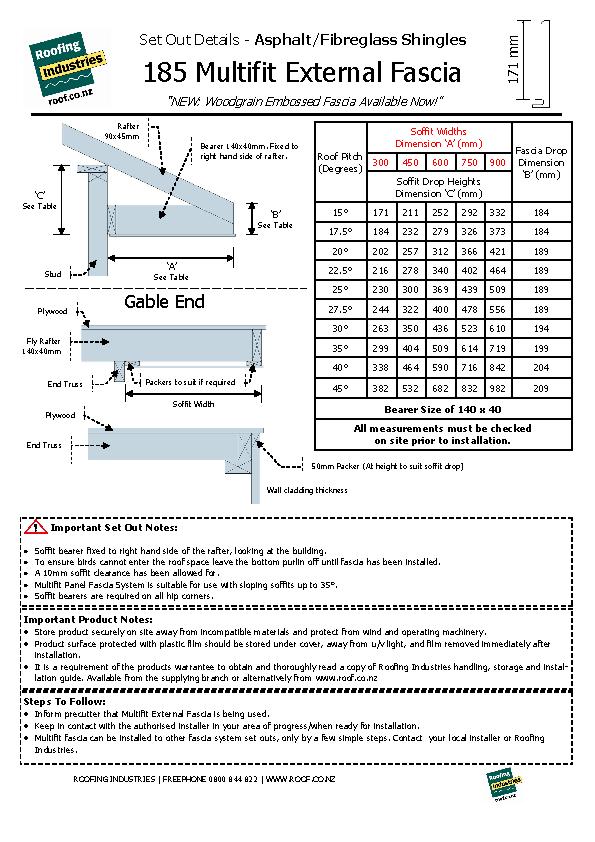

Fascia 185 Multifit External Fascia — Asphalt/Fibreglass Tile

RI-Fascia-185

V1.1 February 2026

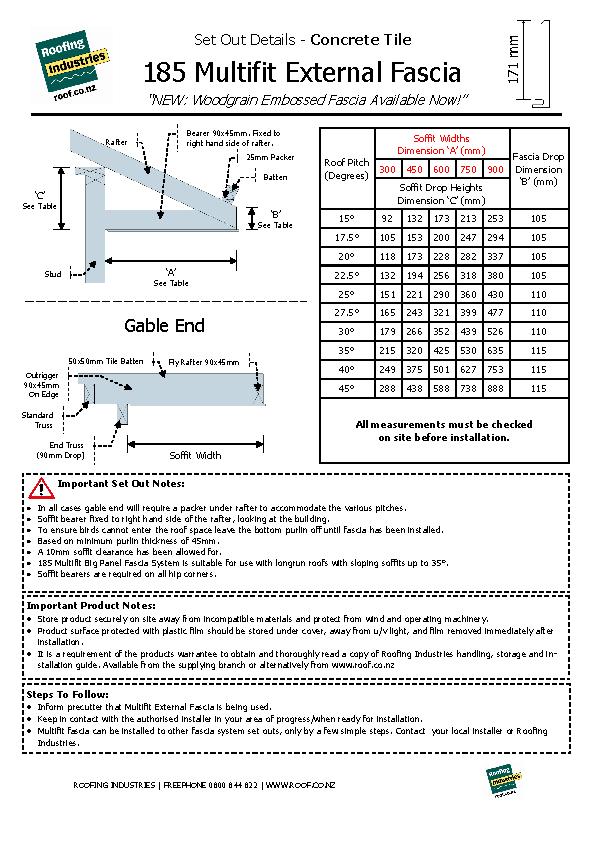

Fascia 185 Multifit External Fascia — Concrete Tile

RI-Fascia-185

V1.1 February 2026

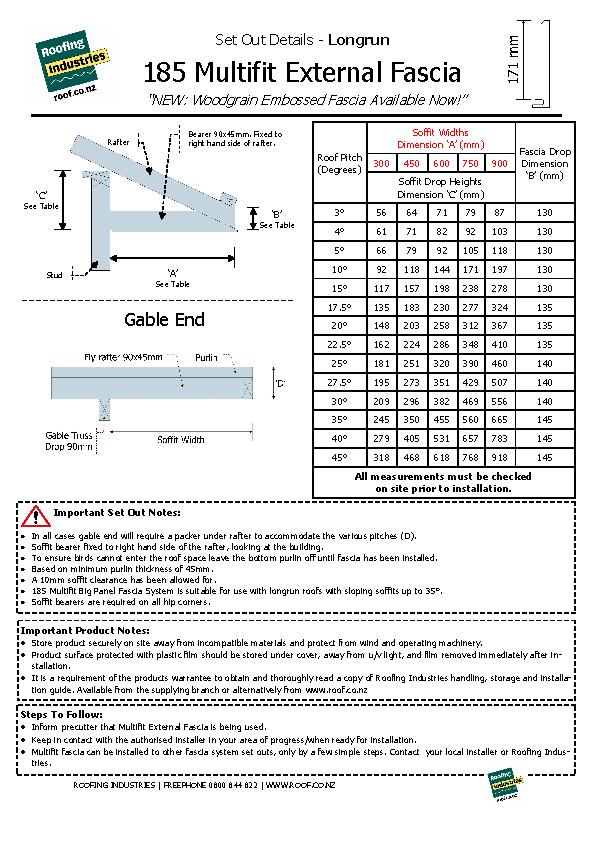

Fascia 185 Multifit External Fascia — Longrun

RI-Fascia-185

V1.1 February 2026

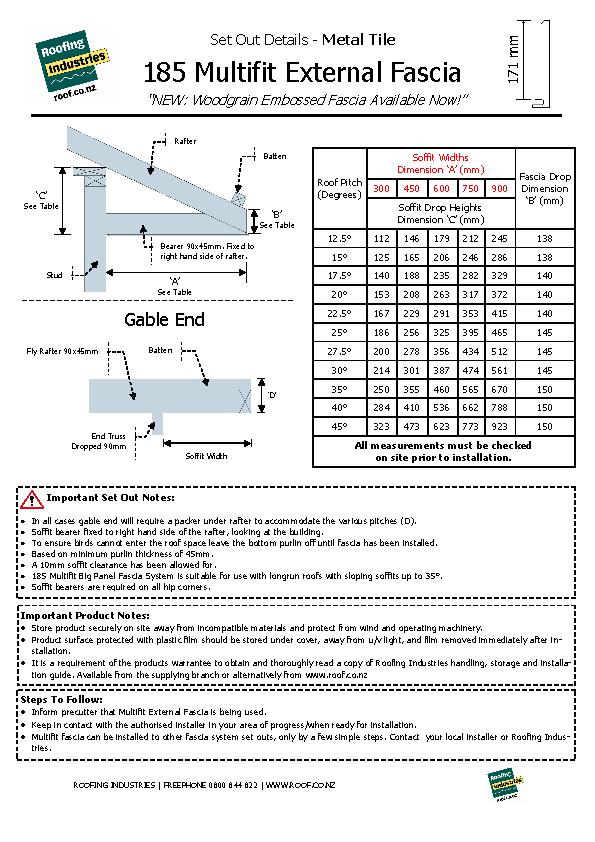

Fascia 185 Multifit External Fascia — Metal Tile

RI-Fascia-185

V1.1 February 2026

BIM

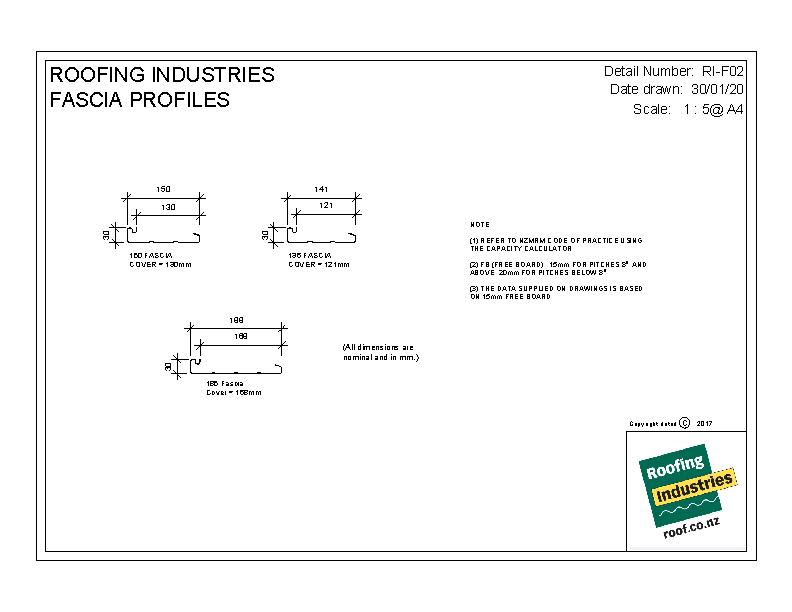

Multifit Fascia Details 2019

RI-F02

Revit 2019
