DRI-CLAD™️ Drip-resistant Roofing and Cladding
Description

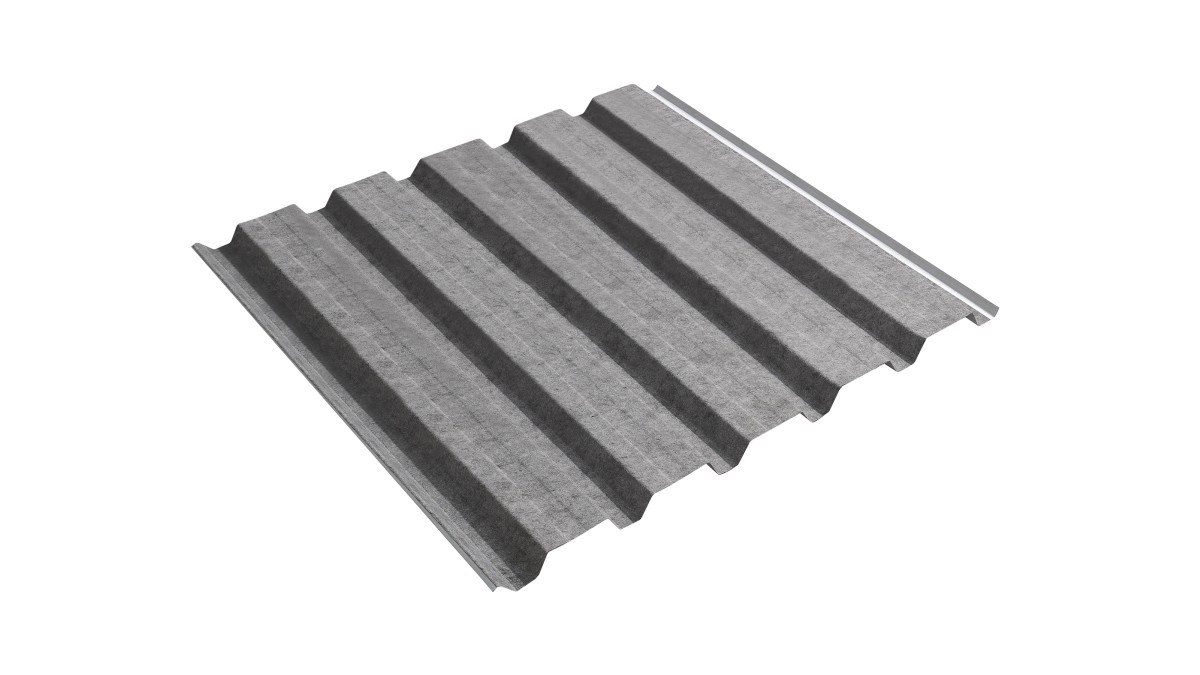

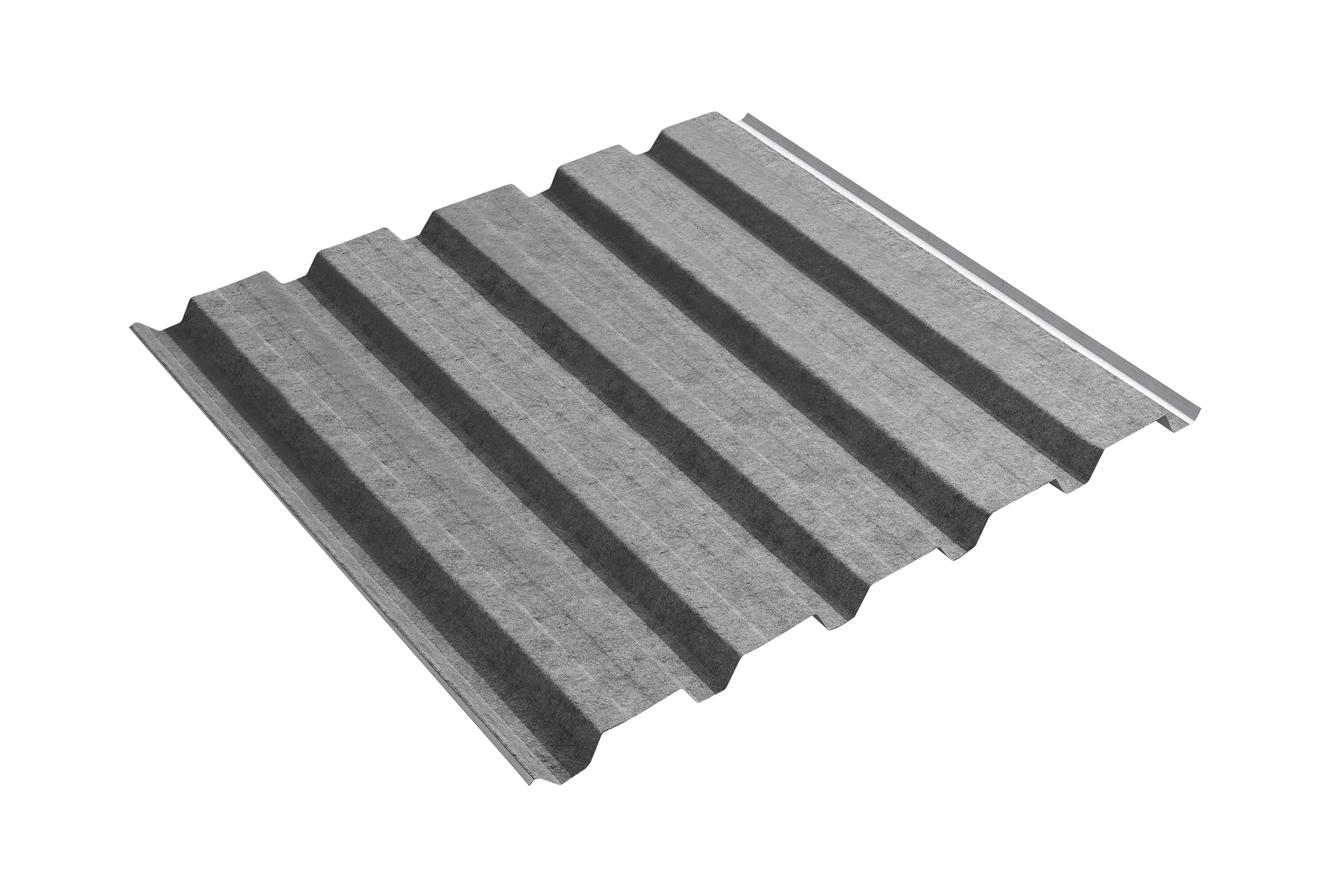

DRI-CLAD™️ is a new series of 'drip resistant' roofing and cladding products manufactured using a cost-effective moisture-absorbing fleece which is factory-applied to the underside of metal sheeting. This provides condensation and moisture control, along with additional thermal and acoustic benefits, and is suitable for use in many construction projects.

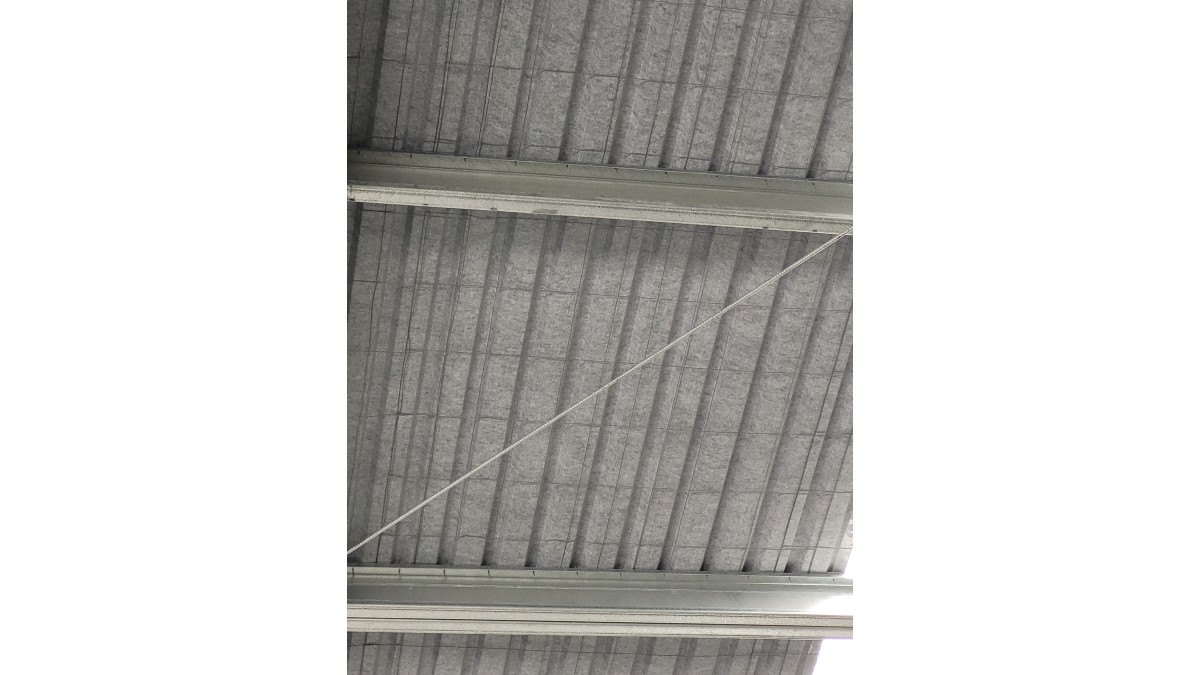

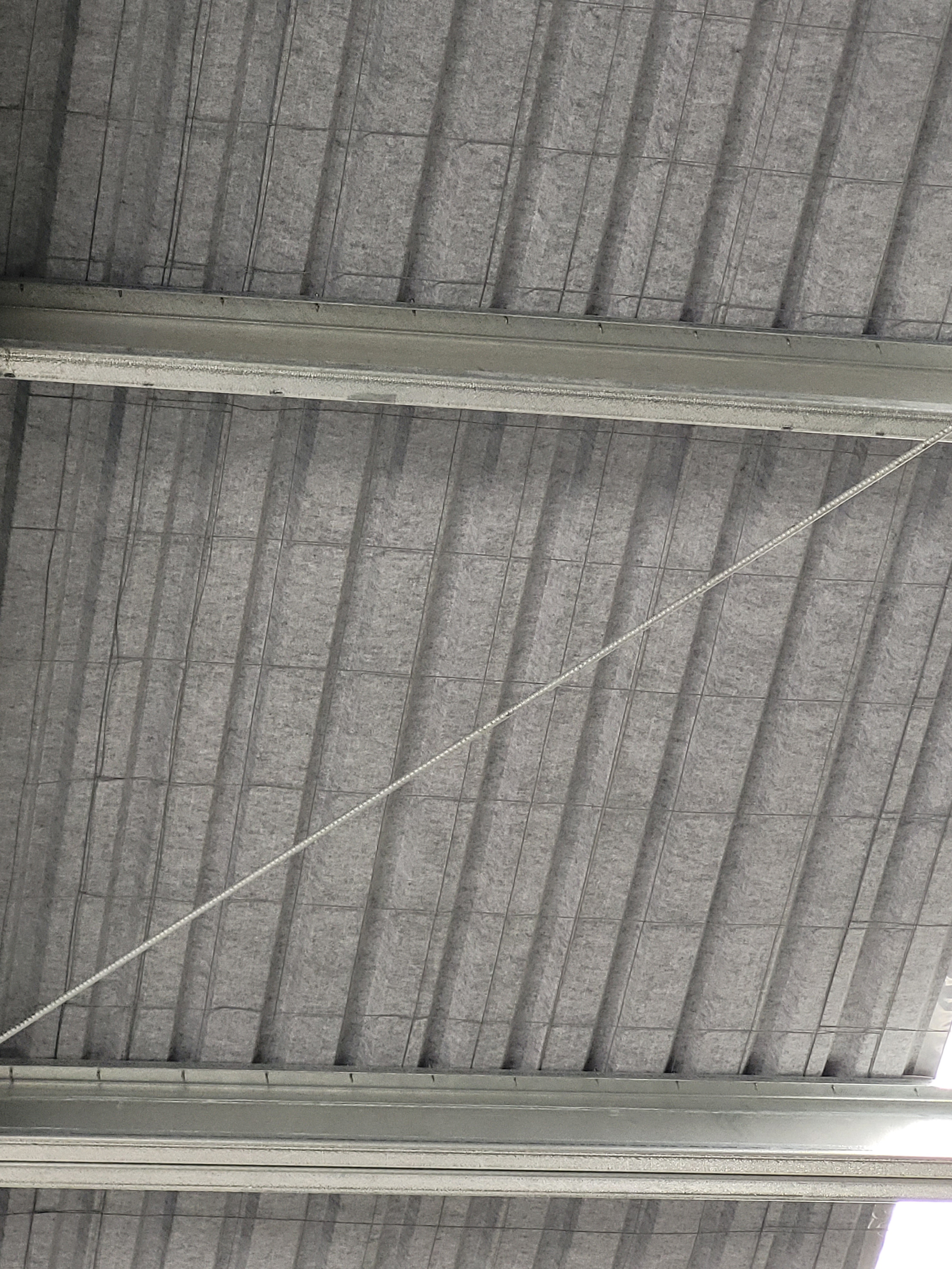

Traditionally underlay is installed under metal roofing and cladding to prevent moisture leaking into the structure, however condensation can still form on the underside of the uninsulated metal and underlay. With DRI-CLAD, the fleece lining traps the moisture and prevents water droplets from forming.

Key Features
  • Reduces the likelihood of condensation forming and dripping
  • Provides drier and healthier buildings
  • Mould reduction with increased ventilation within ceiling cavities
  • Reduces the need for mesh and underlays, and reduces material and installation costs
  • Bacterial resistant
  • Fire rating: Complies with AS1530.2:1993 FR Index ≤5
  • Resistant to tearing, deterioration and many chemical substances
  • Available in most Roofing Industries roofing and cladding profiles including Multirib and Maxispan
  • The fleece is laminated to the profile in such matter so that capillary action or deformation of the lap is not relevant
  • Assists with corrosion protection to the reverse side of the roof and cladding
  • Reduces the possibility of bird nesting
  • Provides additional acoustic benefits
  • Can be high pressure water cleansed to remove grime and contaminants
  • Unpainted Zincalume®, Magnaflow® Galvanised, 0.9 aluminium, Colorsteel® and Colorcote®
Ranges
Other
Scope of Use

DRI-CLAD™️ provides an acceptable solution for avoiding condensation, while removing the requirement for underlays in uninsulated roofs and walls.

  • Available in most Roofing Industries roofing and cladding profiles, including Multirib® and Maxispan®

Applications:

  • Commercial and industrial buildings experiencing condensation problems via non-insulated ;sheathing systems
  • Warehousing
  • Retail and trade outlets
  • Vehicle showrooms
  • Parking buildings
  • Gymnasiums and internal sports facilities
  • Stadiums
  • Rural sheds
  • Self storage
  • Timber storage and drying shelters
  • Trucking logistical loading and unloading facilities
Statement of Building Code Compliance

If designed, used, installed and maintained in accordance with the scope of the profile technical statement, the proprietary Polyester fleece which self-adheres to underside of Roofing Industries DRI-CLAD™️ metal roofing and cladding profile will contribute in meeting the following provisions of the NZBC:

  • B2.3.1 (b)
  • C3.4 (a)
  • E2.3.1, E2.3.2, E2.3.5, E2.3.7
  • E3.3.1
  • F2.3.1
In-Service History

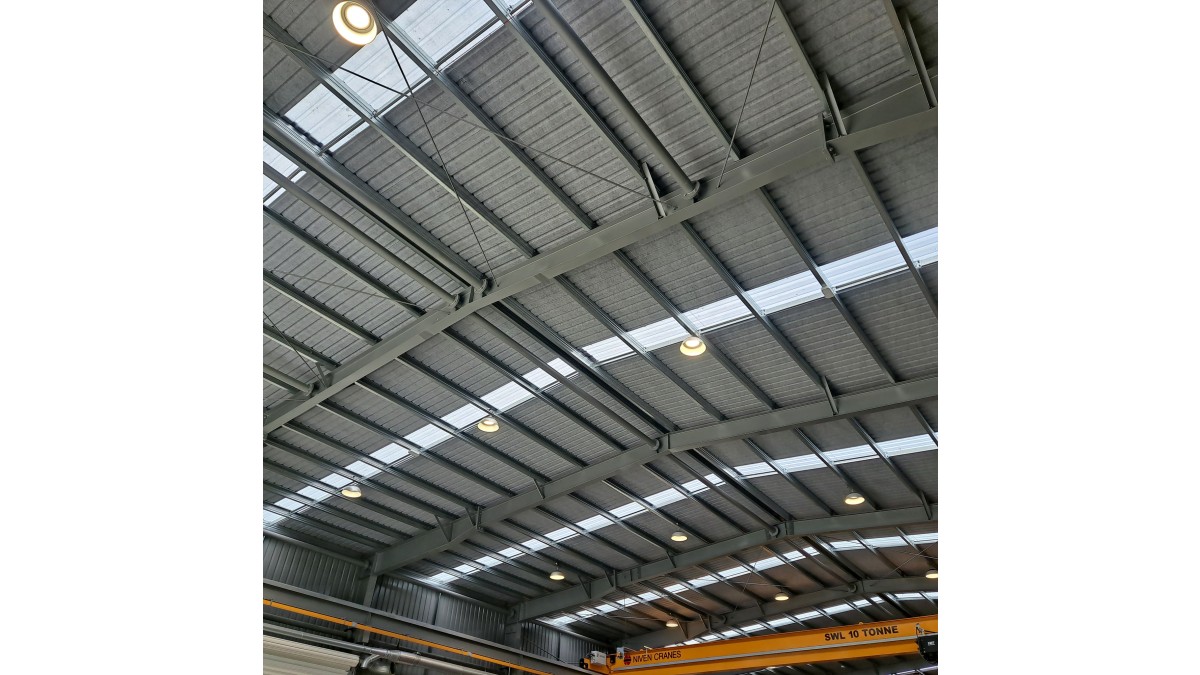

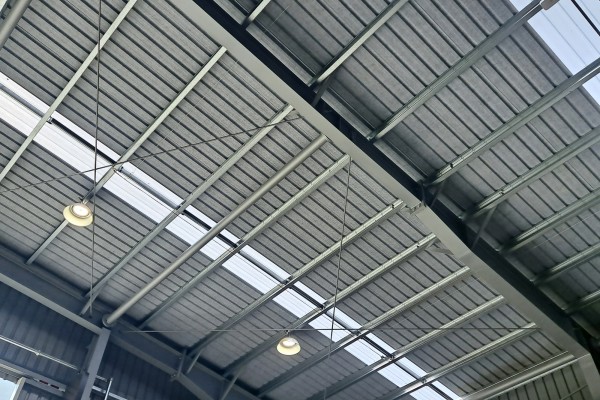

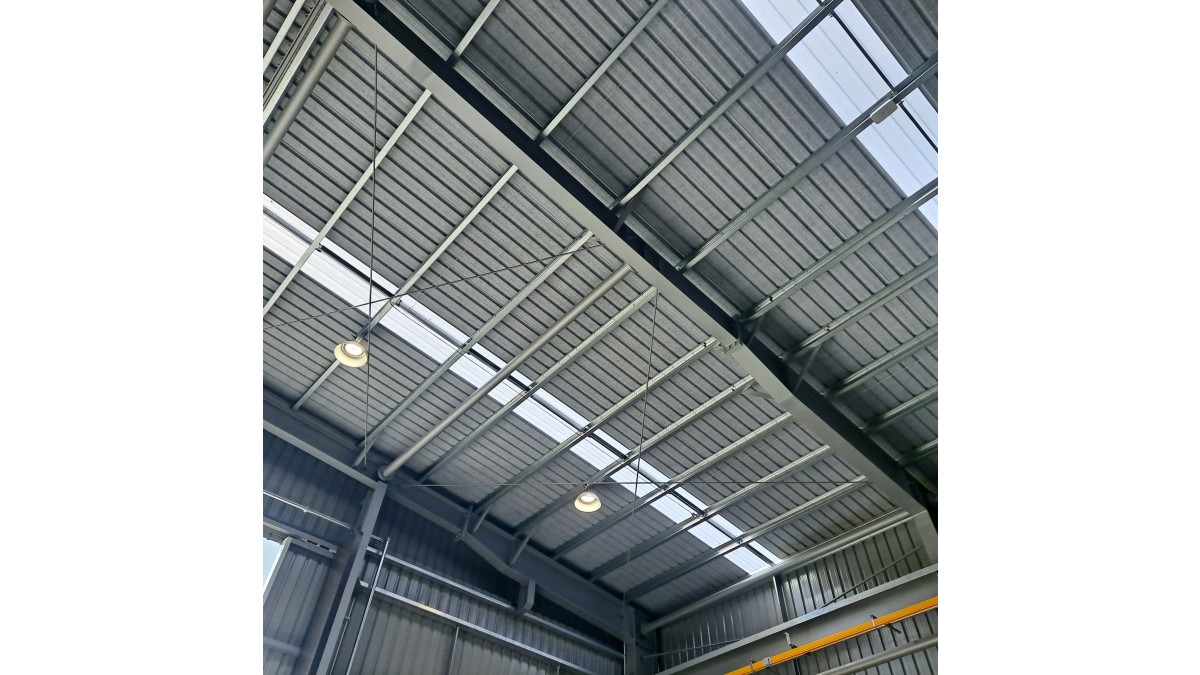

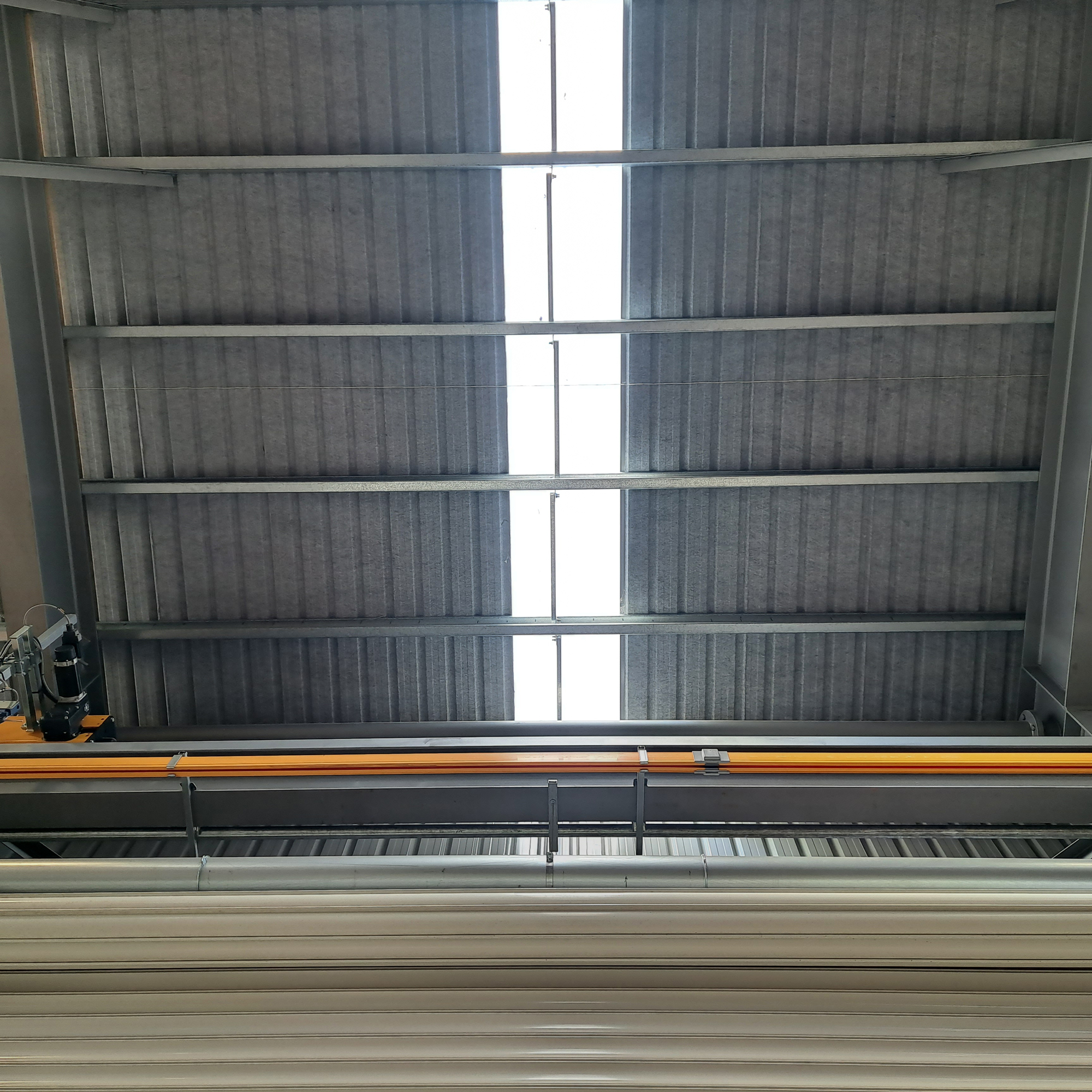

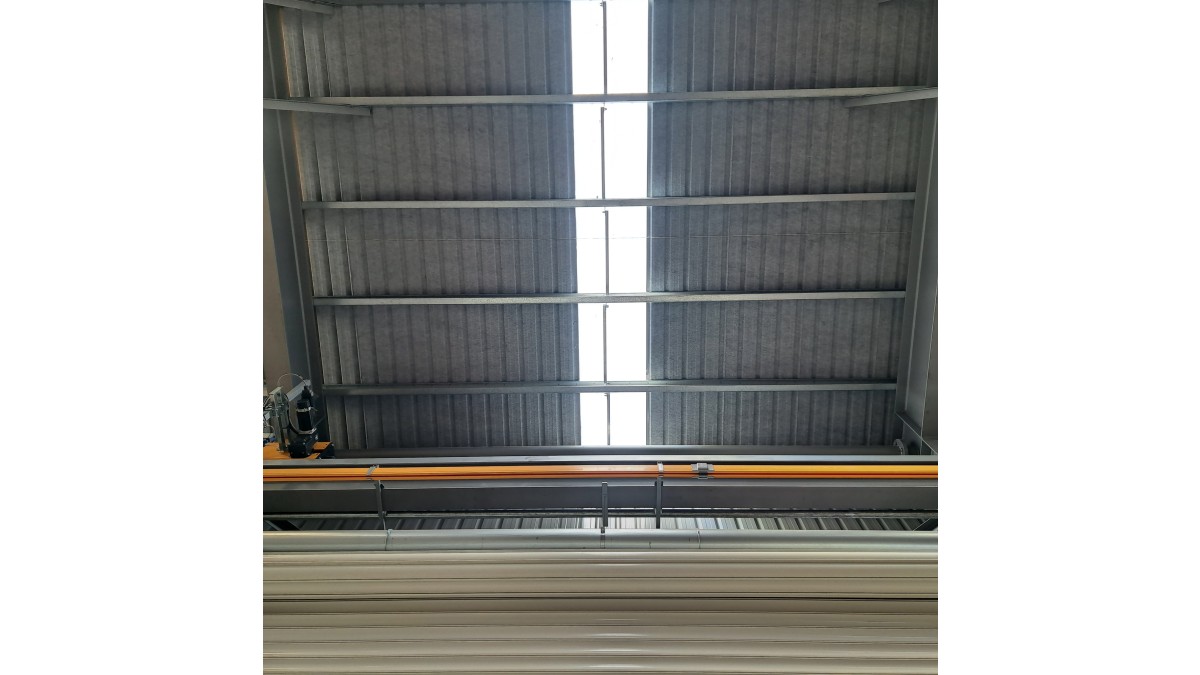

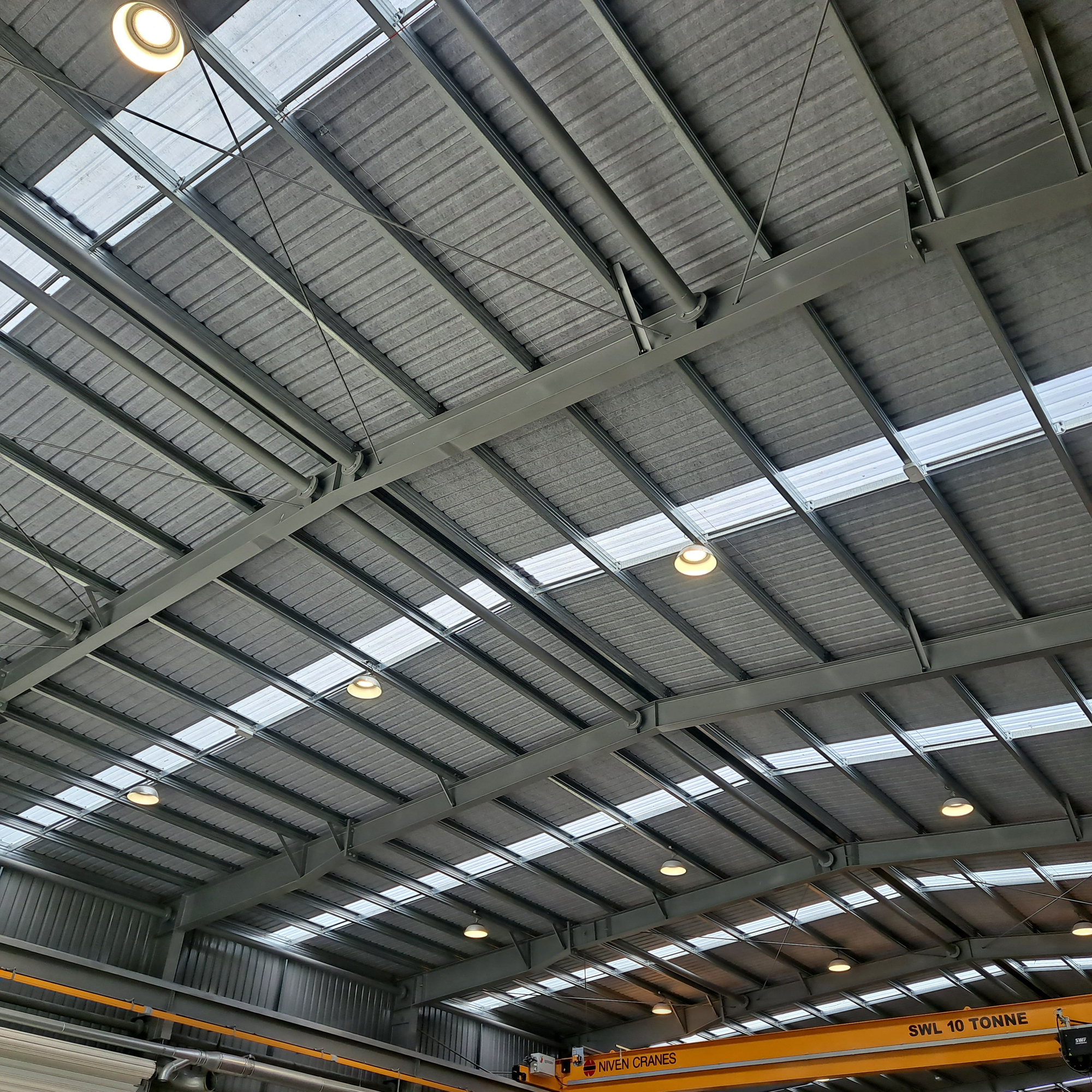

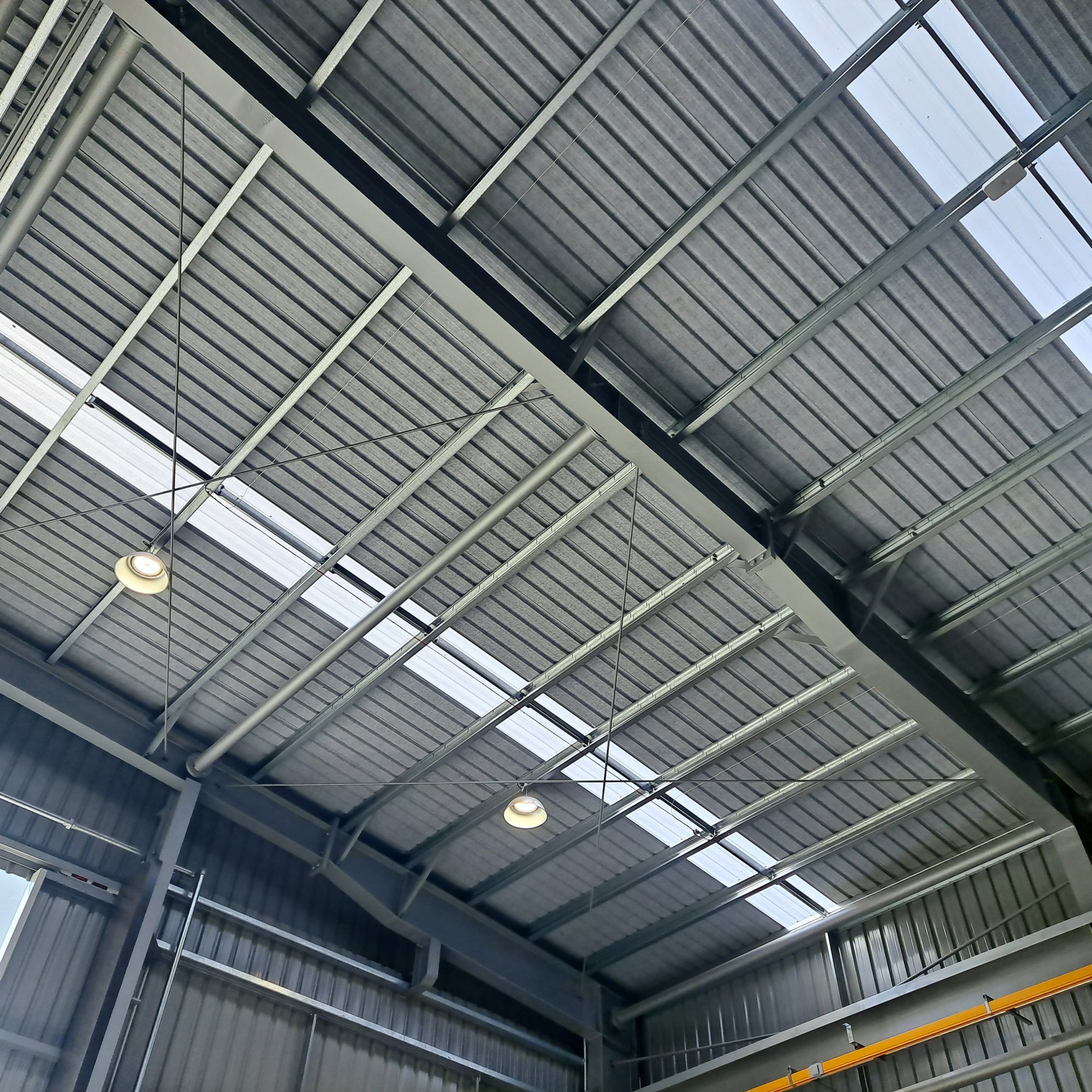

Used on a number of large commercial Projects including Roofing Industries' new factories in, Blenheim and Hamilton.

Other Performance Attributes
  • Fire rating: Complies with AS1530.2:1993 FR Index ≤5
  • Can be high pressure water cleansed to remove grime and contaminants
