Euro Wall Flat Lock
Description

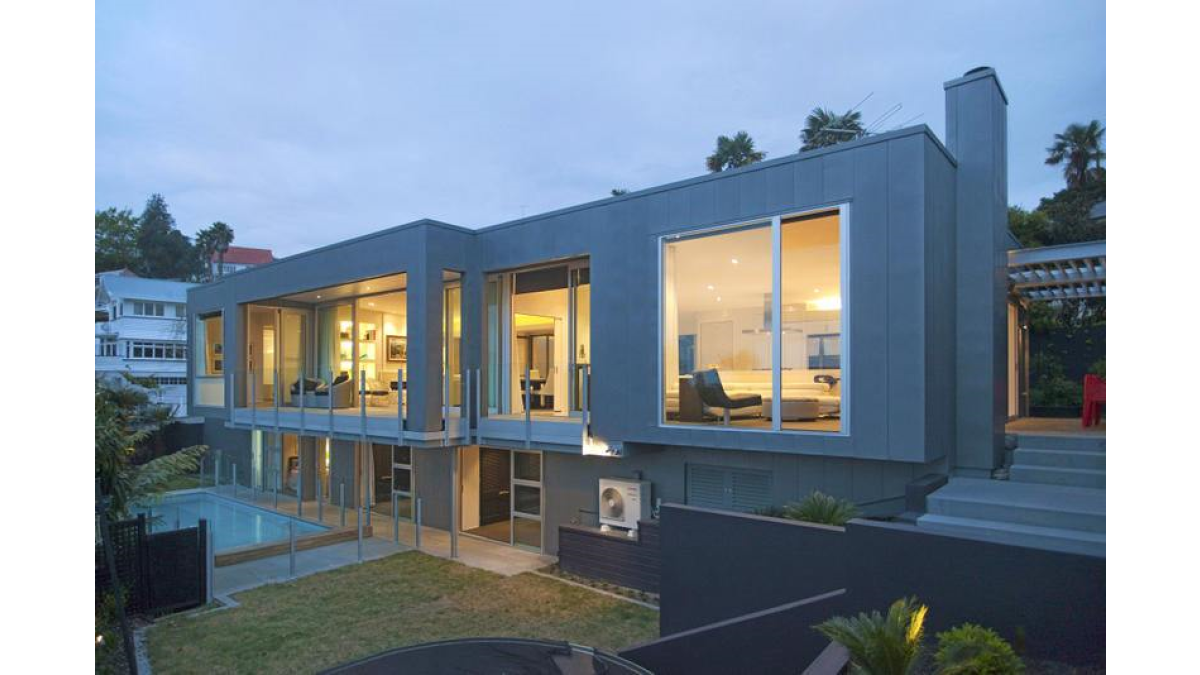

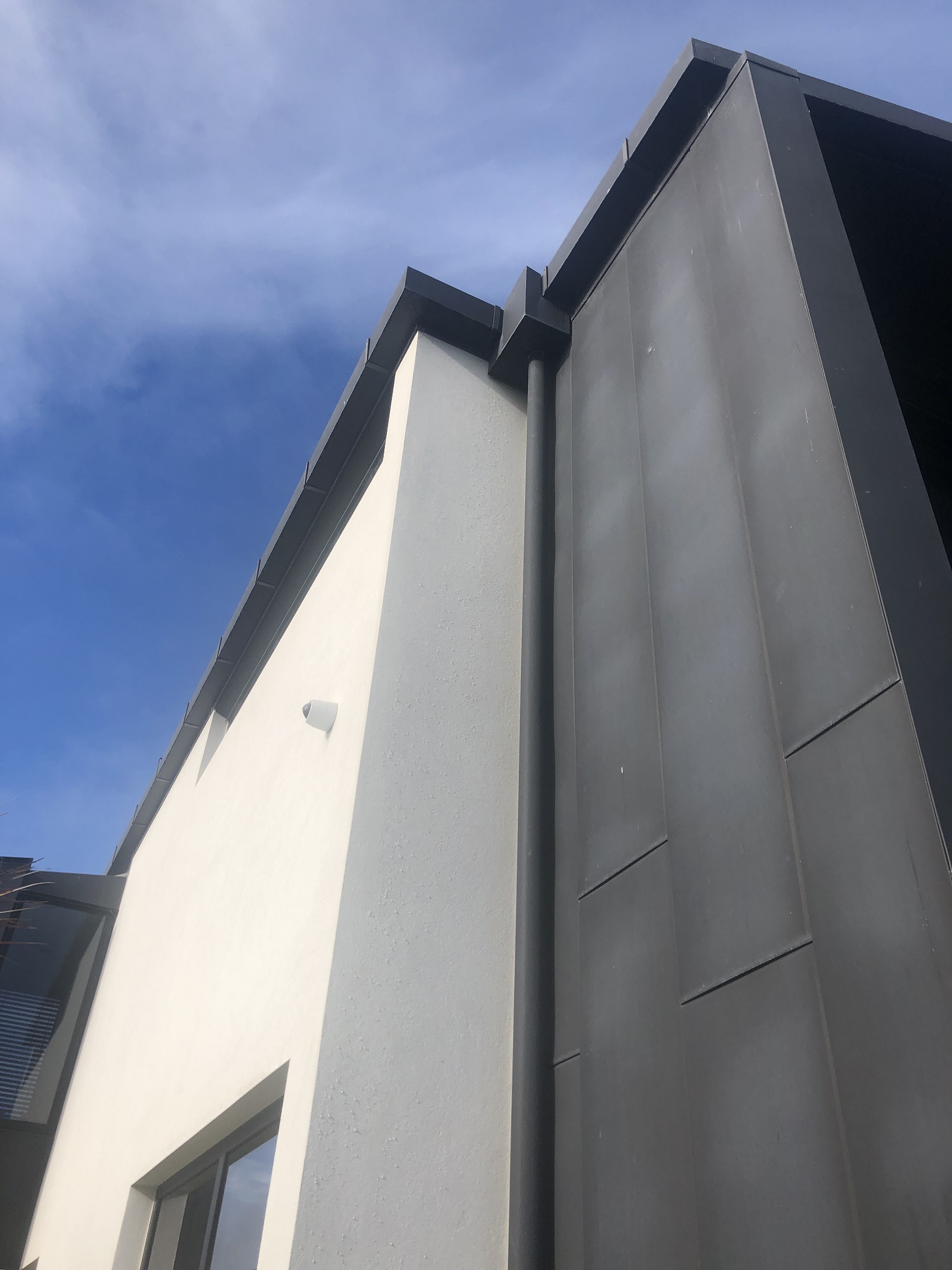

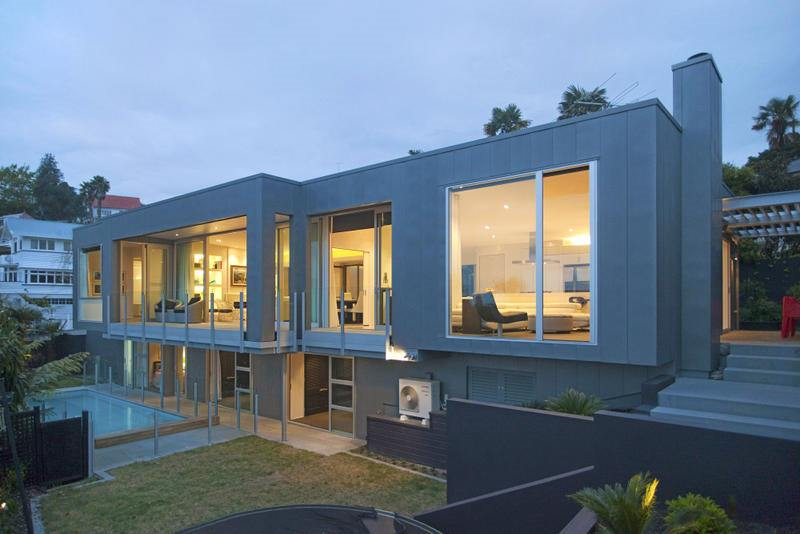

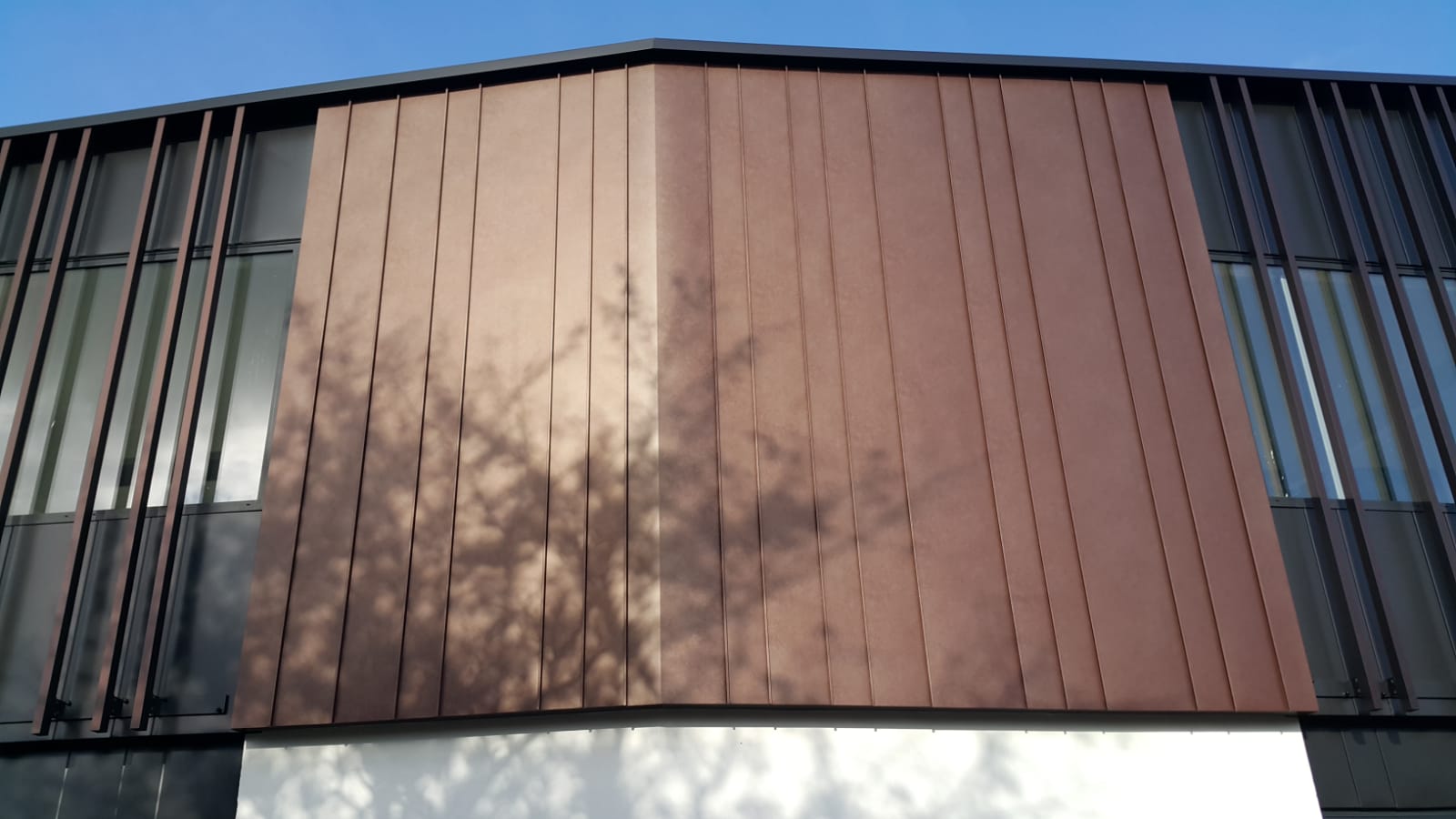

Flat Lock panel is formed with three times folded flat seams at panel edges. Limited in length and width, it offers the designer many options for their façade design. Panels are mechanically attached to a substrate using concealed clips. This profile may be completed in a range of materials including Copper, Zinc, pre-painted Aluminium and pre-painted steel.

Key Features
  • Supported
  • Concealed Fixings
  • Available in copper, zinc, pre-painted steel and pre-painted aluminium
Scope of Use
  • Residential and Commercial cladding
  • Installed vertically and horizontally
  • Concealed fixings
Limitations on Use
  • Pan widths are limited in size
Statement of Building Code Compliance

Installation of the profile is undertaken by an experienced Metal Design Solutions installers with installation carried out in accordance Metal Design Solutions standard details and in compliance with the NZ Metal Roof and Wall Cladding Code of Practice.

This product, if installed in accordance with the manufacturer's standard installation details, will on reasonable grounds meet the requirements of the following New Zealand Building Code clauses:

  • Clause B1: Structure, Performance, B1.3.1, B1.3.2, B1.3.3 (a, b, c, d, g, i), B1.3.4 (a, b, c, d, e)
  • Clause B2: Durability, Performance, B2.3.1 (b), B2.3.2 (b)
  • Clause C3: Fire, Performance C3.4(a), C3.7(a)
  • Clause E2: External Moisture E2.3.1, E2.3.2, E2.3.5, E2.3.7 (a, b, c)
  • Clause F2: Hazardous Building Materials, Performance, F2.3.1
Other Performance Attributes
  • Regular maintenance is required to maximise the lifespan of this profile and components
  • Full maintenance guides are available based on material selection
  • Product warranties and material selection are available on request for specific projects
  • Metal Design Solutions warranty period is 5 years from the date of Practical Completion of the Contract Works for installation and workmanship
Documents
Appraisal, Accreditation, Certification and Testing

Version 1

PASS Product Statement Flat Lock

Version 1

BPIS Flat Lock Horizontal

Version 1

BPIS Flat Lock Vertical

Version 1

Masterspec: Euro Wall Cladding
NZ Metal Roof and Wall Cladding Code of Practice
CAD/PDF Details

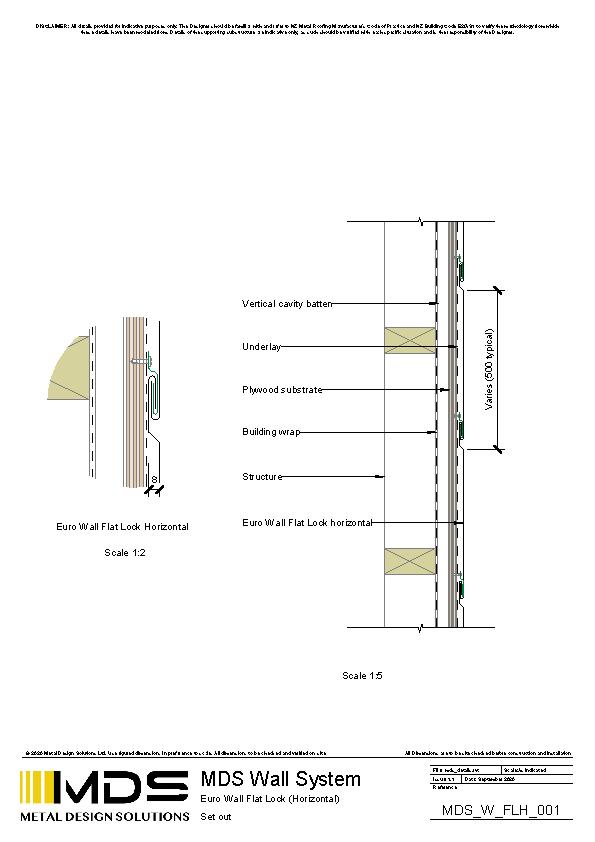

Euro Wall Flat Lock (Horizontal) Set Out

MDS_W_FLH_001

1.1

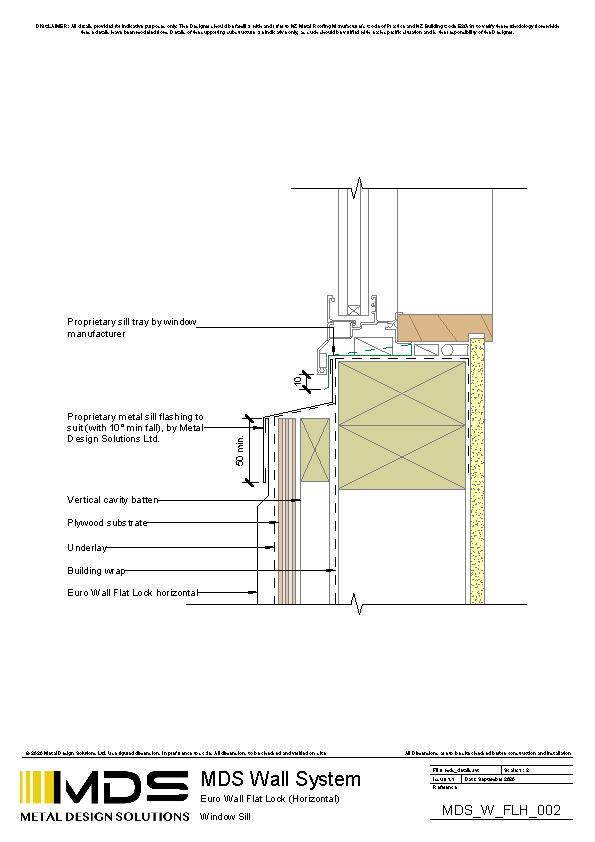

Euro Wall Flat Lock (Horizontal) Window Sill

MDS_W_FLH_002

1.1

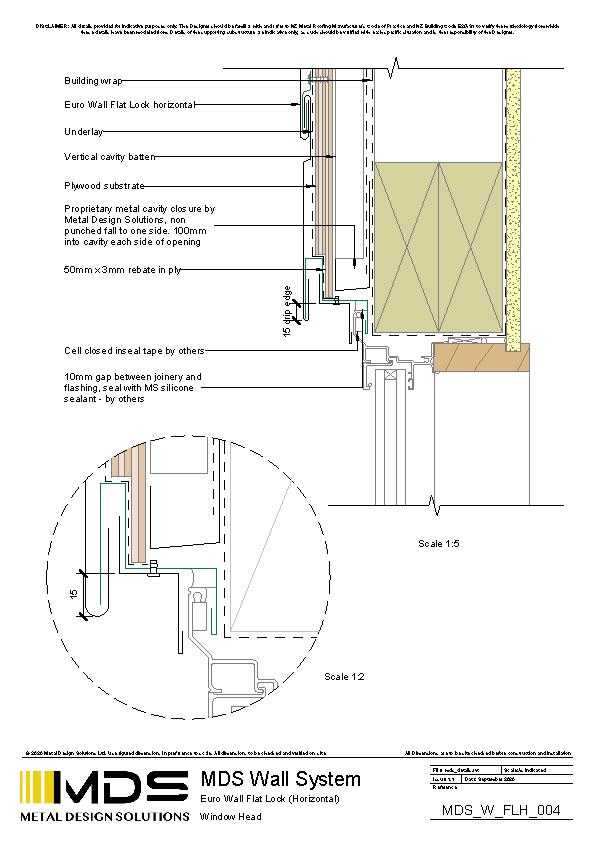

Euro Wall Flat Lock (Horizontal) Window Head

MDS_W_FLH_004

1.1

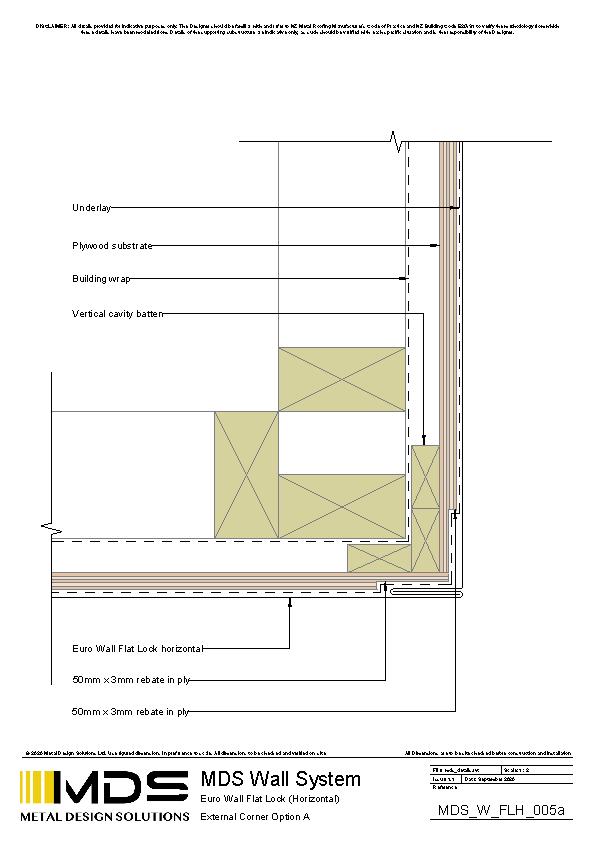

Euro Wall Flat Lock (Horizontal) External Corner Option A

MDS_W_FLH_005a

1.1

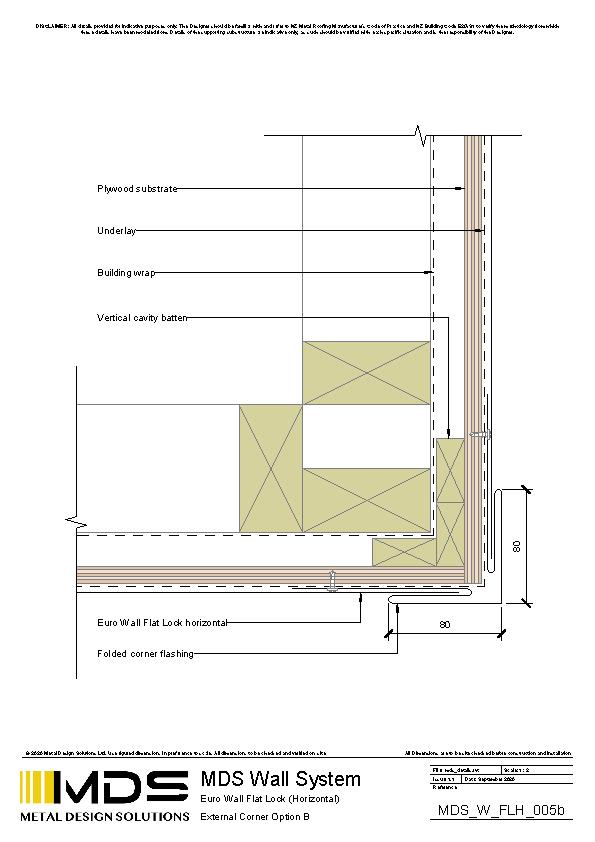

Euro Wall Flat Lock (Horizontal) External Corner Option B

MDS_W_FLH_005b

1.1

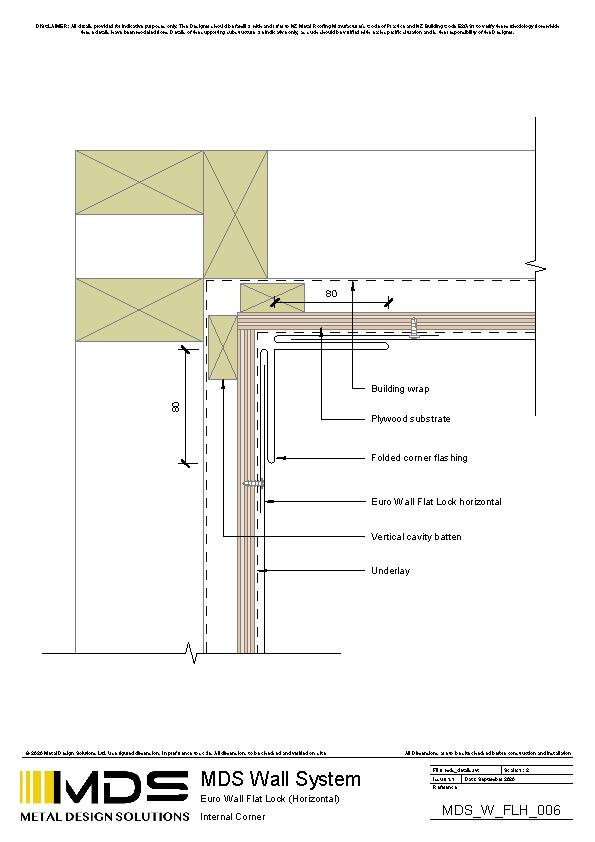

Euro Wall Flat Lock (Horizontal) Internal Corner

MDS_W_FLH_006

1.1

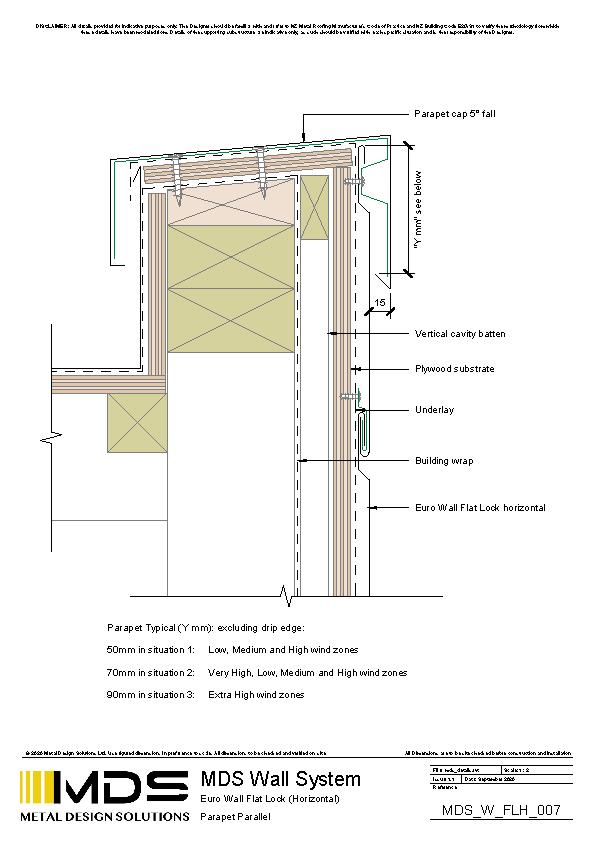

Euro Wall Flat Lock (Horizontal) Parapet Parallel

MDS_W_FLH_007

1.1

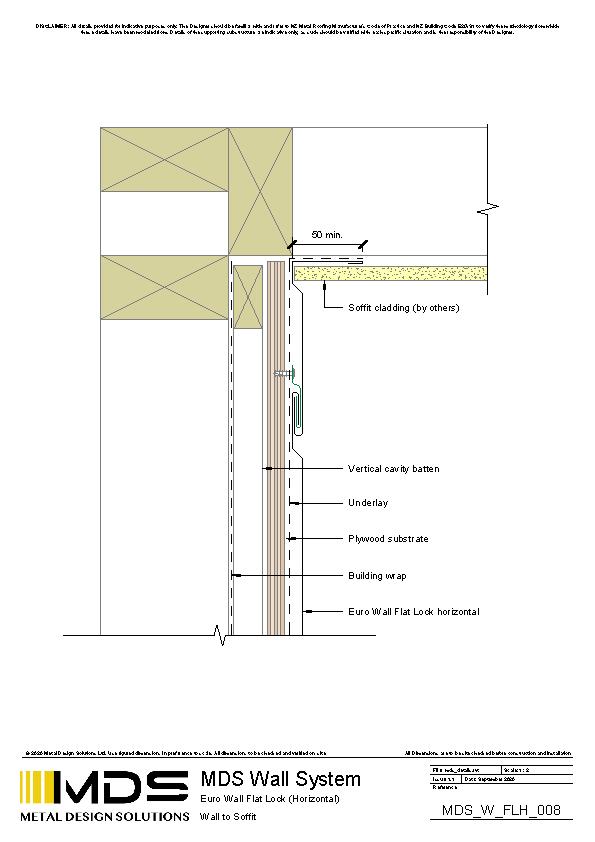

Euro Wall Flat Lock (Horizontal) Wall to Soffit

MDS_W_FLH_008

1.1

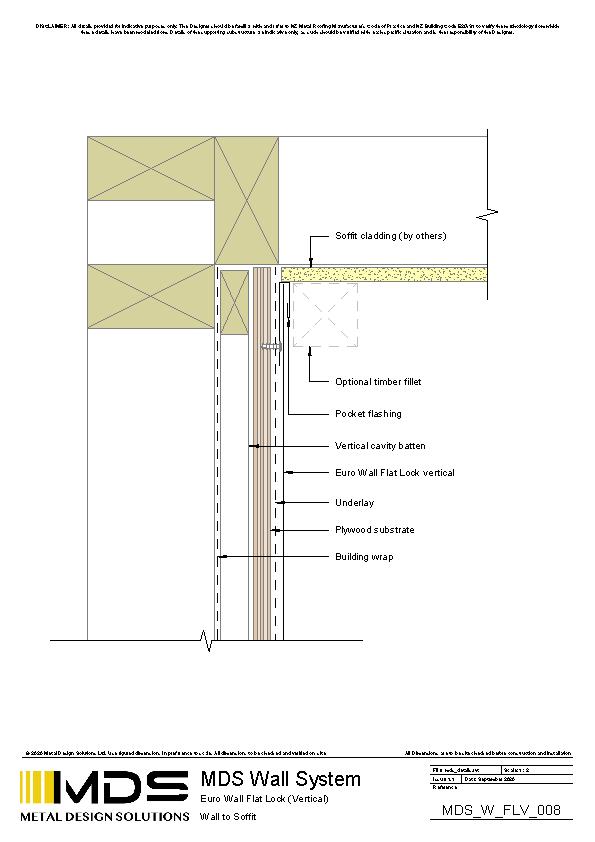

Euro Wall Flat Lock (Vertical) Wall to Soffit

MDS_W_FLH_008

1.1

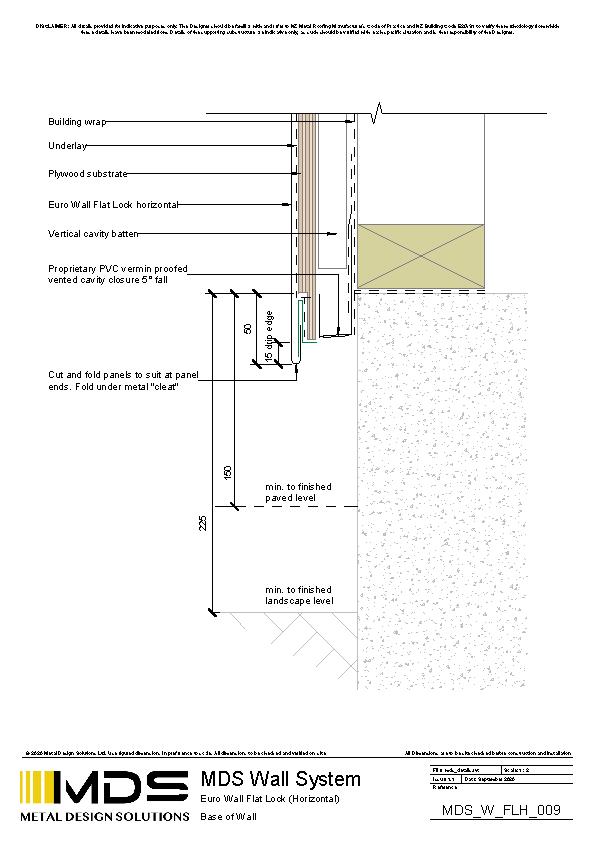

Euro Wall Flat Lock (Horizontal) Base of Wall

MDS_W_FLH_009

1.1

Euro Wall Flat Lock (Horizontal) Full Set

MDS_W_FLH_SET

1.1

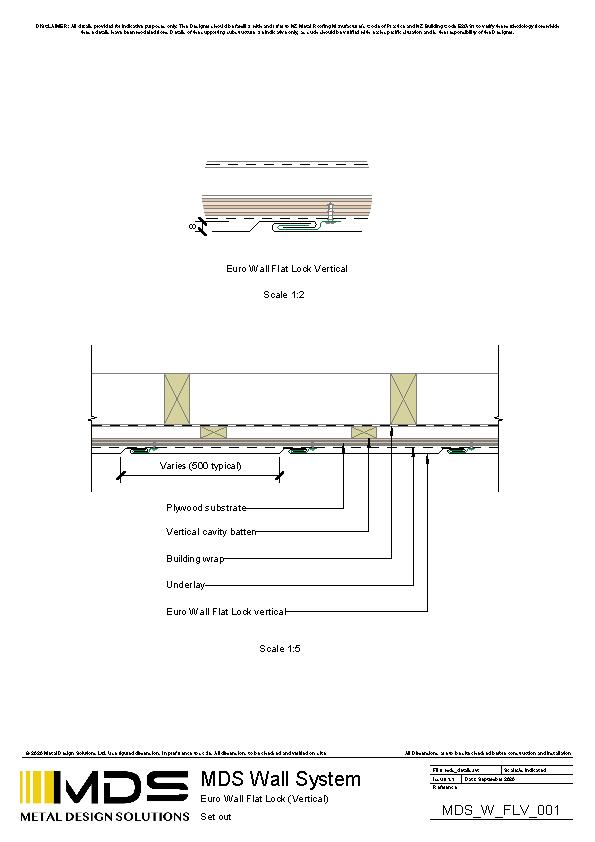

Euro Wall Flat Lock (Horizontal) Set out

MDS_W_FLV_001

1.1

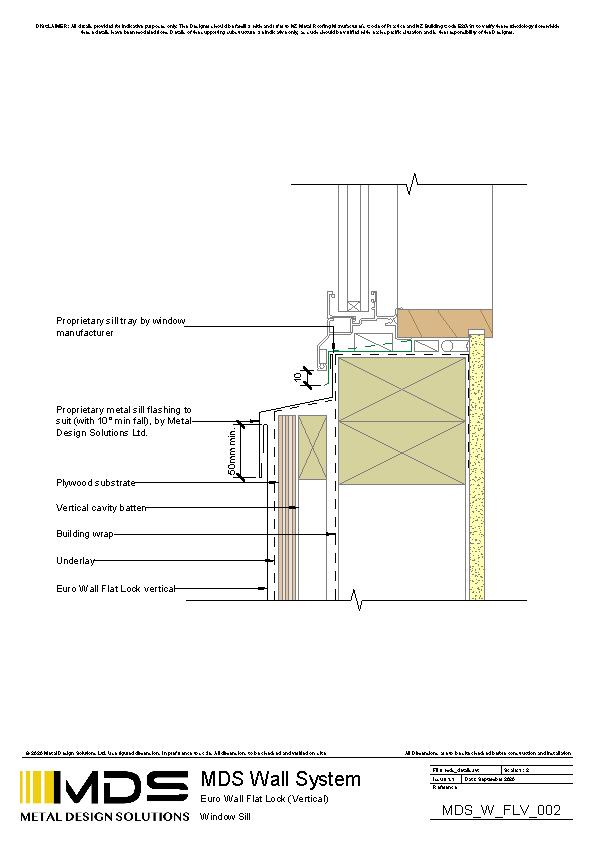

Euro Wall Flat Lock (Vertical) Window Sill

MDS_W_FLV_002

1.1

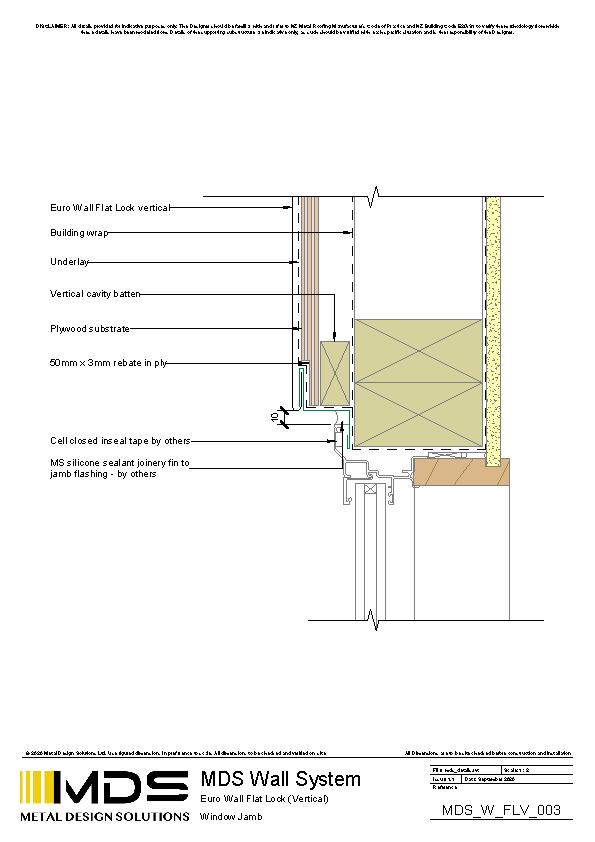

Euro Wall Flat Lock (Vertical) Window JAmb

MDS_W_FLV_003

1.1

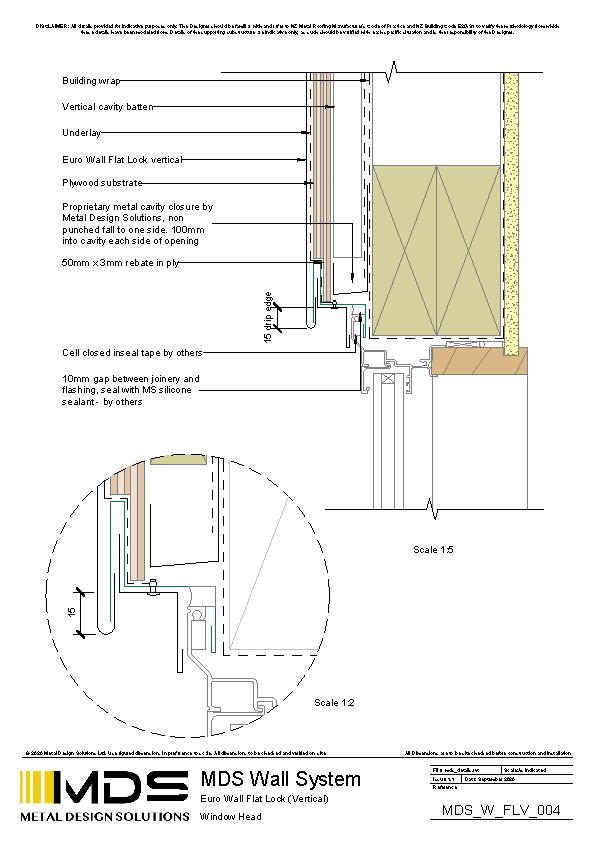

Euro Wall Flat Lock (Vertical) Window Head

MDS_W_FLV_004

1.1

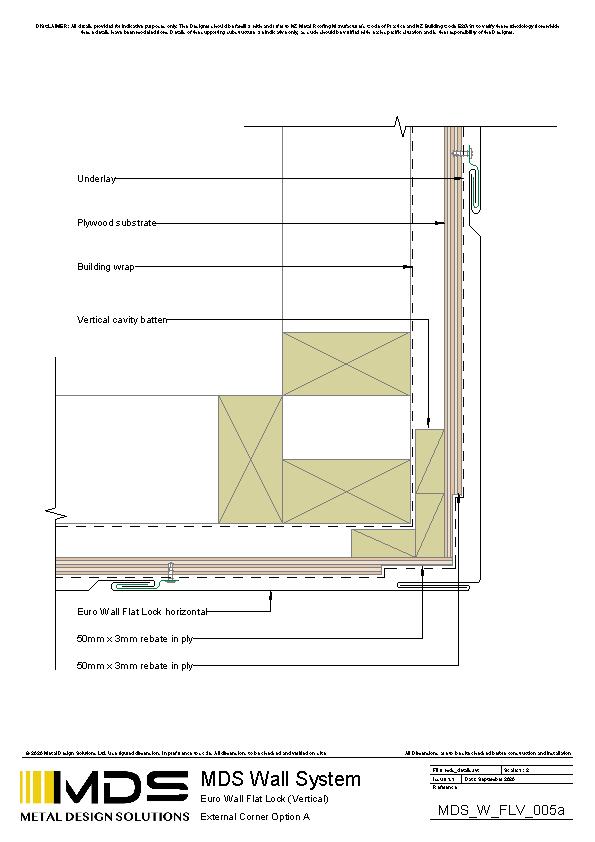

Euro Wall Flat Lock (Vertical) External Corner Option A

MDS_W_FLV_005a

1.1

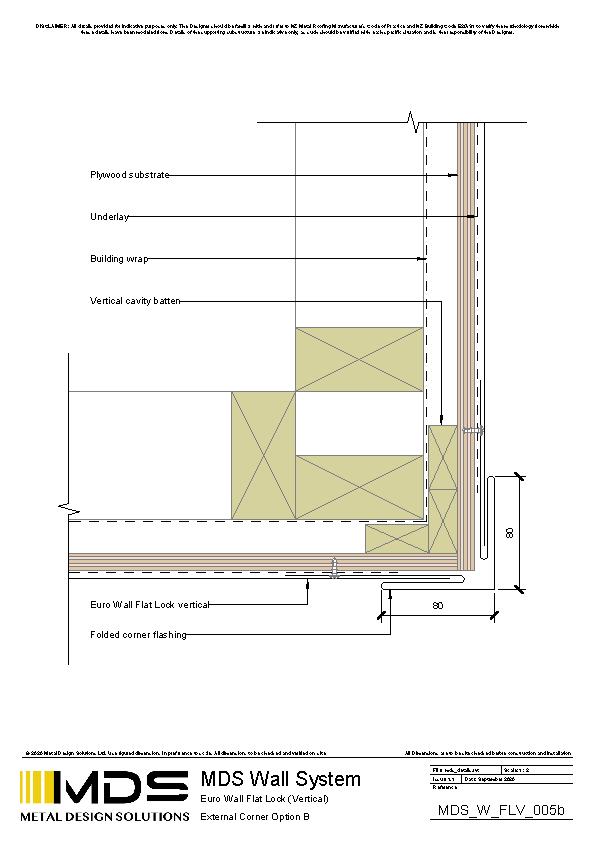

Euro Wall Flat Lock (Vertical) External Corner Option B

MDS_W_FLV_005b

1.1

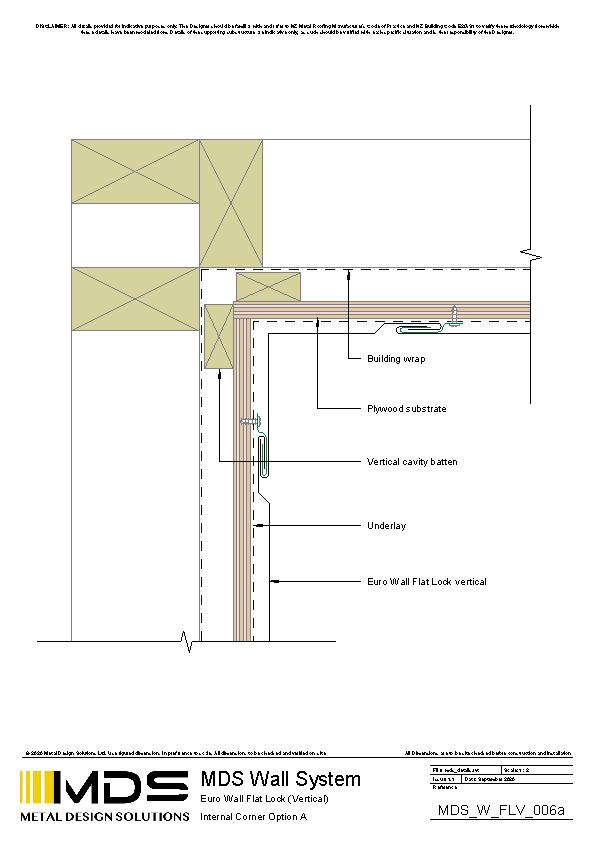

Euro Wall Flat Lock (Vertical) Internal Corner Option A

MDS_W_FLV_006a

1.1

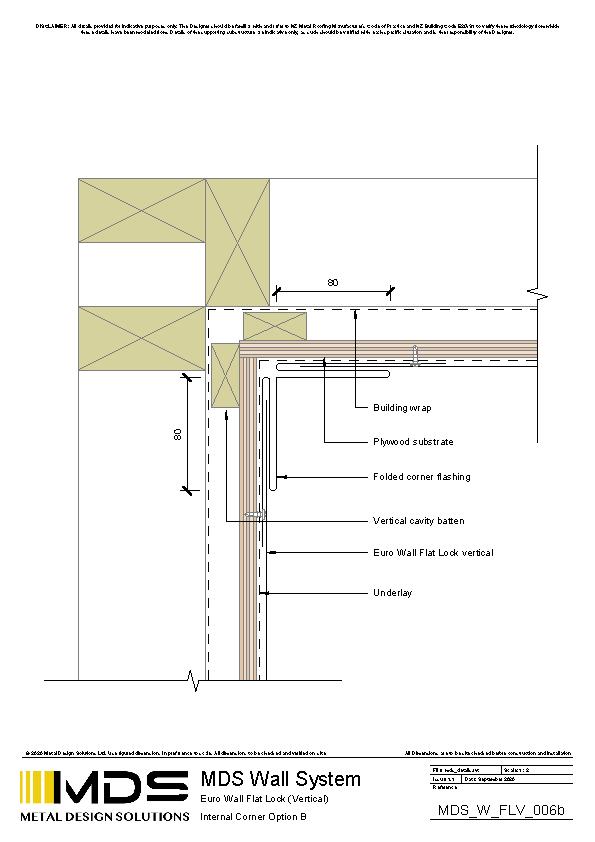

Euro Wall Flat Lock (Vertical) Internal Corner Option B

MDS_W_FLV_006b

1.1

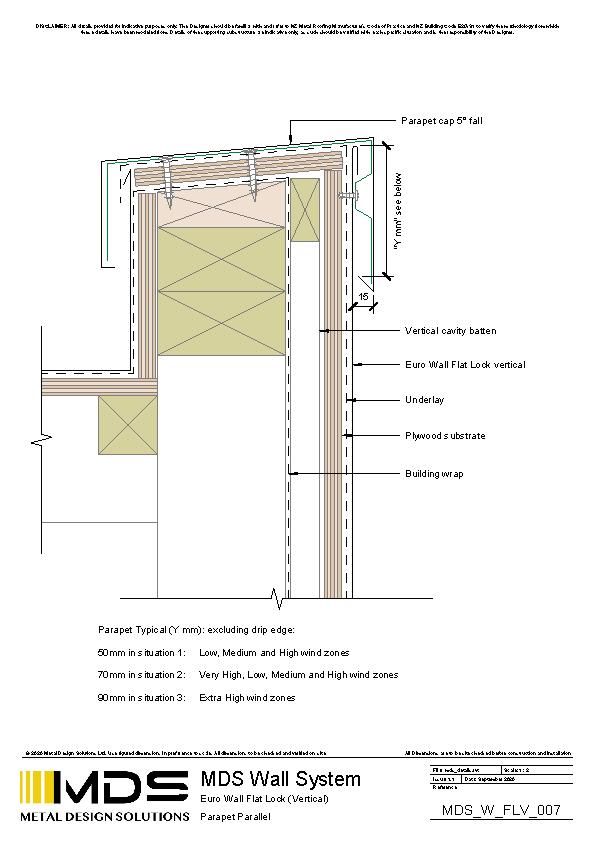

Euro Wall Flat Lock (Vertical) Parapet Parallel

MDS_W_FLV_007

1.1

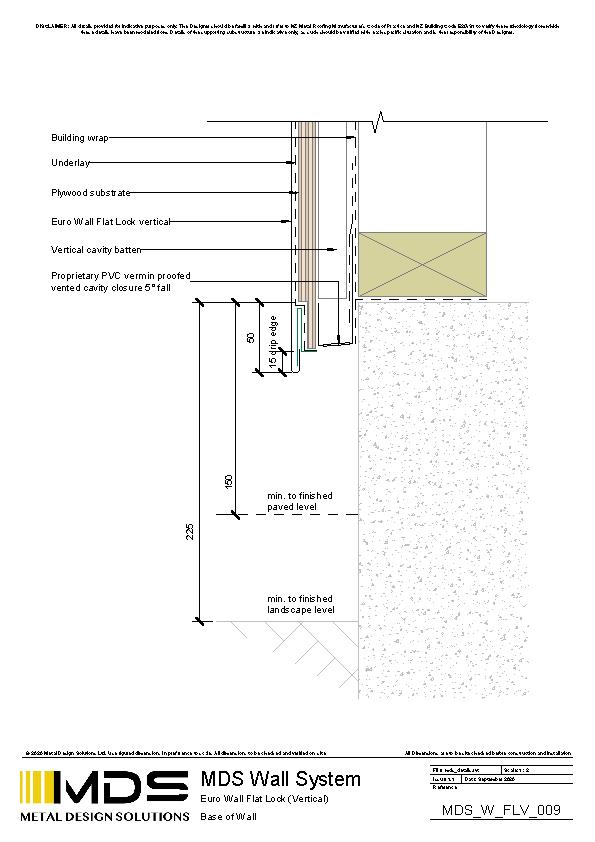

Euro Wall Flat Lock (Vertical) Base of Wall

MDS_W_FLV_009

1.1

Metal Design Solutions are specialists in metal Architectural European-style tray roofing and wall cladding.
