Euro Angle Seam by Metal Design Solutions

Euro Angle Seam

Metal Design Solutions

All products

Product Enquiries

Description

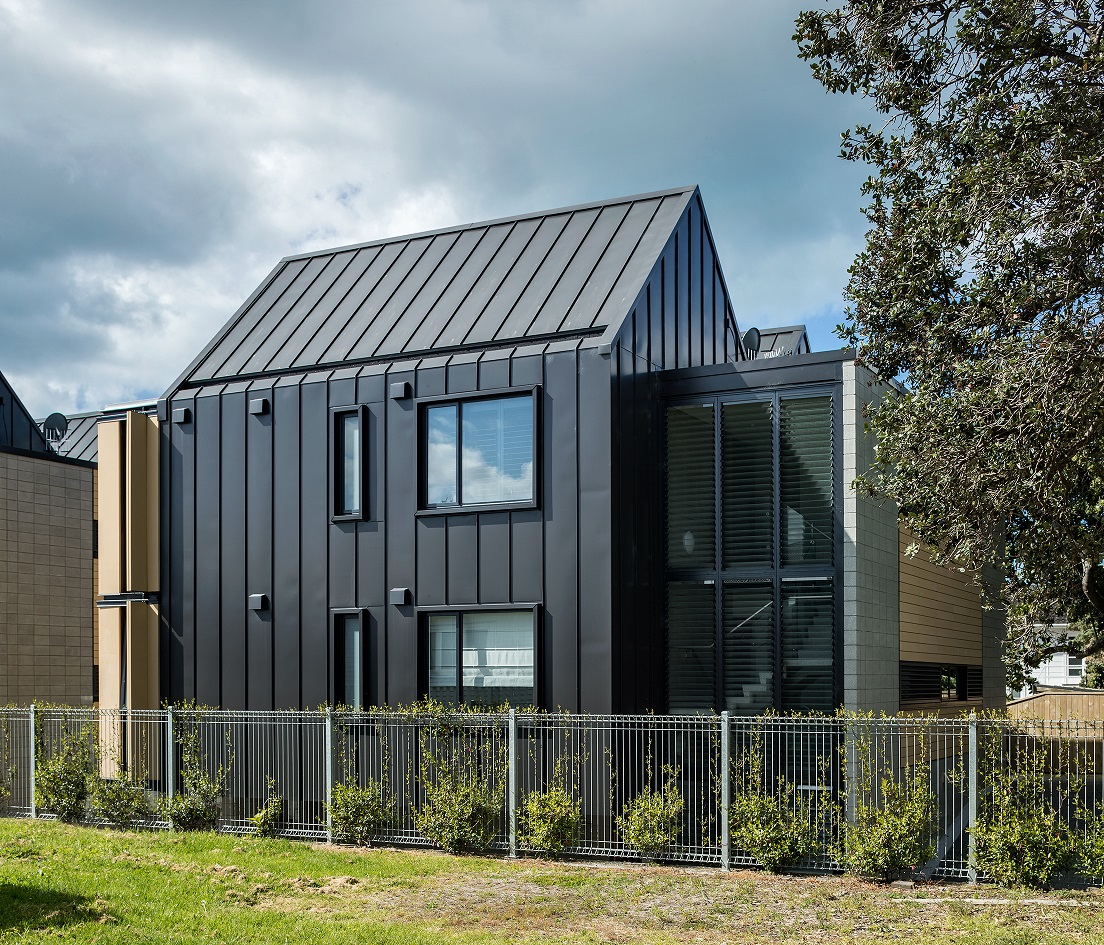

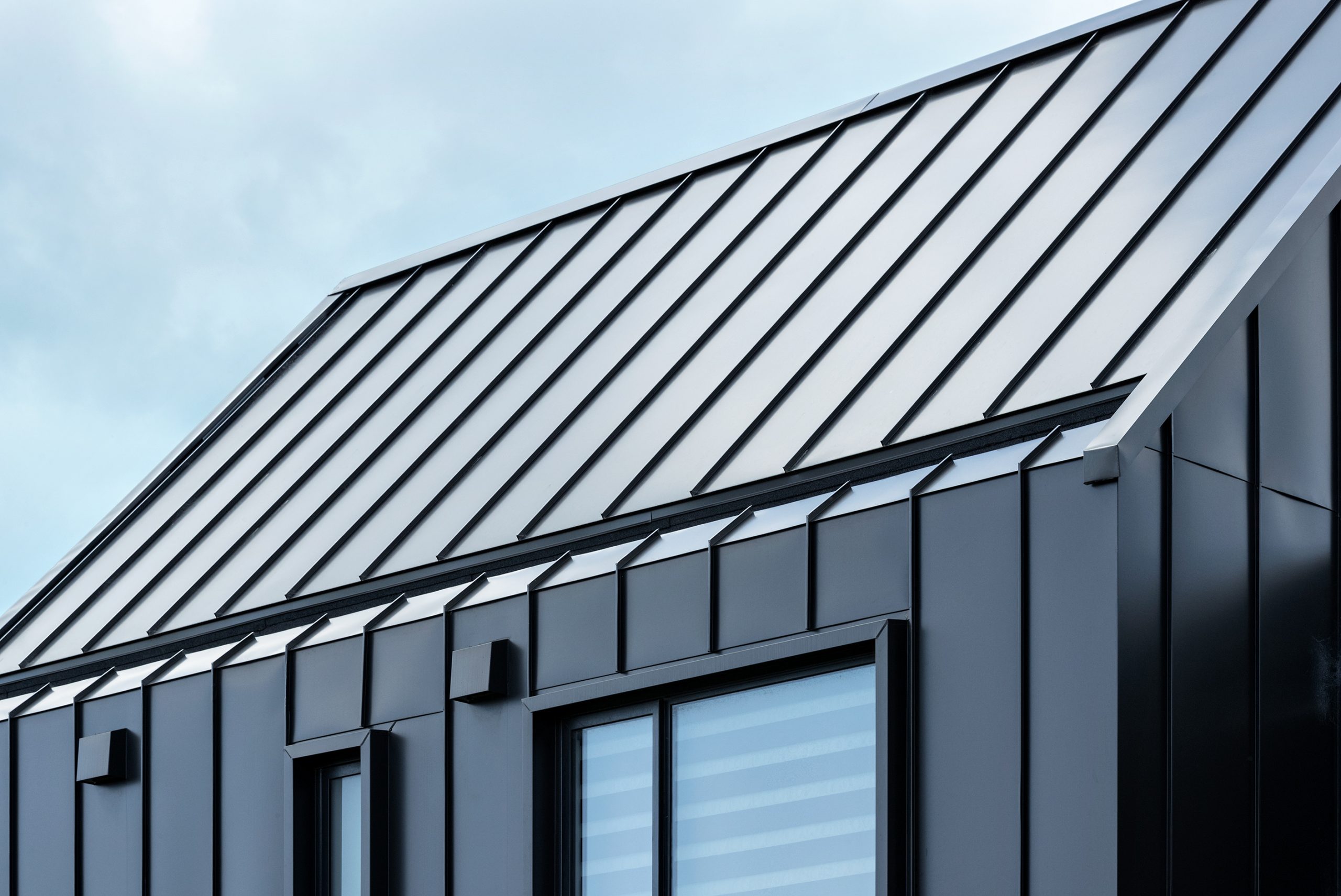

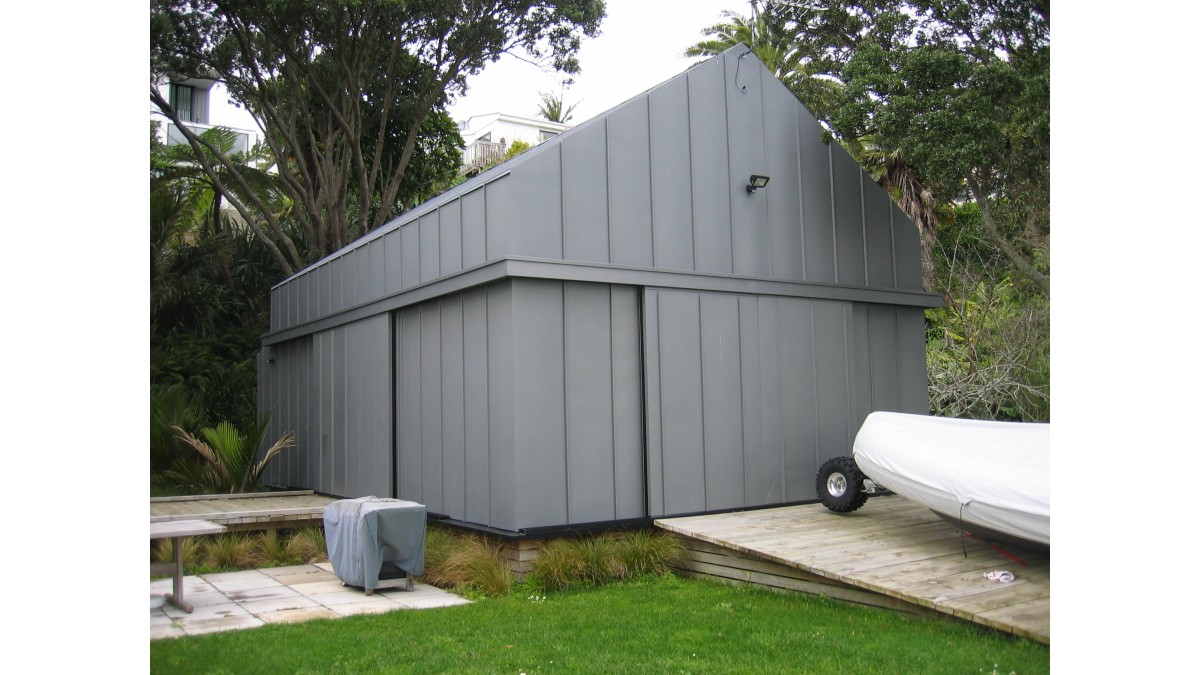

The Angle Seam profile is a pleasing wide pan profile used for roof and wall cladding. The Angle Seam profile utilises seam heights of 25mm or 38mm and is able to be installed as both roof and wall cladding.

The profile's versatility allows it to be manufactured in various tray widths and material finishes and is aesthetically pleasing with its concealed fixings to a plywood substrate.

Key Features

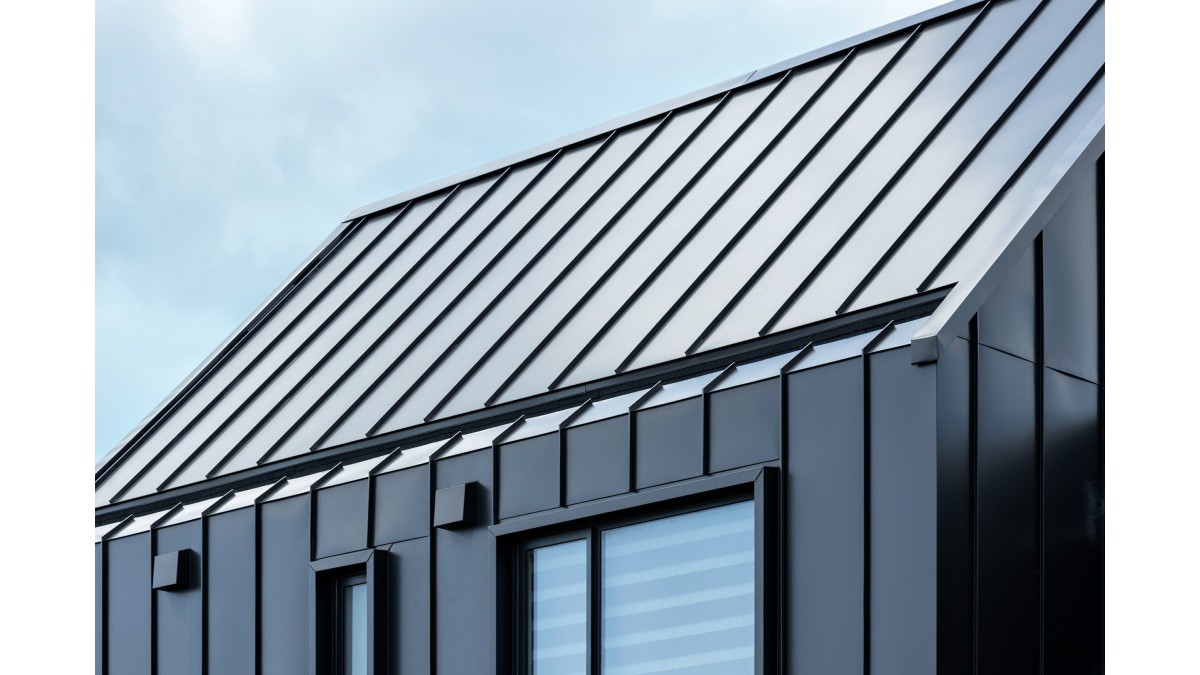

25mm or 38mm seam height
Used for roof and wall cladding
Both residential and commercial buildings
Installed on plywood substrate

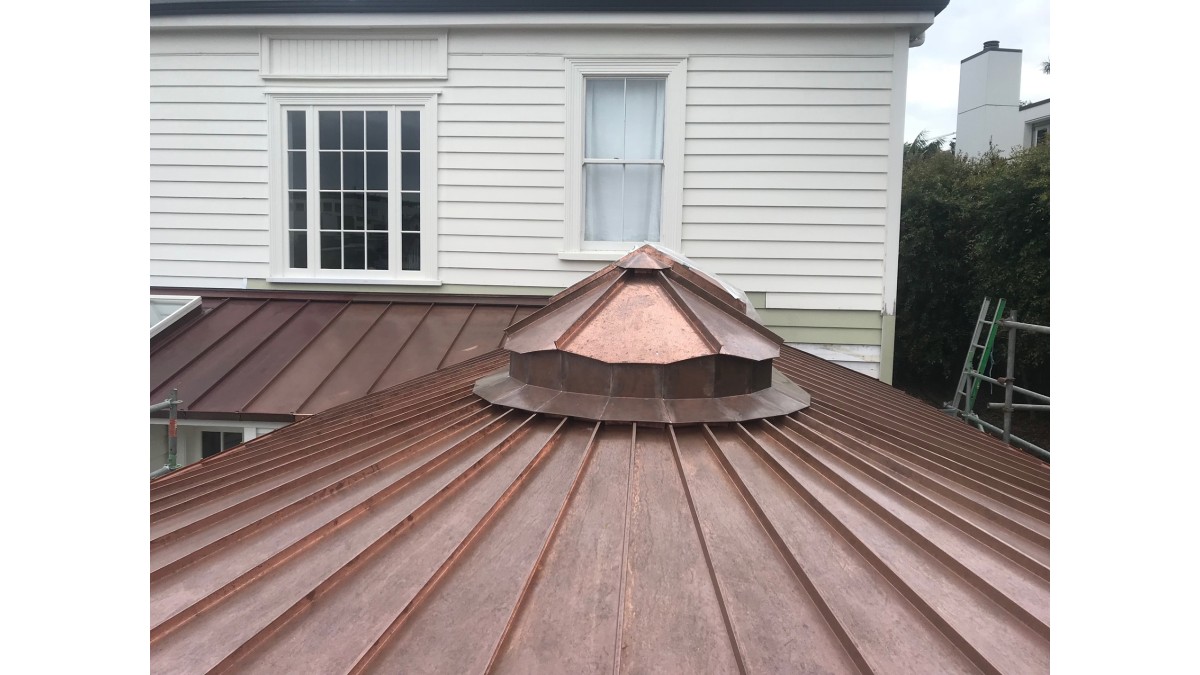

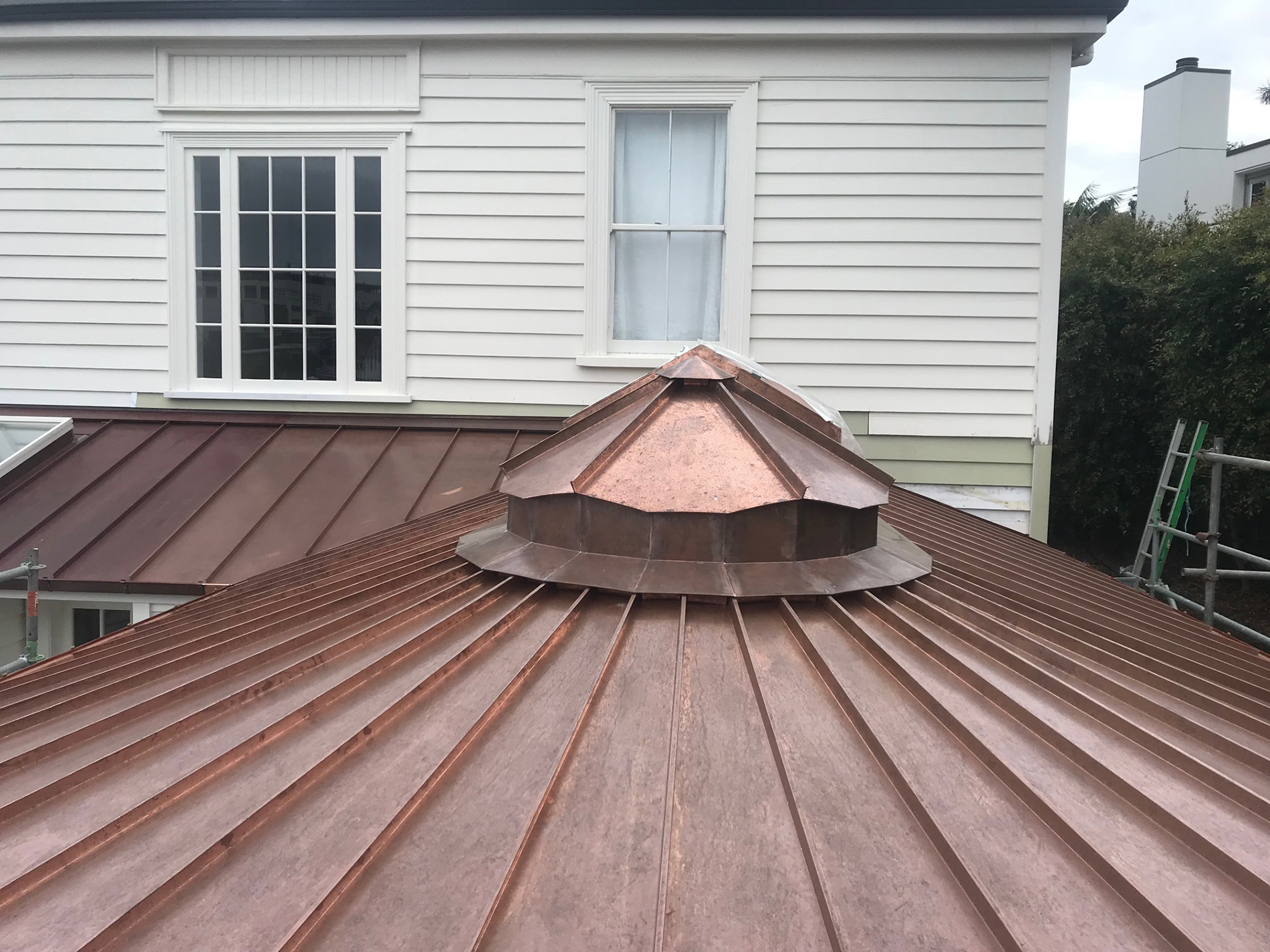

Available in copper, zinc, pre-painted steel, and pre-painted aluminium

Ranges

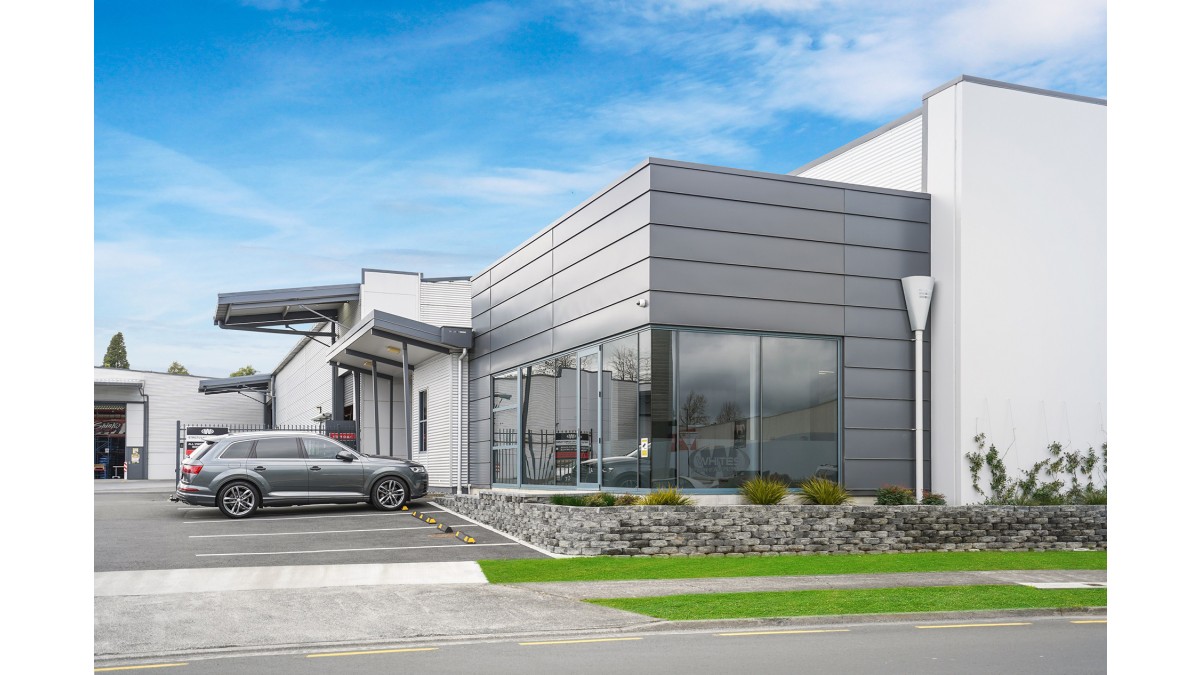

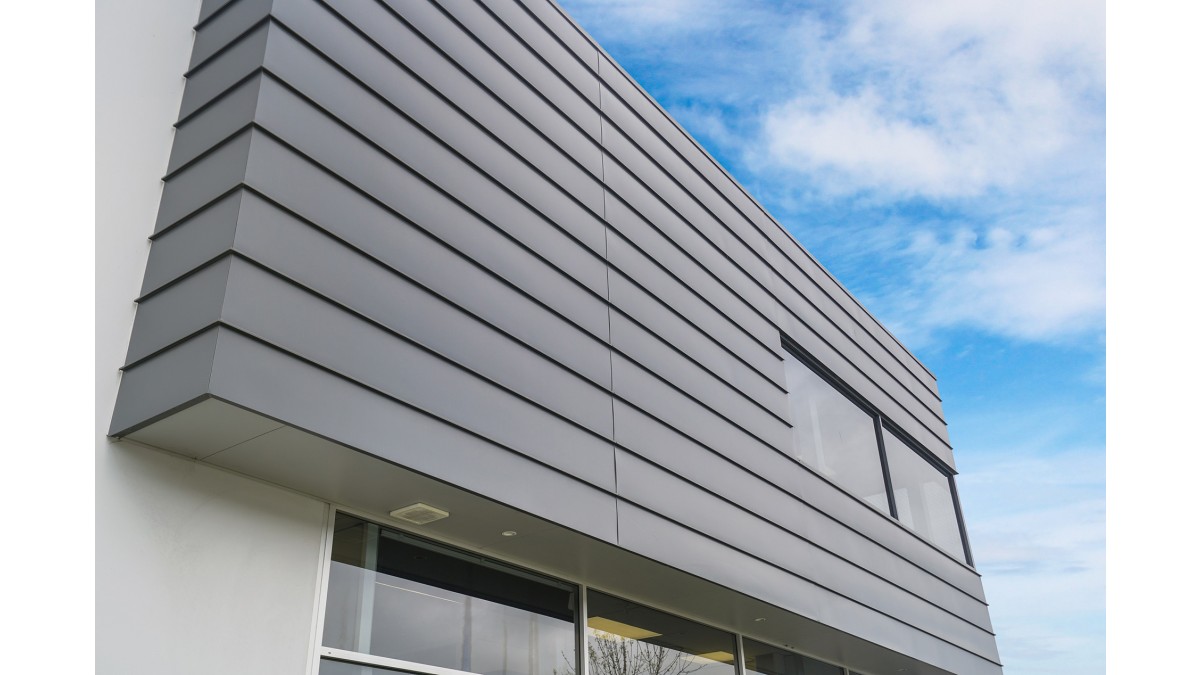

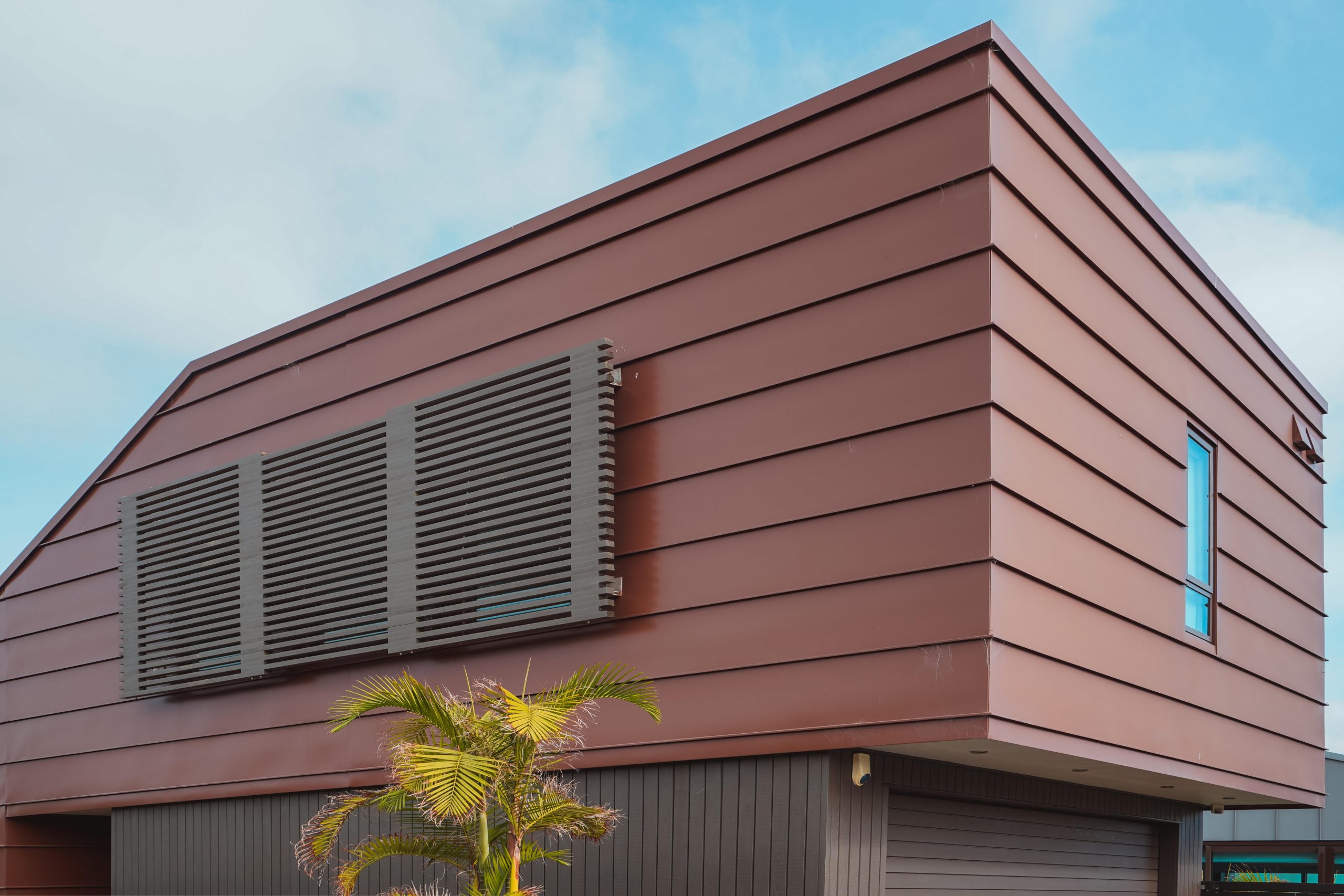

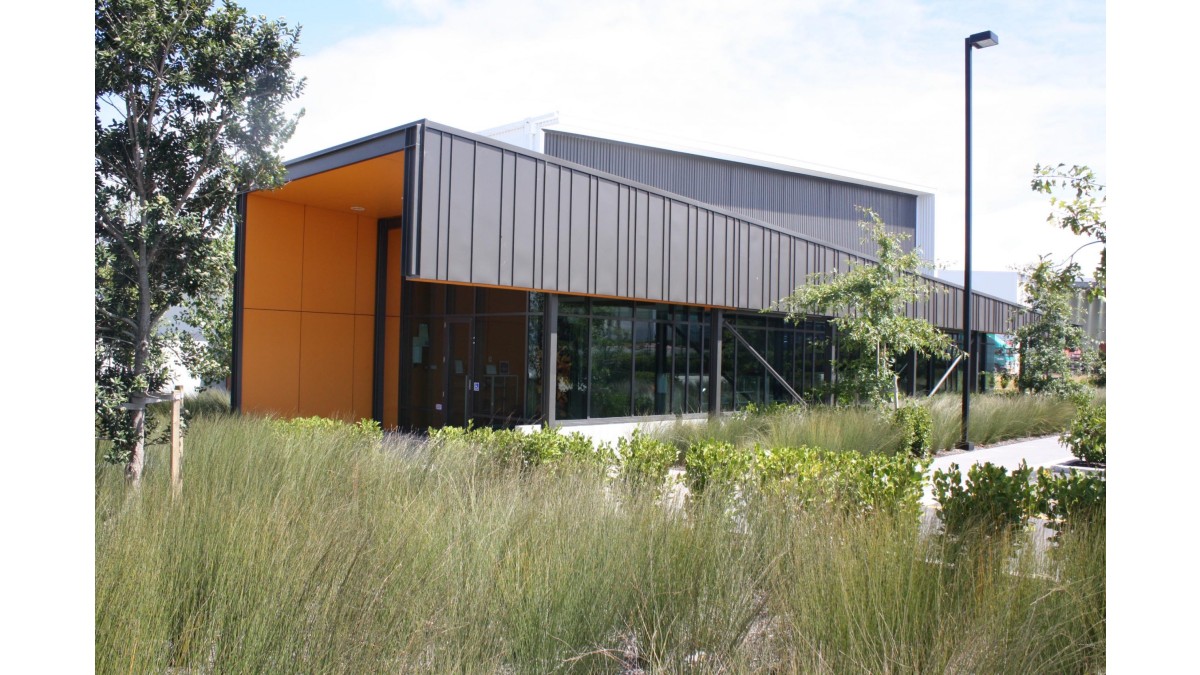

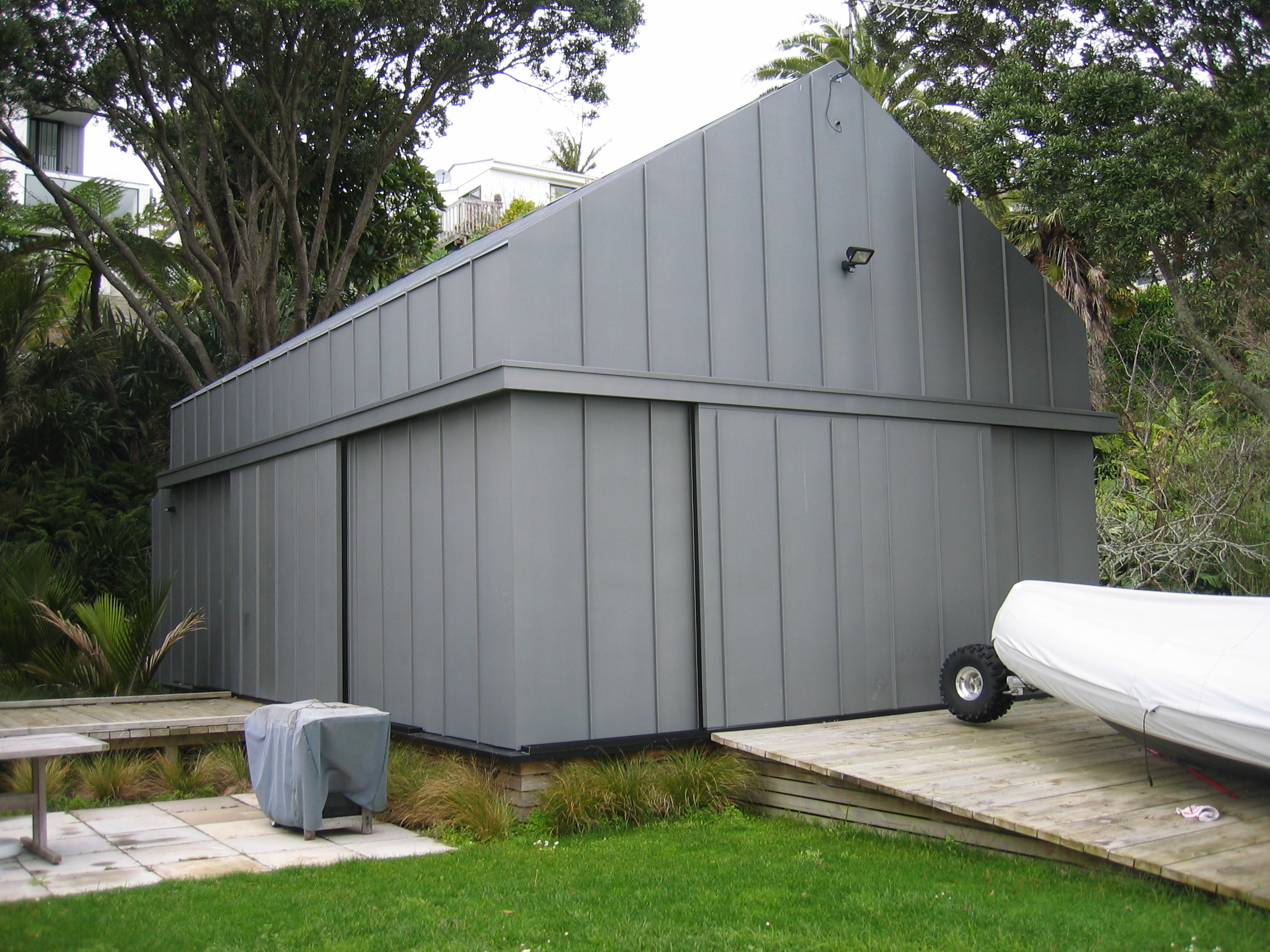

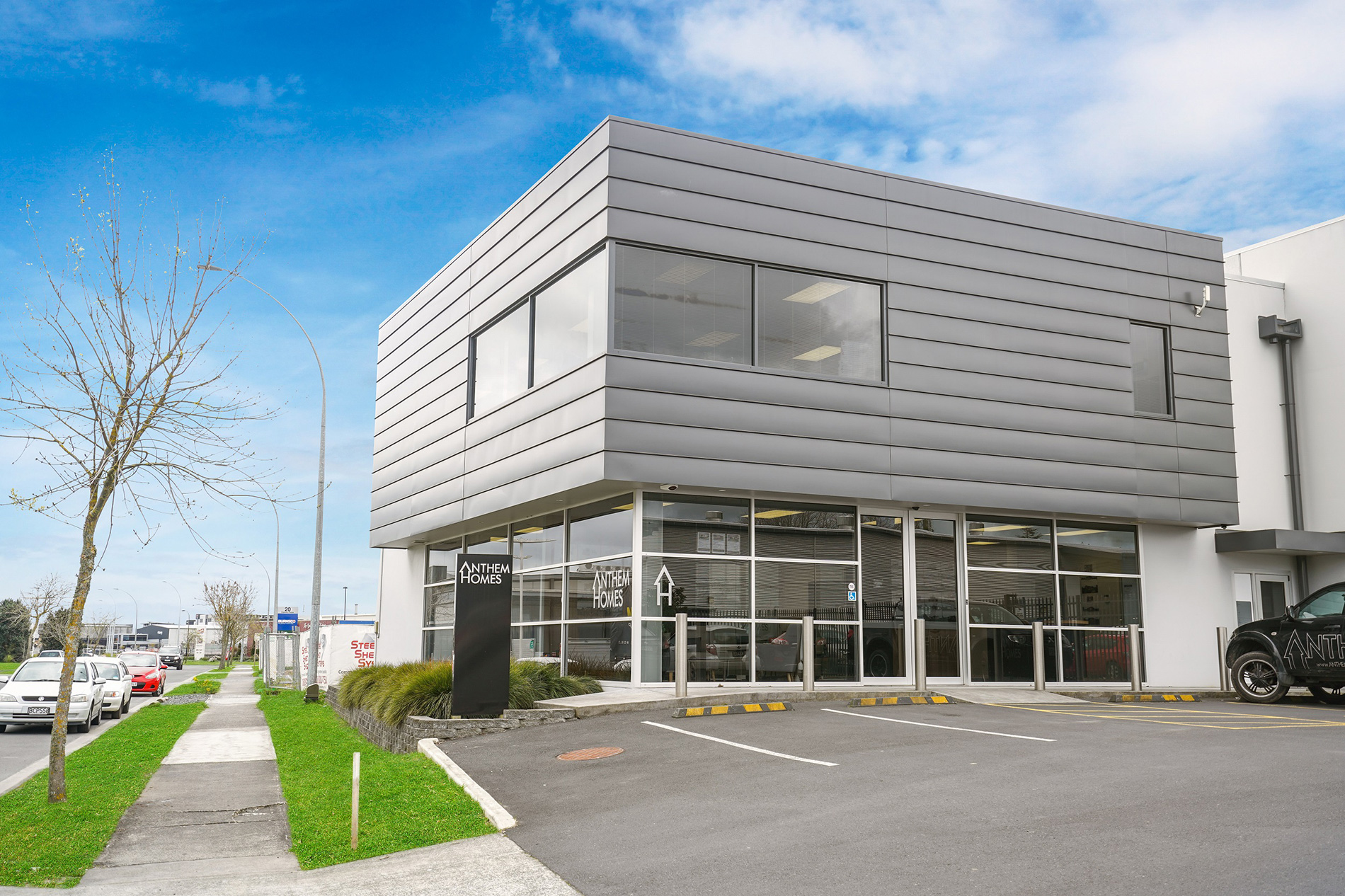

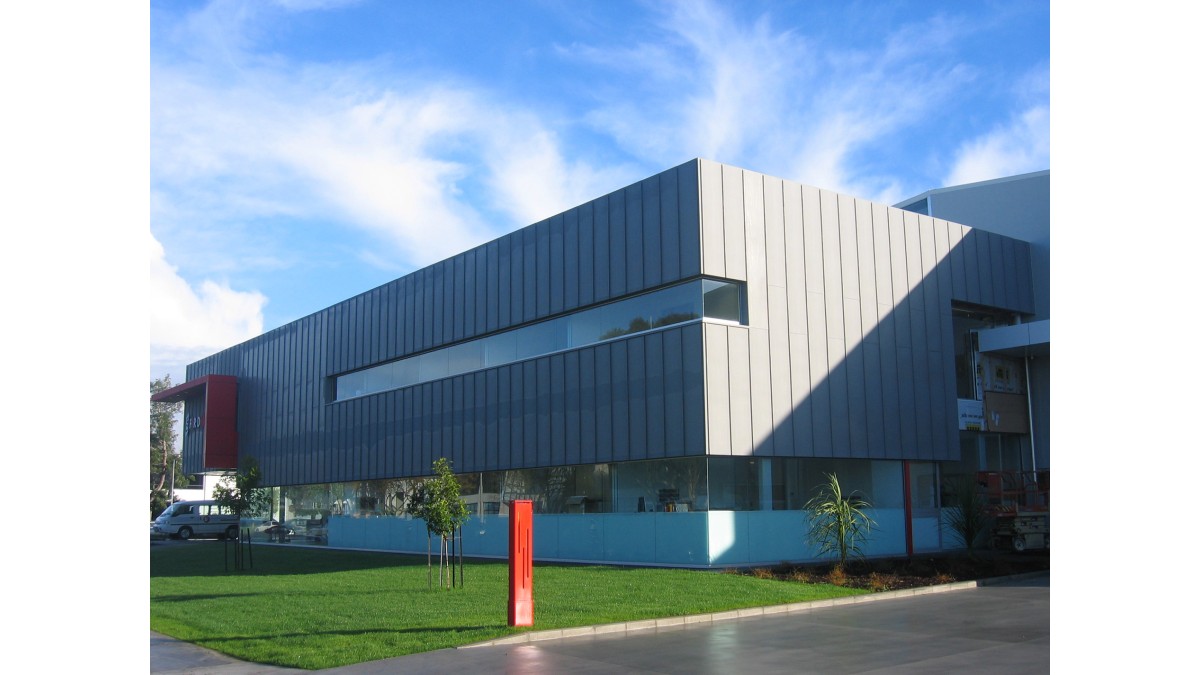

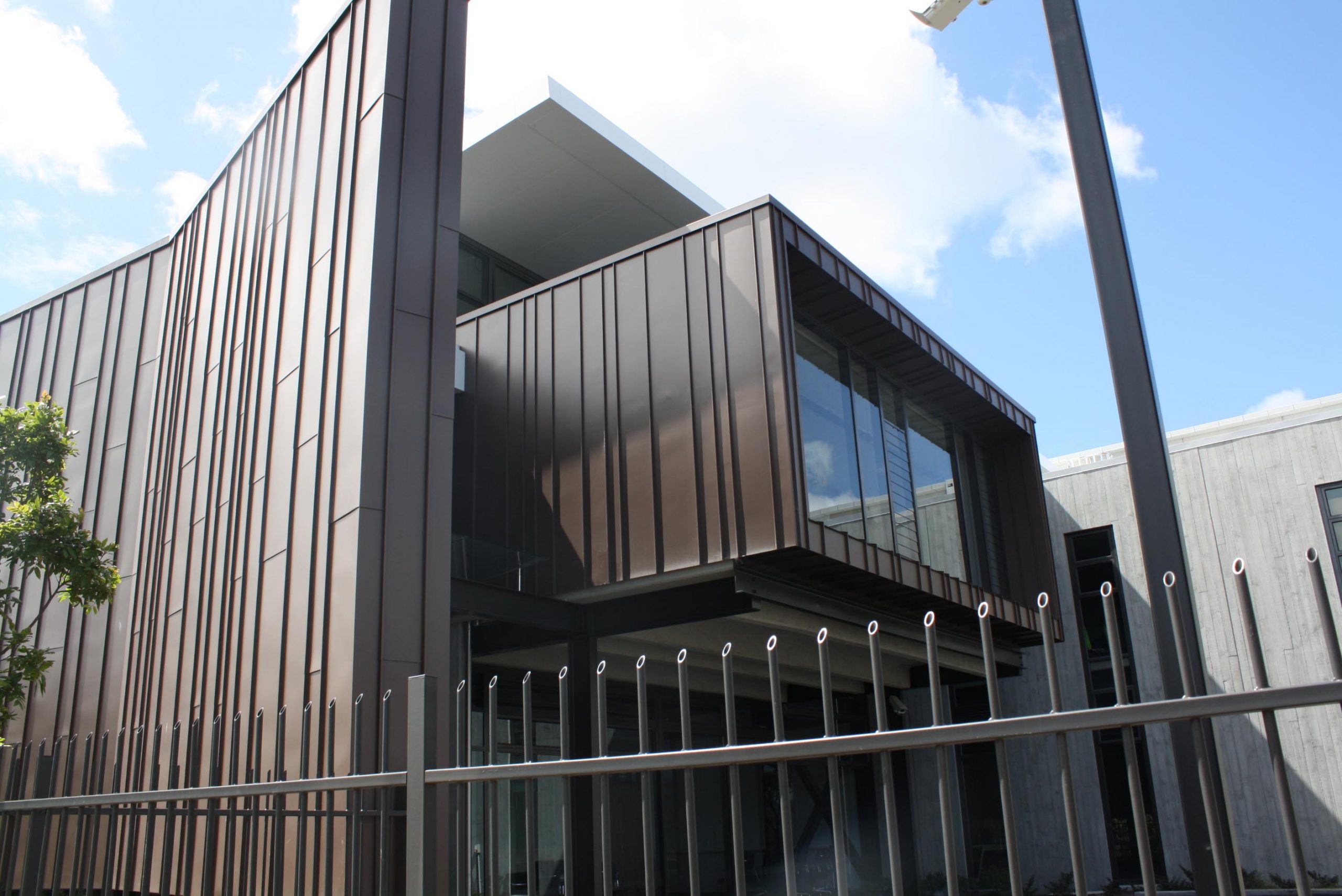

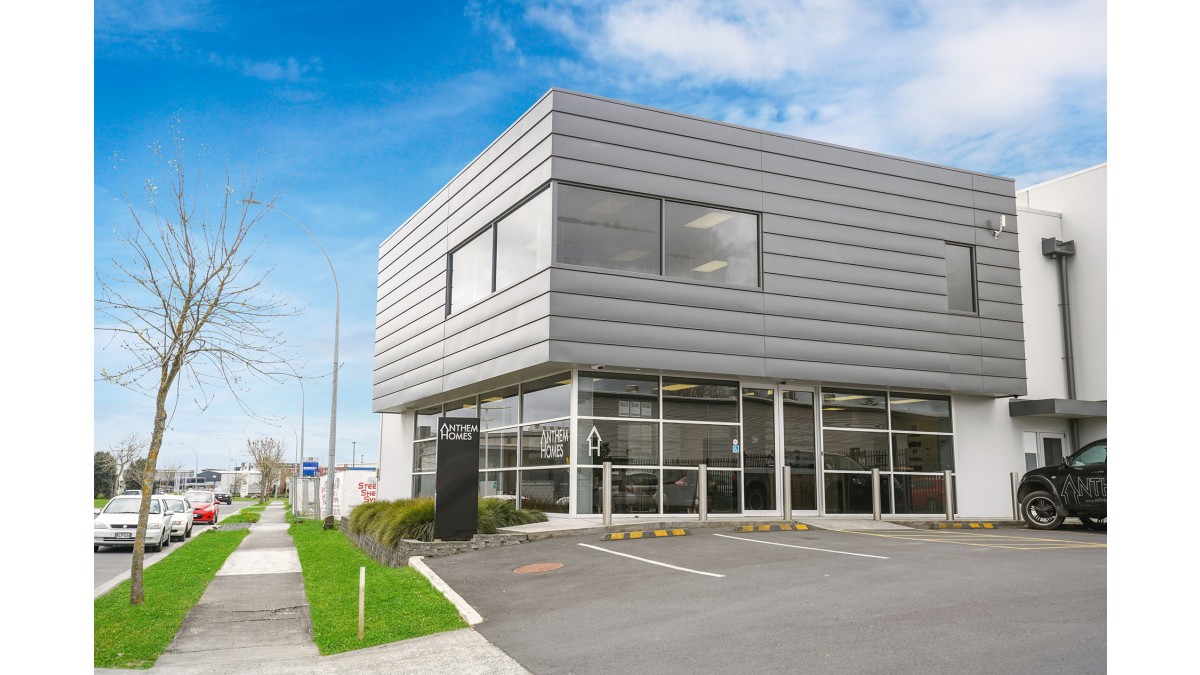

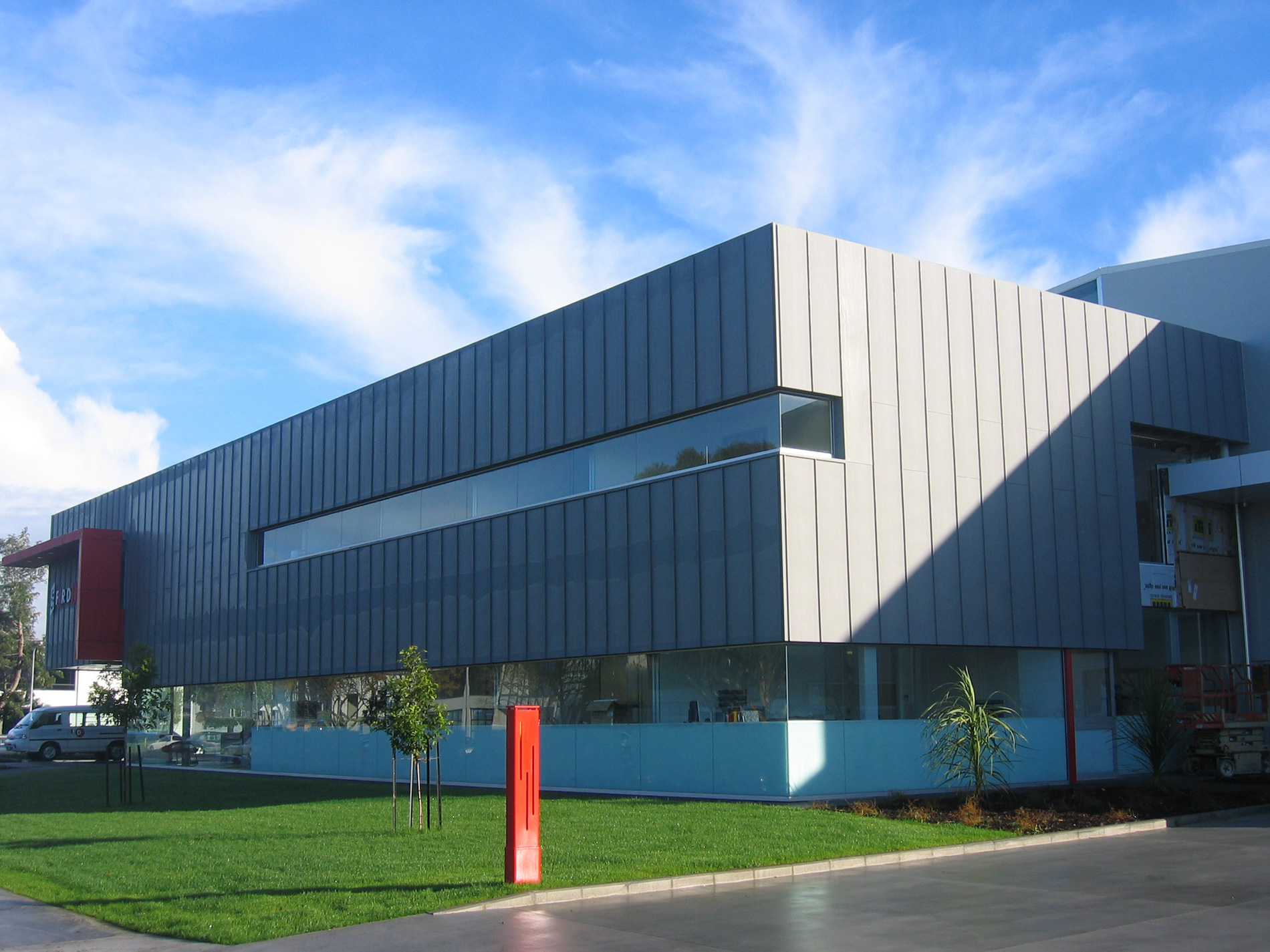

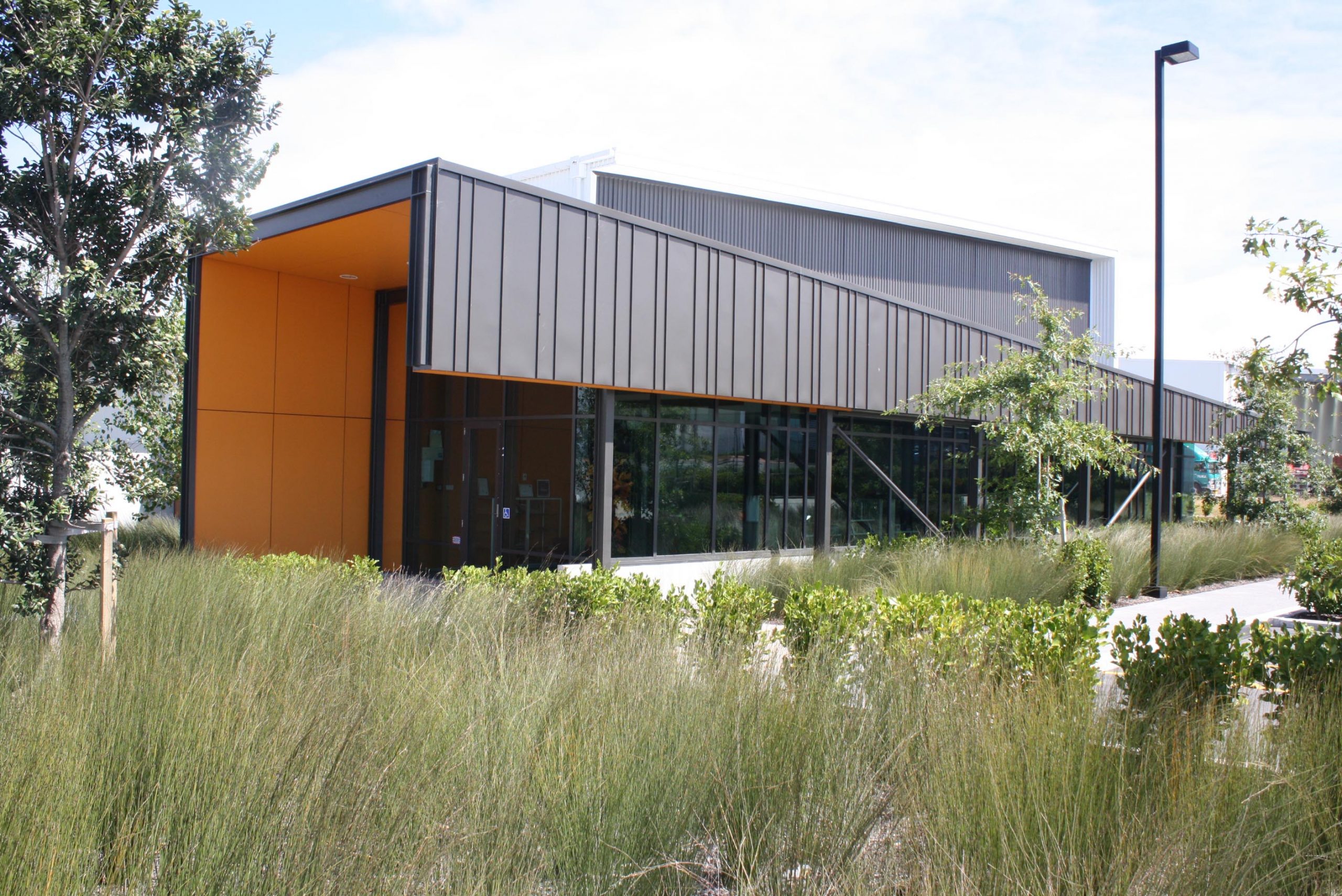

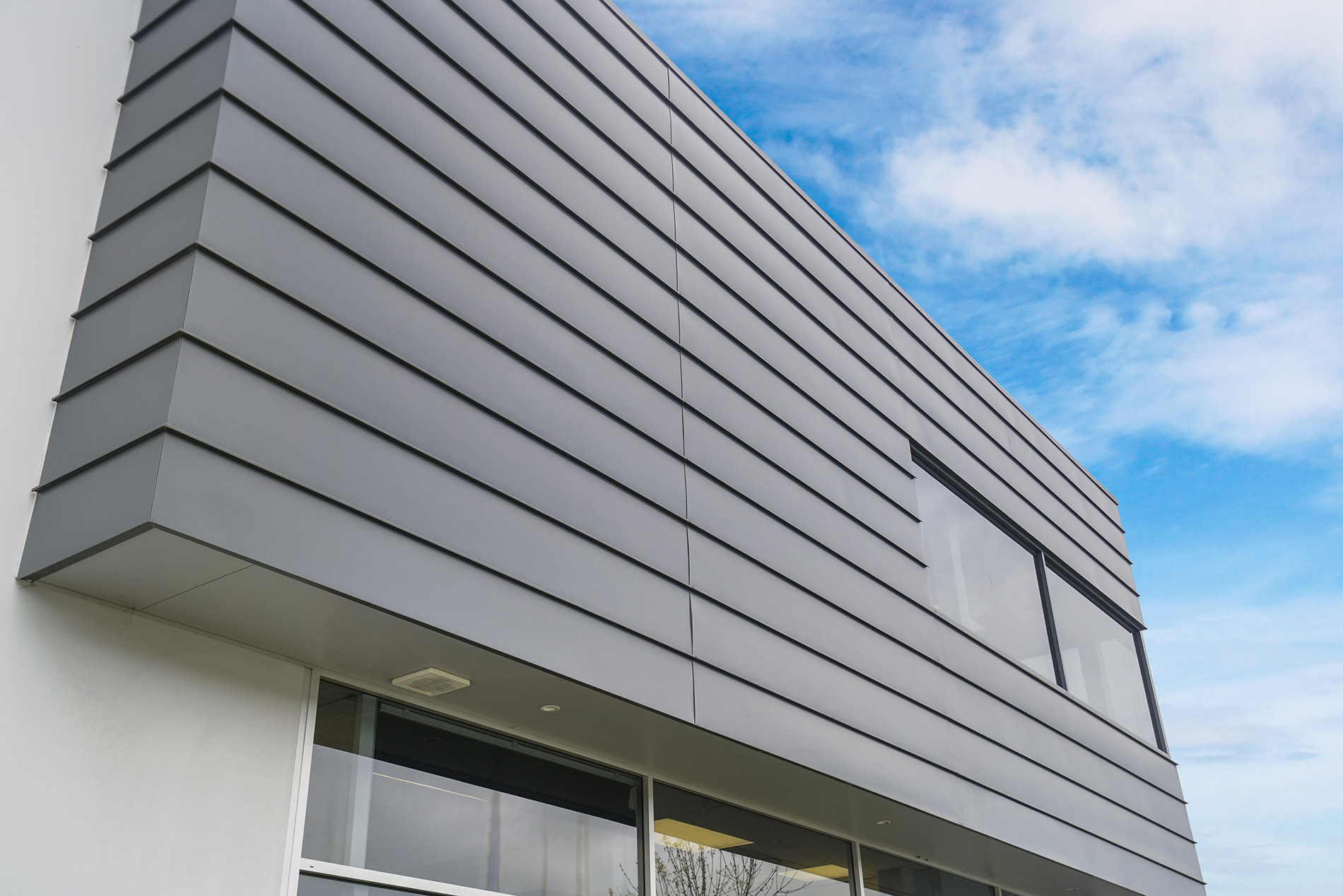

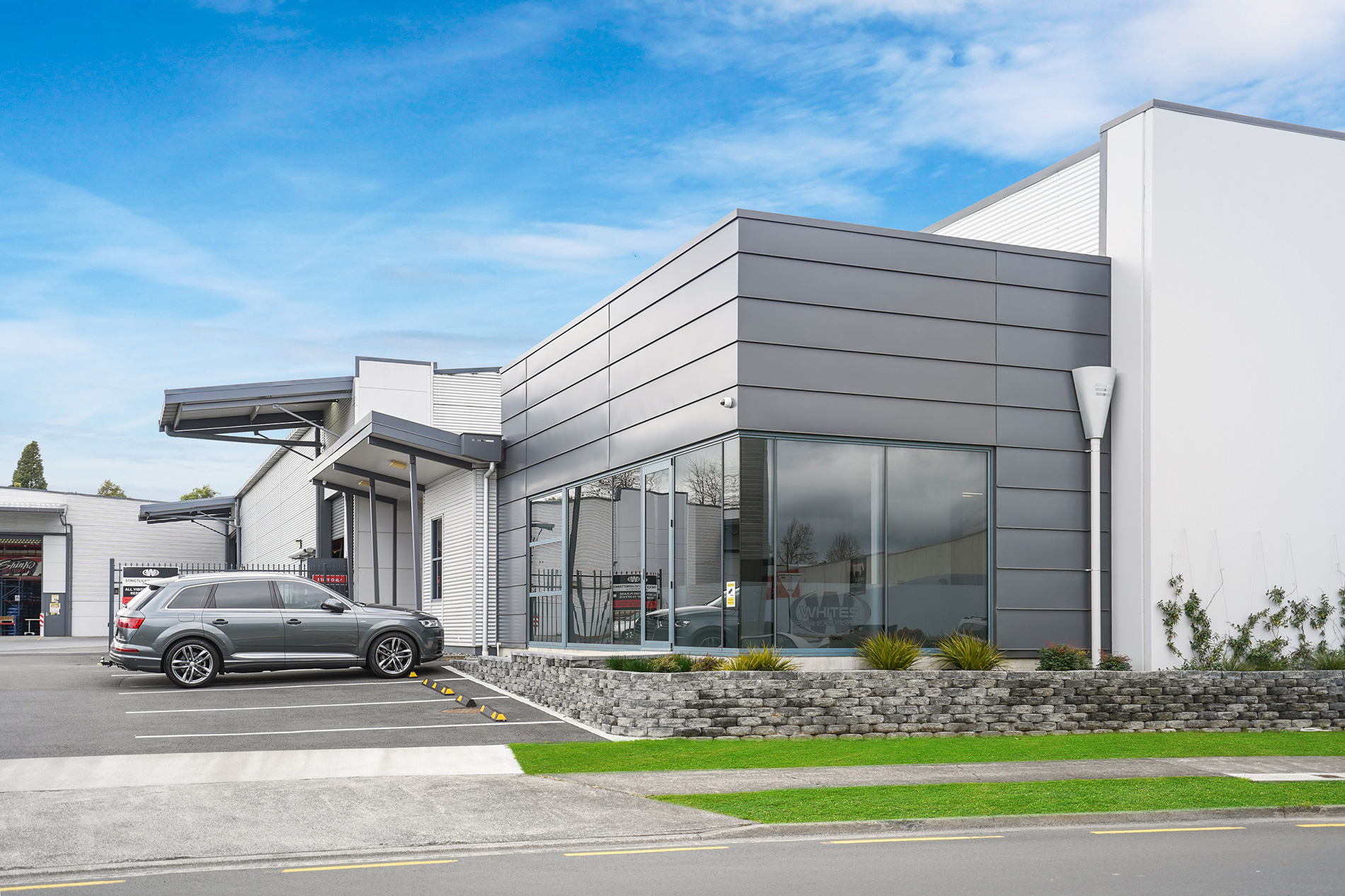

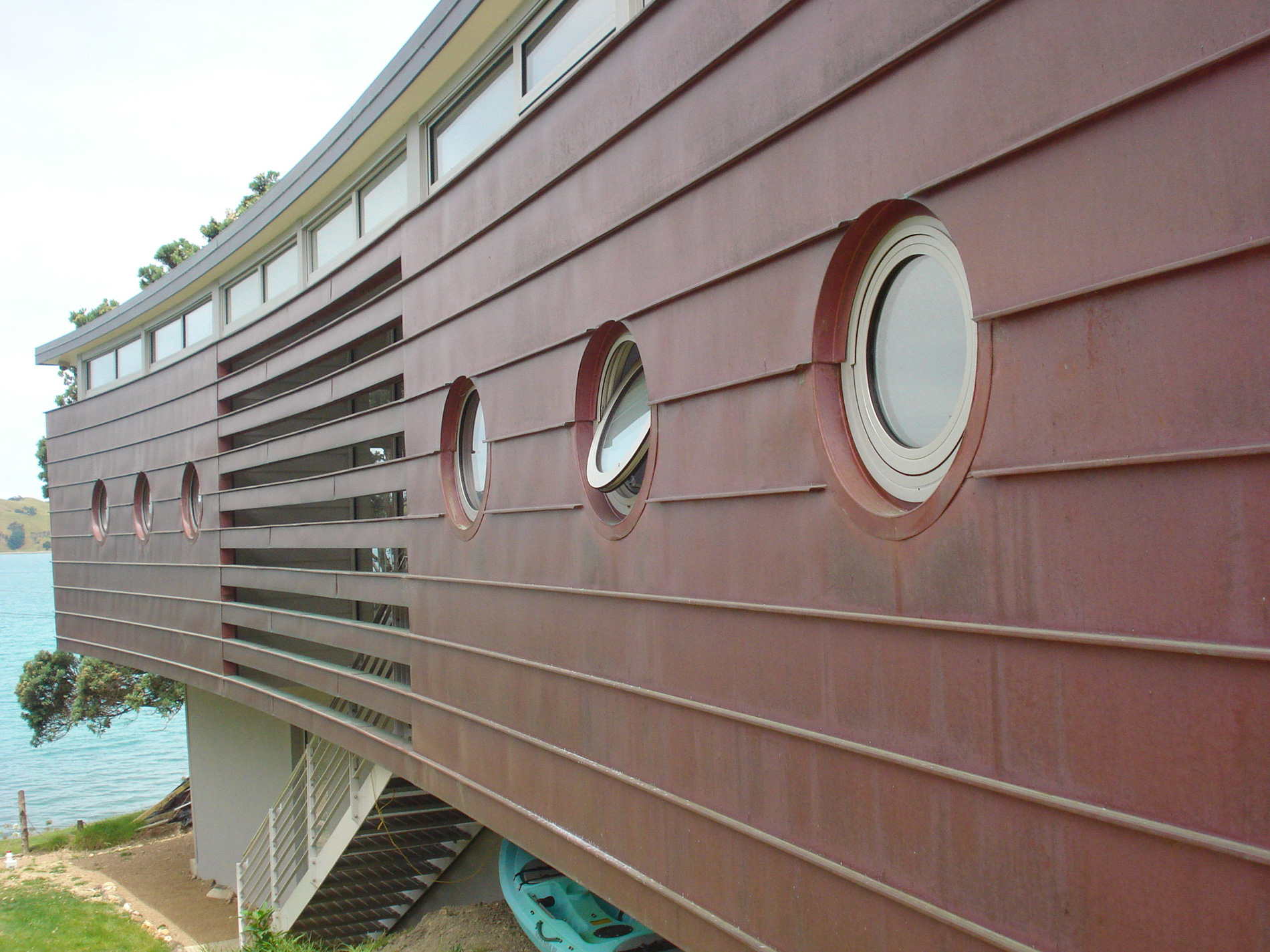

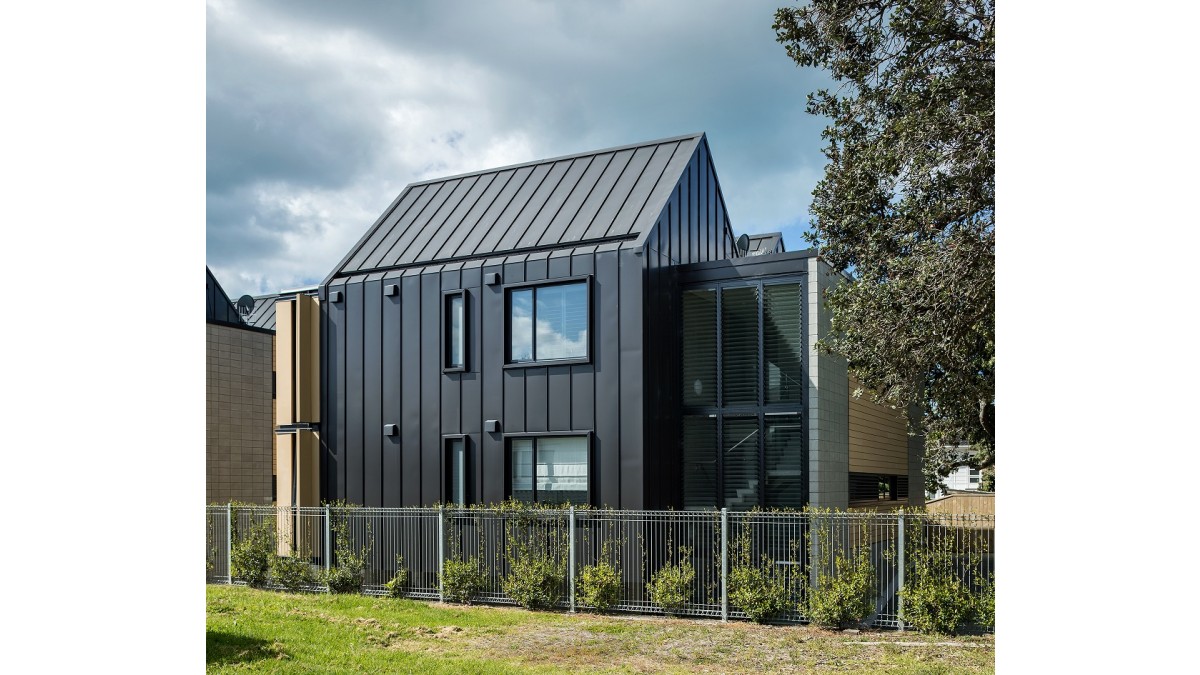

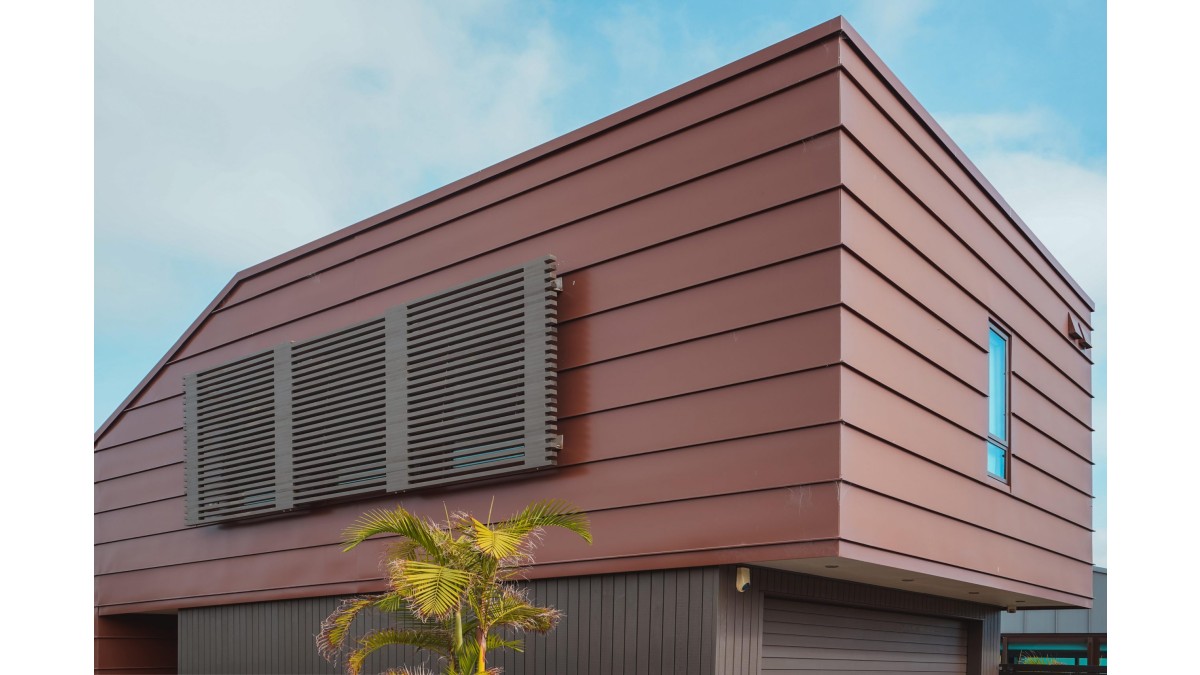

Vertical Wall Cladding Horizontal Wall Cladding Roofing

Scope of Use

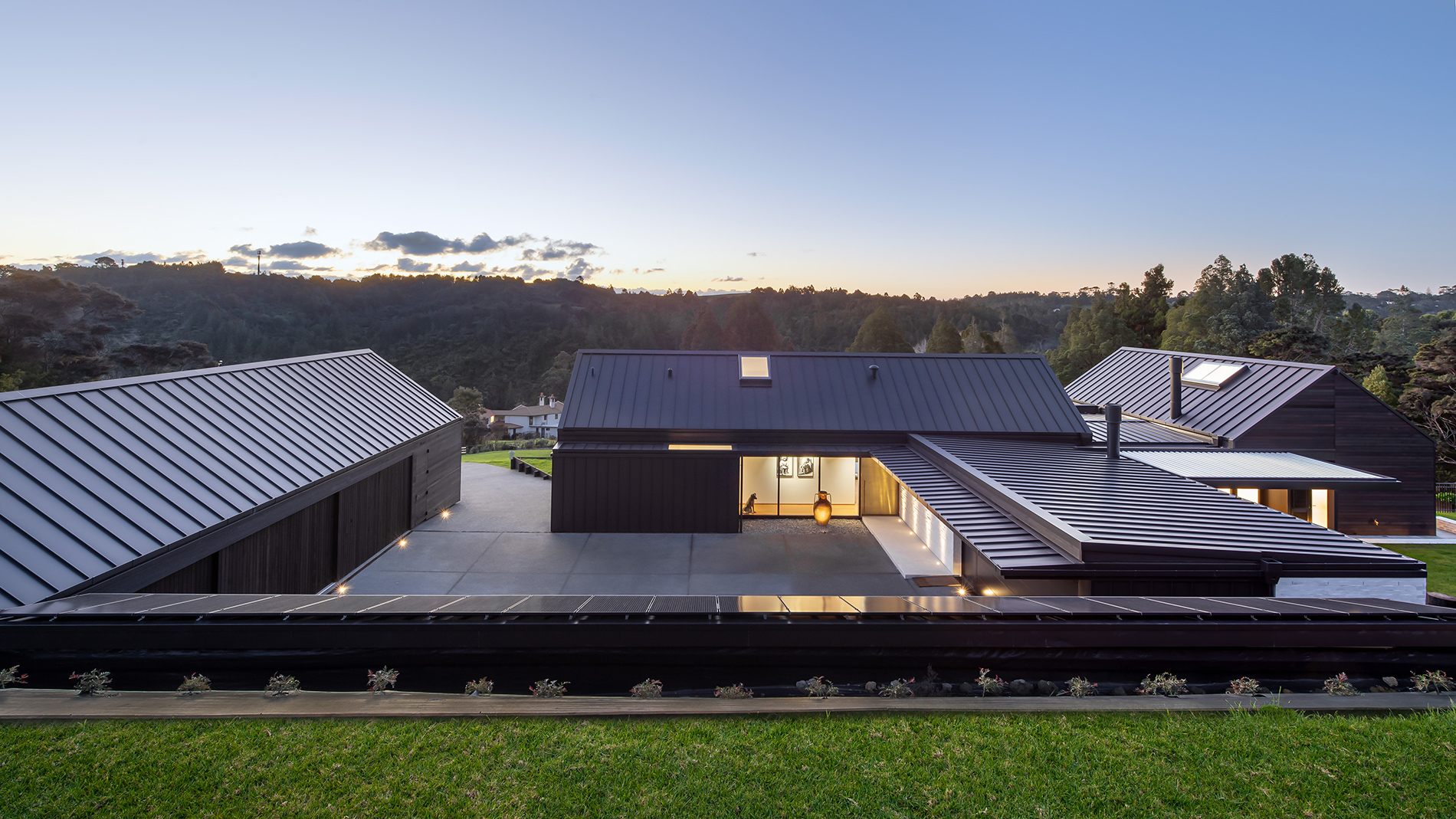

Residential roofing and cladding

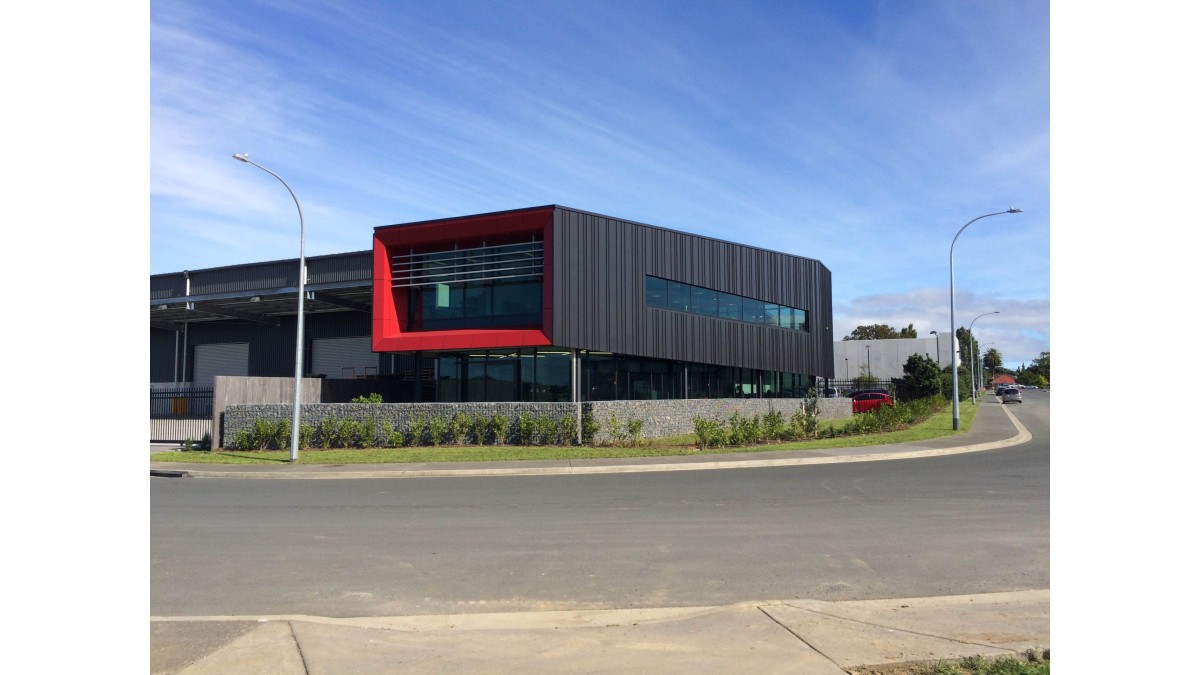

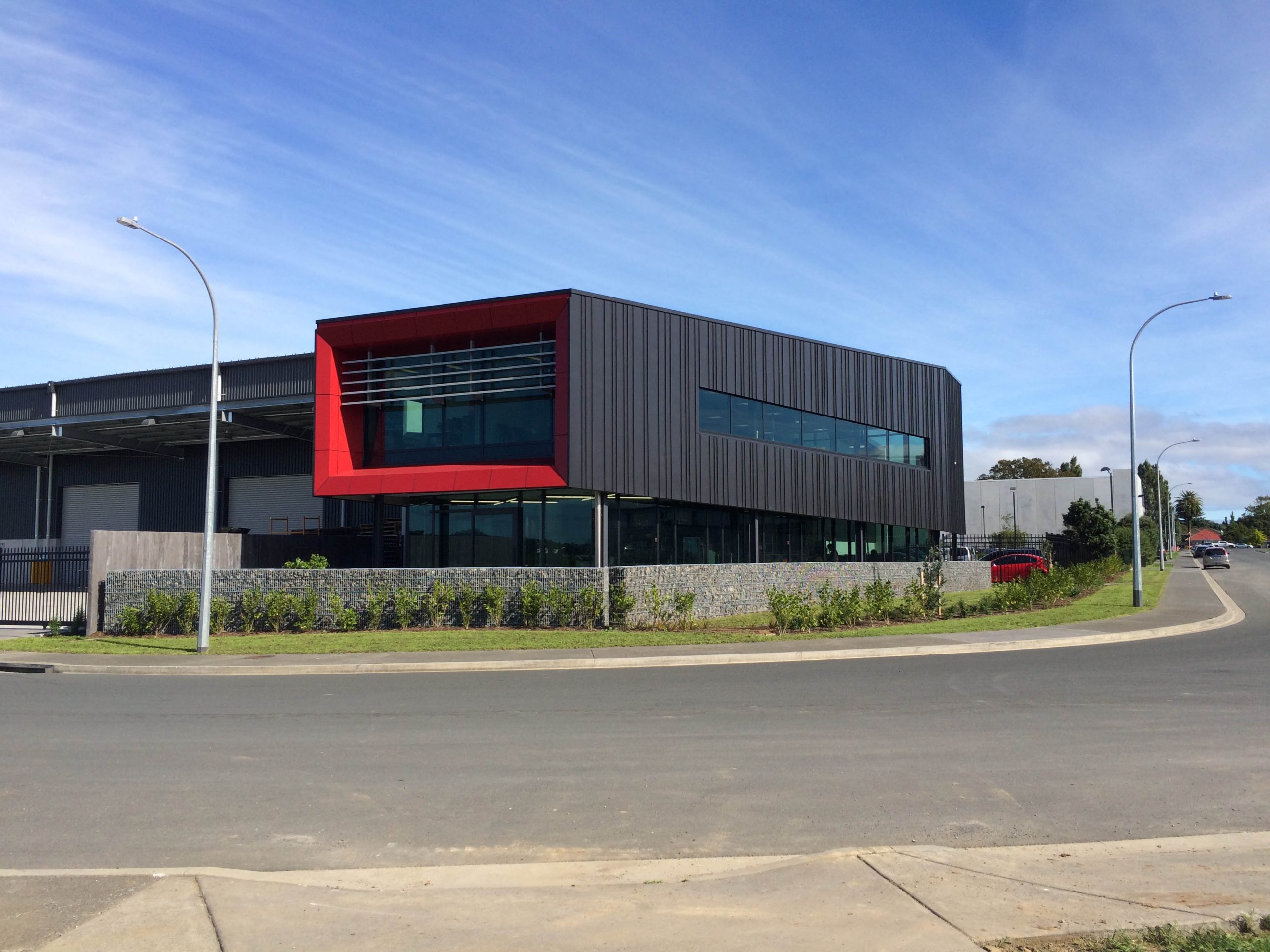

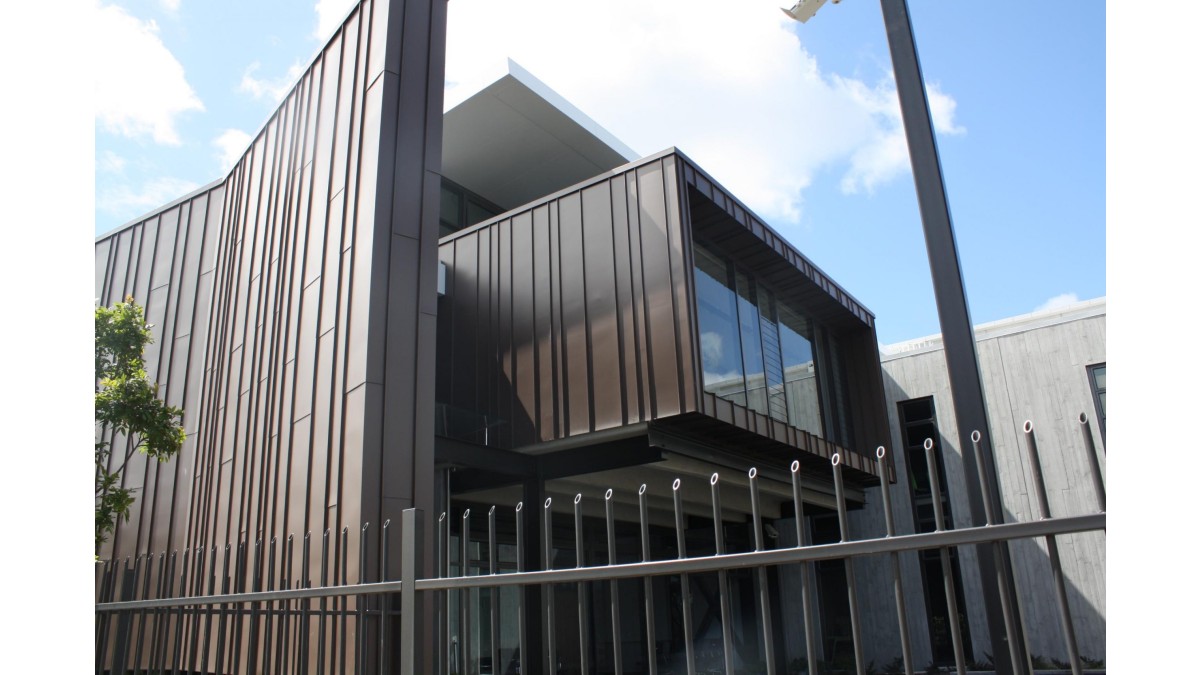

Commercial cladding

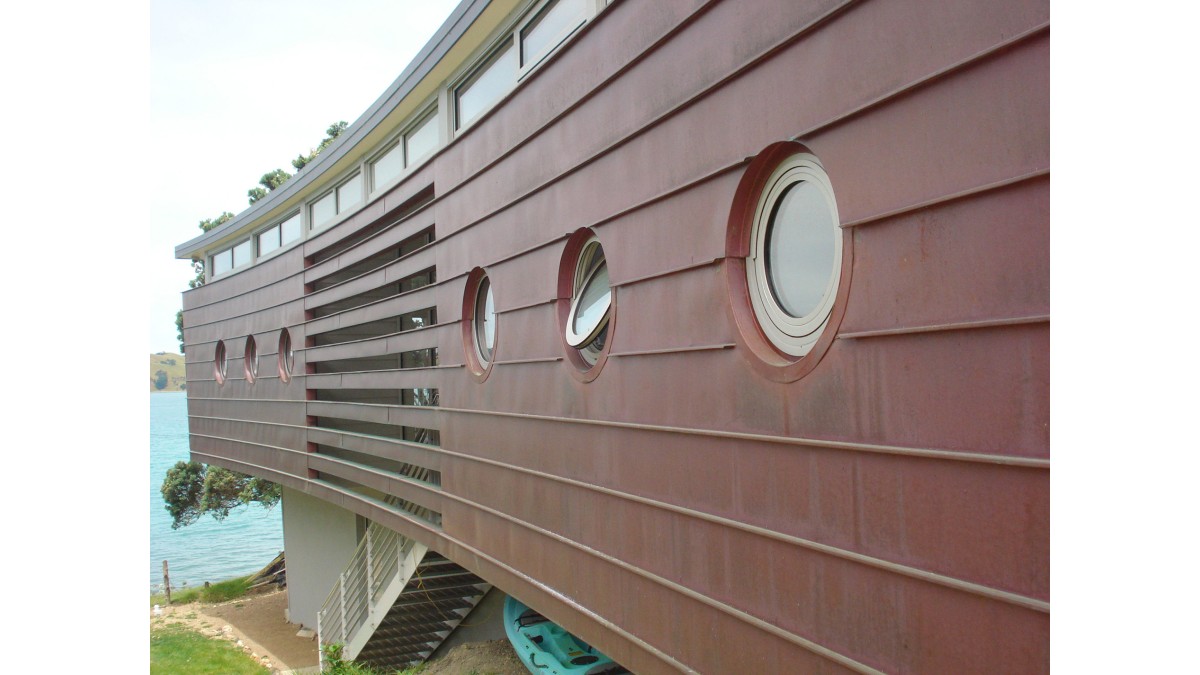

Cladding can be installed vertically and horizontal
Concealed fixings on a plywood substrate

Limitations on Use

High pitched roofs only (consult MDS)

Statement of Building Code Compliance

Installation of the profile is undertaken by an experienced Metal Design Solutions installers with installation carried out in accordance Metal Design Solutions standard details and in compliance with the NZ Metal Roof and Wall Cladding Code of Practice.

This product, if installed in accordance with the manufacturer's standard installation details, will on reasonable grounds meet the requirements of the following New Zealand Building Code clauses:

Clause B1: Structure, Performance, B1.3.1, B1.3.2, B1.3.3(a), (b), (c), (f), (g) + (h)
Clause B2: Durability, Performance, B2.3.1 (b), B2.3.2
Clause C3: Fire, Performance C3.7(a)
Clause F2: Hazardous Building Materials, Performance, F2.3.1 (roof only)

Other Performance Attributes

Regular maintenance is required to maximise the lifespan of this profile and components
Full maintenance guides are available based on material selection
Product warranties and material selection are available on request for specific projects
Metal Design Solutions warranty period is 5 years from the date of Practical Completion of the Contract Works for installation and workmanship

Documents

Product Technical Statement Euro Roof Angle Seam

Version 1.0

Categories

Popular Products

Popular Brands

Features

Sections

This Month

Innovative Flood Prevention with the Jesani Door Channel

Edgetec PosiGlaze Balustrade System Brings Versatility and Ease of Install to Projects

Parkwood Estate: A Cutting-Edge 64-Unit Terraced House Project Featuring Triboard

SECTIONS

Passive Fire Protection in CLT Construction

500 Days to Build a House: Not a Record Kiwis Should Be Proud Of

The Take-Up of AAC Intertenancy Walls in Aotearoa

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

Other Performance Attributes

Filters

Euro Roof Angle Seam: Full Set

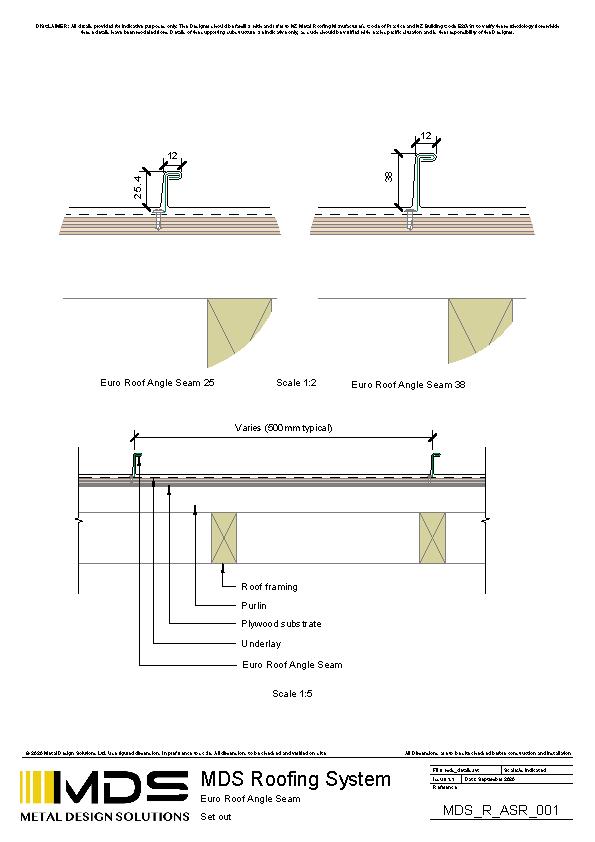

Euro Roof Angle Seam: Set Out

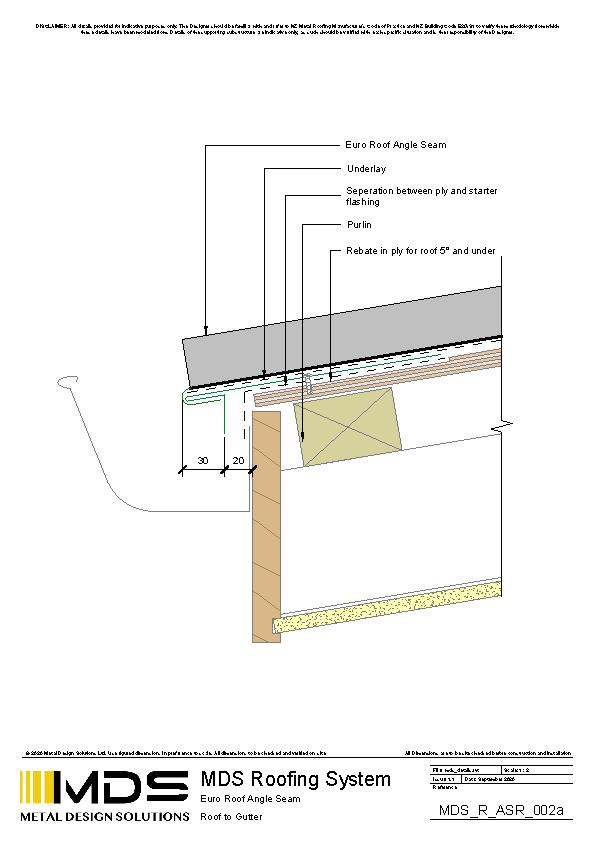

Euro Roof Angle Seam: Roof to Gutter

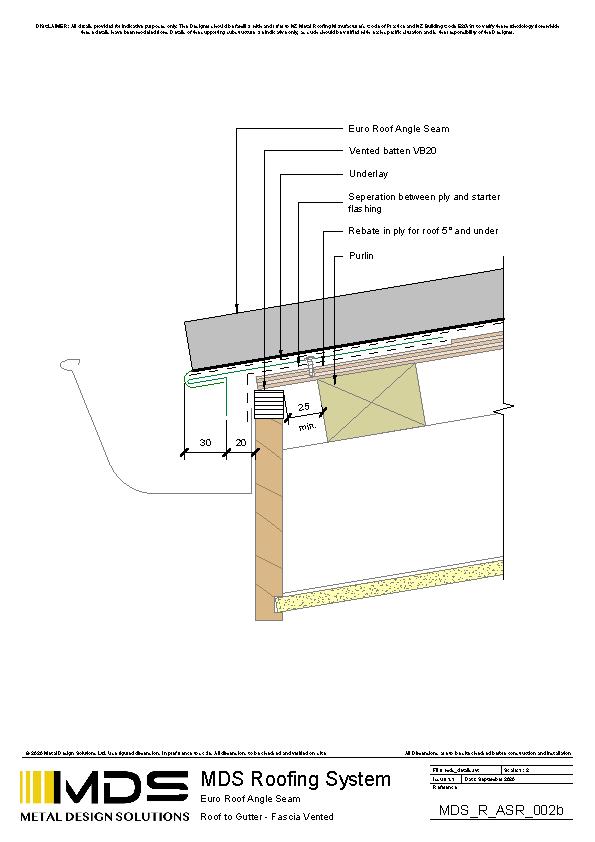

Euro Roof Angle Seam: Roof To Gutter — Fascia Vented

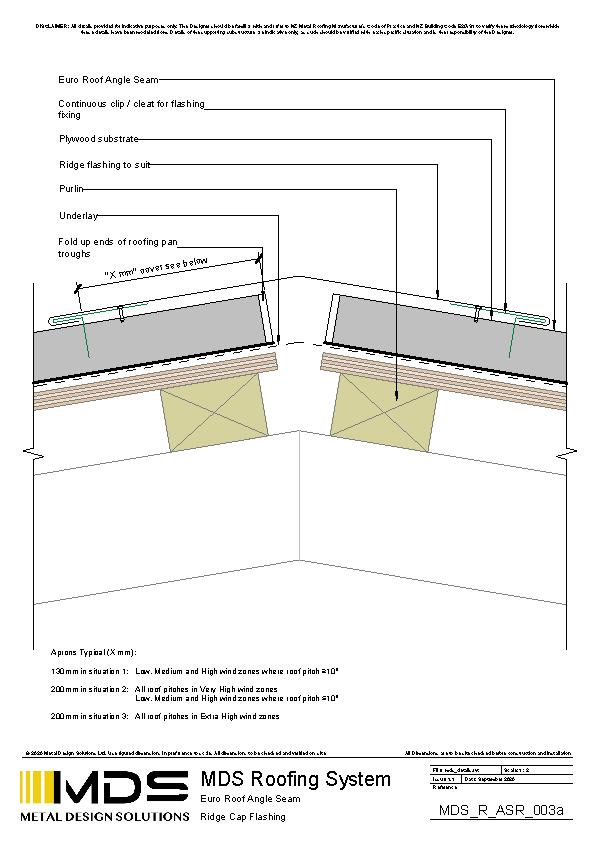

Euro Roof Angle Seam: Ridge Cap Flashing

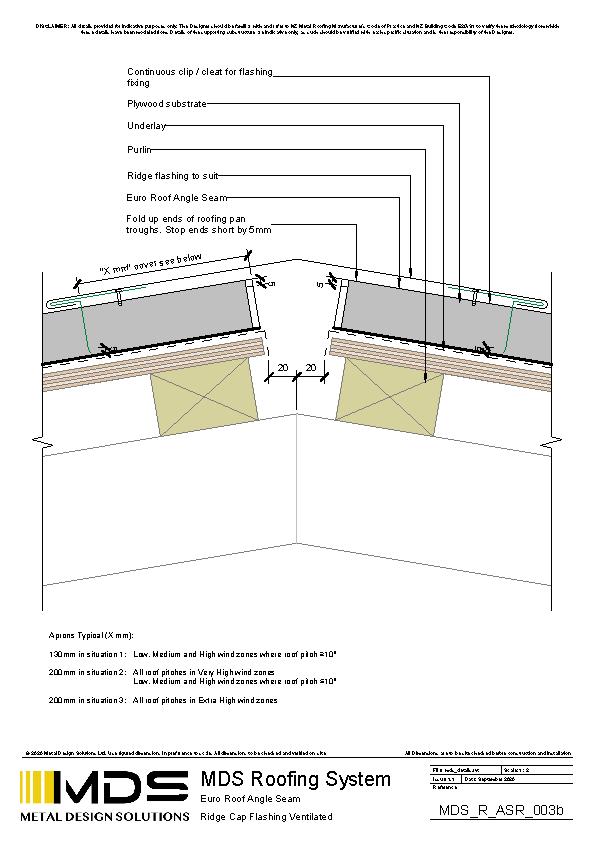

Euro Roof Angle Seam: Ridge Cap Flashing — Ventilated

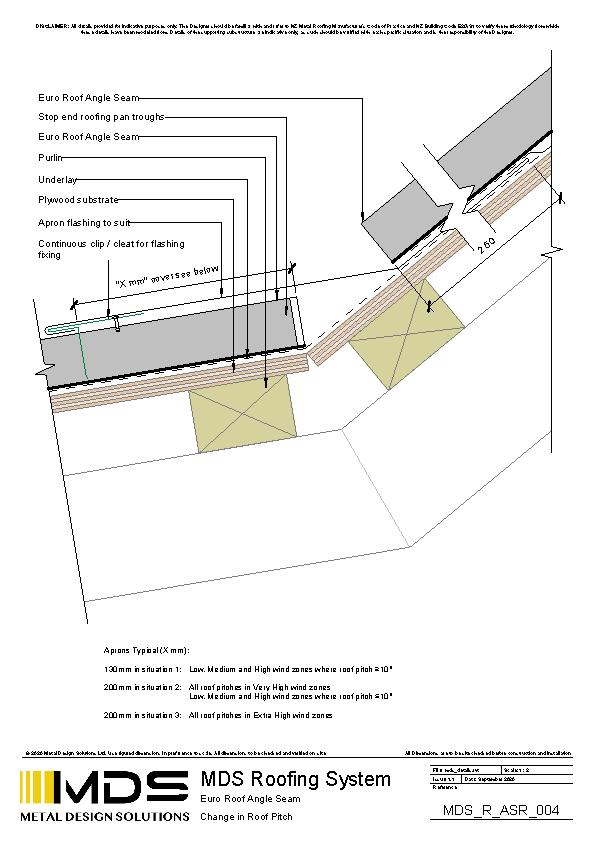

Euro Roof Angle Seam: Change In Roof Pitch

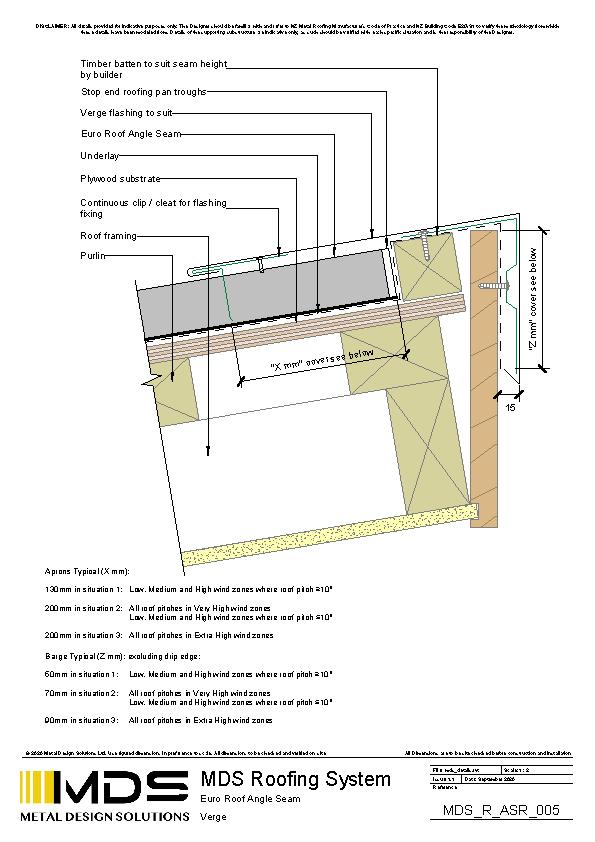

Euro Roof Angle Seam: Verge

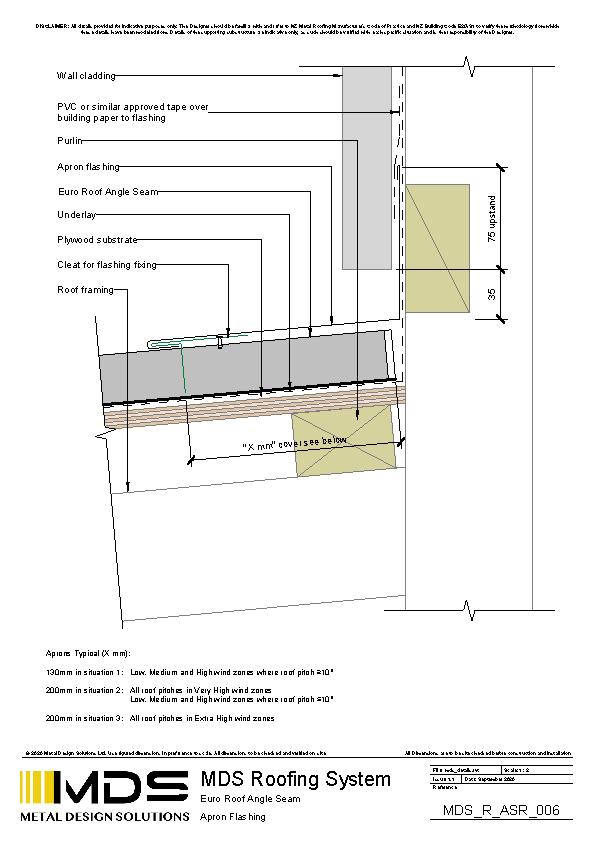

Euro Roof Angle Seam: Apron Flashing

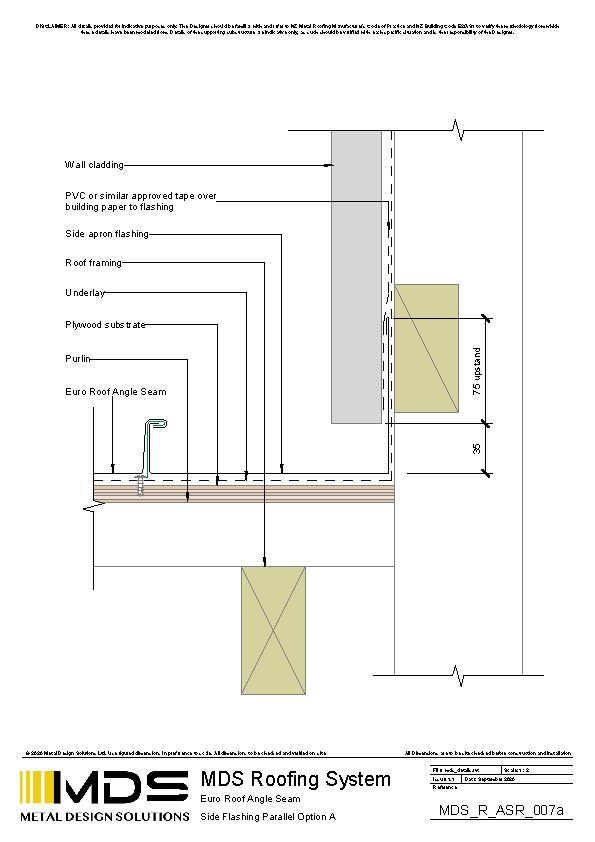

Euro Roof Angle Seam: Side Flashing Parallel — Option A

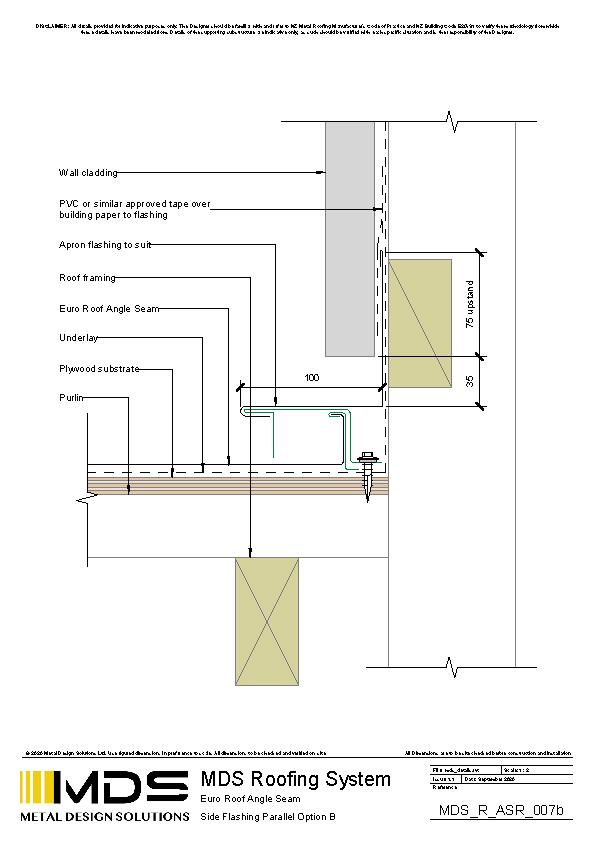

Euro Roof Angle Seam: Side Flashing Parallel — Option B

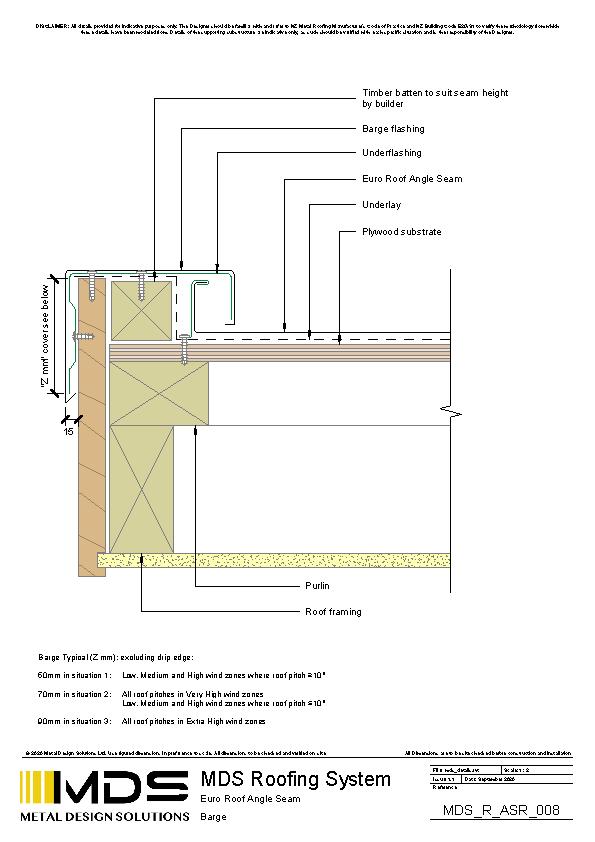

Euro Roof Angle Seam: Barge

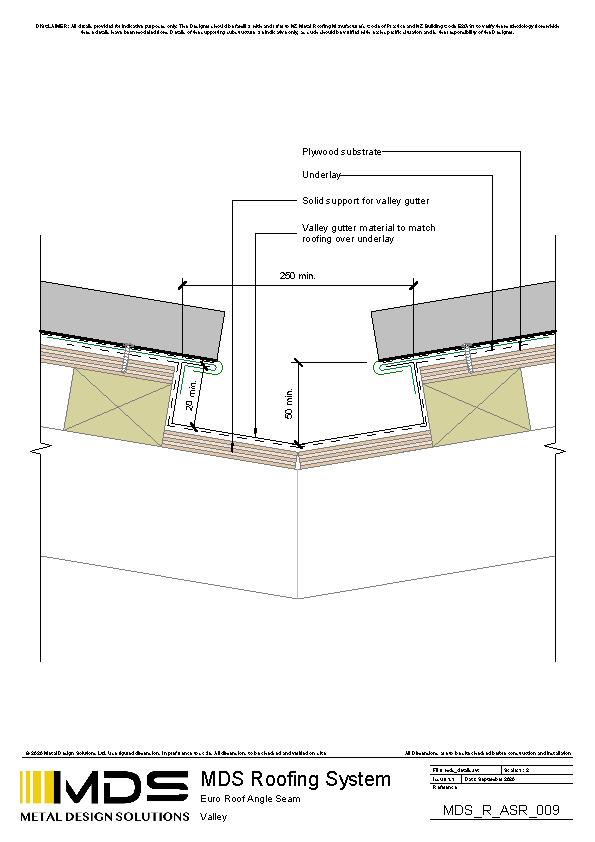

Euro Roof Angle Seam: Valley

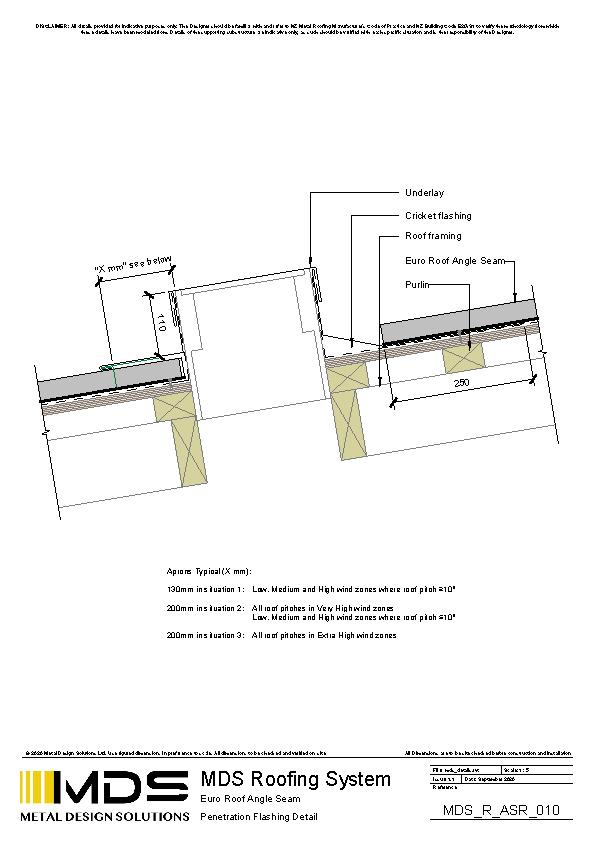

Euro Roof Angle Seam: Penetration Flashing Detail

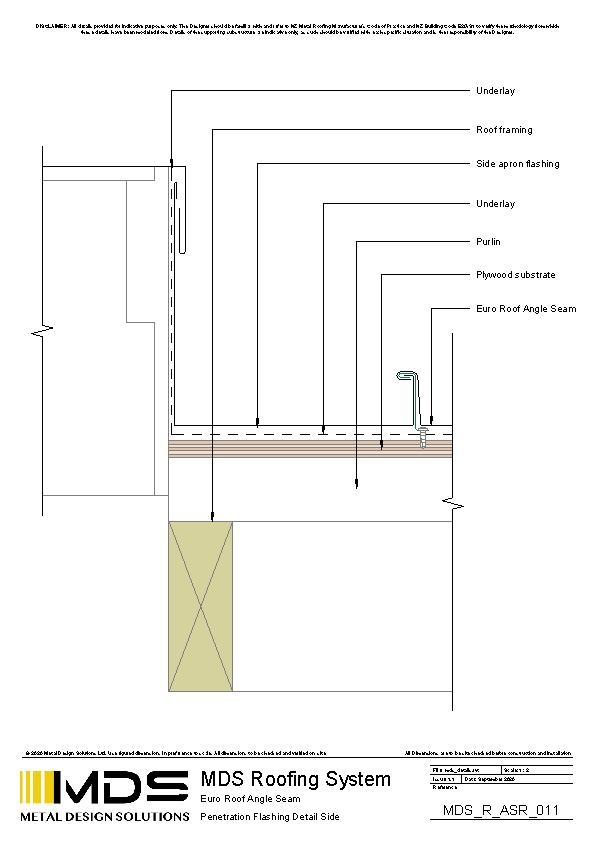

Euro Roof Angle Seam: Penetration Flashing Detail — Side

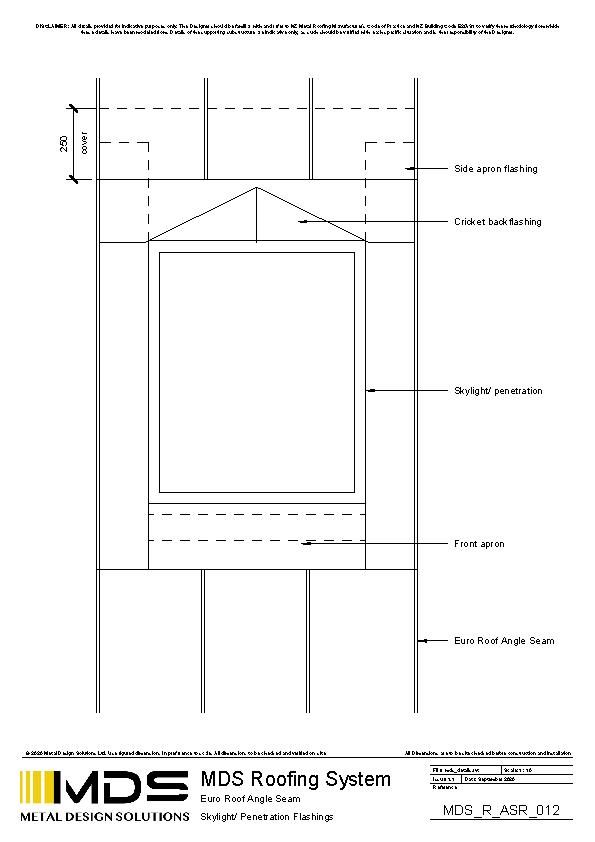

Euro Roof Angle Seam: Skylight — Penetration Flashings

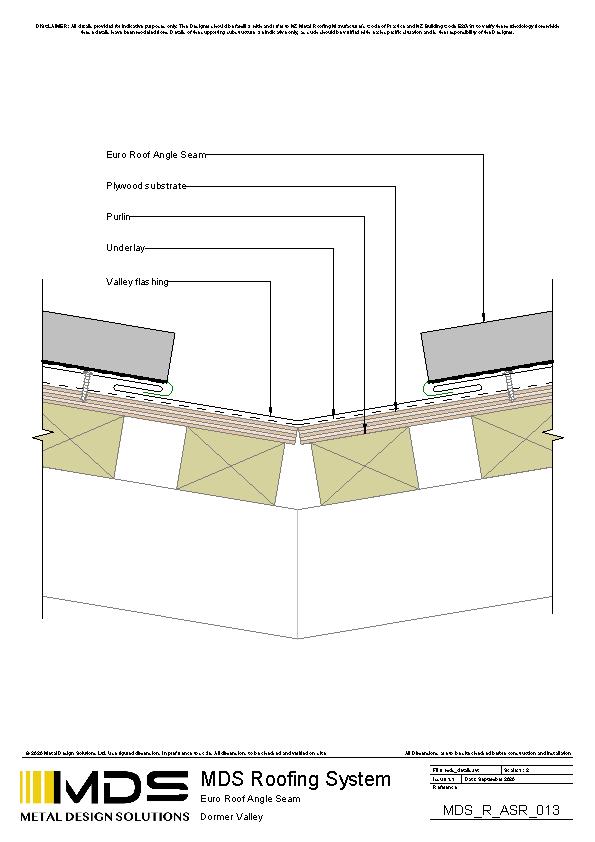

Euro Roof Angle Seam: Dormer Valley
