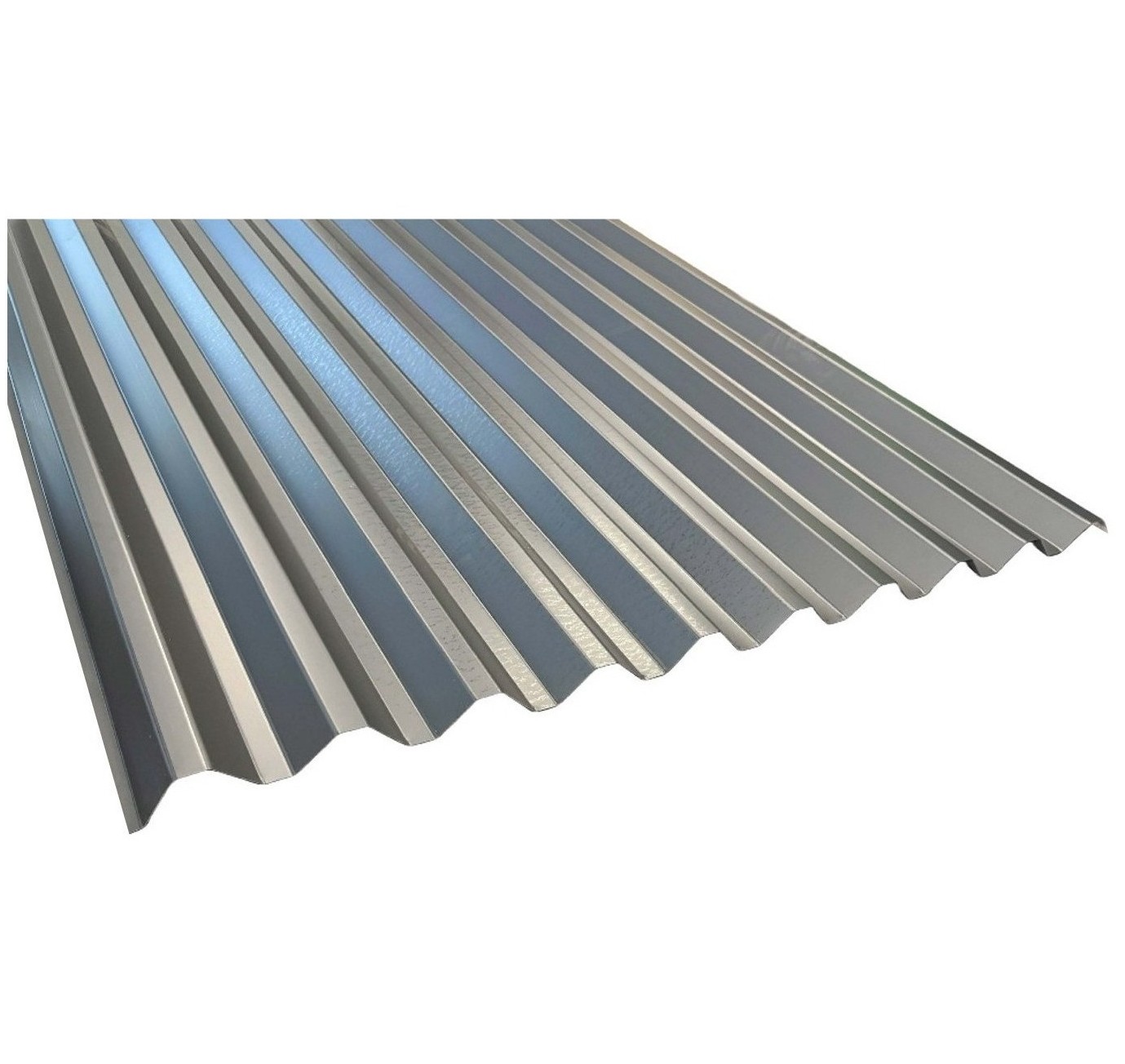

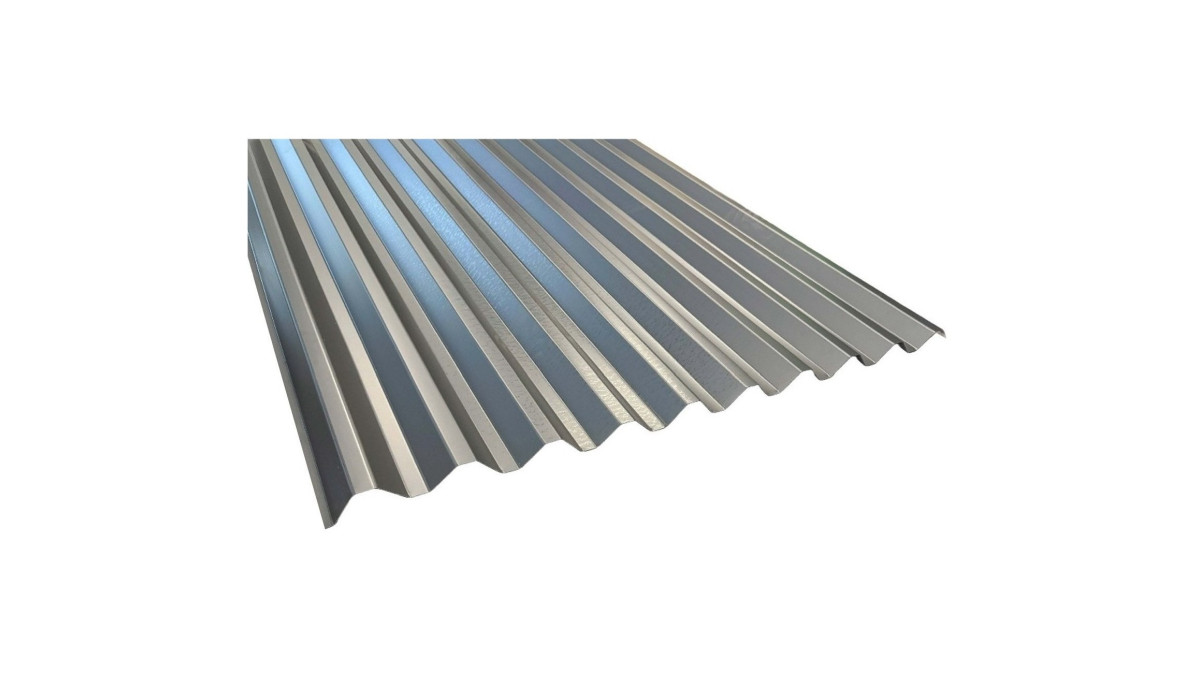

Roofing Industries AURA™ is a symmetrical trapezoidal long-run metal roof and wall cladding profile, manufactured from various base materials.

• Suitable for residential and commercial roofing and wall cladding applications where an aesthetic, economic product is required.
• Installed direct fixed or on a drained cavity.

Roofing Industries AURA™ sheets are available in the following sizes:

• Base Metal Thickness: Steel-based in 0.40mm and 0.55mm; Aluminium-based in 0.90mm
• Width: Effective Cover 915mm; Sheet width 988mm

Other base materials and thicknesses may be available by special order, contact Roofing Industries to discuss.

AURA™ roof and wall cladding is to be used and installed in accordance with Roofing Industries AURA™ Product Technical Statement (PTS), details and installation recommendations.

For Installation requirements, refer to:

• Roofing Industries AURA™ Product Technical Statement (PTS), available from www.roof.co.nz.
• Roofing Industries AURA™ detail drawings available from www.roof.co.nz.
• NZ Metal Roofing Manufacturers (MRM) Installation Guide: Metal Longrun Roofing and Cladding, available from www.roof.co.nz.
• E2/AS1 where applicable.

Installation of Roofing Industries profiled metal roofing and wall cladding is to be undertaken by suitably qualified installers/Licenced Building Practitioners, experienced in the type of work being carried out, in line with acceptable trade practice.

Design requirements to comply with the relevant clauses of the NZBC

B1 – Structure:

To comply with NZBC Clause B1 – Structure, AURA™ shall be fixed in accordance with the Load Span Graphs and fixing patterns detailed in:

• Roofing Industries AURA™ Product Technical Statement (PTS), or
• Acceptable Solution E2/AS1 Clause 8.4.6, Tables 8.4.4.2D and 8.4.4.2E, in accordance with
• NZ Metal Roofing Manufacturers Roofing and Wall Cladding Code of Practice (MRM COP), Section 3.

B2 – Durability:

To comply with NZBC Clause B2, AURA™, flashing substrate materials and fasteners shall be selected in accordance with Acceptable Solution E2/AS1, Tables C1.1.1A, C1.1.1B and C1.1.1C.

C3 – Fire:

• ColorCote® ZinaCore™ is rated as a Group 1-S when tested in accordance with ISO 5660:2002 Part 1 & Part 2.
• ColorCote® MagnaFlow™ is rated as a Group 1-S when tested in accordance with ISO 5660:2002 Part 1 & Part 2.
• ColorCote® AlumiGard™ is rated as a Group 1-S when tested in accordance with ISO 5660:2002 Part 1 & Part 2.
• Colorsteel® Maxam® is rated as a Group 1-S when tested in accordance with ISO 5660:2002 Part 1 & Part 2.
• Colorsteel® Altimate® is rated as a Group 1-S when tested in accordance with ISO 5660:2002 Part 1 & Part 2.
• Zincalume® is rated as a Group 1-S when tested in accordance with ISO 5660:2002 Part 1 & Part 2.
• For other materials contact Roofing Industries for more information.

E2 – External Moisture:

Roofing Industries AURA™ shall be installed and maintained in accordance with manufacturer’s recommendations and details (available from www.roof.co.nz), Acceptable Solution E2/AS1 where applicable and/or the MRM COP in order to comply with NZBC Clause E2 – External Moisture.

F2 – Hazardous Building Materials:

In Accordance with MRM Pre-Painted Coil Standard – Performance Requirements (NZ Metal Roofing and Wall Cladding Code of Practice Clause 17.4.2 Part 2: Additional Criteria): “In addition to the requirements of Part 1, all pre-painted materials must comply with the Hazardous Substances and New Organisms (HSNO) act 1996”.

For Maintenance requirements, refer to:

• Roofing Industries maintenance recommendations available on www.roof.co.nz.
• Pacific Coilcoaters ColorCote®/New Zealand Steel Colorsteel® maintenance recommendations available on available on www.roof.co.nz.
• Specific maintenance requirements detailed on ColorCote®/Colorsteel® warranty document for the product supplied.
• NZ Metal Roofing Manufacturers Roofing and Wall Cladding Code of Practice (MRM COP).
