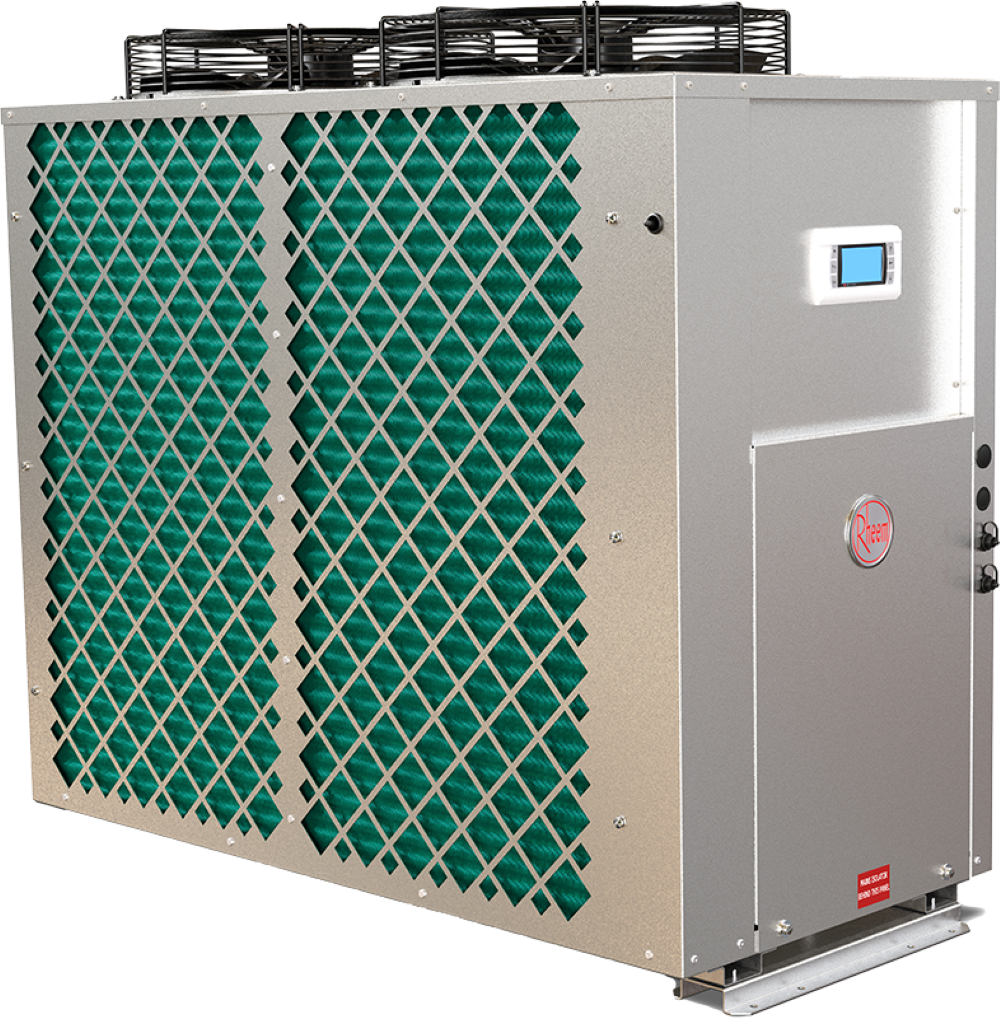

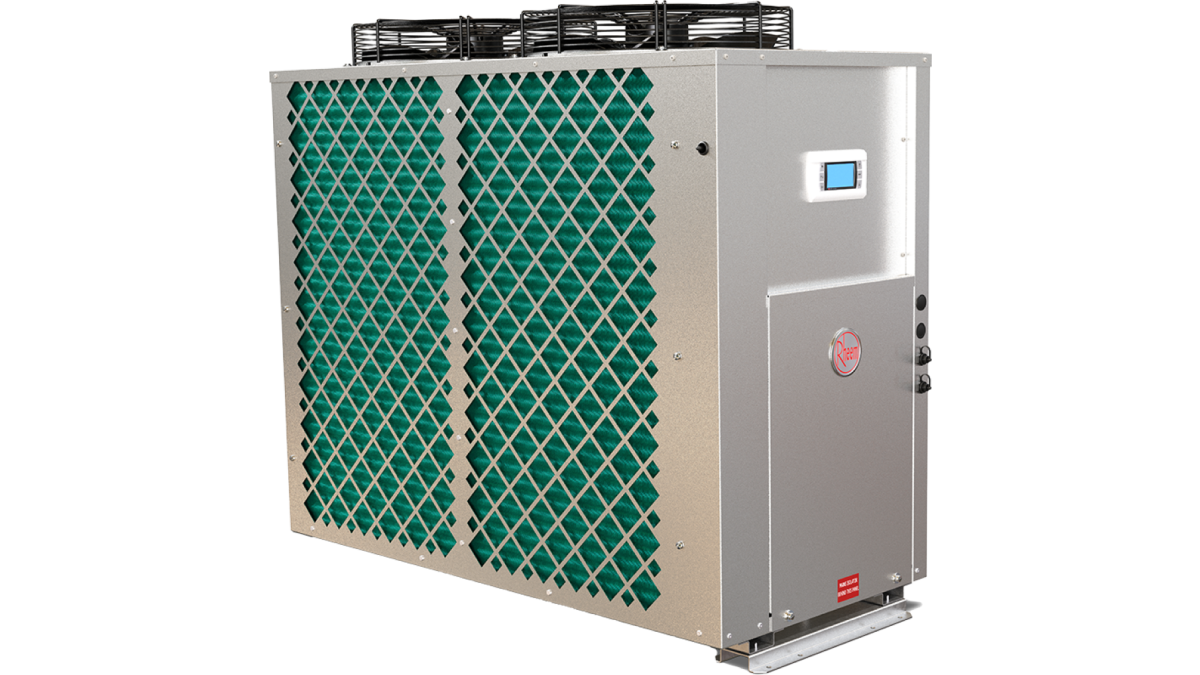

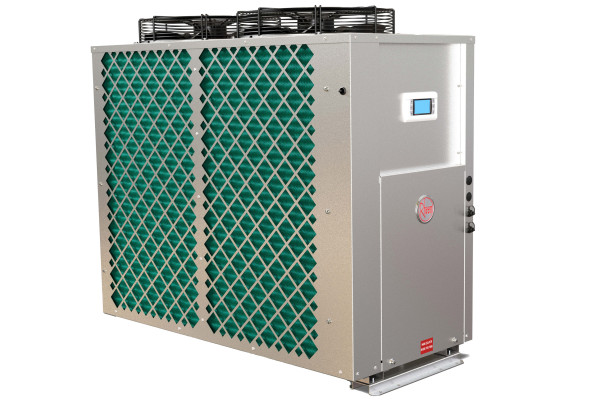

YF Series Air to Water Heat Pump
Description

Rheem commercial heat pumps have just set the new standard, with with GWP<1, improved COP, higher hot water delivery temperature and better low ambient temperature.

Key Features
  • 15kW and 30kW models
  • Up to 65°C hot water delivery to the building with ultra-low GWP
  • COP up to 4.28 for the 30kW model and 4.23 for the 15kW model
  • Can operate in ambient conditions to a low of 0°C, reducing the reliance on auxiliary heating methods, thereby improving overall annual efficiency

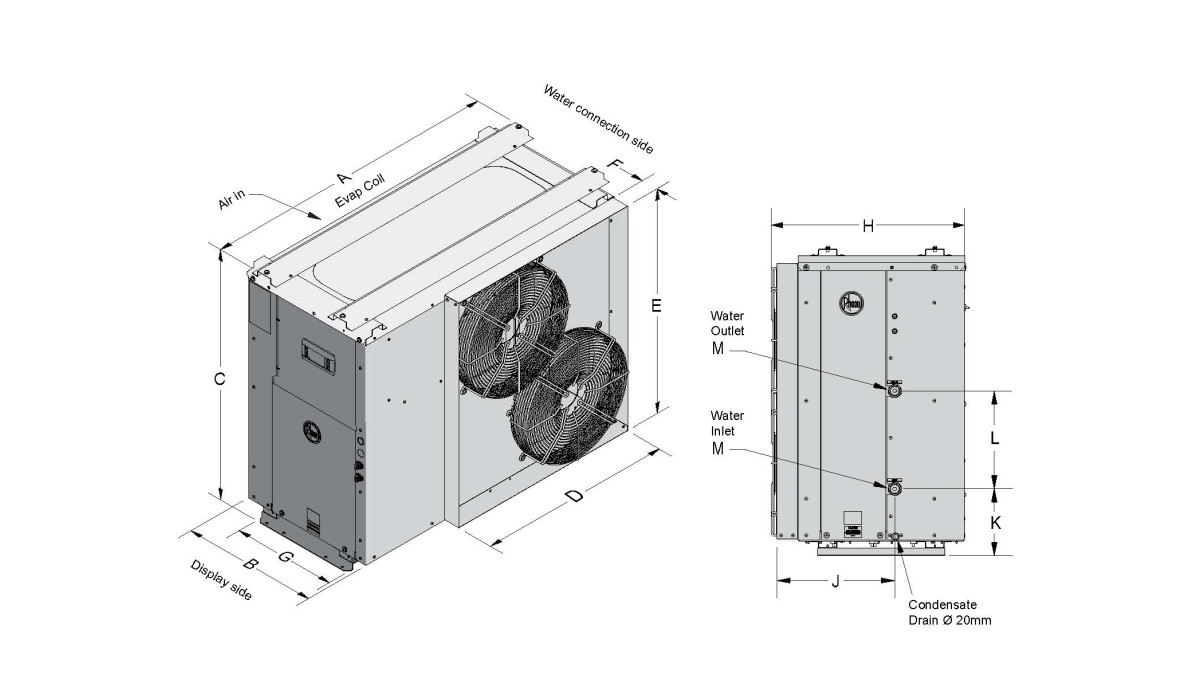

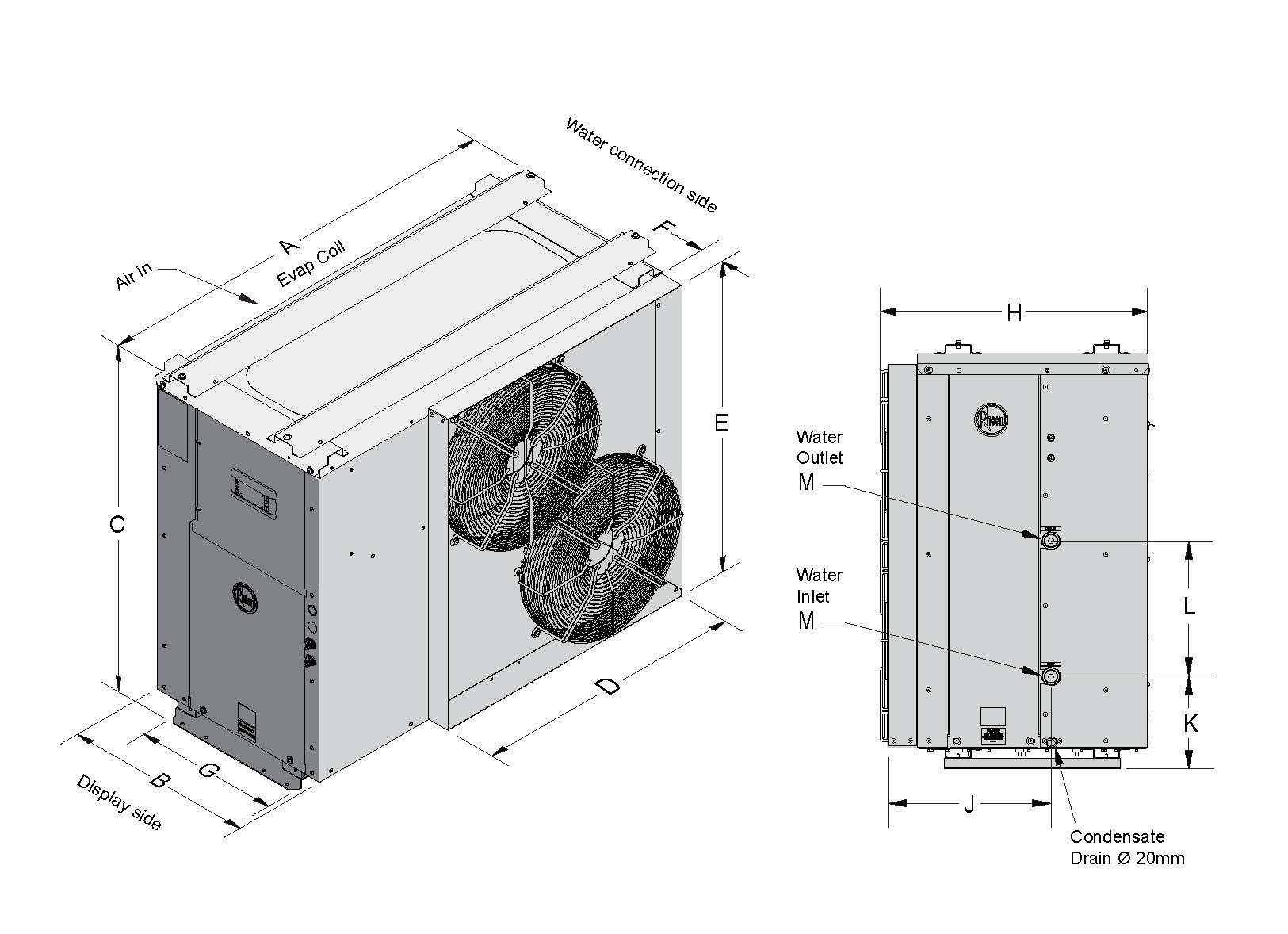

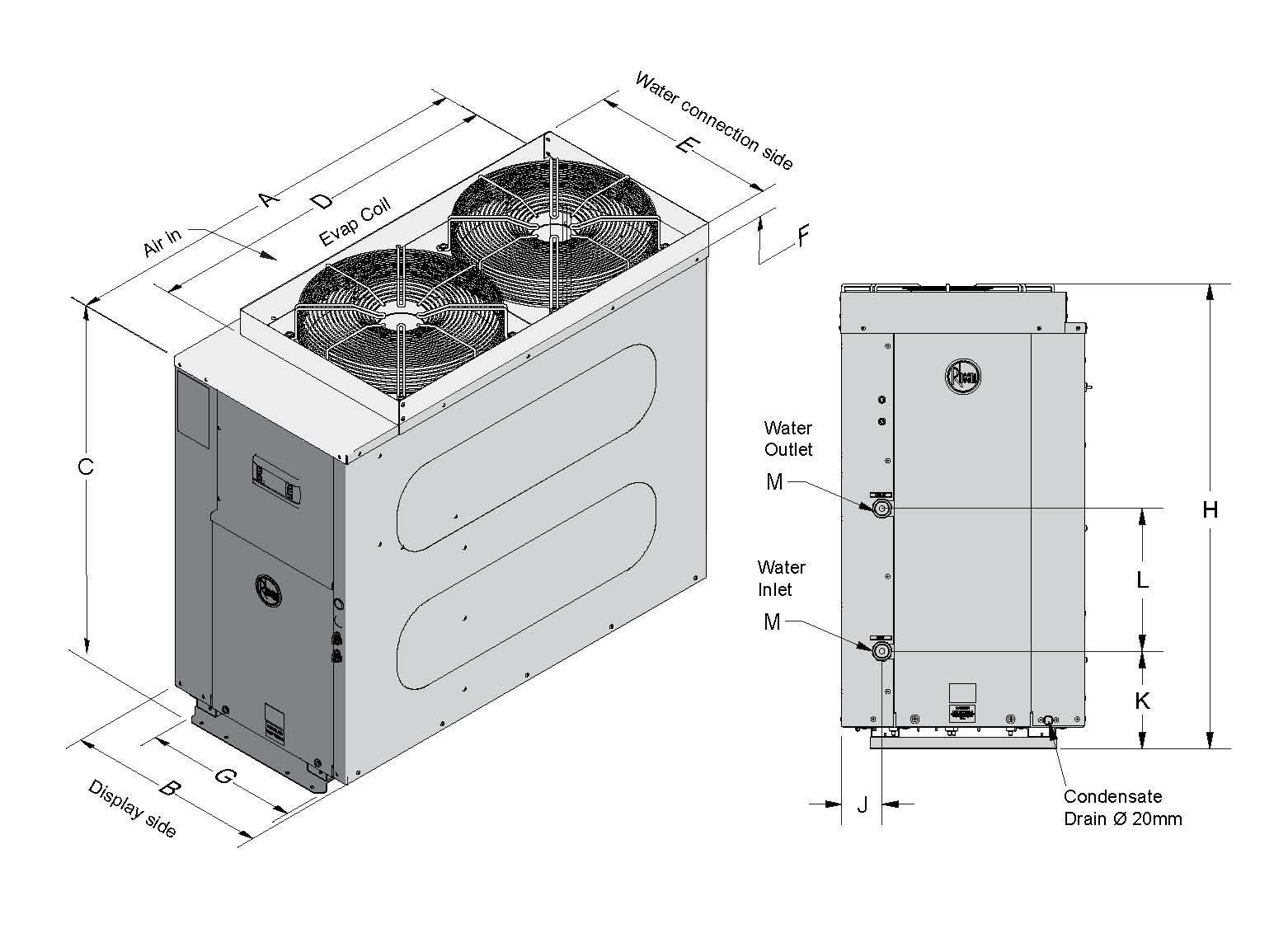

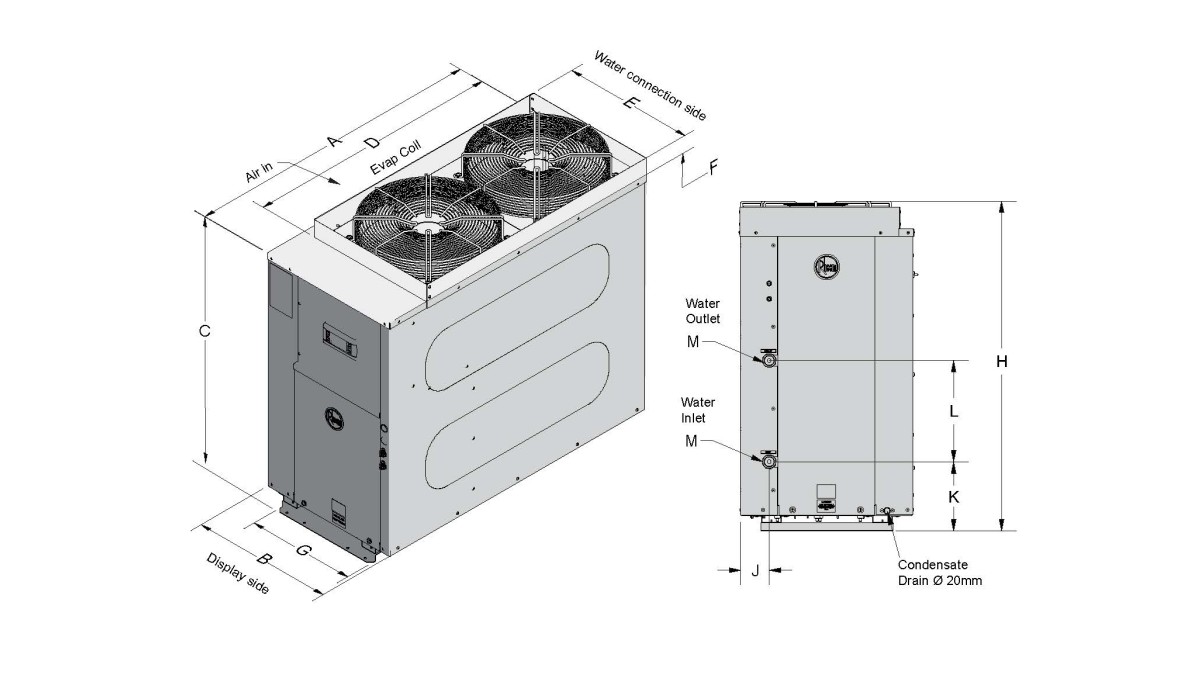

  • Designed with both vertical and horizontal discharge options, with fan options available in ducted and non-ducted versions
  • Horizontal discharge models can also be stacked two high to reduce plant footprint
  • The 30kW model has dual controller and refrigerant circuits providing 50% redundancy in a single unit package
  • Marine-grade aluminium cabinet that won't rust
  • Evaporator coils fully dipped with Rheemkote® for superior corrosion protection
  • Fully certified including Electrical Safety, EMCand Water Mark
Scope of Use

Where ultra-low carbon footprint is essential. Rheem YF Series commercial heat pumps employ R1234yf refrigerant which has an ultra-low global warming potential rating of <1, making it the prime choice where ESD requirements are paramount.

The Air to Water heat pump models are designed with both vertical and horizontal discharge options, with fan options available in ducted and non-ducted versions.

Detailed engineering has turned up the average COP and further product enhancement allows the heat pump to operate in ambient conditions to a low of 0°C, reducing the reliance on auxiliary heating methods.



Other Performance Attributes
  • Fully certified including Electrical Safety, EMC and Water Mark
  • COP up to 4.28 for the 30kW model and 4.23 for the 15kW model
Documents
Technical Brochure: YF Series

Oct23
