AMF Thermatex Silence — Ceiling Tile
Description

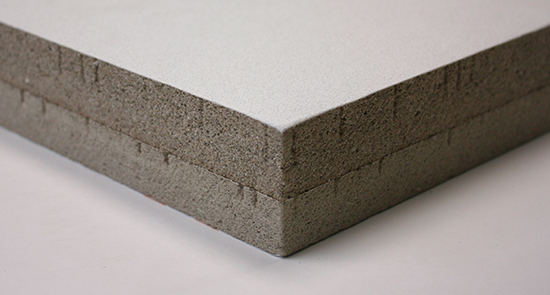

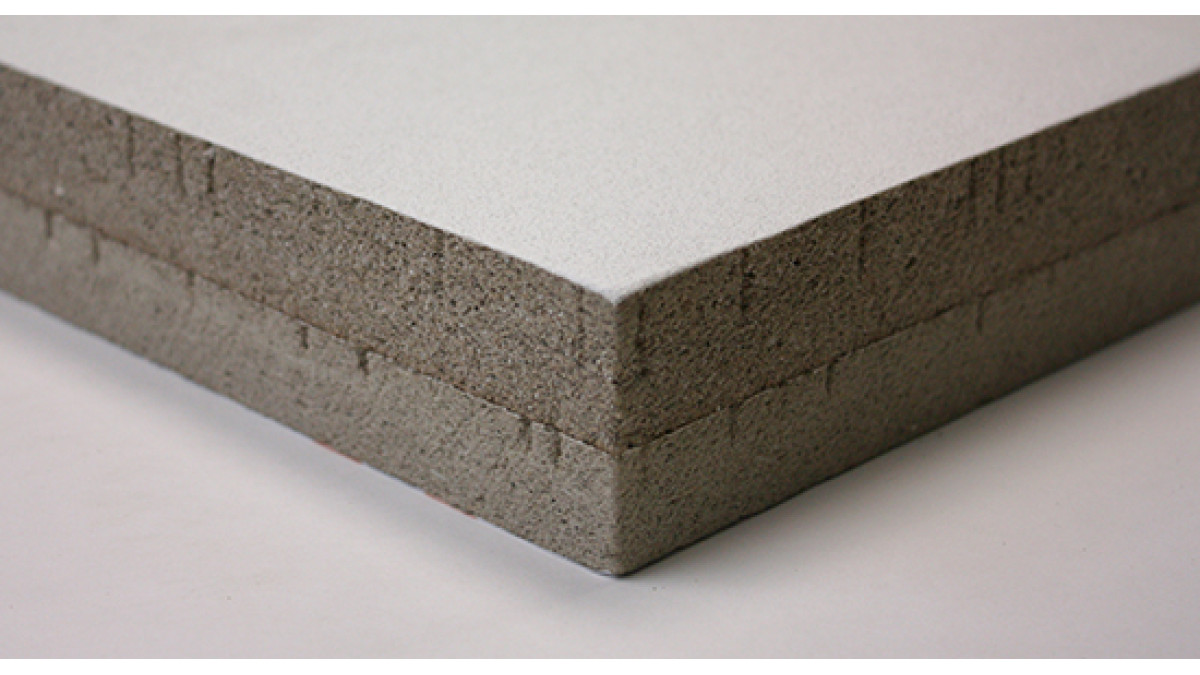

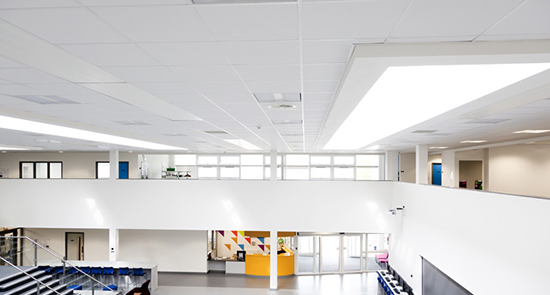

AMF Thermatex Silence is a fleece-coated ceiling made from two mineral boards bonded together. This special construction enables the highest requirements in sound absorption as well as sound attenuation to be fulfilled. At the same time it is aesthetically impressive with it simple elegance in a suspended ceiling tile.

The AMF Acoustic range carries The Delcare Label.

Key Features
  • System: Exposed Grid System, demountable ceiling
  • Dimensions: 600 x 600 mm, 600 x 1200 mm
  • Thickness / Weight: 43 mm (c. 10.8 kg/m²)
  • Colour: White similar to RAL 9010
  • Edge details: SK, (VT-S on request)
Red List Material Free
Red List Material Free
Scope of Use
  • System: Exposed Grid System, demountable ceiling
Other Performance Attributes
  • Building material class: A2-s1, d0 as per EN 13501-1
  • Sound absorption: EN ISO 354  αw = 0.85 (H) as per EN ISO 11654  NRC = 0.90 as per ASTM C 423
  • Sound attenuation: Dn,f,w = 44 dB as per EN 10848 (43 mm thickness, according to test certificate)
  • Light reflectance: up to 88%
  • Thermal conductivity: λ = 0.052 - 0.057 W/mK as per DIN 52612
  • Humidity: up to 95% RH
Documents
Data Sheet

05.02.2021

Specification Clause (Masterspec)
CAD/PDF Details

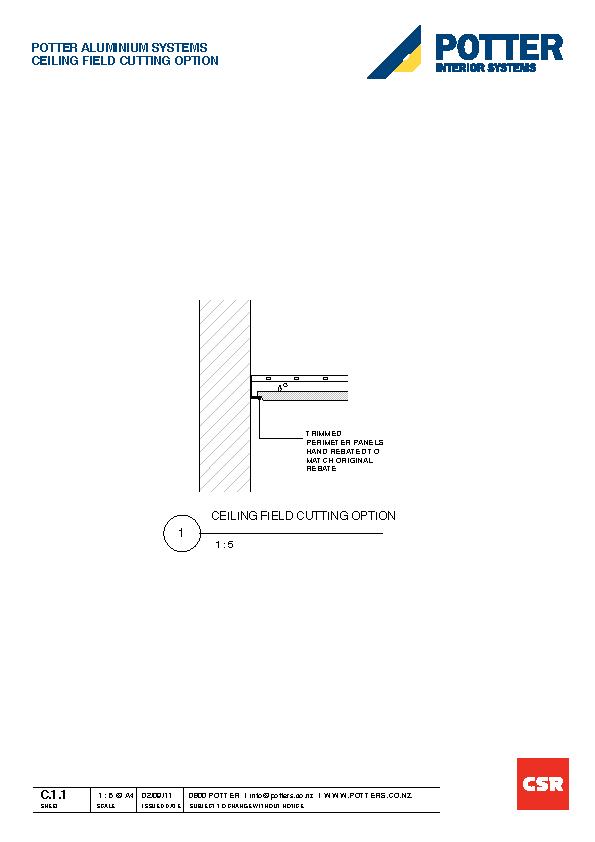

C.1.1 Ceiling Field Cutting Option

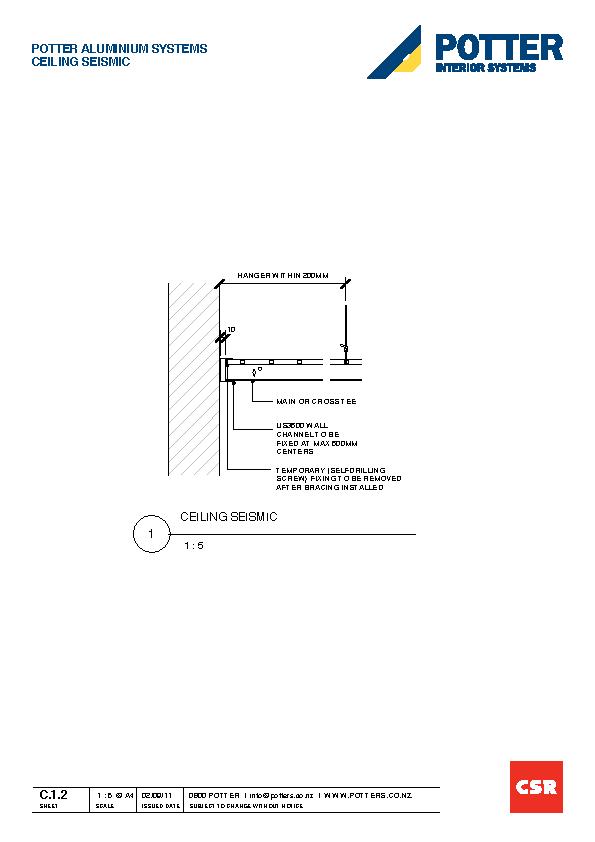

C.1.2 Ceiling Seismic

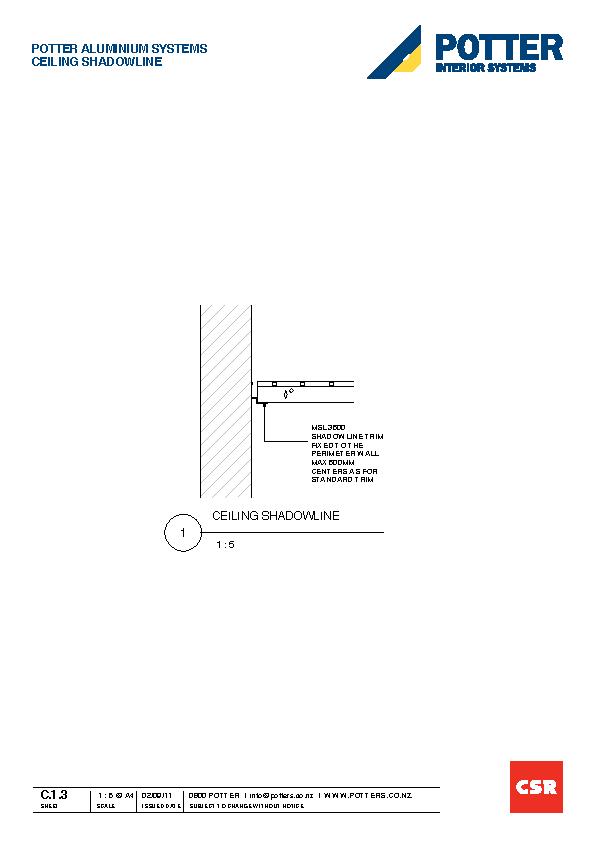

C.1.3 Ceiling Shadowline

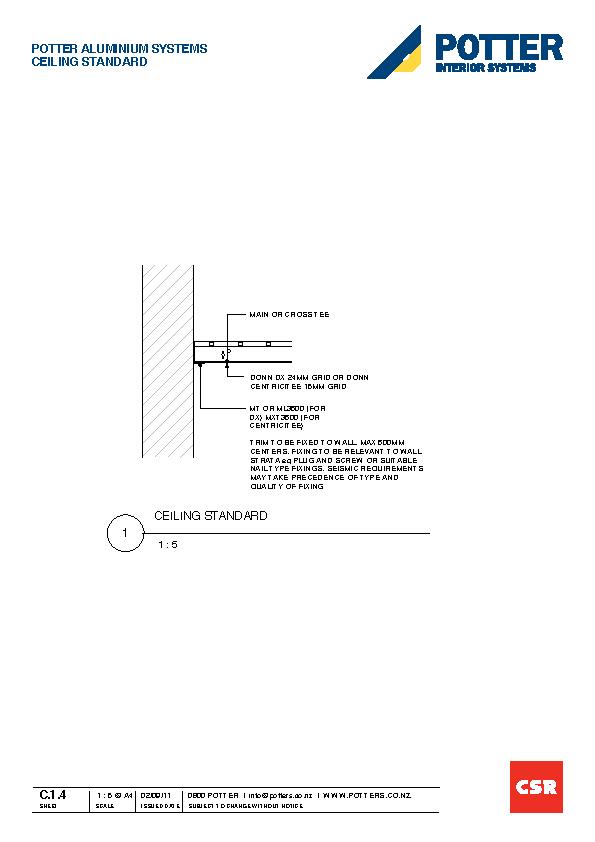

C.1.4 Ceiling Standard

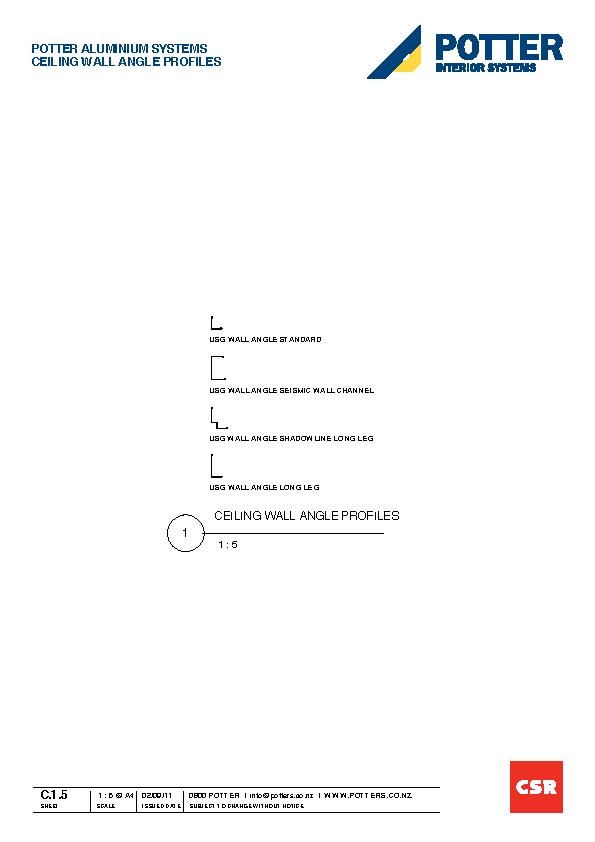

C.1.5 Ceiling Wall Angle Profiles
