InteriorInterior

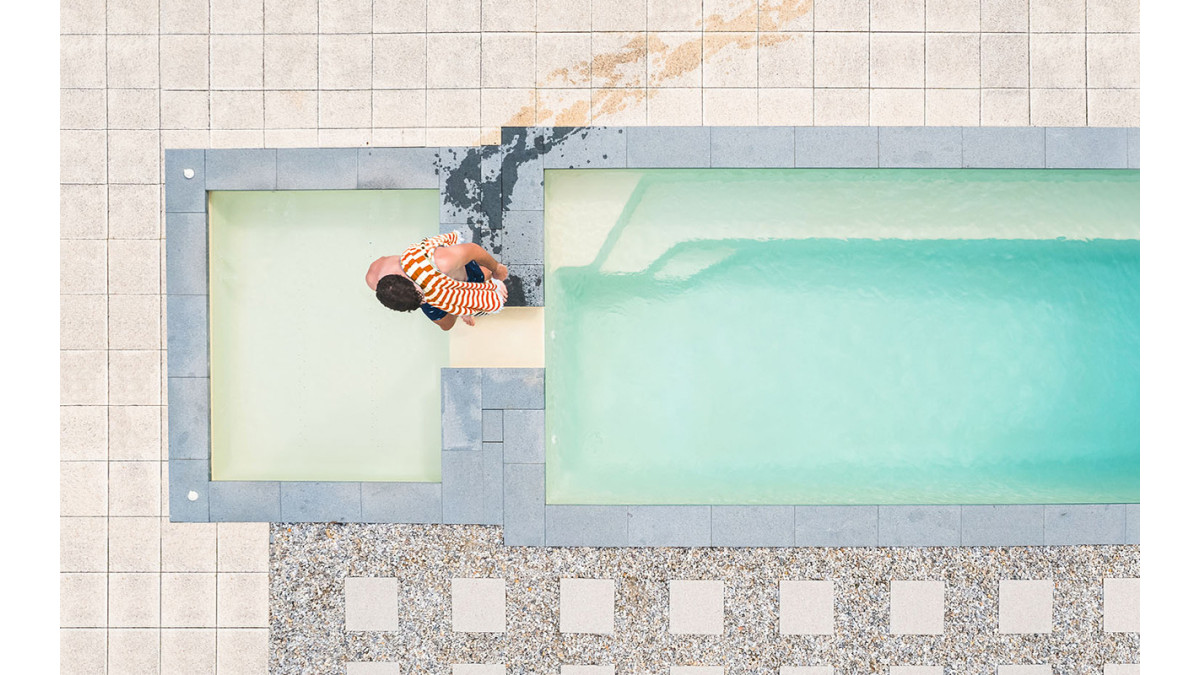

Latin Series Fibreglass Pools
Description

The Latin Series of in-ground fibreglass swimming pools is inspired by the look of concrete pools, but with the benefits of fibreglass. This series features custom installed side entry steps for access to the shallow end, and extended bench seating.

Engineered for residential applications, each pool in the series is constructed using Aqua Technics’ Graphene Nano-Tech composite, combining strength, flexibility, and longevity.

Villa is available in three sizes.

Latin Series: External Internal Bellagio
Portofino 5.9 x 2.9m 5.5 x 2.5m 1.0 – 1.6m
Florentina 6.9 x 2.9m 6.5 x 2.5m 1.1 – 1.7m
Bellagio 7.9 x 2.9m 7.5 x 2.5m 1.1 – 1.8m
Key Features
  • Constructed with Graphene Nano-Tech, delivering 200x the strength of steel while remaining lightweight
  • Strong engineered pool lip removes the need for a concrete ringbeam around the pool for support — cost saving of up to $8000
  • Manufactured with Pool ColourGuard® technology for exceptional UV and chemical resistance

Latin Series:

  • Custom installed corner side entry steps
  • Easy access to the shallow end
  • Extended bench seating
  • Design inspired by traditional concrete pools

Customisable Options:

  • Ability to add mosaic tiles, for the whole pool, or just waterline
  • Available in a variety of core and bespoke Crystite® ColourGuard finishes
  • Options to include spas, ledges, and fountains
  • Infinity edge option — pool can be manufactured with a rebate to produce a horizon effect
  • In-ground and semi-above ground options
  • Customisable skimmer location, for aesthetics or access for tight spaces
  • Custom-built to order at the largest pool manufacturing facility in Australasia
Categories
Pools and Spas
Scope of Use
  • Suitable for residential installation — designed for backyard and outdoor entertainment spaces
  • Ideal for swimming, wading, family play, and hydrotherapy use
  • Suitable for outdoor environments across New Zealand
  • Can be manufactured with rebate to produce infinity edge
  • Pools are in-ground or can sit above ground up to 600mm with out additional engineering
  • Compatible with a range of additions including spas, ledges and fountains, spillway integration for spa and water feature compatibility
  • Suitable for all types of water including chlorine, salt, minerals and naked fresh systems
Limitations on Use
  • Spillway or spa integration must follow installation guidelines.
  • Not recommended for use in commercial or high-traffic public aquatic environments.
  • Residential pools must be fenced in accordance with NZBC F9.
Statement of Building Code Compliance

The Latin Series is designed and manufactured to comply with the relevant performance requirements of the New Zealand Building Code, including:

  • Clause B1: Structure — Complies with structural stability through engineered edge beams and laminated steel reinforcements
  • Clause B2: Durability — Use of advanced materials including graphene composites and fade-resistant coatings ensures long-term durability
  • Clause E2: External Moisture — Non-porous materials and construction prevent water ingress and osmosis
  • Clause F9: Restricting Access to Residential Pools — Design supports integration with compliant fencing and safety systems
In-Service History

The PoolHouse has supplied over 3,000 fibreglass pools across New Zealand. The Regal Series pools are part of a long-established manufacturing lineage under Aqua Technics, a brand with over 45 years of history and more than 17 international awards for product quality.

Notable use cases include residential homes in both urban and coastal settings, offering long-term performance and low maintenance.

Other Performance Attributes
  • Graphene composite core for reduced transport weight and increased rigidity
  • Certified manufacturing audited independently
  • Dual-layer vinyl ester resin surface for enhanced corrosion resistance
  • Designed with engineering features to eliminate need for secondary structural support

Warranty

The Regal Series is backed by a Limited Lifetime Structural Warranty (conditions apply). Warranty coverage includes structural integrity and surface protection under normal residential use. The warranty is transferrable to new owners of the property.

Maintenance guidance is provided post-installation.

Documents
Latin Series Pools
Spec Sheet: Latin Series
Ledge & Spa Options
The PoolHouse Colours
CAD/PDF Details
Portofino

01

Florentina

02

Bellagio

03

Aqua Ledge Option

101

Centro Spa & Spillway Option

102

Elba Spa Option

103

With 45 years of experience, The PoolHouse are leading custom pool builders, providing fibreglass pool solutions and full architect support—from site advice to compliance to installation.
