Pinetech Cladding

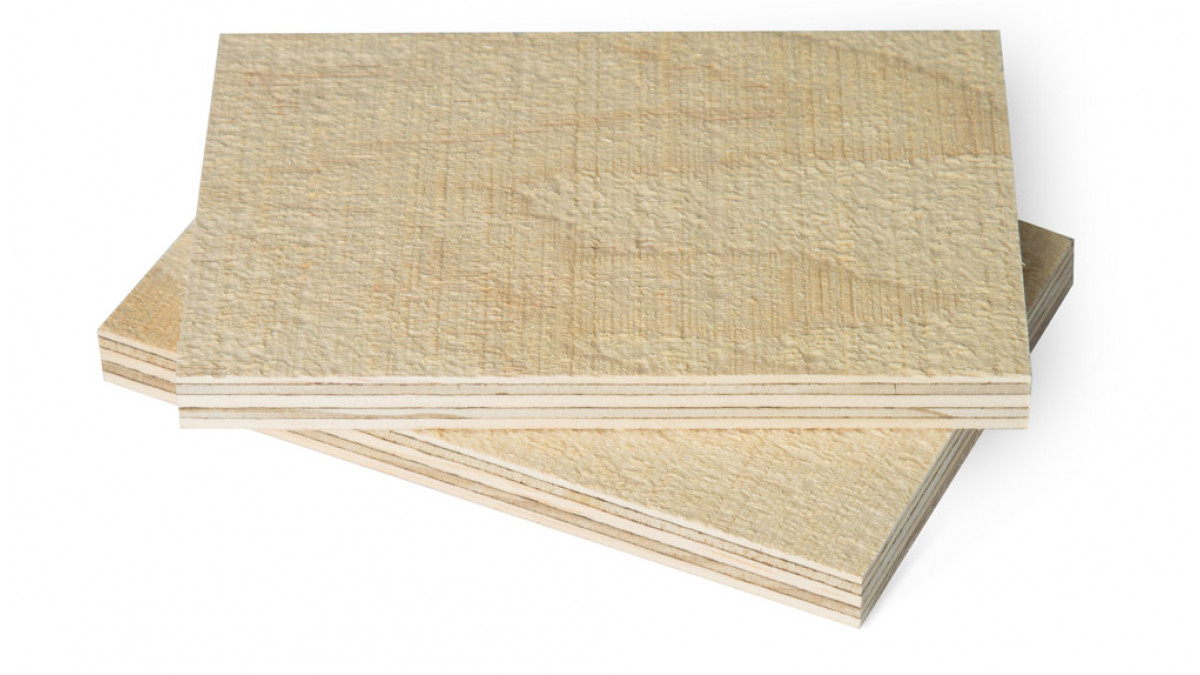

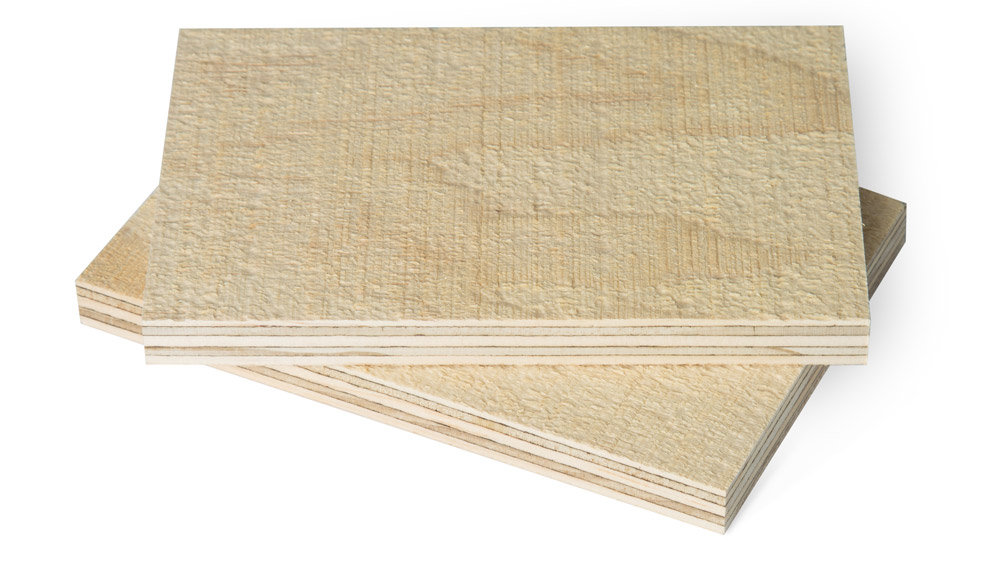

Bandsawn exterior plywood panel for use in residential and commercial construction.

Pinetech Cladding is a cost effective cladding solution that offers a natural timber finish and allows for staining to enhance the look and performance. Pinetech Cladding is envelope treated H3.1 LOSP or H3.2 CCA for exterior use.

Key Features

Pinetech Options:

  • Pinetech 1000/100: grooves at 100mm centres
  • Pinetech 1000/150: grooves at 150mm centres
  • Pinetech 3000: no grooves.

Dimensions: 2440 x 1216mm x 12mm

FSC Certified
FSC Certified
Other Performance Attributes


  • E0: No harmful emissions
  • FSC Certified

Technical Specifications:

  • Standard – AS/NZS 2271
  • Wood Raw Material – Pinus Radiata
  • Density – average 500kg/m3
  • Class – Softwood, non-durable
  • Glue Bond – A Bond Exterior
  • Glue Formaldehyde Emissions E0 < 0.3mg/L
  • (AS/NZS 2098.11)

Migrating Oil Timber Preservers:

Dryden’s Woodoil clear or colourtone first coat can be applied through pre-coat spray application; this system offers a factory applied Woodoil coating within a controlled environment delivering a face and edge or envelope seal prior to delivery. A further coat of Dryden’s Woodoil clear or colourtone should be applied no sooner than six weeks, ideally 6-12 months subsequently, after panels have been installed. Then maintain to manufacturer’s recommendation

Cladding Details PDF/REVIT/DWG
Data Sheet
Environmental Information
EWPAA Accreditation
FSC Accreditation

Plytech are New Zealand’s plywood specialists, offering the very latest and most comprehensive range of plywood, and are proud to be PEFC certified.
