Trans-Tex 220
Plytech Panels
All products

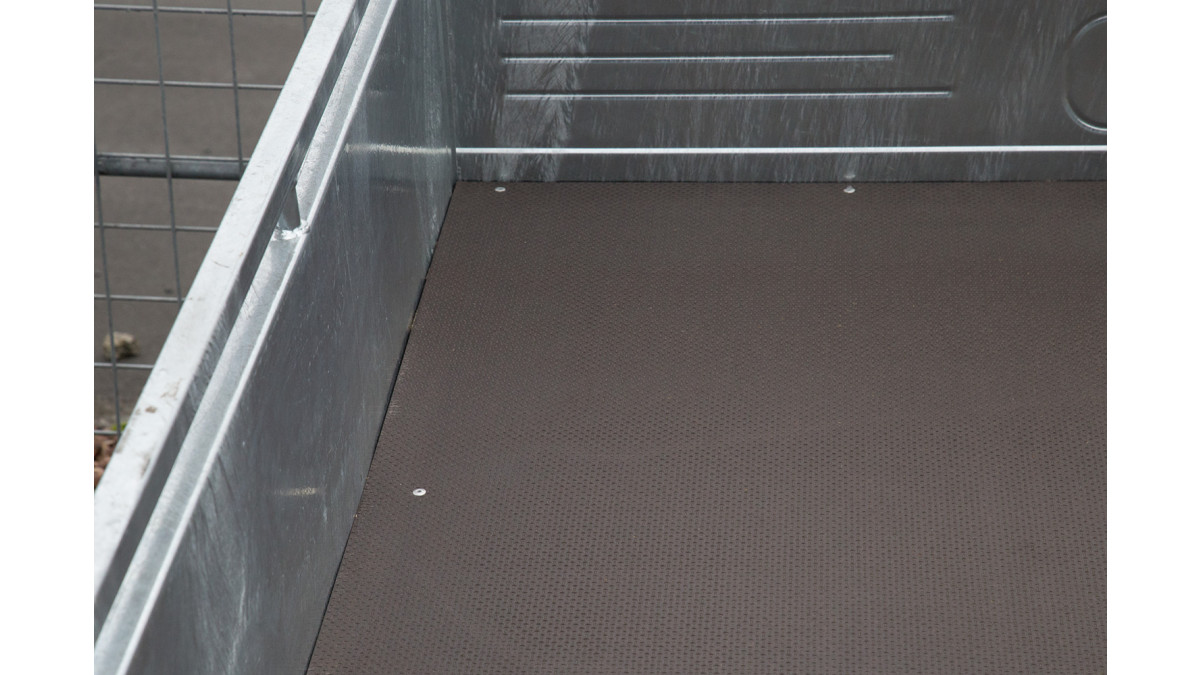

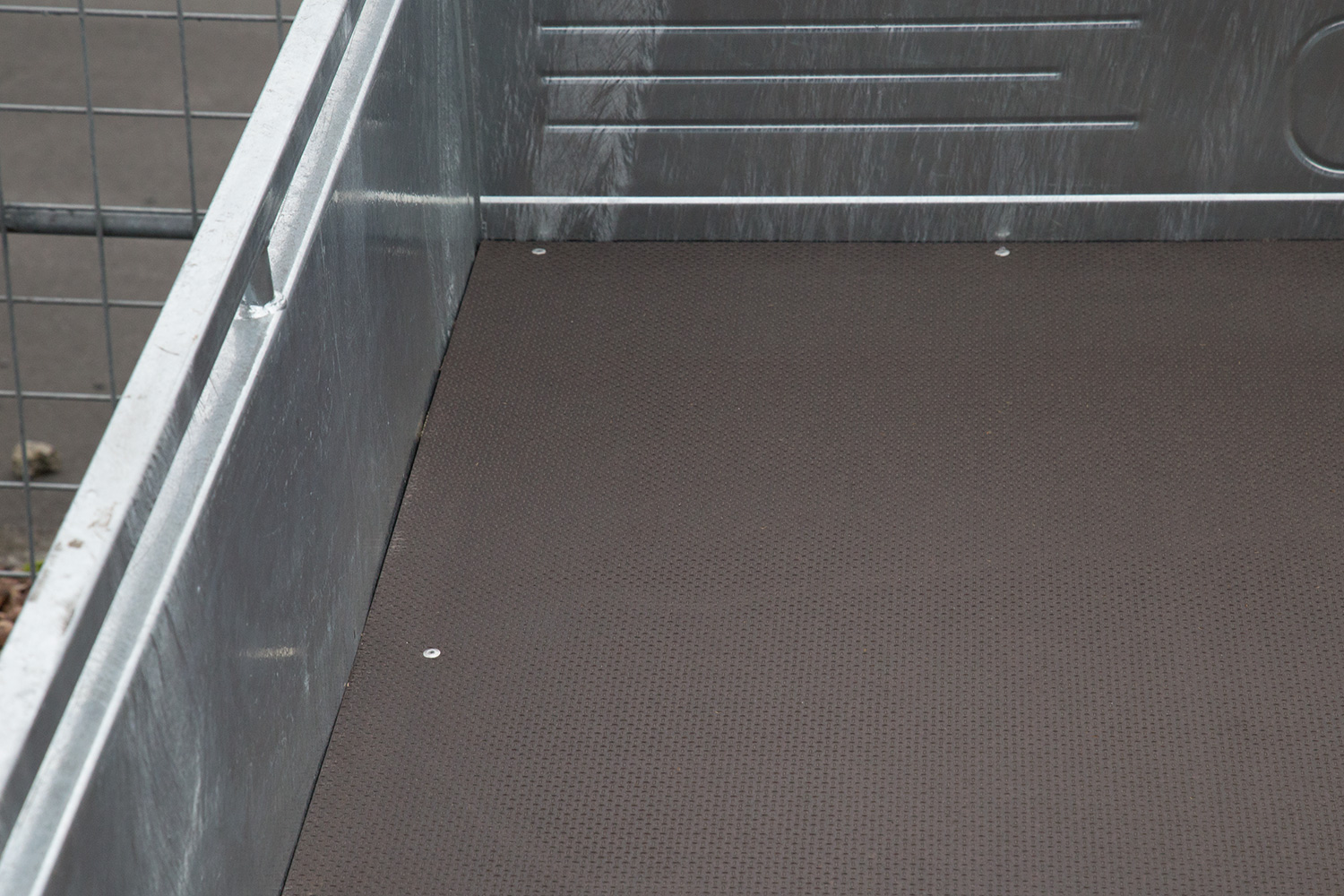

IMG 0187 web

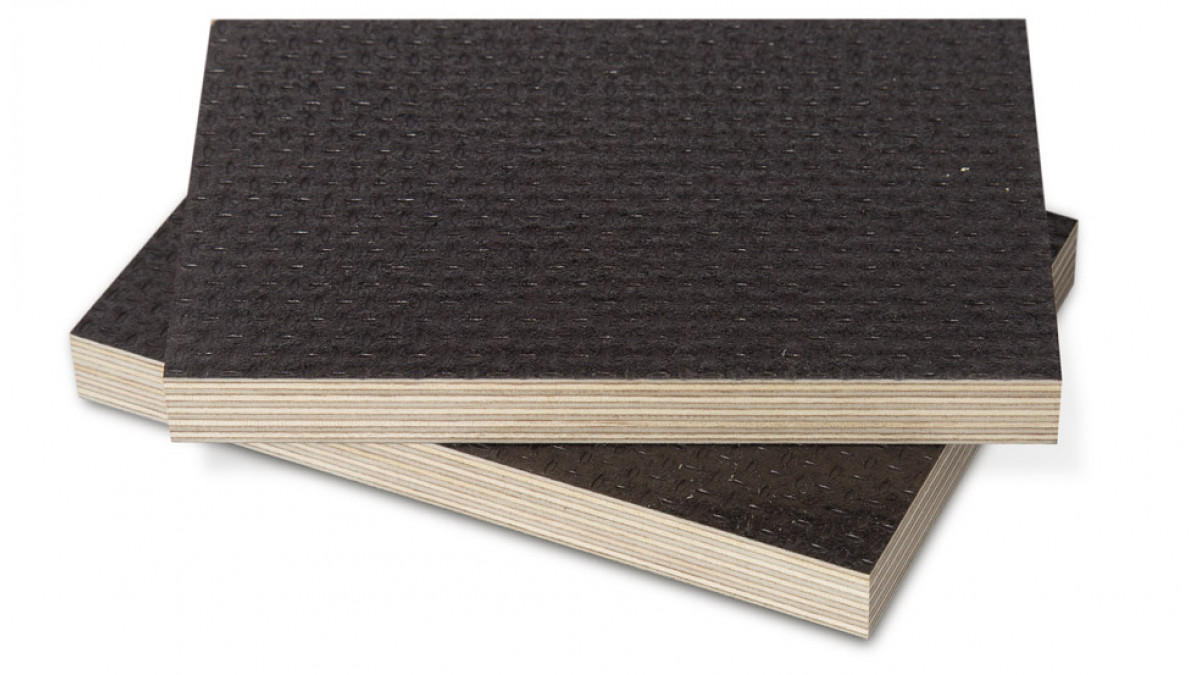

Plytech TransTex 220
Description

European Birch plywood overlaid with a hard-wearing, slip- resistant, wire-mesh pattern designed for the most demanding flooring applications.

Trans-Tex 220 has become the preferred choice for many vehicle and trailer manufacturers worldwide and is recognised as one of the most economical decking materials.

Key Features
  • Hard-wearing
  • Slip- resistant, wire-mesh pattern
  • Weather and waterproof
  • Resistant to commonly used chemicals
  • High bending stiffness
  • High impact resistance and durability

Dimensions:

  • 12mm / 9ply Length x Width: 2400 x 850mm, 2440 x 1220mm, 2440 x 1525mm, 2440 x 1850mm, 3050 x 1525mm, 3650 x 1850mm
  • 15mm / 11ply Length x Width: 2440 x 1220mm, 2440 x 1850mm, 3050 x 1525mm
  • 18mm / 13ply Length x Width: 2400 x 1200mm, 2440 x 1220mm, 2440 x 1525mm, 2440 x 1850mm, 2600 x 1900mm, 3050 x 1525mm, 3650 x 2000mm
  • 21mm / 15ply Length x Width: 2400 x 1200mm, 2440 x 1220mm, 2500 x 1500mm, 4000 x 1500mm, 3650 x 2000mm
Categories
Indoor Fabrication Materials Subfloors
Ranges
Birch – Pre-finished
Scope of Use
  • Truck and trailer decking
  • Scaffolding platforms
  • Stair treads
  • Pedestrian bridges
  • Vehicle floors
  • Factory floors
  • Loading platforms
  • Staging
  • Ship decks

or any other application requiring high wear resistance and anti-slip properties.

Other Performance Attributes
  • Environment Protection Standard: ISO 14001:2005
  • Quality Management Standard: ISO 9001:2009
  • ULEF: No harmful emissions
  • FSC Certified
  • PEFC Certified

Wear Resistance: Wear resistance class 5: 400 to 600 revolutions according to EN 438-2 Taber test: Loaded rollers act on rotating sample; the rollers are coated in sanding paper simulating actual operation loads.

Flame Retardant: Trans-Tex 220 has been tested and meets the requirements as defined within AS/NZS 1530 Part 3 (1999)

FSC Certified
FSC Certified
PEFC Certified
PEFC Certified
Documents
Trans-Tex 220 Data Sheet
pdf
Accreditation: FSC
pdf
Accreditation: PEFC
pdf
Environmental Accreditation: ISO-14001
pdf
Environmental Accreditation: ISO-9001
pdf
Plytech on Masterspec
URL
Warranty
pdf

Plytech are New Zealand’s leading plywood specialist, offering the most innovative and extensive range of plywood solutions; proudly PEFC certified, they are committed to sustainability and quality.
