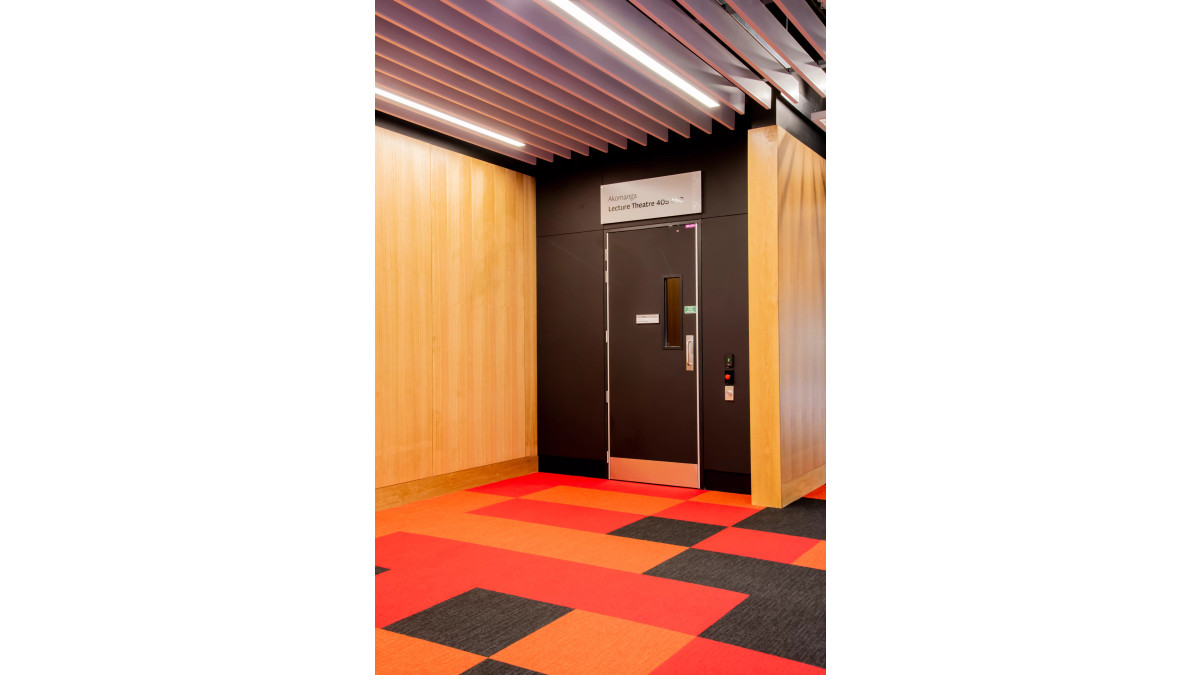

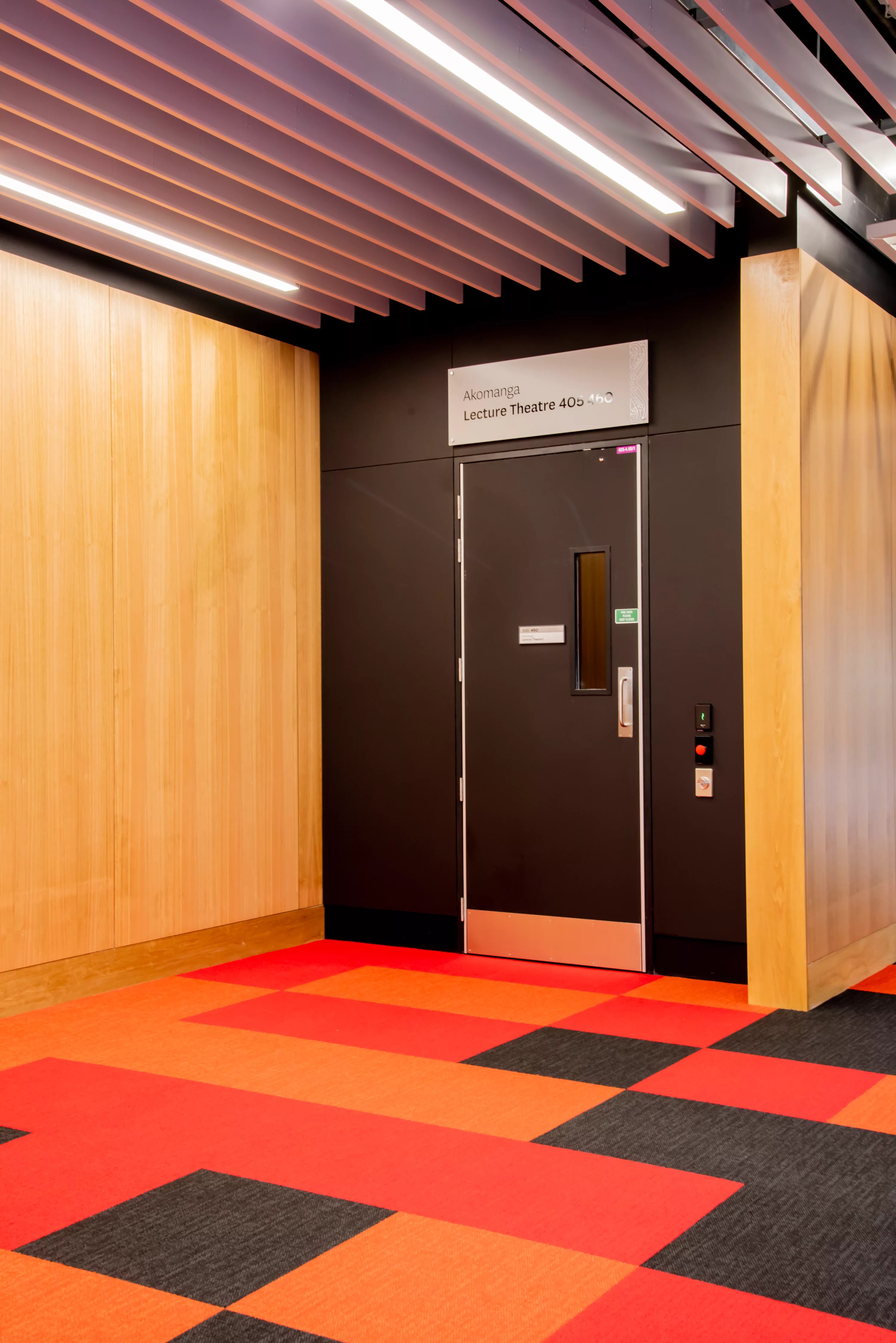

Pacific VP60A Standard Fire Door
Description

VP60A features a solid core and does not require any metal fixing plates or channels in the door leaf, making it an ideal choice for interior applications. Please note that it is not suitable for exterior use. The VP60a offers additional features and greater hardware options in comparison to the TB60.

Key Features

60min fire rating

Single or pair

8 facing options

12 frame options

3 glass options

Compatible with timber stud and masonry wall

Acoustic rating available

Ventilation grilles available

Meets NZS4520.2010 standard

NZ Made
NZ Made
Limitations on Use

Please note that it is not suitable for exterior use. The VP60a offers additional features and greater hardware options in comparison to the TB60.

Other Performance Attributes

Acoustical performance

An acoustic rating of STC 30 is available for this doorset. Tested frame seals are PFS-4, PFS-6 and LE1515. Tested drop seal is IS8011si.

Doors are not acoustic tested with vision panels.

Thermal insulation

This door leaf has a thermal insulation rating (R-value) of 0.536 Km2/W.

Documents
Data Sheet

4/7/2025

Pacific Doors specialise in the bespoke manufacture of high strength, performance door and window systems for fire, acoustic, security, hospital, ballistic and commercial purposes.
