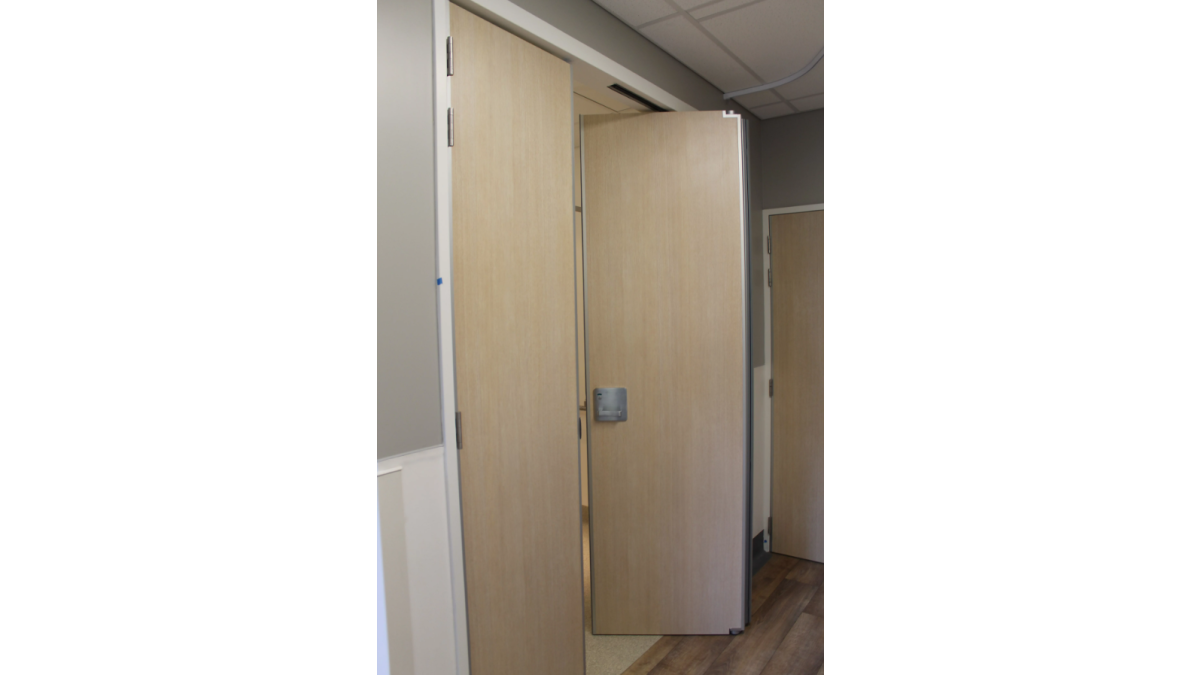

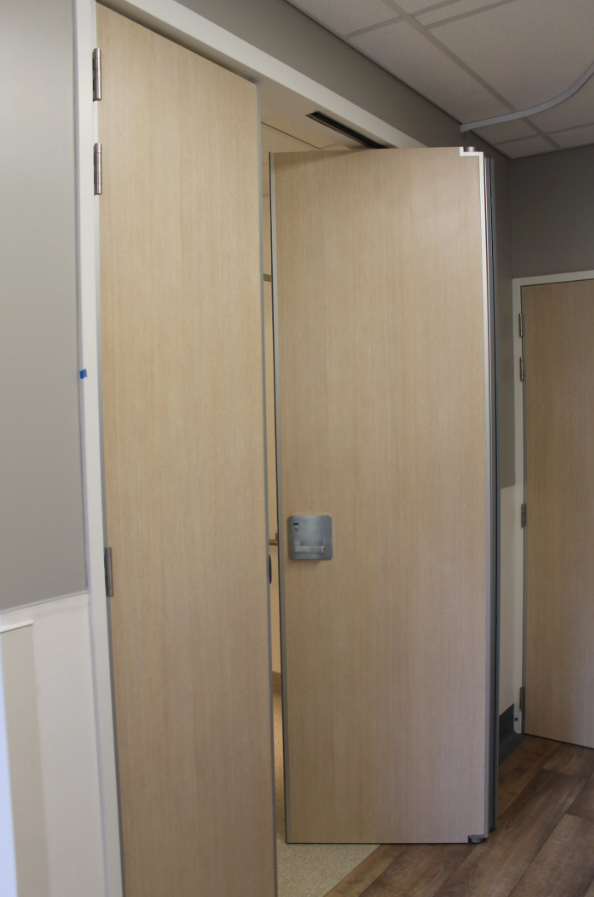

Pacific Hospital Double Action Bifold Doorset
Description

The Pacific Double Action Bi-fold Bariatric door set is designed for maximising access into bathrooms with bariatric requirements, creating easier accessibility and better use of available space, in comparison to a standard hinged door set.

It consists of a double-acting bifold door in conjunction with a hinged door in a common frame. The reduced swing action of the bi-folding doors means that, when open, the door projects into the room only a third as much as a standard door. The secondary hinged leaf can be held closed independently and only opened when required.

The Double Action Bi-fold Bariatric door set can be accessed from either direction using the same opening action.

The action of the door is also easier to open for users with mobility impairments and from a wheelchair.

A patient lifting system rail can run through the door set uninterrupted to allow patients to be hoisted in easily.

The door set consists of solid-core flush-panel door leaves mounted in a steel frame.



For further information on this product, visit: https://www.pacificdoors.co.nz/products/hospital/pacific-double-action-bi-fold-bariatric

Key Features

Leaf Sizes

The Double Action Bi-fold Bariatric door set is specified by stating the clear opening required when the door is open. The door set is manufactured with a standard clear opening of 1395mm.



This equates to door leaf widths of 697/389/550mm and an overall frame width of 1718mm. The leaf and frame height can be made to suit site requirements.

Categories
Specialist Doors
Scope of Use

Leaf Facings

The facings listed below are available for the Double Action Bi-Fold Bariatric door set

·         MDF

·         Oil Tempered Hardboard

·         Hardboard

·         Plywood

·         Timber Veneers

·         Metal Sheet, mild or stainless (0.6 - 1.0mm)

·         Aluminium Sheet (0.3 - 1.0mm)

·         High Pressure Laminate up to 1.5mm thick (eg: Laminex, Formica)

·         Fire Rated Formica



·         Sheet Vinyl (1.25 - 2mm)
