OpusView® SP14® Concealed Fix Mini Post Balustrade
Opus Hardware
All products

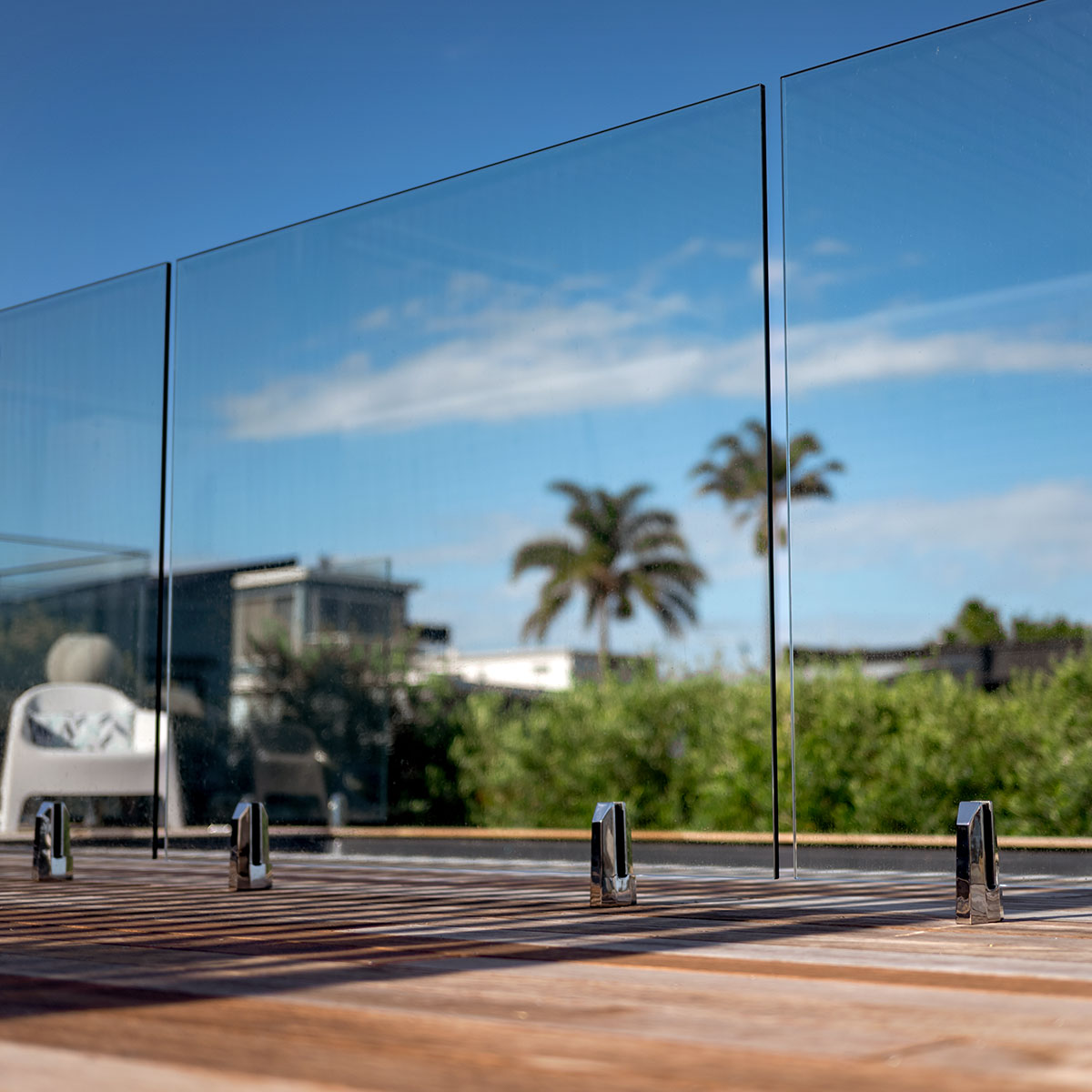

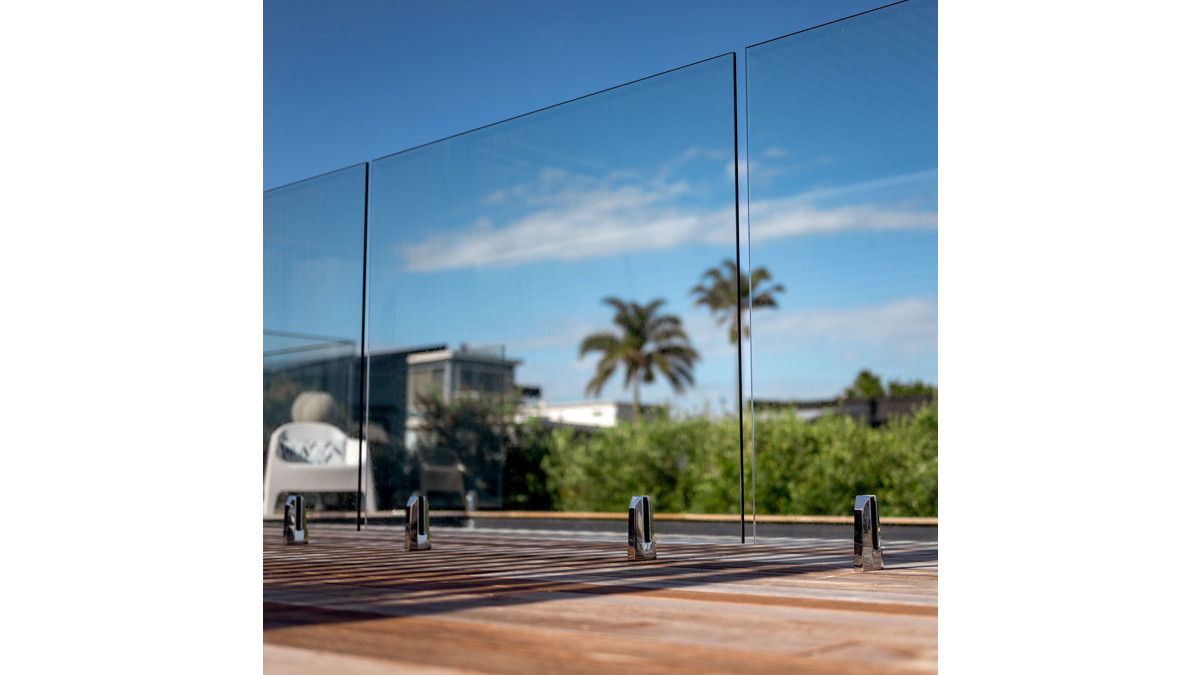

mini posts

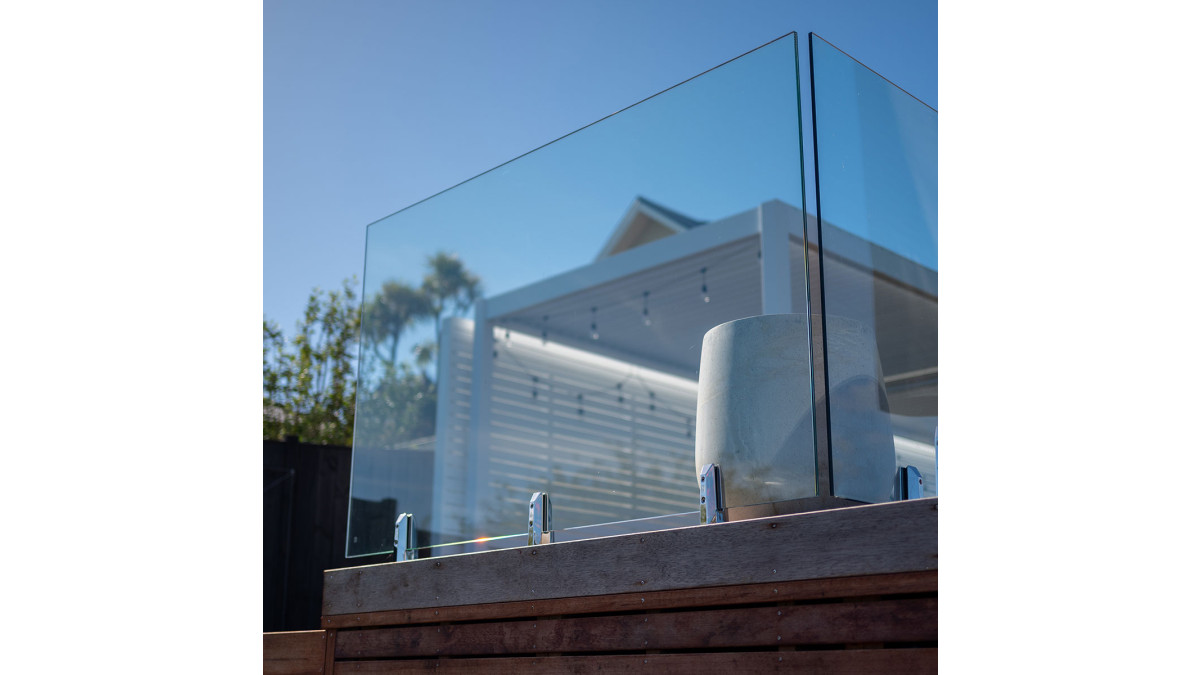

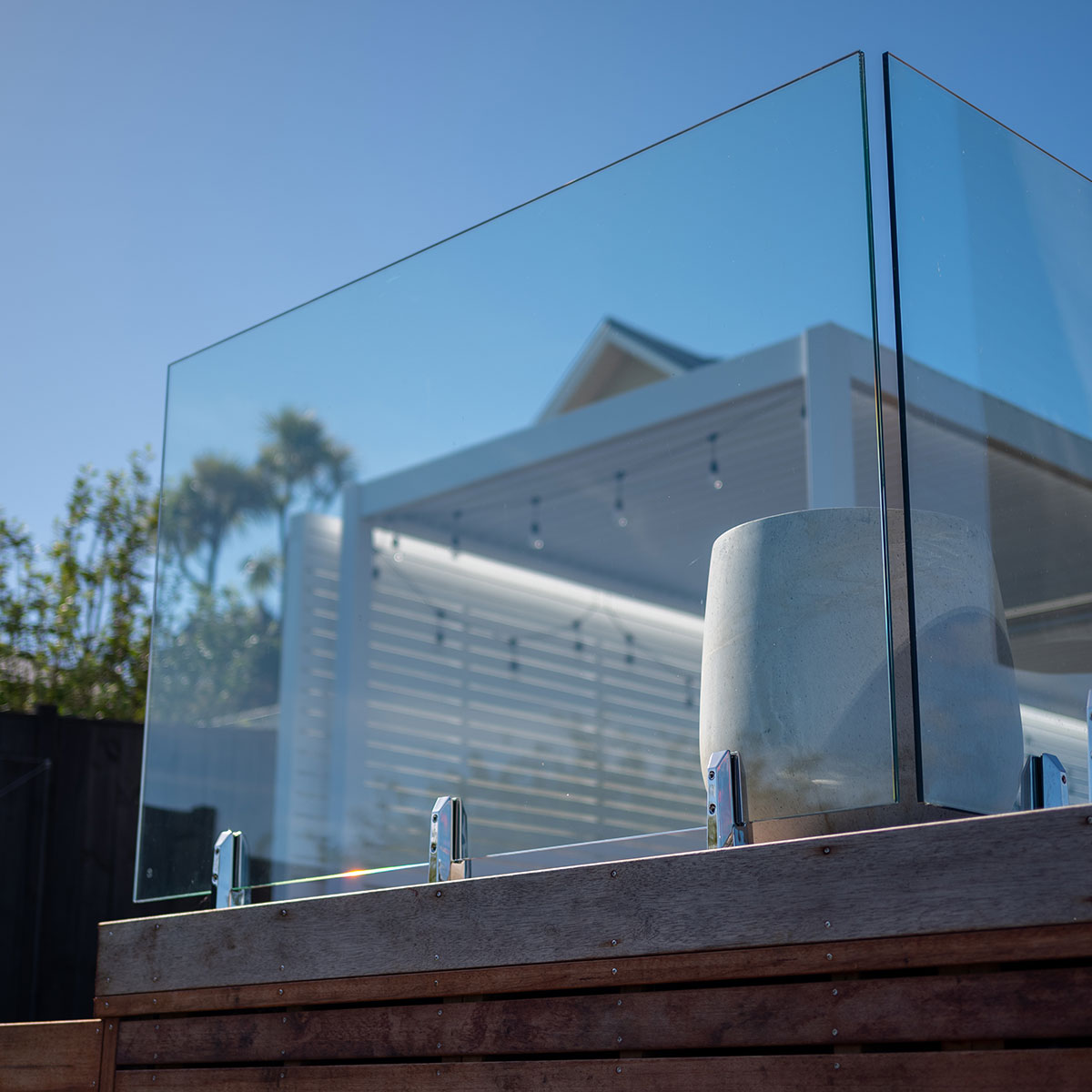

mini post balustrade

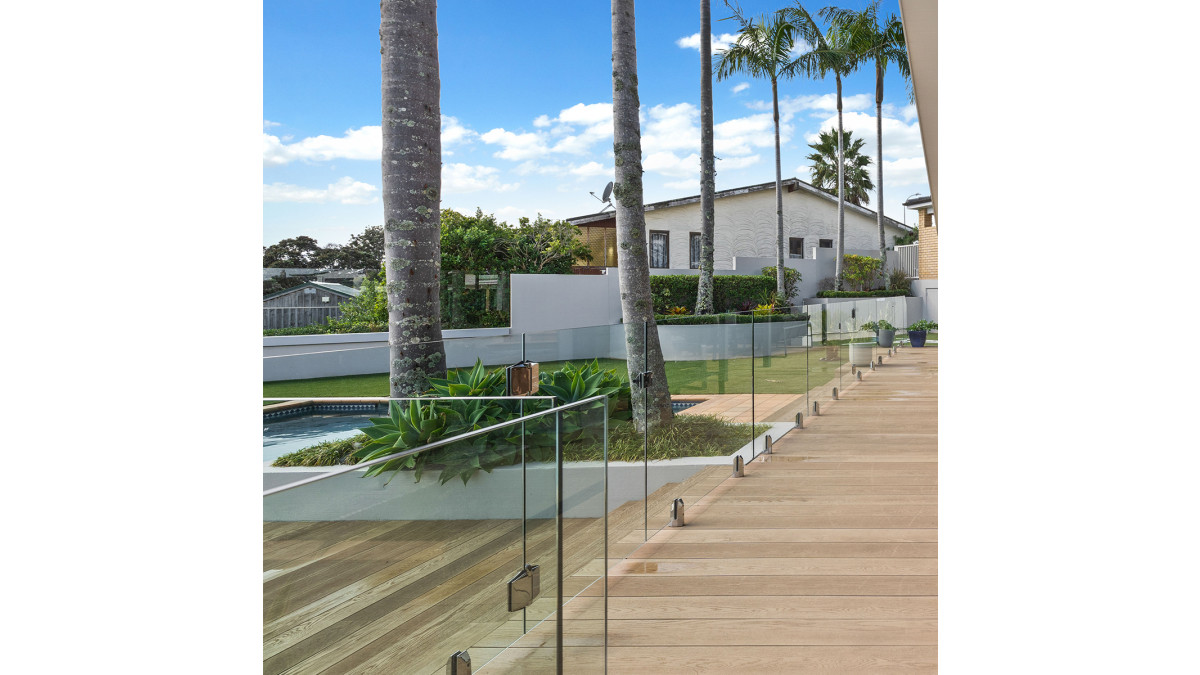

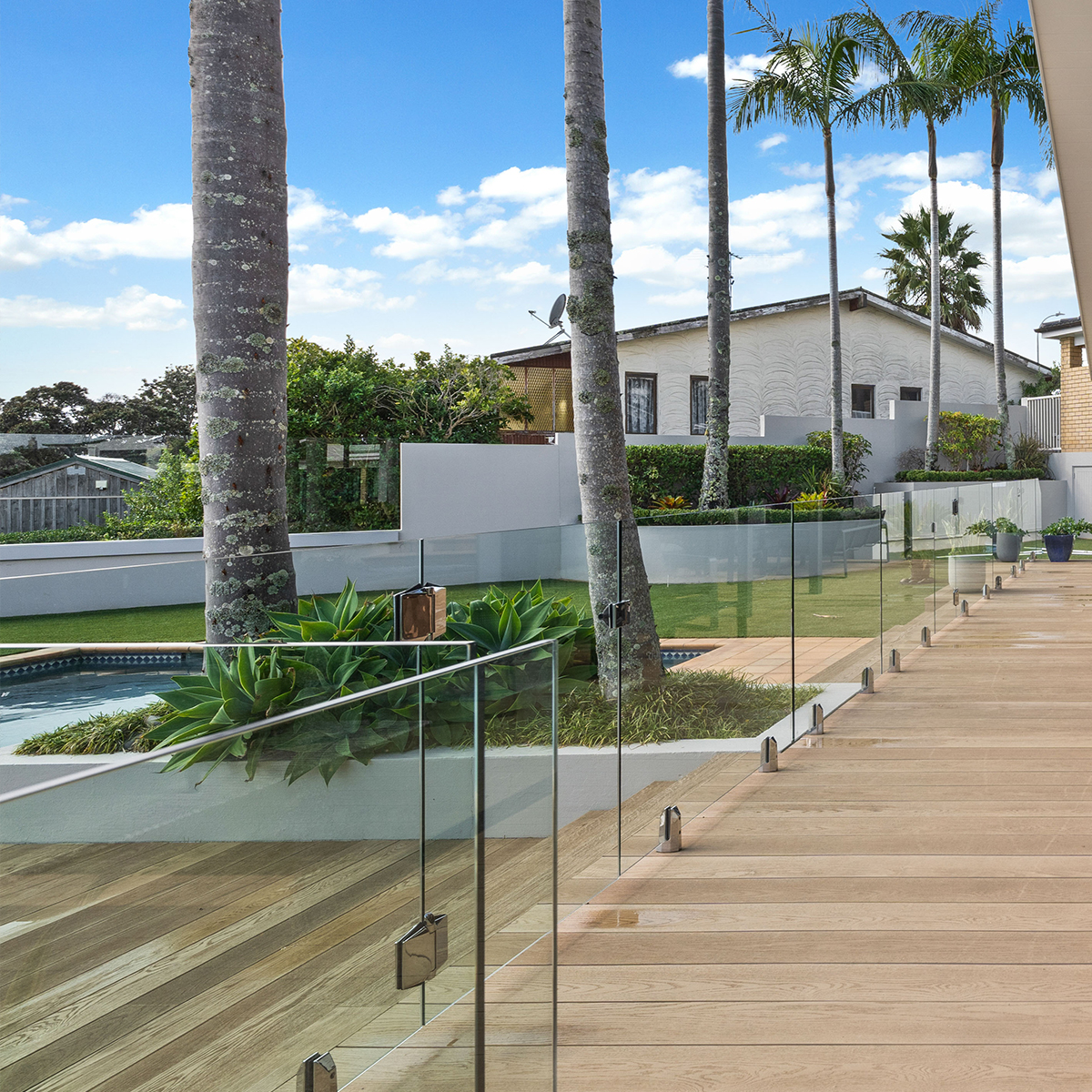

pool fence

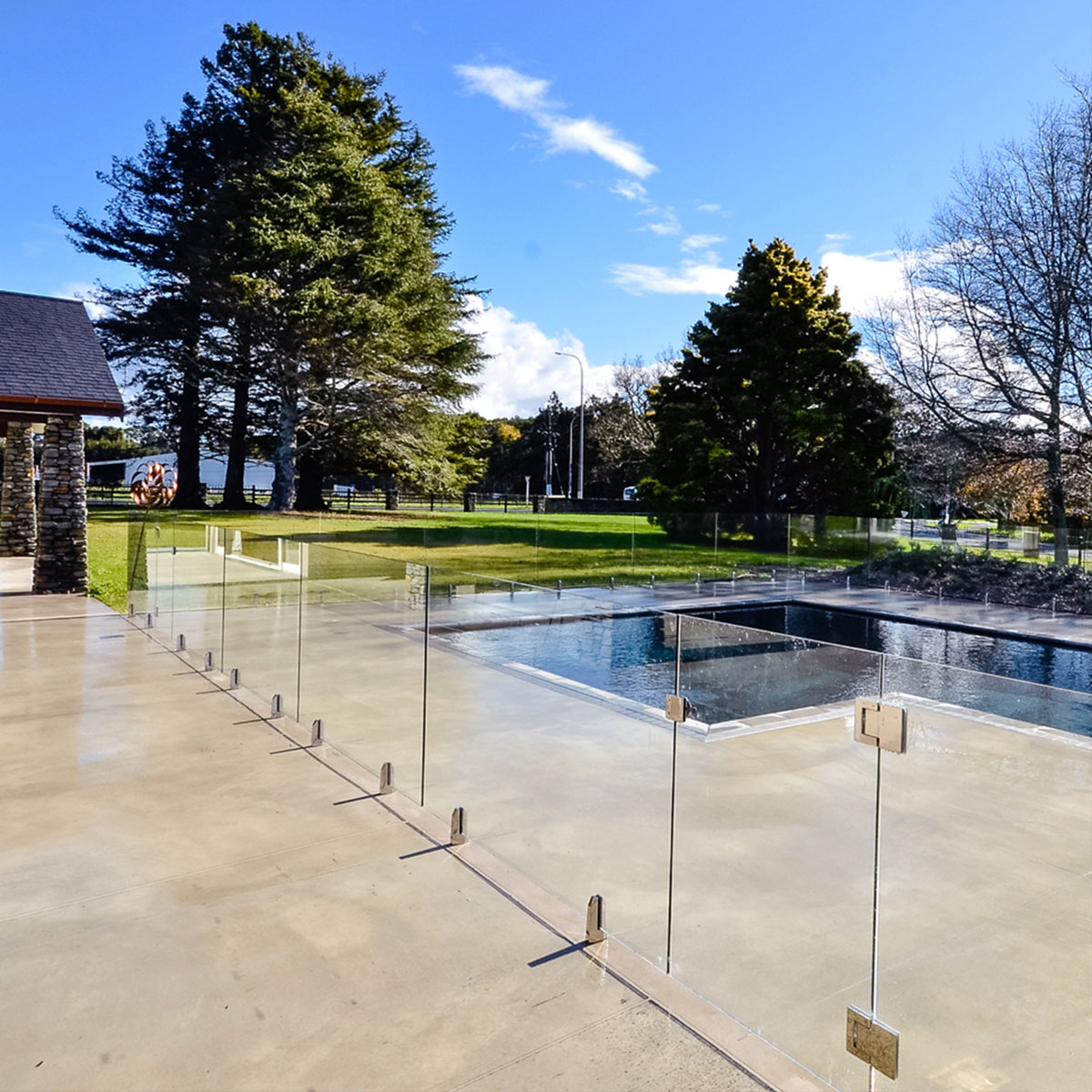

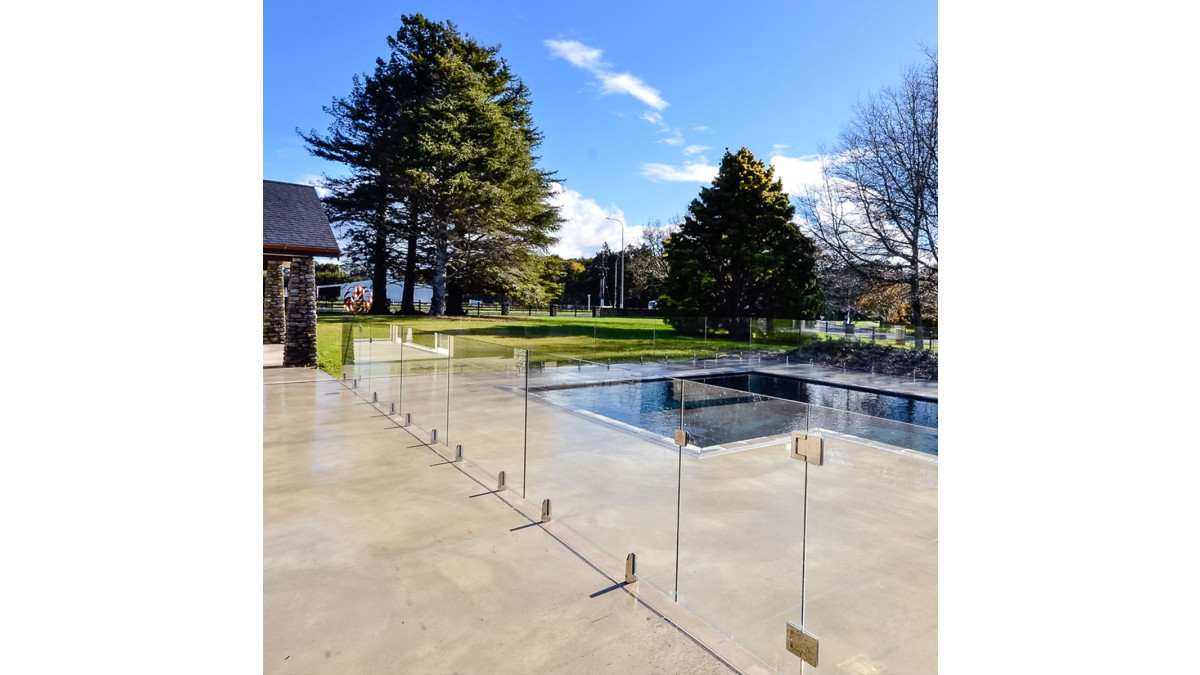

coatesville mini post

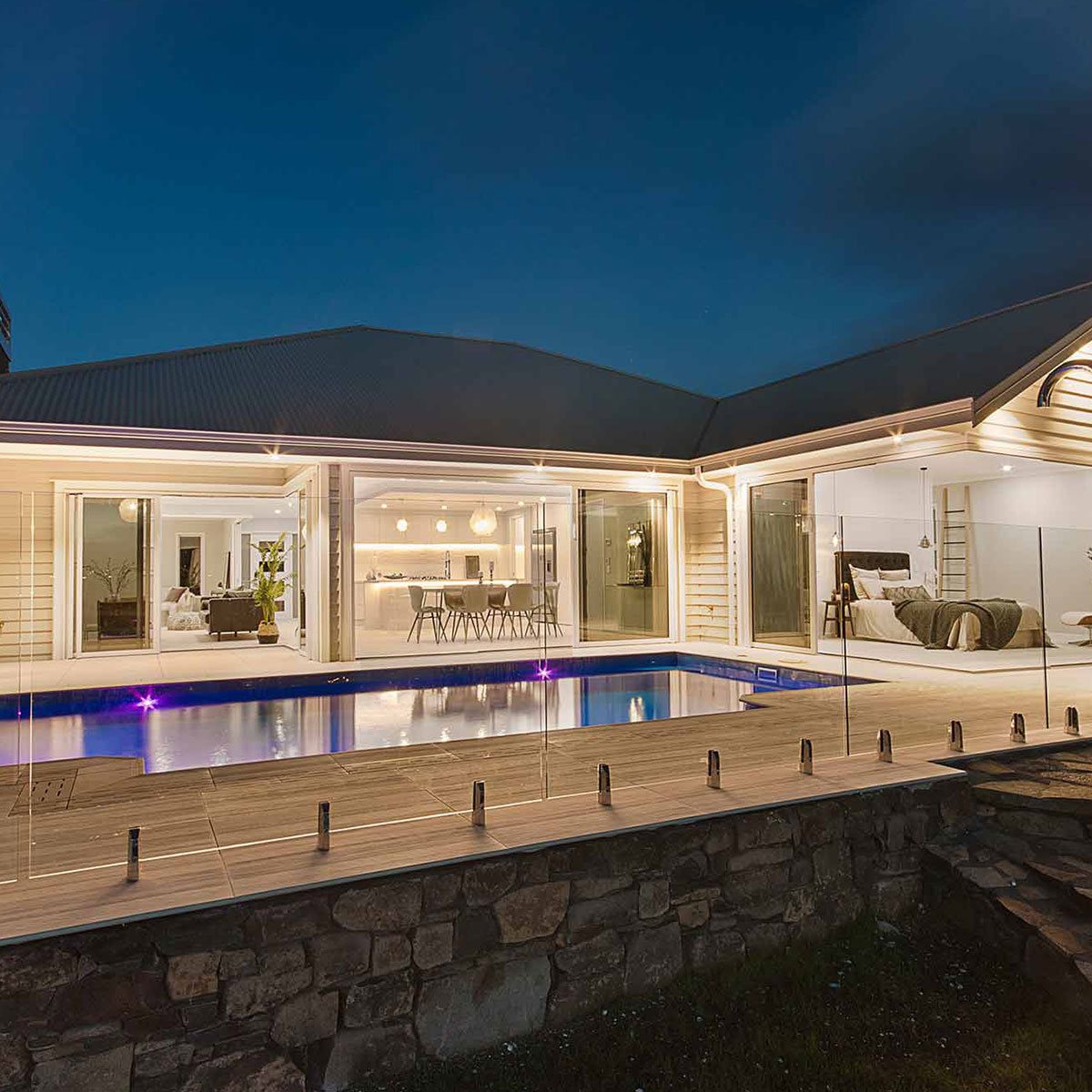

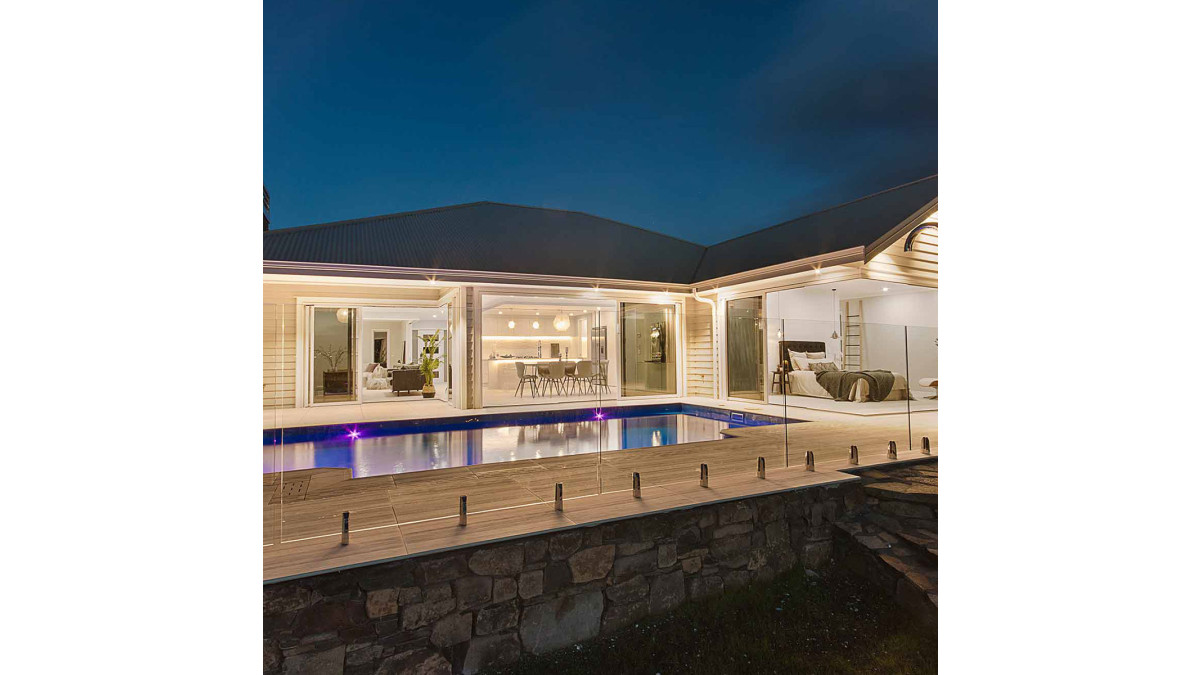

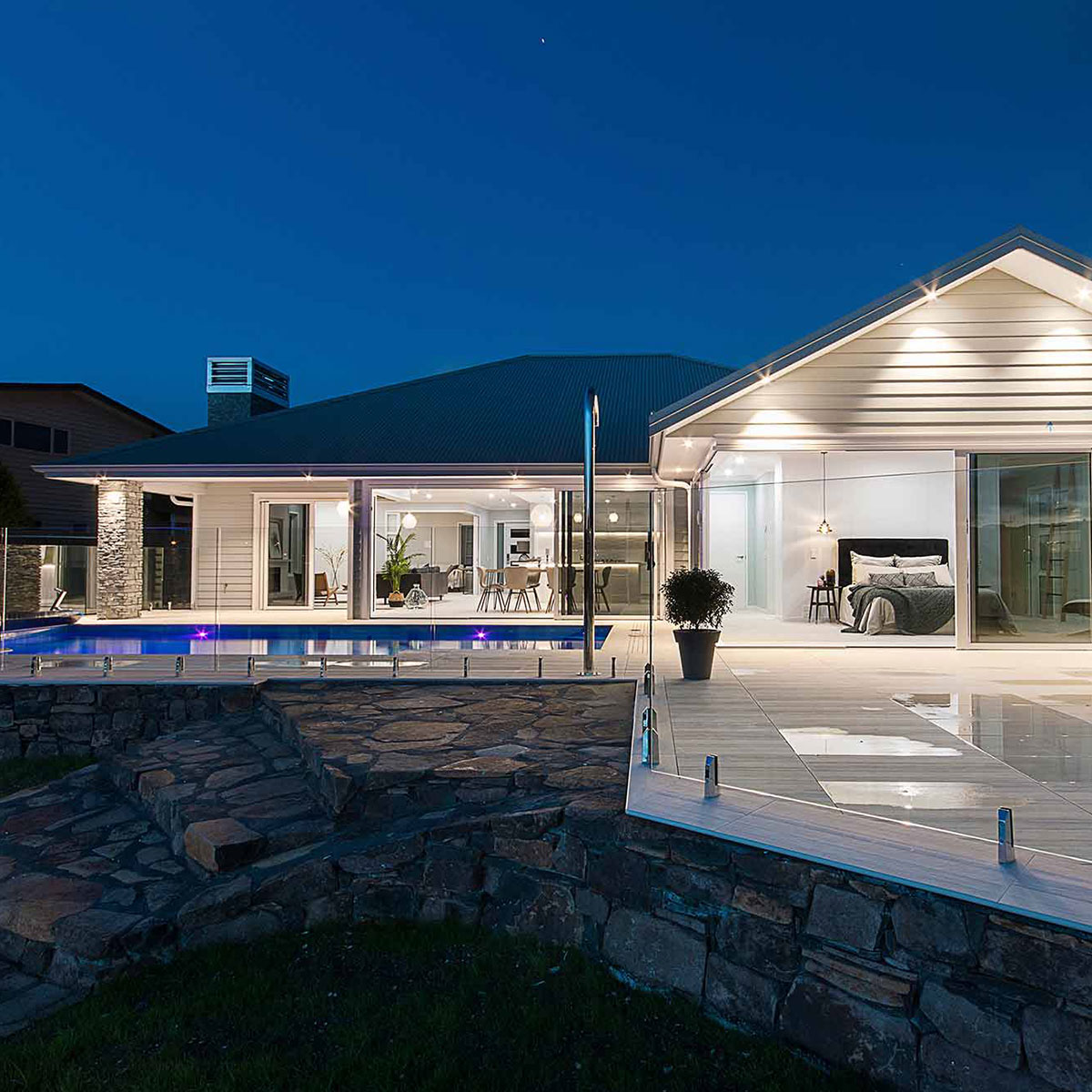

mini post pool fence

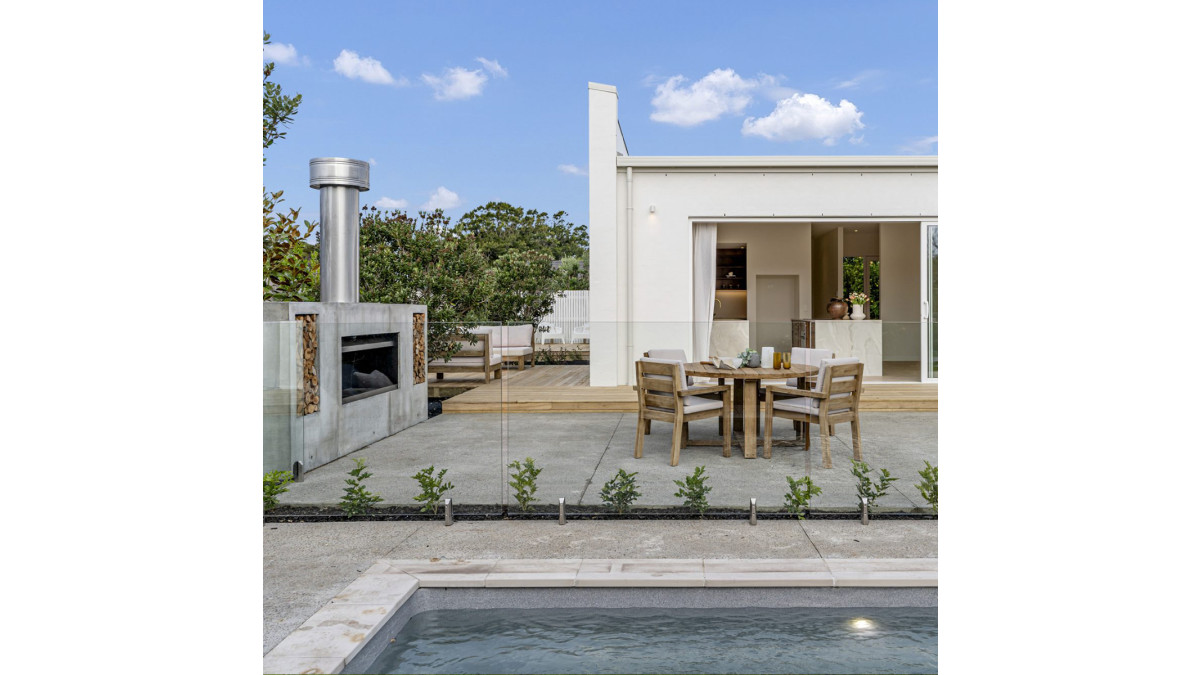

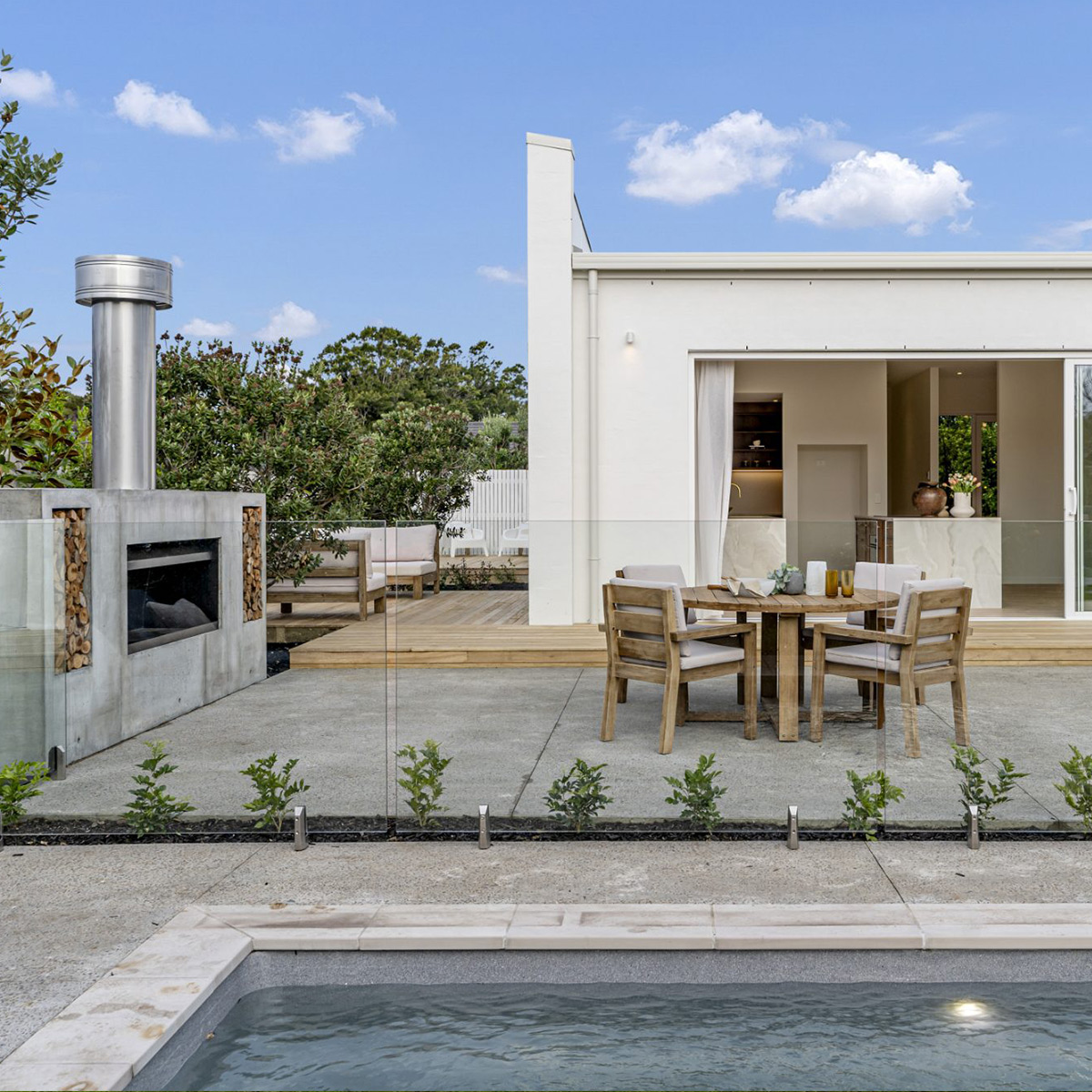

mini post pool fences

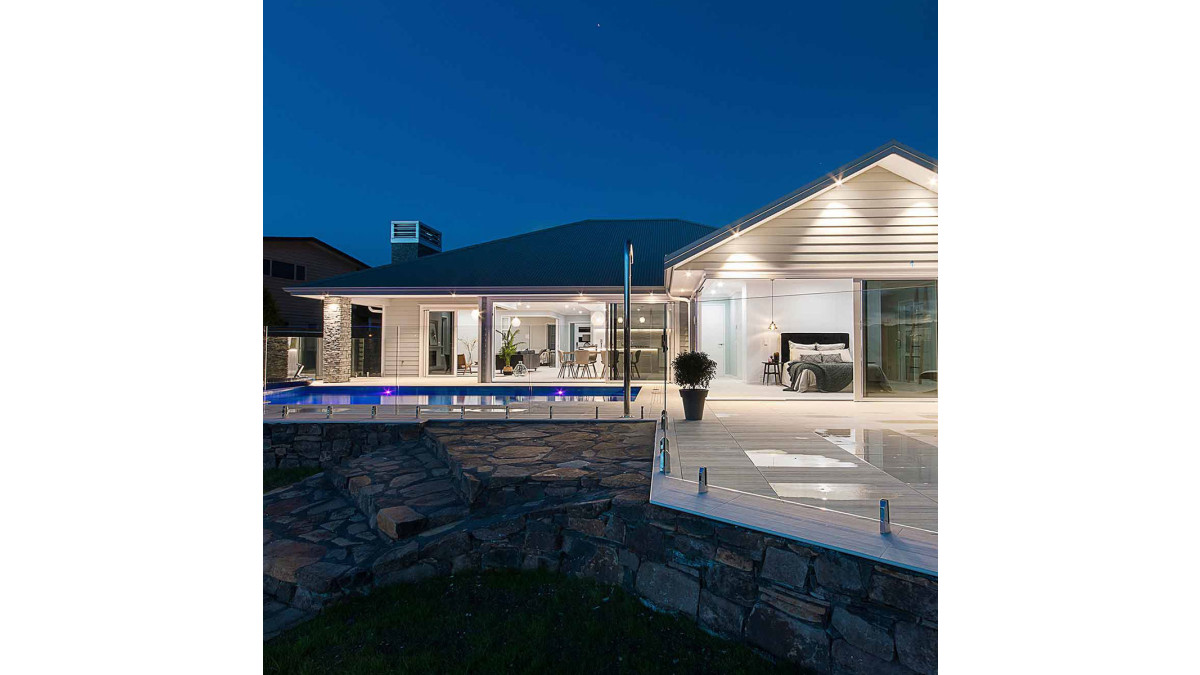

mini post pool fencing

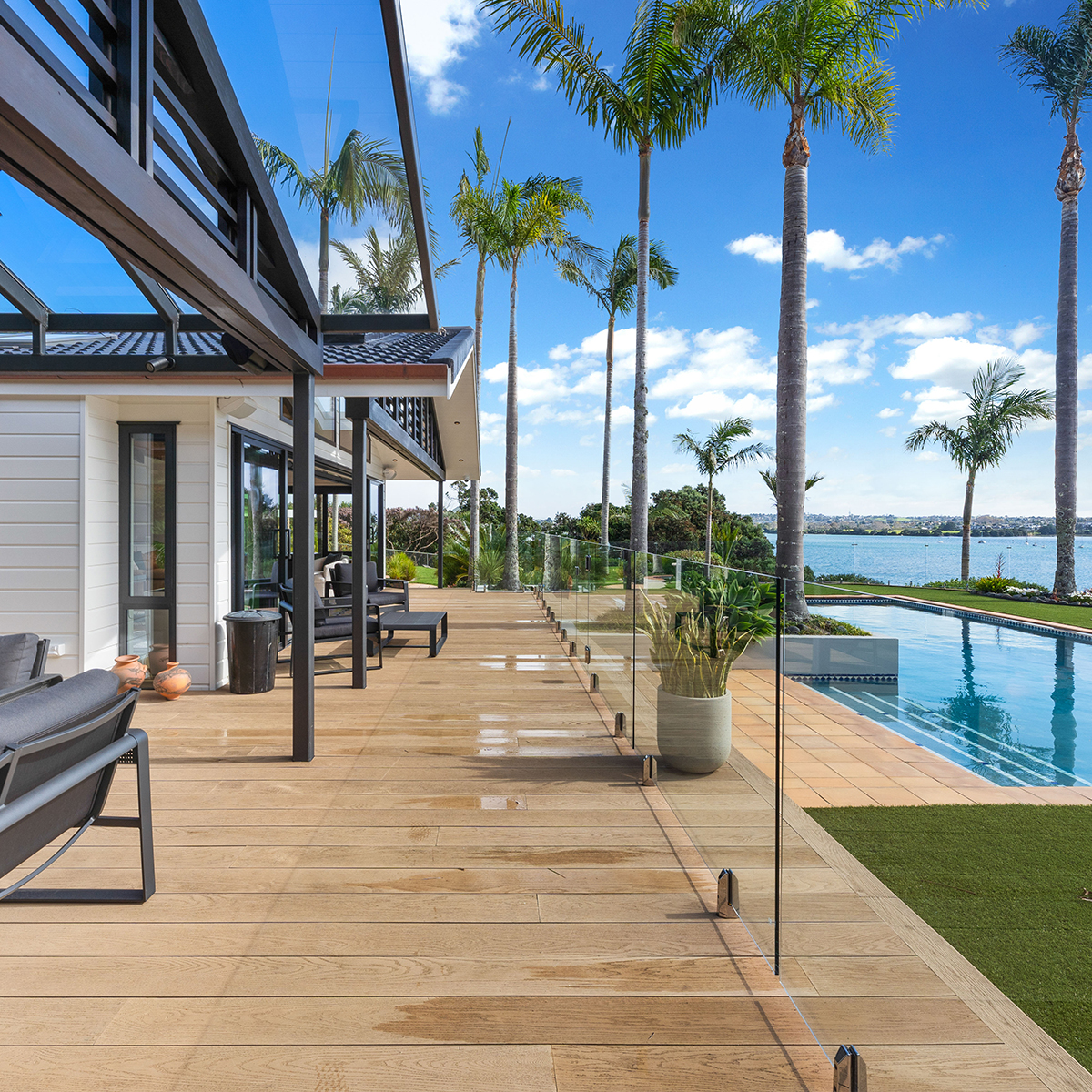

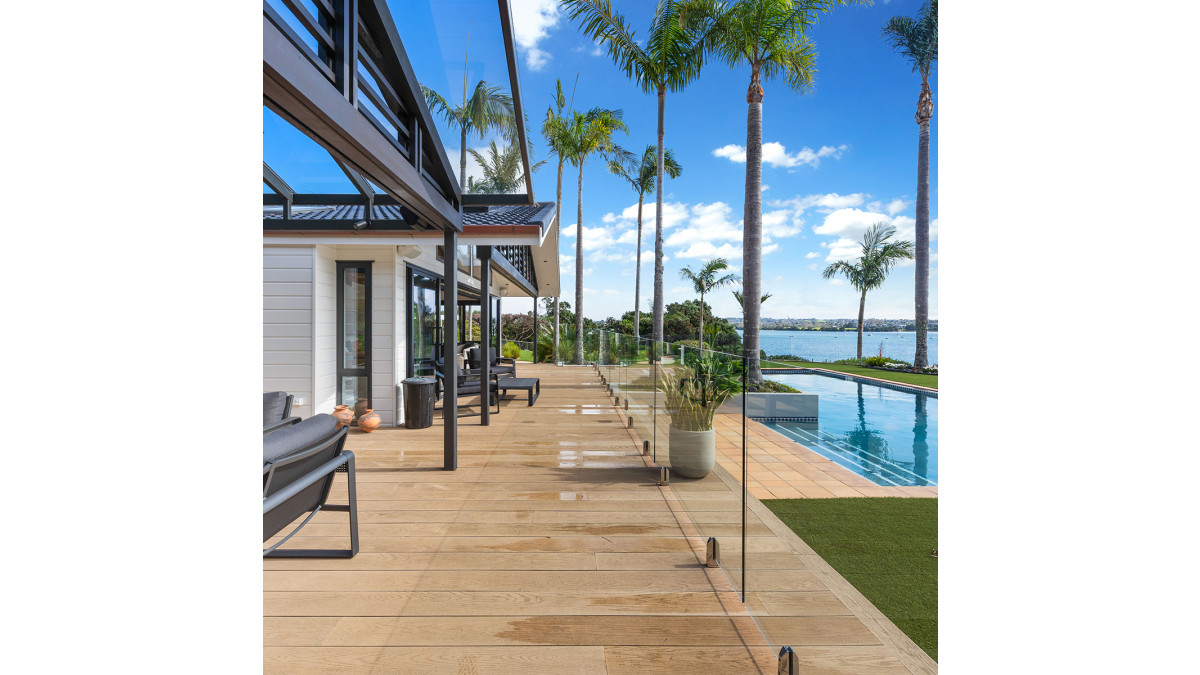

pool fence a

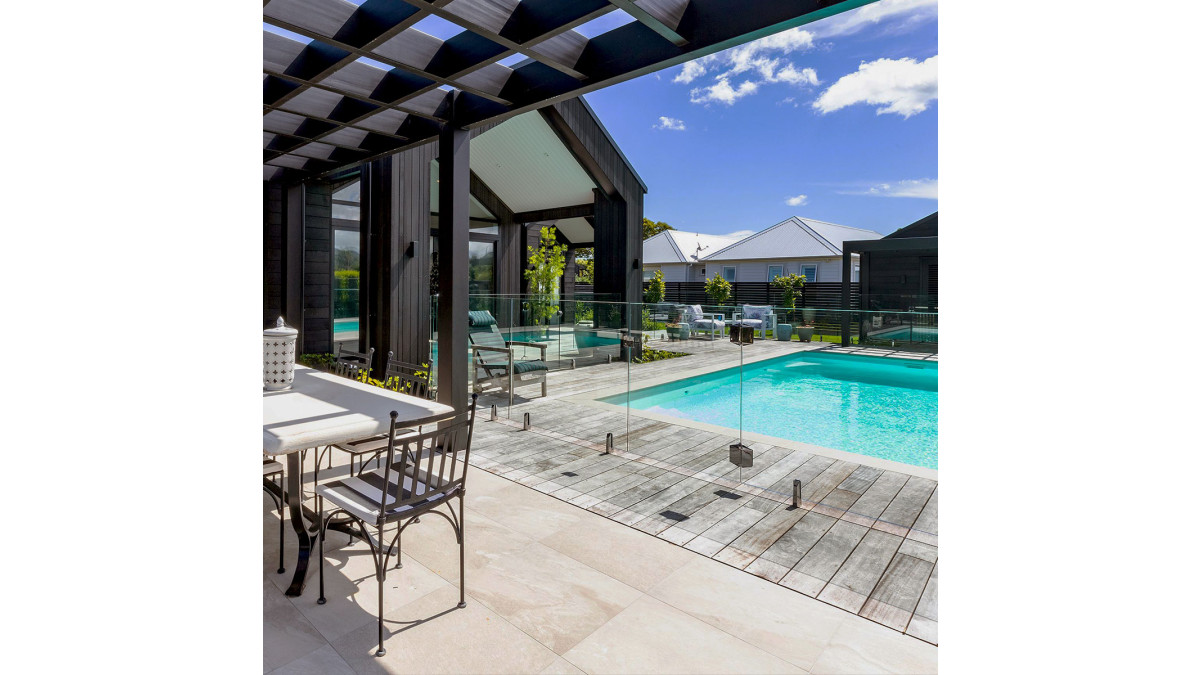

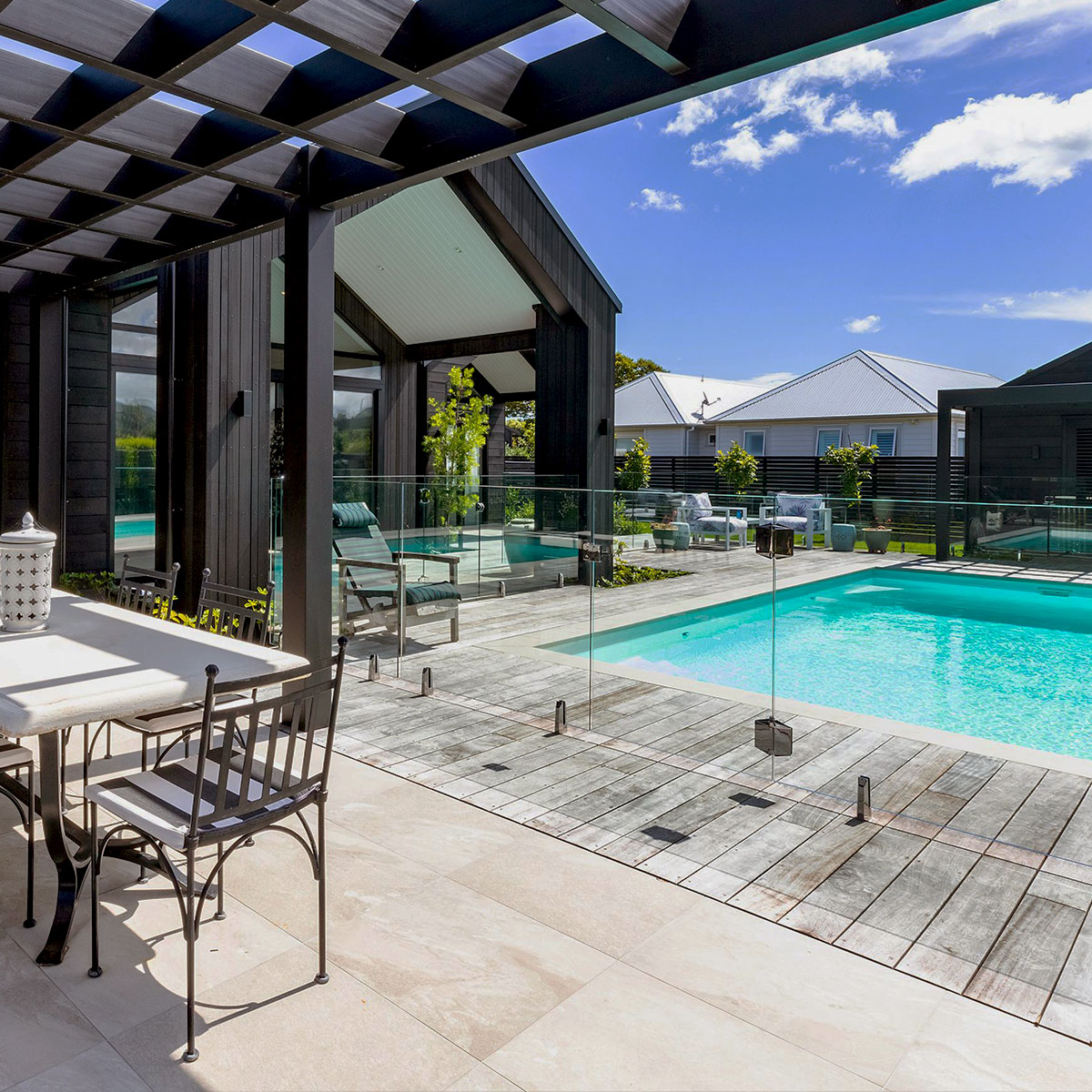

pool fence mini posts

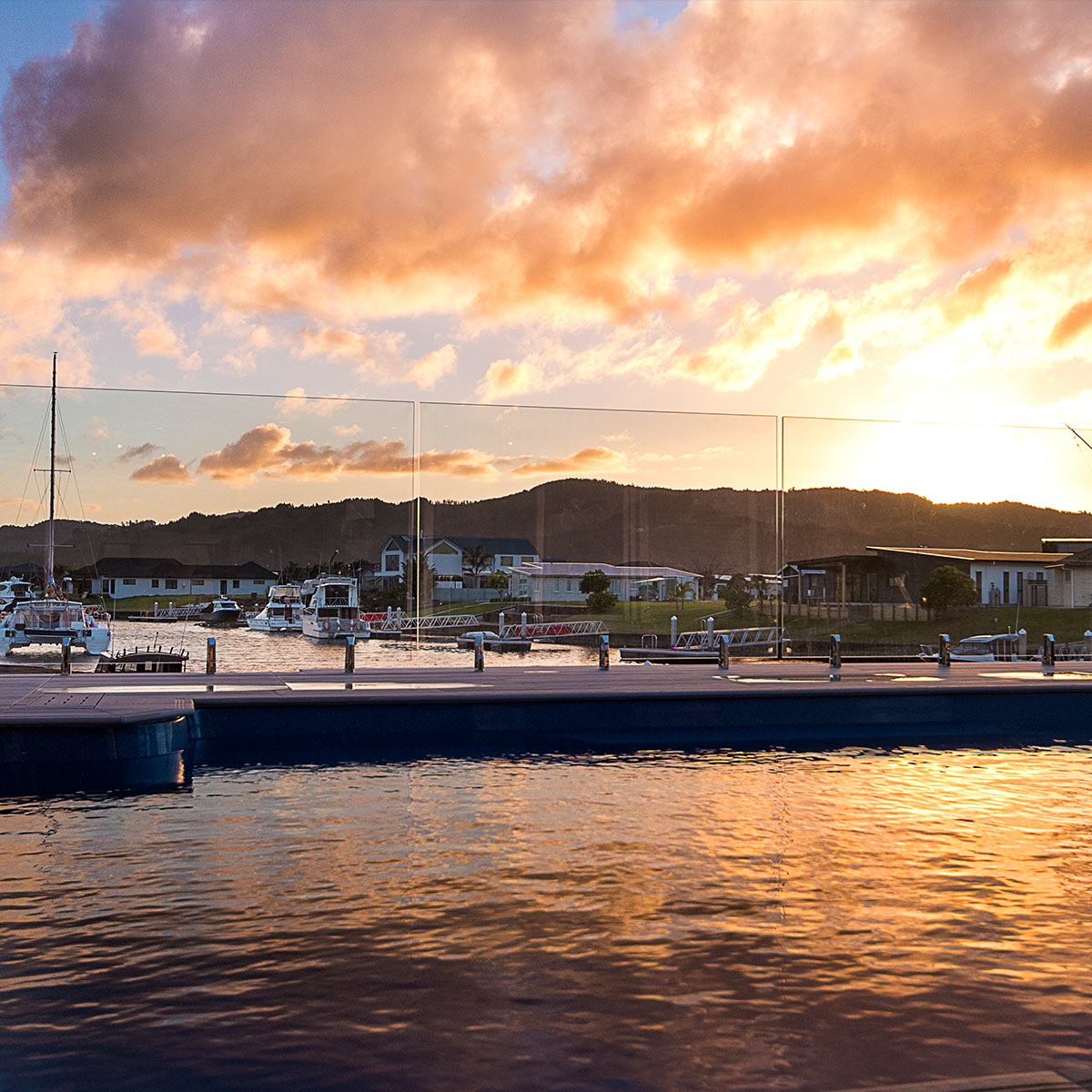

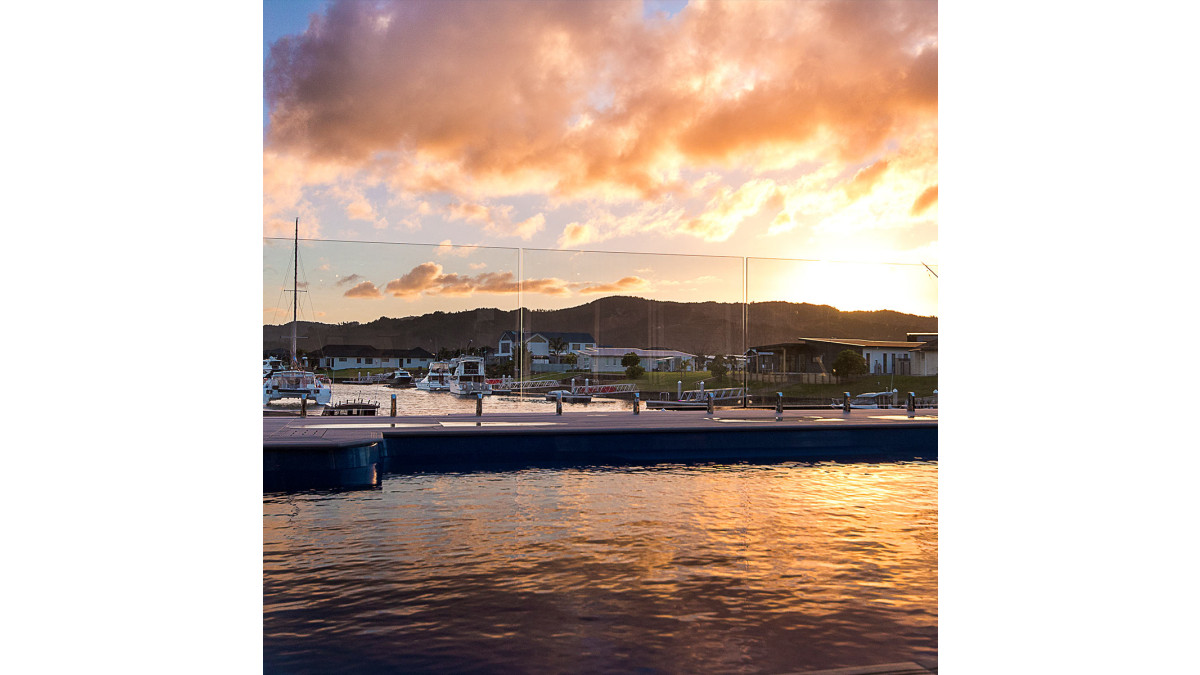

whitianga pool fence

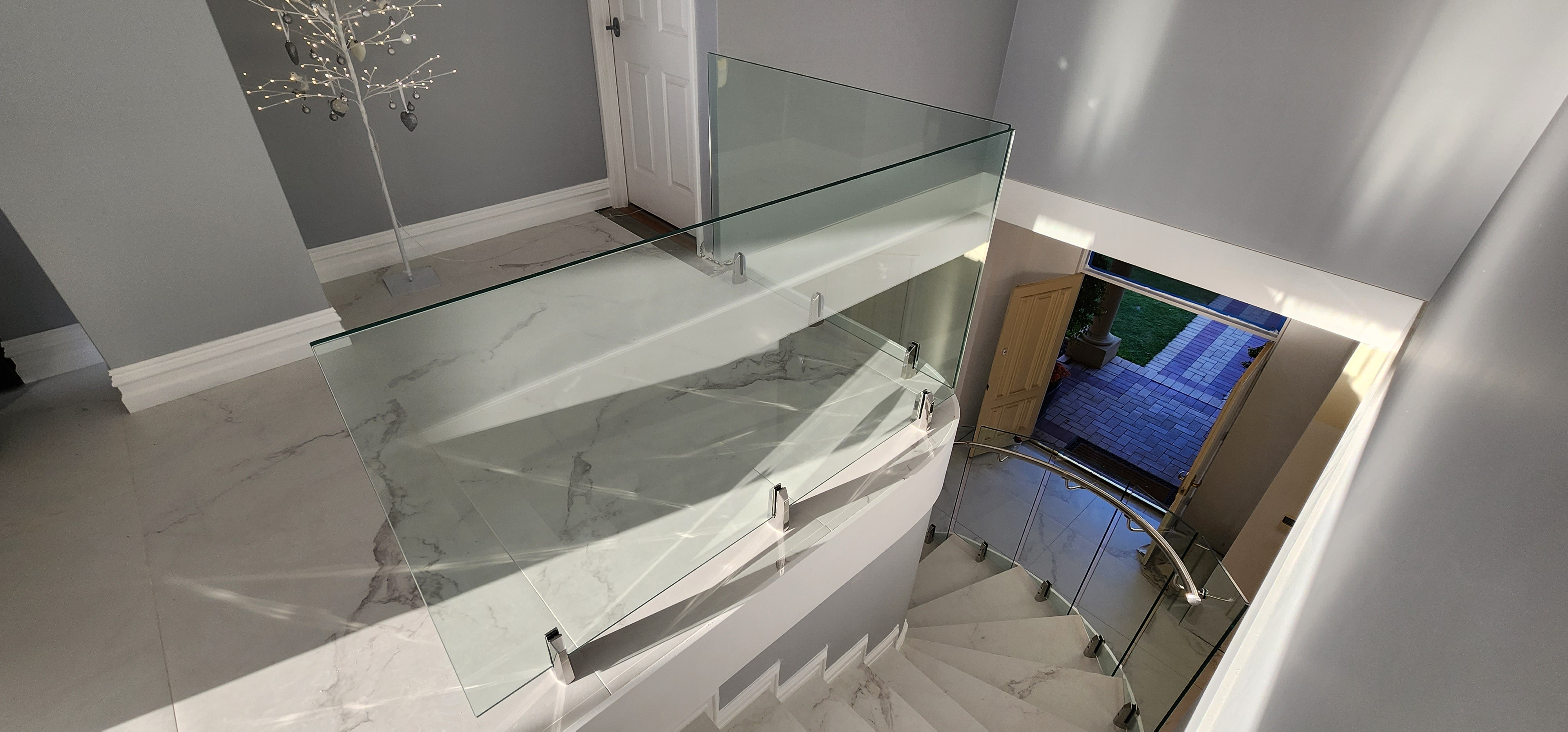

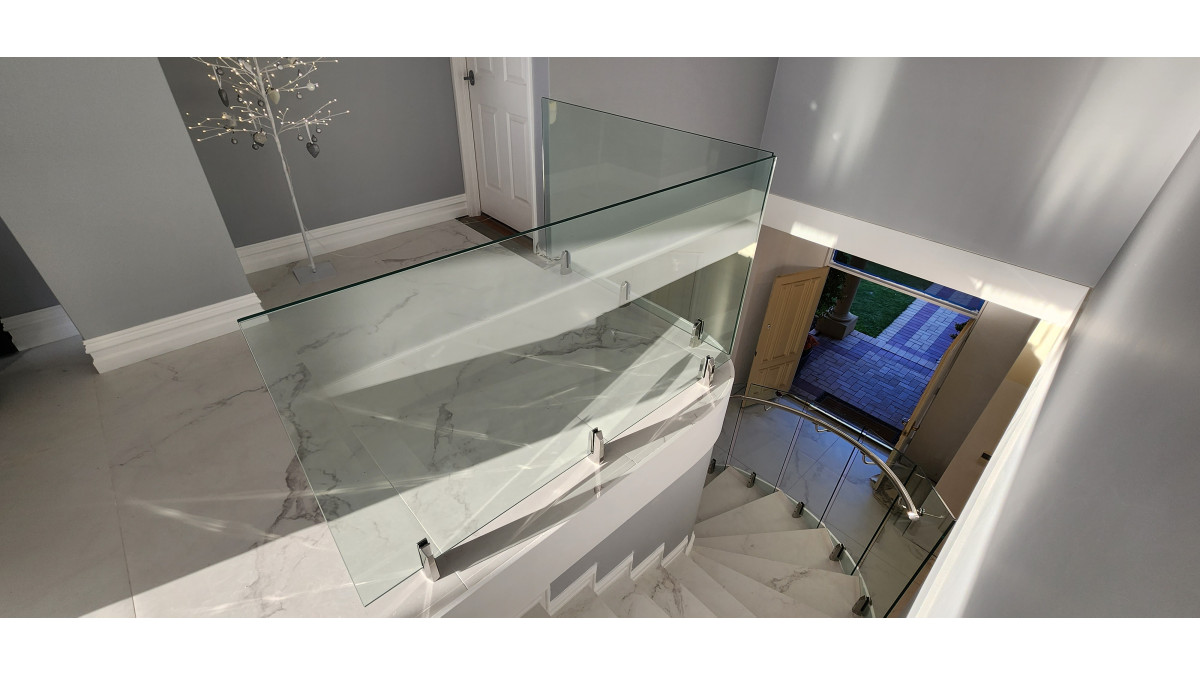

EB 20221202 181321

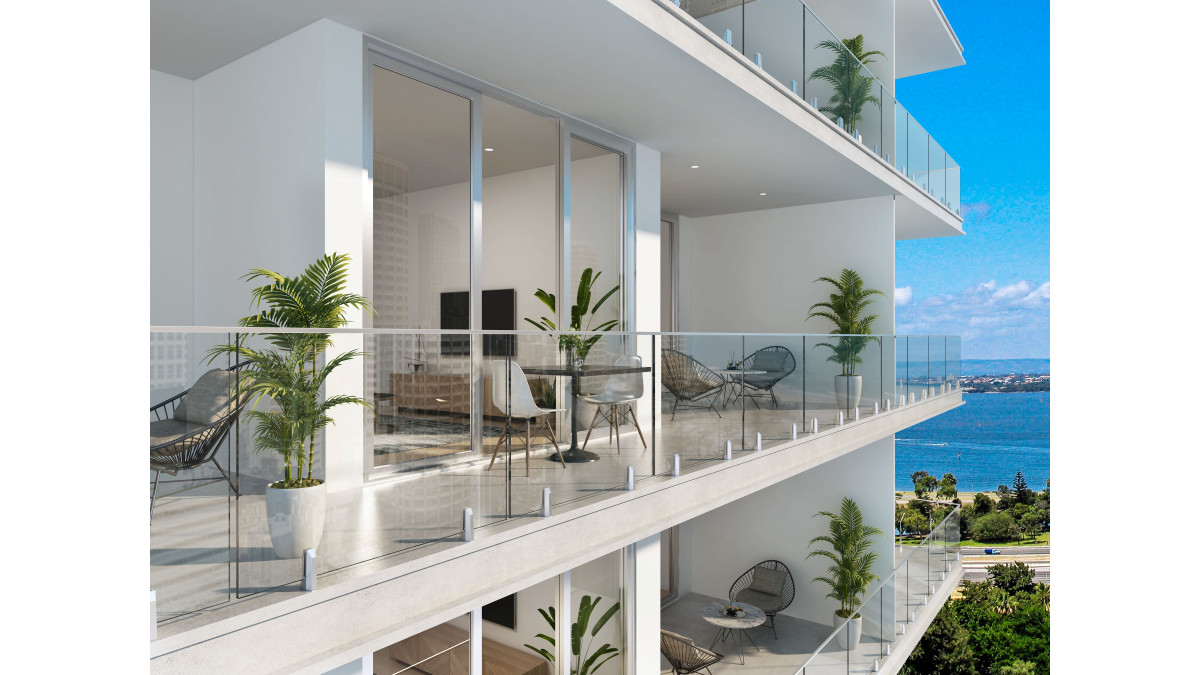

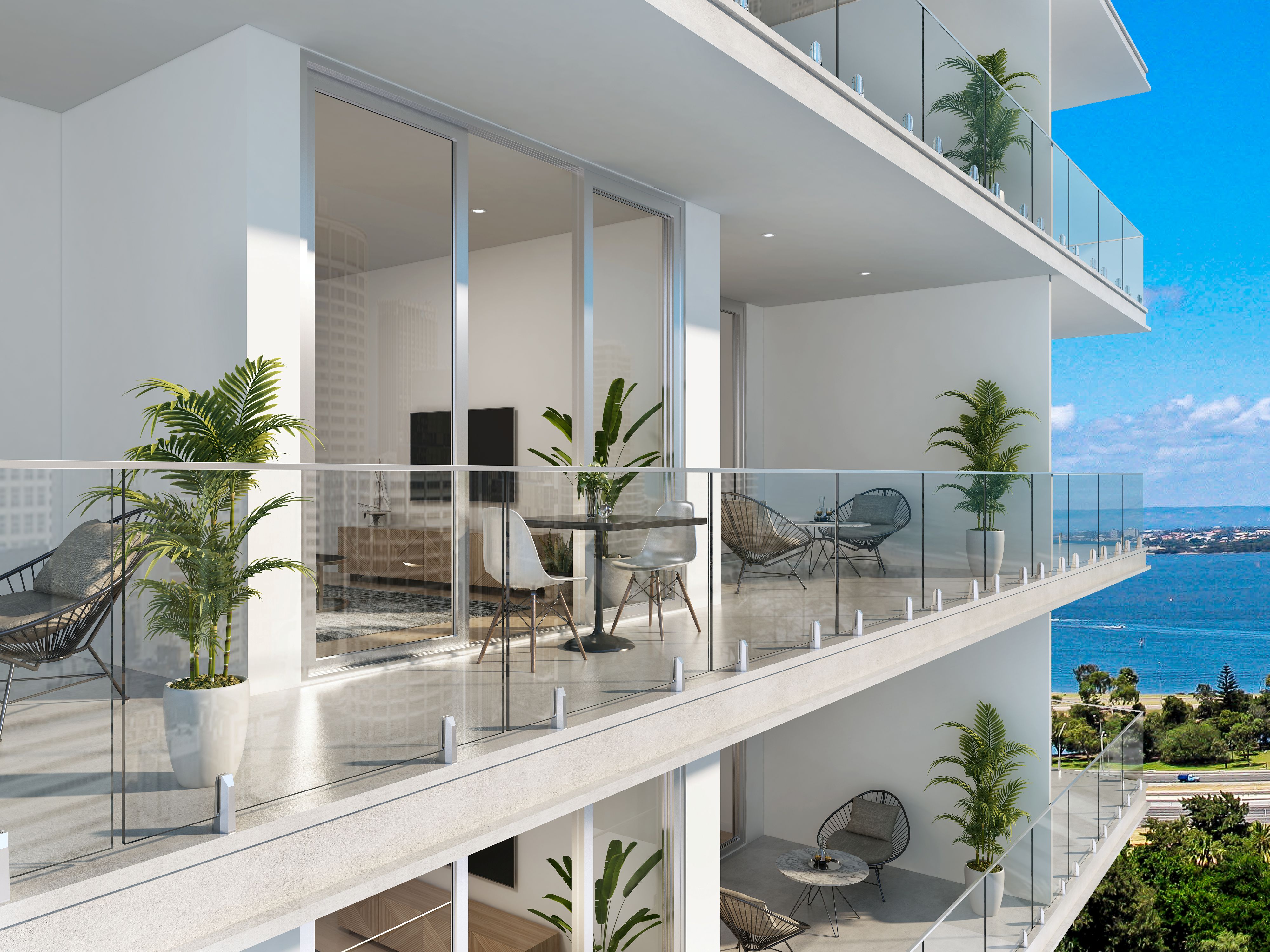

EB Smartt lock SE82X brushed silver with handrail

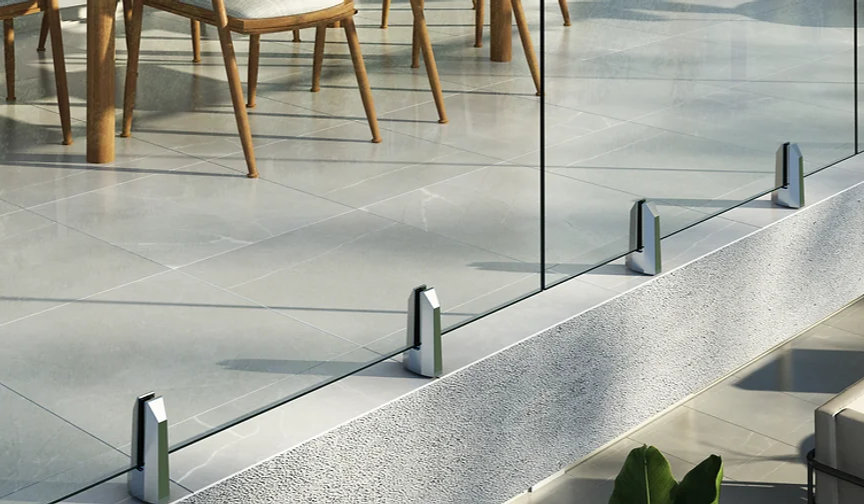

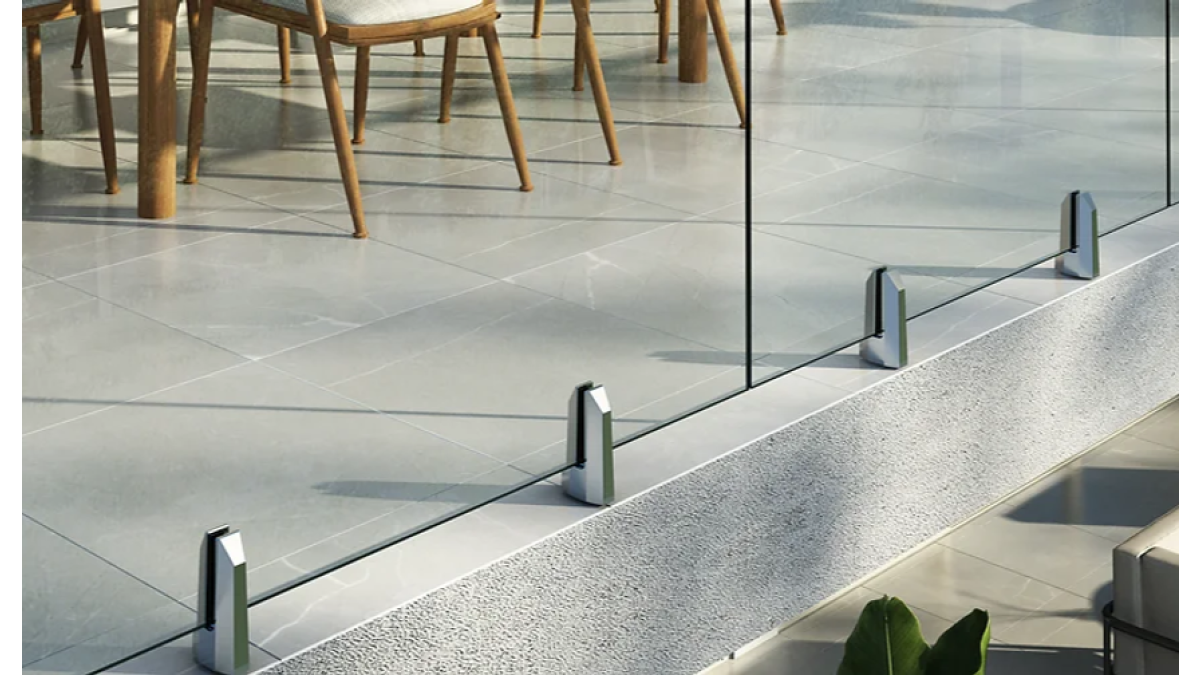

8745 Balustrade Hardware S19315 0824

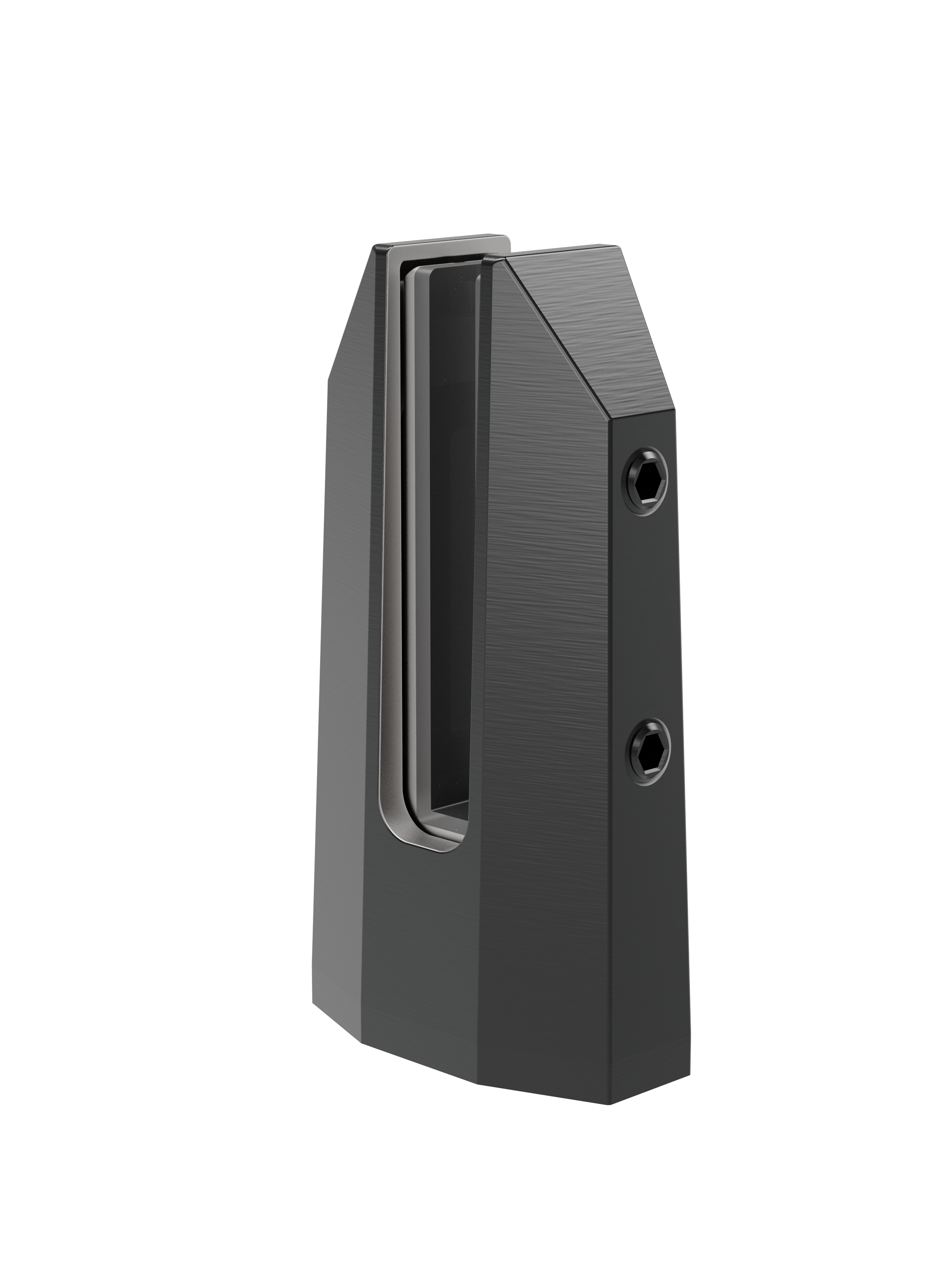

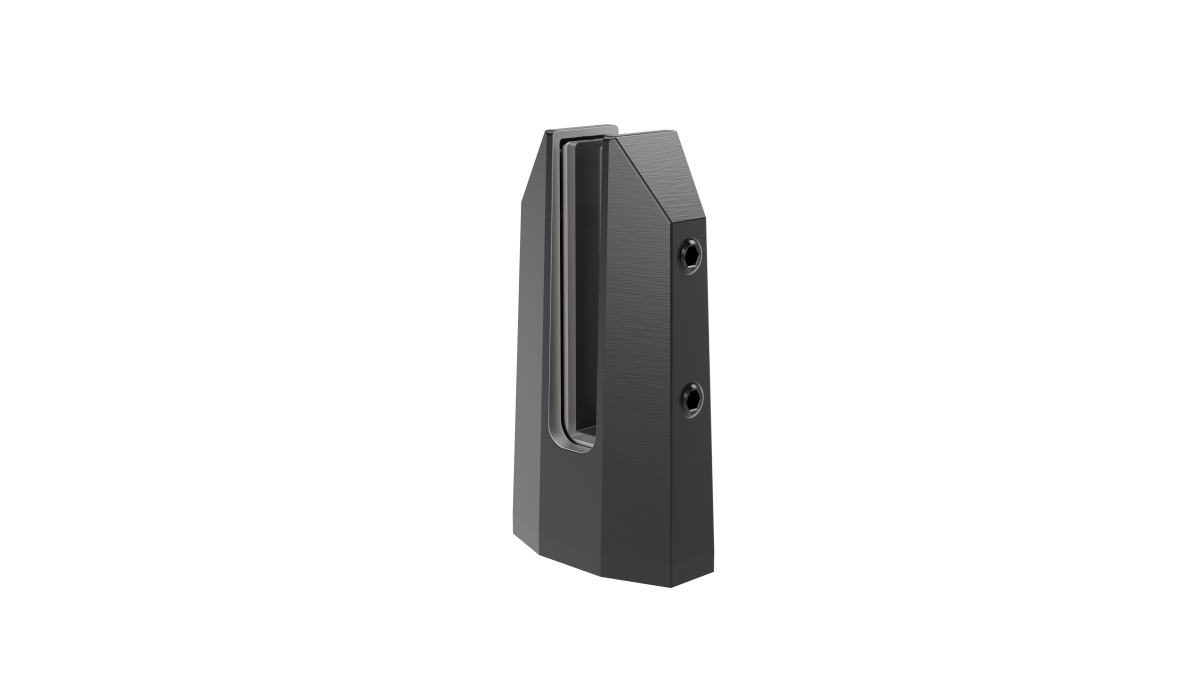

NTSE82 black brushed.788

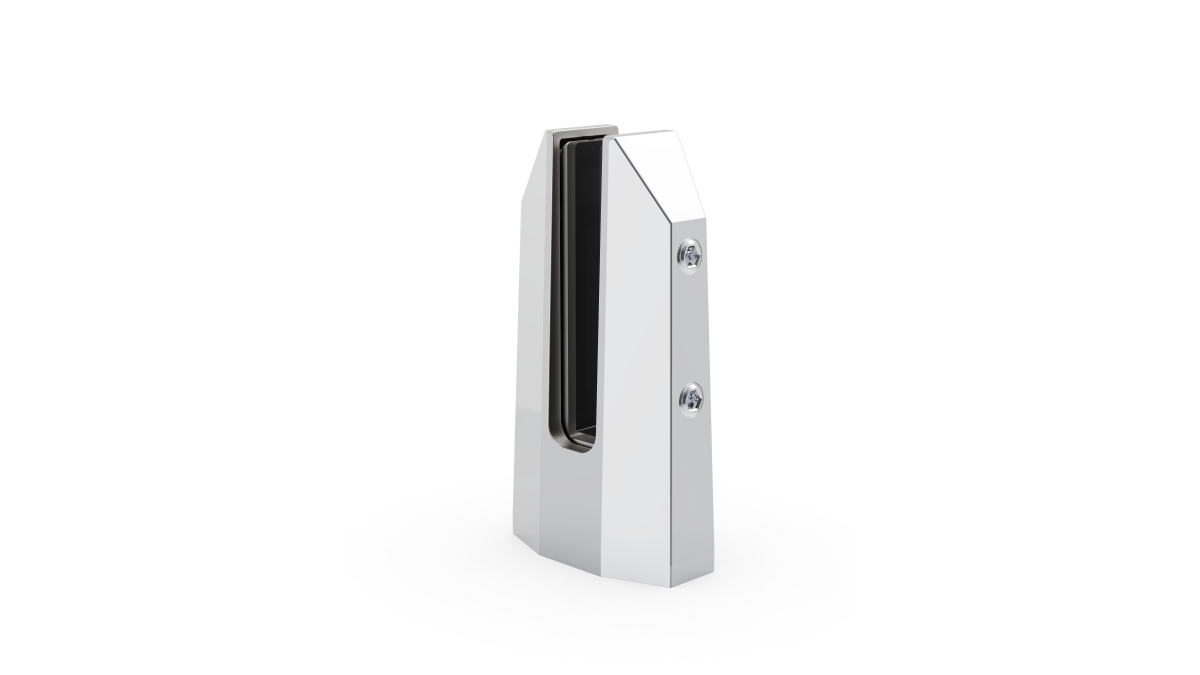

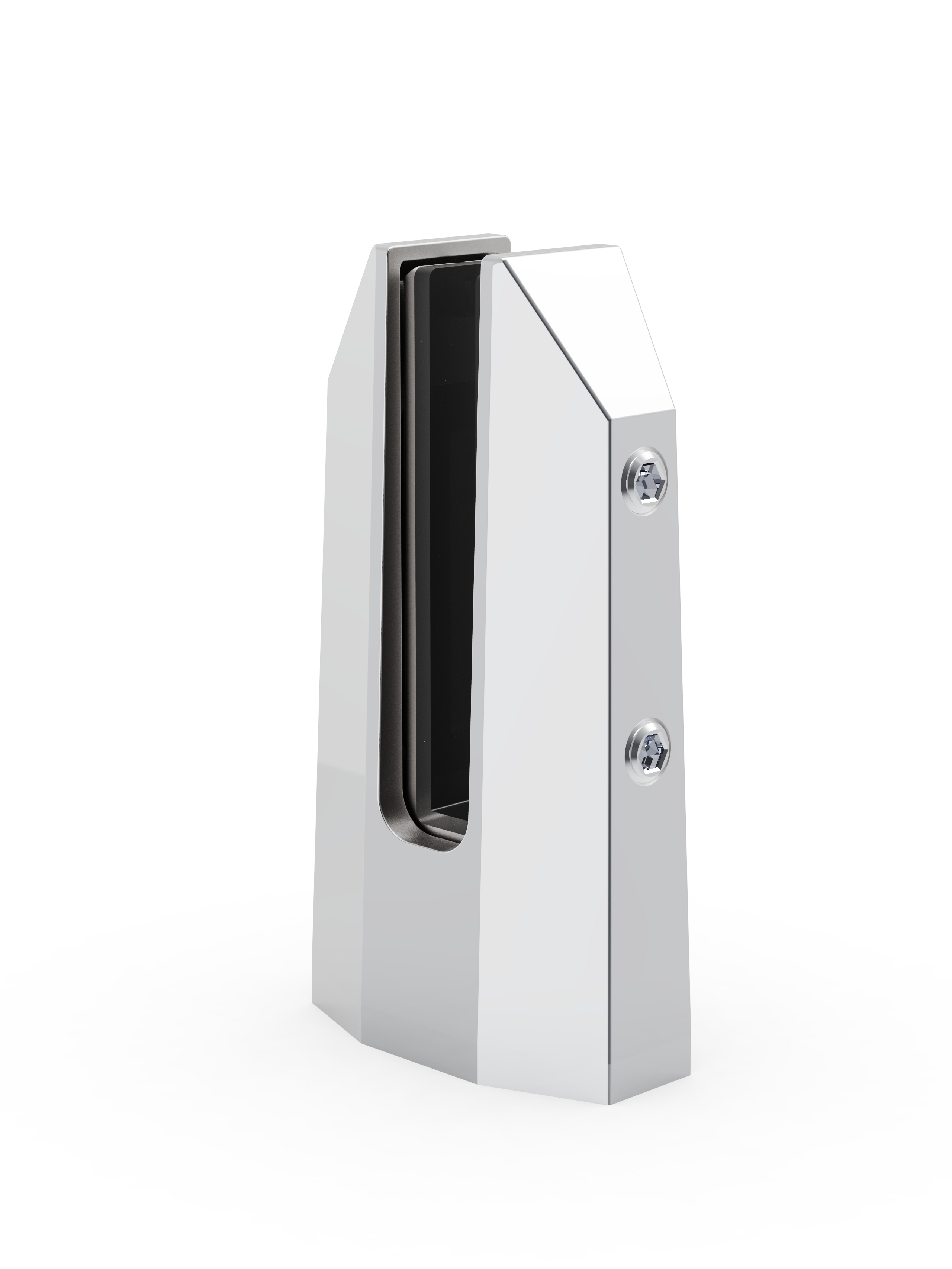

NTSE82 polished.783

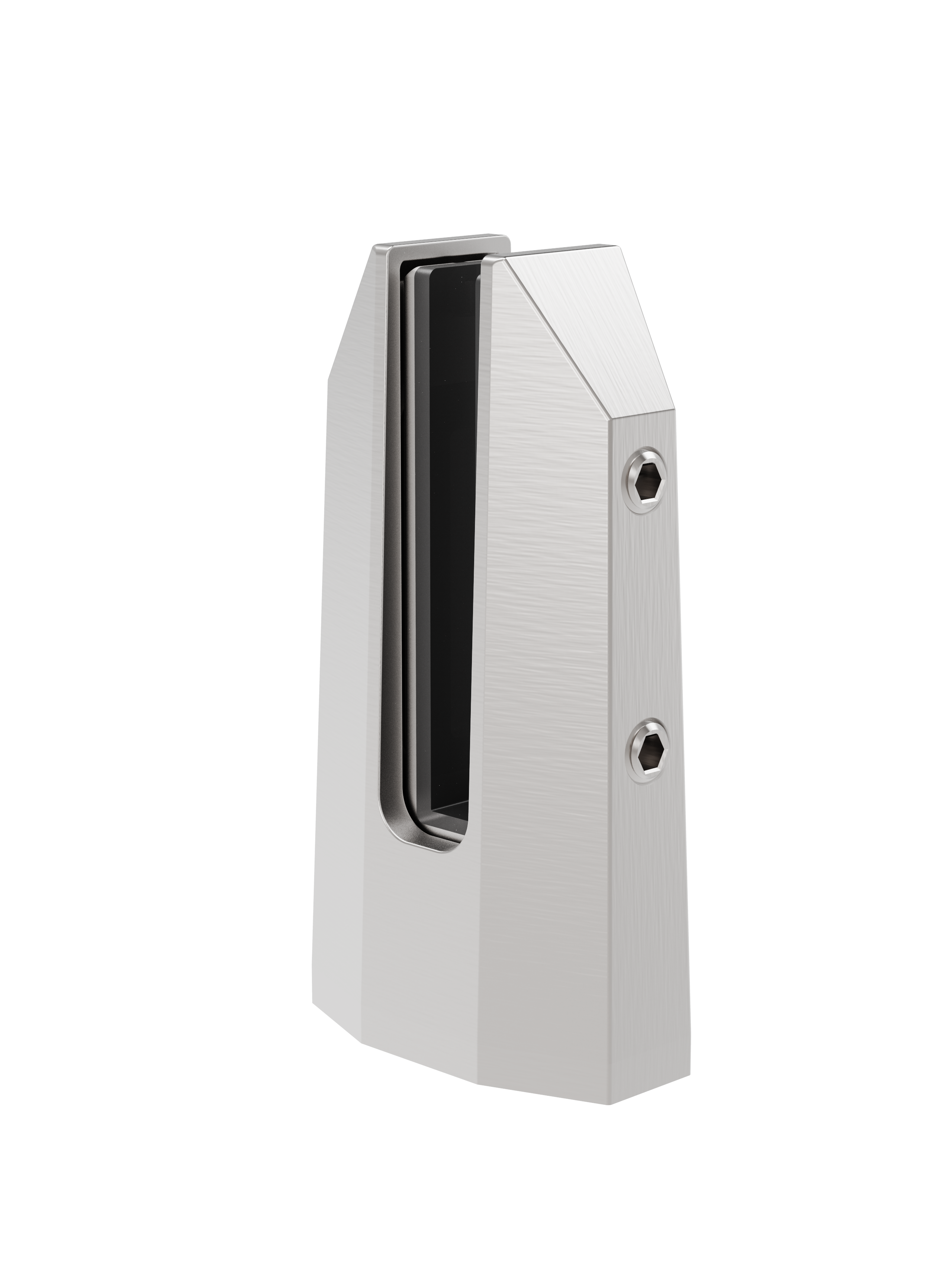

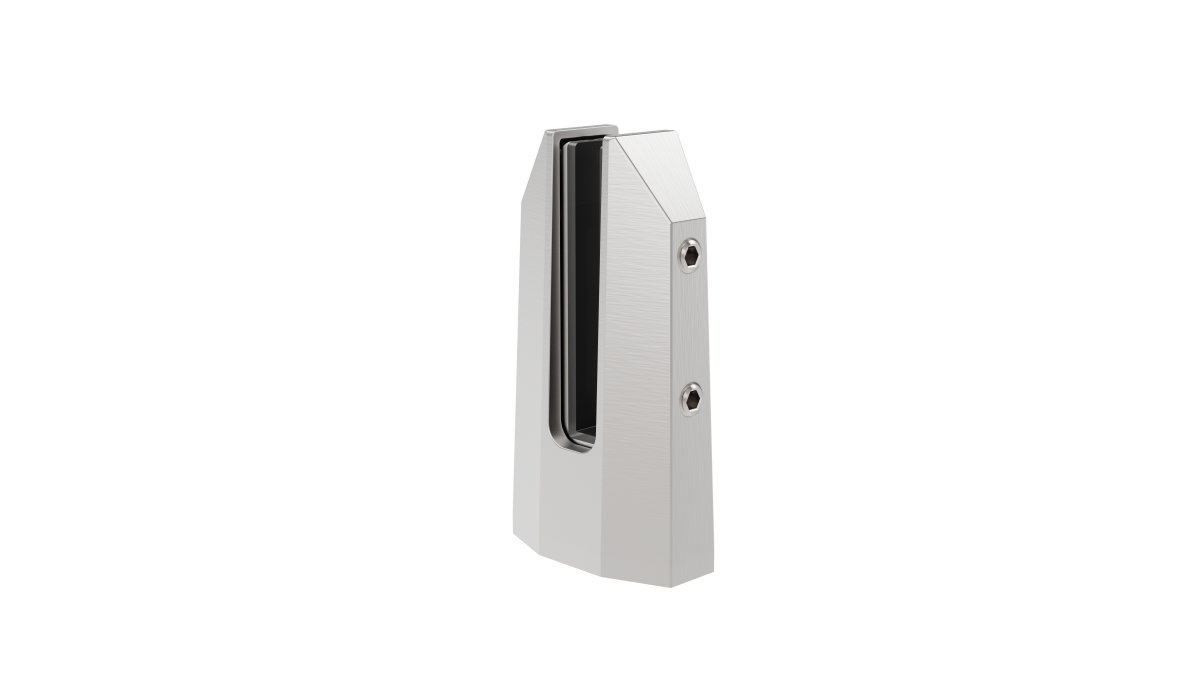

NTSE82 Satin.784
Description

The Smart-Lock® SP14 Concealed Fixed Strut Mini Post is a Balustrade and Pool Fencing System using 2205 Duplex Stainless Steel Posts that are capable of clamping up to 17.52mm Toughened Glass panels without visible fixings.

Suitable for a wide range of applications, including balustrades, windbreaks, stairways and pool fencing, Smart-Lock® Struts are a unique, premium design that utilises hidden fixings with a high range of tilting adjustability to provide a premium product in all aspects.

Key Features
  • Fully tilt adjustable, allows for glass to be tilted 30mm back or forward
  • All adjustments can be achieved from one side
  • Duplex 2205 higher strength ultra marine stainless steel
  • Available in Satin, Polished, Black or a custom powder coat finish
  • Suits glass 12-17.52mm in thickness
  • Fully tested and engineered
Categories
Glass Hardware Enclosure Balustrades and Stairs Interior Balustrades, Stairs and Rails Fencing, Walling and Gates Pool Fencing
Ranges
Balustrade & Pool Systems
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Suitable for balustrades, pool fencing, wind breaks, or barriers
  • Suitable for residential and commercial
  • Occupancy Types: A, B, C3, D
  • Suitable for up to Extra High wind zones (subject to glass requirements)
  • Accommodates 12mm to 17.52mm glass types
  • Mounted into timber, steel or concrete
  • Frameless or semi-frameless with handrail
Limitations on Use
  • Not Suitable for C1 & C2, C5 occupancies
Statement of Building Code Compliance
    • B1 Structure
    • F2 Hazardous Building Materials
    • F4 Safety from Falling
    • F9 Restricting Access to Residential Pools

Design loads are in accordance with AS/NZS 1170.1:2002 table 3.3 as modified by NZBC B1/VM1 and DBH Guidance on Barrier Design (March 2012).

    • Occupancy Types: A, B, C3, D
Test Results
Test Results
Documents
Technical Manual

01/2025

pdf
Installation Guide

01/2025

pdf
Opus Hardware Warranty & Maintenance Guide

v1 2024

pdf
Product Guide: Balustrade & Pool
pdf
CAD/PDF Details
View full

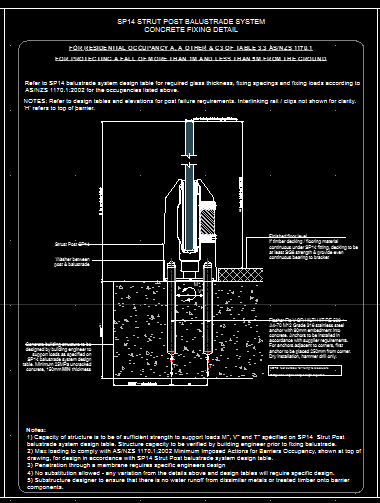

SP14 DWG
SP14 DWG Fixing Details

1

01/2025

dwg
