OpusView® SP12® Square Base Mini Post Balustrade
Opus Hardware
All products

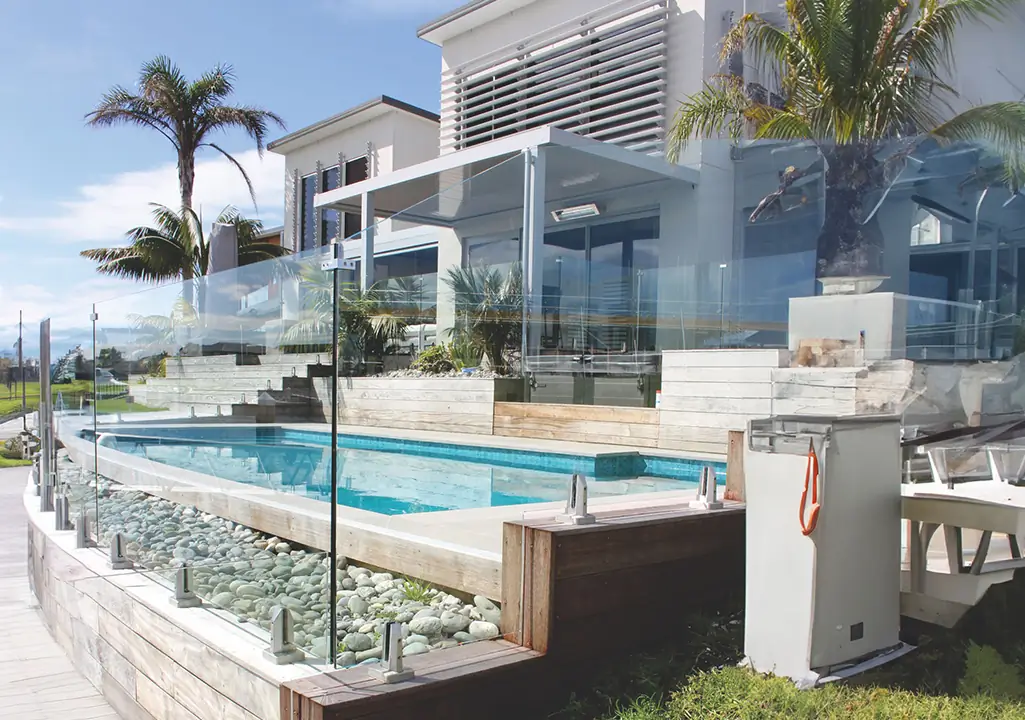

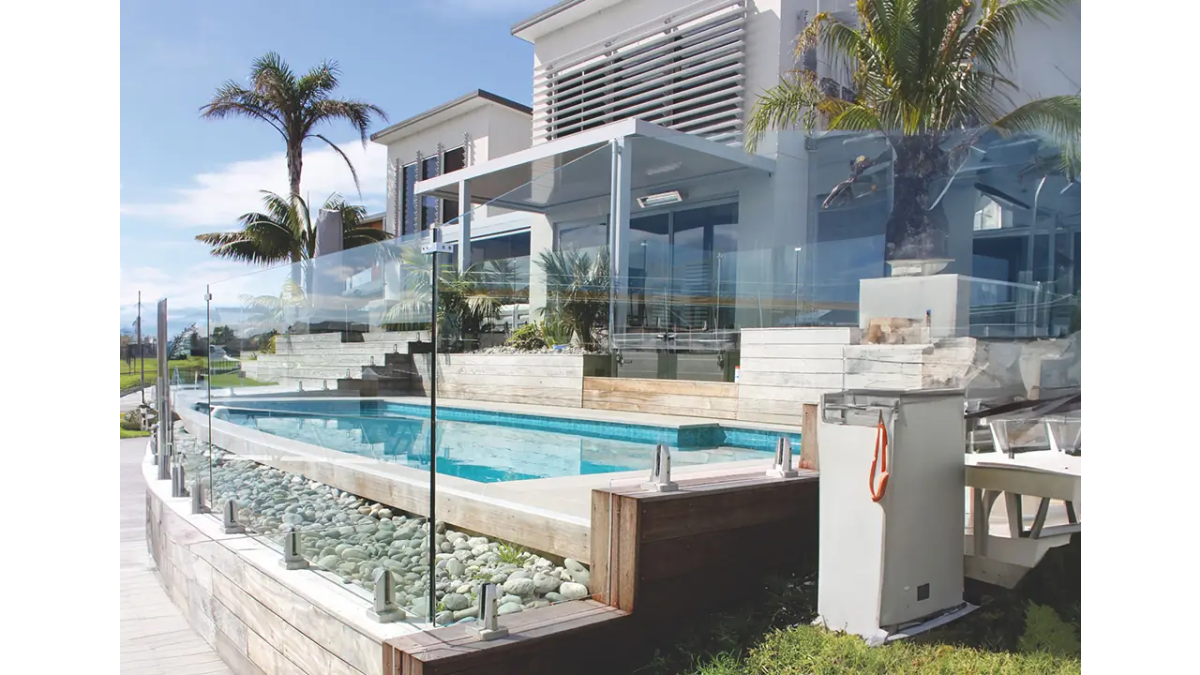

pool fences02
pool fencing banner

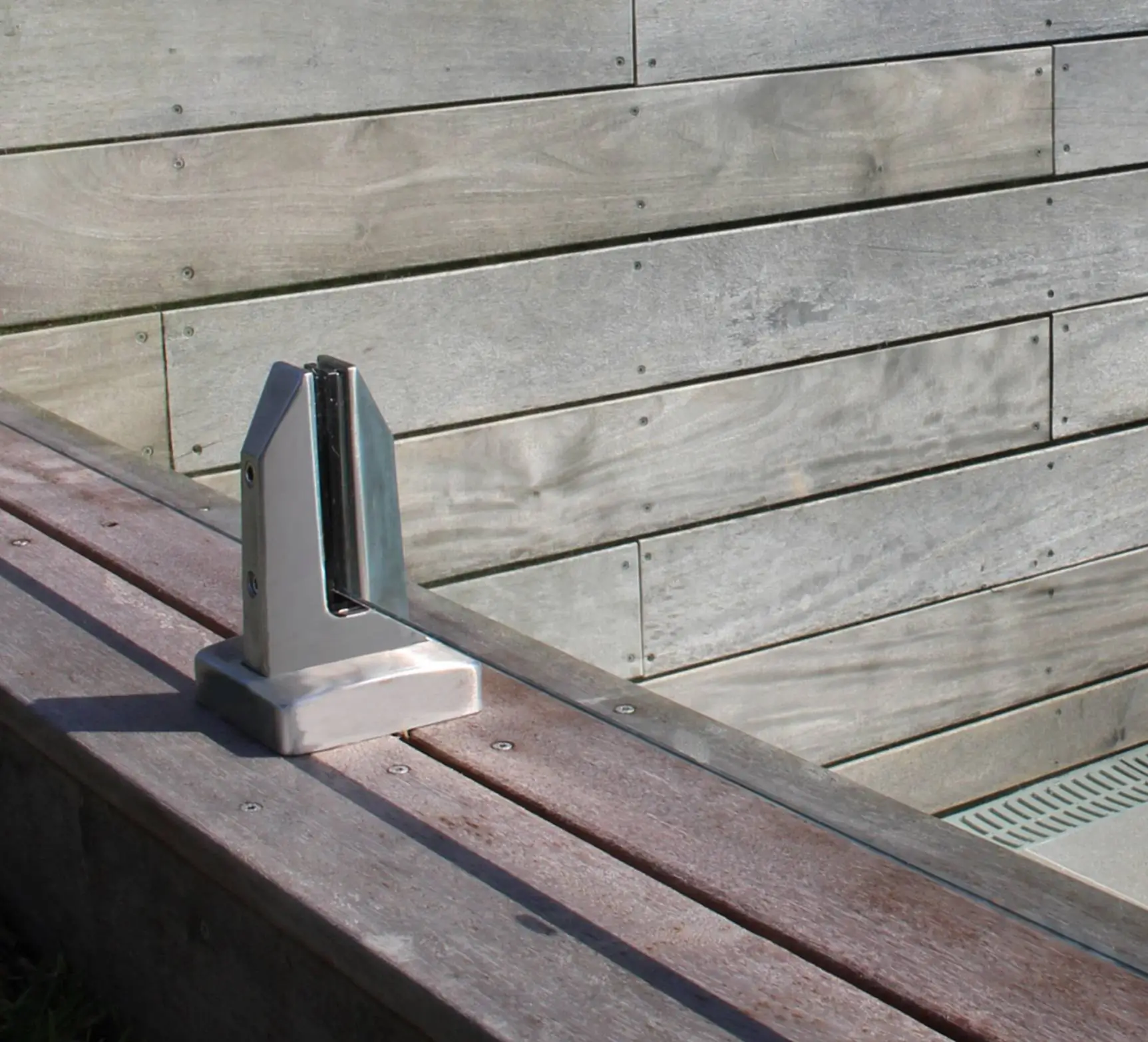

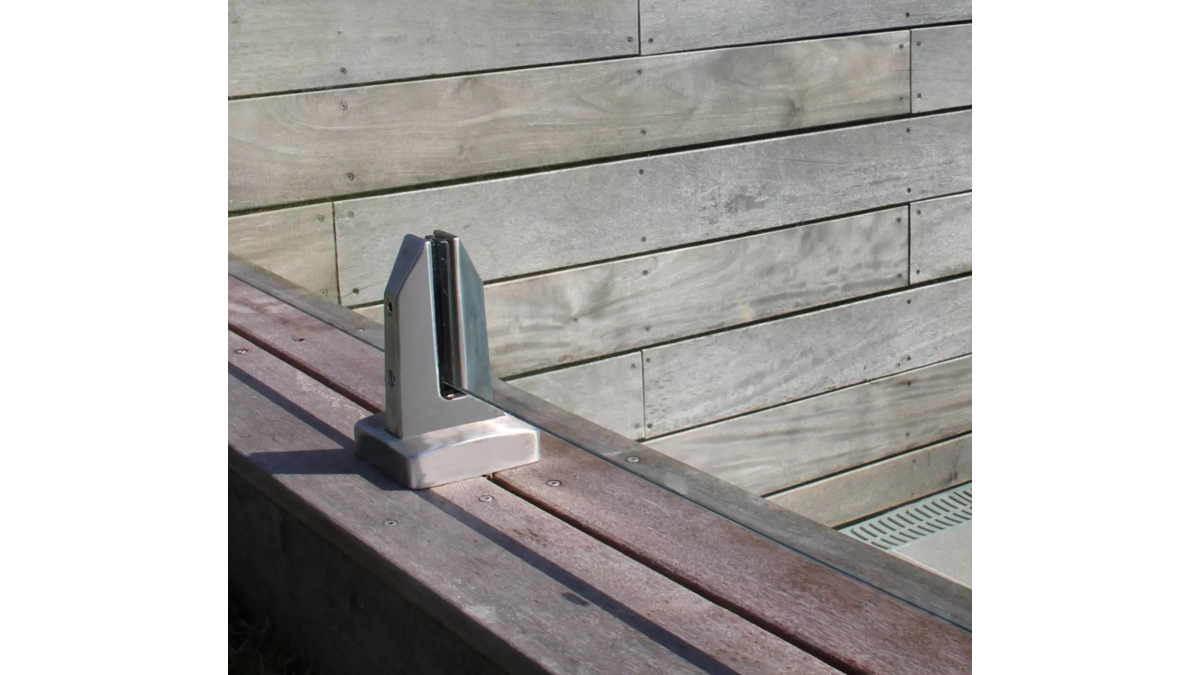

SP12 Balustrade

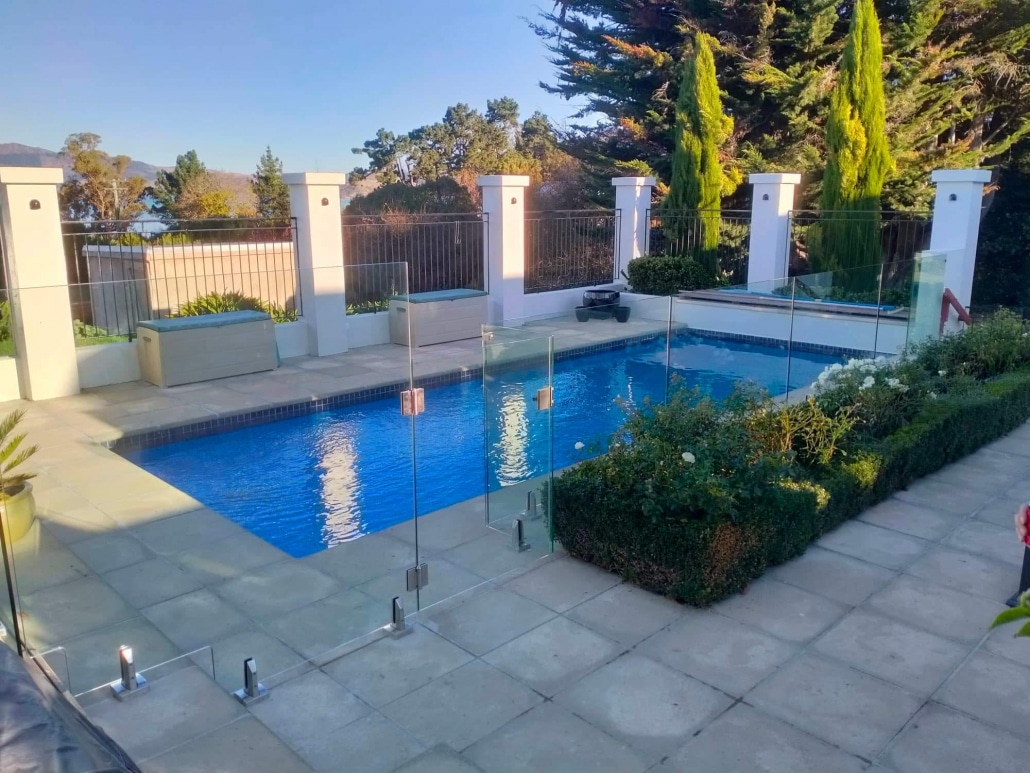

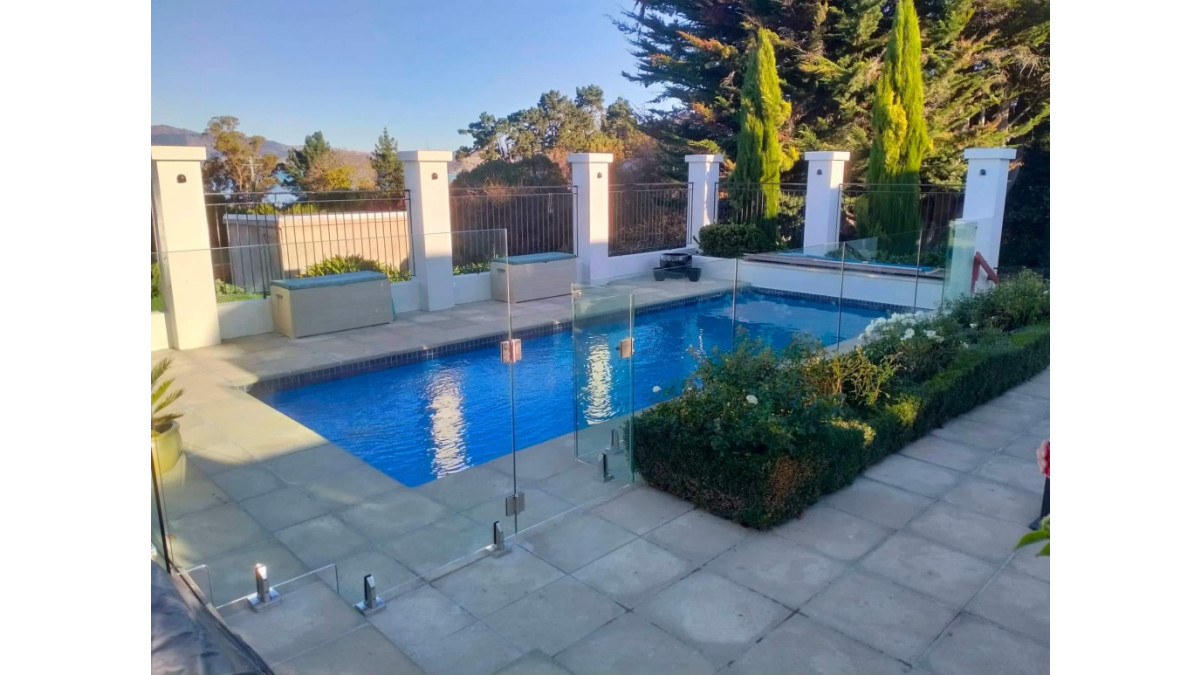

Canterbury Balustrade GlassStrut.JPG 2 1030x773

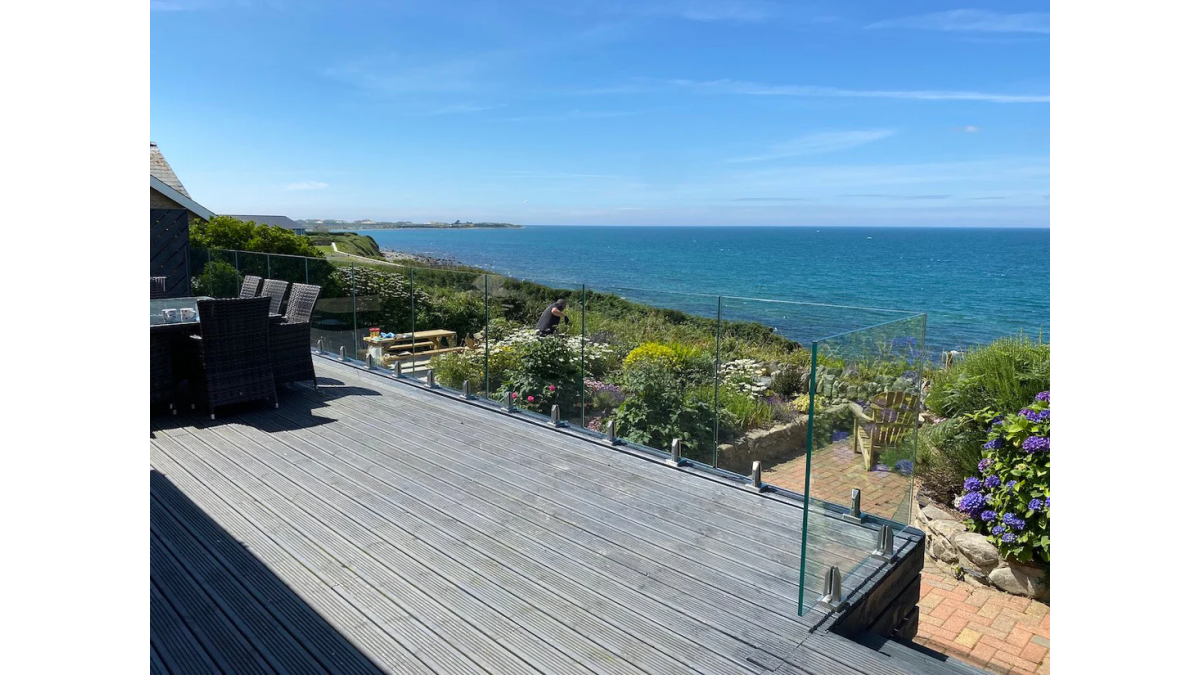

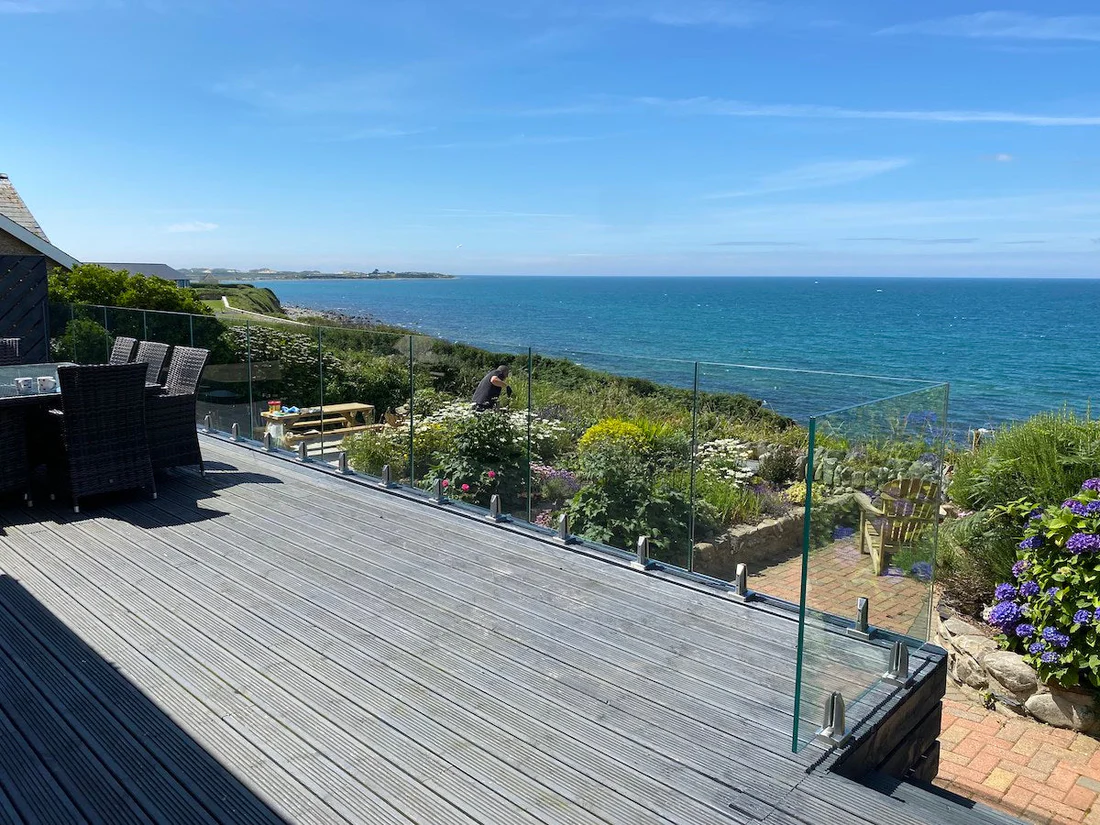

Wales Project 3 Copy

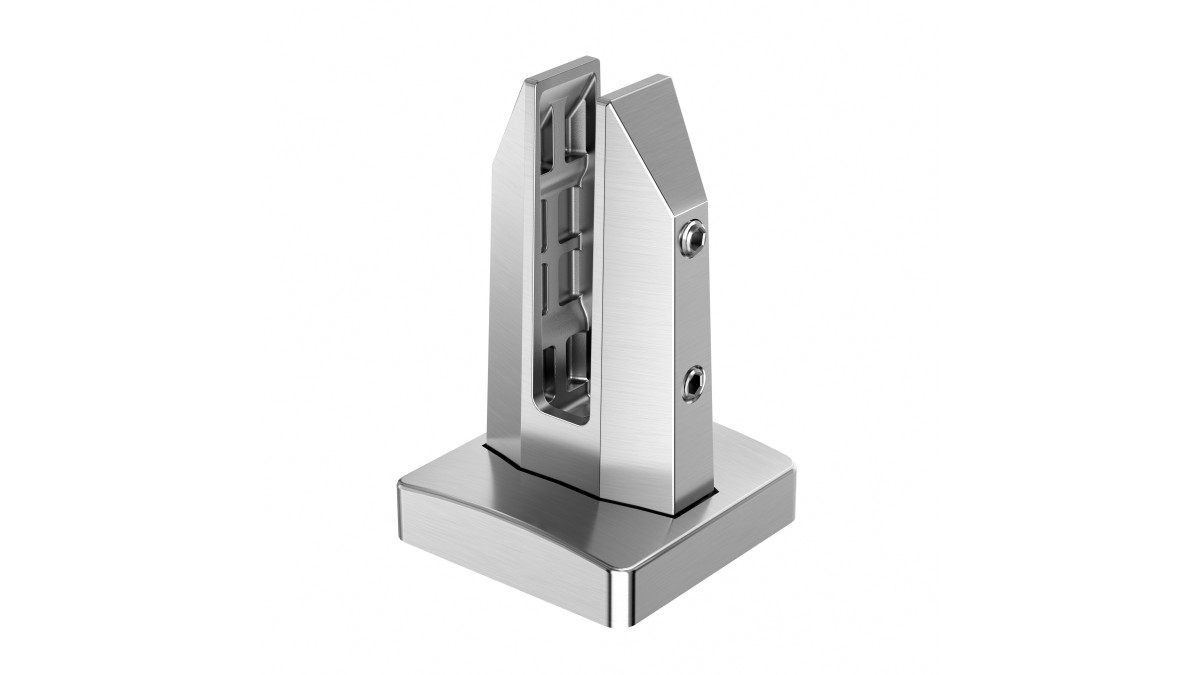

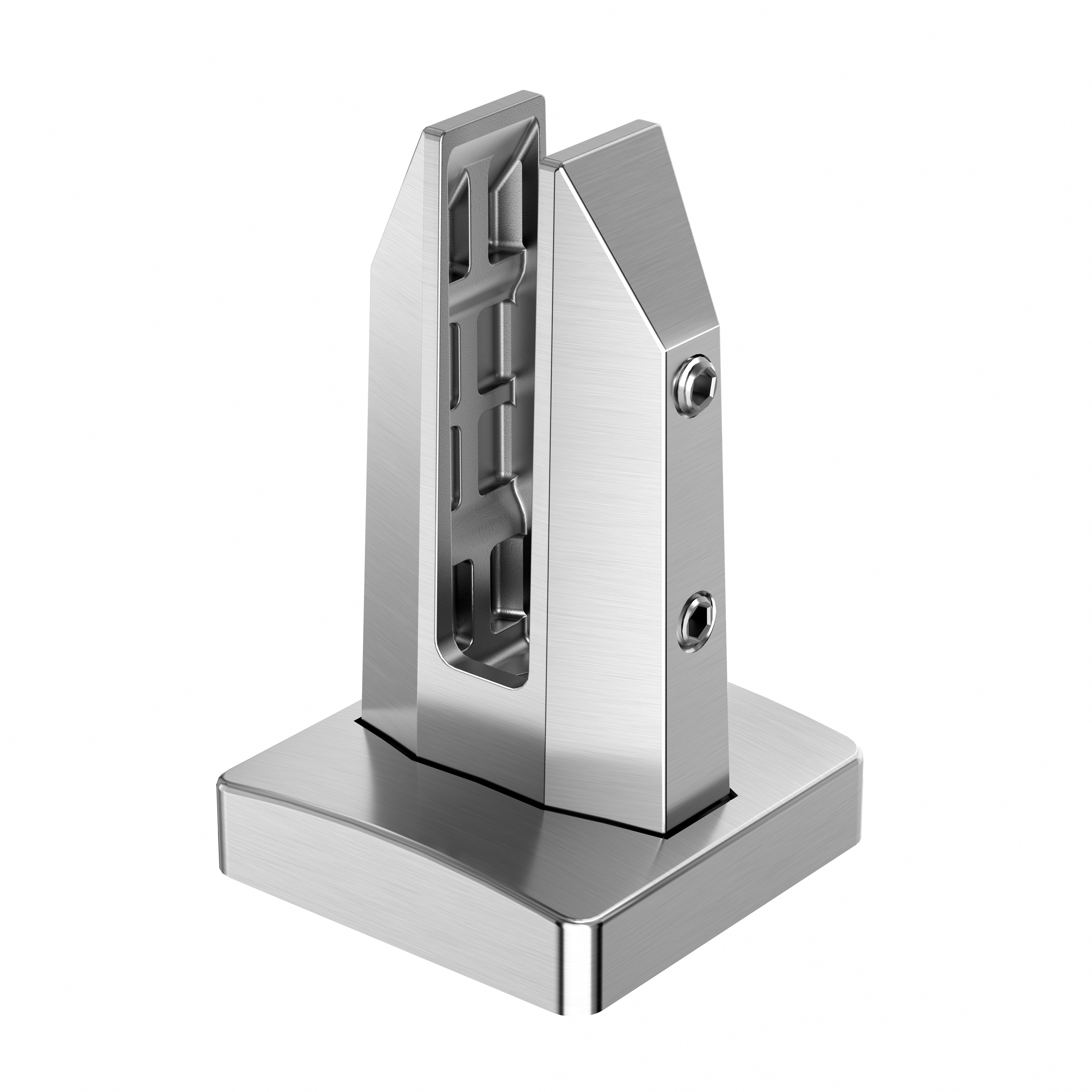

SP12 SS

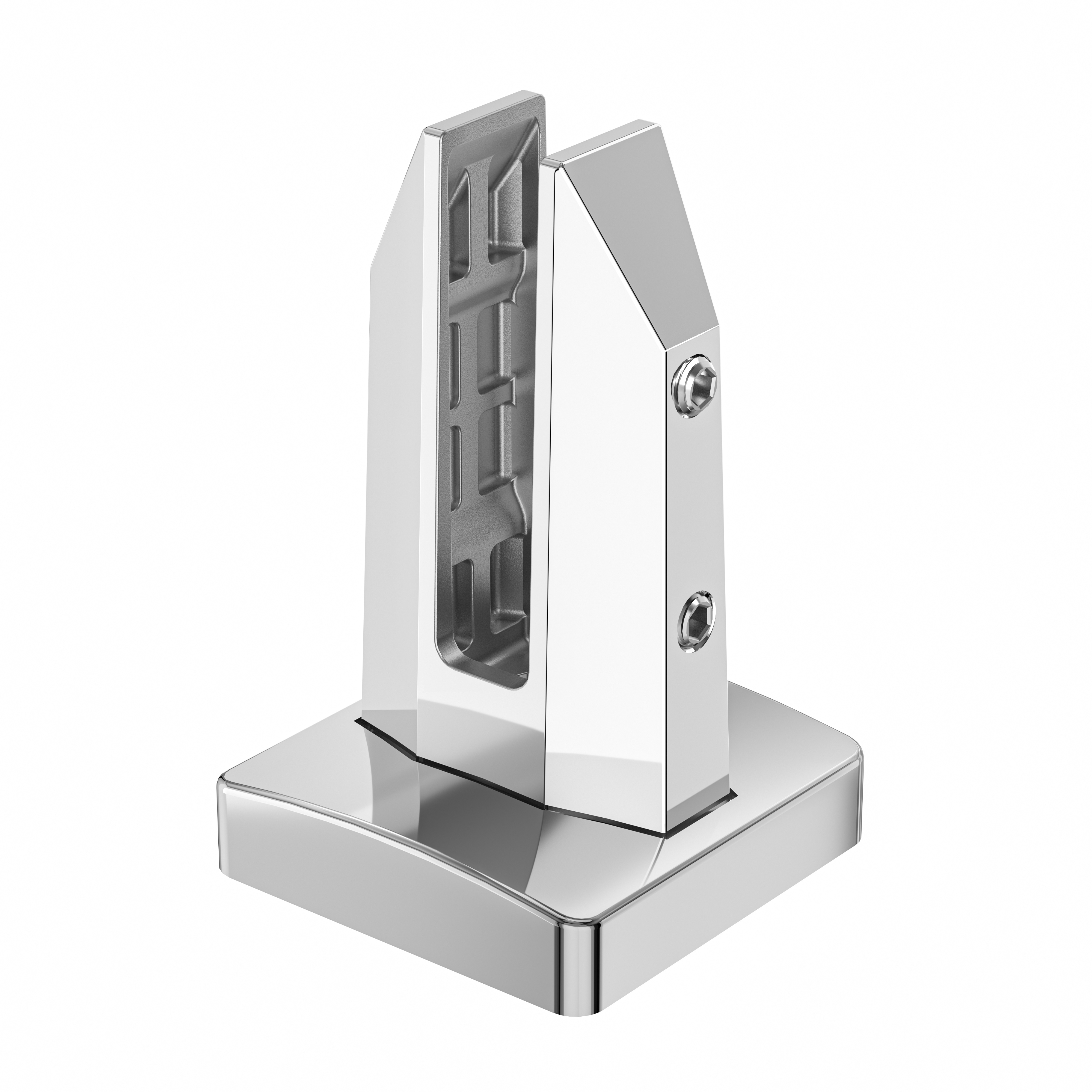

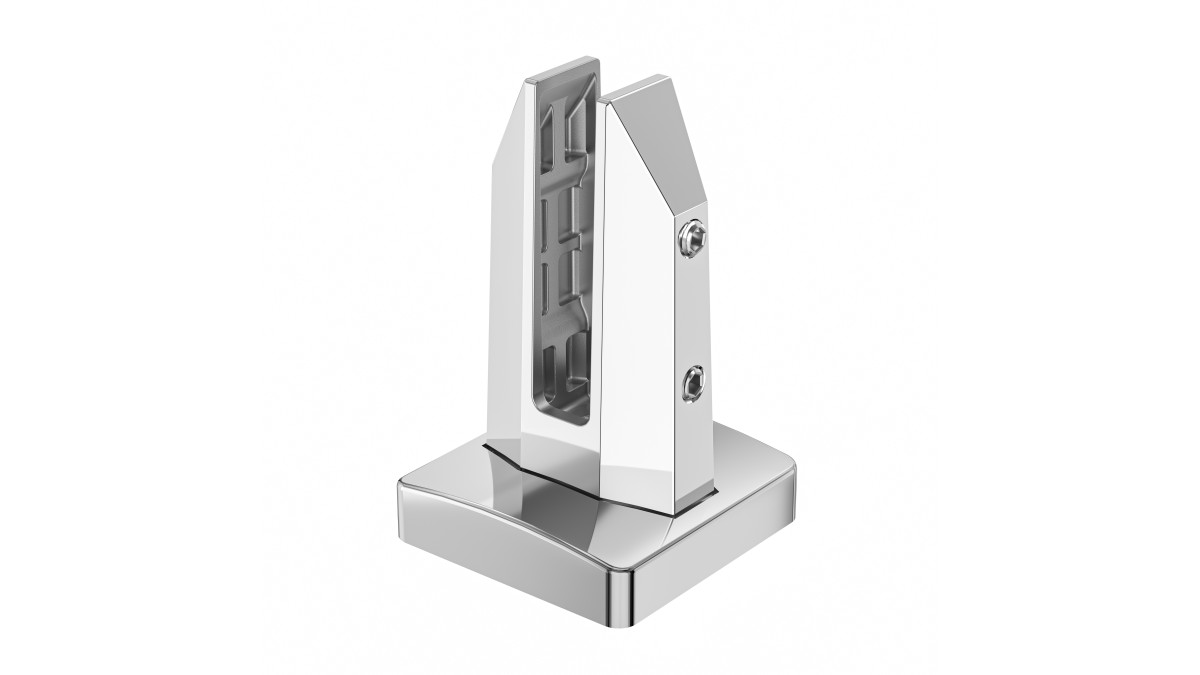

SP12 PS

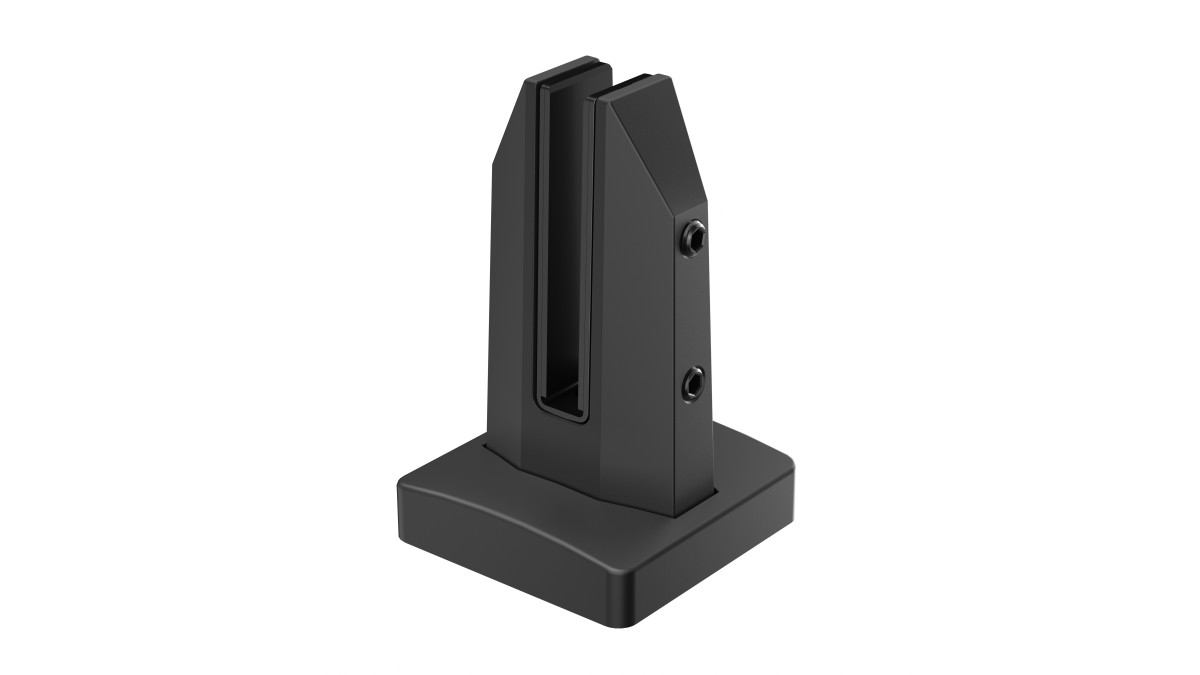

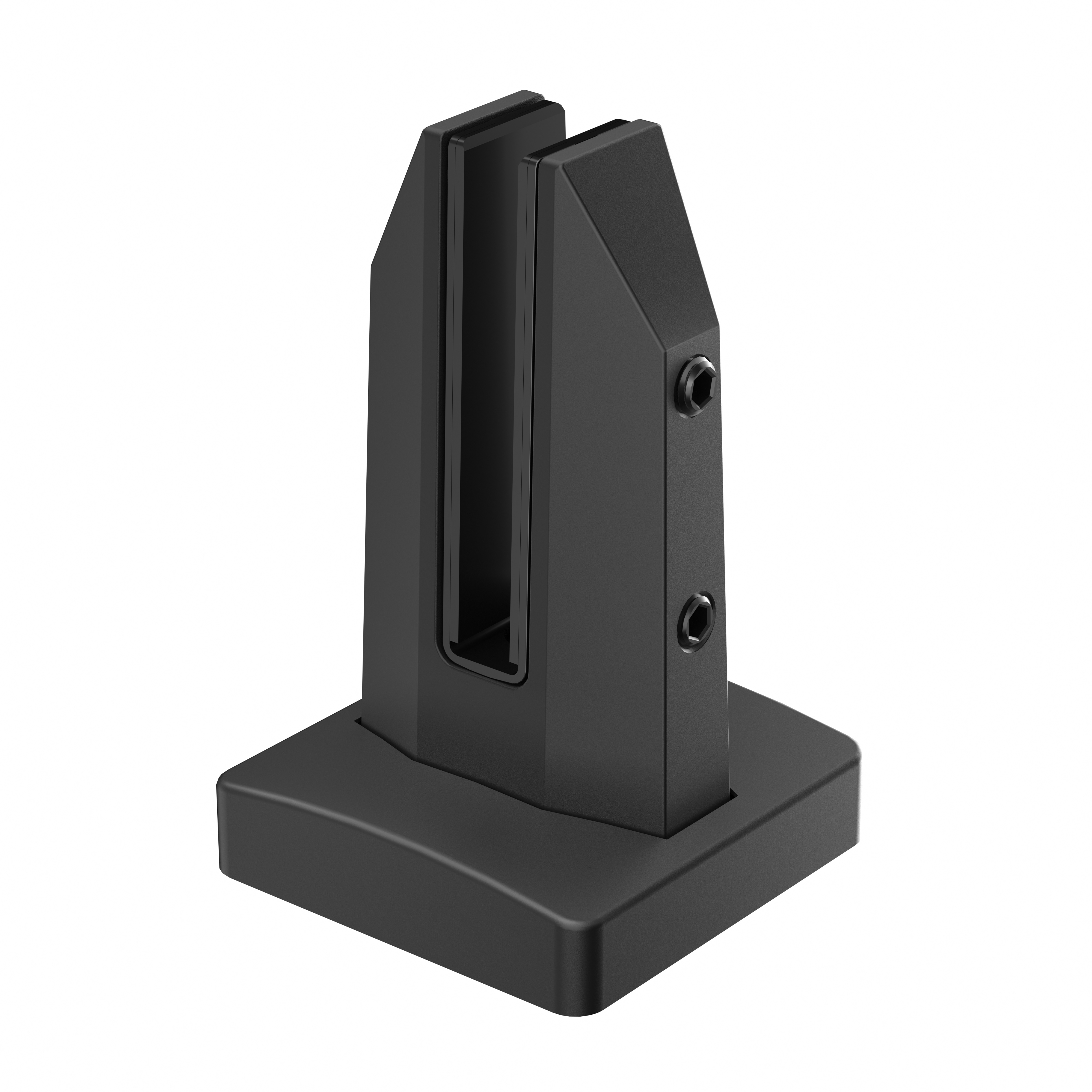

SP12 BK
Description

The Smart-Lock® SP12 Square Base Strut Mini Post is a Balustrade and Pool Fencing System using 2205 Duplex Stainless Steel Posts that are capable of clamping up to 17.52mm Toughened Glass panels without visible fixings.

Suitable for a wide range of applications, including balustrades, windbreaks, stairways and pool fencing, Smart-Lock® Struts are a unique, premium design that utilises hidden fixings with a high range of tilting adjustability to provide a premium product in all aspects.

Key Features
  • Fully tilt adjustable, allows for glass to be tilted 30mm back or forward
  • All adjustments can be achieved from one side
  • Duplex 2205 higher strength ultra marine stainless steel
  • Available in Satin, Polished, Black or a custom powder coat finish
  • Suits glass 12-17.52mm in thickness
  • Fully tested and engineered
Categories
Glass Hardware Enclosure Balustrades and Stairs Interior Balustrades, Stairs and Rails Fencing, Walling and Gates Pool Fencing
Ranges
OpusView® Balustrade & Pool Systems
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Suitable for balustrades, pool fencing, wind breaks, or barriers
  • Suitable for residential and commercial
  • Occupancy Types: A, B, C3, D (C1, C2 by specific design)
  • Suitable for up to Extra High wind zones (subject to glass requirements)
  • Accommodates 12mm to 17.52mm glass types
  • Mounted into timber, steel or concrete
  • Frameless or semi-frameless with handrail
Limitations on Use
  • Not Suitable for C5 occupancies
Statement of Building Code Compliance
  • B1 Structure
  • F2 Hazardous Building Materials
  • F4 Safety from Falling
  • F9 Restricting Access to Residential Pools

Design loads are in accordance with AS/NZS 1170.1:2002 table 3.3 as modified by NZBC B1/VM1 and DBH Guidance on Barrier Design (March 2012).

  • Occupancy Types: A, B, C3, D (C1, C2 by specific design)
Test Results
Test Results
Documents
Technical Manual: SP12

01/2025

pdf
Opus Hardware Warranty & Maintenance Guide

v1 2024

pdf
Product Guide: Balustrade & Pool
pdf
