GlassEntry® Opus Moritz Hydraulic Patch Closer
Description

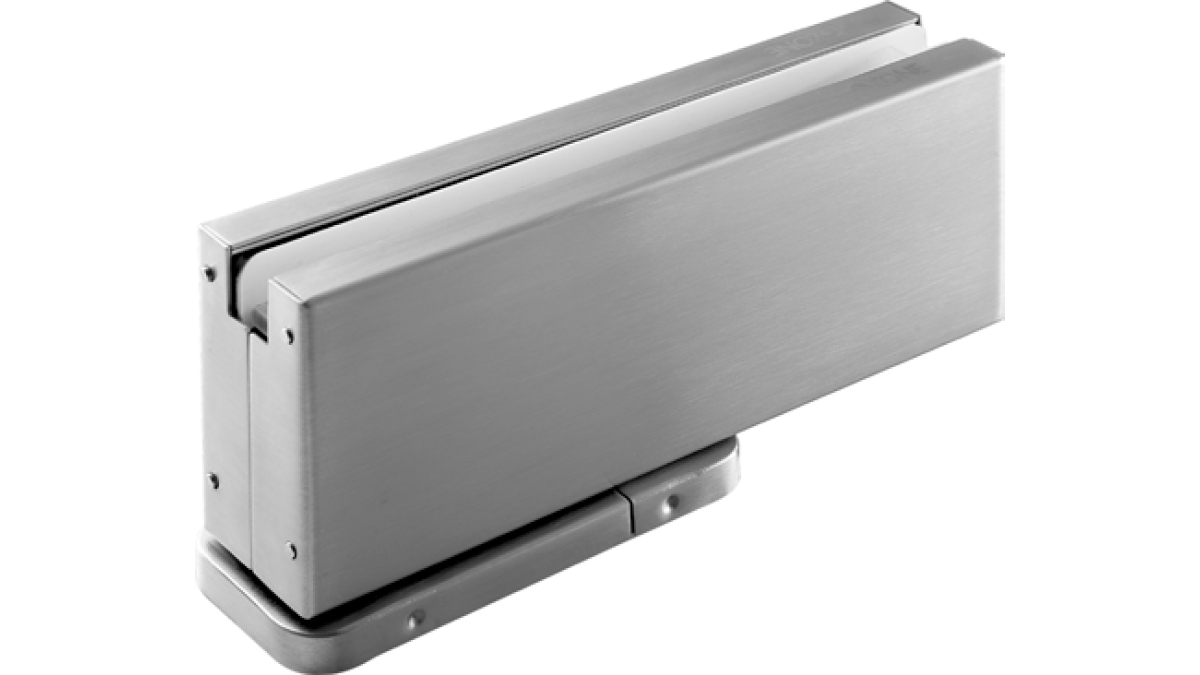

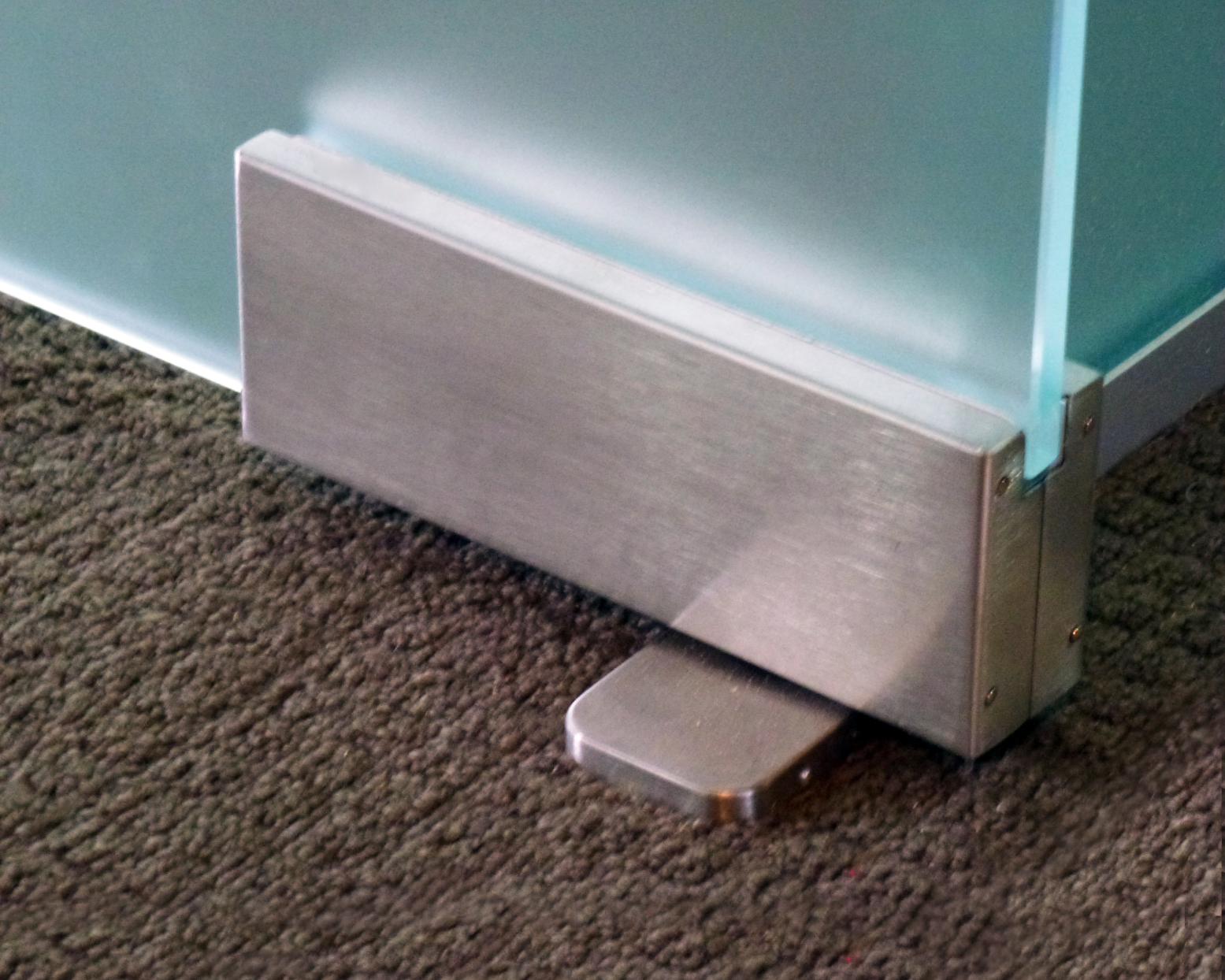

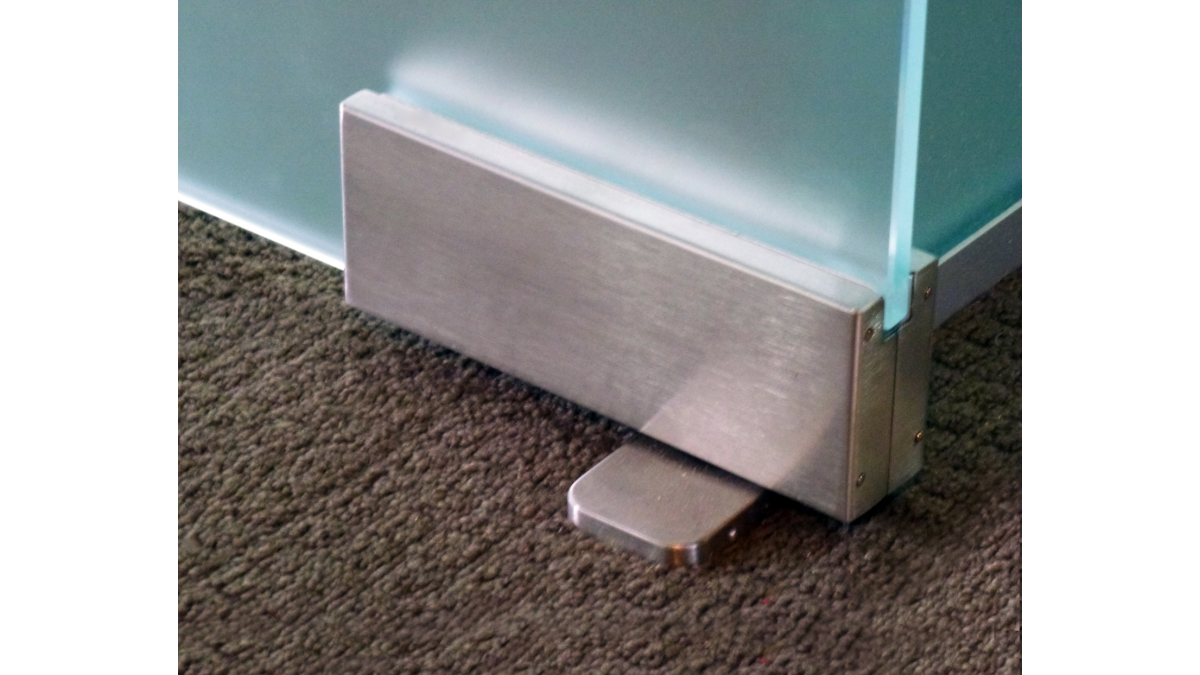

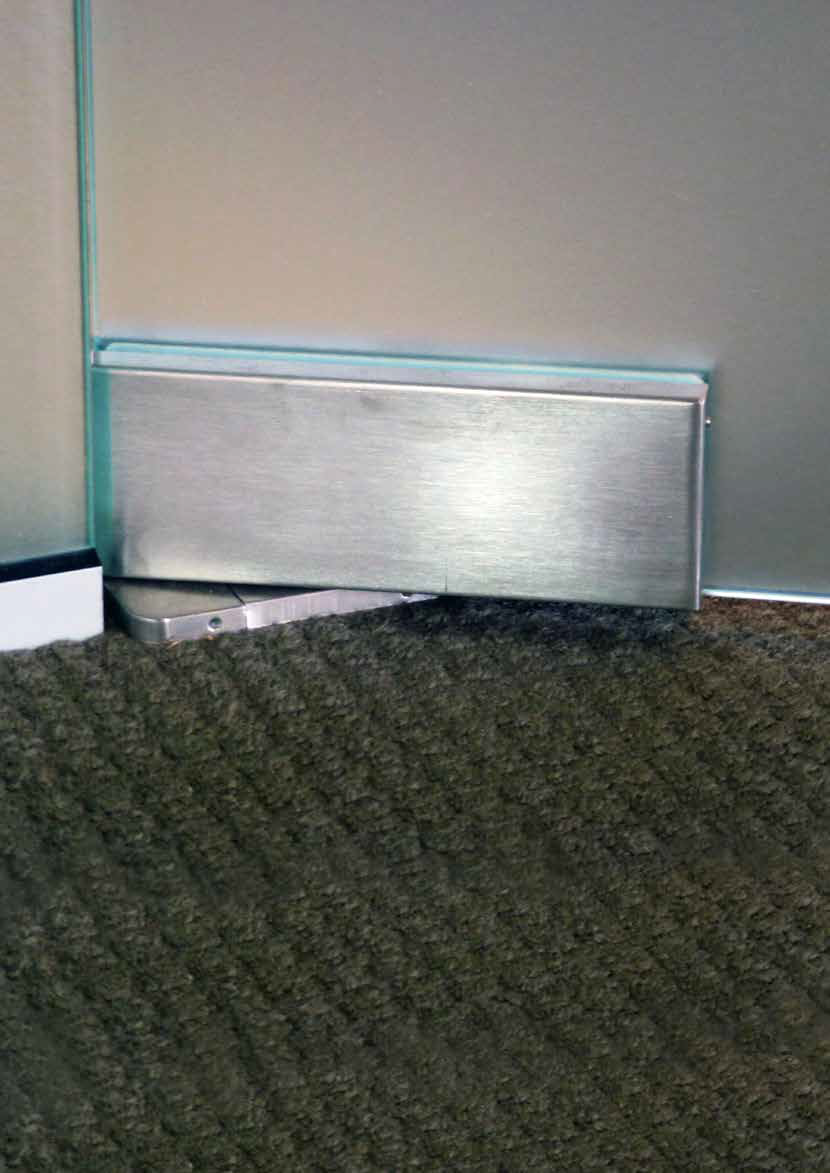

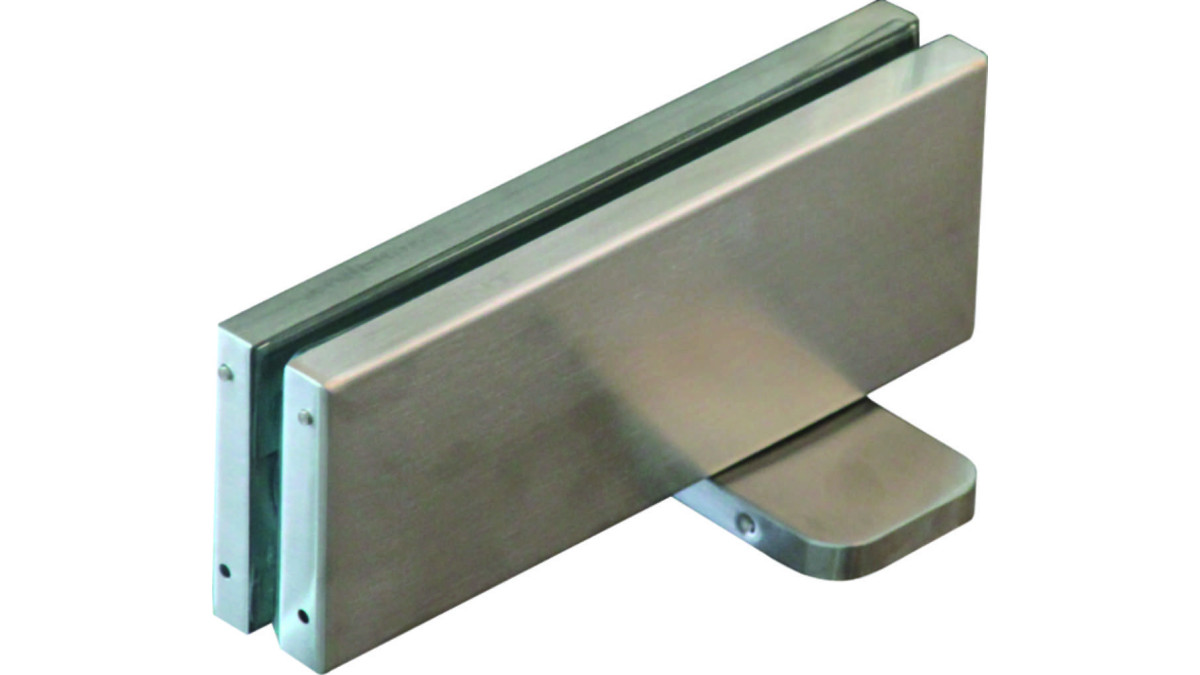

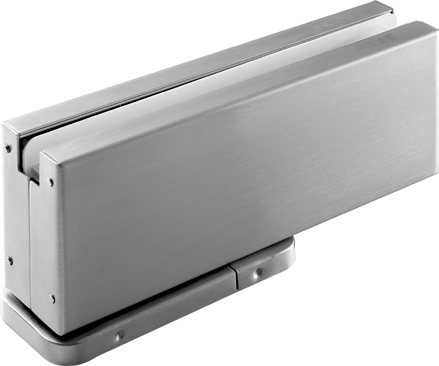

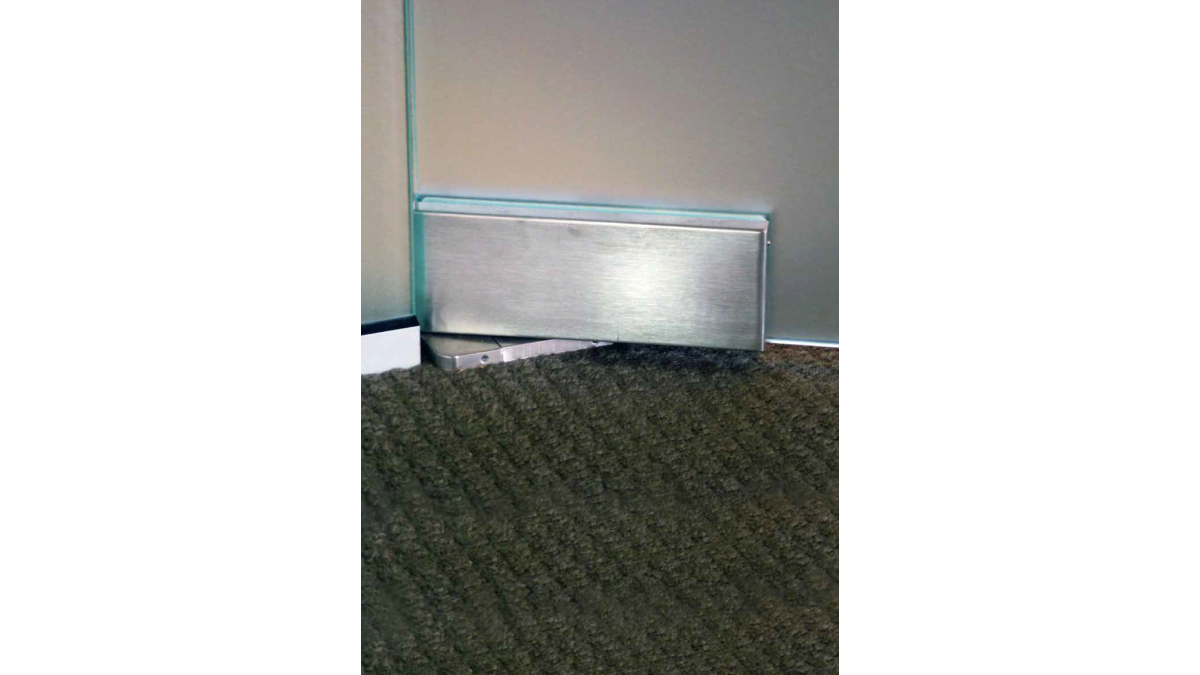

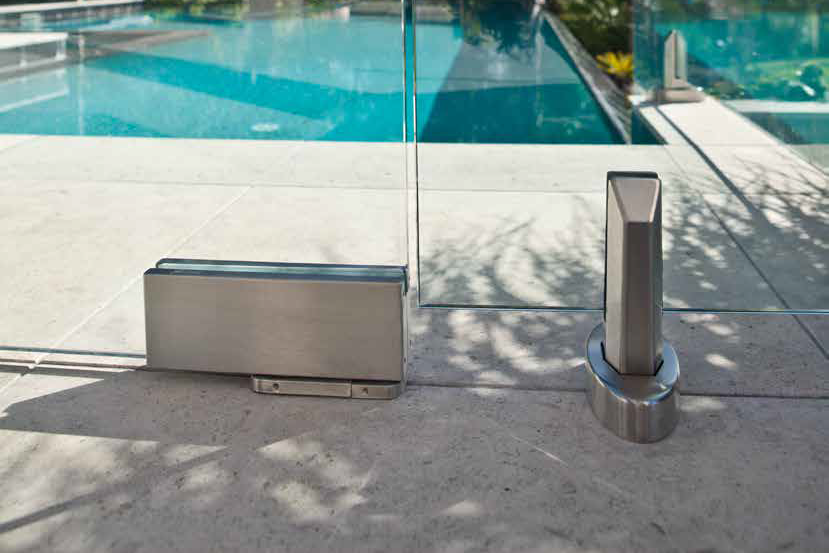

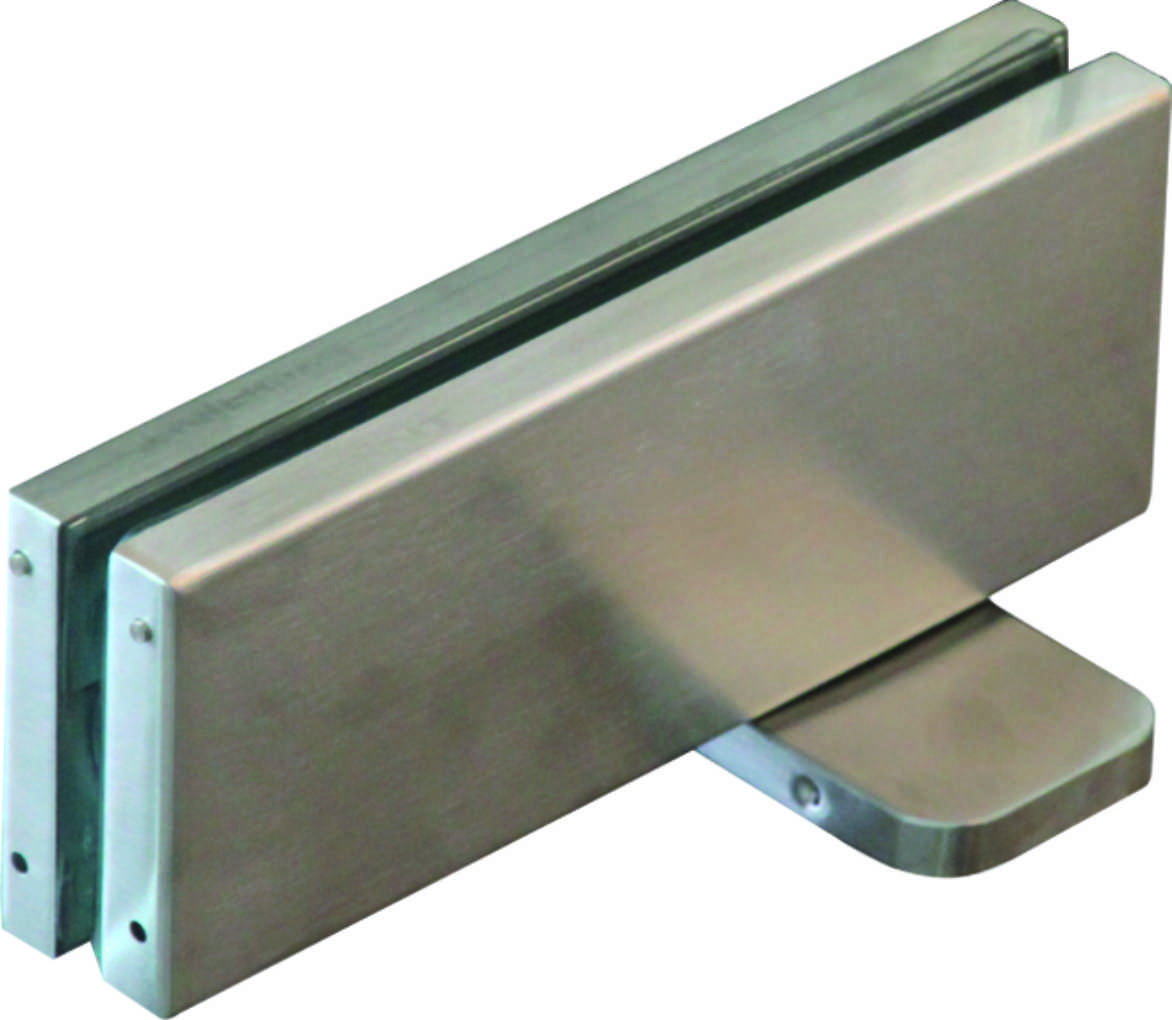

The Moritz Hydraulic Patch Closer is a self closing floor mounted patch fitting for internal and external frameless glass doors.

Key Features
  • Comes Standard in Satin, Polished or Black
  • Comes in Standard EN3 or HD EN5 options
  • Suitable door width:
    • EN3 STD = 750-1000mm (Internal only)
    • EN5 HD = 750-1250mm (Internal 1250mm max) (External 1000mm Max)
  • Suitable door thickness: 10-15mm glass
  • Suitable door weight: Max 100kg
  • Hold Open 90° (Non Hold Open also available)
  • No need to have the pre-set on the floor
  • Easy installation with base seat adjustable ±3mm backward and forward ±3mm left and right and 4° alignment adjustment
  • Double action 150° movement
  • 2 stage speed adjustment
Scope of Use
  • Designed for use in germ and bacteria free environments such as hospitals and restaurants
  • Ensures no dust/water accumulation under the door or below the floorspring plate
  • Extremely useful in places requiring regular floor washing and mopping

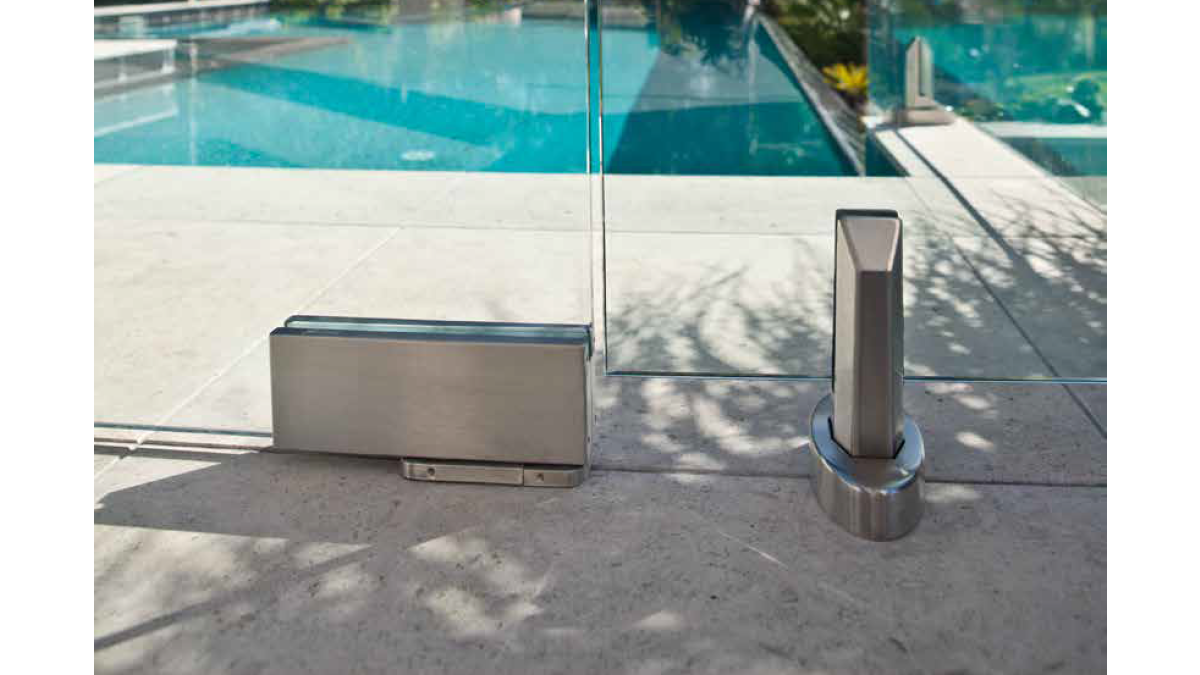

  • EN5 can be used in up to Very High wind zone areas

Installation:

  • Suitable door width:
    • EN3 STD = 750-1000mm (Internal only)
    • EN5 HD = 750-1250mm (Internal 1250mm max) (External 1000mm Max)
  • Suitable door thickness: 10-15mm glass
  • Suitable door weight: Max 100kg
  • No need to have the pre-set on the floor
  • Easy installation with base seat adjustable ±3mm backward and forward ±3mm left and right and 4° alignment adjustment
Limitations on Use
  • Not recommended for use with Maglocks.
Documents
Manual: Moritz Hydraulic Patch

2024

Opus Hardware Warranty & Maintenance Guide

v1 2024
